Transporto priemonė: LPL 813; VIN numerio dalis: 318252

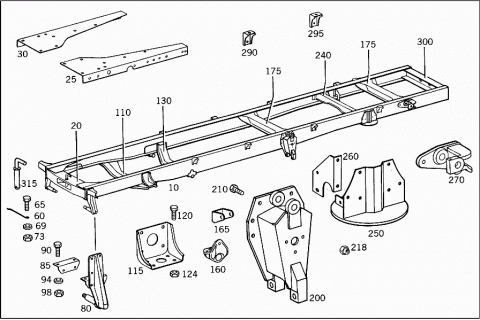

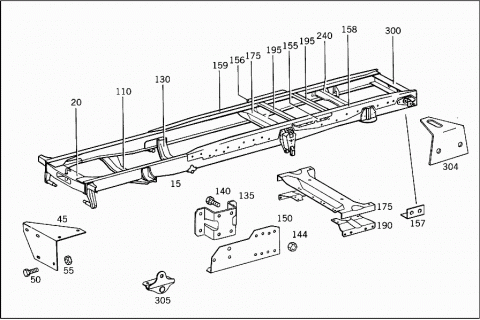

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3183106501 | FRAME |
| 010 | A 3183106601 | FRAME |
| 010 | A 3183106401 | FRAME |
| 010 | A 3183109101 | FRAME |
| 015 | A 3183106701 | FRAME |
| 020 | A 3163120101 | CROSS MEMBER |
| FRONT | ||
| 025 | A 3163120987 | GUSSET PLATE |
| LEFT TOP AND RIGHT BOTTOM | ||
| 025 | A 3163120987 | GUSSET PLATE |
| FRONT LEFT BOTTOM | ||
| 025 | A 3163120987 | GUSSET PLATE |
| LEFT TOP AND RIGHT BOTTOM | ||
| A 3183121087 | GUSSET PLATE | |
| Repalced by: A 3183100071 | ||
| A 3183100071 | GUSSET PLATE | |
| FRONT LEFT TOP | ||
| 030 | A 3163120887 | GUSSET PLATE |
| RIGHT TOP AND LEFT BOTTOM | ||
| 030 | A 3163120887 | GUSSET PLATE |
| FRONT RIGHT BOTTOM | ||
| 030 | A 3163120887 | GUSSET PLATE |
| RIGHT TOP AND LEFT BOTTOM | ||
| A 3183121187 | GUSSET PLATE | |
| Repalced by: A 3183100171 | ||
| A 3183100171 | GUSSET PLATE | |
| FRONT RIGHT TOP | ||
| A 3164290140 | BRACKET | |
| LINE MOUNTING | ||
| A 3145250039 | BRACKET | |
| BUMPER,LEFT | ||
| A 3145250239 | BRACKET | |
| BUMPER,LEFT | ||
| 045 | A 3145250339 | BRACKET |
| BUMPER,RIGHT | ||
| 050 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 055 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 055 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| N 000933010145 | SCREW | |
| CROSS MEMBER AND BRACKET TO SIDE MEMBERS | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| CROSS MEMBER AND BRACKET TO SIDE MEMBERS | ||
| 060 | A 3143150173 | LOCK |
| COUPLING PIN | ||
| 065 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 065 | N 304017008021 | SCREW |
| LOCK TO FRONT CROSS MEMBER | ||
| 069 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 069 | N 000125008443 | WASHER |
| LOCK TO FRONT CROSS MEMBER | ||
| 073 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 073 | N 913004008001 | NUT |
| LOCK TO FRONT CROSS MEMBER | ||
| 080 | A 3183200370 | REAR SUBFRAME |
| FRONT | ||
| 085 | A 3183220140 | BRACKET |
| 090 | N 308676012010 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 094 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 094 | N 007349013005 | WASHER |
| SPRING BRACKET TO SIDE MEMBER | ||
| 098 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 098 | N 910113012003 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 110 | A 3183120305 | ENGINE CROSS MEMBER |
| FRONT | ||
| 115 | A 3183120041 | ANGLE |
| FRONT | ||
| 120 | N 000933010105 | SCREW |
| ANGLE TO ENGINE CROSS MEMBER | ||
| 124 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 124 | N 910113010000 | NUT |
| ANGLE TO ENGINE CROSS MEMBER | ||
| 130 | A 3183120007 | ENGINE CROSS MEMBER |
| REAR | ||
| 135 | A 3523120240 | BRACKET |
| REAR | ||
| 140 | N 000933010105 | SCREW |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 144 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 144 | N 910113010000 | NUT |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 150 | A 3163120260 | REINFORCEMENT |
| LEFT SIDE MEMBER | ||
| 150 | A 3163120360 | REINFORCEMENT |
| RIGHT SIDE MEMBER | ||
| 155 | A 3183110253 | ANGLE |
| LEFT REINFORCEMENT | ||
| 156 | A 3183110353 | ANGLE |
| RIGHT REINFORCEMENT | ||
| 157 | A 3143110053 | ANGLE |
| FRAME TRUSSING TO SIDE MEMBER | ||
| A 3143110153 | ANGLE | |
| FRAME TRUSSING TO LEFT FRAME SIDE MEMBER | ||
| A 3143110253 | ANGLE | |
| FRAME TRUSSING TO RIGHT FRAME SIDE MEMBER | ||
| N 000933010105 | SCREW | |
| ANGLE TO SIDE MEMBER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| ANGLE TO SIDE MEMBER | ||
| 158 | A 3183110260 | REINFORCEMENT |
| LEFT | ||
| 159 | A 3183110360 | REINFORCEMENT |
| RIGHT | ||
| 160 | A 3183220003 | FRONT SPRING BRACKET |
| FRONT SPRING REAR BRACKET | ||
| 165 | A 3163120240 | BRACKET |
| CAB SHOCK ABSORBER | ||
| 165 | A 3163120240 | BRACKET |
| CAB SHOCK ABSORBER | ||
| N 910005012080 | RIVET | |
| CAB SHOCK ABSORBER | ||
| 12X42 MM | ||
| A 3183120017 | CROSS MEMBER | |
| BOTTOM | ||
| 175 | A 3183120217 | CROSS MEMBER |
| NO.4 | ||
| 175 | A 3183120217 | CROSS MEMBER |
| NO.6 | ||
| 175 | A 3183120217 | CROSS MEMBER |
| NO.5 | ||
| 175 | A 3183120217 | CROSS MEMBER |
| NO.7 | ||
| 190 | A 3143120652 | ANGLE |
| ANGLE TO CROSS AND SIDE MEMBERS | ||
| 195 | A 3183170140 | BRACKET |
| AT SIDE MEMBER | ||
| N 000961012151 | SCREW | |
| BRACKET TO FRAME SIDE MEMBER | ||
| M 12X30 | ||
| N 910113012002 | NUT | |
| BRACKET TO FRAME SIDE MEMBER | ||
| 200 | A 3183200478 | CONSOLE |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 210 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 210 | N 308676014020 | SCREW |
| CONSOLE TO FRAME SIDE MEMBER | ||
| M 14X35 | ||
| N 000961014100 | SCREW | |
| CONSOLE TO FRAME | ||
| M 14X30 | ||
| N 000933010145 | SCREW | |
| CONSOLE TO FRAME | ||
| M 10X35 | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| CONSOLE TO FRAME | ||
| 218 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 218 | N 910113014001 | NUT |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 240 | A 3143100440 | CROSS MEMBER |
| Repalced by: A 3183100140 | ||
| 240 | A 3183100140 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| NO.5 | ||
| 240 | A 3183100140 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| NO.6 | ||
| 250 | A 3183200135 | PLATE |
| AIR-SPRING-BELLOWS SUPPORT | ||
| 260 | A 3183280140 | BRACKET |
| LEFT | ||
| A 3183280240 | BRACKET | |
| RIGHT | ||
| N 000933010105 | SCREW | |
| PLATE AND BRACKET TO FRAME SIDE MEMBER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| PLATE AND BRACKET TO FRAME SIDE MEMBER | ||
| 270 | A 3183250003 | REAR SPRING BRACKET |
| LEFT | ||
| A 3183250004 | REAR SPRING BRACKET | |
| RIGHT | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 290 | A 3143133325 | CONSOLE |
| BODY MOUNTING | ||
| 290 | A 3143133325 | CONSOLE |
| BODY MOUNTING | ||
| 290 | A 3143133325 | CONSOLE |
| BODY MOUNTING | ||
| A 3183171401 | CONSOLE | |
| Repalced by: A 3183171501 | ||
| 295 | A 3183171501 | CONSOLE |
| Repalced by: A 3183171601 | ||
| 295 | A 3183171601 | CONSOLE |
| BODY MOUNTING | ||
| 300 | A 3143120935 | CROSS MEMBER |
| REAR | ||
| 300 | A 3143120935 | CROSS MEMBER |
| REAR | ||
| N 000933010105 | SCREW | |
| REAR CROSS MEMBER TO FRAME | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| REAR CROSS MEMBER TO FRAME | ||
| A 3183120065 | STRUT | |
| STRUTTING TO REAR CROSS MEMBER | ||
| 304 | A 3183120641 | ANGLE |
| REAR CROSS MEMBER | ||
| N 000933010105 | SCREW | |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000609010004 | FITTED SCREW | |
| M 10X11X14X28 | ||
| N 000610010003 | FITTED SCREW | |
| M 10X11X25X38 | ||
| N 000609010014 | FITTED SCREW | |
| M 10X11X24X40 | ||
| A 3859900514 | SCREW | |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900714 | SCREW | |
| M 12X12X10X25 | ||
| A 3859901414 | SCREW | |
| M 12X12X11X26 | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| M 12X12X12X28 | ||
| A 3859901514 | SCREW | |
| M 12X12X13X28 | ||
| A 0029908201 | SCREW | |
| M 12X12X14X30 | ||
| A 3859902114 | SCREW | |
| M 12X12X15X30 | ||
| A 0029908301 | SCREW | |
| Repalced by: N 308676012013 | ||
| N 308676012013 | SCREW | |
| M 12X12X16X32 | ||
| A 3859902214 | SCREW | |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 6209900114 | SCREW | |
| M 12X13X12X29 | ||
| A 3969900314 | SCREW | |
| M 12X13X13X30 | ||
| A 3589901914 | SCREW | |
| M 12X13X15X32 | ||
| A 3559900014 | SCREW | |
| M 12X13X18X35 | ||
| A 3589900614 | SCREW | |
| M 12X13X21X38 | ||
| A 6179900114 | SCREW | |
| M 12X13X23X40 | ||
| A 6249900014 | SCREW | |
| M 12X13X25X42 | ||
| A 3859900214 | SCREW | |
| M 12X13X35X52 | ||
| A 6689900114 | SCREW | |
| M 12X13X58X80 | ||
| A 6689900014 | SCREW | |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900814 | SCREW | |
| Repalced by: A 3229903101 | ||
| A 3229903101 | SCREW | |
| M 14X14X18X32 | ||
| A 3859902014 | SCREW | |
| M 14X14X18X34 | ||
| A 3559900114 | SCREW | |
| M 12X14X13X35 | ||
| A 3219901601 | SCREW | |
| M 14X14X17X35 | ||
| A 3219901901 | SCREW | |
| M 14X14X22X40 | ||
| A 3559900501 | SCREW | |
| M 14X14X24X42 | ||
| A 3409900201 | SCREW | |
| M 14X14X27X45 | ||
| A 3609902001 | SCREW | |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900114 | SCREW | |
| M 14X15X15X32 | ||
| A 3589900814 | SCREW | |
| M 14X15X17X34 | ||
| A 6459900014 | SCREW | |
| M 14X15X18X35 | ||
| A 3589901014 | SCREW | |
| M 14X15X19X36 | ||
| A 3589900214 | SCREW | |
| M 14X15X21X38 | ||
| A 3589900414 | SCREW | |
| M 14X15X25X42 | ||
| A 3589900714 | SCREW | |
| M 14X15X27X44 | ||
| A 3589900914 | SCREW | |
| M 14X15X29X46 | ||
| A 3859900414 | SCREW | |
| M 14X15X31X48 | ||
| A 3859900314 | SCREW | |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900914 | SCREW | |
| Repalced by: N 308676016020 | ||
| N 308676016020 | SCREW | |
| M 16X16X18X36 | ||
| A 3859901714 | SCREW | |
| M 16X16X20X38 | ||
| A 3859901014 | SCREW | |
| M 16X16X22X40 | ||
| A 3859901114 | SCREW | |
| M 16X16X24X42 | ||
| A 0029909901 | SCREW | |
| Repalced by: A 3959900501 | ||
| A 3959900501 | SCREW | |
| M 16X16X20X45 | ||
| A 3859901814 | SCREW | |
| M 16X16X30X48 | ||
| A 3859901914 | SCREW | |
| M 16X16X32X50 | ||
| A 6259900301 | SCREW | |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900514 | SCREW | |
| M 16X17X22X42 | ||
| A 6459900714 | SCREW | |
| M 16X17X24X44 | ||
| A 3609900114 | SCREW | |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3469900014 | SCREW | |
| M 16X18X18X40 | ||
| A 3859902314 | SCREW | |
| M 18X18X23X45 | ||
| A 6209900014 | SCREW | |
| M 16X18X26X48 | ||
| A 3469900114 | SCREW | |
| M 16X18X31X50 | ||
| A 3859902414 | SCREW | |
| M 18X18X33X55 | ||
| A 6229900014 | SCREW | |
| M 16X18X38X60 | ||
| A 3919900014 | SCREW | |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000610018004 | FITTED SCREW | |
| M 18X19X25X45 | ||
| N 000610018009 | FITTED SCREW | |
| M 18X19X33X55 | ||
| N 000610018006 | FITTED SCREW | |
| M 18X19X38X60 | ||
| N 000609018000 | FITTED SCREW | |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 913004010011 | NUT | |
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| N 913004018004 | NUT | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 910005010082 | RIVET | |
| 10X22 MM | ||
| N 910005010012 | RIVET | |
| 10X24 MM | ||
| N 910005010014 | RIVET | |
| 10X26 MM | ||
| N 910005010020 | RIVET | |
| 10X32 MM | ||
| N 910005010022 | RIVET | |
| 10X34 MM | ||
| N 910005012012 | RIVET | |
| 12X26 MM | ||
| N 910005012073 | RIVET | |
| 12X28 MM | ||
| N 910005012080 | RIVET | |
| 12X42 MM | ||
| N 910005014056 | RIVET | |
| 14X45 MM | ||
| N 910005014059 | RIVET | |
| 14X50 MM | ||
| N 000933010105 | SCREW | |
| REAR SPRING BRACKET | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| REAR SPRING BRACKET | ||

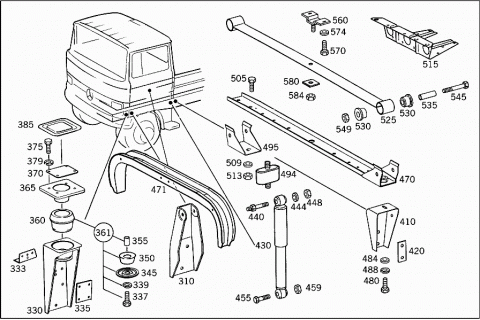

| 305 | A 3183201278 | CONSOLE |
| Repalced by: A 3183201978 | ||
| 305 | A 3183201978 | CONSOLE |
| TORSION BAR | ||
| N 910005010026 | RIVET | |
| CONSOLE TO SIDE MEMBER | ||
| 10X38 MM | ||
| N 910005010020 | RIVET | |
| CONSOLE TO SIDE MEMBER | ||
| 10X32 MM | ||
| N 910005010016 | RIVET | |
| CONSOLE TO SIDE MEMBER | ||
| 10X28 MM | ||
| 310 | A 3143232663 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| 310 | A 3143232663 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| N 910005010016 | RIVET | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 10X28 MM | ||
| N 910005010012 | RIVET | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 10X24 MM | ||
| 315 | A 3143150406 | COUPLING PIN |
| FRONT | ||
| 330 | A 3143101463 | CONSOLE |
| CAB SUSPENSION | ||
| 333 | A 3143110140 | BRACKET |
| CAB SUSPENSION | ||
| 335 | A 3143170028 | REINFORCEMENT |
| CAB SUSPENSION | ||
| 337 | N 000961012079 | SCREW |
| Repalced by: N 308676012032 | ||
| 337 | N 308676012032 | SCREW |
| CAB TO FRONT CONSOLE | ||
| N 000912014195 | SCREW | |
| CAB TO FRONT CONSOLE | ||
| 339 | N 912004012100 | LOCK WASHER |
| CAB TO FRONT CONSOLE | ||
| 339 | N 912006014001 | LOCK WASHER |
| CAB TO FRONT CONSOLE | ||
| 345 | A 1203330567 | RETAINER |
| CAB MOUNTING,FRONT | ||
| 350 | A 1203331965 | RUBBER BUFFER |
| CAB MOUNTING,FRONT | ||
| 355 | A 3183170153 | SPACER TUBE |
| CAB MOUNTING,FRONT | ||
| 360 | A 1803330165 | RUBBER BUFFER |
| CAB MOUNTING,FRONT | ||
| 361 | A 3185860031 | REPAIR KIT |
| CAB MOUNTING,FRONT | ||
| 365 | A 3148910020 | MOUNTING |
| Repalced by: A 3148910220 | ||
| 365 | A 3148910220 | MOUNTING |
| CAB TO FRONT CONSOLE | ||
| 370 | A 3146110011 | PLATE |
| CAB TO FRONT CONSOLE | ||
| 375 | N 000933008148 | SCREW |
| Repalced by: N 304017008023 | ||
| 375 | N 304017008023 | SCREW |
| CAB TO FRONT CONSOLE | ||
| 379 | N 912004008102 | LOCK WASHER |
| CAB TO FRONT CONSOLE | ||
| 385 | A 3146110111 | PLATE |
| CAB TO CONSOLE | ||
| 410 | A 3183170001 | CONSOLE |
| LEFT | ||
| 410 | A 3183170001 | CONSOLE |
| LEFT | ||
| 410 | A 3183170101 | CONSOLE |
| RIGHT | ||
| 410 | A 3183170101 | CONSOLE |
| RIGHT | ||
| 420 | A 3183170084 | SHIM |
| CONSOLE TO FRAME | ||
| 420 | A 3183170084 | SHIM |
| CONSOLE TO FRAME | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| CONSOLE TO FRAME | ||
| N 304017010002 | SCREW | |
| CONSOLE TO FRAME | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| CONSOLE TO FRAME | ||
| N 910113010000 | NUT | |
| CONSOLE TO FRAME | ||
| N 910005010016 | RIVET | |
| CONSOLE TO FRAME | ||
| 10X28 MM | ||
| 430 | A 0008910805 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 430 | A 0008910805 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 430 | A 0008910205 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 430 | A 0008910205 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| A 0003232644 | RUBBER BUFFER | |
| Repalced by: A 0003234385 | ||
| A 0003234385 | RUBBER MOUNTING | |
| TO 000 891 02 05 | ||
| A 0003234385 | RUBBER MOUNTING | |
| TO 000 891 02 05 | ||
| A 0008910001 | RUBBER MOUNTING | |
| TO 000 891 08 05 | ||
| A 0008910001 | RUBBER MOUNTING | |
| TO 000 891 08 05 | ||
| A 0002410150 | BUSHING | |
| TO 000 891 02 05 | ||
| A 0002410150 | BUSHING | |
| TO 000 891 02 05 | ||
| A 0008910017 | BUSHING | |
| TO 000 891 08 05 | ||
| A 0008910017 | BUSHING | |
| TO 000 891 08 05 | ||
| 440 | A 3163170074 | PIN |
| SHOCK ABSORBER TO CAB | ||
| A 3163170074 | PIN | |
| Repalced by: N 000960012224 | ||
| N 000960012224 | SCREW | |
| Repalced by: N 000961012208 | ||
| N 000961012208 | SCREW | |
| SHOCK ABSORBER TO CAB | ||
| 444 | A 3163170176 | WASHER |
| Repalced by: A 6739901040 | ||
| 444 | A 6739901040 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 444 | A 6739901040 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 448 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 448 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CAB | ||
| N 007349013003 | WASHER | |
| Repalced by: N 007349013005 | ||
| N 007349013005 | WASHER | |
| SHOCK ABSORBER TO CAB | ||
| A 3143170052 | SPACER WASHER | |
| SHOCK ABSORBER TO CAB | ||
| 455 | N 000960012197 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 455 | N 000960012197 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 459 | N 910113012002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 459 | N 910113012002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 470 | A 3183100137 | CROSS MEMBER |
| CAB SUSPENSION | ||
| 470 | A 3183100137 | CROSS MEMBER |
| CAB SUSPENSION | ||
| 471 | A 3143120433 | CROSS MEMBER |
| CAB MOUNTING | ||
| A 3163120333 | CROSS MEMBER | |
| CAB MOUNTING | ||
| 480 | N 000933010105 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| 480 | N 000933010105 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| 484 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 484 | N 000125010532 | WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 484 | N 000125010532 | WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 488 | N 912004010102 | LOCK WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 488 | N 912004010102 | LOCK WASHER |
| CROSS MEMBER TO CONSOLE | ||
| N 000933010105 | SCREW | |
| CROSS MEMBER TO FRAME | ||
| N 000933010105 | SCREW | |
| CROSS MEMBER TO CONSOLE | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| CROSS MEMBER TO FRAME | ||
| N 910113010000 | NUT | |
| CROSS MEMBER TO CONSOLE | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| CROSS MEMBER TO CONSOLE | ||
| 494 | A 3148900001 | MOUNTING |
| CAB,REAR | ||
| N 913002012004 | NUT | |
| CAB TO CROSS MEMBER | ||
| N 000125013008 | WASHER | |
| N 009021013200 | WASHER | |
| CAB TO CROSS MEMBER | ||
| A 3859900640 | WASHER | |
| CAB TO CROSS MEMBER | ||
| 495 | A 3183120040 | BRACKET |
| CAB SUSPENSION | ||
| 495 | A 3183120040 | BRACKET |
| CAB SUSPENSION | ||
| 495 | A 3183120040 | BRACKET |
| CAB SUSPENSION | ||
| 495 | A 3183120040 | BRACKET |
| CAB SUSPENSION | ||
| A 3520100740 | BRACKET | |
| CAB SUSPENSION | ||
| 505 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 505 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 509 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 509 | N 000125010532 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 509 | N 000125010532 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 513 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 513 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 513 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 515 | A 3184320016 | SUPPORT |
| CAB,REAR | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| SUPPORT TO CAB CROSS MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| SUPPORT TO CAB CROSS MEMBER | ||
| 525 | A 3163170085 | SPRING LEAF |
| CAB,REAR | ||
| 525 | A 3163170085 | SPRING LEAF |
| CAB,REAR | ||
| 530 | A 3358910672 | MOUNTING |
| SPRING LEAF TO CROSS MEMBER | ||
| 530 | A 3358910672 | MOUNTING |
| SPRING LEAF TO CROSS MEMBER | ||
| 535 | A 3183170053 | SPACER TUBE |
| SPRING LEAF TO CROSS MEMBER | ||
| 535 | A 3183170053 | SPACER TUBE |
| SPRING LEAF TO CROSS MEMBER | ||
| 545 | N 000960012264 | SCREW |
| Repalced by: N 308765012003 | ||
| 545 | N 308765012003 | SCREW |
| SPRING LEAF TO CROSS MEMBER | ||
| 545 | N 308765012003 | SCREW |
| SPRING LEAF TO CROSS MEMBER | ||
| 549 | N 910113012002 | NUT |
| SPRING LEAF TO CROSS MEMBER | ||
| 560 | A 3163100209 | BRACKET |
| SPRING TO CAB | ||
| 560 | A 3163100209 | BRACKET |
| SPRING TO CAB | ||
| 570 | N 000933010105 | SCREW |
| BRACKET TO CAB | ||
| 570 | N 000933010105 | SCREW |
| BRACKET TO CAB | ||
| 574 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 574 | N 000125010532 | WASHER |
| BRACKET TO CAB | ||
| 574 | N 000125010532 | WASHER |
| BRACKET TO CAB | ||
| 580 | A 3163170084 | SHIM |
| LEAF SPRING TO CAB | ||
| 580 | A 3163170084 | SHIM |
| LEAF SPRING TO CAB | ||
| 584 | N 910113012002 | NUT |
| LEAF SPRING TO CAB | ||
| 584 | N 910113012002 | NUT |
| LEAF SPRING TO CAB | ||
| N 910005010014 | RIVET | |
| 10X26 MM | ||
| N 910005010016 | RIVET | |
| 10X28 MM | ||
| N 910005010018 | RIVET | |
| 10X30 MM | ||
| N 910005010020 | RIVET | |
| 10X32 MM | ||
| N 910005010026 | RIVET | |
| 10X38 MM | ||
| N 910005010026 | RIVET | |
| 10X38 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
