Transporto priemonė: LPL 813; VIN numerio dalis: 318252

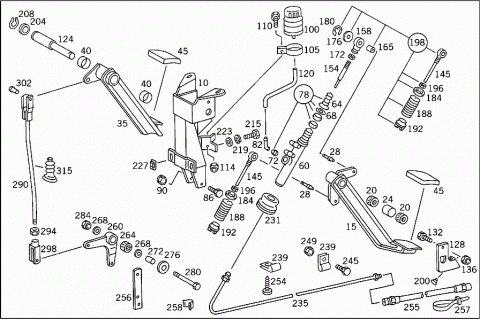

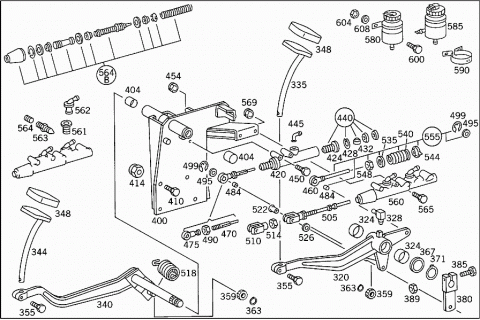

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3182900233 | BRACKET |
| PEDAL ASSEMBLY | ||
| 015 | A 3182900516 | PEDAL |
| CLUTCH | ||
| 020 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 020 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 020 | A 0119813410 | NEEDLE BEARING |
| 024 | A 3182910153 | SPACER TUBE |
| 028 | A 3182910274 | PIN |
| 035 | A 3182900318 | PEDAL |
| BRAKE | ||
| 040 | A 3142920050 | BUSHING |
| 045 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 045 | A 1072910182 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 060 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 060 | A 0012958706 | MASTER CYLINDER |
| CLUTCH | ||
| 064 | A 0002951583 | BOOT |
| 068 | N 000472019000 | LOCK RING |
| A 0009974235 | PLUG | |
| Repalced by: A 0009971186 | ||
| 072 | A 0009971186 | PLUG |
| 078 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 078 | A 0005865229 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 77 06 | ||
| A 0002903112 | REPAIR KIT | |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 87 06 | ||
| 082 | A 3092950036 | INTERMEDIATE PIECE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| N 009045028001 | SNAP RING | |
| CLUTCH MASTER CYLINDER | ||
| 086 | N 000931006191 | SCREW |
| MASTER CYLINDER TO CONSOLE | ||
| 090 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 090 | N 913004006001 | NUT |
| MASTER CYLINDER TO CONSOLE | ||
| 100 | A 0002952015 | RESERVOIR |
| Repalced by: A 1152900115 | ||
| 100 | A 1152900115 | RESERVOIR |
| LESS WARNING DEVICE | ||
| A 0004310034 | STRAINER | |
| Repalced by: A 0004313734 | ||
| A 0004313734 | STRAINER | |
| Repalced by: A 0004314334 | ||
| A 0004314334 | STRAINER | |
| A 0004313533 | FILLER CAP | |
| Repalced by: A 0004315433 | ||
| A 0004315433 | FILLER CAP | |
| BUTTRESS THREAD | ||
| A 0009972940 | SEAL RING | |
| 43.7X30 MM | ||
| 105 | A 3189950235 | CLAMP |
| RESERVOIR TO BRACKET | ||
| 110 | N 000933006102 | SCREW |
| RESERVOIR TO BRACKET | ||
| 114 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 114 | N 913004006001 | NUT |
| RESERVOIR TO BRACKET | ||
| 120 | A 0099973882 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 124 | A 3182940105 | SHAFT |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 128 | A 3182910440 | BRACKET |
| PEDALS TO CONSOLE | ||
| 132 | N 000933006102 | SCREW |
| CLUTCH PEDAL TO CONSOLE | ||
| 136 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 136 | N 913004006001 | NUT |
| CLUTCH PEDAL TO CONSOLE | ||
| 145 | A 3812910333 | ROD |
| OVER-CENTER ACTING SPRING | ||
| 145 | A 3812910233 | ROD |
| OVER-CENTER ACTING SPRING | ||
| 154 | A 3182950133 | ROD |
| FROM LEVER TO BRAKE MASTER CYLINDER | ||
| 158 | A 0009961045 | ARTICULATION PIECE |
| ROD TO CLUTCH PEDAL | ||
| 158 | A 0009961145 | ARTICULATION PIECE |
| ROD TO CLUTCH PEDAL | ||
| 165 | A 0059813810 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 165 | A 0059814410 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 165 | A 0089811210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 165 | A 0139818210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 172 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 172 | N 304035008001 | NUT |
| ROD TO PEDAL | ||
| 176 | N 000433008406 | WASHER |
| ROD TO PEDAL | ||
| 180 | N 006799007007 | LOCK PLATE |
| ROD TO PEDAL | ||
| 184 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 188 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 192 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 196 | N 000936010010 | NUT |
| SPRING TO PUSH ROD | ||
| 198 | A 3142900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 200 | A 1152910186 | STOP |
| 204 | N 000988028007 | FITTED WASHER |
| BRAKE PEDAL TO SHAFT | ||
| 208 | N 000471028001 | LOCK RING |
| BRAKE PEDAL TO SHAFT | ||
| 215 | N 000933010128 | SCREW |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 219 | N 912004010102 | LOCK WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 223 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 223 | N 000125010532 | WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 227 | A 1239900591 | NUT RETAINER |
| Repalced by: A 1239901291 | ||
| 227 | A 1239901291 | NUT RETAINER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 231 | A 3182950283 | BOOT |
| Repalced by: A 3182950483 | ||
| 231 | A 3182950483 | BOOT |
| MASTER CYLINDER THRU CAB FLOOR | ||
| 235 | A 3182900113 | LINE |
| Repalced by: A 3404202629 | ||
| 235 | A 3404202629 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| A 3404204129 | LINE | |
| SLAVE CYLINDER | ||
| A 3404202329 | LINE | |
| FROM CLUTCH MASTER CYLINDER TO CONNECTOR | ||
| A 0004292736 | CONNECTOR | |
| CLUTCH LINE | ||
| A 3404203129 | LINE | |
| FROM CONNECTOR TO CLUTCH SLAVE CYLINDER | ||
| 239 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 239 | N 916016008200 | CLAMP |
| LINES TO FRAME | ||
| 239 | N 916016008200 | CLAMP |
| LINES TO FRAME | ||
| 245 | N 000933006102 | SCREW |
| LINES TO FRAME | ||
| 245 | N 000933006102 | SCREW |
| LINES TO FRAME | ||
| 249 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 249 | N 913004006001 | NUT |
| LINES TO FRAME | ||
| 249 | N 913004006001 | NUT |
| LINES TO FRAME | ||
| 254 | N 007981004336 | SHEET METAL SCREW |
| LINES TO FRAME | ||
| 255 | A 3092950035 | HOSE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 256 | A 3182930840 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 257 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 258 | A 3182950073 | LOCK |
| PIPE LINE TO SIDE MEMBER | ||
| N 000433017004 | WASHER | |
| PIPE LINE TO SIDE MEMBER | ||
| 260 | A 3182900027 | LEVER |
| BRAKE | ||
| 264 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 264 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 264 | A 0119813410 | NEEDLE BEARING |
| 268 | A 0089978046 | SEAL RING |
| Repalced by: A 0069979147 | ||
| 268 | A 0069979147 | SEAL RING |
| REVERSING LEVER TO CAB | ||
| A 3182920050 | BUSHING | |
| Repalced by: A 3182920250 | ||
| 272 | A 3182920250 | BUSHING |
| REVERSING LEVER TO CAB | ||
| A 3182920153 | SPACER TUBE | |
| REVERSING LEVER TO CAB | ||
| A 1989900740 | WASHER | |
| Repalced by: A 3193260076 | ||
| 276 | A 3193260076 | WASHER |
| REVERSING LEVER TO CAB | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| REVERSING LEVER TO CAB | ||
| 280 | N 000960014212 | SCREW |
| Repalced by: N 000960014269 | ||
| 280 | N 000960014263 | SCREW |
| REVERSING LEVER TO CAB | ||
| M 14X120 | ||
| N 000931010379 | SCREW | |
| REVERSING LEVER TO CAB | ||
| 284 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 284 | N 910113014001 | NUT |
| REVERSING LEVER TO CAB | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| REVERSING LEVER TO CAB | ||
| 290 | A 3184200374 | ROD |
| BRAKE PEDAL | ||
| 294 | N 000934010014 | NUT |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| 298 | N 071752010009 | YOKE |
| Repalced by: A 0009961501 | ||
| 298 | A 0009961501 | YOKE |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| 302 | A 3529910007 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| A 3182920097 | BOOT | |
| PULL ROD THRU CAB FLOOR | ||
| 315 | A 3182920297 | BOOT |
| PULL ROD THRU CAB FLOOR | ||
| 320 | A 3182900616 | PEDAL |
| CLUTCH | ||
| 324 | A 3142910150 | BUSHING |
| 328 | N 071412010300 | GREASE NIPPLE |
| 335 | A 3182900024 | PEDAL PLATE |
| Repalced by: A 3162900024 | ||
| 335 | A 3162900024 | PEDAL PLATE |
| CLUTCH | ||
| 340 | A 3182900818 | PEDAL |
| BRAKE | ||
| 344 | A 3162900024 | PEDAL PLATE |
| BRAKE | ||
| 348 | A 3202925082 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 355 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 359 | A 3812910186 | STOP |
| A 1152910186 | STOP | |
| 363 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 363 | A 0079942041 | LOCK |
| 367 | N 000988035004 | FITTED WASHER |
| PEDAL TO BEARING TUBE | ||
| 371 | N 000471034001 | LOCK RING |
| PEDAL TO BEARING TUBE | ||
| 380 | A 3182900227 | LEVER |
| BRAKE | ||
| 385 | N 000931008244 | SCREW |
| LEVER AND BRAKE PEDAL TO CONSOLE | ||
| 389 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 389 | N 913004008001 | NUT |
| LEVER AND BRAKE PEDAL TO CONSOLE | ||
| 400 | A 3182900019 | BEARING BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 404 | A 3144270350 | BUSHING |
| 410 | N 000933010145 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 414 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 414 | N 910113010000 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 420 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 420 | A 0012958706 | MASTER CYLINDER |
| CLUTCH | ||
| 424 | A 0002951583 | BOOT |
| 428 | N 000472019000 | LOCK RING |
| A 0009974235 | PLUG | |
| Repalced by: A 0009971186 | ||
| 432 | A 0009971186 | PLUG |
| 440 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 440 | A 0005865229 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 77 06 | ||
| A 0002903112 | REPAIR KIT | |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 87 06 | ||
| 445 | A 3092950036 | INTERMEDIATE PIECE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| N 009045028001 | SNAP RING | |
| CLUTCH MASTER CYLINDER | ||
| N 900288015000 | CLAMP | |
| MASTER CYLINDER TO CONSOLE | ||
| 450 | N 000931006134 | SCREW |
| MASTER CYLINDER TO CONSOLE | ||
| 454 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 454 | N 913004006001 | NUT |
| MASTER CYLINDER TO CONSOLE | ||
| 460 | A 3812910333 | ROD |
| OVER-CENTER ACTING SPRING | ||
| 460 | A 3812910233 | ROD |
| OVER-CENTER ACTING SPRING | ||
| 470 | A 3812950033 | ROD |
| PISTON ROD AND PUSH ROD | ||
| A 3182950383 | BOOT | |
| PISTON ROD AND PUSH ROD | ||
| 475 | A 0009961045 | ARTICULATION PIECE |
| ROD TO CLUTCH PEDAL | ||
| 475 | A 0009961145 | ARTICULATION PIECE |
| ROD TO CLUTCH PEDAL | ||
| 484 | A 0059813810 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 484 | A 0059814410 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 484 | A 0089811210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 484 | A 0139818210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 490 | N 000439008216 | NUT |
| CLUTCH MASTER CYLINDER | ||
| 495 | N 000433008406 | WASHER |
| ROD TO CLUTCH PEDAL | ||
| 499 | N 006799007007 | LOCK PLATE |
| ROD TO CLUTCH PEDAL | ||
| 505 | A 3182901739 | ROD |
| CLUTCH PEDAL PISTON ROD | ||
| 510 | N 071752010004 | YOKE |
| Repalced by: A 0009961401 | ||
| 510 | A 0009961401 | YOKE |
| 514 | N 000934010014 | NUT |
| A 3182960083 | PROTECTIVE CAP | |
| CLUTCH PEDAL PISTON ROD | ||
| 518 | A 3859930010 | SPRING |
| SPRING TO CLUTCH PEDAL | ||
| 522 | A 3529910007 | PIN |
| ROD TO LEVER | ||
| 526 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 526 | N 000433010510 | WASHER |
| ROD TO LEVER | ||
| N 000094003219 | COTTER PIN | |
| ROD TO LEVER | ||
| 535 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 540 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 544 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 548 | N 000439010211 | NUT |
| SPRING TO PUSH ROD | ||
| 555 | A 3142900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 560 | A 3182950006 | MASTER CYLINDER |
| BRAKE | ||
| 561 | A 0002950050 | BUSHING |
| Repalced by: A 0004310950 | ||
| 561 | A 0004310950 | BUSHING |
| 562 | A 0002950536 | INTERMEDIATE PIECE |
| 45 DEGREES | ||
| 563 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 563 | A 3075530107 | VALVE |
| 564 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 564 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 564 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 564 | A 0004210887 | PROTECTIVE CAP |
| 564B | A 0005864729 | REPAIR KIT |
| MASTER CYLINDER | ||
| 565 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 569 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 569 | N 913004006001 | NUT |
| MASTER CYLINDER TO BEARING BRACKET | ||
| N 900288015000 | CLAMP | |
| REFILLING LINE TO MASTER CYLINDER | ||
| 580 | A 0004315802 | RESERVOIR |
| WITH BRAKE SYSTEM WARNING DEVICE | ||
| ATE | ||
| 580 | A 0014313802 | RESERVOIR |
| WITH BRAKE SYSTEM WARNING DEVICE | ||
| FAG | ||
| 585 | A 0014310802 | RESERVOIR |
| Repalced by: A 0004318302 | ||
| 585 | A 0004318302 | RESERVOIR |
| WITH CLUCH AND BRAKE SYSTEM WARNING DEVICE | ||
| ATE | ||
| A 0004313134 | STRAINER | |
| A 0004314933 | FILLER CAP | |
| Repalced by: A 0004313733 | ||
| A 0004313733 | FILLER CAP | |
| Repalced by: A 0004316533 | ||
| A 0004316533 | FILLER CAP | |
| Repalced by: A 0004317633 | ||
| A 0004317633 | FILLER CAP | |
| TO 001 431 38 02,000 431 58 02 | ||
| A 0009972940 | SEAL RING | |
| 43.7X30 MM | ||
| A 0039976440 | SEAL RING | |
| 42X21.5 MM | ||
| 590 | A 0004311040 | CLAMP |
| RESERVOIR TO SEAT BOX | ||
| 600 | N 000933006102 | SCREW |
| RESERVOIR TO SEAT BOX | ||
| 604 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 604 | N 913004006001 | NUT |
| RESERVOIR TO SEAT BOX | ||
| 608 | N 000125006421 | WASHER |
| RESERVOIR TO SEAT BOX | ||
| A 0009978952 | HOSE | |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| N 900288015000 | CLAMP | |
| HOSE TO RESERVOIR | ||
| A 0019978390 | LOOM TIE | |
| LINE MOUNTING | ||
| A 0009972881 | GROMMET | |
| HOSE THRU CAB FLOOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
