Transporto priemonė: LPL 813; VIN numerio dalis: 318252

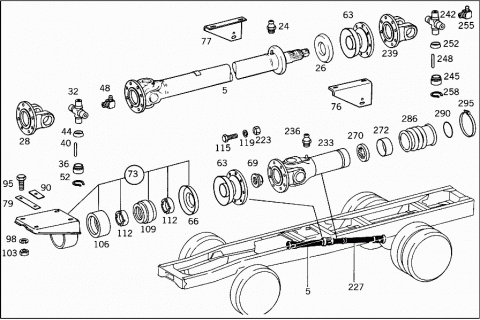

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 3184100301	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		882 MM
005	A 3414100104	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		1215 MM
024	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
024	N 071412008102	GREASE NIPPLE
026	A 3124131361	PROTECTIVE CAP
028	A 3524110011	DRIVE FLANGE
032	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
036	A 3224100542	BEARING BUSHING
040	A 3189810287	NEEDLE
		SET = 132 PIECES
044	A 3124111233	EXPANSION PLUG
048	N 071412008302	GREASE NIPPLE
052	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
052	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
052	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
052	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
052	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
052	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
063	A 3524100030	CENTERING FLANGE
066	A 3124131361	PROTECTIVE CAP
069	A 3224110072	NUT
073	A 3224100540	BRACKET
	Repalced by: A 3525860041
073	A 3525860041	REPAIR KIT
	Repalced by: A 3524100010
073	A 3524100010	REPAIR KIT
		INTERMEDIATE SHAFT BEARING
076	A 3854132142	BRACKET
		LEFT
077	A 3854132242	BRACKET
		RIGHT
079	A 3854130011	REINFORCEMENT
		BRACKET TO CROSS MEMBER
090	A 3854130111	REINFORCEMENT
095	N 000960010006	SCREW
		BRACKET TO CROSS MEMBER
098	N 007349010003	WASHER
	Repalced by: N 007349010007
098	N 007349010007	WASHER
		BRACKET TO CROSS MEMBER
103	N 913002010010	NUT
		BRACKET TO CROSS MEMBER
	N 000931010282	SCREW
		FRONT PROPELLER SHAFT TO BRACKET
	N 007349010003	WASHER
	Repalced by: N 007349010007
	N 007349010007	WASHER
		FRONT PROPELLER SHAFT TO BRACKET
	N 000127010203	LOCK WASHER
	Repalced by: N 912004010102
	N 912004010102	LOCK WASHER
		FRONT PROPELLER SHAFT TO BRACKET
	N 000961010010	SCREW
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
	N 000127010203	LOCK WASHER
	Repalced by: N 912004010102
	N 912004010102	LOCK WASHER
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
	N 913002010010	NUT
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
	A 3524130011	REINFORCEMENT
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
106	A 3124131112	RUBBER MOUNTING
109	A 3524100051	BALL BEARING
112	A 3124131231	BEARING RING
115	A 3529900401	SCREW
	Repalced by: A 3529904701
115	A 3529904701	SCREW
	Repalced by: A 0079901001
115	A 0079901001	SCREW
119	N 000127010203	LOCK WASHER
	Repalced by: N 912004010102
119	N 912004010102	LOCK WASHER
223	N 000934010010	NUT
227	A 3814103402	PROPELLER SHAFT
	Repalced by: A 6744101702
227	A 6744101702	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1765 MM
	A 3814103902	PROPELLER SHAFT
	Repalced by: A 3814104802
	A 3814104802	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1545 MM
	A 3814104902	PROPELLER SHAFT
	Repalced by: A 6744102602
	A 6744102602	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1403 MM
233	A 3814110005	UNIVERSAL JOINT YOKE
236	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
236	N 071412008102	GREASE NIPPLE
	A 3814110011	DRIVE FLANGE
	Repalced by: A 3524110011
239	A 3524110011	DRIVE FLANGE
239	A 3814110811	DRIVE FLANGE
242	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
242	A 6174100031	UNIVERSAL JOINT CROSS
	Repalced by: A 0004104031
242	A 0004104031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
245	A 3224100542	BEARING BUSHING
248	A 3189810287	NEEDLE
		SET = 132 PIECES
252	A 3124111233	EXPANSION PLUG
255	N 071412008302	GREASE NIPPLE
258	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
258	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
258	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
258	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
258	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
258	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
258	A 0039944541	LOCK
	Repalced by: A 0039944441
258	A 0039944441	LOCK
	Repalced by: A 0059949441
258	A 0059949441	LOCK
	Repalced by: N 000472042001
258	N 000472042001	LOCK RING
		AS REQUIRED
		1.750 MM
258	A 0039945041	LOCK
	Repalced by: A 0059949941
258	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
258	A 0059941041	LOCK
	Repalced by: A 0069940441
258	A 0069940441	LOCK
		AS REQUIRED
		2.000 MM
270	A 3814110059	SEAL RING
272	A 3814110058	SEAL HOLDER
	A 3814100080	BOOT
	Repalced by: A 3814100180
	A 3814100180	BOOT
286	A 3524100080	BOOT
290	A 3214110053	WIRE RING
290	A 3214110053	WIRE RING
290	A 3214110053	WIRE RING
	N 916002098100	CLAMP
295	N 916002078100	CLAMP
	A 3529900401	SCREW
	Repalced by: A 3529904701
	A 3529904701	SCREW
	Repalced by: A 0079901001
	A 0079901001	SCREW
	N 000127010203	LOCK WASHER
	Repalced by: N 912004010102
	N 912004010102	LOCK WASHER
	N 000934010010	NUT
