Transporto priemonė: LPL 813; VIN numerio dalis: 318252

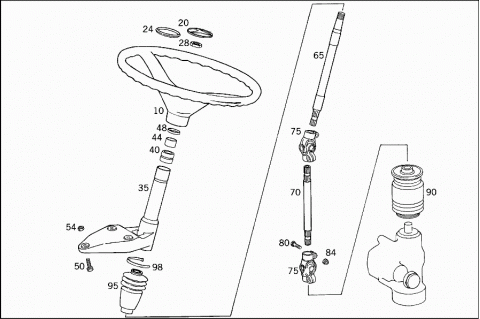

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR MERCEDES-BENZ STEERING, SEE PARTS LIST | ||
| 760.3 | ||
| A 0004640601 | STEERING WHEEL | |
| Repalced by: A 0004641101 | ||
| A 0004641101 | STEERING WHEEL | |
| 010 | A 3834640201 | STEERING WHEEL |
| A 0004640131 | CAP | |
| Repalced by: A 0004641231 | ||
| A 0004641231 | CAP | |
| Repalced by: A 0004642631 | ||
| A 0004642631 | CAP | |
| STEERING WHEEL | ||
| 024 | A 0004640177 | PROTECTIVE RING |
| STEERING WHEEL | ||
| 020 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 028 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| N 000137022202 | SPRING WASHER | |
| STEERING WHEEL TO STEERING COLUMN | ||
| A 3144600631 | STEERING COLUMN BRACKET | |
| WITH UPPER STEERING SHAFT | ||
| A 3144600831 | STEERING COLUMN BRACKET | |
| WITH UPPER STEERING SHAFT | ||
| 035 | A 3144601030 | BRACKET |
| Repalced by: A 3144601130 | ||
| 035 | A 3144601130 | BRACKET |
| STEERING COLUMN | ||
| 035 | A 3144601030 | BRACKET |
| Repalced by: A 3144600731 | ||
| 035 | A 3144600731 | STEERING COLUMN BRACKET |
| STEERING COLUMN | ||
| 040 | A 3214620165 | RING |
| STEERING COLUMN | ||
| 044 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 044 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 048 | A 3224620023 | COVER |
| STEERING COLUMN | ||
| 050 | N 000933010145 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 054 | N 913002010001 | NUT |
| STEERING COLUMN BRACKET TO CAB | ||
| A 3164620201 | STEERING SHAFT | |
| 065 | A 3144600709 | STEERING SHAFT |
| Repalced by: A 3144601109 | ||
| 065 | A 3144601109 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 065 | A 3144600809 | STEERING SHAFT |
| Repalced by: A 3144601209 | ||
| 065 | A 3144601209 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 070 | A 3184620101 | STEERING SHAFT |
| BOTTOM | ||
| 070 | A 3184621101 | STEERING SHAFT |
| BOTTOM | ||
| 075 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 075 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 075 | A 0004600057 | UNIVERSAL JOINT |
| 075 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 075 | A 0004600157 | UNIVERSAL JOINT |
| 080 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING | ||
| M 8X38 | ||
| 080 | A 3819900114 | SCREW |
| UNIVERSAL JOINT | ||
| M 8X42 | ||
| 084 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING | ||
| 090 | A 3184620896 | BOOT |
| STEERING JOINT | ||
| 095 | A 3184621196 | BOOT |
| STEERING JOINT | ||
| A 3164620060 | SEAL RING | |
| STEERING JOINT | ||
| 098 | A 0019978390 | LOOM TIE |
| BOOT | ||
| 105 | A 3144612240 | STEERING SUPPORT |
| A 3144612640 | STEERING SUPPORT | |
| 110 | A 3144612440 | STEERING SUPPORT |
| REAR | ||
| A 3144612340 | STEERING SUPPORT | |
| A 3144612740 | STEERING SUPPORT | |
| A 3144612540 | STEERING SUPPORT | |
| REAR | ||
| 120 | A 3169900814 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 125 | N 000961012296 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 130 | N 000960012335 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 135 | N 912004012102 | LOCK WASHER |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| A 3144610153 | SPACER TUBE | |
| Repalced by: A 6013210153 | ||
| A 6013210153 | SPACER TUBE | |
| STEERING SUPPORT TO FRAME | ||
| 140 | N 308676012010 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 145 | N 000960012334 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 150 | N 000960012336 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 155 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 155 | N 910113012003 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 170 | A 3164631001 | PITMAN ARM |
| LEFT | ||
| A 3164631101 | PITMAN ARM | |
| RIGHT | ||
| 180 | A 3164600805 | DRAG LINK |
| 180 | A 3164600905 | DRAG LINK |
| 190 | A 0003303135 | JOINT |
| Repalced by: A 0013300335 | ||
| 190 | A 0013300335 | JOINT |
| ADJUSTABLE | ||
| 198 | A 0003300385 | BOOT |
| Repalced by: A 0003301185 | ||
| 198 | A 0003301185 | BOOT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 235 | ||
| 210 | A 0003381645 | CLAMP |
| Repalced by: A 4619955044 | ||
| 210 | A 4619955044 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| "6245" | ||
| 215 | N 000960010033 | SCREW |
| CLAMP TO DRAG LINK | ||
| 220 | N 913004010014 | NUT |
| Repalced by: N 910113010003 | ||
| 220 | N 910113010003 | NUT |
| CLAMP TO DRAG LINK | ||
| 230 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 230 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 235 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
