Transporto priemonė: LPL 813; VIN numerio dalis: 318254

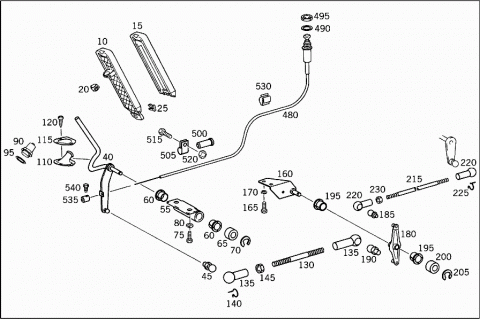

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1233000104 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| 010 | A 1233000204 | ACCELERATOR PEDAL |
| 015 | A 1163010182 | PAD |
| Repalced by: A 1233000204 | ||
| A 1233010082 | PAD | |
| 020 | A 1233010022 | JOINT |
| 025 | A 1073010040 | BRACKET |
| Repalced by: A 1249888678 | ||
| 025 | A 1249888678 | CLIP |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 040 | A 3183001225 | LEVER |
| (PEDAL LEVER) | ||
| 040 | A 3183002325 | LEVER |
| (PEDAL LEVER) | ||
| 045 | N 071803013208 | BALL PIVOT |
| 055 | A 3183000136 | BEARING BRACKET |
| ACCELERATOR PEDAL | ||
| 060 | A 3813020050 | BUSHING |
| LEVER TO BEARING BRACKET | ||
| 065 | A 3813010388 | COVERING |
| Repalced by: A 6153010088 | ||
| 065 | A 6153010088 | COVERING |
| LEVER TO BEARING BRACKET | ||
| 070 | N 006799010001 | LOCK PLATE |
| LEVER TO BEARING BRACKET | ||
| 075 | N 000933006102 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 080 | N 912004006102 | LOCK WASHER |
| PEDAL TO CAB FLOOR | ||
| 090 | A 1153010241 | STOP |
| ACCELERATOR PEDAL | ||
| 095 | A 1159970640 | SEAL RING |
| STOP | ||
| 110 | N 304032008006 | PART NAME MISSING |
| PEDAL LEVER | ||
| 115 | A 3183010240 | BRACKET |
| PEDAL LEVER | ||
| 120 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 120 | N 000000002062 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 130 | N 900331008419 | PULL ROD |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| 135 | N 071805013203 | BALL SOCKET |
| PULL ROD | ||
| 140 | N 071805013402 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 145 | N 304032008006 | NUT |
| BALL SOCKET TO ROD | ||
| 160 | A 3183000340 | BRACKET |
| INTERMEDIATE BEARING | ||
| 165 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 165 | N 304017008016 | SCREW |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 170 | N 912004008102 | LOCK WASHER |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 180 | A 3813000328 | LEVER |
| Repalced by: A 6153000028 | ||
| 180 | A 6153000028 | LEVER |
| Repalced by: A 6203000628 | ||
| 180 | A 6203000628 | LEVER |
| INTERMEDIATE BEARING | ||
| 185 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 185 | A 3129910120 | BALL PIVOT |
| 190 | N 071803013208 | BALL PIVOT |
| 195 | N 304032008006 | NUT |
| INTERMEDIATE LEVER | ||
| 200 | A 3813010388 | COVERING |
| Repalced by: A 6153010088 | ||
| 200 | A 6153010088 | COVERING |
| INTERMEDIATE LEVER | ||
| 205 | N 006799010001 | LOCK PLATE |
| LEVER TO BRACKET | ||
| 215 | N 900331006619 | PULL ROD |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 220 | A 0009912422 | BALL SOCKET |
| PULL ROD | ||
| 225 | N 304032008006 | PART NAME MISSING |
| BALL SOCKET TO BALL PIVOT | ||
| 230 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| 250 | A 3143001304 | ACCELERATOR PEDAL |
| 255 | A 3143010050 | BUSHING |
| 260 | N 000007008121 | CYLINDRICAL PIN |
| ACCELERATOR PEDAL BEARING | ||
| 265 | N 001473003016 | GROOVED PIN |
| ACCELERATOR PEDAL BEARING | ||
| 270 | N 071803010301 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 275 | N 000965006005 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 280 | N 913004005005 | NUT |
| BALL PIVOT TO ACCELERATOR PEDAL | ||
| 300 | A 3149910023 | BALL SOCKET |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 305 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 315 | A 3143000940 | BRACKET |
| RIGHT CONTROL LEVER | ||
| A 3143000274 | PIN | |
| RIGHT CONTROL LEVER | ||
| A 3813020050 | BUSHING | |
| RIGHT CONTROL LEVER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| RIGHT PIVOT PIN | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| RIGHT PIVOT PIN | ||
| 320 | A 3143010195 | REINFORCEMENT |
| CAB FLOOR | ||
| 320 | A 3143010395 | REINFORCEMENT |
| CAB FLOOR | ||
| 325 | N 000965008008 | SCREW |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 330 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 330 | N 913004008001 | NUT |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 340 | A 3183000325 | LEVER |
| CONTROL,RIGHT | ||
| 340 | A 3143002825 | LEVER |
| CONTROL,RIGHT | ||
| 345 | A 3144340150 | BUSHING |
| 350 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 350 | A 3129910120 | BALL PIVOT |
| 355 | N 000988012009 | FITTED WASHER |
| LEVER TO BRACKET | ||
| 360 | N 000471012001 | LOCK RING |
| LEVER TO BRACKET | ||
| N 900331006629 | PULL ROD | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| N 071805010204 | BALL SOCKET | |
| PULL ROD | ||
| N 071805010403 | SECURING CLIP | |
| BALL SOCKET TO BALL PIVOT | ||
| N 000934006007 | NUT | |
| BALL SOCKET TO ROD | ||
| 370 | N 900331006619 | PULL ROD |
| BETWEEN LEFT AND RIGHT CONTROL LEVERS | ||
| 375 | N 071805010204 | BALL SOCKET |
| PULL ROD | ||
| 380 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 385 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| 395 | A 3143000074 | PIN |
| LEFT CONTROL LEVER | ||
| 395 | A 3143000274 | PIN |
| LEFT CONTROL LEVER | ||
| A 3813020050 | BUSHING | |
| LEFT CONTROL LEVER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| LEFT PIVOT PIN | ||
| N 910113008001 | NUT | |
| LEFT PIVOT PIN | ||
| 400 | N 000965008008 | SCREW |
| PIN TO SUBSTRUCTURE | ||
| M 8X20 | ||
| 400 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 400 | N 304017008016 | SCREW |
| PIN TO SUBSTRUCTURE | ||
| M 8X16 | ||
| 410 | A 3183000025 | LEVER |
| LEFT CONTROL LEVER | ||
| 410 | A 3183001725 | LEVER |
| LEFT CONTROL LEVER | ||
| 415 | A 3144340150 | BUSHING |
| 420 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 420 | A 3129910120 | BALL PIVOT |
| 425 | N 000988012017 | FITTED WASHER |
| PIN TO CAB | ||
| 430 | N 000471012001 | LOCK RING |
| LEVER TO PIN | ||
| 440 | N 900331006620 | PULL ROD |
| FROM INTERMEDIATE LEVER TO ENGINE | ||
| 440 | N 900331006619 | PULL ROD |
| FROM INTERMEDIATE LEVER TO ENGINE | ||
| 445 | N 304032008006 | NUT |
| PULL ROD | ||
| 445 | A 0009912422 | BALL SOCKET |
| PULL ROD | ||
| 450 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 455 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| 480 | N 304032008006 | NUT |
| Repalced by: A 3183000007 | ||
| 480 | A 3183000007 | KNOB |
| WITH SPINDLE,WIRE CABLE,AND END PIECE | ||
| 480 | A 3183000007 | KNOB |
| WITH SPINDLE,WIRE CABLE,AND END PIECE | ||
| 485 | A 3183000307 | KNOB |
| WITH SPINDLE,WIRE CABLE,AND END PIECE | ||
| A 3093020001 | KNOB | |
| 490 | A 0003020052 | SPACER WASHER |
| 495 | A 0003020072 | NUT |
| Repalced by: A 3129901151 | ||
| 495 | A 3129901151 | NUT |
| 500 | A 3183020091 | GROMMET |
| WIRE CABLE | ||
| 500 | A 3183020091 | GROMMET |
| WIRE CABLE | ||
| 505 | A 3609950301 | CLAMP |
| WIRE CABLE TO CAB | ||
| 505 | A 3609950301 | CLAMP |
| WIRE CABLE TO CAB | ||
| 515 | N 000933006102 | SCREW |
| CLAMP TO BODY | ||
| 515 | N 000933006102 | SCREW |
| CLAMP TO BODY | ||
| 520 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 520 | N 913004006001 | NUT |
| CLAMP TO BODY | ||
| 520 | N 913004006001 | NUT |
| CLAMP TO BODY | ||
| N 007981004339 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SCREW | |
| CLAMP TO BRACKET | ||
| N 304032008006 | NUT | |
| KNOB WITH SPINDLE TO BRACKET | ||
| 530 | A 0009881878 | CLIP |
| WIRE CABLE TO CAB | ||
| 535 | A 3093020068 | END PIECE |
| Repalced by: A 1233000086 | ||
| 535 | A 1233000086 | END PIECE |
| WIRE CABLE TO LEVER | ||
| 535 | A 1233000086 | END PIECE |
| WIRE CABLE TO LEVER | ||
| 540 | A 3099900015 | SCREW |
| Repalced by: N 000933005058 | ||
| 540 | N 000933005058 | SCREW |
| WIRE CABLE TO LEVER | ||
| 540 | N 000933005058 | SCREW |
| WIRE CABLE TO LEVER | ||
| A 3093020050 | BUSHING | |
| 550 | A 3183020040 | BRACKET |
| WIRE CABLE | ||
| 555 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 555 | N 304017008039 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 560 | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 570 | A 3609950101 | CLAMP |
| WIRE CABLE TO BRACKET | ||
| 575 | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 575 | N 000000000459 | SCREW |
| CLAMP TO BRACKET | ||
