Transporto priemonė: LPL 813; VIN numerio dalis: 318254

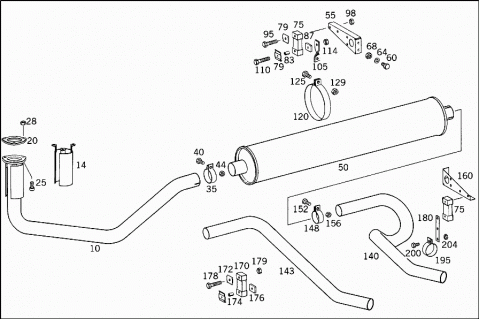

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3184901419 | EXHAUST PIPE | |
| Repalced by: A 3184901719 | ||
| 010 | A 3184901719 | EXHAUST PIPE |
| FRONT | ||
| 014 | A 3184900230 | PROTECTIVE PLATE |
| FRONT | ||
| 020 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 020 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 025 | N 000912010016 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 028 | A 0009906550 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 035 | A 3144910440 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 040 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 040 | N 304017008034 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 044 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 044 | A 1201420072 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 050 | A 3834900001 | EXHAUST MUFFLER |
| 055 | A 3164920316 | SUPPORT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 060 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 064 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 064 | N 000125010532 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 068 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 068 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 075 | A 1204920482 | DAMPING PAD |
| Repalced by: A 3095860049 | ||
| 079 | A 1204920118 | BASE PLATE |
| Repalced by: A 3095860049 | ||
| 083 | A 1209911140 | SPACER TUBE |
| Repalced by: A 3095860049 | ||
| 087 | A 1204920083 | INSULATION |
| Repalced by: A 3095860049 | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| A 3094900037 | SUSPENSION | |
| EXHAUST MUFFLER TO SUPPORT | ||
| 095 | N 000931008266 | SCREW |
| DAMPING PAD TO SUPPORT | ||
| M 8 X 40 | ||
| 098 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 098 | N 913004008001 | NUT |
| DAMPING PAD TO SUPPORT | ||
| 105 | A 3144910341 | BRACKET |
| EXHAUST MUFFLER | ||
| 105 | A 6734910941 | BRACKET |
| Repalced by: A 3144910341 | ||
| 105 | A 3144910341 | BRACKET |
| EXHAUST MUFFLER | ||
| 110 | N 000931008244 | SCREW |
| BRACKET TO DAMPING PAD | ||
| M 8 X 45 | ||
| 114 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 114 | A 1201420072 | NUT |
| BRACKET TO DAMPING PAD | ||
| 120 | A 3184910041 | BRACKET |
| EXHAUST MUFFLER | ||
| 125 | N 000933010128 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| 129 | A 0009906550 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| A 3184920107 | CONNECTOR | |
| BEHIND EXHAUST MUFFLER | ||
| 140 | A 3184923904 | REAR EXHAUST PIPE |
| Repalced by: A 3184924304 | ||
| 140 | A 3184924304 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| A 3184924404 | REAR EXHAUST PIPE | |
| (TAIL PIPE) | ||
| A 3184924404 | REAR EXHAUST PIPE | |
| (TAIL PIPE) | ||
| 143 | A 3184924204 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 143 | A 3184924204 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 148 | A 3144910340 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 148 | A 3144910340 | CLAMP |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 152 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 152 | N 304017008034 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 152 | N 304017008034 | SCREW |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 156 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 156 | A 1201420072 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 156 | A 1201420072 | NUT |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 160 | A 3164920316 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| A 3164920216 | SUPPORT | |
| REAR EXHAUST PIPE TO FRAME | ||
| N 000933010105 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 10X30 | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 007349013003 | WASHER | |
| Repalced by: N 007349013005 | ||
| N 007349013005 | WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| 170 | A 1204920482 | DAMPING PAD |
| Repalced by: A 3095860049 | ||
| 172 | A 1204920118 | BASE PLATE |
| Repalced by: A 3095860049 | ||
| 174 | A 1209911140 | SPACER TUBE |
| Repalced by: A 3095860049 | ||
| 176 | A 1204920083 | INSULATION |
| Repalced by: A 3095860049 | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| A 3094900037 | SUSPENSION | |
| REAR EXHAUST PIPE | ||
| A 3354310053 | SPACER TUBE | |
| Repalced by: A 3094310249 | ||
| A 3094310249 | GUIDE BUSHING | |
| REAR EXHAUST PIPE | ||
| 178 | N 000931008266 | SCREW |
| DAMPING PAD TO SUPPORT | ||
| 179 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 179 | N 913004008001 | NUT |
| DAMPING PAD TO SUPPORT | ||
| 180 | A 3184923441 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 180 | A 3184923441 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 180 | A 3184923441 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| A 3184924141 | BRACKET | |
| Repalced by: A 3184923641 | ||
| A 3184923641 | BRACKET | |
| Repalced by: A 3184923441 | ||
| N 000931008244 | SCREW | |
| BRACKET TO DAMPING PAD | ||
| M 8X45 | ||
| N 000931008266 | SCREW | |
| BRACKET TO DAMPING PAD | ||
| M 8X40 | ||
| N 913004008007 | NUT | |
| Repalced by: A 1201420072 | ||
| A 1201420072 | NUT | |
| BRACKET TO DAMPING PAD | ||
| 195 | N 071555060500 | CLAMP |
| Repalced by: N 000000001642 | ||
| 195 | N 000000001642 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 200 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 200 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X30 | ||
| 200 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X30 | ||
| N 000931008246 | SCREW | |
| Repalced by: N 304017008028 | ||
| N 304017008028 | SCREW | |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X50 | ||
| 204 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 204 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
