Transporto priemonė: LPO 1113; VIN numerio dalis: 344055
Grupė: 42 BRAKES
42847
42848
42849
42850
42851
42852
42853
42854
42855
42856
42857
42858
42859
42860
42861
42862
42863
42864
42865
42866
42867

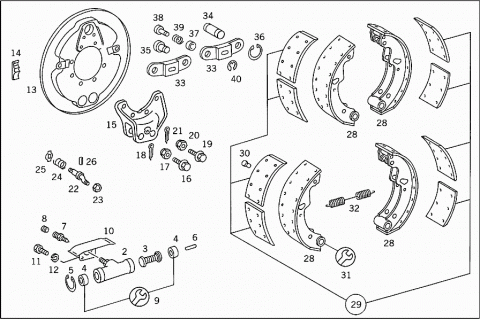

# Kodas Pavadinimas
A 0014209218 WHEEL BRAKE CYLINDER
41.27 MM, "TEVES"
002 A 0444200018 WHEEL BRAKE CYLINDER
Repalced by: A 3444207218
002 A 3444207218 WHEEL BRAKE CYLINDER
41.27 MM, "VARGA"
002 A 3444207318 WHEEL BRAKE CYLINDER
41.27 MM, "BENDIX"
A 0004211990 SPRING
TO 001 420 92 18
003 A 0084200090 SPRING
TO 044 420 00 18,344 420 72 18
A 0004212783 PISTON
TO 001 420 92 18
004 A 0084210283 PISTON
TO 044 420 00 18,344 420 72 18
A 0089940140 SNAP RING
TO 001 420 92 18
005 A 0009948141 LOCK
TO 044 420 00 18,344 420 72 18
006 A 0004230188 THRUST PIN
Repalced by: A 3444237074
006 A 3444237074 PIN
TO 044 420 00 18,344 420 72 18
006 A 0084230074 PIN
TO 344 420 73 18
007 A 0004310265 VALVE
Repalced by: A 3454317165
007 A 3454317165 VALVE
007 A 3454217065 BLEEDER VALVE
008 A 0004210887 PROTECTIVE CAP
Repalced by: A 3454317287
008 A 3454317287 PROTECTIVE CAP
008 A 3454317187 PROTECTIVE CAP
A 0085861042 REPAIR KIT
TO 001 420 92 18
009 A 0085860742 REPAIR KIT
TO 044 420 00 18,344 420 72 18
009 A 3445867342 REPAIR KIT
MINOR
TO 344 420 73 18
009 A 3445867142 REPAIR KIT
MAJOR
TO 344 420 73 18
010 A 3214230020 PROTECTIVE PLATE
WHEEL CYLINDER TO BRAKE ANCHOR PLATE
011 N 000933010294 SCREW
WHEEL CYLINDER TO BRAKE ANCHOR PLATE
012 N 000127010202 LOCK WASHER
WHEEL CYLINDER TO BRAKE ANCHOR PLATE
013 A 3224200616 BRAKE ANCHOR PLATE
Repalced by: A 3444207016
013 A 3444207016 BRAKE ANCHOR PLATE
LEFT WHEEL CYLINDER
013 A 3224200716 BRAKE ANCHOR PLATE
Repalced by: A 3444207116
013 A 3444207116 BRAKE ANCHOR PLATE
RIGHT WHEEL CYLINDER
A 3124211068 INSPECTION HOLE COVER
A 3219900096 RIVET
014 A 3094210211 PLUG
A 3224210094 BRACKET
015 A 3384210006 BRAKE ANCHOR
016 A 3273320171 SCREW
016 A 3413320071 SCREW
017 N 000935016002 NUT
018 N 000094004026 COTTER PIN
019 N 000961012106 SCREW
019 N 000961012102 SCREW
020 N 000935012003 NUT
021 N 000094003217 COTTER PIN
022 A 0444200038 ADJUSTER
Repalced by: A 3444207038
022 A 3444207038 ADJUSTER
022 A 3124201338 ADJUSTER
023 N 000934014020 NUT
024 A 3129934901 SPRING
ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE
025 A 1869904540 WASHER
ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE
026 N 001473004003 GROOVED PIN
ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE
A 0444200020 BRAKE SHOE
Repalced by: A 3444207520
A 3444207220 BRAKE SHOE
WITH 10.4-MM-THICK LINING
"LONAFLEX"
A 3444207520 BRAKE SHOE
WITH 10.4-MM-THICK LINING
10.4 MM,"JURID"
A 3444200620 BRAKE SHOE
WITH 10.4-MM-THICK LINING
"FRAS-LE"
028 A 3444207019 BRAKE SHOE
LESS LINING
H 983444230110 BRAKE LINING
Repalced by: A 3444210010
A 3444237110 BRAKE LINING
STANDARD
10.4 MM,LONAFLEX
A 3444210010 BRAKE LINING
STANDARD
10.4 MM,JURID
A 3444217110 BRAKE LINING
STANDARD
10.4 MM,FRAS-LE
H 983444230210 BRAKE LINING
Repalced by: A 3444210110
A 3444210110 BRAKE LINING
REPAIR SIZE I
11.3 MM,JURID
A 3444237210 BRAKE LINING
REPAIR SIZE I
11,3 MM,LONAFLEX
A 3444217210 BRAKE LINING
REPAIR SIZE I
11.3 MM,FRAS-LE
H 983444230310 BRAKE LINING
Repalced by: A 3444210210
A 3444210210 BRAKE LINING
REPAIR SIZE II
12,3 MM,JURID
A 3444237310 BRAKE LINING
REPAIR SIZE II
12,3 MM,LONAFLES
A 3444217310 BRAKE LINING
REPAIR SIZE II
12.3 MM,FRAS-LE
029 A 3445867442 REPAIR KIT
Repalced by: A 3444212310
029 A 3445867542 REPAIR KIT
Repalced by: A 3444212310
029 A 3444212310 BRAKE LINING
(BRAKE LINING SET);STANDARD
10.4 MM
029 A 3445868442 REPAIR KIT
Repalced by: A 3444212410
029 A 3445869342 REPAIR KIT
Repalced by: A 3444212410
029 A 3444212410 BRAKE LINING
(BRAKE LINING SET);REPAIR SIZE I
11.3 MM
029 A 3445868542 REPAIR KIT
Repalced by: A 3444212510
029 A 3445869442 REPAIR KIT
Repalced by: A 3444212510
029 A 3444212510 BRAKE LINING
(BRAKE LINING SET);REPAIR SIZE II
12.3 MM
030 A 3129900395 RIVET
031 A 0445860442 REPAIR KIT
032 A 3029930310 SPRING
032 A 3224210392 SPRING
033 A 3404200027 THRUST SHACKLE
LEFT
033 A 3404200127 THRUST SHACKLE
RIGHT
034 A 3124231918 PIVOT PIN
BRAKE SHOE TO THRUST SHACKLE
035 A 3124231818 PIVOT PIN
THRUST SHACKLE TO WHEEL CYLINDER BRACKET
036 N 900055022301 LOCK RING
037 A 3404210052 SPACER WASHER
Repalced by: A 3444217052
037 A 3444217052 SPACER WASHER
038 A 3124231174 PIN
039 A 3129933901 SPRING
040 A 3124211073 LOCK
041 A 0014208518 WHEEL BRAKE CYLINDER
Repalced by: A 3444207018
041 H 983444200018 WHEEL BRAKE CYLINDER
Repalced by: A 3444207018
041 A 3444207018 WHEEL BRAKE CYLINDER
44.45 MM
041 A 0444200118 WHEEL BRAKE CYLINDER
Repalced by: A 3444207118
041 A 3444207118 WHEEL BRAKE CYLINDER
44.45 MM
041 A 3444207418 WHEEL BRAKE CYLINDER
44.45 MM
042 A 0084230093 SPRING
Repalced by: A 0004231793
042 A 0004231793 SPRING
TO OO1 420 85 18
042 A 0004232493 SPRING
TO 98 344 420 00 18
042 A 0084311693 SPRING
TO 344 420 71 18
043 A 3444217089 FILLER
TO 344 420 71 18
044 A 0004232493 SPRING
TO 344 420 70 18
A 0084200093 CABLE PULLEY
TO 044 420 01 18
046 A 0084230287 PROTECTIVE CAP
Repalced by: A 3454237087
046 A 3454237087 PROTECTIVE CAP
TO 344 420 71 18
047 A 0084230086 CUP
TO 344 420 71 18
047 A 0004230886 CUP
048 A 0084230083 PISTON
Repalced by: A 0004232083
048 A 0004232083 PISTON
TO 98 344 420 00 18,001 420 85 18, 344 420 70 18
048 A 0084230383 PISTON
TO 044 420 01 18,344 420 71 18
A 0089940040 SNAP RING
Repalced by: G 980009940040
049 H 980009940040 SNAP RING
TO 98 344 420 00 18
049 A 0089940141 LOCK
TO 044 420 01 18,344 420 71 18
049 A 0089940040 SNAP RING
050 A 0004232187 PROTECTIVE CAP
Repalced by: A 3454237087
050 A 3454237087 PROTECTIVE CAP
TO 001 420 85 18
A 0084230087 PROTECTIVE CAP
TO 344 420 70 18
051 A 0084230074 PIN
Repalced by: A 3444237074
051 A 3444237074 PIN
A 0004230888 THRUST PIN
TO 001 420 85 18
051 A 3444237074 PIN
TO 344 420 71 18
052 A 0004310265 VALVE
Repalced by: A 3454317165
052 A 0084200055 BLEEDER VALVE
Repalced by: A 3454317165
052 A 3454317165 VALVE
052 A 3854217065 BLEEDER VALVE
TO 344 420 70 18
053 A 0004210887 PROTECTIVE CAP
Repalced by: A 3454317287
053 A 3454317287 PROTECTIVE CAP
TO 000 431 02 65
053 A 3454317287 PROTECTIVE CAP
TO 008 420 00 55,344 420 71 18
053 A 0004210887 PROTECTIVE CAP
Repalced by: A 3454317287
053 A 3454317287 PROTECTIVE CAP
TO 344 420 70 18
A 0085860142 REPAIR KIT
TO 001 420 85 18,344 420 71 18
054 H 983455860242 REPAIR KIT
TO 98 344 420 00 18
054 A 0085860842 REPAIR KIT
TO 044 420 01 18,344 420 71 18
054 A 3445867042 REPAIR KIT
TO 344 420 70 18
055 A 3214230020 PROTECTIVE PLATE
056 N 000933010174 SCREW
057 N 000127010202 LOCK WASHER
058 A 0444200017 BRAKE ANCHOR PLATE
Repalced by: A 3444207017
058 A 3444207017 BRAKE ANCHOR PLATE
LEFT WHEEL CYLINDER
058 A 0444200117 BRAKE ANCHOR PLATE
Repalced by: A 3444207117
058 A 3444207117 BRAKE ANCHOR PLATE
RIGHT WHEEL CYLINDER
A 3124211068 INSPECTION HOLE COVER
059 A 3129900096 RIVET
060 A 3094210211 PLUG
061 A 3274270054 PIPE SOCKET
A 3224210094 BRACKET
062 A 3374230006 BRAKE ANCHOR
BRAKE SHOE
063 A 0449900301 SCREW
Repalced by: A 3449907901
063 A 3449907901 SCREW
BRAKE ANCHOR PLATE TO REAR AXLE
064 A 0449900201 SCREW
Repalced by: A 3449907801
064 A 3449907801 SCREW
BRAKE ANCHOR PLATE TO REAR AXLE
065 A 3229900050 NUT
BRAKE ANCHOR PLATE TO REAR AXLE
066 A 0444200038 ADJUSTER
Repalced by: A 3444207038
066 A 3444207038 ADJUSTER
066 A 3124201338 ADJUSTER
067 N 000934014019 NUT
068 A 3129934901 SPRING
069 N 001473004003 GROOVED PIN
A 0444200020 BRAKE SHOE
Repalced by: A 3444207520
A 3444207220 BRAKE SHOE
WITH 10.4-MM-THICK LINING
"LONAFLEX"
A 3444207520 BRAKE SHOE
WITH 10.4-MM-THICK LINING
"JURID"
A 3444200620 BRAKE SHOE
WITH 10.4-MM-THICK LINING
"FRAS-LE"
A 3444207320 BRAKE SHOE
REPAIR SIZE I
"LONAFLEX"
A 3444207620 BRAKE SHOE
REPAIR SIZE I
"JURID"
A 3444207420 BRAKE SHOE
REPAIR SIZE II
"LONAFLEX"
A 3444207720 BRAKE SHOE
REPAIR SIZE II
"JURID"
071 A 3444207019 BRAKE SHOE
LESS LINING
H 983444230110 BRAKE LINING
Repalced by: A 3444210010
A 3444237110 BRAKE LINING
STANDARD
10.4 MM,LONAFLEX
A 3444210010 BRAKE LINING
STANDARD
10,4 MM,JURID
A 3444217110 BRAKE LINING
STANDARD
10.4 MM,FRAS-LE
H 983444230210 BRAKE LINING
Repalced by: A 3444210110
A 3444210110 BRAKE LINING
REPAIR SIZE I
11,3 MM,JURID
A 3444237210 BRAKE LINING
REPAIR SIZE I
11,3 MM,LONAFLEX
A 3444217210 BRAKE LINING
REPAIR SIZE I
11,3 MM,FRAS-LE
H 983444230310 BRAKE LINING
Repalced by: A 3444210210
A 3444210210 BRAKE LINING
REPAIR SIZE II
12,3 MM,JURID
A 3444237310 BRAKE LINING
REPAIR SIZE II
12,3 MM,LONAFLEX
A 3444217310 BRAKE LINING
REPAIR SIZE II
12.3 MM,FRAS-LE
072 A 3445867442 REPAIR KIT
Repalced by: A 3444212310
072 A 3445867542 REPAIR KIT
Repalced by: A 3444212310
072 A 3444212310 BRAKE LINING
(BRAKE LINING SET);STANDARD
10.4 MM
072 A 3445868442 REPAIR KIT
Repalced by: A 3444212410
072 A 3445869342 REPAIR KIT
Repalced by: A 3444212410
072 A 3444212410 BRAKE LINING
(BRAKE LINING SET);REPAIR SIZE I
11.3 MM
072 A 3445868542 REPAIR KIT
Repalced by: A 3444212510
072 A 3445869442 REPAIR KIT
Repalced by: A 3444212510
072 A 3444212510 BRAKE LINING
(BRAKE LINING SET);REPAIR SIZE II
12.3 MM
073 A 3129900395 RIVET
074 A 0445860442 REPAIR KIT
075 A 3029930310 SPRING
075 A 3124232192 SPRING
076 A 3404200027 THRUST SHACKLE
LEFT
076 A 3404200127 THRUST SHACKLE
RIGHT
077 A 3124231918 PIVOT PIN
BRAKE SHOE TO THRUST SHACKLE
078 A 3124231818 PIVOT PIN
THRUST SHACKLE TO WHEEL CYLINDER BRACKET
079 N 900055022301 LOCK RING
080 A 3404210052 SPACER WASHER
Repalced by: A 3444217052
080 A 3444217052 SPACER WASHER
BRAKE SHOE TO THRUST SHACKLE
081 A 3124231174 PIN
BRAKE SHOE TO THRUST SHACKLE
082 A 3129933901 SPRING
BRAKE SHOE TO THRUST SHACKLE
083 A 3124211073 LOCK
BRAKE SHOE TO THRUST SHACKLE
084 A 3274200227 THRUST SHACKLE
Repalced by: A 3444207027
084 H 983444200027 THRUST SHACKLE
Repalced by: A 3444207027
084 A 3444207027 THRUST SHACKLE
085 A 3124231318 PIVOT PIN
BRAKE LEVER
086 N 006799009002 LOCK PLATE
BRAKE LEVER
087 N 001434014001 PIN
BRAKE LEVER
088 N 000094004050 COTTER PIN
BRAKE LEVER
089 A 0024303101 BRAKE MASTER CYLINDER
Repalced by: A 3444307901
089 A 0444300201 BRAKE MASTER CYLINDER
Repalced by: A 3444307601
089 A 3444307601 BRAKE MASTER CYLINDER
Repalced by: A 3444307801
089 A 3444307001 BRAKE MASTER CYLINDER
Repalced by: A 3444307801
089 A 3444307801 BRAKE MASTER CYLINDER
VARGA
089 A 3444307801 BRAKE MASTER CYLINDER
VARGA
089 A 3444308001 BRAKE MASTER CYLINDER
BENDIX

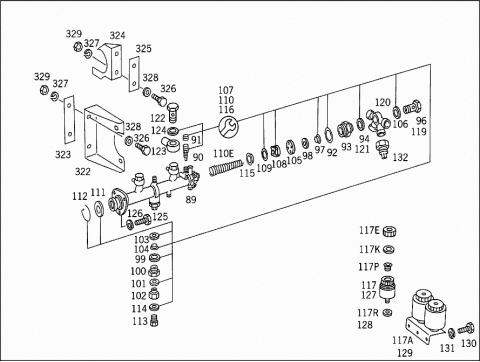

089 A 3444307101 BRAKE MASTER CYLINDER
Repalced by: A 3444307901
A 3444307901 BRAKE MASTER CYLINDER
TEVES
A 3444307901 BRAKE MASTER CYLINDER
TEVES
A 3454307901 BRAKE MASTER CYLINDER
TEVES
089 A 3454307801 BRAKE MASTER CYLINDER
VARGA
090 A 0004310265 VALVE
Repalced by: A 3454317165
090 A 3454317165 VALVE
091 A 0004210887 PROTECTIVE CAP
Repalced by: A 3454317287
091 A 3454317287 PROTECTIVE CAP
092 N 007603035101 SEAL RING
TO 044 430 02 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
N 007603050100 SEAL RING
T0 344 430 70 01
092 N 007603050101 SEAL RING
TO 345 430 78 01
093 A 0004310975 THREADED UNION
TO 002 430 31 01 ,344 430 80 01
093 A 0084310022 COVER
TO 044 430 02 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
093 A 0084310575 THREADED UNION
Repalced by: A 3454237284
093 A 3454237284 FITTING
TO 344 430 70 01,345 430 78 01
094 N 007603014102 SEAL RING
TO 002 430 31 01,044 430 02 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 70 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
A 0084280024 DISTRIBUTOR
Repalced by: A 3454287024
A 3454287024 DISTRIBUTOR
TO 002 430 31 01,044 430 02 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 70 01,344 430 76 01
A 0004280026 HOLLOW SCREW
Repalced by: A 3454287126
A 3454287126 HOLLOW SCREW
TO 002 430 31 01,044 430 02 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 70 01,344 430 76 01
096 A 3454287226 HOLLOW SCREW
Repalced by: A 3454287126
096 A 3454287126 HOLLOW SCREW
TO 344 430 76 01
A 0009930605 SPRING
TO 002 430 31 01,344 430 80 01
A 0084310893 SPRING
Repalced by: A 3454317093
A 3454317093 SPRING
TO 044 430 02 01,344 430 70 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 345 430 78 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
097 A 0004300081 VALVE
TO 002 430 31 01,344 430 80 01
A 0084300081 VALVE
Repalced by: A 3454307081
A 3454307081 VALVE
TO 044 430 02 01,344 430 70 01
098 A 0004310760 SEAL RING
TO 002 430 31 01,344 430 80 01
099 A 0084310040 BRACKET
099 N 007603032101 SEAL RING
TO 344 430 71 01,345 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 78 01,344 430 76 01
100 A 0084310030 BANJO UNION
TO 002 430 31 01,344 430 80 01
100 A 0084310275 THREADED UNION
Repalced by: A 3454237184
100 A 3454237184 FITTING
TO 044 430 02 01,344 430 70 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 345 430 78 01,344 430 78 01
101 N 007603014102 SEAL RING
102 A 0084230084 FITTING
TO 002 430 31 01,044 430 02 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 70 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
103 A 0004310760 SEAL RING
TO 002 430 31 01,344 430 80 01
104 A 0004300081 VALVE
TO 002 430 31 01,344 430 80 01
A 0084300081 VALVE
Repalced by: A 3454307081
A 3454307081 VALVE
TO 044 430 02 01,344 430 70 01
A 0009930605 SPRING
TO 002 430 31 01,344 430 80 01
A 0084310893 SPRING
Repalced by: A 3454317093
A 3454317093 SPRING
TO 044 430 02 01,344 430 70 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 345 430 78 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
105 A 0004311876 WASHER
TO 002 430 31 01,344 430 80 01
105 A 0084310260 SEAL RING
TO 044 430 02 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
106 A 0084310376 WASHER
Repalced by: A 3454317176
106 A 3454317176 WASHER
TO 344 430 70 01,345 430 78 01
107 A 0084310093 SPRING
Repalced by: A 3445867243
107 A 3444317093 SPRING
Repalced by: A 3445867243
107 A 3445867243 REPAIR KIT
TO 002 430 31 01,344 430 80 01
107 A 0084310793 SPRING
TO 044 430 02 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
A 0084311493 SPRING
Repalced by: A 3454317293
A 3454317293 SPRING
TO 344 430 70 01,345 430 78 01
108 A 0084310086 CUP
TO 002 430 31 01,344 430 80 01
109 A 0004310685 FILLER RING
TO 002 430 31 01,344 430 80 01
A 0084310083 PISTON
TO 002 430 31 01,344 430 80 01
A 0084300083 PISTON
Repalced by: A 3444307083
A 3444307083 PISTON
TO 044 430 02 01
A 0084310883 PISTON
Repalced by: A 3454317083
A 3454317083 PISTON
TO 344 430 70 01
A 0084310186 CUP
TO 002 430 31 01,344 430 80 01
A 0084310085 FILLER RING
TO 044 430 02 01
A 0084310686 CUP
Repalced by: A 3454317186
A 3454317186 CUP
TO 344 430 70 01
110 A 0084310193 SPRING
Repalced by: A 3445867243
110 A 3444317093 SPRING
Repalced by: A 3445867243
110 A 3445867243 REPAIR KIT
TO 002 430 31 01,344 430 80 01
110E A 0084310693 SPRING
TO 044 430 02 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
110E H 983454310093 SPRING
Repalced by: A 3454317193
110E A 3454317193 SPRING
TO 344 430 70 01,345 430 78 01
A 0084310183 PISTON
TO 002 430 31 01,344 430 80 01
A 0084300183 PISTON
Repalced by: A 3444307183
A 3444307183 PISTON
TO 044 430 02 01
A 0084310983 PISTON
Repalced by: A 3454317183
A 3454317183 PISTON
TO 344 430 70 01
A 0004310086 CUP
TO 002 430 31 01,344 430 80 01
A 0084310085 FILLER RING
TO 044 430 02 01
A 0084310185 FILLER RING
TO 044 430 02 01
A 0084310686 CUP
Repalced by: A 3454317186
A 3454317186 CUP
TO 344 430 70 01
111 A 0004311976 WASHER
TO 002 430 31 01,344 430 80 01
A 0084310076 WASHER
TO 044 430 02 01
A 0084310476 WASHER
Repalced by: A 3454317076
A 3454317076 WASHER
TO 344 430 70 01
112 A 0009940135 SNAP RING
TO 002 430 31 01,344 430 80 01
112 A 0084310094 LOCK
TO 044 430 02 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
112 A 3454317094 LOCK
TO 345 430 78 01
112 A 0084310394 LOCK
Repalced by: A 3454317194
112 A 3454317194 LOCK
TO 344 430 70 01,345 430 78 01
113 A 0084310071 SCREW
TO 002 430 31 01,344 430 80 01
114 A 0084310140 BRACKET
TO 002 430 31 01,344 430 80 01
A 0084310176 WASHER
TO 044 430 02 01
115 A 0084310689 SPRING RETAINER
Repalced by: A 3454317089
115 A 3454317089 SPRING RETAINER
TO 344 430 70 01,345 430 78 01
116 A 0445861142 REPAIR KIT
MINOR
TO 044 430 02 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
116 A 0455860342 REPAIR KIT
Repalced by: A 3455867242
116 A 3455867242 REPAIR KIT
T0 344 430 71 01
116 A 3455867442 REPAIR KIT
TO 345 430 78 01
116 A 0445860142 REPAIR KIT
Repalced by: A 0445860042
116 A 0445860042 REPAIR KIT
TO 002 430 31 01,344 430 80 01
116 A 0445861042 REPAIR KIT
MAJOR
T0 044 430 02 01,344 430 78 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
116 A 0455860242 REPAIR KIT
Repalced by: A 3455867342
116 A 3455867142 REPAIR KIT
Repalced by: A 3455867342
116 A 3455867342 REPAIR KIT
TO 344 430 71 01,345 430 78 01
117 A 0084310002 RESERVOIR
TO 002 430 31 01,044 430 02 01
117 A 0084310402 RESERVOIR
TO 344 430 76 01
117 A 3454317002 RESERVOIR
TO 344 430 76 01
117A A 0084310502 RESERVOIR
TO 344 430 70 01
117E A 0084310033 FILLER CAP
TO 002 430 31 01,044 430 02 01
117E A 0084310233 FILLER CAP
TO 344 430 70 01,344 430 76 01
117K A 0084310098 CONNECTOR
TO 002 430 31 01, 044 430 02 01
117K A 0089970240 SEAL RING
TO 344 430 70 01
117P A 0084310034 STRAINER
TO 002 430 31 01,044 430 02 01
117P A 0084310334 STRAINER
Repalced by: A 3084317034
117P A 3084317034 STRAINER
TO 344 430 70 01,344 430 76 01
117R N 007603022102 SEAL RING
TO 002 430 31 01,044 430 02 01
Y YYYYYYYYYYYY PART NAME MISSING
TO 344 430 76 01
A 0084280126 HOLLOW SCREW
TO 344 430 70 01
117R N 007603022102 SEAL RING
TO 344 430 70 01
A 0084280030 CONNECTOR
TO 344 430 70 01
119 A 3454287126 HOLLOW SCREW
BRAKE MASTER CYLINDER
TO 344 430 78 01,345 430 78 01
119 A 0004280026 HOLLOW SCREW
Repalced by: A 3454287126
119 A 3454287126 HOLLOW SCREW
BRAKE MASTER CYLINDER
TO 344 430 79 01,345 430 79 01
119 A 3454287626 HOLLOW SCREW
BRAKE MASTER CYLINDER
TO 344 430 80 01
120 A 3454287024 DISTRIBUTOR
BRAKE MASTER CYLINDER
TO 344 430 78 01
120 A 3454287024 DISTRIBUTOR
BRAKE MASTER CYLINDER
TO 344 430 79 01,345 430 79 01
A 3454287624 DISTRIBUTOR
BRAKE MASTER CYLINDER
TO 344 430 79 01
A 3454287624 DISTRIBUTOR
BRAKE MASTER CYLINDER
TO 344 430 78 01,345 430 78 01
120 A 3454287924 DISTRIBUTOR
BRAKE MASTER CYLINDER
TO 344 430 80 01
121 N 007603014106 SEAL RING
BRAKE MASTER CYLINDER
A 0004280126 HOLLOW SCREW
BRAKE MASTER CYLINDER
TO 344 430 79 01,345 430 79 01
122 A 3454287026 HOLLOW SCREW
BRAKE MASTER CYLINDER
TO 344 430 79 01,345 430 78 01
A 0004280130 CONNECTOR
BRAKE MASTER CYLINDER
TO 344 430 79 01,345 430 79 01
123 A 3454287030 CONNECTOR
BRAKE MASTER CYLINDER
TO 344 430 78 01,345 430 78 01
124 N 007603022102 SEAL RING
BRAKE MASTER CYLINDER
125 N 000933010269 SCREW
MASTER CYLINDER TO BRAKE VALVE
125 N 000933010129 SCREW
MASTER CYLINDER TO BRAKE VALVE
126 N 000127010202 LOCK WASHER
MASTER CYLINDER TO BRAKE VALVE
127 A 0004311602 RESERVOIR
TO 344 430 79 01
127 A 3454317602 RESERVOIR
TO 344 430 80 01
127 A 0004317002 RESERVOIR
TO 344 430 78 01
128 N 007603022102 SEAL RING
FLUID RESERVOIR
129 A 3454307002 RESERVOIR
TO 344 430 78 01,345 430 78 01
129 A 3454300002 RESERVOIR
TO 344 430 79 01,345 430 79 01
130 N 007985006512 SCREW
FLUID RESERVOIR TO FIRE WALL
131 N 000127006203 LOCK WASHER
FLUID RESERVOIR TO FIRE WALL
132 H 980005450109 SWITCH
Repalced by: A 3455457209
132 A 3215450009 SWITCH
Repalced by: A 3455457209
132 A 3455457209 SWITCH
STOP LIGHT

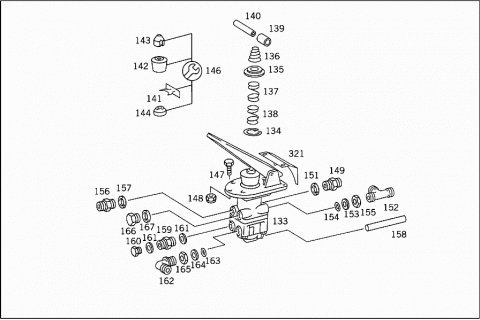

133 A 0024313905 BRAKE VALVE
SERVICE BRAKE VALVE
KNORR
134 A 0049949941 LOCK
TO 002 431 39 05
135 A 0004311522 COVER
MAKE KNORR
TO 002 431 39 05
135 A 0004311622 COVER
MAKE KNORR
TO 002 431 39 05
136 A 0014317093 SPRING
MAKE KNORR
TO 002 431 39 05
137 A 0014317193 SPRING
MAKE KNORR
TO 002 431 39 05
138 A 0014317293 SPRING
MAKE KNORR
TO 002 431 39 05
139 A 0004310750 BUSHING
MAKE KNORR
TO 002 431 39 05
140 A 0004312374 PIN
MAKE KNORR
TO 002 431 39 05
141 A 0019974286 PLUG
MAKE KNORR
TO 002 431 39 05
A 0024317805 BRAKE VALVE
TO 002 431 62 05
A 0004300018 BRAKE PEDAL
TO 002 431 62 05
A 0004314887 PROTECTIVE CAP
TO 000 430 00 18
142 A 0014311386 CUP
TO 002 431 39 05
143 A 0009910845 RING
TO 002 431 39 05
144 A 0004319483 PISTON
TO 002 431 39 05
144 A 0004318783 PISTON
TO 002 431 39 05
144 A 0004318883 PISTON
TO 002 431 39 05
A 0004306260 REPAIR KIT
LARGE SCOPE
TO 002 431 78 05
146 A 0004307360 REPAIR KIT
Repalced by: A 0004304306
146 A 0004304306 REPAIR KIT
LARGE SCOPE
TO 002 431 39 05
146 A 0014301260 REPAIR KIT
SMALL SCOPE
TO 002 431 39 05
147 N 000933008288 SCREW
BRAKE VALVE
148 N 913004008001 NUT
BRAKE VALVE
149 A 0029971572 FITTING
BRAKE VALVE,CONNECTION "11"
149 N 003901012005 SCREW-IN FITTING
BRAKE VALVE,CONNECTION "11"
149 A 0029978172 FITTING
BRAKE VALVE,CONNECTION "11"
149 N 074313006101 FITTING
BRAKE VALVE,CONNECTION "11"
151 N 007603016103 SEAL RING
BRAKE VALVE,CONNECTION "11"
152 A 0009904970 T-FITTING
BRAKE VALVE,CONNECTION "12"
152 N 074317012200 FITTING
BRAKE VALVE,CONNECTION "12"
153 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTION "12"
154 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTION "12"
155 N 000936016003 NUT
BRAKE VALVE,CONNECTION "12"
156 A 0029978172 FITTING
BRAKE VALVE,CONNECTION "12"
156 N 074313006101 FITTING
BRAKE VALVE,CONNECTION "12"
157 N 007603016103 SEAL RING
BRAKE VALVE,CONNECTION "12"
158 A 3459978282 HOSE
BREATHER LINE
159 A 0029971572 FITTING
BRAKE VALVE,CONNECTION "21"
159 N 003901012005 SCREW-IN FITTING
BRAKE VALVE,CONNECTION "21"
160 N 000908016001 SCREW PLUG
BRAKE VALVE,CONNECTION "21"
161 N 007603016103 SEAL RING
BRAKE VALVE,CONNECTION "21"
162 A 3089907171 ELBOW FITTING
BRAKE VALVE,CONNECTION "22"
163 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTION "22"
164 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTION "22"
165 N 000936016003 NUT
BRAKE VALVE,CONNECTION "22"
166 N 000908016001 SCREW PLUG
BRAKE VALVE,CONNECTION "22"
167 N 007603016103 SEAL RING
BRAKE VALVE,CONNECTION "22"
168 A 3454209435 LINE
FROM BRAKE VALVE,CONNECTION "22",TO T-FITTING
169 N 003861012007 GLAND
170 N 915017012100 UNION NUT
171 A 0009905270 T-FITTING
FROM BRAKE VALVE,CONNECTION "22",TO DIAPHRAGM CYLINDER
171 N 003908012000 T-FITTING
FROM BRAKE VALVE,CONNECTION "22",TO DIAPHRAGM CYLINDER

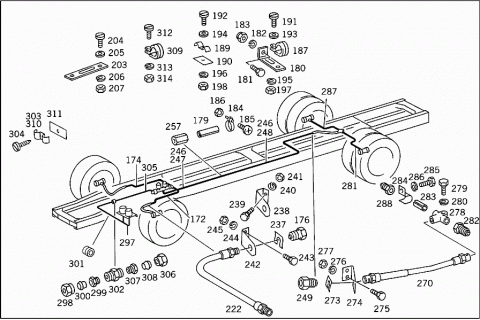

172 A 3444201528 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
172 A 3444201528 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
172 A 3444209028 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
172 A 3444208328 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
172 A 3444208328 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
172 A 3444208328 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
172 A 0444201528 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
172 H 983444202228 LINE
Repalced by: A 3444203128
172 A 3444203128 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
H 983444202328 LINE
Repalced by: A 3444203228
172 A 3444203228 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
173 A 3444209928 LINE
FROM T-FITTING TO LEFT HOSE FITTING
174 A 0444201728 LINE
Repalced by: A 3444208228
174 A 0444201728 LINE
Repalced by: A 3444208228
174 A 3444208228 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
174 A 3444208228 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
174 A 3444209128 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
174 A 3444208428 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
174 A 3444208428 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
174 A 3444208428 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
174 A 0444201628 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
174 H 983444202528 LINE
Repalced by: A 3444203328
174 A 3444203328 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
174 A 3444209528 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
174 H 983444202428 LINE
Repalced by: A 3444203428
174 A 3444203428 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
174 A 3444209628 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
175 A 3444309566 LINE
FROM T-FITTING TO RIGHT HOSE FITTING
176 N 074233012001 UNION SCREW
Repalced by: A 0004280072
176 A 0004280072 UNION SCREW
177 N 003861012007 GLAND
178 N 915017012100 UNION NUT
179 A 3129970582 HOSE
Repalced by: A 3449978082
179 A 3449978082 HOSE
180 A 3524281740 BRACKET
BRAKE LINE MOUNTING
181 N 000933008050 SCREW
BRAKE LINE MOUNTING
182 N 912004008100 LOCK WASHER
BRAKE LINE MOUNTING
183 N 000934008000 NUT
BRAKE LINE MOUNTING
184 A 3129950935 CLAMP
Repalced by: A 3459977290
184 A 3459977290 LOOM TIE
HOSE TO BRAKE LINE
185 N 000084004102 SCREW
HOSE TO BRAKE LINE
186 N 000934004000 NUT
HOSE TO BRAKE LINE
187 A 3129951401 CLAMP
BRAKE LINE TO SIDE AND CROSS MEMBERS
187 A 3609950101 CLAMP
BRAKE-LINE/PRESSURE-GAUGE-LINE MOUNTING
189 A 3129950332 CLAMP
BRAKE LINE TO SIDE AND CROSS MEMBERS
190 A 3215422340 BRACKET
BRAKE LINE TO SIDE AND CROSS MEMBERS
191 N 007985006515 SCREW
BRAKE LINE TO SIDE AND CROSS MEMBERS
192 N 000084005114 SCREW
BRAKE LINE TO SIDE AND CROSS MEMBERS
M 5X20
192 N 000084005104 SCREW
BRAKE LINE TO SIDE AND CROSS MEMBERS
M 5X10
193 N 000125006420 WASHER
BRAKE LINE TO SIDE AND CROSS MEMBERS
194 N 000125005315 WASHER
BRAKE LINE TO SIDE AND CROSS MEMBERS
194 N 000125006420 WASHER
MASTER-CYLINDER-TO-LEFT-FRONT-WHEEL BRAKE LINE
195 N 000127006203 LOCK WASHER
BRAKE LINE TO SIDE AND CROSS MEMBERS
196 N 000127005203 LOCK WASHER
BRAKE LINE TO SIDE AND CROSS MEMBERS
196 N 000127005001 LOCK WASHER
BRAKE LINE TO SIDE AND CROSS MEMBERS
197 N 000934006006 NUT
BRAKE LINE TO SIDE AND CROSS MEMBERS
198 N 000934005008 NUT
198 N 000934005008 NUT
BRAKE LINE TO SIDE AND CROSS MEMBERS
199 A 0009952401 CLAMP
Repalced by: N 916016006201
199 N 916016006201 CLAMP
BRAKE LINE TO BRACKET
199 A 3459957801 CLAMP
BRAKE LINE TO BRACKET

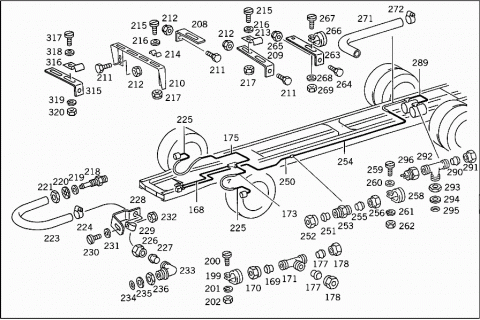

200 N 007985006515 SCREW
BRAKE LINE TO BRACKET
201 N 000127006203 LOCK WASHER
BRAKE LINE TO BRACKET
202 N 000934006006 NUT
BRAKE LINE TO BRACKET
203 A 3444287440 BRACKET
BRAKE LINE TO SIDE MEMBER
204 N 000933008282 SCREW
BRAKE LINE TO SIDE MEMBER
205 N 000125008417 WASHER
BRAKE LINE TO SIDE MEMBER
206 N 912004008100 LOCK WASHER
BRAKE LINE TO SIDE MEMBER
207 N 000934008000 NUT
BRAKE LINE TO SIDE MEMBER
208 A 3454287040 BRACKET
COMPRESSED AIR LINE TO ENGINE CROSS MEMBER
A 3454288140 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
209 A 3524290740 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
210 A 3524290440 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
211 N 000933008282 SCREW
BRACKET TO CROSS MEMBER
212 N 913004008001 NUT
BRACKET TO CROSS MEMBER
213 A 3049951520 CLAMP
COMPRESSED AIR LINE TO BRACKET
Repalced by: A 1009950420
213 A 1009950420 CLAMP
COMPRESSED AIR LINE TO BRACKET
214 A 3379950032 CLAMP
COMPRESSED AIR LINE TO BRACKET
214 A 1159950032 CLAMP
COMPRESSED AIR LINE TO BRACKET
214 A 3449950132 CLAMP
COMPRESSED AIR LINE TO BRACKET
215 N 007985006515 SCREW
COMPRESSED AIR LINE TO BRACKET
216 N 000125006420 WASHER
COMPRESSED AIR LINE TO BRACKET
216 N 000125006420 WASHER
COMPRESSED AIR LINE TO BRACKET
217 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
217 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
218 A 3454307379 CONNECTOR
FROM T-FITTING TO LEFT AND RIGHT DIAPHRAGM CYLINDERS
219 N 000125017010 WASHER
HOSE FITTING TO FRONT AXLE SIDE MEMBER
220 N 006797016152 TOOTHED WASHER
HOSE FITTING TO FRONT AXLE SIDE MEMBER
221 N 000936016003 NUT
HOSE FITTING TO FRONT AXLE SIDE MEMBER
222 A 0004289135 BRAKE HOSE
222 A 0014283235 BRAKE HOSE
222 A 3444280135 BRAKE HOSE
Repalced by: A 0004286935
222 A 0004286935 BRAKE HOSE
Repalced by: A 0004288935
222 A 0004288935 BRAKE HOSE
222 A 0014284835 BRAKE HOSE
222 A 0004284335 BRAKE HOSE
Repalced by: A 0004288735
222 A 0004288735 BRAKE HOSE
222 A 0014283135 BRAKE HOSE
223 N 916027011005 HOSE
FROM T-FITTING TO LEFT AND RIGHT DIAPHRAGM CYLINDERS
11X530
224 A 3459977990 LOOM TIE
Repalced by: A 3459978890
224 A 3459978890 LOOM TIE
BRAKE HOSE
225 A 3454208632 LINE
FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER
226 N 915017012100 UNION NUT
227 N 003861012007 GLAND
228 A 3454287840 BRACKET
COMPRESSED AIR LINE MOUNTING
228 A 3454288240 BRACKET
COMPRESSED AIR LINE MOUNTING
228 A 3454299840 BRACKET
COMPRESSED AIR LINE MOUNTING
229 N 916016012200 CLAMP
COMPRESSED AIR LINE MOUNTING
229 A 3459957901 CLAMP
COMPRESSED AIR LINE MOUNTING
230 N 007985006515 SCREW
COMPRESSED AIR LINE MOUNTING
231 N 000125006420 WASHER
COMPRESSED AIR LINE MOUNTING
232 N 913004006001 NUT
COMPRESSED AIR LINE MOUNTING
233 A 3089907171 ELBOW FITTING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
234 A 0009971548 SEAL RING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
235 A 0004290927 THRUST RING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
236 N 000936016003 NUT
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
237 A 0004280473 BRACKET
238 A 0124281143 ANGLE
238 A 3224280140 BRACKET
239 N 000933008282 SCREW
240 N 912004008100 LOCK WASHER
241 N 000934008000 NUT
242 A 3404280243 ANGLE
LEFT BRAKE HOSE
242 A 3444287240 BRACKET
LEFT BRAKE HOSE
242 A 3444287240 BRACKET
LEFT BRAKE HOSE
242 A 3444287240 BRACKET
LEFT BRAKE HOSE
242 A 3404280343 ANGLE
RIGHT BRAKE HOSE
242 A 3444287340 BRACKET
RIGHT BRAKE HOSE
242 A 3444287340 BRACKET
RIGHT BRAKE HOSE
242 A 3444287340 BRACKET
RIGHT BRAKE HOSE
243 N 000933008317 SCREW
BRACKET TO CONSOLE
244 N 912004008100 LOCK WASHER
BRACKET TO CONSOLE
245 N 000934008000 NUT
BRACKET TO CONSOLE
246 A 3444202328 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444202328 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444209328 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444208628 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444208628 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444208628 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444202128 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444202128 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444209428 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444208728 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444208728 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444208728 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444203528 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444202228 LINE
FROM MASTER CYLINDER TO REAR AXLE
246 A 3444208528 LINE
246 A 3444208528 LINE
246 A 3444208528 LINE
246 A 0444200228 LINE
247 H 983444202628 LINE
Repalced by: A 3444207428
247 A 3444207428 LINE
FROM MASTER CYLINDER TO CONNECTOR
248 A 3444207528 LINE
FROM CONNECTOR TO REAR AXLE
249 N 074233012001 UNION SCREW
Repalced by: A 0004280072
249 A 0004280072 UNION SCREW
250 A 3454204249 LINE
FROM BRAKE VALVE,CONNECTION "21",TO FITTING
251 N 003861012007 GLAND
252 N 915017012100 UNION NUT
253 A 0029971472 FITTING
FROM BRAKE VALVE,CONNECTION "21",TO FITTING
253 N 003902012001 CONNECTION FITTING
FROM BRAKE VALVE,CONNECTION "21",TO FITTING
254 A 3444207029 LINE
FROM FITTING TO BRAKE HOSE
255 N 003861012007 GLAND
256 N 915017012100 UNION NUT
257 A 0004292736 CONNECTOR
Repalced by: A 3454297836
257 A 3454297836 CONNECTOR
258 A 3129951401 CLAMP
BRAKE LINE TO SIDE AND CROSS MEMBERS
259 N 007985006515 SCREW
BRAKE LINE TO SIDE AND CROSS MEMBERS
260 N 000125006420 WASHER
BRAKE LINE TO SIDE AND CROSS MEMBERS
261 N 000127006203 LOCK WASHER
BRAKE LINE TO SIDE AND CROSS MEMBERS
262 N 000934006006 NUT
BRAKE LINE TO SIDE AND CROSS MEMBERS
263 A 3524281740 BRACKET
Repalced by: A 3454287040
263 A 3454287040 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
264 N 000933008282 SCREW
COMPRESSED AIR LINE TO SIDE MEMBER
265 N 913004008001 NUT
COMPRESSED AIR LINE TO SIDE MEMBER
266 N 916016012200 CLAMP
COMPRESSED AIR LINE TO BRACKET
266 A 3459957901 CLAMP
COMPRESSED AIR LINE TO BRACKET
266 A 3049951520 CLAMP
COMPRESSED AIR LINE TO BRACKET
Repalced by: A 1009950420
266 A 1009950420 CLAMP
COMPRESSED AIR LINE TO BRACKET
267 N 007985006515 SCREW
COMPRESSED AIR LINE TO BRACKET
268 N 000125006420 WASHER
COMPRESSED AIR LINE TO BRACKET
269 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
270 A 0004280235 BRAKE HOSE
Repalced by: A 3454287035
270 A 3454287035 BRAKE HOSE
270 A 0014283535 BRAKE HOSE
Repalced by: A 3454287135
270 A 3454287135 BRAKE HOSE
270 A 3444287235 BRAKE HOSE
Repalced by: A 3454287235
270 A 3454287235 BRAKE HOSE
270 A 0004283335 BRAKE HOSE
270 A 0014285035 BRAKE HOSE
270 A 0004284735 BRAKE HOSE
Repalced by: A 3444287535
270 A 3444287535 BRAKE HOSE
270 A 0004284335 BRAKE HOSE
270 A 0014283135 BRAKE HOSE
271 A 3504207648 BRAKE HOSE
LEFT COMBINATION CYLINDER;CONNECTION:
"11"
271 A 3459977990 LOOM TIE
Repalced by: A 3459978890
272 A 3459978890 LOOM TIE
BRAKE HOSE
273 A 0004280473 BRACKET
274 A 3124281040 BRACKET
274 A 3444280040 BRACKET
275 N 000966008014 SCREW
BRACKET TO SIDE MEMBER
275 N 000963008003 SCREW
BRACKET TO SIDE MEMBER
275 N 000933008282 SCREW
BRACKET TO SIDE MEMBER
276 N 912004008100 LOCK WASHER
BRACKET TO SIDE MEMBER
277 N 000934008000 NUT
BRACKET TO SIDE MEMBER
278 A 0004290437 DISTRIBUTOR
278 A 3454297037 DISTRIBUTOR
279 N 000933008273 SCREW
DISTRIBUTOR TO REAR AXLE
280 N 912004008100 LOCK WASHER
DISTRIBUTOR TO REAR AXLE
281 A 0444200330 LINE
Repalced by: A 3444207928
281 A 3444207928 LINE
FROM DISTRIBUTOR TO LEFT REAR WHEEL
281 A 3444203628 LINE
FROM DISTRIBUTOR TO LEFT REAR WHEEL
282 N 074233012001 UNION SCREW
Repalced by: A 0004280072
282 A 0004280072 UNION SCREW
283 A 3129973482 HOSE
284 A 3129951020 CLAMP
285 N 000933008228 SCREW
LINE TO AXLE HOUSING
286 N 912004008100 LOCK WASHER
LINE TO AXLE HOUSING
287 A 0444200331 LINE
Repalced by: A 3444207828
287 A 3444207828 LINE
FROM DISTRIBUTOR TO RIGHT REAR WHEEL
287 A 0444200431 LINE
Repalced by: A 3444203728
287 A 3444203728 LINE
FROM DISTRIBUTOR TO RIGHT REAR WHEEL
288 N 074233012001 UNION SCREW
Repalced by: A 0004280072
288 A 0004280072 UNION SCREW
289 A 3454203749 LINE
FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION:
"11"
289 A 3454203749 LINE
FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION:
"12"
290 N 003861012007 GLAND
291 N 915017012100 UNION NUT
292 A 0009904270 T-FITTING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
292 A 0009904770 T-FITTING
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
293 N 000936016003 NUT
LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION:
"11","12"
294 A 0004290927 THRUST RING
LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION:
"11","12"
295 A 0009971548 SEAL RING
LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION:
"11","12"
296 A 3445457114 SWITCH
Repalced by: A 0015454114
296 A 0015454114 SWITCH
LEFT COMBINATION CYLINDER;CONNECTION:
"11"
296 A 0005455414 SWITCH
LEFT COMBINATION CYLINDER;CONNECTION:
"12"
296 A 3445457214 SWITCH
LEFT COMBINATION CYLINDER;CONNECTION:
"12"
297 H 983444201828 LINE
Repalced by: A 3444202728
297 A 3444202728 LINE
FROM FLUID RESERVOIR TO CONNECTOR
8X0.7 MM
297 H 983444201928 LINE
Repalced by: A 3444202828
297 A 3444202828 LINE
8X0.7 MM
298 N 915017008100 UNION NUT
299 A 0009971173 FITTING
300 N 003861008005 GLAND
301 A 3029970381 GROMMET
BRAKE LINE THRU CAB FLOOR
301 A 1869970481 GROMMET
BRAKE LINE THRU CAB FLOOR
302 N 003902008001 CONNECTION FITTING
BRAKE LINE THRU CAB FLOOR
303 A 3379950332 CLAMP
304 N 007971004233 SHEET METAL SCREW
305 H 983444202028 LINE
Repalced by: A 3444202928
305 A 3444202928 LINE
FROM DOUBLE FITTING TO MASTER CYLINDER
8X0.7 MM
305 H 983444202128 LINE
Repalced by: A 3444203028
305 A 3444203028 LINE
FROM DOUBLE FITTING TO MASTER CYLINDER
8X0.7 MM
306 N 915017008100 UNION NUT
307 A 0009971173 FITTING
308 N 003861008005 GLAND
309 A 0009951801 CLAMP
Repalced by: N 916016008200
309 N 916016008200 CLAMP
310 A 3379950332 CLAMP
LINE MOUNTING
311 A 3124761036 BRACKET
Repalced by: A 3124761236
311 A 3124761236 BRACKET
LINE MOUNTING
312 N 007985006512 SCREW
LINE MOUNTING
312 N 007985006515 SCREW
LINE MOUNTING
313 N 000127006203 LOCK WASHER
LINE MOUNTING
314 N 000934006006 NUT
LINE MOUNTING
315 A 3454297840 BRACKET
LINE MOUNTING
315 A 3454297840 BRACKET
LINE MOUNTING
316 A 3049950120 CLAMP
Repalced by: A 3049950220
316 A 3049950220 CLAMP
LINE MOUNTING
316 A 3049950220 CLAMP
LINE MOUNTING
316 A 3049950220 CLAMP
LINE MOUNTING
317 N 007985006515 SCREW
LINE MOUNTING
317 N 007985006515 SCREW
LINE MOUNTING
318 N 000125006420 WASHER
LINE MOUNTING
318 N 000125006420 WASHER
LINE MOUNTING
319 N 000127006203 LOCK WASHER
LINE MOUNTING
319 N 000127006203 LOCK WASHER
LINE MOUNTING
320 N 913004006001 NUT
LINE MOUNTING
320 N 913004006001 NUT
LINE MOUNTING
321 A 3124294840 BRACKET
TRUCK-TRACTOR BRAKE VALVE
321 A 3124294840 BRACKET
TRUCK-TRACTOR BRAKE VALVE
322 A 3444317140 BRACKET
Repalced by: A 3454310540
322 A 3454310540 BRACKET
BRAKE MASTER CYLINDER
322 A 3454310140 BRACKET
BRAKE BOOSTER
322 A 3454310140 BRACKET
BRAKE BOOSTER
322 A 3454310140 BRACKET
BRAKE BOOSTER
323 A 3523110084 SHIM
323 A 3523110084 SHIM
323 A 3523110084 SHIM
323 A 3444317184 SHIM
324 H 983444310040 BRACKET
Repalced by: A 3444310140
324 A 3444310140 BRACKET
325 H 983444310084 SHIM
Repalced by: A 3444310184
325 A 3444310184 SHIM
A 0224310040 BRACKET
326 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
326 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
326 N 000933010269 SCREW
BRACKET TO SIDE MEMBER
327 N 000127010202 LOCK WASHER
BRACKET TO SIDE MEMBER
328 N 000125010517 WASHER
BRACKET TO SIDE MEMBER
329 N 000934010000 NUT
BRACKET TO SIDE MEMBER
330 A 0004290227 THRUST RING
Repalced by: A 0009940203
330 A 0009870446 O-RING
Repalced by: N 003902018004
330 A 0029971272 FITTING
Repalced by: N 003901018004
330 N 003901018006 SCREW-IN FITTING
AT AIR COMPRESSOR
330 A 3454298336 CONNECTOR
AT AIR COMPRESSOR
331 N 007603022102 SEAL RING
AT AIR COMPRESSOR

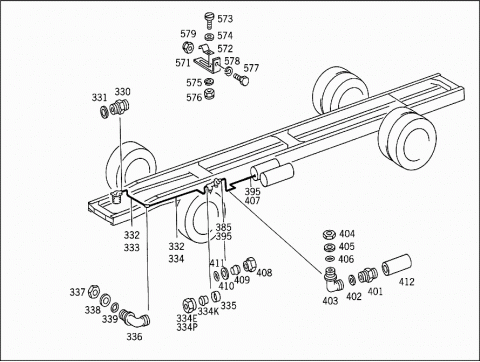

332 A 0444200726 LINE
Repalced by: A 3444209737
332 A 3444209737 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
18X1.5 MM
332 A 3444209737 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
18X1.5 MM
332 A 3444207149 LINE
18X1.5 MM
332 A 3444207149 LINE
18X1.5 MM
332 A 3444207149 LINE
18X1.5 MM
332 A 0444201326 LINE
18X1.5 MM
332 H 983444205526 LINE
Repalced by: A 3444203726
332 A 3444203726 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
18X1.5 MM
332 A 3444309165 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
18X1.5 MM

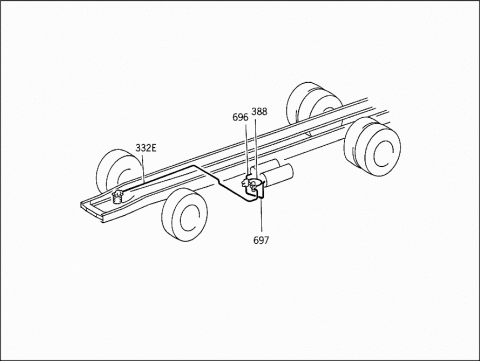

332E A 3444308966 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
15 X 1,5 MM
333 A 3454207749 LINE
333 A 3444209449 LINE
FROM AIR COMPRESSOR TO ELBOW FITTING
18X1.5 MM
334 A 3444207449 LINE
FROM ELBOW FITTING TO PRESSURE REGULATOR
18X1.5 MM
334E N 915017018100 UNION NUT
334E N 915017018100 UNION NUT
334E N 915017015100 UNION NUT
334K N 003861015004 GLAND
334K N 003861018003 GLAND
334K N 003861018003 GLAND
334P N 074297026102 UNION NUT
335 N 074297018202 SLIP RING
336 A 3459907271 ELBOW FITTING
Repalced by: N 003911018100
336 N 003911018100 FITTING
336 N 074301026202 ELBOW FITTING
336 N 074301026202 ELBOW FITTING
337 N 074305026202 NUT
ELBOW FITTING TO SIDE MEMBER
338 N 915065018101 THRUST RING
COMPRESSED AIR LINE TO DOUBLE FITTING
338 N 915065018101 THRUST RING
COMPRESSED AIR LINE TO DOUBLE FITTING
339 N 915045015100 SEAL RING
COMPRESSED AIR LINE TO DOUBLE FITTING
340 N 074313016201 FITTING
340 N 074313016201 FITTING
340 A 0019972172 FITTING
340 A 0019972172 FITTING
341 N 074305022202 NUT
341 N 074305022202 NUT
341 N 074305022202 NUT
342 A 0004290227 THRUST RING
Repalced by: A 0009940203
342 A 0009940203 THRUST RING
ELBOW FITTING TO TIRE INFLATOR CYLINDER
343 A 0009870446 O-RING
ELBOW FITTING TO TIRE INFLATOR CYLINDER
344 H 983455910002 TIRE INFLATOR CYLINDER
Repalced by: A 3445910019
344 A 3445910019 TIRE INFLATOR CYLINDER
344 A 3445910019 TIRE INFLATOR CYLINDER
345 A 0005910097 REPAIR KIT
345 A 0005910097 REPAIR KIT
346 N 007603022102 SEAL RING
347 A 0019972372 FITTING
347 N 074313016401 FITTING
347 N 074313016401 FITTING
347 N 074313016401 FITTING

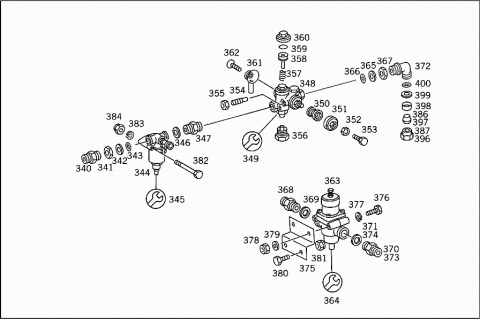

348 A 0004311006 PRESSURE REGULATOR
348 A 0004311006 PRESSURE REGULATOR
349 H 983455860743 REPAIR KIT
349 H 983455860743 REPAIR KIT
350 A 0004310212 COMPENSATOR
350 A 0004310212 COMPENSATOR
351 A 0004310856 SCREW PLUG
351 A 0004310856 SCREW PLUG
352 N 000934008000 NUT
352 N 000934008000 NUT
353 N 000933008288 SCREW
353 N 000933008288 SCREW
354 A 0004310070 STUD
354 A 0004310070 STUD
355 N 000934005008 NUT
355 N 000934005008 NUT
356 A 0004310956 SCREW PLUG
356 A 0004310956 SCREW PLUG
357 A 0004312493 SPRING
357 A 0004312493 SPRING
358 A 0004312383 PISTON
358 A 0004312383 PISTON
359 A 0004311476 WASHER
359 A 0004311476 WASHER
360 A 0004311056 SCREW PLUG
360 A 0004311056 SCREW PLUG
361 A 0004310073 BREATHER PIPE
361 A 0004310073 BREATHER PIPE
362 N 000063010122 SCREW
363 A 3444317006 VALVE
Repalced by: A 0014316906
363 A 0014316906 VALVE
(PRESSURE CONTROL VALVE)
"WABGO"
363 A 0014316906 VALVE
(PRESSURE CONTROL VALVE)
"WABGO"
363 A 0014316906 VALVE
(PRESSURE CONTROL VALVE)
"WABGO"
363 A 0014316906 VALVE
(PRESSURE CONTROL VALVE)
"WABGO"
363 A 0014312206 PRESSURE REGULATOR
"WABGO"
363 A 0014319906 PRESSURE REGULATOR
(PRESSURE CONTROL VALVE)
"KNORR"
364 A 3445867343 REPAIR KIT
Repalced by: A 0004201671
364 A 0004201671 REPAIR KIT
TO 001 431 69 06
364 A 0015864343 REPAIR KIT
TO 001 431 22 06
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 22 06
364 A 0025866743 REPAIR KIT
Repalced by: A 0004201371
364 A 0004201371 REPAIR KIT
TO 001 431 99 06
365 A 0004290227 THRUST RING
Repalced by: A 0009940203
365 A 0009940203 THRUST RING
AT PRESSURE REGULATOR
365 A 0009940203 THRUST RING
AT PRESSURE REGULATOR
366 A 0009870446 O-RING
AT PRESSURE REGULATOR
366 A 0009870446 O-RING
AT PRESSURE REGULATOR
367 N 074305022202 NUT
AT PRESSURE REGULATOR
367 N 074305022202 NUT
AT PRESSURE REGULATOR
368 A 0029971172 FITTING
Repalced by: A 3454307879
368 A 3454307879 CONNECTOR
AT PRESSURE REGULATOR
368 N 074313012100 FITTING
AT PRESSURE REGULATOR
369 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
370 N 003901018006 SCREW-IN FITTING
AT PRESSURE REGULATOR
370 N 003901018006 SCREW-IN FITTING
AT PRESSURE REGULATOR
371 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
371 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
372 A 3454297838 ELBOW FITTING
AT PRESSURE REGULATOR
372 N 074315000200 FITTING
AT PRESSURE REGULATOR
372 A 0009905871 ELBOW FITTING
AT PRESSURE REGULATOR
373 A 3454298336 CONNECTOR
AT PRESSURE REGULATOR
374 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
375 A 3045910540 BRACKET
PRESSURE REGULATOR
375 A 3045910540 BRACKET
PRESSURE REGULATOR
375 A 3445917040 BRACKET
PRESSURE REGULATOR
375 A 3445917040 BRACKET
PRESSURE REGULATOR
375 A 3445917040 BRACKET
PRESSURE REGULATOR
376 N 000931008321 SCREW
PRESSURE REGULATOR TO BRACKET
376 N 000931008321 SCREW
PRESSURE REGULATOR TO BRACKET
376 N 000931008370 SCREW
PRESSURE REGULATOR TO BRACKET
376 N 000931008370 SCREW
PRESSURE REGULATOR TO BRACKET
377 N 912004008100 LOCK WASHER
PRESSURE REGULATOR TO BRACKET
377 N 912004008100 LOCK WASHER
PRESSURE REGULATOR TO BRACKET
378 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
378 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
379 N 000125008417 WASHER
PRESSURE REGULATOR TO BRACKET
380 N 000933008288 SCREW
BRACKET TO SIDE MEMBER
381 N 913004008001 NUT
BRACKET TO SIDE MEMBER
382 N 000933008288 SCREW
TIRE INFLATOR CYLINDER TO SIDE MEMBER
382 N 000933008288 SCREW
TIRE INFLATOR CYLINDER TO SIDE MEMBER
382 N 000931008228 SCREW
TIRE INFLATOR CYLINDER TO SIDE MEMBER
383 N 912004008100 LOCK WASHER
TIRE INFLATOR CYLINDER TO SIDE MEMBER
383 N 912004008100 LOCK WASHER
TIRE INFLATOR CYLINDER TO SIDE MEMBER
384 N 913004008001 NUT
TIRE INFLATOR CYLINDER TO SIDE MEMBER
385 A 0444200926 LINE
Repalced by: A 3444209837
385 A 3444209837 LINE
FROM PRESSURE REGULATOR TO DOUBLE FITTING
15X1.5 MM
385 A 3444209837 LINE
FROM PRESSURE REGULATOR TO DOUBLE FITTING
15X1.5 MM
385 A 3444207249 LINE
FROM PRESSURE REGULATOR TO FITTING
15X1.5 MM
385 A 3444207249 LINE
FROM PRESSURE REGULATOR TO FITTING
15X1.5 MM
385 A 3444207249 LINE
FROM PRESSURE REGULATOR TO FITTING
15X1.5 MM
386 N 003861015004 GLAND
387 N 915018015000 UNION NUT
388 A 3444309866 LINE
FROM PRESSURE REGULATOR TO FOURCIRCUIT PROTECTIVE VALVE
389 N 003861012007 GLAND
390 N 915017012100 UNION NUT
391 A 0009907771 ELBOW FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
391 N 074315012101 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
392 N 074305022202 NUT
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
393 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
394 A 0004290227 THRUST RING
Repalced by: A 0009940203
394 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
395 A 0224200726 LINE
FROM PRESSURE REGULATOR TO AIR RESERVOIR
A 3444207549 LINE
FROM PRESSURE REGULATOR TO AIR RESERVOIR
395 A 3444207649 LINE
FROM PRESSURE REGULATOR TO AIR RESERVOIR
395 H 983444205626 LINE
Repalced by: A 3444203826
395 A 3444203826 LINE
FROM PRESSURE REGULATOR TO AIR RESERVOIR
395 A 3444309265 LINE
FROM PRESSURE REGULATOR TO AIR RESERVOIR
396 N 915018015000 UNION NUT
396 N 074297022102 UNION NUT
397 N 003861015004 GLAND
398 N 074297015202 SLIP RING
399 N 915065015101 THRUST RING
400 N 915045012100 SEAL RING
401 N 074313016201 FITTING
401 N 074313016201 FITTING
401 A 0019972172 FITTING
401 A 0019972172 FITTING
402 N 007603022102 SEAL RING
402 N 007603022102 SEAL RING
403 A 0009905871 ELBOW FITTING
403 A 0009905871 ELBOW FITTING
403 N 074315000200 FITTING
403 N 074315000200 FITTING
403 N 074301022202 ELBOW FITTING
404 N 074305022202 NUT
405 A 0004290227 THRUST RING
Repalced by: A 0009940203
405 A 0009940203 THRUST RING
406 A 0009870446 O-RING
407 A 0444201336 LINE
Repalced by: A 3444207737
407 A 3444207737 LINE
FROM DOUBLE FITTING TO AIR RESERVOIR
15X1.5 MM
407 A 3444207737 LINE
FROM DOUBLE FITTING TO AIR RESERVOIR
15X1.5 MM
407 A 3444207737 LINE
FROM DOUBLE FITTING TO AIR RESERVOIR
15X1.5 MM
407 A 3444208137 LINE
FROM DOUBLE FITTING TO AIR RESERVOIR
15X1.5 MM
407 A 0444201436 LINE
Repalced by: A 3444207837
407 A 3444207837 LINE
15X1.5 MM
407 A 3444207837 LINE
15X1.5 MM
407 A 3444208237 LINE
FROM DOUBLE FITTING TO AIR RESERVOIR
408 N 915018015000 UNION NUT
FROM DOUBLE FITTING TO AIR RESERVOIR
409 N 003861015006 GLAND
FROM DOUBLE FITTING TO AIR RESERVOIR
410 N 915065015101 THRUST RING
410 N 915065015101 THRUST RING
411 N 915045012100 SEAL RING
411 N 915045012100 SEAL RING
412 A 3129974282 HOSE
THROUGH SIDE MEMBER
412 A 3129974282 HOSE
THROUGH SIDE MEMBER
413 A 3214300205 RESERVOIR
Repalced by: A 3454308205
413 A 3454308205 RESERVOIR
413 A 3454308005 RESERVOIR
Repalced by: A 3454308105
413 A 3454308105 RESERVOIR
414 A 3224302305 RESERVOIR
414E N 007603022102 SEAL RING
415 A 0004320607 VALVE
Repalced by: A 0004320807
415 A 3454300081 VALVE
Repalced by: A 0004320807
415 A 0454300081 VALVE
Repalced by: A 3454300281
415 A 3454300181 VALVE
Repalced by: A 3454300281
415 H 983454300081 VALVE
Repalced by: A 3454300281
415 A 3454300281 VALVE
Repalced by: A 0004320807
415 A 0004320807 VALVE
415 A 3644327107 VALVE
416 N 074317000100 FITTING
417 A 0004290044 VALVE
"BOSCH"
417 A 3444297344 VALVE
"BOSCH DO BRASIL"
418 A 0004290382 VALVE
TO 000 429 00 44
419 A 0004290193 SPRING
TO 000 429 00 44
420 A 0004290092 VALVE NIPPLE
TO 000 429 00 44
421 A 0004290073 LOCK
TO 000 429 00 44
422 A 0004290045 DIAPHRAGM
TO 000 429 00 44
422 A 0004290145 DIAPHRAGM
TO 344 429 73 44
423 A 0004290062 THRUST WASHER
TO 000 429 00 44
424 A 0004290293 SPRING
TO 000 429 00 44
425 A 0004290089 SPRING RETAINER
TO 000 429 00 44
426 N 000127008203 LOCK WASHER
PRESSURE LIMIT
TO 000 429 00 44
427 N 000934008010 NUT
PRESSURE LIMIT
TO 000 429 00 44
428 N 000933008288 SCREW
TO 000 429 00 44
429 N 000127008203 LOCK WASHER
SPRING CASE
TO 000 429 00 44
430 N 000933008050 SCREW
SPRING CASE
431 A 3609900071 ELBOW FITTING
AIR RESERVOIR
431 A 3459907071 ELBOW FITTING
AIR RESERVOIR
431 N 074315000200 FITTING
AIR RESERVOIR
431 A 0009905871 ELBOW FITTING
AIR RESERVOIR
432 N 074313016201 FITTING
432 A 0019972172 FITTING
433 A 0029971172 FITTING
Repalced by: A 3454307879
433 A 3454307879 CONNECTOR
AIR RESERVOIR
"1"
433 N 074313012100 FITTING
AIR RESERVOIR
"1"
434 A 0009902470 T-FITTING
434 N 074317000100 FITTING
435 N 007603022102 SEAL RING
AIR RESERVOIR
435 N 007603022102 SEAL RING
AIR RESERVOIR
"1"
436 N 007603022300 SEAL RING
AIR RESERVOIR
437 N 000908022001 SCREW PLUG
AIR RESERVOIR
438 N 074305022202 NUT
AIR RESERVOIR
438 N 074305022202 NUT
AIR RESERVOIR
438 N 074305022202 NUT
AIR RESERVOIR
"2"
439 A 0009870446 O-RING
AIR RESERVOIR
439 A 0009870446 O-RING
AIR RESERVOIR
439 A 0009870446 O-RING
AIR RESERVOIR
"2"
440 A 0004290227 THRUST RING
Repalced by: A 0009940203
440 A 0009940203 THRUST RING
AIR RESERVOIR
440 A 0009940203 THRUST RING
AIR RESERVOIR
440 A 0009940203 THRUST RING
AIR RESERVOIR
"2"
441 A 0009907771 ELBOW FITTING
AIR RESERVOIR
"2"
441 N 074315012101 FITTING
AIR RESERVOIR
"2"
442 A 0004320084 SEAL RING
443 A 3444290034 ADAPTER FITTING
444 A 3444320006 SCREW
445 A 3174300179 CONNECTOR
446 N 007603022102 SEAL RING
447 N 074305022202 NUT
448 N 074301022202 ELBOW FITTING
449 A 0004295032 T-FITTING
450 N 007603022102 SEAL RING
451 N 915065015101 THRUST RING
452 N 915045012100 SEAL RING
453 A 0004290227 THRUST RING
Repalced by: A 0009940203
453 A 0009940203 THRUST RING
454 A 0009870446 O-RING
455 A 0214200736 LINE
455 H 983444206526 LINE
Repalced by: A 3444204026
455 A 3444204026 LINE
FROM T-FITTING TO VALVE
15X1.5 MM
455 A 3444207126 LINE
FROM T-FITTING TO VALVE
15X1.5 MM
456 N 915018015000 UNION NUT
457 N 003861015004 GLAND
458 N 915065015101 THRUST RING
COMPRESSED AIR LINE TO AIR RESERVOIR
459 N 915045012100 SEAL RING
COMPRESSED AIR LINE TO AIR RESERVOIR
460 A 3444290036 CONNECTOR
COMPRESSED AIR LINE TO AIR RESERVOIR
461 A 0004298544 VALVE
COMPRESSED AIR LINE TO AIR RESERVOIR
462 A 0004290072 NUT
463 A 0004290173 LOCK
464 A 0004292493 SPRING
465 A 0014302860 REPAIR KIT
466 A 3444290136 CONNECTOR
COMPRESSED AIR LINE TO AIR RESERVOIR
467 N 074305022202 NUT
COMPRESSED AIR LINE TO AIR RESERVOIR
468 A 0009870446 O-RING
COMPRESSED AIR LINE TO AIR RESERVOIR
469 A 0004290227 THRUST RING
Repalced by: A 0009940203
469 A 0009940203 THRUST RING
COMPRESSED AIR LINE TO AIR RESERVOIR
470 A 3444209728 LINE
FROM AIR RESERVOIR I TO FITTING
471 A 3454208033 LINE
FROM FITTING TO BRAKE VALVE, CONNECTION:
"12"
472 A 3444309966 LINE
FROM AIR RESERVOIR II TO FITTING
473 A 3454207933 LINE
FROM FITTING TO BRAKE VALVE, CONNECTION:
"11"
474 N 003861012007 GLAND
475 N 915017012100 UNION NUT
476 A 0029971472 FITTING
AIR-RESERVOIR-TO-BRAKE-VALVE COMPRESSED AIRE LINE
476 N 003902012001 CONNECTION FITTING
AIR-RESERVOIR-TO-BRAKE-VALVE COMPRESSED AIRE LINE
477 A 3214320015 CONSOLE
AIR RESERVOIR
478 A 3444300039 SUPPORT
FRONT
478 A 3444300139 SUPPORT
REAR
479 A 3224320115 CONSOLE
AIR RESERVOIR
480 A 3214750084 SHIM
AIR RESERVOIR CONSOLE TO SIDE MEMBER
481 N 000961012094 SCREW
AIR RESERVOIR CONSOLE TO SIDE MEMBER
481 N 000961012106 SCREW
AIR RESERVOIR CONSOLE TO SIDE MEMBER
482 A 3609901740 WASHER
AIR RESERVOIR CONSOLE TO SIDE MEMBER
483 N 000961012000 SCREW
AIR RESERVOIR CONSOLE TO SIDE MEMBER
484 N 000127012201 LOCK WASHER
AIR RESERVOIR CONSOLE TO SIDE MEMBER
485 N 000934012004 NUT
AIR RESERVOIR CONSOLE TO SIDE MEMBER
485 N 913004012006 NUT
AIR RESERVOIR CONSOLE TO SIDE MEMBER
A 3219870214 RUBBER STRIP
487 A 3214300140 STRAP
AIR RESERVOIR TO CONSOLE
488 A 3224300140 STRAP
AIR RESERVOIR TO CONSOLE
489 N 001434010024 PIN
AIR RESERVOIR TO CONSOLE
489 N 001434010024 PIN
AIR RESERVOIR TO CONSOLE
490 N 000094003026 COTTER PIN
AIR RESERVOIR TO CONSOLE
490 N 000094003026 COTTER PIN
AIR RESERVOIR TO CONSOLE
491 N 000931010282 SCREW
AIR RESERVOIR TO CONSOLE
492 N 000934010000 NUT
AIR RESERVOIR TO CONSOLE
492 N 000934010000 NUT
AIR RESERVOIR TO CONSOLE
493 N 000933008282 SCREW
494 N 000125008417 WASHER
AIR RESERVOIR TO BRACKET
495 N 912004008100 LOCK WASHER
AIR RESERVOIR TO BRACKET
496 N 000934008000 NUT
AIR RESERVOIR TO BRACKET
497 A 0444201536 LINE
15X1.5 MM
497 A 0444201836 LINE
15X1.5 MM
497 A 0444201936 LINE
15X1.5 MM
497 A 0224290801 LINE
15X1.5 MM
497 A 0444201626 LINE
15X1.5 MM
497 H 983444205726 LINE
Repalced by: A 3444204126
497 A 3444204126 LINE
LEFT;REAR AXLE
15X1.5 MM
497 A 3444209649 LINE
FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY"
497 A 3444209437 LINE
FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY"
497 A 3444209537 LINE
FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY"
498 N 915018015000 UNION NUT
499 N 003861015004 GLAND
500 N 915065015101 THRUST RING
500 N 915065015101 THRUST RING
501 N 915045012100 SEAL RING
501 N 915045012100 SEAL RING
502 N 074298022202 DOUBLE FITTING
503 A 0444201636 LINE
FROM FITTING TO T-FITTING
15X1.5 M
503 A 0444202336 LINE
FROM FITTING TO T-FITTING
15X1.5 MM
503 A 0444202336 LINE
FROM FITTING TO T-FITTING
15X1.5 MM
503 A 0444202436 LINE
FROM FITTING TO T-FITTING
504 A 3444209437 LINE
FROM AIR RESERVOIR TO TRUCK-TRACTOR BRAKE VALVE
15X1.5 MM
504 A 3444209437 LINE
FROM AIR RESERVOIR TO TRUCK-TRACTOR BRAKE VALVE
15X1.5 MM
504 A 3444209537 LINE
FROM AIR RESERVOIR TO TRUCK-TRACTOR BRAKE VALVE
15X1.5 MM
504 A 3444209537 LINE
FROM AIR RESERVOIR TO TRUCK-TRACTOR BRAKE VALVE
15X1.5 MM
504 A 3444209445 LINE
FROM AIR RESERVOIR TO TRUCK-TRACTOR BRAKE VALVE
15X1.5 MM
504 A 3444209545 LINE
FROM AIR RESERVOIR TO TRUCK-TRACTOR BRAKE VALVE
504 A 3444209645 LINE
FROM AIR RESERVOIR TO TRUCK-TRACTOR BRAKE VALVE
505 N 915018015000 UNION NUT
506 N 003861015004 GLAND
507 A 0019972172 FITTING
Repalced by: A 0004293838
507 A 0004293838 ELBOW FITTING
508 A 3444207937 LINE
AIR RESERVOIR TO BRAKE BOOSTER
15X1.5 MM
508 A 3444207937 LINE
AIR RESERVOIR TO BRAKE BOOSTER
15X1.5 MM
508 A 3444207937 LINE
AIR RESERVOIR TO BRAKE BOOSTER
15X1.5 MM
508 A 3444208037 LINE
AIR RESERVOIR TO BRAKE BOOSTER
15X1.5 MM
508 A 3444208037 LINE
AIR RESERVOIR TO BRAKE BOOSTER
15X1.5 MM
508 A 3444208037 LINE
AIR RESERVOIR TO BRAKE BOOSTER
15X1.5 MM
509 N 003861015004 GLAND
510 N 915018015000 UNION NUT
511 N 915065015101 THRUST RING
511 N 915065015101 THRUST RING
512 A 3524281740 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
513 A 3199950320 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
514 N 007985006515 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
515 N 000125006420 WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
516 N 000127006203 LOCK WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
517 N 000934006006 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
518 N 915045012100 SEAL RING
518 N 915045012100 SEAL RING
15X1.5X700 MM
518 N 915045012100 SEAL RING
15X1.5X700 MM
519 A 3122943001 BEARING BRACKET
BRAKE BOOSTER
A 3444307011 CONSOLE
BRAKE BOOSTER
520 A 3454310040 BRACKET
Repalced by: A 3454317340
520 A 3454317340 BRACKET
BRAKE BOOSTER
520 A 3454317340 BRACKET
BRAKE BOOSTER
520 A 3454317340 BRACKET
BRAKE BOOSTER
520 A 3454317340 BRACKET
BRAKE BOOSTER
521 N 000933010294 SCREW
BRACKET TO SIDE MEMBER
521 N 000933010269 SCREW
BRACKET TO SIDE MEMBER
521 N 000933010174 SCREW
BRACKET TO SIDE MEMBER
521 N 000933010174 SCREW
BRACKET TO SIDE MEMBER
521 N 000933010174 SCREW
BRACKET TO SIDE MEMBER
521 N 000933010174 SCREW
BRACKET TO SIDE MEMBER
521 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
521 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
522 A 3444317084 SHIM
BRACKET TO SIDE MEMBER
523 N 000127010202 LOCK WASHER
BRACKET TO SIDE MEMBER
523 N 000127010202 LOCK WASHER
BRACKET TO SIDE MEMBER
523 N 000127010202 LOCK WASHER
BRACKET TO SIDE MEMBER
523 N 000127010202 LOCK WASHER
BRACKET TO SIDE MEMBER
524 N 000125010517 WASHER
BRACKET TO SIDE MEMBER
525 N 000934010000 NUT
BRACKET TO SIDE MEMBER
525 N 000934010000 NUT
BRACKET TO SIDE MEMBER
525 N 000934010000 NUT
BRACKET TO SIDE MEMBER
525 N 000934010000 NUT
BRACKET TO SIDE MEMBER
526 A 0442900128 LEVER
Repalced by: A 3222900828
526 A 3442907028 LEVER
Repalced by: A 3222900828
526 A 3222900828 LEVER
526 A 0442900228 LEVER
527 A 3444300023 LEVER
527 A 3454300023 LEVER
Repalced by: A 3444300023
527 A 3444300023 LEVER
528 A 3122911550 BUSHING
529 A 0459920301 BUSHING
Repalced by: A 3449920201
529 A 3449920201 BUSHING
530 N 071412010100 GREASE NIPPLE
531 A 3444307023 LEVER
532 A 3449920201 BUSHING
533 A 0442940004 BEARING TUBE
Repalced by: A 3122941704
533 A 3122941704 BEARING TUBE
533 A 3454310074 PIN
533 A 3454310074 PIN
534 A 3129900017 SCREW
535 N 000127012201 LOCK WASHER
536 N 071412010100 GREASE NIPPLE
536 N 071412010100 GREASE NIPPLE
537 A 3129931510 SPRING
Repalced by: A 3649937010
537 A 3649937010 SPRING
537 A 3449930110 SPRING
538 A 3459940005 LOCK
LEVER TO BRACKET
538 A 3459940005 LOCK
LEVER TO BRACKET
539 N 000933008005 SCREW
LEVER TO BRACKET
539 N 000933008005 SCREW
LEVER TO BRACKET
540 N 912004008100 LOCK WASHER
LEVER TO BRACKET
540 N 912004008100 LOCK WASHER
LEVER TO BRACKET
541 A 3529910007 PIN
LEVER TO ROD
541 A 3529910007 PIN
LEVER TO ROD
542 N 000094003026 COTTER PIN
542 N 000094003026 COTTER PIN
543 A 3459937010 SPRING
BRAKE BOOSTER
544 A 0004312405 BRAKE BOOSTER
Repalced by: A 3444317014
544 A 3444317014 BRAKE BOOSTER
545 H 983455860243 REPAIR KIT
MINOR
545 H 983455860343 REPAIR KIT
Repalced by: A 3455867043
545 A 3455867043 REPAIR KIT
MAJOR
546 A 0004312986 CUP
547 A 0004312886 SEAL RING
548 H 983454310192 ROD
549 A 0004312786 CUP
Repalced by: A 3459978846
549 A 3459978846 SEAL RING
550 H 983454310293 SPRING
Repalced by: A 0014316493
550 A 0014314093 SPRING
Repalced by: A 0014316493
550 A 0014316493 SPRING
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
001 431 40 93
551 H 983454310024 SLIDE
H 983454310393 SPRING
553 H 983454310152 SPACER WASHER
554 A 0084310356 SCREW PLUG
H 983454310493 SPRING
Repalced by: H 983454310793
555 H 983454310793 SPRING
556 N 071752012000 YOKE
557 A 0004290695 AIR CLEANER
558 H 983454310122 COVER
559 N 000931010100 SCREW
560 N 000934010000 NUT
561 H 983454310222 COVER
Repalced by: A 0004311822
561 A 0004311822 COVER
561E A 0004311087 PROTECTIVE CAP
562 N 000933010261 SCREW
563 N 000127010202 LOCK WASHER
564 N 000417008002 HEADLESS SETSCREW
565 N 000934008000 NUT
566 H 983459970030 SCREW PLUG
567 A 3124304392 ROD
Repalced by: A 3444307092
567 A 3444307092 ROD
Repalced by: A 3454307192
567 A 3454307192 ROD
568 N 000936012017 NUT
Repalced by: N 000936012005
568 N 000936012005 NUT
TO 312 430 43 92,344 430 70 92
569 N 000936012010 NUT
570 A 3124311097 YOKE
TO 312 430 43 92,344 430 70 92
571 A 3255460343 BRACKET
PRESSURE REGULATOR TO AIR RESERVOIR
571 A 3255460343 BRACKET
PRESSURE REGULATOR TO AIR RESERVOIR
572 A 3129952420 CLAMP
Repalced by: A 3049950220
572 A 3049950220 CLAMP
PRESSURE REGULATOR TO AIR RESERVOIR
572 A 3049950220 CLAMP
PRESSURE REGULATOR TO AIR RESERVOIR
573 N 000084005114 SCREW
CLAMP TO BRACKET
573 N 000084005114 SCREW
CLAMP TO BRACKET
574 N 000125005315 WASHER
CLAMP TO BRACKET
574 N 000125005315 WASHER
CLAMP TO BRACKET
575 N 000127005001 LOCK WASHER
CLAMP TO BRACKET
575 N 000127005001 LOCK WASHER
CLAMP TO BRACKET
576 N 000934005008 NUT
CLAMP TO BRACKET
576 N 000934005008 NUT
CLAMP TO BRACKET
577 N 007985005171 SCREW
BRACKET TO CROSS MEMBER
577 N 007985005171 SCREW
BRACKET TO CROSS MEMBER
578 N 000127005001 LOCK WASHER
BRACKET TO CROSS MEMBER
578 N 000127005001 LOCK WASHER
BRACKET TO CROSS MEMBER
579 N 000934005008 NUT
BRACKET TO CROSS MEMBER
579 N 000934005008 NUT
BRACKET TO CROSS MEMBER
580 A 3444297040 BRACKET
AIR RESERVOIR TO BRAKE BOOSTER
581 N 000933010174 SCREW
BRACKET TO CROSS MEMBER
582 N 000127010202 LOCK WASHER
BRACKET TO CROSS MEMBER
583 N 000934010000 NUT
BRACKET TO CROSS MEMBER
584 A 3609950101 CLAMP
BRACKET TO CROSS MEMBER
584 A 3609950501 CLAMP
BRACKET TO CROSS MEMBER
585 N 007985006515 SCREW
CLAMP TO BRACKET
586 N 000125006420 WASHER
CLAMP TO BRACKET
587 N 000127006203 LOCK WASHER
CLAMP TO BRACKET
588 N 000934006006 NUT
CLAMP TO BRACKET
589 N 074302022304 T-FITTING
AT BRAKE BOOSTER
589 A 0004295032 T-FITTING
AT BRAKE BOOSTER
590 N 074305022202 NUT
AT BRAKE BOOSTER
591 A 0004290227 THRUST RING
Repalced by: A 0009940203
591 A 0009940203 THRUST RING
AT BRAKE BOOSTER
592 A 0009870446 O-RING
AT BRAKE BOOSTER
593 N 074301022302 ELBOW FITTING
AT BRAKE BOOSTER
594 N 007603012112 SEAL RING
AT BRAKE BOOSTER
595 N 074298012202 DOUBLE FITTING
Repalced by: A 3454298136
595 A 3454298136 CONNECTOR
AT BRAKE BOOSTER
596 N 000908022001 SCREW PLUG
AT BRAKE BOOSTER
597 N 007603022102 SEAL RING
AT BRAKE BOOSTER
598 N 000933010129 SCREW
BRAKE BOOSTER TO BRACKET
599 N 000127010202 LOCK WASHER
BRAKE BOOSTER TO BRACKET
600 A 0445400061 ELECTRIC CABLE
600 H 983445400061 ELECTRIC CABLE
Repalced by: A 3445407461
600 A 3445407461 ELECTRIC CABLE
T-FITTING TO HOSE FITTING
600 A 3445407461 ELECTRIC CABLE
T-FITTING TO HOSE FITTING
600 A 3445407461 ELECTRIC CABLE
T-FITTING TO HOSE FITTING
600 A 0445401061 ELECTRIC CABLE
Repalced by: A 3445407161
600 A 3445407161 ELECTRIC CABLE
T-FITTING TO HOSE FITTING
600 A 3445407161 ELECTRIC CABLE
T-FITTING TO HOSE FITTING
600 A 3445407661 ELECTRIC CABLE
T-FITTING TO HOSE FITTING
600 A 0445401161 ELECTRIC CABLE
T-FITTING TO HOSE FITTING
600 H 983445400862 INTERMEDIATE PIECE
Repalced by: A 3445401661
600 A 3445401661 ELECTRIC CABLE
T-FITTING TO HOSE FITTING
601 N 003861006007 GLAND
T-FITTING TO HOSE FITTING
602 N 074297012102 UNION NUT
T-FITTING TO HOSE FITTING
602 N 915017006100 UNION NUT
T-FITTING TO HOSE FITTING
603 A 0445400461 ELECTRIC CABLE
Repalced by: A 3445407061
603 A 3445407061 ELECTRIC CABLE
FROM BRAKE BOOSTER TO HOSE AND TO FITTING
603 A 3445407061 ELECTRIC CABLE
FROM BRAKE BOOSTER TO HOSE AND TO FITTING
603 A 3445407761 ELECTRIC CABLE
FROM BRAKE BOOSTER TO HOSE AND TO FITTING
H 983445400161 ELECTRIC CABLE
Repalced by: A 3084299401
603 A 3445407561 ELECTRIC CABLE
FROM BRAKE BOOSTER TO HOSE AND TO FITTING
603 A 3445407561 ELECTRIC CABLE
FROM BRAKE BOOSTER TO HOSE AND TO FITTING
603 A 3445407561 ELECTRIC CABLE
FROM BRAKE BOOSTER TO HOSE AND TO FITTING
603 A 0445400561 ELECTRIC CABLE
603 A 0445400661 ELECTRIC CABLE
H 983445400762 INTERMEDIATE PIECE
Repalced by: A 3445401561
603 A 3445401561 ELECTRIC CABLE
FROM BRAKE BOOSTER TO HOSE AND TO FITTING
603 A 0445400261 ELECTRIC CABLE
Repalced by: A 3445401761
603 H 983455400161 ELECTRIC CABLE
Repalced by: A 3445401761
603 A 3445401761 ELECTRIC CABLE
FROM BRAKE BOOSTER TO HOSE AND TO FITTING
6X0.7 MM
604 N 915017006100 UNION NUT
FROM BRAKE BOOSTER TO HOSE AND TO FITTING
605 N 003861006007 GLAND
FROM BRAKE BOOSTER TO HOSE AND TO FITTING
606 A 3129950332 CLAMP
PRESSURE GAUGE LINE TO FIRE WALL
607 N 007981004252 SHEET METAL SCREW
PRESSURE GAUGE LINE TO FIRE WALL
608 A 3454298136 CONNECTOR
609 N 074297012102 UNION NUT
610 H 983444290039 CONNECTOR
Repalced by: A 3454298136
610 A 3454298136 CONNECTOR
TRAILER BRAKE VALVE
611 N 007603012112 SEAL RING
612 H 983455400361 ELECTRIC CABLE
TO PRESSURE GAUGE
A 3525407461 ELECTRIC CABLE
TO PRESSURE GAUGE
613 A 0089976082 HOSE
TO PRESSURE GAUGE
614 A 0019975072 FITTING
TO PRESSURE GAUGE
615 N 915017006200 UNION NUT
TO PRESSURE GAUGE
616 A 0019973772 FITTING
Repalced by: A 3454297139
616 A 3454297139 CONNECTOR
TO PRESSURE GAUGE
617 N 040621012200 INSULATING HOSE
TO PRESSURE GAUGE
618 A 0445400361 ELECTRIC CABLE
TO PRESSURE GAUGE
619 A 0445400761 ELECTRIC CABLE
TO PRESSURE GAUGE
619 H 983455400161 ELECTRIC CABLE
Repalced by: A 3445401761
619 A 3445401761 ELECTRIC CABLE
TO PRESSURE GAUGE
620 N 003861006007 GLAND
621 N 915017006100 UNION NUT
622 A 0089976082 HOSE
622 A 3445401361 ELECTRIC CABLE
623 A 3089970072 FITTING
623 A 3379970072 FITTING
624 N 915017006100 UNION NUT
N 915017006100 UNION NUT
N 003861006007 GLAND
A 3089970072 FITTING
625 A 3445407861 ELECTRIC CABLE
BRAKE VALVE,CONNECTIONS "11,12"
626 N 915017006100 UNION NUT
627 N 003861006007 GLAND
628 A 0009920205 BUSHING
Repalced by: N 915062004000
628 N 915062004000 SLEEVE
628 A 0009920105 BUSHING
A 0455400161 ELECTRIC CABLE
Repalced by: A 3445401361
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
N 915017006200 UNION NUT
629 N 080705012003 NUT
PRESSURE GAUGE LINE
630 N 006797012153 TOOTHED WASHER
PRESSURE GAUGE LINE
631 N 000125013012 WASHER
PLASTIC LINE TO FIRE WALL
632 N 006797012153 TOOTHED WASHER
PLASTIC LINE TO FIRE WALL
632 N 006797012151 TOOTHED WASHER
PLASTIC LINE TO FIRE WALL
633 N 000936012017 NUT
Repalced by: N 000936012005
633 N 000936012005 NUT
PLASTIC LINE TO FIRE WALL
633 N 000936012017 NUT
Repalced by: N 000936012005
633 N 000936012005 NUT
PLASTIC LINE TO FIRE WALL
634 A 3125424940 BRACKET
LINE MOUNTING
634 A 3525420440 BRACKET
LINE MOUNTING
634 A 3455427040 BRACKET
LINE MOUNTING
634 A 3455427040 BRACKET
LINE MOUNTING
634 A 3444287440 BRACKET
LINE MOUNTING
634 A 3444287440 BRACKET
LINE MOUNTING
634 A 3444287440 BRACKET
LINE MOUNTING
634 A 3444287440 BRACKET
LINE MOUNTING
634 A 3215420640 BRACKET
LINE MOUNTING
634 A 3124761036 BRACKET
Repalced by: A 3215422340
634 A 3215422340 BRACKET
LINE MOUNTING
635 N 000933008282 SCREW
BRACKET TO SIDE MEMBER
635 N 000933008282 SCREW
BRACKET TO SIDE MEMBER
635 N 000933008282 SCREW
BRACKET TO SIDE MEMBER
635 N 000933008282 SCREW
BRACKET TO SIDE MEMBER
636 N 000125008417 WASHER
BRACKET TO SIDE MEMBER
636 N 000125008417 WASHER
BRACKET TO SIDE MEMBER
636 N 000125008417 WASHER
BRACKET TO SIDE MEMBER
636 N 000125008417 WASHER
BRACKET TO SIDE MEMBER
637 N 912004008100 LOCK WASHER
BRACKET TO SIDE MEMBER
637 N 912004008100 LOCK WASHER
BRACKET TO SIDE MEMBER
637 N 912004008100 LOCK WASHER
BRACKET TO SIDE MEMBER
637 N 912004008100 LOCK WASHER
BRACKET TO SIDE MEMBER
638 N 000934008000 NUT
BRACKET TO SIDE MEMBER
638 N 000934008000 NUT
BRACKET TO SIDE MEMBER
638 N 000934008000 NUT
BRACKET TO SIDE MEMBER
638 N 000934008000 NUT
BRACKET TO SIDE MEMBER
639 A 3215422340 BRACKET
LINE MOUNTING
639 A 3215422340 BRACKET
LINE MOUNTING
639 A 3215422340 BRACKET
LINE MOUNTING
640 A 3129950332 CLAMP
LINE MOUNTING
640 A 3129950332 CLAMP
LINE MOUNTING
640 A 3129950332 CLAMP
LINE MOUNTING
640 A 3129950332 CLAMP
LINE MOUNTING
640 A 3129950332 CLAMP
LINE MOUNTING
641 N 007981004252 SHEET METAL SCREW
PRESSURE GAUGE LINE TO FIRE WALL
641 N 007981004252 SHEET METAL SCREW
PRESSURE GAUGE LINE TO FIRE WALL
642 N 007985004182 SCREW
LINE MOUNTING
643 N 000084005114 SCREW
643 N 007985005183 SCREW
LINE MOUNTING
643 N 007985005183 SCREW
LINE MOUNTING
643 N 007985005183 SCREW
LINE MOUNTING
643 N 007985005183 SCREW
LINE MOUNTING
643 N 007985005183 SCREW
LINE MOUNTING
643 N 007985005183 SCREW
LINE MOUNTING
644 N 000127005001 LOCK WASHER
LINE MOUNTING
644 N 000127005001 LOCK WASHER
LINE MOUNTING
644 N 000127005001 LOCK WASHER
LINE MOUNTING
644 N 000127005001 LOCK WASHER
LINE MOUNTING
644 N 000127005001 LOCK WASHER
LINE MOUNTING
645 N 000125005315 WASHER
LINE MOUNTING
645 N 000125005315 WASHER
LINE MOUNTING
645 N 000125005315 WASHER
LINE MOUNTING
645 N 000125005315 WASHER
LINE MOUNTING
645 N 000125005315 WASHER
LINE MOUNTING
646 N 000934004014 NUT
LINE MOUNTING
647 N 000934005004 NUT
647 N 000934005008 NUT
LINE MOUNTING
647 N 000934005008 NUT
LINE MOUNTING
647 N 000934005008 NUT
LINE MOUNTING
647 N 000934005008 NUT
LINE MOUNTING
647 N 000934005008 NUT
LINE MOUNTING
648 A 3125421739 PLATE
Repalced by: A 3455427040
648 A 3455427040 BRACKET
LINES AND CABLES TO SIDE MEMBER
649 N 000933010294 SCREW
LINES AND CABLES TO SIDE MEMBER
650 N 000127010202 LOCK WASHER
LINES AND CABLES TO SIDE MEMBER
651 N 000934010000 NUT
LINES AND CABLES TO SIDE MEMBER
652 A 3129950133 CLAMP
LINES AND CABLES TO SIDE MEMBER
653 N 007985005133 SCREW
LINES AND CABLES TO SIDE MEMBER
654 N 000127005001 LOCK WASHER
LINES AND CABLES TO SIDE MEMBER
655 N 000934005008 NUT
LINES AND CABLES TO SIDE MEMBER
656 A 3215421240 BRACKET
LINES AND CABLES TO SIDE MEMBER
657 N 000933008036 SCREW
LINES AND CABLES TO SIDE MEMBER
658 N 912004008100 LOCK WASHER
LINES AND CABLES TO SIDE MEMBER
659 N 000934008000 NUT
LINES AND CABLES TO SIDE MEMBER
660 A 3129950332 CLAMP
LINES AND CABLES TO SIDE MEMBER
661 A 3129951420 CLAMP
LINES AND CABLES TO SIDE MEMBER
662 N 007985004182 SCREW
LINES AND CABLES TO SIDE MEMBER
663 N 007985006512 SCREW
LINES AND CABLES TO SIDE MEMBER
664 N 912004004102 LOCK WASHER
LINES AND CABLES TO SIDE MEMBER
665 N 000127006203 LOCK WASHER
LINES AND CABLES TO SIDE MEMBER
666 N 000933008317 SCREW
BEARING BRACKET TO FIRE WALL
667 N 000934004014 NUT
LINES AND CABLES TO SIDE MEMBER
668 N 912004008100 LOCK WASHER
BEARING BRACKET TO FIRE WALL
669 N 000934006006 NUT
LINES AND CABLES TO SIDE MEMBER
670 A 3129950332 CLAMP
LINE TO FRONT PANEL
671 N 007985005183 SCREW
LINE TO FRONT PANEL
672 N 000127005001 LOCK WASHER
LINE TO FRONT PANEL
673 N 000125005315 WASHER
LINE TO FRONT PANEL
674 N 000934005008 NUT
LINE TO FRONT PANEL
675 A 3609950101 CLAMP
LINE TO BRACKET
676 N 007985006515 SCREW
LINE TO BRACKET
676 N 007985006137 SCREW
LINE TO BRACKET
677 N 000127006203 LOCK WASHER
LINE TO BRACKET
678 N 000934006006 NUT
LINE TO BRACKET
679 A 0014318906 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
679 A 0024310106 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
KNORR
680 A 0035860943 REPAIR KIT
TO 001 431 89 06
680 A 0004301068 REPAIR KIT
Repalced by: A 0004201571
680 A 0004201571 REPAIR KIT
TO 002 431 01 06
681 A 3459977072 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
682 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
683 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
684 N 000936016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
685 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
686 A 3089907171 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
687 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
688 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
689 N 000936016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
690 A 0009904970 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
690 N 074317012200 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
691 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
692 A 0004290727 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
693 N 000936016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
694 A 0029978172 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
694 N 074313006101 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
695 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
696 A 3444309666 LINE
FROM 4-CIRCUIT PROTECTIVE VALVE,CONNECTION "22" TO INSIDE AIR RESERVOIR
697 A 3444309766 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION:
"1"
698 N 003861012007 GLAND
699 N 915017012100 UNION NUT
700 A 0014296844 VALVE
(RELAY VALVE)
700 A 0034293044 VALVE
(RELAY VALVE)
701 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 001 429 68 44
701 H 983455860842 REPAIR KIT
Repalced by: A 0004205555
701 A 0004205555 REPAIR KIT
SMALL SCOPE
TO 001 429 68 44
701 A 0004305360 REPAIR KIT
Repalced by: A 0004201471
701 A 0004201471 REPAIR KIT
TO 003 429 30 44
702 A 0029971172 FITTING
Repalced by: A 3454307879
702 A 3454307879 CONNECTOR
RELAY VALVE,CONNECTION "1"
702 N 074313012100 FITTING
RELAY VALVE,CONNECTION "1"
703 N 007603022102 SEAL RING
RELAY VALVE,CONNECTION "1"
704 A 0029979572 FITTING
RELAY VALVE,CONNECTION "4"
704 N 074313008102 FITTING
RELAY VALVE,CONNECTION "4"
705 N 007603016103 SEAL RING
RELAY VALVE,CONNECTION "4"
706 A 0004294438 ELBOW FITTING
RELAY VALVE,CONNECTION "2"
707 N 000936016003 NUT
RELAY VALVE,CONNECTION "2"
708 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2"
709 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2"
710 N 007603016103 SEAL RING
RELAY VALVE
711 N 000908016001 SCREW PLUG
RELAY VALVE
712 A 0024299544 VALVE
TWO-WAY
A 0004291182 VALVE BODY
712 A 0024299944 VALVE
TWO-WAY
713 A 3459907571 ELBOW FITTING
TWO-WAY VALVE
714 A 3454203749 LINE
LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION:
"12"
715 N 003861012007 GLAND
716 N 915017012100 UNION NUT
717 A 3504200148 BRAKE HOSE
FROM TWO-WAY VALVE,"Z" CONNECTION,TO RIGHT COMBINATION CYLINDER
"12"
718 N 007603016103 SEAL RING
BRAKE HOSE TO TWO-WAY VALVE
719 N 000936016003 NUT
TWO-WAY VALVE
720 A 0004290927 THRUST RING
TWO-WAY VALVE
721 A 0009971548 SEAL RING
TWO-WAY VALVE
722 A 3504311240 BRACKET
RELAY VALVE
723 N 000125008417 WASHER
RELAY VALVE TO BRACKET
724 N 913004008001 NUT
RELAY VALVE TO BRACKET
725 N 000933010174 SCREW
RELAY VALVE BRACKET TO SIDE MEMBER
726 N 913004010004 NUT
RELAY VALVE BRACKET TO SIDE MEMBER
727 A 3444309166 LINE
FROM BRAKE VALVE,CONNECTION "12",TO 3/2-WAY VALVE,CONNECTION:
"1"
728 N 003861008005 GLAND
729 N 915017008100 UNION NUT
730 A 3454347001 VALVE
3/2-WAY
"WABCO"
730 A 0004342901 VALVE
3/2-WAY
"KNORR"
731 A 0014301360 REPAIR KIT
Repalced by: A 0004304106
731 A 0004304106 REPAIR KIT
LARGE SCOPE
TO 000 434 29 01
731 A 0005869743 REPAIR KIT
LARGE SCOPE
TO 345 434 70 01
731 A 0014301460 REPAIR KIT
SMALL SCOPE
TO 000 434 29 01
731 A 0034301281 REPAIR KIT
SMALL SCOPE
TO 345 434 70 01
732 N 074305026202 NUT
VENT VALVE TO BRACKET AT SUBSTRUCTURE
733 N 000137027201 SPRING WASHER
VENT VALVE TO BRACKET AT SUBSTRUCTURE
734 A 3444297038 ELBOW FITTING
VENT VALVE
735 A 0004290827 THRUST RING
Repalced by: A 0009940103
735 A 0009940103 THRUST RING
VENT VALVE
736 A 0019875046 SEALING CORD
VENT VALVE
737 N 080705012003 NUT
VENT VALVE
738 A 3444209033 LINE
FROM SERVICE BRAKE VALVE TO FITTING
739 A 3444209433 LINE
FROM FITTING TO FITTING
740 N 003861008005 GLAND
741 N 915017008100 UNION NUT
742 A 0089979082 HOSE
Repalced by: A 0009874927
742 A 0009874927 PLASTIC PIPE
BULKHEAD FITTING
8X6 MM
743 N 915017008100 UNION NUT
BULKHEAD FITTING
744 N 003861008005 GLAND
BULKHEAD FITTING
745 A 0019976672 FITTING
Repalced by: N 915062006000
745 N 915062006000 SLEEVE
BULKHEAD FITTING
746 N 915052006005 BANJO UNION
BULKHEAD FITTING
747 A 3459977390 LOOM TIE
COMPRESSED AIR LINE MOUNTING
195 MM
747 A 0019978290 LOOM TIE
COMPRESSED AIR LINE MOUNTING
748 A 0019972672 FITTING
FROM 3/2-WAY VALVE TO TWO-WAY VALVE
748 N 003902008001 CONNECTION FITTING
FROM 3/2-WAY VALVE TO TWO-WAY VALVE
749 A 3454208537 LINE
VALVE BLEEDING
750 A 3454203549 LINE
FROM 3/2-WAY VALVE TO FITTING
751 A 3454207433 LINE
FROM FITTING TO FITTING
752 A 3444309366 LINE
FROM CONNECTION FITTING TO TWO-WAY VALVE
753 N 915017008100 UNION NUT
754 N 003861008005 GLAND
755 A 3524290440 BRACKET
COMPRESSED AIR LINES TO CROSS MEMBER
756 N 000933008282 SCREW
BRACKET TO CROSS MEMBER
757 N 913004008001 NUT
BRACKET TO CROSS MEMBER
758 A 3524290840 BRACKET
Repalced by: A 3454299540
758 A 3454299540 BRACKET
COMPRESSED AIR LINES
759 A 3454288140 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
760 N 000933008358 SCREW
BRACKET TO SIDE MEMBER
761 N 913004008001 NUT
BRACKET TO SIDE MEMBER
762 A 3454288340 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
763 N 000933010174 SCREW
BRACKET TO SIDE MEMBER
764 N 913004010004 NUT
BRACKET TO SIDE MEMBER
765 A 3049951520 CLAMP
COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER
Repalced by: A 1009950420
765 A 1009950420 CLAMP
COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER
766 A 3379950032 CLAMP
COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER
766 A 3449950132 CLAMP
COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER
766 A 3379950032 CLAMP
COMPRESSED AIR LINE TO BRACKET ON SIDE MEMBER
767 N 916016008200 CLAMP
768 A 3444297340 BRACKET
COMPRESSED AIR LINE TO BRACKET ON SIDE MEMBER
769 A 3454297540 BRACKET
COMPRESSED AIR LINE MOUNTING
770 A 3459957432 CLAMP
COMPRESSED AIR LINE TO BRACKET ON SIDE MEMBER
771 N 007985006515 SCREW
CLAMP TO BRACKET
772 N 000125006420 WASHER
CLAMP TO BRACKET
773 N 913004006001 NUT
CLAMP TO BRACKET
774 A 3444209233 LINE
FROM FITTING TO BULKHEAD FITTING
775 N 003861008005 GLAND
776 N 915017008100 UNION NUT
777 A 3454207184 PARKING BRAKE
777 A 3454207184 PARKING BRAKE
777 A 3454207284 PARKING BRAKE
777 A 3534200184 PARKING BRAKE
778 A 0444200188 RATCHET ROD
Repalced by: A 3454207188
778 A 3454207188 RATCHET ROD
778 A 3454207288 RATCHET ROD
778 A 3454207288 RATCHET ROD
778 A 3534200188 RATCHET ROD
A 3584200584 PARKING BRAKE
Repalced by: A 3454207288
779 A 3124271151 SPACER RING
780 N 001473004021 GROOVED PIN
781 A 3534270095 PROTECTIVE CAP
782 A 3124201178 BEARING BRACKET
783 N 001473004023 GROOVED PIN
784 A 3124271215 PAWL
Repalced by: A 3145860142
784 A 1539930701 SPRING
Repalced by: A 3145860142
784 A 3129900043 PLATE
Repalced by: A 3145860142
784 A 3145860142 REPAIR KIT
Repalced by: A 3144200092
784 A 3144200092 REPAIR KIT
785 N 000472015000 LOCK RING
786 A 3124271086 DAMPING RING
787 A 3124271220 HANDLE
787 A 3124271220 HANDLE
789 A 3094270020 HANDLE
789 A 3094270020 HANDLE
790 H 983219900121 SCREW
790 H 983219900121 SCREW
791 N 000127006203 LOCK WASHER
791 N 000127006203 LOCK WASHER
792 N 001917006005 PART NAME MISSING
792 N 001917006005 PART NAME MISSING
793 N 007985010132 SCREW
793 N 007985010132 SCREW
795 H 983444270028 DETENT
796 N 000933008068 SCREW
797 N 000934008000 NUT
798 N 000933008317 SCREW
798 N 007985008132 SCREW
798 N 007985008146 SCREW
799 A 3584270084 SHIM
800 N 912004008100 LOCK WASHER
800 N 912004008100 LOCK WASHER
801 N 000934008000 NUT
802 A 3529910407 PIN
802 A 3529910407 PIN
803 N 000433008403 WASHER
PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER
804 N 000094002033 COTTER PIN
PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER
805 N 000933008317 SCREW
BEARING BRACKET TO FIRE WALL
806 N 912004008100 LOCK WASHER
BEARING BRACKET TO FIRE WALL
807 A 3224201712 BRAKE LEVER
807 A 3224201712 BRAKE LEVER
807 A 3444207212 BRAKE LEVER
807 A 3454207212 BRAKE LEVER
807 A 3454207212 BRAKE LEVER
807 A 3454207012 BRAKE LEVER
807 H 983444200212 BRAKE LEVER
Repalced by: A 3444200112
807 A 3444200112 BRAKE LEVER
808 A 3124271550 BUSHING
808 A 0459920501 BUSHING
Repalced by: A 3449920301
808 A 3449920301 BUSHING
808 A 3449920301 BUSHING
808 A 3449920301 BUSHING
809 N 071412010300 GREASE NIPPLE
809 N 071412010100 GREASE NIPPLE
810 A 3444200178 BEARING BRACKET
810 A 3584200578 BEARING BRACKET
811 A 3129901540 WASHER
BRAKE LEVER TO BEARING BRACKET
812 N 000471022000 LOCK RING
BRAKE LEVER TO BEARING BRACKET
813 N 000933010129 SCREW
BEARING BRACKET TO FRAME
813 N 000933010269 SCREW
BEARING BRACKET TO FRAME
814 N 000127010202 LOCK WASHER
BEARING BRACKET TO FRAME
815 N 000934010000 NUT
BEARING BRACKET TO FRAME
816 A 3224200412 BRAKE LEVER
817 A 3124272250 BUSHING
818 A 3124271374 PIN
819 N 000007010111 CYLINDRICAL PIN
820 N 071412010100 GREASE NIPPLE
821 A 3124273941 BRACKET
822 N 000660004005 RIVET
823 A 3124274041 BRACKET
824 N 000660004007 RIVET
825 A 3124271520 HANDLE
826 A 3204200595 HANDLE
827 A 3204271974 PIN
828 A 3124272530 PAWL ROD
829 A 3124272030 PAWL ROD
830 N 001434006020 PIN
831 N 000094001612 COTTER PIN
832 A 0444270074 PIN
Repalced by: A 3444270074
832 A 3444270074 PIN
833 A 3209900601 SCREW
834 N 912004008100 LOCK WASHER
835 A 3209900451 NUT
836 A 3209930601 SPRING
837 N 000125006420 WASHER
838 A 3124271115 PAWL
839 N 000471014000 LOCK RING
840 A 3124203278 BEARING BRACKET
841 A 3124271574 PIN
842 N 000933010129 SCREW
843 N 000127010202 LOCK WASHER
844 N 000934010000 NUT
845 A 3024270124 TOOTHED SEGMENT
Repalced by: A 3124271024
845 A 3124271024 TOOTHED SEGMENT
846 N 000063010103 SCREW
847 N 000471030000 LOCK RING
848 A 3214200176 END PIECE
849 N 900331010383 PULL ROD
849 N 900331010408 PULL ROD
849 N 900331010381 PULL ROD
849 H 983444200274 ROD
Repalced by: A 3444200274
849 A 3444200274 ROD
850 N 000934010000 NUT
851 N 001434010009 PIN
851 N 001434010009 PIN
852 N 000433010500 WASHER
853 N 000094003026 COTTER PIN
854 A 3224203678 BEARING BRACKET
855 N 000933010294 SCREW
BEARING BRACKET TO FRONT CROSS MEMBER
856 N 000127010202 LOCK WASHER
BEARING BRACKET TO FRONT CROSS MEMBER
857 N 000934010000 NUT
BEARING BRACKET TO FRONT CROSS MEMBER
858 H 983444200478 BEARING BRACKET
Repalced by: A 3444200478
858 A 3444200478 BEARING BRACKET
859 H 983444200081 LEVER
Repalced by: A 3444200081
859 A 3444200081 LEVER
860 A 3224201281 LEVER
860 A 3224201281 LEVER
860 A 3444207181 LEVER
860 A 3444207081 LEVER
860 A 3444207081 LEVER
860 A 3444207081 LEVER
860 A 3214200481 LEVER
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
322 420 12 81
861 A 3124271550 BUSHING
861 A 0459920501 BUSHING
Repalced by: A 3449920301
861 A 3449920301 BUSHING
862 N 071412010300 GREASE NIPPLE
863 A 3124261574 PIN
864 A 3129901540 WASHER
865 N 000471022000 LOCK RING
866 N 071412010100 GREASE NIPPLE
867 N 000933010174 SCREW
868 N 000127010202 LOCK WASHER
869 N 000934010000 NUT
870 N 000933010129 SCREW
BRACKET TO CAB
870 N 000933010174 SCREW
BRACKET TO CAB
871 N 000127010202 LOCK WASHER
BRACKET TO CAB
872 N 000934010000 NUT
BRACKET TO CAB
873 A 3444309066 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING
874 A 3454207233 LINE
FROM FITTING TO T-FITTING
874 A 3444208133 LINE
FROM FITTING TO T-FITTING
875 A 3454206049 LINE
FROM T-FITTING TO HAND BRAKE VALVE, CONNECTION:
"1"
875 A 3444208333 LINE
FROM T-FITTING TO BULKHEAD FITTING
876 N 003861008005 GLAND
877 N 915017008100 UNION NUT
878 A 0009909271 ELBOW FITTING
BULKHEAD FITTING
878 A 3459978272 FITTING
BULKHEAD FITTING
879 N 080705014001 NUT
BULKHEAD FITTING
880 N 006797014150 TOOTHED WASHER
BULKHEAD FITTING
881 N 000125015012 WASHER
BULKHEAD FITTING
882 A 0089979082 HOSE
Repalced by: A 0009874927
882 A 0009874927 PLASTIC PIPE
FROM PARKING BRAKE VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
8X6 MM
883 N 915017008100 UNION NUT
FROM PARKING BRAKE VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
884 N 003861008005 GLAND
FROM PARKING BRAKE VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
885 A 0019976672 FITTING
Repalced by: N 915062006000
885 N 915062006000 SLEEVE
FROM PARKING BRAKE VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
886 N 915052006005 BANJO UNION
FROM PARKING BRAKE VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
887 A 0019972672 FITTING
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO PARKING BRAKE VALVE
887 N 003902008001 CONNECTION FITTING
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO PARKING BRAKE VALVE
888 A 0009901070 T-FITTING
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO PARKING BRAKE VALVE
M14X1,5 / M14X1,5 / M12X1,5
888 A 3454297132 T-FITTING
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO PARKING BRAKE VALVE
889 A 0005455414 SWITCH
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO PARKING BRAKE VALVE
889 A 3445457214 SWITCH
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO PARKING BRAKE VALVE
890 A 0004304781 VALVE
Repalced by: A 3454307381
890 A 3454307381 VALVE
(HAND BRAKE VALVE)
WABCO
890 A 3644307181 VALVE
(HAND BRAKE VALVE)
WABCO
890 A 3644307281 VALVE
(HAND BRAKE VALVE)
KNORR
891 A 0009973277 HANDLE
TO 345 430 73 81
892 H 983455861043 REPAIR KIT
Repalced by: A 0034301181
892 A 0034301181 REPAIR KIT
SMALL SCOPE
TO 345 430 73 81
892 A 0005868043 REPAIR KIT
LARGE SCOPE
TO 345 430 73 81
892 A 0025867243 REPAIR KIT
Repalced by: A 0034303381
892 A 0034303381 REPAIR KIT
Repalced by: A 0034304781
892 A 0034304781 REPAIR KIT
HAND BRAKE VALVE
TO 364 430 71 81
892 A 0004304406 REPAIR KIT
HAND BRAKE VALVE
TO 364 430 72 81
893 N 003901010001 SCREW-IN FITTING
HAND BRAKE VALVE
894 N 007603014100 SEAL RING
HAND BRAKE VALVE
895 A 3454297338 ELBOW FITTING
HAND BRAKE VALVE
896 N 003861010009 GLAND
HAND BRAKE VALVE
897 N 915017010100 UNION NUT
HAND BRAKE VALVE
898 N 915036010100 HOLLOW SCREW
PARKING BRAKE VALVE
899 N 007603014106 SEAL RING
PARKING BRAKE VALVE
900 A 3452927092 COVER PLATE
901 N 007981004226 SHEET METAL SCREW
902 A 3316227212 ANGLE
PARKING BRAKE VALVE
903 A 3444307010 BRACKET
HAND BRAKE VALVE
904 A 3454317140 BRACKET
HAND BRAKE VALVE
905 N 000933008279 SCREW
BRACKET TO PEDESTAL
906 N 000127008104 LOCK WASHER
BRACKET TO PEDESTAL
907 N 000934008000 NUT
BRACKET TO PEDESTAL
908 N 000931010395 SCREW
BRACKET TO PEDESTAL
909 N 000125010517 WASHER
BRACKET TO PEDESTAL
910 N 913004010004 NUT
BRACKET TO PEDESTAL
911 N 000933006221 SCREW
BRACKET TO BRACKET
912 N 000127006203 LOCK WASHER
BRACKET TO BRACKET
913 N 000934006006 NUT
BRACKET TO BRACKET
914 N 000963006130 SCREW
HAND BRAKE VALVE TO BRACKET
915 N 000127006203 LOCK WASHER
HAND BRAKE VALVE TO BRACKET
916 N 000934006006 NUT
HAND BRAKE VALVE TO BRACKET
917 N 000933008268 SCREW
PARKING BRAKE VALVE TO ANGLE
918 N 000127008203 LOCK WASHER
PARKING BRAKE VALVE TO ANGLE
919 A 3446847027 PLATE
EMERGENCY RELEASE VALVE
920 A 3506807007 COVERING
921 N 000966005023 SCREW
CAP TO BRACKET
922 N 900056005202 COUNTERSUNK WASHER
CAP TO BRACKET
923 A 0019972672 FITTING
FROM HAND BRAKE VALVE TO RELAY VALVE
923 N 003902008001 CONNECTION FITTING
FROM HAND BRAKE VALVE TO RELAY VALVE
924 A 3454207937 LINE
HAND BRAKE VALVE BLEEDING
925 A 3454203449 LINE
FROM HAND BRAKE VALVE,CONNECTION "2", TO CONNECTION FITTING I
926 A 3454207333 LINE
FROM CONNECTOR I TO CONNECTOR II
927 A 3444309266 LINE
FROM CONNECTION FITTING TO RELAY VALVE ,CONNECTION:
"4"
928 N 003861008005 GLAND
929 N 915017008100 UNION NUT
930 A 0089979082 HOSE
Repalced by: A 0009874927
930 A 0009874927 PLASTIC PIPE
FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING
8X6 MM
931 N 915017008100 UNION NUT
FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING
932 N 003861008005 GLAND
FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING
933 A 0019976672 FITTING
Repalced by: N 915062006000
933 N 915062006000 SLEEVE
FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING
934 N 915052006005 BANJO UNION
FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING
935 A 3444208533 LINE
FROM FITTING TO BULKHEAD FITTING
936 N 003861008005 GLAND
937 N 915017008100 UNION NUT
938 H 983444200278 BEARING BRACKET
Repalced by: A 3444200678
938 A 3444200678 BEARING BRACKET
938 A 3224203678 BEARING BRACKET
939 N 000933010294 SCREW
940 N 000127010202 LOCK WASHER
941 N 000934010000 NUT
942 N 900331010045 PULL ROD
942 N 900331010392 PULL ROD
942 N 900331010034 PULL ROD
942 N 900331010398 PULL ROD
943 A 3214200176 END PIECE
944 N 001480010200 TURNBUCKLE
945 A 3129962441 ROD
946 N 000934010000 NUT
FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER
947 N 000934010035 NUT
FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER
948 N 001434010009 PIN
FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER
949 N 000094003026 COTTER PIN
FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER
950 A 3224200286 BRACKET
950 A 3224200286 BRACKET
950 A 3604200286 BRACKET
950 A 3604200286 BRACKET
950 A 3604200286 BRACKET
950 A 3604200286 BRACKET
950 A 3444200086 BRACKET
950 A 3214200286 BRACKET
Repalced by: A 3454207586
950 A 3454207586 BRACKET
HAND BRAKE LINKAGE
950 A 3454207586 BRACKET
HAND BRAKE LINKAGE
950 A 3584200086 BRACKET
Repalced by: A 3454207286
950 A 3454207286 BRACKET
HAND BRAKE LINKAGE
950 A 3454207286 BRACKET
HAND BRAKE LINKAGE
950 A 3454207286 BRACKET
HAND BRAKE LINKAGE
950 A 3454207286 BRACKET
HAND BRAKE LINKAGE
950 A 3604200186 BRACKET
Repalced by: A 3454207486
950 A 3454207486 BRACKET
HAND BRAKE LINKAGE
950 A 3454207486 BRACKET
HAND BRAKE LINKAGE
950 A 3444207086 BRACKET
HAND BRAKE LINKAGE
951 A 3229970481 GROMMET
951 A 3604270150 BUSHING
951 A 3604270150 BUSHING
951 A 3604270150 BUSHING
951 A 0009973481 GROMMET
952 N 000933008282 SCREW
BRACKET TO CROSS MEMBER
952 N 000933008050 SCREW
BRACKET TO CROSS MEMBER
952 N 000933008050 SCREW
BRACKET TO CROSS MEMBER
952 N 000933008317 SCREW
BRACKET TO CROSS MEMBER
953 N 000125008417 WASHER
BRACKET TO CROSS MEMBER
953 N 000125008417 WASHER
BRACKET TO CROSS MEMBER
954 N 912004008100 LOCK WASHER
BRACKET TO CROSS MEMBER
955 N 000934008000 NUT
BRACKET TO CROSS MEMBER
956 A 3224201480 BRAKE INTERMEDIATE SHAFT
956 A 3224201480 BRAKE INTERMEDIATE SHAFT
A 3444207280 BRAKE INTERMEDIATE SHAFT
956 A 3214202980 BRAKE INTERMEDIATE SHAFT
957 A 0444200378 BEARING BRACKET
Repalced by: A 3444207078
957 A 3444207078 BEARING BRACKET
957 A 0444200478 BEARING BRACKET
Repalced by: A 3444207178
957 A 3444207178 BEARING BRACKET
957 A 0444200278 BEARING BRACKET
958 A 3124272350 BUSHING
959 N 071412010100 GREASE NIPPLE
959 N 071412010300 GREASE NIPPLE
960 N 000933010174 SCREW
961 N 000127010202 LOCK WASHER
962 N 000934010000 NUT
963 A 3129961541 ROD
964 A 3224200347 YOKE
965 A 3224200076 END PIECE
Repalced by: A 3444207047
965 A 3444207047 YOKE
966 N 000934010000 NUT
966 N 000934010035 NUT
967 N 001434010090 PIN
967 N 001434010018 PIN
968 N 000433010500 WASHER
969 N 000094003026 COTTER PIN
970 N 900055010001 SPRING WASHER
971 A 3444200042 BRAKE LEVER
972 A 3124271196 CUP
973 A 3124231051 SPACER RING
974 A 3124231552 SPACER WASHER
0,2 MM
974 A 3124231652 SPACER WASHER
1.0 MM
974 A 3124231752 SPACER WASHER
2.0 MM
975 A 3124231187 PROTECTIVE CAP
976 A 3224260183 SPHERICAL PIECE
977 A 3124261550 BUSHING
978 A 3124231187 PROTECTIVE CAP
979 A 3224230042 LEVER
980 N 070852035000 NUT
981 N 070952035101 LOCK PLATE
982 A 3454200050 REPAIR KIT
BRAKE CAMSHAFT BEARING
983 A 3084299401 LINE
6X0.7 MM
984 A 3084299501 LINE
8X0.7 MM
985 A 0004295101 LINE
15X1.5 MM
986 A 0004294201 LINE
18X1.5 MM
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
