Transporto priemonė: LPO 1113; VIN numerio dalis: 344055

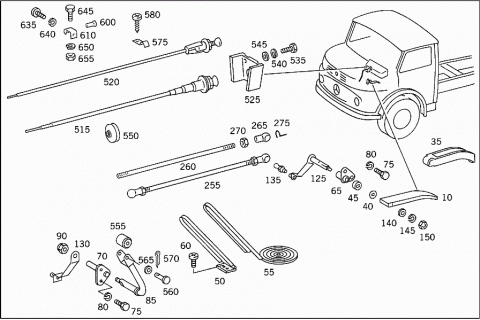

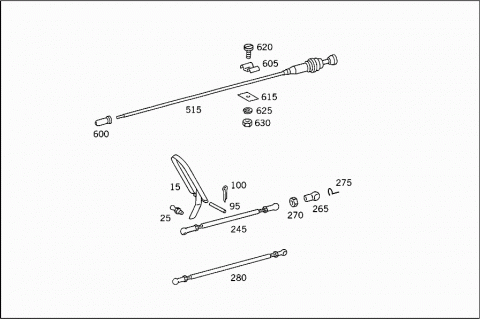

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3213010002 | PEDAL PLATE |
| Repalced by: A 3523000802 | ||
| 010 | A 3523000802 | PLATE |
| 010 | A 3523000802 | PLATE |
| 015 | A 3523000502 | PLATE |
| 020 | H 983453000102 | PLATE |
| Repalced by: A 3443000102 | ||
| 020 | A 3443000102 | PLATE |
| 020 | A 3443000102 | PLATE |
| 020 | A 3453000002 | PLATE |
| A 3453007202 | PLATE | |
| 025 | N 071803010209 | BALL PIVOT |
| 030 | N 001433005003 | PIN |
| 035 | A 0213010282 | PAD |
| 040 | A 3223010054 | GUARD PLATE |
| 040 | A 3223010054 | GUARD PLATE |
| 045 | A 3523010088 | COVERING |
| 045 | A 3523010088 | COVERING |
| 050 | A 3453007002 | PLATE |
| ACCELERATOR PEDAL CONTROL | ||
| 050 | A 3453007002 | PLATE |
| ACCELERATOR PEDAL CONTROL | ||
| 055 | A 3443010082 | PAD |
| ACCELERATOR PEDAL CONTROL | ||
| 060 | N 007985006137 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 065 | A 3223000021 | BEARING TUBE |
| Repalced by: A 3453000021 | ||
| 065 | A 3453000021 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 065 | A 3453000021 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 070 | A 3453007221 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 070 | A 3453007221 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 075 | N 000933008317 | SCREW |
| BEARING TUBE TO FIRE WALL | ||
| 075 | N 000933008317 | SCREW |
| BEARING TUBE TO FIRE WALL | ||
| 080 | N 912004008100 | LOCK WASHER |
| BEARING TUBE TO FIRE WALL | ||
| 080 | N 912004008100 | LOCK WASHER |
| BEARING TUBE TO FIRE WALL | ||
| 085 | A 3503007225 | LEVER |
| 085 | A 3503007225 | LEVER |
| 090 | N 913004008001 | NUT |
| LEVER TO SHAFT | ||
| 095 | A 3123011009 | PIN |
| 100 | N 000094002059 | COTTER PIN |
| 105 | N 007985006515 | SCREW |
| PLATE TO SUBSTRUCTURE | ||
| 105 | N 007985006515 | SCREW |
| PLATE TO SUBSTRUCTURE | ||
| 105 | N 007985006515 | SCREW |
| PLATE TO SUBSTRUCTURE | ||
| 110 | N 007971005209 | SHEET METAL SCREW |
| PLATE TO SUBSTRUCTURE | ||
| 115 | N 000127006203 | LOCK WASHER |
| PLATE TO SUBSTRUCTURE | ||
| 115 | N 000127006203 | LOCK WASHER |
| PLATE TO SUBSTRUCTURE | ||
| 115 | N 000127006203 | LOCK WASHER |
| PLATE TO SUBSTRUCTURE | ||
| 120 | N 000934006006 | NUT |
| PLATE TO SUBSTRUCTURE | ||
| 120 | N 000934006006 | NUT |
| PLATE TO SUBSTRUCTURE | ||
| 120 | N 000934006006 | NUT |
| PLATE TO SUBSTRUCTURE | ||
| 125 | A 0443000725 | LEVER |
| Repalced by: A 3213001425 | ||
| 125 | A 3213001425 | LEVER |
| 125 | A 3213001425 | LEVER |
| 125 | A 3213001425 | LEVER |
| 125 | A 3453007025 | LEVER |
| 125 | A 3453007025 | LEVER |
| 130 | A 3453008625 | LEVER |
| 135 | A 0449910115 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 135 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 135 | N 071803010209 | BALL PIVOT |
| 135 | N 071803010209 | BALL PIVOT |
| 140 | N 000433008403 | WASHER |
| PEDAL PLATE TO SHAFT | ||
| 140 | N 000433008403 | WASHER |
| PEDAL PLATE TO SHAFT | ||
| 145 | N 912004008100 | LOCK WASHER |
| PEDAL PLATE TO SHAFT | ||
| 145 | N 912004008100 | LOCK WASHER |
| PEDAL PLATE TO SHAFT | ||
| 150 | N 000934008010 | NUT |
| PEDAL PLATE TO SHAFT | ||
| 150 | N 000934008010 | NUT |
| PEDAL PLATE TO SHAFT | ||
| 155 | A 3223000302 | PLATE |
| 160 | A 3123011009 | PIN |
| PEDAL TO CAB FLOOR | ||
| 165 | N 000094002059 | COTTER PIN |
| PEDAL TO CAB FLOOR | ||
| 170 | A 3223010015 | ROD |
| CONTROL | ||
| 175 | A 3033010007 | SAFETY PIN |
| END PIECE TO CONTROL LEVER | ||
| 180 | N 000094003026 | COTTER PIN |
| END PIECE TO CONTROL LEVER | ||
| 185 | A 3223001936 | BEARING BRACKET |
| 190 | A 3529921001 | BUSHING |
| 195 | N 000933008279 | SCREW |
| CONTROL SHAFT BEARING TO FIRE WALL | ||
| 200 | N 912004008100 | LOCK WASHER |
| CONTROL SHAFT BEARING TO FIRE WALL | ||
| 205 | N 000934008000 | NUT |
| CONTROL SHAFT BEARING TO FIRE WALL | ||
| 210 | N 000125008417 | WASHER |
| CONTROL SHAFT BEARING TO FIRE WALL | ||
| A 3223010084 | SHIM | |
| CONTROL SHAFT BEARING TO FIRE WALL | ||
| 215 | A 3223000020 | SHAFT |
| 220 | A 3224300024 | LEVER |
| 225 | N 071803010209 | BALL PIVOT |
| 230 | N 000933006083 | SCREW |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 235 | N 000934006006 | NUT |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 240 | A 3443007715 | ROD |
| 245 | A 0443001415 | ROD |
| 250 | H 983453000515 | ROD |
| Repalced by: A 3443001915 | ||
| 250 | A 3443001915 | ROD |
| 250 | A 3443001915 | ROD |
| A 3453007415 | ROD | |
| A 3453027340 | BRACKET | |
| A 3453017008 | CLAMP | |
| 255 | A 3443000415 | ROD |
| 255 | A 3443000415 | ROD |
| 260 | N 900331006298 | PULL ROD |
| 260 | N 900331006298 | PULL ROD |
| 265 | N 071805010202 | BALL SOCKET |
| 270 | N 000934006006 | NUT |
| 270 | N 000934006006 | NUT |
| 275 | N 071805010402 | CIRCLIP |
| 275 | N 071805010402 | CIRCLIP |
| 280 | A 0443001615 | ROD |
| 285 | A 3533000020 | SHAFT |
| 290 | A 3443007120 | SHAFT |
| 295 | A 3523000017 | LEVER |
| Repalced by: A 3443000017 | ||
| 295 | A 3443000017 | LEVER |
| 300 | A 0459921601 | BUSHING |
| Repalced by: A 3443020150 | ||
| 300 | A 3443020150 | BUSHING |
| 305 | A 3523020071 | SCREW |
| 310 | A 3523020050 | BUSHING |
| 315 | N 000934006006 | NUT |
| 320 | N 000125006420 | WASHER |
| 325 | A 3523000528 | LEVER |
| Repalced by: A 3443000225 | ||
| 325 | A 3443000225 | LEVER |
| 325 | A 3443000225 | LEVER |
| 330 | A 0459921601 | BUSHING |
| Repalced by: A 3443020150 | ||
| 330 | A 3443020150 | BUSHING |
| 330 | A 3443020150 | BUSHING |
| 335 | N 071803010209 | BALL PIVOT |
| 335 | N 071803010209 | BALL PIVOT |
| 340 | N 071412010100 | GREASE NIPPLE |
| 340 | N 071412010100 | GREASE NIPPLE |
| 345 | N 000988018003 | FITTED WASHER |
| 350 | N 000471018000 | LOCK RING |
| 350 | N 000471018000 | LOCK RING |
| 355 | N 000933008228 | SCREW |
| 355 | N 000933008228 | SCREW |
| 360 | N 912004008100 | LOCK WASHER |
| 360 | N 912004008100 | LOCK WASHER |
| 365 | A 3604302292 | ROD |
| 370 | N 071805010302 | SNAP RING |
| 375 | A 0009910522 | BALL SOCKET |
| Repalced by: A 0009912422 | ||
| 375 | A 0009912422 | BALL SOCKET |
| 380 | N 000934006006 | NUT |
| 385 | N 071805010402 | CIRCLIP |
| 390 | H 983453000215 | ROD |
| Repalced by: A 3443001515 | ||
| 390 | A 3443001515 | ROD |
| 390 | A 3604302292 | ROD |
| 395 | N 071805010202 | BALL SOCKET |
| 395 | A 0009912422 | BALL SOCKET |
| 395 | N 071805010402 | CIRCLIP |
| 400 | N 000934006006 | NUT |
| 405 | N 071805010402 | CIRCLIP |
| 408 | A 3443007036 | BEARING BRACKET |
| 410 | N 000933008228 | SCREW |
| BEARING BRACKET TO COVER PLATE | ||
| 412 | N 913004008001 | NUT |
| BEARING BRACKET TO COVER PLATE | ||
| 415 | A 3443007017 | LEVER |
| (DOUBLE LEVER) | ||
| A 3443007117 | LEVER | |
| (DOUBLE LEVER) | ||
| 420 | N 071803010209 | BALL PIVOT |
| 425 | A 3443020150 | BUSHING |
| 430 | N 000471018000 | LOCK RING |
| DOUBLE LEVER TO BEARING BRACKET | ||
| 435 | A 3224300071 | SCREW |
| 435 | A 3454307071 | SCREW |
| 440 | A 1829930601 | SPRING |
| 445 | A 3209930301 | SPRING |
| 450 | A 3213002625 | LEVER |
| MANUAL CONTROL | ||
| 455 | A 3213010450 | BUSHING |
| 460 | A 3213010550 | BUSHING |
| LEVER TO BRACKET | ||
| 465 | N 000933008358 | SCREW |
| LEVER TO BRACKET | ||
| 470 | N 912004008100 | LOCK WASHER |
| LEVER TO BRACKET | ||
| 475 | N 000934008010 | NUT |
| LEVER TO BRACKET | ||
| 480 | A 3453007015 | ROD |
| FROM DOUBLE LEVER TO INTERMEDIATE LEVER | ||
| 485 | N 900331006185 | PULL ROD |
| 490 | N 000934006006 | NUT |
| 495 | N 071805010202 | BALL SOCKET |
| 500 | N 071805010402 | CIRCLIP |
| 505 | N 071752006001 | YOKE |
| 510 | N 918001006000 | PIN |
| PULL ROD TO LEVER | ||
| A 3453007640 | LEVER | |
| MANUAL CONTROL | ||
| N 000125008417 | WASHER | |
| N 000094002073 | COTTER PIN | |
| 515 | A 0443000007 | KNOB |
| Repalced by: A 3443007107 | ||
| 515 | A 3443007107 | KNOB |
| WITH SPINDLE | ||
| 515 | A 3443007407 | KNOB |
| WITH SPINDLE | ||
| 515 | A 3453007307 | KNOB |
| WITH SPINDLE | ||
| 515 | A 3453008107 | KNOB |
| WITH SPINDLE | ||
| 515 | A 3523000607 | KNOB |
| WITH SPINDLE | ||
| 515 | A 3453008307 | KNOB |
| Repalced by: A 3453009007 | ||
| 515 | A 3453009007 | KNOB |
| WITH SPINDLE | ||
| 515 | A 3453008407 | KNOB |
| Repalced by: A 3453009607 | ||
| 515 | A 3453009607 | KNOB |
| WITH SPINDLE | ||
| 520 | A 3523000407 | KNOB |
| WITH SPINDLE | ||
| 520 | A 3453007407 | KNOB |
| WITH SPINDLE | ||
| 520 | A 3453008007 | KNOB |
| WITH SPINDLE | ||
| A 0459900140 | WASHER | |
| Repalced by: A 0019900040 | ||
| A 0019900040 | WASHER | |
| MANUAL CONTROL TO BRACKET | ||
| A 0019900040 | WASHER | |
| MANUAL CONTROL TO BRACKET | ||
| A 3523020208 | GUIDE | |
| Repalced by: A 3523020308 | ||
| A 3523020308 | GUIDE | |
| A 3523020308 | GUIDE | |
| A 3129901151 | NUT | |
| MANUAL CONTROL TO BRACKET | ||
| A 3129901151 | NUT | |
| MANUAL CONTROL TO BRACKET | ||
| A 3129902140 | WASHER | |
| A 3129902140 | WASHER | |
| A 3523020101 | KNOB | |
| Repalced by: A 3523020201 | ||
| A 3523020201 | KNOB | |
| A 3523020201 | KNOB | |
| A 3609950101 | CLAMP | |
| KNOB WITH SPINDLE TO FRONT PANEL | ||
| N 000933006074 | SCREW | |
| KNOB WITH SPINDLE TO FRONT PANEL | ||
| N 000127006203 | LOCK WASHER | |
| KNOB WITH SPINDLE TO FRONT PANEL | ||
| N 000934006006 | NUT | |
| KNOB WITH SPINDLE TO FRONT PANEL | ||
| 525 | A 3453007340 | BRACKET |
| MANUAL CONTROL | ||
| 525 | A 3453007340 | BRACKET |
| MANUAL CONTROL | ||
| 530 | A 3453007040 | BRACKET |
| MANUAL CONTROL | ||
| 535 | N 007985006197 | SCREW |
| BRACKET TO WINDOW SILL | ||
| 535 | N 007985006197 | SCREW |
| BRACKET TO WINDOW SILL | ||
| 540 | N 000127006203 | LOCK WASHER |
| BRACKET TO WINDOW SILL | ||
| 540 | N 000127006203 | LOCK WASHER |
| BRACKET TO WINDOW SILL | ||
| 545 | N 000125006420 | WASHER |
| BRACKET TO WINDOW SILL | ||
| 545 | N 000125006420 | WASHER |
| BRACKET TO WINDOW SILL | ||
| 550 | A 3459977581 | GROMMET |
| WIRE CABLE THRU FIRE WALL | ||
| 555 | A 3443000006 | ROLLER |
| 560 | N 001444006224 | PIN |
| ROLLER TO LEVER | ||
| 565 | N 000125006420 | WASHER |
| 570 | N 000094001609 | COTTER PIN |
| 575 | N 072571001024 | CLAMP |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| 580 | N 007981004240 | SHEET METAL SCREW |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| 585 | H 983453020340 | BRACKET |
| Repalced by: A 3443020040 | ||
| 585 | A 3443020040 | BRACKET |
| MANUAL CONTROL | ||
| 585 | A 3443020040 | BRACKET |
| MANUAL CONTROL | ||
| 590 | N 000933006220 | SCREW |
| BRACKET TO WINDOW SILL | ||
| 595 | N 000127006203 | LOCK WASHER |
| BRACKET TO WINDOW SILL | ||
| 600 | A 3523020091 | GROMMET |
| Repalced by: A 3453027091 | ||
| 600 | A 3453027191 | GROMMET |
| Repalced by: A 3453027091 | ||
| 600 | A 3453027091 | GROMMET |
| 600 | A 3453027091 | GROMMET |
| A 0009972881 | GROMMET | |
| A 1203020087 | RING | |
| N 000933005095 | SCREW | |
| 605 | A 1539950020 | CLAMP |
| Repalced by: A 3129950332 | ||
| 605 | A 3129950332 | CLAMP |
| CABLE TO PRESSURE GAUGE LINE | ||
| 605 | A 3129950332 | CLAMP |
| CABLE TO PRESSURE GAUGE LINE | ||
| 610 | A 3523020020 | CLAMP |
| 615 | A 3215422340 | BRACKET |
| CABLE TO PRESSURE GAUGE LINE | ||
| 615 | A 3215422340 | BRACKET |
| CABLE TO PRESSURE GAUGE LINE | ||
| 620 | N 007985005183 | SCREW |
| CABLE TO PRESSURE GAUGE LINE | ||
| 620 | N 007985005183 | SCREW |
| CABLE TO PRESSURE GAUGE LINE | ||
| 625 | N 000127005001 | LOCK WASHER |
| CABLE TO PRESSURE GAUGE LINE | ||
| 625 | N 000127005001 | LOCK WASHER |
| CABLE TO PRESSURE GAUGE LINE | ||
| 630 | N 000934005008 | NUT |
| CABLE TO PRESSURE GAUGE LINE | ||
| 630 | N 000934005008 | NUT |
| CABLE TO PRESSURE GAUGE LINE | ||
| 635 | N 007985006512 | SCREW |
| BRACKET TO ENGINE | ||
| 640 | N 000127006203 | LOCK WASHER |
| BRACKET TO ENGINE | ||
| 645 | N 000933006220 | SCREW |
| ACCELERATOR PEDAL TO BRACKET | ||
| 645 | N 000933006223 | SCREW |
| ACCELERATOR PEDAL TO BRACKET | ||
| 650 | N 000127006203 | LOCK WASHER |
| ACCELERATOR PEDAL TO BRACKET | ||
| 655 | N 000934006006 | NUT |
| ACCELERATOR PEDAL TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
