Transporto priemonė: LPO 1113; VIN numerio dalis: 344055

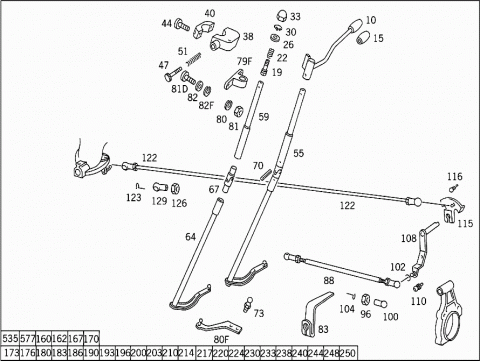

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3214300552 | LEVER | |
| 010 | A 3224300152 | LEVER |
| 015 | A 1862680040 | KNOB |
| 015 | A 0442680040 | BRACKET |
| 019 | A 3124341133 | SET SCREW |
| 022 | A 3129935201 | SPRING |
| 026 | A 3129903740 | WASHER |
| 030 | N 000472016000 | LOCK RING |
| 033 | N 001587008005 | CAP NUT |
| A 3214340107 | HAND LEVER BRACKET | |
| 038 | A 3224340007 | HAND LEVER BRACKET |
| 040 | A 3444340008 | COVER |
| 044 | N 000084008172 | SCREW |
| 047 | A 3224300071 | SCREW |
| 047 | A 3454307071 | SCREW |
| 051 | A 1829930601 | SPRING |
| 055 | A 3224300321 | GUIDE TUBE |
| A 3214301521 | GUIDE TUBE | |
| 059 | A 3224300621 | GUIDE TUBE |
| 064 | A 3224300221 | GUIDE TUBE |
| 067 | A 0009960046 | UNIVERSAL JOINT |
| 070 | N 001481006023 | CLAMPING SLEEVE |
| 073 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 073 | N 071803010209 | BALL PIVOT |
| N 001481006023 | CLAMPING SLEEVE | |
| N 001481006023 | CLAMPING SLEEVE | |
| A 0009960046 | UNIVERSAL JOINT | |
| A 3224300510 | BRACKET | |
| 079F | A 3214341040 | BRACKET |
| 080 | N 000127008200 | LOCK WASHER |
| 080F | A 3224300010 | BRACKET |
| 081 | N 000934008000 | NUT |
| N 001587008005 | CAP NUT | |
| 081D | N 000603008001 | SCREW |
| 082 | N 000125008417 | WASHER |
| 082F | N 000127008200 | LOCK WASHER |
| 083 | A 3214341447 | LEVER |
| N 000931008072 | SCREW | |
| N 000125008417 | WASHER | |
| N 000934008000 | NUT | |
| 088 | A 3224300492 | ROD |
| A 3224300592 | ROD | |
| 096 | N 000934006006 | NUT |
| 100 | N 071805010202 | BALL SOCKET |
| 102 | N 071805010302 | SNAP RING |
| 104 | N 071805010402 | CIRCLIP |
| 108 | A 3524300246 | INTERMEDIATE SHAFT |
| 110 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 110 | N 071803010209 | BALL PIVOT |
| 115 | A 3524300024 | LEVER |
| 116 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 116 | N 071803010209 | BALL PIVOT |
| N 000933008279 | SCREW | |
| N 000125008417 | WASHER | |
| N 000934008000 | NUT | |
| 122 | A 3124302592 | ROD |
| 123 | N 071805010402 | CIRCLIP |
| 126 | N 000934006006 | NUT |
| 129 | N 071805010202 | BALL SOCKET |
| 160 | A 3129900021 | SCREW |
| 162 | N 000934008000 | NUT |
| 167 | A 1869970781 | GROMMET |
| 170 | A 0444300146 | INTERMEDIATE SHAFT |
| 173 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 173 | N 071803010209 | BALL PIVOT |
| 176 | A 3214301324 | LEVER |
| 180 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 180 | N 071803010209 | BALL PIVOT |
| 183 | A 3219910840 | SPACER TUBE |
| 186 | N 001481006023 | CLAMPING SLEEVE |
| 190 | A 3214301792 | ROD |
| 193 | N 000934006006 | NUT |
| 196 | N 071805010202 | BALL SOCKET |
| 200 | N 071805010302 | SNAP RING |
| 203 | N 071805010402 | CIRCLIP |
| 210 | A 0444300192 | ROD |
| 214 | N 000934006006 | NUT |
| 217 | N 071805010202 | BALL SOCKET |
| 220 | N 071805010302 | SNAP RING |
| 224 | N 071805010402 | CIRCLIP |
| 230 | A 3211401232 | LEVER |
| 233 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 233 | N 071803010209 | BALL PIVOT |
| 238 | A 3523002015 | ROD |
| 240 | N 000934006006 | NUT |
| 244 | N 071805010202 | BALL SOCKET |
| 248 | N 071805010302 | SNAP RING |
| 250 | N 071805010402 | CIRCLIP |

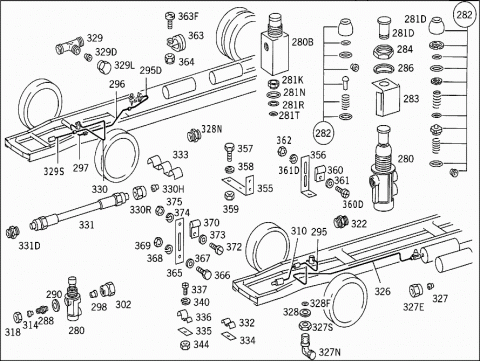

| 280 | A 3214340001 | VALVE |
| Repalced by: A 3454347001 | ||
| 280 | A 0004340501 | VALVE |
| Repalced by: A 3454347001 | ||
| 280 | A 3454347001 | VALVE |
| "WABCO DO BRASIL" | ||
| 280 | A 3454347001 | VALVE |
| "WABCO DO BRASIL" | ||
| 280B | A 0004342901 | VALVE |
| "KNORR" | ||
| 280B | A 0004342901 | VALVE |
| "KNORR" | ||
| A 0004340801 | VALVE | |
| Repalced by: A 0004343001 | ||
| A 0004343001 | VALVE | |
| "KNORR" | ||
| A 3454347101 | VALVE | |
| "WABCO" | ||
| A 0004350590 | VALVE DISC | |
| TO 321 434 00 01 | ||
| A 0004340359 | SEAL RING | |
| A 0004340359 | SEAL RING | |
| A 0009971977 | HANDLE | |
| TO 000 434 23 01 | ||
| 281D | A 0004340586 | CUP |
| TO 000 434 23 01 | ||
| 281K | A 0004317387 | PROTECTIVE CAP |
| TO 000 434 05 01,345 434 70 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 000 434 08 01,345 434 71 01 | ||
| 281K | A 0004317387 | PROTECTIVE CAP |
| TO 000 434 05 01,345 434 70 01 | ||
| 281N | A 0109970948 | SEAL RING |
| TO 000 434 29 01,000 434 30 01 | ||
| 281N | A 0109970948 | SEAL RING |
| TO 000 434 29 01,000 434 30 01 | ||
| 281R | A 0109971048 | SEAL RING |
| TO 000 434 29 01,000 434 30 01 | ||
| 281R | A 0109971048 | SEAL RING |
| TO 000 434 29 01,000 434 30 01 | ||
| 281T | A 0109971148 | SEAL RING |
| TO 000 434 29 01,000 434 30 01 | ||
| 281T | A 0109971148 | SEAL RING |
| TO 000 434 29 01,000 434 30 01 | ||
| 281T | A 0109971248 | SEAL RING |
| TO 000 434 29 01, 000 434 30 01 | ||
| 281T | A 0109971248 | SEAL RING |
| TO 000 434 29 01, 000 434 30 01 | ||
| A 0079972448 | SEAL RING | |
| TO 000 434 23 01 | ||
| A 0079972548 | SEAL RING | |
| TO 000 434 23 01 | ||
| 282 | H 983455860943 | REPAIR KIT |
| Repalced by: A 0034301281 | ||
| 282 | A 0034301281 | REPAIR KIT |
| SMALL SCOPE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 000 434 05 01,345 434 70 01, 000 434 08 01,345 434 71 01 | ||
| 282 | A 0034301281 | REPAIR KIT |
| SMALL SCOPE | ||
| 282 | A 0005869743 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 05 01,000 434 08 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 000 434 05 01,000 434 08 01 | ||
| 282 | A 0005869743 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 345 434 70 01,345 434 71 01 | ||
| A 0025869843 | REPAIR KIT | |
| TO 000 434 23 01, | ||
| A 0014301360 | REPAIR KIT | |
| Repalced by: A 0004304106 | ||
| A 0004304106 | REPAIR KIT | |
| LARGE SCOPE | ||
| TO 000 434 29 01,000 434 30 01 | ||
| A 0004304106 | REPAIR KIT | |
| LARGE SCOPE | ||
| TO 000 434 29 01,000 434 30 01 | ||
| A 0014301460 | REPAIR KIT | |
| SMALL SCOPE | ||
| TO 000 434 29 01,000 434 30 01 | ||
| A 0014301460 | REPAIR KIT | |
| SMALL SCOPE | ||
| TO 000 434 29 01,000 434 30 01 | ||
| 283 | A 3604340044 | PROTECTIVE PLATE |
| 284 | N 074305026202 | NUT |
| VALVE TO FLOOR | ||
| 284 | N 074305026202 | NUT |
| VALVE TO FLOOR | ||
| A 3459977081 | GROMMET | |
| N 000137027201 | SPRING WASHER | |
| 286 | N 000137027201 | SPRING WASHER |
| 288 | H 983444290039 | CONNECTOR |
| Repalced by: A 3454298136 | ||
| 288 | A 3454298136 | CONNECTOR |
| 288 | A 3454298136 | CONNECTOR |
| 290 | N 007603012112 | SEAL RING |
| 290 | N 007603012106 | SEAL RING |
| 295 | H 983444206026 | LINE |
| Repalced by: A 3444203326 | ||
| 295 | A 3444203326 | LINE |
| VENT VALVE | ||
| 6X0.7 MM | ||
| 295 | A 3444209826 | LINE |
| Repalced by: A 3444209045 | ||
| 295 | A 3444209045 | LINE |
| 6X0.7 MM | ||
| 295 | A 3444209045 | LINE |
| 6X0.7 MM | ||
| 295 | A 3444209926 | LINE |
| Repalced by: A 3444209145 | ||
| 295 | A 3444209145 | LINE |
| 6X0.7 M | ||
| 295 | A 3444209145 | LINE |
| 6X0.7 M | ||
| 295D | A 3444309466 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING | ||
| 296 | A 3454206449 | LINE |
| FROM FITTING TO T-FITTING | ||
| 297 | A 3454207533 | LINE |
| FROM T-FITTING TO 3/2-WAY VALVE | ||
| 298 | N 003861006007 | GLAND |
| 298 | N 003861006007 | GLAND |
| 302 | N 915017006100 | UNION NUT |
| 302 | N 915017006100 | UNION NUT |
| 310 | H 983444206126 | LINE |
| Repalced by: A 3444203526 | ||
| 310 | A 3444203526 | LINE |
| 6X0.7 MM | ||
| 314 | N 003861006007 | GLAND |
| 318 | N 915017006100 | UNION NUT |
| 322 | N 003902006001 | CONNECTION FITTING |
| 326 | H 983444206326 | LINE |
| Repalced by: A 3444203626 | ||
| 326 | A 3444203626 | LINE |
| FROM FITTING TO AIR RESERVOIR | ||
| 6X0.7 MM | ||
| 326 | A 3444209549 | LINE |
| FROM FITTING TO AIR RESERVOIR | ||
| 6X0.7 MM | ||
| 326 | H 983454200836 | LINE |
| Repalced by: A 3454307565 | ||
| 326 | A 3454307565 | LINE |
| 327 | N 003861006007 | GLAND |
| 327E | N 915017006100 | UNION NUT |
| 327N | A 3454297438 | ELBOW FITTING |
| 327S | N 080705012003 | NUT |
| 328 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 328 | A 0009940103 | THRUST RING |
| 328F | A 0019875046 | SEALING CORD |
| 328N | N 003902006001 | CONNECTION FITTING |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING | ||
| 329 | N 003908006001 | FITTING |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO TO 3/2-WAY VALVE | ||
| 329 | A 0009903470 | T-FITTING |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO TO 3/2-WAY VALVE | ||
| 329D | N 915005004000 | LOCKING CONE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO TO 3/2-WAY VALVE | ||
| 329L | N 915020012000 | NUT |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO TO 3/2-WAY VALVE | ||
| 329S | A 3454206149 | LINE |
| FROM FITTING TO COMPRESSED AIR CYLINDER,ENGINE | ||
| 330 | A 3454206249 | LINE |
| FROM 3/2-WAY VALVE TO FITTING | ||
| 330H | N 003861006007 | GLAND |
| 330R | N 915017006100 | UNION NUT |
| 331 | A 3454200048 | BRAKE HOSE |
| FROM FITTING TO FITTING | ||
| 331D | N 003902006001 | CONNECTION FITTING |
| FROM OPERATING VALVE TO COMPRESSED AIR CYLINDER | ||
| 332 | A 3129950332 | CLAMP |
| LINE MOUNTING | ||
| 333 | A 3444297340 | BRACKET |
| LINE MOUNTING | ||
| 334 | A 3215422340 | BRACKET |
| LINE MOUNTING | ||
| 335 | A 3444290340 | BRACKET |
| LINE MOUNTING | ||
| 336 | A 3444290240 | CLAMP |
| LINE MOUNTING | ||
| 337 | N 007985005183 | SCREW |
| LINE MOUNTING | ||
| 340 | N 000127005001 | LOCK WASHER |
| LINE MOUNTING | ||
| 344 | N 000934005008 | NUT |
| LINE MOUNTING | ||
| 355 | A 3444297140 | BRACKET |
| LINE MOUNTING | ||
| 355 | A 3444297140 | BRACKET |
| LINE MOUNTING | ||
| 356 | A 3464295940 | BRACKET |
| LINE MOUNTING | ||
| 357 | N 000961012160 | SCREW |
| CLAMP TO BRACKET | ||
| 357 | N 000961012160 | SCREW |
| CLAMP TO BRACKET | ||
| 358 | N 000127012201 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 358 | N 000127012201 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 359 | N 000934012004 | NUT |
| CLAMP TO BRACKET | ||
| 359 | N 000934012004 | NUT |
| CLAMP TO BRACKET | ||
| 360 | A 3609950101 | CLAMP |
| CLAMP TO BRACKET | ||
| 360D | N 007985006515 | SCREW |
| CLAMP TO BRACKET | ||
| 360D | N 007985006515 | SCREW |
| CLAMP TO BRACKET | ||
| 361 | N 000125006420 | WASHER |
| CLAMP TO BRACKET | ||
| 361 | N 000125006420 | WASHER |
| CLAMP TO BRACKET | ||
| 361D | N 000127006203 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 362 | N 000934006006 | NUT |
| CLAMP TO BRACKET | ||
| 362 | N 000934006006 | NUT |
| CLAMP TO BRACKET | ||
| 363 | N 916016006201 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 363 | A 3459957801 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 363F | N 007985006515 | SCREW |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 364 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 365 | H 983454280040 | BRACKET |
| Repalced by: A 3444287440 | ||
| 365 | A 3444287440 | BRACKET |
| 366 | N 000933008282 | SCREW |
| BRACKET AND CLAMP TO FRAME | ||
| 367 | N 000125008417 | WASHER |
| BRACKET AND CLAMP TO FRAME | ||
| 368 | N 912004008100 | LOCK WASHER |
| BRACKET AND CLAMP TO FRAME | ||
| 369 | N 000934008000 | NUT |
| BRACKET AND CLAMP TO FRAME | ||
| 370 | A 3609950101 | CLAMP |
| BRACKET TO SIDE MEMBER | ||
| 372 | N 007985006515 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 373 | N 000125006420 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 374 | N 000127006203 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 375 | N 000934006006 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 380 | A 3524300318 | BRAKE PEDAL |
| 380 | A 3524300318 | BRAKE PEDAL |
| 384 | N 000934008000 | NUT |
| 384 | N 000934008000 | NUT |
| 388 | N 071752008000 | YOKE |
| 388 | N 071752008000 | YOKE |
| 392 | A 3203015082 | PAD |
| 392 | A 3203015082 | PAD |
| 395 | A 3524340123 | GUIDE |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 395 | A 3524340123 | GUIDE |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 398 | A 3524341040 | BRACKET |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 398 | A 3524341040 | BRACKET |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 402 | A 3524340187 | SHIM |
| Repalced by: A 3454347087 | ||
| 402 | A 3454347087 | SHIM |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 402 | A 3454347087 | SHIM |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 403 | N 000571006009 | WOOD SCREW |
| BRACKET TO CAB FLOOR | ||
| 405 | N 000933006220 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 405 | N 000933006220 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 406 | N 000127006203 | LOCK WASHER |
| BRACKET TO CAB FLOOR | ||
| 406 | N 000127006203 | LOCK WASHER |
| BRACKET TO CAB FLOOR | ||
| 407 | N 000934006006 | NUT |
| BRACKET TO CAB FLOOR | ||
| 407 | N 000934006006 | NUT |
| BRACKET TO CAB FLOOR | ||
| 408 | N 918001008000 | PIN |
| 408 | N 918001008000 | PIN |
| 410 | N 000137008101 | SPRING WASHER |
| 410 | N 000137008101 | SPRING WASHER |
| 412 | A 0454300138 | BEARING |
| Repalced by: A 3524300438 | ||
| 412 | A 3524300438 | BEARING |
| 412 | A 3524300438 | BEARING |
| 412 | A 3524300438 | BEARING |
| A 3444307138 | BEARING | |
| 415 | A 0454300338 | BEARING |
| Repalced by: A 3444300138 | ||
| 415 | A 3444300138 | BEARING |
| EXHAUST BRAKE SHAFT | ||
| 415 | A 3444300138 | BEARING |
| EXHAUST BRAKE SHAFT | ||
| 416 | A 0454340150 | BUSHING |
| Repalced by: A 3444340150 | ||
| 416 | A 3444340150 | BUSHING |
| 416 | A 3444340150 | BUSHING |
| 416 | A 3524340150 | BUSHING |
| 416 | A 3524340150 | BUSHING |
| 418 | N 071412010200 | GREASE NIPPLE |
| 418 | N 071412010200 | GREASE NIPPLE |
| 420 | N 000933008228 | SCREW |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER AND TO CAB FLOOR | ||
| 420 | N 000933008228 | SCREW |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER AND TO CAB FLOOR | ||
| 420 | N 000933008282 | SCREW |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER | ||
| 420 | N 000933008282 | SCREW |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER | ||
| 422 | N 912004008100 | LOCK WASHER |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER AND TO CAB FLOOR | ||
| 422 | N 912004008100 | LOCK WASHER |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER AND TO CAB FLOOR | ||
| 423 | N 000934008000 | NUT |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER | ||
| 423 | N 000934008000 | NUT |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER | ||
| 425 | A 3524301446 | INTERMEDIATE SHAFT |
| 425 | A 3524301446 | INTERMEDIATE SHAFT |
| 425 | A 3524301446 | INTERMEDIATE SHAFT |
| 425 | A 3444307046 | INTERMEDIATE SHAFT |
| 425 | A 0454300046 | INTERMEDIATE SHAFT |
| Repalced by: A 3444300146 | ||
| 425 | A 3444300146 | INTERMEDIATE SHAFT |
| 425 | A 3444300146 | INTERMEDIATE SHAFT |
| 429 | A 3524300523 | LEVER |
| INSIDE | ||
| 429 | A 3524300523 | LEVER |
| INSIDE | ||
| 429 | A 3524300023 | LEVER |
| INSIDE | ||
| 429 | A 3524300023 | LEVER |
| INSIDE | ||
| 432 | N 071803010209 | BALL PIVOT |
| 432 | N 071803010209 | BALL PIVOT |
| 436 | N 001481004017 | CLAMPING SLEEVE |
| 436 | N 001481004017 | CLAMPING SLEEVE |
| 440 | A 3604303392 | ROD |
| 440 | A 3604303292 | ROD |
| Repalced by: A 3604302092 | ||
| 440 | A 3604302092 | ROD |
| FROM EXHAUST BRAKE SHAFT LEVER TO CONTROL ROD LEVER | ||
| 440 | A 3604302092 | ROD |
| FROM EXHAUST BRAKE SHAFT LEVER TO CONTROL ROD LEVER | ||
| 440 | A 3604302092 | ROD |
| FROM EXHAUST BRAKE SHAFT LEVER TO CONTROL ROD LEVER | ||
| 440 | A 3604303492 | ROD |
| Repalced by: A 3604302292 | ||
| 440 | A 3604302292 | ROD |
| FROM EXHAUST BRAKE SHAFT LEVER TO CONTROL ROD LEVER | ||
| A 3524300079 | CONNECTOR | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 445 | A 0009910522 | BALL SOCKET |
| Repalced by: A 0009912422 | ||
| 445 | A 0009912422 | BALL SOCKET |
| 445 | A 0009912422 | BALL SOCKET |
| 445 | A 0009912422 | BALL SOCKET |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 448 | N 071805010302 | SNAP RING |
| 448 | N 071805010302 | SNAP RING |
| 448 | N 071805010302 | SNAP RING |
| 448 | N 071805010302 | SNAP RING |
| 450 | N 071805010402 | CIRCLIP |
| ROD TO LEVER | ||
| 450 | N 071805010402 | CIRCLIP |
| ROD TO LEVER | ||
| 450 | N 071805010402 | CIRCLIP |
| ROD TO LEVER | ||
| 450 | N 071805010402 | CIRCLIP |
| ROD TO LEVER | ||
| 453 | N 000934006006 | NUT |
| 453 | N 000934006006 | NUT |
| 453 | N 000934006006 | NUT |
| A 3524300079 | CONNECTOR | |
| N 071805010202 | BALL SOCKET | |
| N 071752006000 | YOKE | |
| 456 | N 918001006004 | PIN |
| 460 | A 0453000017 | LEVER |
| Repalced by: A 3443000017 | ||
| 460 | A 3443000217 | LEVER |
| Repalced by: A 3443000017 | ||
| 460 | A 3443000017 | LEVER |
| 460 | A 3443000017 | LEVER |
| 464 | A 0459921601 | BUSHING |
| Repalced by: A 3443020150 | ||
| 464 | A 3443020150 | BUSHING |
| 464 | A 3443020150 | BUSHING |
| 467 | A 3523020050 | BUSHING |
| 467 | A 3523020050 | BUSHING |
| 470 | A 3523020071 | SCREW |
| 470 | A 3523020071 | SCREW |
| 473 | N 000125006420 | WASHER |
| 473 | N 000125006420 | WASHER |
| 475 | N 000934006006 | NUT |
| 475 | N 000934006006 | NUT |
| 478 | N 000988018003 | FITTED WASHER |
| 478 | N 000988018003 | FITTED WASHER |
| 485 | A 0453000028 | LEVER |
| Repalced by: A 3443000225 | ||
| 485 | A 3443000428 | LEVER |
| Repalced by: A 3443000225 | ||
| 485 | A 3443000225 | LEVER |
| 485 | A 3443000225 | LEVER |
| 488 | A 0459921601 | BUSHING |
| Repalced by: A 3443020150 | ||
| 488 | A 3443020150 | BUSHING |
| 488 | A 3443020150 | BUSHING |
| 490 | N 071803010209 | BALL PIVOT |
| 490 | N 071803010209 | BALL PIVOT |
| 495 | N 071412010300 | GREASE NIPPLE |
| 495 | N 071412010300 | GREASE NIPPLE |
| N 000125013012 | WASHER | |
| N 000125013012 | WASHER | |
| N 001481004017 | CLAMPING SLEEVE | |
| N 001481004017 | CLAMPING SLEEVE | |
| A 3084299401 | LINE | |
| 6X0,7 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
