Transporto priemonė: LPO 1113; VIN numerio dalis: 344055
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

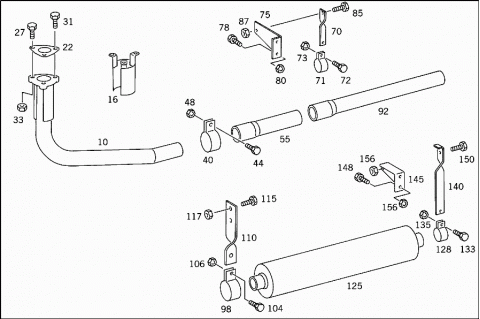

| 010 | H 983444900320 | EXHAUST PIPE |
| FRONT | ||
| A 0444900020 | EXHAUST PIPE | |
| Repalced by: A 3444907720 | ||
| A 3444907720 | EXHAUST PIPE | |
| Repalced by: A 3444907819 | ||

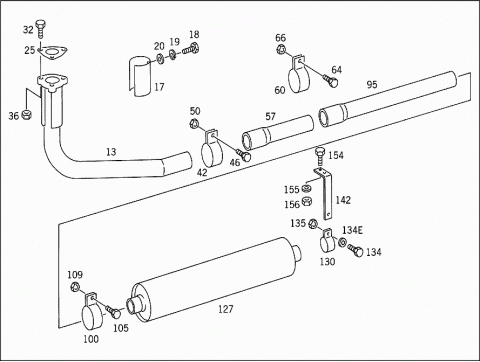

| 010 | A 3444907819 | EXHAUST PIPE |
| FRONT | ||
| 013 | A 3444907219 | EXHAUST PIPE |
| FRONT | ||
| 013 | A 3444907319 | EXHAUST PIPE |
| FRONT | ||
| 013 | A 0444900120 | EXHAUST PIPE |
| FRONT | ||
| 013 | H 983444900220 | EXHAUST PIPE |
| Repalced by: A 3444900719 | ||
| 013 | A 3444900719 | EXHAUST PIPE |
| FRONT | ||
| 016 | A 3404900030 | PROTECTIVE PLATE |
| 016 | A 3454907530 | PROTECTIVE PLATE |
| 016 | A 3454907530 | PROTECTIVE PLATE |
| 016 | H 983444900330 | PROTECTIVE PLATE |
| 017 | A 3444927030 | PROTECTIVE PLATE |
| 018 | N 000933006223 | SCREW |
| HEAT SHIELD MOUNTING | ||
| 019 | N 000125006420 | WASHER |
| HEAT SHIELD MOUNTING | ||
| 020 | N 000127006203 | LOCK WASHER |
| HEAT SHIELD MOUNTING | ||
| 017 | A 3224900130 | PROTECTIVE PLATE |
| 017 | A 3024900030 | PROTECTIVE PLATE |
| 022 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 022 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 025 | A 3444920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 027 | N 000931010264 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 031 | N 000931010422 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 032 | N 000931012253 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 033 | A 3459900151 | NUT |
| Repalced by: N 913004010000 | ||
| 033 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 036 | A 3459900251 | NUT |
| Repalced by: N 913004012010 | ||
| 036 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 040 | N 071555065500 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 042 | N 071555085500 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 044 | N 000933008288 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 046 | N 000933010129 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 048 | N 913004008001 | NUT |
| Repalced by: N 913004008001 | ||
| 048 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 050 | N 000934010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 055 | A 0444920007 | CONNECTOR |
| Repalced by: A 3444927407 | ||
| 055 | A 3444927407 | CONNECTOR |
| INTERMEDIATE PIECE,FRONT | ||
| 055 | A 3454927007 | CONNECTOR |
| INTERMEDIATE PIECE,FRONT | ||
| 057 | A 0444920107 | CONNECTOR |
| INTERMEDIATE PIECE,FRONT | ||
| 057 | A 3444927207 | CONNECTOR |
| INTERMEDIATE PIECE,FRONT | ||
| 057 | A 3604920207 | CONNECTOR |
| Repalced by: A 3454927007 | ||
| 057 | A 3454927007 | CONNECTOR |
| INTERMEDIATE PIECE,FRONT | ||
| 057 | A 3454927007 | CONNECTOR |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 360 492 02 07 | ||
| 060 | N 071555065500 | CLAMP |
| INTERMEDIATE PIECE,FRONT | ||
| N 071555085500 | CLAMP | |
| FRONT EXHAUST PIPE | ||
| 064 | N 000933008273 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| N 304017008012 | SCREW | |
| CLAMP TO BRACKET AND TO PIPE | ||
| N 000933008273 | SCREW | |
| CLAMP TO BRACKET AND TO PIPE | ||
| N 000125008417 | WASHER | |
| CLAMP TO BRACKET AND TO PIPE | ||
| 066 | N 913004008001 | NUT |
| Repalced by: N 913004008001 | ||
| 066 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 070 | A 0444910119 | BRACKET |
| Repalced by: A 3444917019 | ||
| 070 | A 3444917019 | BRACKET |
| BOTTOM | ||
| 070 | A 3444917019 | BRACKET |
| BOTTOM | ||
| A 0444910019 | BRACKET | |
| Repalced by: A 3444910441 | ||
| A 3444910441 | BRACKET | |
| BOTTOM | ||
| 071 | N 071555065500 | CLAMP |
| CLAMP TO BRACKET AND TO PIPE | ||
| 072 | N 000933008273 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 073 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 075 | A 0444910016 | SUPPORT |
| Repalced by: A 3444910016 | ||
| 075 | A 3444910016 | SUPPORT |
| TOP | ||
| 078 | N 000933008282 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 080 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 085 | N 000933008282 | SCREW |
| BRACKET TO SUPPORT | ||
| 087 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 092 | A 0444920201 | FRONT EXHAUST PIPE |
| Repalced by: A 3444927801 | ||
| 092 | A 3444927801 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 092 | A 3444927801 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 095 | A 3444927603 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 095 | A 0444920301 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 095 | H 983444921301 | FRONT EXHAUST PIPE |
| Repalced by: A 3444921601 | ||
| 095 | A 3444921601 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 095 | A 3454928202 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| A 3454927041 | BRACKET | |
| FRONT EXHAUST MUFFLER | ||
| 098 | N 071555065500 | CLAMP |
| FRONT EXHAUST MUFFLER | ||
| 65.5 MM | ||
| 100 | N 071555085500 | CLAMP |
| FRONT EXHAUST MUFFLER | ||
| 104 | N 000933008288 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X25 | ||
| 105 | N 000933010269 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 105 | N 000933010174 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 106 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 109 | N 000934010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 110 | A 3224923319 | BRACKET |
| Repalced by: A 3444927519 | ||
| 110 | A 3444927519 | BRACKET |
| BOTTOM | ||
| 110 | A 3444927519 | BRACKET |
| BOTTOM | ||
| 110 | A 3444927319 | BRACKET |
| BOTTOM | ||
| 110 | A 3224920419 | BRACKET |
| BOTTOM | ||
| 110 | H 983444900235 | BRACKET |
| Repalced by: A 3444900140 | ||
| 110 | A 3444900140 | BRACKET |
| BOTTOM | ||
| 110 | A 3444927919 | BRACKET |
| BOTTOM | ||
| 115 | N 000933008282 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 115 | N 000933008282 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 115 | N 000933008282 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 115 | N 000933008050 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 115 | N 000933008050 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 117 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 125 | A 3224900201 | EXHAUST MUFFLER |
| Repalced by: A 3454907101 | ||
| 125 | A 3444907301 | EXHAUST MUFFLER |
| Repalced by: A 3454907101 | ||
| 125 | A 3444907501 | EXHAUST MUFFLER |
| Repalced by: A 3454907101 | ||
| 125 | A 3454907101 | EXHAUST MUFFLER |
| 125 | A 3454907101 | EXHAUST MUFFLER |
| 125 | A 3604900101 | EXHAUST MUFFLER |
| 125 | A 3454908101 | EXHAUST MUFFLER |
| 127 | A 3444907201 | EXHAUST MUFFLER |
| 127 | A 3444907401 | EXHAUST MUFFLER |
| 128 | A 3274920040 | CLAMP |
| Repalced by: N 071555063500 | ||
| 128 | N 071555063500 | CLAMP |
| REAR EXHAUST PIPE | ||
| 62.5 MM | ||
| 130 | N 071555075500 | CLAMP |
| REAR EXHAUST PIPE | ||
| 75.5 MM | ||
| 130 | N 071555060500 | CLAMP |
| REAR EXHAUST PIPE | ||
| 60.5 MM | ||
| 133 | N 000933008288 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 134 | N 304017008005 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 134 | N 000933008273 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 134E | N 000125008417 | WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 135 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 140 | A 3224911341 | BRACKET |
| Repalced by: A 3454917041 | ||
| 140 | A 3454917041 | BRACKET |
| BOTTOM | ||
| 140 | A 3454917041 | BRACKET |
| BOTTOM | ||
| 142 | H 983444920619 | BRACKET |
| Repalced by: A 3444927619 | ||
| 142 | A 3444927619 | BRACKET |
| 140 | A 3124912019 | BRACKET |
| BOTTOM | ||
| A 3454928641 | BRACKET | |
| BOTTOM | ||
| 145 | H 983454910216 | SUPPORT |
| Repalced by: A 3124911016 | ||
| 145 | A 3124911016 | SUPPORT |
| TOP | ||
| 148 | N 000933008282 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 150 | N 000933008050 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 150 | N 000933008273 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 154 | N 000933008050 | SCREW |
| BRACKET TO SUPPORT | ||
| 155 | N 000125008417 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 156 | N 913004008001 | NUT |
| 156 | N 913004008001 | NUT |

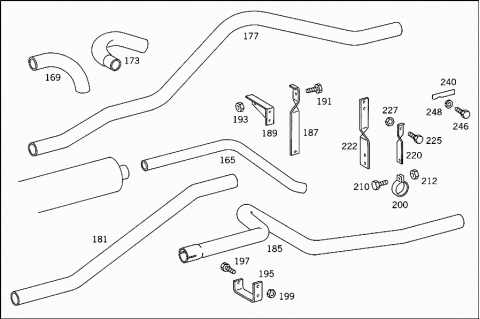

| 165 | A 0444920104 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 165 | A 0444920204 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 165 | A 0444920004 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 169 | H 983454920504 | REAR EXHAUST PIPE |
| Repalced by: A 3444927404 | ||
| 169 | A 3444927404 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 169 | A 3444927404 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 173 | A 3444907221 | EXHAUST PIPE |
| REAR | ||
| 177 | A 0224920304 | REAR EXHAUST PIPE |
| Repalced by: A 3444920604 | ||
| 177 | A 3444920604 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 177 | A 3444920604 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 181 | A 3444928604 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 181 | A 3454927107 | CONNECTOR |
| REAR EXHAUST PIPE FRONT PART TO MUFFLER | ||
| 185 | A 3444928704 | REAR EXHAUST PIPE |
| REAR PART | ||
| 185 | A 3454929104 | REAR EXHAUST PIPE |
| REAR PART | ||
| A 3224911341 | BRACKET | |
| Repalced by: A 3454917041 | ||
| 187 | A 3454917041 | BRACKET |
| BOTTOM | ||
| 187 | A 3454917041 | BRACKET |
| BOTTOM | ||
| 187 | A 3124912019 | BRACKET |
| BOTTOM | ||
| 189 | A 3124911016 | SUPPORT |
| TOP | ||
| 191 | N 000933008282 | SCREW |
| REAR EXHAUST PIPE TO FRAME | ||
| 191 | N 000933008282 | SCREW |
| REAR EXHAUST PIPE TO FRAME | ||
| 193 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO FRAME | ||
| 193 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO FRAME | ||
| 195 | A 3444927541 | BRACKET |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 197 | N 000933008288 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| HALTER AN LAENGSTRAEGER | ||
| 199 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 200 | N 071555060500 | CLAMP |
| TAIL PIPE | ||
| 60.5 MM | ||
| 200 | N 071555063500 | CLAMP |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 210 | N 000933008273 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X30 | ||
| 212 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 220 | H 983444920619 | BRACKET |
| BOTTOM | ||
| 220 | A 0444920919 | BRACKET |
| BOTTOM | ||
| 222 | A 3444920019 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| A 3454928741 | BRACKET | |
| REAR EXHAUST PIPE | ||
| 225 | N 000933008282 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X20 | ||
| 227 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 240 | A 0444920319 | BRACKET |
| TOP | ||
| 246 | N 000933008282 | SCREW |
| BRACKET TO SUPPORT | ||
| 248 | N 000127008206 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| N 000933008282 | SCREW | |
| BRACKETS TO CROSS AND SIDE MEMBERS | ||
| M 8X20 | ||
| N 000933008050 | SCREW | |
| BRACKETS TO CROSS AND SIDE MEMBERS | ||
| M 8X22 | ||
| N 913004008001 | NUT | |
| BRACKETS TO CROSS AND SIDE MEMBERS | ||
| N 071555065500 | CLAMP | |
| 65.5 MM | ||
| N 071555060500 | CLAMP | |
| 60.5 MM | ||
| N 071555063500 | CLAMP | |
| 62.5 MM | ||
| N 000933008288 | SCREW | |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X25 | ||
| N 000125008417 | WASHER | |
| CLAMP TO BRACKET AND TO PIPE | ||
| N 913004008001 | NUT | |
| CLAMP TO BRACKET AND TO PIPE | ||
| A 3028880026 | SLEEVE | |
| CLAMP TO SIDE MEMBER | ||
| N 000931008370 | SCREW | |
| CLAMP TO SIDE MEMBER | ||
| M 8X75 | ||
| N 913004008001 | NUT | |
| CLAMP TO SIDE MEMBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
