Transporto priemonė: LPO 1113; VIN numerio dalis: 344055

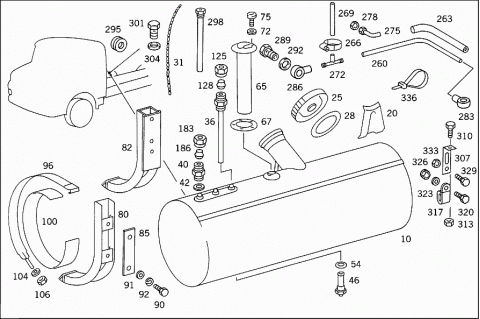

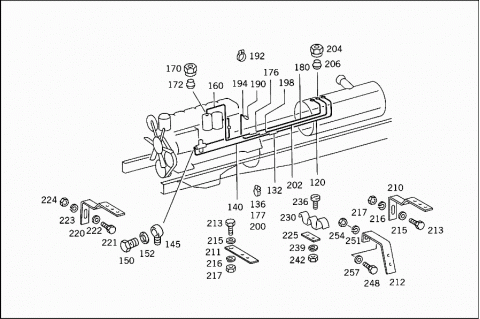

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0224700001 | FUEL TANK |
| Repalced by: A 3444707901 | ||
| 010 | A 3444700001 | FUEL TANK |
| Repalced by: A 3444707901 | ||
| 010 | A 3444707901 | FUEL TANK |
| Repalced by: A 3444709001 | ||
| 010 | A 3444709001 | FUEL TANK |
| LESS SENDER UNIT | ||
| 010 | H 983444700001 | FUEL TANK |
| Repalced by: A 3444700601 | ||
| 010 | A 3444700501 | FUEL TANK |
| Repalced by: A 3444700601 | ||
| 010 | A 3444700601 | FUEL TANK |
| Repalced by: A 3444709101 | ||
| 010 | A 3444709101 | FUEL TANK |
| LESS SENDER UNIT | ||
| 010 | A 3444708202 | FUEL TANK |
| LESS SENDER UNIT | ||
| 020 | A 3224710241 | BRACKET |
| 025 | A 3444700205 | FILLER CAP |
| 028 | A 3444710679 | SEAL RING |
| 031 | A 3034700031 | CHAIN |
| 036 | A 0444700026 | RISING PIPE |
| Repalced by: A 3444700126 | ||
| 036 | A 3444700126 | RISING PIPE |
| 040 | A 3214710220 | FITTING |
| 042 | N 007603016301 | SEAL RING |
| 046 | A 3444700006 | FUEL STRAINER |
| Repalced by: A 3504700006 | ||
| 046 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3504700006 | ||
| 046 | A 3504700006 | FUEL STRAINER |
| 054 | N 007603035301 | SEAL RING |
| Repalced by: A 0029977245 | ||
| 054 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 065 | A 0015426117 | SENDER UNIT |
| Repalced by: A 3455427617 | ||
| 065 | A 3455427617 | SENDER UNIT |
| Repalced by: A 3455427917 | ||
| 065 | A 3455427917 | SENDER UNIT |
| TANK | ||
| 065 | A 3445427217 | SENDER UNIT |
| TANK | ||
| 067 | A 3524710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 072 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 075 | N 007985005171 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 080 | A 3224700542 | SUPPORT |
| WITH SEAL CONE | ||
| 082 | A 0444700042 | SUPPORT |
| Repalced by: A 3444700042 | ||
| 082 | A 3444700042 | SUPPORT |
| WITH SEAL CONE | ||
| 082 | A 3444707842 | SUPPORT |
| WITH SEAL CONE | ||
| 085 | A 3224750184 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 085 | A 0444750184 | SHIM |
| Repalced by: A 3444757084 | ||
| 085 | A 3444757084 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 090 | N 000961014106 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 090 | N 000961014107 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 091 | A 3609901740 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 092 | N 000127014201 | LOCK WASHER |
| 096 | A 3224700340 | STRAP |
| Repalced by: A 3454700140 | ||
| 096 | A 3454700140 | STRAP |
| FUEL TANK | ||
| 100 | A 3379870014 | RUBBER STRIP |
| Repalced by: A 3459837391 | ||
| 100 | A 3459837391 | CARDBOARD |
| FUEL TANK TO SUPPORT | ||
| 100 | A 3454757384 | SHIM |
| FUEL TANK TO SUPPORT | ||
| 104 | N 000125013012 | WASHER |
| FUEL TANK TO SUPPORT | ||
| 106 | N 000934012009 | NUT |
| FUEL TANK TO SUPPORT | ||
| 120 | A 0444700064 | LINE |
| Repalced by: A 3444708565 | ||
| 120 | A 3444708565 | LINE |
| FROM TANK TO HOSE | ||
| 120 | A 3444708565 | LINE |
| FROM TANK TO HOSE | ||
| 120 | A 3444709465 | LINE |
| FROM TANK TO RUBBER HOSE | ||
| 120 | A 0444700864 | LINE |
| FROM TANK TO HOSE | ||
| 120 | H 983444702164 | LINE |
| Repalced by: A 3444705664 | ||
| 120 | A 3444705664 | LINE |
| FROM TANK TO RUBBER HOSE | ||
| 120 | A 0444702164 | LINE |
| Repalced by: A 3444708865 | ||
| 120 | A 3444708865 | LINE |
| FROM TANK TO RUBBER HOSE | ||
| 125 | N 915017010200 | UNION NUT |
| 128 | N 915003008201 | SEAL CONE |
| Repalced by: A 3449907067 | ||
| 128 | A 3449907067 | SEAL CONE |
| 132 | A 3444760126 | HOSE |
| 136 | A 3509970290 | LOOM TIE |
| AS REQUIRED | ||
| 136 | A 3509970290 | CLAMP |
| AS REQUIRED | ||
| 140 | A 3440700032 | LINE |
| FROM HOSE TO FEED PUMP | ||
| 140 | A 3440700032 | LINE |
| FROM HOSE TO FEED PUMP | ||
| 140 | A 3444709765 | LINE |
| FROM HOSE TO FEED PUMP | ||
| 140 | H 983444702464 | LINE |
| Repalced by: A 3444706264 | ||
| 140 | A 3444706264 | LINE |
| FROM HOSE TO FEED PUMP | ||
| 145 | N 915010008202 | BANJO UNION |
| Repalced by: A 3454767024 | ||
| 145 | A 3454767024 | CONNECTOR |
| FROM HOSE TO FEED PUMP | ||
| 150 | N 915036010100 | HOLLOW SCREW |
| CONNECTION TO FEED PUMP | ||
| 152 | N 007603014104 | SEAL RING |
| CONNECTION TO FEED PUMP | ||
| 160 | A 3444702864 | LINE |
| FROM FUEL FILTER TO RUBBER HOSE;RETURN | ||
| 160 | A 3444702864 | LINE |
| FROM FUEL FILTER TO RUBBER HOSE;RETURN | ||
| 160 | A 3444709965 | LINE |
| FROM FUEL FILTER TO RUBBER HOSE;RETURN | ||
| 160 | H 983444702664 | LINE |
| Repalced by: A 3444705764 | ||
| 160 | A 3444705764 | LINE |
| FROM FILTER TO HOSE | ||
| 170 | N 915017010200 | UNION NUT |
| 172 | N 915003008201 | SEAL CONE |
| Repalced by: A 3449907067 | ||
| 172 | A 3449907067 | SEAL CONE |
| 176 | A 3444760126 | HOSE |
| 177 | A 3509970290 | LOOM TIE |
| AS REQUIRED | ||
| 177 | A 3509970290 | CLAMP |
| AS REQUIRED | ||
| A 0444700164 | LINE | |
| Repalced by: A 3444707065 | ||
| 180 | A 3444707065 | LINE |
| FROM HOSE TO TANK | ||
| 180 | A 3444707065 | LINE |
| FROM HOSE TO TANK | ||
| 180 | A 3444709665 | LINE |
| FROM HOSE TO TANK | ||
| 180 | A 0444700964 | LINE |
| FROM HOSE TO TANK | ||
| 180 | H 983444702264 | LINE |
| Repalced by: A 3444705864 | ||
| 180 | A 3444705864 | LINE |
| FROM HOSE TO TANK | ||
| 180 | A 0444702264 | LINE |
| Repalced by: A 3444707165 | ||
| 180 | A 3444707165 | LINE |
| 183 | N 915017010200 | UNION NUT |
| 186 | N 915003008201 | SEAL CONE |
| Repalced by: A 3449907067 | ||
| 186 | A 3449907067 | SEAL CONE |
| 190 | A 0444760126 | HOSE |
| Repalced by: A 3440780081 | ||
| 190 | A 3440780081 | HOSE |
| Repalced by: A 3769978182 | ||
| 190 | A 3769978182 | HOSE |
| 192 | N 916002010100 | CLAMP |
| 194 | A 0454700364 | LINE |
| Repalced by: A 3444708665 | ||
| 194 | A 3444708665 | LINE |
| FROM CYLINDER HEAD TO HOSE | ||
| 194 | A 3444708665 | LINE |
| FROM CYLINDER HEAD TO HOSE | ||
| 194 | A 3444709865 | LINE |
| FROM CYLINDER HEAD TO HOSE | ||
| 194 | H 983444702364 | LINE |
| Repalced by: A 3444707665 | ||
| 194 | A 3444707665 | LINE |
| FROM CYLINDER HEAD TO HOSE | ||
| 198 | A 3444760126 | HOSE |
| 200 | A 3509970290 | LOOM TIE |
| AS REQUIRED | ||
| 200 | H 980009972090 | LOOM TIE |
| Repalced by: A 3509970290 | ||
| 200 | A 3509970290 | CLAMP |
| AS REQUIRED | ||
| 202 | A 0444702564 | LINE |
| Repalced by: A 3444708765 | ||
| 202 | A 3444708765 | LINE |
| FROM HOSE TO TANK | ||
| 202 | A 3444708765 | LINE |
| FROM HOSE TO TANK | ||
| 202 | A 3444709565 | LINE |
| FROM HOSE TO TANK | ||
| A 0444702664 | LINE | |
| FROM HOSE TO TANK | ||
| 202 | A 0444702764 | LINE |
| Repalced by: A 3444709065 | ||
| 202 | A 3444709065 | LINE |
| FROM HOSE TO TANK | ||
| 202 | H 983444702564 | LINE |
| Repalced by: A 3444709364 | ||
| 202 | A 3444709364 | LINE |
| FROM HOSE TO TANK | ||
| 204 | N 915017010200 | UNION NUT |
| 206 | N 915003008201 | SEAL CONE |
| Repalced by: A 3449907067 | ||
| 206 | A 3449907067 | SEAL CONE |
| 210 | A 0214760236 | BRACKET |
| Repalced by: A 3444760336 | ||
| 210 | A 3444760336 | BRACKET |
| FUEL LINES | ||
| 210 | A 3444760336 | BRACKET |
| FUEL LINES | ||
| 211 | A 0214760136 | BRACKET |
| Repalced by: A 3444767036 | ||
| 211 | A 3444767036 | BRACKET |
| FUEL LINES | ||
| 212 | H 983444760136 | BRACKET |
| Repalced by: A 3444760236 | ||
| 212 | A 3444760236 | BRACKET |
| FUEL LINES | ||
| 213 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 213 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 215 | N 000125010517 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 216 | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 217 | N 000934010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 220 | A 0214760136 | BRACKET |
| Repalced by: A 3444760336 | ||
| 220 | A 0214760236 | BRACKET |
| Repalced by: A 3444760336 | ||
| 220 | A 3444760336 | BRACKET |
| FUEL LINES | ||
| 221 | N 000933008050 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 221 | N 000933008288 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 222 | N 912004008100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 223 | N 009021008100 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 224 | N 000934008000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 225 | A 3124761236 | BRACKET |
| FUEL LINES | ||
| 225 | A 3124761236 | BRACKET |
| FUEL LINES | ||
| 225 | A 3124761236 | BRACKET |
| FUEL LINES | ||
| 230 | A 3129950232 | CLAMP |
| FUEL LINES | ||
| 236 | N 000933006220 | SCREW |
| BRACKET TO CLAMP | ||
| 236 | N 000933006220 | SCREW |
| BRACKET TO CLAMP | ||
| 236 | N 000933006220 | SCREW |
| BRACKET TO CLAMP | ||
| 236 | N 007985006502 | SCREW |
| BRACKET TO CLAMP | ||
| 236 | N 007985006502 | SCREW |
| BRACKET TO CLAMP | ||
| 239 | N 000127006203 | LOCK WASHER |
| BRACKET TO CLAMP | ||
| 242 | N 000934006006 | NUT |
| BRACKET TO CLAMP | ||
| 248 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 248 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 251 | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 251 | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 254 | N 000934010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 254 | N 000934010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 257 | N 000125010517 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 257 | N 000125010517 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 260 | A 0089975482 | HOSE |
| 260 | A 0089975482 | HOSE |
| FEED | ||
| 3200 MM | ||
| 260 | A 0089975482 | HOSE |
| RETURN | ||
| 2390 MM | ||
| 260 | A 0089975482 | HOSE |
| FROM RETURN LINE TO FUEL TANK | ||
| 380 MM | ||
| 263 | N 040621020200 | INSULATING HOSE |
| 2095 MM | ||
| 263 | N 040621012208 | INSULATING HOSE |
| 10 MM | ||
| 263 | N 040621012207 | INSULATING HOSE |
| 10 MM | ||
| 266 | N 916002010100 | CLAMP |
| LEAK LINE | ||
| 269 | A 3084767026 | HOSE |
| Repalced by: A 3449977582 | ||
| 269 | A 3449977582 | HOSE |
| Repalced by: A 3769978182 | ||
| 269 | A 3769978182 | HOSE |
| LEAK LINE | ||
| 272 | A 3084767023 | DISTRIBUTOR |
| LEAK LINE | ||
| 275 | A 3084767124 | CONNECTOR |
| 278 | N 915017010200 | UNION NUT |
| 283 | A 0009905088 | BANJO UNION |
| FEED LINE AND RETURN LINE | ||
| 283 | A 0009905088 | BANJO UNION |
| FEED LINE AND RETURN LINE | ||
| 286 | N 915052008006 | BANJO UNION |
| FEED | ||
| 8/14 MM | ||
| 289 | N 915036010100 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 292 | N 007603014104 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 295 | A 4069975081 | GROMMET |
| 298 | A 3444707226 | RISING PIPE |
| A 3454707026 | RISING PIPE | |
| 301 | N 915036012150 | HOLLOW SCREW |
| 304 | N 007603016301 | SEAL RING |
| 304 | N 007603016301 | SEAL RING |
| N 007603016105 | SEAL RING | |
| N 007603016105 | SEAL RING | |
| 307 | A 3524282140 | BRACKET |
| FUEL LINE | ||
| 310 | N 000933008282 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 313 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 0009950805 | CLAMP | |
| FUEL LINES TO SUBSTRUCTURE | ||
| 317 | A 0009950905 | CLAMP |
| FUEL LINES TO SUBSTRUCTURE | ||
| 320 | N 000933006221 | SCREW |
| FUEL LINES TO SUBSTRUCTURE | ||
| 323 | N 000125006420 | WASHER |
| FUEL LINES TO SUBSTRUCTURE | ||
| 326 | N 913004006001 | NUT |
| FUEL LINES TO SUBSTRUCTURE | ||
| 329 | N 000933008288 | SCREW |
| FUEL LINES TO SUBSTRUCTURE | ||
| 333 | N 913004008001 | NUT |
| FUEL LINES TO SUBSTRUCTURE | ||
| 336 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 336 | A 3459977390 | LOOM TIE |
| FUEL LINE TO FUEL LINE | ||
| 195 MM | ||
| A 3504707062 | ELBOW FITTING | |
| Repalced by: A 3084767124 | ||
| A 3084767124 | CONNECTOR | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
