Transporto priemonė: LPO 1113; VIN numerio dalis: 344055

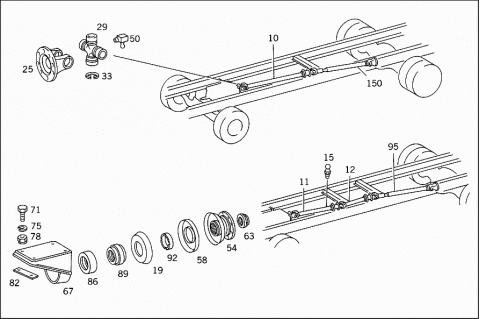

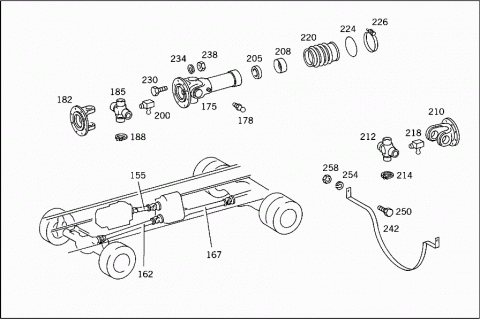

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3444100601 | PROPELLER SHAFT |
| Repalced by: A 3444100004 | ||
| 010 | A 3444100004 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 837 MM | ||
| 010 | A 3444100701 | PROPELLER SHAFT |
| Repalced by: A 3444100104 | ||
| 010 | A 3444100104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1436 MM | ||
| 010 | A 3444100801 | PROPELLER SHAFT |
| Repalced by: A 3444100204 | ||
| 010 | A 3444100204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1946 MM | ||
| 011 | A 3444102101 | PROPELLER SHAFT |
| Repalced by: A 3444100304 | ||
| 011 | A 3444100304 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 811 MM | ||
| 012 | A 3444101701 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1531 MM | ||
| 012 | A 3444100701 | PROPELLER SHAFT |
| Repalced by: A 3444100104 | ||
| 012 | A 3444100104 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1436 MM | ||
| 015 | N 071412008100 | GREASE NIPPLE |
| 019 | A 3124131361 | PROTECTIVE CAP |
| 019 | A 3524130061 | PROTECTIVE CAP |
| 025 | A 3524110011 | DRIVE FLANGE |
| 029 | A 0444100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3454107031 | ||
| 029 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 029 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 033 | A 0449940135 | SNAP RING |
| Repalced by: A 3449947135 | ||
| 033 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 033 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 033 | A 0449940235 | SNAP RING |
| Repalced by: A 3449947235 | ||
| 033 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 033 | A 0449940335 | SNAP RING |
| Repalced by: A 3449947335 | ||
| 033 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 033 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 033 | A 0449940435 | SNAP RING |
| Repalced by: A 3449947435 | ||
| 033 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 033 | A 0449940535 | SNAP RING |
| Repalced by: A 3449947535 | ||
| 033 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 033 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 033 | A 0449940635 | SNAP RING |
| Repalced by: A 3449947635 | ||
| 033 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 033 | A 0449940735 | SNAP RING |
| Repalced by: A 3449947735 | ||
| 033 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 033 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 033 | A 0449940835 | SNAP RING |
| Repalced by: A 3449947835 | ||
| 033 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 033 | A 0449940935 | SNAP RING |
| Repalced by: A 3449947935 | ||
| 033 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 033 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 033 | A 0449941035 | SNAP RING |
| Repalced by: A 3449948035 | ||
| 033 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 033 | A 0449941135 | SNAP RING |
| Repalced by: A 3449948135 | ||
| 033 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 033 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 050 | N 071412008300 | GREASE NIPPLE |
| 050 | A 3459977288 | GREASE NIPPLE |
| 054 | A 3524100130 | CENTERING FLANGE |
| 058 | A 3124131361 | PROTECTIVE CAP |
| 058 | A 3524130061 | PROTECTIVE CAP |
| A 3084100010 | INTERMEDIATE BEARING | |
| REPAIR KIT | ||
| 063 | A 3224110072 | NUT |
| Repalced by: A 3449907050 | ||
| 063 | A 3449907050 | NUT |
| COUPLING FLANGE TO DRIVE SHAFT | ||
| 067 | A 3284100140 | BRACKET |
| 067 | A 3524100540 | BRACKET |
| Repalced by: A 3454107340 | ||
| 067 | A 3454107340 | BRACKET |
| 067 | A 3454107340 | BRACKET |
| 067 | A 3444107040 | BRACKET |
| 067 | A 3454107040 | BRACKET |
| Repalced by: A 3454107540 | ||
| 067 | A 3454107540 | BRACKET |
| INTERMEDIATE BEARING | ||
| 071 | N 000933010294 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 071 | N 000961010039 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 075 | N 000127010202 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 078 | N 000934010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 078 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 082 | A 3524130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 086 | A 3124131112 | RUBBER MOUNTING |
| 086 | A 3524130012 | RUBBER MOUNTING |
| 089 | A 0444100051 | BALL BEARING |
| Repalced by: A 3524100051 | ||
| 089 | A 3524100051 | BALL BEARING |
| 089 | A 3454100051 | BALL BEARING |
| 092 | A 3124131231 | BEARING RING |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| NO.012 | ||
| 095 | A 3444101802 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1703 MM | ||
| 150 | A 3444101402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1652 MM | ||
| 150 | A 3444101602 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1775 MM | ||
| 155 | A 3444102202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 672 MM | ||
| 155 | A 3444101702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 1272 MM | ||
| 155 | A 3444102402 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 1439 MM | ||
| 162 | A 3444102102 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1054 MM | ||
| 162 | A 3444101402 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1652 MM | ||
| 162 | A 3444102302 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1820 MM | ||
| 167 | A 3444101902 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1368 MM | ||
| 167 | A 3444102302 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1820 MM | ||
| 175 | A 3444100008 | UNIVERSAL JOINT YOKE |
| 178 | N 071412008100 | GREASE NIPPLE |
| 182 | A 3524110011 | DRIVE FLANGE |
| 185 | A 0444100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3454107031 | ||
| 185 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 185 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 188 | A 0449940135 | SNAP RING |
| Repalced by: A 3449947135 | ||
| 188 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 188 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 188 | A 0449940235 | SNAP RING |
| Repalced by: A 3449947235 | ||
| 188 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 188 | A 0449940335 | SNAP RING |
| Repalced by: A 3449947335 | ||
| 188 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 188 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 188 | A 0449940435 | SNAP RING |
| Repalced by: A 3449947435 | ||
| 188 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 188 | A 0449940535 | SNAP RING |
| Repalced by: A 3449947535 | ||
| 188 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 188 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 188 | A 0449940635 | SNAP RING |
| Repalced by: A 3449947635 | ||
| 188 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 188 | A 0449940735 | SNAP RING |
| Repalced by: A 3449947735 | ||
| 188 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 188 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 188 | A 0449940835 | SNAP RING |
| Repalced by: A 3449947835 | ||
| 188 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 188 | A 0449940935 | SNAP RING |
| Repalced by: A 3449947935 | ||
| 188 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 188 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 188 | A 0449941035 | SNAP RING |
| Repalced by: A 3449948035 | ||
| 188 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 188 | A 0449941135 | SNAP RING |
| Repalced by: A 3449948135 | ||
| 188 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 188 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 200 | N 071412008300 | GREASE NIPPLE |
| 200 | A 3459977288 | GREASE NIPPLE |
| 205 | A 3374130080 | SEAL RING |
| 208 | A 3214110158 | SEAL HOLDER |
| 210 | A 3524110011 | DRIVE FLANGE |
| 212 | A 0444100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3454107031 | ||
| 212 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 212 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 214 | A 0449940135 | SNAP RING |
| Repalced by: A 3449947135 | ||
| 214 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 214 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 214 | A 0449940235 | SNAP RING |
| Repalced by: A 3449947235 | ||
| 214 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 214 | A 0449940335 | SNAP RING |
| Repalced by: A 3449947335 | ||
| 214 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 214 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 214 | A 0449940435 | SNAP RING |
| Repalced by: A 3449947435 | ||
| 214 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 214 | A 0449940535 | SNAP RING |
| Repalced by: A 3449947535 | ||
| 214 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 214 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 214 | A 0449940635 | SNAP RING |
| Repalced by: A 3449947635 | ||
| 214 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 214 | A 0449940735 | SNAP RING |
| Repalced by: A 3449947735 | ||
| 214 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 214 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 214 | A 0449940835 | SNAP RING |
| Repalced by: A 3449947835 | ||
| 214 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 214 | A 0449940935 | SNAP RING |
| Repalced by: A 3449947935 | ||
| 214 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 214 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 214 | A 0449941035 | SNAP RING |
| Repalced by: A 3449948035 | ||
| 214 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 214 | A 0449941135 | SNAP RING |
| Repalced by: A 3449948135 | ||
| 214 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 214 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 218 | N 071412008300 | GREASE NIPPLE |
| 218 | A 3459977288 | GREASE NIPPLE |
| 220 | A 3524100080 | BOOT |
| 220 | A 0004110097 | BOOT |
| Repalced by: A 3454107280 | ||
| 220 | A 3454107280 | BOOT |
| 224 | A 3214110053 | WIRE RING |
| 226 | A 3449979790 | CLAMP |
| 230 | A 3529900401 | SCREW |
| CENTRAL PROPELLER SHAFT TO FRONT PROPELLER SHAFT | ||
| 234 | N 000127010202 | LOCK WASHER |
| CENTRAL PROPELLER SHAFT TO FRONT PROPELLER SHAFT | ||
| 238 | N 913004010014 | NUT |
| CENTRAL PROPELLER SHAFT TO FRONT PROPELLER SHAFT | ||
| 242 | A 0444100393 | CHAIN |
| Repalced by: A 3454137244 | ||
| 242 | A 0314100093 | CHAIN |
| Repalced by: A 3454137244 | ||
| 242 | A 3454137244 | REBOUND STRAP |
| 242 | A 0444100493 | CHAIN |
| Repalced by: A 3454137344 | ||
| 242 | A 3454137344 | REBOUND STRAP |
| 250 | N 000933010174 | SCREW |
| 254 | N 000127010202 | LOCK WASHER |
| 258 | N 913004010014 | NUT |
