Transporto priemonė: LPO 1113; VIN numerio dalis: 344055

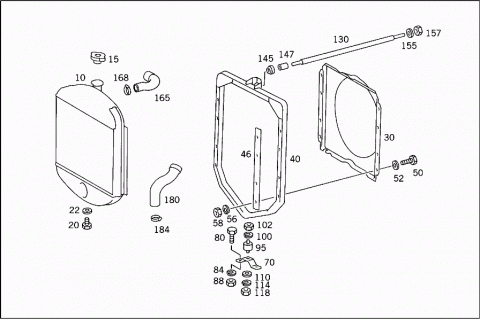

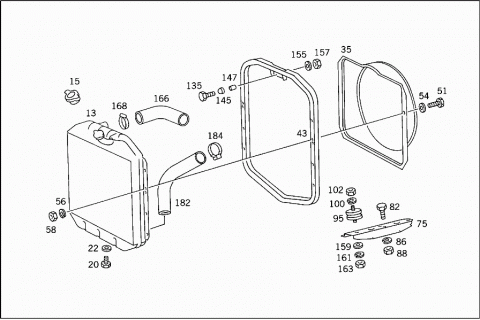

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0455000003 | RADIATOR |
| Repalced by: A 3455017001 | ||
| 010 | A 3445007103 | RADIATOR |
| Repalced by: A 3455017001 | ||
| 010 | A 3455010301 | RADIATOR |
| Repalced by: A 3455017001 | ||
| 010 | A 3455017001 | RADIATOR |
| A 3455017601 | RADIATOR | |
| A 3455017901 | RADIATOR | |
| A 3455018201 | RADIATOR | |
| A 3455018301 | RADIATOR | |
| 010 | A 0445000201 | RADIATOR |
| 013 | A 0455010101 | RADIATOR |
| Repalced by: A 3445007003 | ||
| 013 | A 3445007003 | RADIATOR |
| Repalced by: A 3445017001 | ||
| 013 | A 3455017201 | RADIATOR |
| Repalced by: A 3445017001 | ||
| 013 | A 3445017001 | RADIATOR |
| 015 | A 3445010315 | RADIATOR CAP |
| 020 | A 1369970830 | SCREW PLUG |
| 022 | N 007603018401 | SEAL RING |
| A 3649870723 | PLASTIC SECTION | |
| FAN SHROUD | ||
| 030 | A 0445050355 | FAN SHROUD |
| Repalced by: A 3405050055 | ||
| 030 | A 3405050055 | FAN SHROUD |
| 030 | A 3445057055 | FAN SHROUD |
| 035 | A 3525050155 | FAN SHROUD |
| 040 | A 3225002027 | SUPPORT |
| 040 | H 983455000027 | SUPPORT |
| Repalced by: A 3455007627 | ||
| 040 | A 3455007627 | SUPPORT |
| 040 | A 3445007127 | SUPPORT |
| 040 | A 3445007827 | SUPPORT |
| Repalced by: A 3445008027 | ||
| 040 | A 3445008027 | SUPPORT |
| 040 | A 0445000927 | SUPPORT |
| 043 | A 3525000527 | SUPPORT |
| Repalced by: A 3455000527 | ||
| 043 | A 3455000527 | SUPPORT |
| A 3455007431 | BRACKET | |
| RADIATOR BASE FRAME | ||
| N 000933010285 | SCREW | |
| BRACKET TO WINDOW SILL SUPPORT | ||
| N 000127010202 | LOCK WASHER | |
| BRACKET TO WINDOW SILL SUPPORT | ||
| N 913004010004 | NUT | |
| BRACKET TO WINDOW SILL SUPPORT | ||
| 046 | A 3225050024 | COVER PLATE |
| RETURN; FROM HOSE CONNECTION I TO HOSE CONNECTION II | ||
| 050 | N 000933008282 | SCREW |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 051 | N 000933008317 | SCREW |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 052 | N 000125008417 | WASHER |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 054 | N 000433008403 | WASHER |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 056 | N 912004008100 | LOCK WASHER |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 058 | N 000934008000 | NUT |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 070 | A 3225040146 | PART NAME MISSING |
| Repalced by: A 3225040139 | ||
| 070 | A 3225040139 | ANGLE |
| 070 | A 0445040139 | ANGLE |
| 075 | A 3525040101 | SUPPORT |
| 080 | N 000933010294 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 082 | N 000933010294 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 084 | N 000127010202 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 086 | N 000127010202 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 088 | N 000934010000 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 095 | A 3605040012 | RUBBER MOUNTING |
| 100 | N 000127010202 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 102 | N 000934010000 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 110 | N 000125010517 | WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 114 | N 000127010202 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 118 | N 000934010000 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 130 | A 3225000345 | RADIATOR STRUT |
| 130 | A 3225001345 | RADIATOR STRUT |
| Repalced by: A 3455007345 | ||
| 130 | A 3455007345 | RADIATOR STRUT |
| 130 | A 3455007345 | RADIATOR STRUT |
| 130 | A 3455007345 | RADIATOR STRUT |
| A 3445007445 | RADIATOR STRUT | |
| 130 | H 983455000045 | RADIATOR STRUT |
| Repalced by: A 3445007045 | ||
| 130 | A 3445007045 | RADIATOR STRUT |
| 130 | A 3445007045 | RADIATOR STRUT |
| 135 | A 0449901801 | SCREW |
| 135 | N 000933010268 | SCREW |
| 145 | A 3275045082 | RUBBER RING |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 147 | A 3449910040 | SPACER TUBE |
| Repalced by: A 3199910540 | ||
| 147 | A 3199910540 | SPACER TUBE |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 155 | N 009021010102 | WASHER |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 157 | N 000934010000 | NUT |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 159 | N 000125010517 | WASHER |
| RUBBER BUFFER TO CONSOLE AT BASE FRAME | ||
| 161 | N 000127010202 | LOCK WASHER |
| RUBBER BUFFER TO CONSOLE AT BASE FRAME | ||
| 163 | N 000934010000 | NUT |
| RUBBER BUFFER TO CONSOLE AT BASE FRAME | ||
| 165 | A 3405010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 166 | A 3525010682 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 168 | A 0009971690 | LOOM TIE |
| Repalced by: N 916017040000 | ||
| 168 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 168 | A 0019972590 | LOOM TIE |
| 168 | A 3459977090 | LOOM TIE |
| 168 | A 3461400040 | BRACKET |
| 180 | A 3405010482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 182 | A 3525010382 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 184 | A 0009971690 | LOOM TIE |
| Repalced by: N 916017040000 | ||
| 184 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 184 | A 0019972590 | LOOM TIE |
| 184 | A 3459977090 | LOOM TIE |
| 184 | A 3461400040 | BRACKET |
