Transporto priemonė: LPO 1113; VIN numerio dalis: 344055

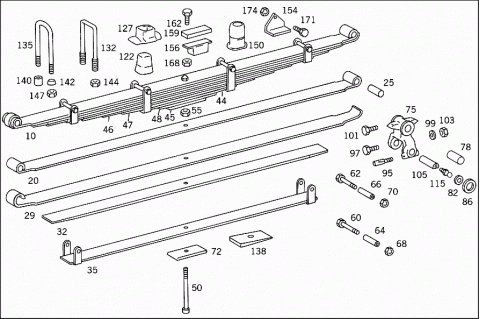

Grupė: 32 SPRINGS ANS SUSPENSION - 001 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3413200202 | FRONT SPRING |
| 10 LEAVES | ||
| 010 | A 3443200202 | FRONT SPRING |
| 010 | A 3443200102 | FRONT SPRING |
| 9-LEAF | ||
| 010 | A 3413200102 | FRONT SPRING |
| 010 | A 3213200602 | FRONT SPRING |
| 12-LEAF | ||
| 010 | A 3523201302 | FRONT SPRING |
| 8-LEAF | ||
| 010 | H 983443200002 | FRONT SPRING |
| Repalced by: A 3443200502 | ||
| 010 | A 3443200502 | FRONT SPRING |
| 9-LEAF | ||
| 020 | A 0443201494 | SPRING LEAF |
| Repalced by: A 3763200094 | ||
| 020 | A 3763200094 | SPRING LEAF |
| NO.1 | ||
| 020 | A 0443200394 | SPRING LEAF |
| NO.1 | ||
| 020 | A 0443201694 | SPRING LEAF |
| NO.1 | ||
| 020 | A 0443201394 | SPRING LEAF |
| NO.1 | ||
| 020 | A 0443201294 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3523201294 | SPRING LEAF |
| NO.1 | ||
| 020 | H 983443200094 | SPRING LEAF |
| Repalced by: A 3443200394 | ||
| 020 | A 3443200394 | SPRING LEAF |
| NO.1 | ||
| 025 | A 3523220050 | BUSHING |
| 025 | A 3853220050 | BUSHING |
| 025 | A 3533220050 | BUSHING |
| 029 | A 3413210212 | SPRING LEAF |
| NO.2 | ||
| A 3413210213 | SPRING LEAF | |
| NO.3 | ||
| 029 | A 3443210112 | SPRING LEAF |
| NO.2 | ||
| 029 | A 3413210112 | SPRING LEAF |
| NO.2 | ||
| 029 | A 3213210212 | SPRING LEAF |
| NO.2 | ||
| 029 | A 3443210212 | SPRING LEAF |
| NO.2 | ||
| 029 | A 3523210912 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3523201394 | SPRING LEAF |
| Repalced by: A 3453207994 | ||
| 032 | A 3453207994 | SPRING LEAF |
| NO.3,TO 352 320 13 02 | ||
| H 983443210012 | SPRING LEAF | |
| Repalced by: A 3443210512 | ||
| A 3443210512 | SPRING LEAF | |
| NO.2 | ||
| 032 | A 3443210413 | SPRING LEAF |
| NO.3,TO 344 320 05 02 | ||
| 035 | A 0443201693 | SPRING LEAF |
| Repalced by: A 3763200194 | ||
| 035 | A 3763200194 | SPRING LEAF |
| NO.4 | ||
| 035 | A 0443200294 | SPRING LEAF |
| NO.4 | ||
| 035 | A 0443201293 | SPRING LEAF |
| Repalced by: A 3443208093 | ||
| 035 | A 3443208093 | SPRING LEAF |
| NO.4,TO 341 320 01 02 | ||
| 035 | A 0443201493 | SPRING LEAF |
| NO.4 | ||
| 035 | A 0443202093 | SPRING LEAF |
| Repalced by: A 3443208293 | ||
| 035 | A 3443208293 | SPRING LEAF |
| NO.4,TO 344 320 02 02 | ||
| 035 | H 983443200293 | SPRING LEAF |
| Repalced by: A 3443200494 | ||
| 035 | A 3443200494 | SPRING LEAF |
| NO.4 | ||
| 035 | A 3523210914 | SPRING LEAF |
| NO.4 | ||
| 044 | A 0443201793 | SPRING LEAF |
| Repalced by: A 3763200294 | ||
| 044 | A 3763200294 | SPRING LEAF |
| NO.7 | ||
| 044 | A 0443201893 | SPRING LEAF |
| NO.7 | ||
| 044 | A 0443201393 | SPRING LEAF |
| Repalced by: A 3443208193 | ||
| 044 | A 3443208193 | SPRING LEAF |
| NO.7,TO 344 320 01 02 | ||
| 045 | A 0443201593 | SPRING LEAF |
| NO.9 | ||
| 046 | A 3443210115 | SPRING LEAF |
| NO.5 | ||
| 047 | A 3443210116 | SPRING LEAF |
| NO.6 | ||
| A 0443202193 | SPRING LEAF | |
| NO.7 | ||
| H 983443200393 | SPRING LEAF | |
| Repalced by: A 3443200894 | ||
| A 3443200894 | SPRING LEAF | |
| NO.7 | ||
| 048 | A 3443210118 | SPRING LEAF |
| NO.8 | ||
| A 3443210119 | SPRING LEAF | |
| NO.9 | ||
| A 0453200294 | SPRING LEAF | |
| Repalced by: A 3453207494 | ||
| A 3453207494 | SPRING LEAF | |
| NO.6,TO 352 320 13 02 | ||
| 050 | N 004626012109 | SPRING BOLT |
| 050 | N 004626012123 | SPRING BOLT |
| 050 | N 004626012134 | SPRING BOLT |
| 050 | N 004626012100 | SPRING BOLT |
| 055 | N 000934012010 | NUT |
| 055 | N 000934012010 | NUT |
| 060 | N 000933010268 | SCREW |
| 062 | N 000931008382 | SCREW |
| 064 | A 0003213153 | SPACER TUBE |
| 066 | A 0003212353 | SPACER TUBE |
| 068 | N 000934010000 | NUT |
| 070 | N 000934008000 | NUT |
| 072 | A 3423220184 | SHIM |
| 075 | A 3523200063 | SHACKLE |
| 075 | A 3213200062 | SHACKLE |
| 075 | A 3533200162 | SHACKLE |
| 078 | A 3523220050 | BUSHING |
| 078 | A 3853220050 | BUSHING |
| 078 | A 3123221150 | BUSHING |
| 078 | A 3533220050 | BUSHING |
| 082 | A 3523230376 | WASHER |
| 082 | A 3453230376 | WASHER |
| 082 | A 3523230476 | WASHER |
| 082 | A 3453230276 | WASHER |
| 082 | A 3123251052 | SPACER WASHER |
| 086 | A 0029973140 | SEAL RING |
| 086 | A 0029973140 | SEAL RING |
| A 0449940209 | LOCK | |
| A 0449940209 | LOCK | |
| 095 | A 3529900337 | BOLT |
| 095 | A 3529900337 | BOLT |
| 095 | A 3529900337 | BOLT |
| 097 | N 000933008317 | SCREW |
| 099 | N 000125010517 | WASHER |
| 099 | N 000125010517 | WASHER |
| 099 | N 000125010517 | WASHER |
| 101 | N 000960010011 | SCREW |
| 103 | N 913004010004 | NUT |
| 103 | N 913004010004 | NUT |
| 103 | N 913004010004 | NUT |
| 103 | N 000934010004 | NUT |
| 105 | A 3853220030 | SHACKLE PIN |
| Repalced by: A 3453227030 | ||
| 105 | A 3453227030 | SHACKLE PIN |
| 105 | A 3453227030 | SHACKLE PIN |
| 105 | A 3403220430 | SHACKLE PIN |
| 105 | A 3443220030 | SHACKLE PIN |
| Repalced by: A 3443227030 | ||
| 105 | A 3443227030 | SHACKLE PIN |
| 105 | A 3443227030 | SHACKLE PIN |
| 105 | A 3423220030 | SHACKLE PIN |
| Repalced by: A 3443227230 | ||
| 105 | A 3443227230 | SHACKLE PIN |
| 105 | A 0443220030 | SHACKLE PIN |
| 115 | N 071412010100 | GREASE NIPPLE |
| 115 | N 071412010300 | GREASE NIPPLE |
| 122 | A 3413310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3443220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3413220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3443227024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3223220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3523220231 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 132 | A 3413310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 135 | A 3283310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 135 | A 3603310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 135 | A 3443310225 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 135 | A 3403510325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 135 | A 3383315125 | U-BOLT |
| Repalced by: A 3453317025 | ||
| 135 | A 3453317025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 138 | A 3273315128 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 138 | A 3443310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| H 983443220184 | SHIM | |
| Repalced by: A 3443220284 | ||
| A 3443220284 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| H 983443220284 | SHIM | |
| Repalced by: A 3443220384 | ||
| A 3443220384 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3453220084 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 140 | A 3443310053 | SPACER TUBE |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 0449910160 | DOWEL PIN | |
| Repalced by: A 3449917160 | ||
| A 3449917160 | DOWEL PIN | |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 0449910260 | DOWEL PIN | |
| Repalced by: A 3449917260 | ||
| A 3449917260 | DOWEL PIN | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 142 | A 3123251070 | SPHERICAL WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 144 | N 000934018002 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 147 | N 000934016003 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 150 | A 3163240008 | HELPER SPRING |
| 150 | A 3453247008 | HELPER SPRING |
| 154 | H 983443220040 | BRACKET |
| Repalced by: A 3443220036 | ||
| 154 | A 3443220036 | STOP |
| LEFT | ||
| 154 | H 983443220140 | BRACKET |
| Repalced by: A 3443220136 | ||
| 154 | A 3443220136 | STOP |
| RIGHT | ||
| 156 | A 3403300075 | RUBBER MOUNTING |
| 159 | A 3443220084 | SHIM |
| 162 | N 000931010053 | SCREW |
| 162 | N 000931010264 | SCREW |
| 168 | N 913004010004 | NUT |
| 171 | N 000933010174 | SCREW |
| 174 | N 913004010004 | NUT |

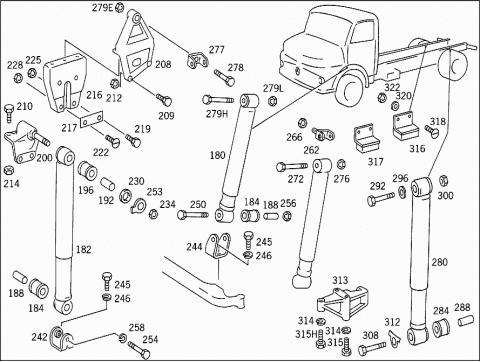

| 180 | A 0013239000 | SHOCK ABSORBER |
| Repalced by: A 3443237500 | ||
| 180 | A 3443237500 | SHOCK ABSORBER |
| FRONT | ||
| 182 | A 0013236900 | SHOCK ABSORBER |
| Repalced by: A 3443237100 | ||
| 182 | A 3443237100 | SHOCK ABSORBER |
| FRONT | ||
| 182 | A 3443237300 | SHOCK ABSORBER |
| FRONT | ||
| 183 | A 0013232600 | SHOCK ABSORBER |
| FRONT | ||
| 183 | A 3443237200 | SHOCK ABSORBER |
| FRONT | ||
| 183 | A 0013239500 | SHOCK ABSORBER |
| FRONT | ||
| 183 | A 3443237000 | SHOCK ABSORBER |
| FRONT | ||
| 184 | A 0003230585 | RUBBER MOUNTING |
| TO 001 323 90 00 | ||
| 184 | A 0003230585 | RUBBER MOUNTING |
| TO 001 323 90 00 | ||
| 188 | A 0003230453 | SPACER TUBE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 323 31 50; TO 001 323 90 00 | ||
| 188 | A 0003230453 | SPACER TUBE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 323 31 50; TO 001 323 90 00 | ||
| 188 | A 0083230150 | BUSHING |
| TO 344 323 75 00 | ||
| 192 | A 0083230053 | SPACER TUBE |
| 196 | A 0083230285 | RUBBER MOUNTING |
| TO 344 323 75 00 | ||
| 196 | A 0083230385 | RUBBER MOUNTING |
| A 3085867032 | REPAIR KIT | |

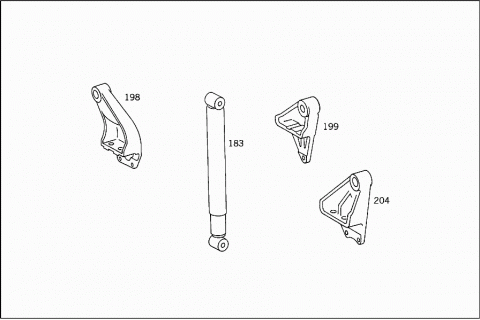

| 198 | A 3223230863 | BEARING BRACKET |
| TOP RIGHT | ||
| 198 | A 3223231163 | BEARING BRACKET |
| TOP RIGHT | ||
| 199 | A 3413230263 | BEARING BRACKET |
| TOP | ||
| 199 | A 3413230263 | BEARING BRACKET |
| TOP | ||
| 199 | A 3453230363 | BEARING BRACKET |
| TOP | ||
| 200 | A 3453200078 | CONSOLE |
| TOP | ||
| 200 | A 3443200278 | CONSOLE |
| TOP | ||
| 200 | A 3443200478 | CONSOLE |
| TOP | ||
| A 3453237071 | SCREW | |
| 204 | A 3283230063 | BEARING BRACKET |
| TOP | ||
| 204 | A 3283230063 | BEARING BRACKET |
| TOP | ||
| 208 | A 3453230163 | BEARING BRACKET |
| TOP | ||
| 208 | A 3453230163 | BEARING BRACKET |
| TOP | ||
| 208 | A 3453230163 | BEARING BRACKET |
| TOP | ||
| 208 | A 3453230263 | BEARING BRACKET |
| 208 | A 3523232563 | BEARING BRACKET |
| SHOCK ABSORBER,TOP | ||
| H 983443200178 | CONSOLE | |
| Repalced by: A 3443200278 | ||
| 209 | N 000933010129 | SCREW |
| BRACKET TO FRAME | ||
| 209 | N 000933010269 | SCREW |
| BRACKET TO FRAME | ||
| 210 | N 000961012106 | SCREW |
| BRACKET TO FRAME | ||
| 210 | N 000961012020 | SCREW |
| BRACKET TO FRAME | ||
| 210 | N 000961012106 | SCREW |
| BRACKET TO FRAME | ||
| 210 | N 000961012171 | SCREW |
| BRACKET TO FRAME | ||
| 212 | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| 214 | N 913004012003 | NUT |
| BRACKET TO FRAME | ||
| 216 | A 0443230095 | REINFORCEMENT |
| Repalced by: A 3443237095 | ||
| 216 | A 3443237095 | REINFORCEMENT |
| 216 | A 3443237095 | REINFORCEMENT |
| 216 | A 0443230195 | REINFORCEMENT |
| 216 | H 983443230195 | REINFORCEMENT |
| Repalced by: A 3443230095 | ||
| 216 | A 3443230095 | REINFORCEMENT |
| 217 | A 3523110084 | SHIM |
| REINFORCEMENT TO SIDE MEMBER | ||
| 217 | A 3523110084 | SHIM |
| REINFORCEMENT TO SIDE MEMBER | ||
| 219 | N 000933010129 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 219 | N 000933010129 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 219 | N 000933010174 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 219 | N 000933010174 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 222 | N 000963012002 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 222 | N 000963012002 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 225 | N 913004010004 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 225 | N 913004010004 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 228 | N 913004012012 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 228 | N 913004012012 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 230 | A 3529901340 | WASHER |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 230 | A 3453237076 | WASHER |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 234 | N 913004016002 | NUT |
| Repalced by: N 913004016005 | ||
| 234 | N 913004016005 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 242 | A 3523200543 | BRACKET |
| 242 | A 3403230040 | BRACKET |
| SEE GROUP 33 | ||
| 242 | H 983443200043 | BRACKET |
| Repalced by: A 3443200578 | ||
| 242 | A 3443200578 | CONSOLE |
| BOTTOM | ||
| 244 | A 3523231663 | BEARING BRACKET |
| BOTTOM LEFT,AT SHOCK ABSORBER | ||
| 244 | A 3523231763 | BEARING BRACKET |
| BOTTOM RIGHT, AT SHOCK ABSORBER | ||
| 245 | N 000961012160 | SCREW |
| BEARING BRACKET TO FRONT AXLE | ||
| 246 | N 000127012201 | LOCK WASHER |
| BEARING BRACKET TO FRONT AXLE | ||
| 250 | A 3529900002 | SCREW |
| Repalced by: A 3449909901 | ||
| 250 | A 3449909901 | SCREW |
| 250 | A 3403230171 | SCREW |
| 250 | A 3529901501 | SCREW |
| 253 | N 000093015001 | LOCK PLATE |
| 253 | N 000093017001 | LOCK PLATE |
| 254 | A 3523230071 | SCREW |
| 256 | N 913004016004 | NUT |
| Repalced by: N 913004016004 | ||
| 256 | N 913004016004 | NUT |
| 258 | N 912004016101 | LOCK WASHER |
| 262 | A 3523230118 | END PIECE |
| FRONT SHOCK ABSORBERS | ||
| 262 | A 3443237018 | END PIECE |
| FRONT SHOCK ABSORBERS | ||
| 266 | N 000937024001 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| N 000094005013 | COTTER PIN | |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 272 | A 3429900002 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 272 | A 3409900002 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 272 | A 3409900002 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 272 | A 3213230371 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 276 | N 000979016006 | NUT |
| . | ||
| M 16X1.5 | ||
| N 000094004056 | COTTER PIN | |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 277 | A 3523230340 | BRACKET |
| SHOCK ABSORBER | ||
| 278 | A 3529903201 | SCREW |
| 279E | N 913004020004 | NUT |
| 279H | N 000960016238 | SCREW |
| 279L | N 913002016001 | NUT |
| 280 | A 0013263700 | SHOCK ABSORBER |
| 280 | H 983443260000 | SHOCK ABSORBER |
| Repalced by: A 3443260000 | ||
| 280 | A 3443260000 | SHOCK ABSORBER |
| Repalced by: A 3443267200 | ||
| 280 | A 3443267200 | SHOCK ABSORBER |
| 280 | A 3443267000 | SHOCK ABSORBER |
| 284 | A 0003230785 | RUBBER MOUNTING |
| 288 | A 0003230553 | SPACER TUBE |
| 292 | A 3529901301 | SCREW |
| Repalced by: A 3459908601 | ||
| 292 | A 3459908601 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 296 | A 3529901540 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 300 | N 000937020000 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 300 | N 913004020004 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| N 000094004065 | COTTER PIN | |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 308 | A 3523260271 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| A 3459908501 | SCREW | |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 312 | A 0443260073 | LOCK |
| Repalced by: A 3443260073 | ||
| 312 | A 3443260073 | LOCK |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| N 913004020004 | NUT | |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 313 | A 3443267340 | BRACKET |
| BRACKET TO DAMPING PAD | ||
| 313 | A 3443267440 | BRACKET |
| BRACKET TO DAMPING PAD | ||
| 314 | N 000127014201 | LOCK WASHER |
| 315 | N 000960014180 | SCREW |
| M 14X110 | ||
| 315H | N 000960014244 | SCREW |
| M 14X65 | ||
| 316 | A 3443500075 | RUBBER MOUNTING |
| 316 | A 3443500075 | RUBBER MOUNTING |
| 317 | A 3443207029 | STOP |
| 318 | N 000963010025 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| 320 | N 000125010517 | WASHER |
| RUBBER MOUNTING TO FRAME | ||
| 322 | N 000934010000 | NUT |
| RUBBER MOUNTING TO FRAME | ||

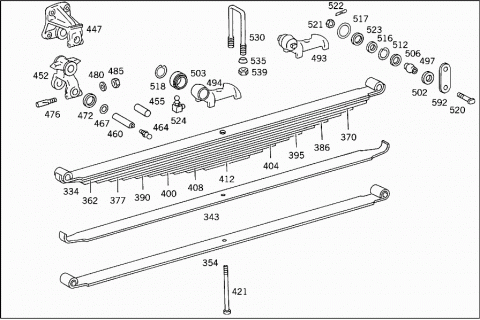

| 330 | A 3443200008 | REAR SPRING |
| WITH HELPER SPRING | ||
| 330 | A 0443200908 | REAR SPRING |
| WITH HELPER SPRING | ||
| 332 | A 3443207208 | REAR SPRING |
| 334 | A 0443200006 | REAR SPRING |
| Repalced by: A 3443200406 | ||
| 334 | A 3443200406 | REAR SPRING |
| 12 LEAVES | ||
| 338 | A 0443201194 | SPRING LEAF |
| Repalced by: A 3443200293 | ||
| 338 | A 3443200293 | SPRING LEAF |
| NO.1 | ||
| 340 | A 0443201094 | SPRING LEAF |
| NO.1 | ||
| 340 | A 3443207194 | SPRING LEAF |
| NO.1 | ||
| 343 | A 0443201594 | SPRING LEAF |
| Repalced by: A 3443207993 | ||
| 343 | A 3443207993 | SPRING LEAF |
| NO.1 | ||
| 346 | A 3523250150 | BUSHING |
| 346 | A 3853250050 | BUSHING |
| 350 | A 3443240112 | SPRING LEAF |
| NO.2 | ||
| 352 | A 0443240512 | SPRING LEAF |
| NO.2 | ||
| 352 | A 3443247012 | SPRING LEAF |
| NO.2 | ||
| 354 | A 0443240212 | SPRING LEAF |
| Repalced by: A 3443240412 | ||
| 354 | A 3443240412 | SPRING LEAF |
| NO.2 | ||
| 357 | A 0443201093 | SPRING LEAF |
| Repalced by: A 3443200393 | ||
| 357 | A 3443200393 | SPRING LEAF |
| NO.3 | ||
| 358 | A 3443240114 | SPRING LEAF |
| NO.4 | ||
| 359 | A 0443200793 | SPRING LEAF |
| NO.3 | ||
| 359 | A 3443207493 | SPRING LEAF |
| NO.3 | ||
| 360 | A 0443240214 | SPRING LEAF |
| NO.4 | ||
| 360 | A 3443247014 | SPRING LEAF |
| NO.4 | ||
| 361 | A 0443240215 | SPRING LEAF |
| NO.5 | ||
| 361 | A 3443247215 | SPRING LEAF |
| NO.5 | ||
| 362 | A 0443240413 | SPRING LEAF |
| Repalced by: A 3443240413 | ||
| 362 | A 3443240413 | SPRING LEAF |
| NO.3 | ||
| 366 | A 0443201193 | SPRING LEAF |
| Repalced by: A 3443200493 | ||
| 366 | A 3443200493 | SPRING LEAF |
| NO.5 | ||
| 367 | A 0443200893 | SPRING LEAF |
| NO.6 | ||
| 367 | A 3443207593 | SPRING LEAF |
| NO.6 | ||
| 368 | A 0443240217 | SPRING LEAF |
| NO.7 | ||
| 368 | A 3443247017 | SPRING LEAF |
| NO.7 | ||
| 370 | A 0443240414 | SPRING LEAF |
| Repalced by: A 3443240414 | ||
| 370 | A 3443240414 | SPRING LEAF |
| NO.4 | ||
| 371 | A 0443240218 | SPRING LEAF |
| NO.8 | ||
| 371 | A 3443247018 | SPRING LEAF |
| NO.8 | ||
| 371D | A 0443240219 | SPRING LEAF |
| NO.9 | ||
| 371D | A 3443247019 | SPRING LEAF |
| NO.9 | ||
| 371H | A 0443240220 | SPRING LEAF |
| NO.10 | ||
| 371H | A 3443247020 | SPRING LEAF |
| NO.10 | ||
| 371K | A 0443240221 | SPRING LEAF |
| NO.11 | ||
| 371K | A 3443247021 | SPRING LEAF |
| NO.11 | ||
| 372 | A 0443200010 | HELPER SPRING |
| A 3443200210 | HELPER SPRING | |
| Repalced by: A 3443200010 | ||
| 372D | A 3443240040 | SPRING LEAF |
| NO.1 | ||
| 372H | A 3223240040 | SPRING LEAF |
| NO.1 | ||
| 372H | A 3443247040 | SPRING LEAF |
| NO.1 | ||
| A 3443240041 | SPRING LEAF | |
| NO.2 | ||
| 372K | A 3223240041 | SPRING LEAF |
| NO.2 | ||
| 372K | A 3443247041 | SPRING LEAF |
| NO.2 | ||
| 373 | A 0443200993 | SPRING LEAF |
| Repalced by: A 3443200193 | ||
| 373 | A 3443200193 | SPRING LEAF |
| NO.3 | ||
| 374 | A 0443200693 | SPRING LEAF |
| NO.3 | ||
| 374 | A 3443207393 | SPRING LEAF |
| NO.3 | ||
| 375 | A 3443240043 | SPRING LEAF |
| NO.4 | ||
| 376 | A 3223240043 | SPRING LEAF |
| NO.4 | ||
| 376 | A 3443247043 | SPRING LEAF |
| NO.4 | ||
| 376H | A 3443240044 | SPRING LEAF |
| NO.5 | ||
| 377 | A 0443240415 | SPRING LEAF |
| Repalced by: A 3443240415 | ||
| 377 | A 3443240415 | SPRING LEAF |
| NO.5 | ||
| 379 | A 3223240044 | SPRING LEAF |
| NO.5 | ||
| 379 | A 3443247044 | SPRING LEAF |
| NO.5 | ||
| 382 | A 3443240035 | SPACER |
| 384 | A 3443240116 | SPRING LEAF |
| NO.6 | ||
| 384 | A 3443240045 | SPRING LEAF |
| NO.6 | ||
| 386 | A 0443240416 | SPRING LEAF |
| Repalced by: A 3443240416 | ||
| 386 | A 3443240416 | SPRING LEAF |
| NO.6 | ||
| 387 | A 3223240045 | SPRING LEAF |
| NO.6 | ||
| 387 | A 3443247045 | SPRING LEAF |
| NO.6 | ||
| 388 | A 3443240117 | SPRING LEAF |
| NO.7 | ||
| 390 | A 0443240417 | SPRING LEAF |
| Repalced by: A 3443240417 | ||
| 390 | A 3443240417 | SPRING LEAF |
| NO.7 | ||
| 392 | A 3443240118 | SPRING LEAF |
| NO.8 | ||
| 395 | A 0443240418 | SPRING LEAF |
| Repalced by: A 3443240418 | ||
| 395 | A 3443240418 | SPRING LEAF |
| NO.8 | ||
| 397 | A 3443240119 | SPRING LEAF |
| NO.9 | ||
| 400 | A 0443240419 | SPRING LEAF |
| Repalced by: A 3443240419 | ||
| 400 | A 3443240419 | SPRING LEAF |
| NO.9 | ||
| 404 | A 0443240320 | SPRING LEAF |
| Repalced by: A 3443240320 | ||
| 404 | A 3443240320 | SPRING LEAF |
| NO.10 | ||
| 408 | A 0443240321 | SPRING LEAF |
| Repalced by: A 3443240321 | ||
| 408 | A 3443240321 | SPRING LEAF |
| NO.11 | ||
| 412 | A 0443240222 | SPRING LEAF |
| Repalced by: A 3443240122 | ||
| 412 | A 3443240122 | SPRING LEAF |
| NO.12 | ||
| 416 | N 004626012133 | SPRING BOLT |
| 418 | N 004626012125 | SPRING BOLT |
| 421 | N 004626012112 | SPRING BOLT |
| 425 | N 000934012010 | NUT |
| 430 | A 0003213053 | SPACER TUBE |
| Repalced by: A 3140720253 | ||
| 430 | A 3140720253 | SPACER TUBE |
| 434 | N 000931010154 | SCREW |
| 439 | N 000934010000 | NUT |
| 443 | A 0443250101 | REAR SPRING BRACKET |
| Repalced by: A 3443257001 | ||
| 443 | A 3443257001 | REAR SPRING BRACKET |
| FRONT LEFT | ||
| 447 | A 3523250101 | REAR SPRING BRACKET |
| FRONT & REAR, LEFT & RIGHT | ||
| 452 | A 3523200163 | SHACKLE |
| 455 | A 3523250150 | BUSHING |
| 455 | A 3853250050 | BUSHING |
| 460 | A 3523250530 | SHACKLE PIN |
| Repalced by: A 3453257030 | ||
| 460 | A 3453257030 | SHACKLE PIN |
| 464 | N 071412010100 | GREASE NIPPLE |
| 467 | A 3453230776 | WASHER |
| 4.0 MM | ||
| 467 | A 3523230976 | WASHER |
| 4.00 MM | ||
| 467 | A 3523231076 | WASHER |
| 4.20 MM | ||
| 467 | A 3453230676 | WASHER |
| 4.20 MM | ||
| 472 | A 0029973040 | SEAL RING |
| 476 | A 3529900337 | BOLT |
| 480 | N 000125010517 | WASHER |
| 485 | N 913004010004 | NUT |
| 487 | A 3223250084 | SHIM |
| 489 | A 3229910060 | DOWEL PIN |
| 490 | A 3543515026 | SPRING CLAMPING PLATE |
| Repalced by: A 3833250031 | ||
| 490 | A 3453517026 | SPRING CLAMPING PLATE |
| Repalced by: A 3833250031 | ||
| 490 | A 3453517126 | SPRING CLAMPING PLATE |
| Repalced by: A 3833250031 | ||
| 490 | A 3833250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 493 | A 3223200029 | PLATE |
| 494 | A 3223250231 | PLATE |
| 494 | A 3523250331 | PLATE |
| 497 | A 0003260350 | BUSHING |
| Repalced by: A 3443267250 | ||
| 497 | A 3443267250 | BUSHING |
| 502 | A 0003261081 | RUBBER MOUNTING |
| 503 | A 0009810831 | JOINT BEARING |
| 503 | A 0009811231 | JOINT BEARING |
| 506 | A 0003260076 | WASHER |
| 512 | N 000472050000 | LOCK RING |
| 516 | A 0003260057 | SEAL RING |
| 516 | A 3443267057 | SEAL RING |
| 517 | A 0003260157 | SEAL RING |
| 517 | A 3443267157 | SEAL RING |
| 518 | N 000472055000 | LOCK RING |
| 520 | A 3403260174 | PIN |
| 521 | N 000937020000 | NUT |
| 522 | N 000094004065 | COTTER PIN |
| 523 | A 0443260052 | SPACER WASHER |
| Repalced by: A 3443250052 | ||
| 523 | A 3443250052 | SPACER WASHER |
| 523 | A 0443260152 | SPACER WASHER |
| Repalced by: A 3443250152 | ||
| 523 | A 3443250152 | SPACER WASHER |
| 524 | N 071412008300 | GREASE NIPPLE |
| 524 | A 3459977288 | GREASE NIPPLE |
| 526 | A 3213512125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 526 | A 3213512125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 526 | A 3213512125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 526 | A 3523511225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 | A 3213510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 | A 3213510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 328 351 00 25 | ||
| 530 | A 3533510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 | A 3273510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 | A 3273510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 | A 3273510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 | A 3273510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 | A 3213512225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 | A 3423510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 | A 3423510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 | A 3523510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 535 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 539 | N 000934018002 | NUT |
| REAR SPRING TO REAR AXLE | ||

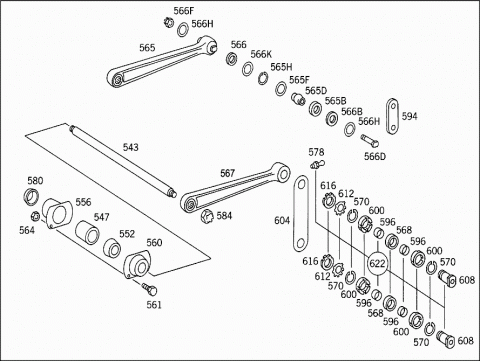

| A 3223260065 | TORSION BAR | |
| Repalced by: A 3443260065 | ||
| 543 | A 3443260065 | TORSION BAR |
| REAR AXLE STABILIZER | ||
| 547 | A 3523260081 | RUBBER MOUNTING |
| INSIDE | ||
| 552 | A 3523260181 | RUBBER MOUNTING |
| OUTSIDE | ||
| 556 | A 3403260182 | HOUSING |
| INSIDE | ||
| 560 | A 3403260082 | HOUSING |
| OUTSIDE | ||
| 561 | N 000933010129 | SCREW |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 561 | N 000933010269 | SCREW |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 564 | N 913004010004 | NUT |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 565 | A 3223200027 | LEVER |
| 565B | A 0003261081 | RUBBER MOUNTING |
| 565D | A 0003260350 | BUSHING |
| Repalced by: A 3443267250 | ||
| 565D | A 3443267250 | BUSHING |
| 565F | A 0003260076 | WASHER |
| 565H | N 000472050000 | LOCK RING |
| 566 | A 0003260057 | SEAL RING |
| 566 | A 3443267057 | SEAL RING |
| 566B | A 0003260157 | SEAL RING |
| 566B | A 3443267157 | SEAL RING |
| 566D | A 3403260174 | PIN |
| 566F | N 000937020000 | NUT |
| N 000094004065 | COTTER PIN | |
| 566H | A 0443260052 | SPACER WASHER |
| Repalced by: A 3443250052 | ||
| 566H | A 3443250052 | SPACER WASHER |
| 566K | A 0443260152 | SPACER WASHER |
| Repalced by: A 3443250152 | ||
| 566K | A 3443250152 | SPACER WASHER |
| 567 | A 3523200127 | LEVER |
| Repalced by: A 3523260369 | ||
| 567 | A 3523260369 | LEVER |
| Repalced by: A 3453260269 | ||
| 567 | A 3453260269 | LEVER |
| 568 | A 0009810831 | JOINT BEARING |
| 568 | A 0009811231 | JOINT BEARING |
| 570 | N 000472055000 | LOCK RING |
| 578 | N 071412008100 | GREASE NIPPLE |
| 580 | A 3443260051 | SPACER RING |
| LEVER TO TORSION BAR | ||
| 584 | N 000937028000 | NUT |
| LEVER TO TORSION BAR | ||
| N 000094005016 | COTTER PIN | |
| LEVER TO TORSION BAR | ||
| 592 | A 3523260147 | SHACKLE |
| 594 | A 3403260047 | SHACKLE |
| 596 | A 3523260153 | SPACER TUBE |
| LEVER TO GUIDE PLATE | ||
| 600 | A 3453237160 | SEAL RING |
| LEVER TO GUIDE PLATE | ||
| 600 | A 3603230560 | SEAL RING |
| LEVER TO GUIDE PLATE | ||
| 604 | A 3523260116 | LINK |
| LEVER TO GUIDE PLATE | ||
| 608 | A 3523260274 | PIN |
| LEVER TO GUIDE PLATE | ||
| 612 | N 070952035101 | LOCK PLATE |
| LEVER TO GUIDE PLATE | ||
| 616 | N 070852035000 | NUT |
| LEVER TO GUIDE PLATE | ||
| 622 | A 3603200341 | REPAIR KIT |
| REAR STABILIZER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
