Transporto priemonė: LP 1013; VIN numerio dalis: 318351

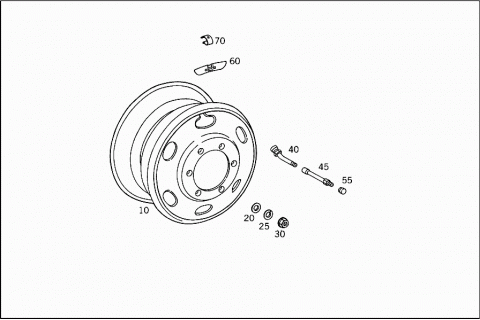

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3184001202 | DISC WHEEL |
| 6.75 X 17.5 | ||
| 010 | A 3184001902 | DISC WHEEL |
| (8-HOLE RIM) | ||
| 6.75X17.5 | ||
| 020 | A 3249970026 | WASHER |
| DISC WHEEL TO DRUM HUB | ||
| A 0664020075 | SPHERICAL RING | |
| DISC WHEEL TO DRUM HUB | ||
| 025 | N 074361018352 | LOCK WASHER |
| DISC WHEEL TO DRUM HUB | ||
| 025 | N 074361020352 | LOCK WASHER |
| DISC WHEEL TO DRUM HUB | ||
| 030 | N 074361018205 | NUT |
| DISC WHEEL TO DRUM HUB | ||
| 030 | N 074361020205 | NUT |
| DISC WHEEL TO DRUM HUB | ||
| 040 | A 0004012913 | VALVE |
| Repalced by: A 0004017113 | ||
| 040 | A 0004017113 | VALVE |
| A 0004010272 | NUT | |
| 045 | A 3854010013 | VALVE |
| EXTENSION | ||
| 045 | A 3854010113 | VALVE |
| EXTENSION | ||
| 055 | N 007757008600 | VALVE CAP |
| 060 | A 0014015194 | BALANCING WEIGHT |
| Repalced by: A 0014015294 | ||
| 060 | A 0014015294 | BALANCING WEIGHT |
| 100 G | ||
| 060 | A 0014015394 | BALANCING WEIGHT |
| 150 G | ||
| 060 | A 0014015494 | BALANCING WEIGHT |
| 200 G | ||

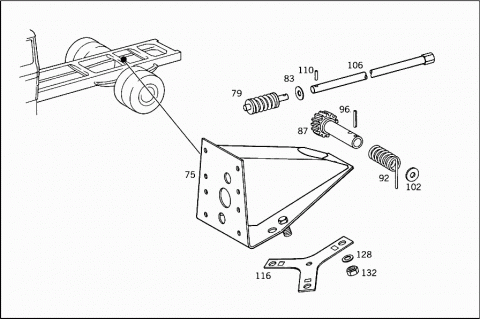

| 070 | A 3104010028 | BRACKET |
| BALANCING WEIGHT | ||
| 075 | A 3184004539 | BRACKET |
| Repalced by: A 3184005739 | ||
| 075 | A 3184005739 | BRACKET |
| SPARE WHEEL | ||
| A 3184006339 | BRACKET | |
| SPARE WHEEL | ||
| A 3184006339 | BRACKET | |
| SPARE WHEEL | ||
| A 3184005639 | BRACKET | |
| SPARE WHEEL | ||
| 079 | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 079 | A 6204030085 | WORM |
| 083 | A 3149900440 | WASHER |
| 087 | A 3814030183 | STOP GEAR |
| Repalced by: A 6204030483 | ||
| 087 | A 6204030483 | STOP GEAR |
| WORM AND SHAFT TO BRACKET | ||
| 092 | A 3814030036 | CABLE |
| Repalced by: N 083331008500 | ||
| 092 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 092 | N 083334008000 | WIRE CABLE |
| WORM AND SHAFT TO BRACKET | ||
| 2700 MM | ||
| 096 | N 001481008027 | CLAMPING SLEEVE |
| WORM AND SHAFT TO BRACKET | ||
| 102 | A 6179900540 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 102 | A 3819900140 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| N 002093031201 | DISC SPRING | |
| WORM AND SHAFT TO BRACKET | ||
| 106 | A 3184000017 | SHAFT |
| 110 | N 001481006027 | CLAMPING SLEEVE |
| 116 | A 3184004739 | BRACKET |
| SPARE WHEEL HOIST | ||
| A 3184006139 | BRACKET | |
| SPARE WHEEL HOIST | ||
| A 3184006139 | BRACKET | |
| SPARE WHEEL HOIST | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| BRACKET TO FRAME | ||
| N 308676012026 | SCREW | |
| BRACKET TO FRAME | ||
| N 308676012026 | SCREW | |
| BRACKET TO FRAME | ||
| N 308676012026 | SCREW | |
| BRACKET TO FRAME | ||
| N 910113012002 | NUT | |
| BRACKET TO FRAME | ||
| N 910113012002 | NUT | |
| BRACKET TO FRAME | ||
| N 910113012002 | NUT | |
| BRACKET TO FRAME | ||
| N 910113012002 | NUT | |
| BRACKET TO FRAME | ||
| 128 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 128 | N 007349013005 | WASHER |
| BRACKET TO FRAME | ||
| 132 | N 074361018205 | NUT |
| SPARE WHEEL TO BRACKET | ||
| 128 | N 000433017004 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 132 | N 074361020205 | NUT |
| SPARE WHEEL TO BRACKET | ||
| 132 | N 000934016014 | NUT |
| SPARE WHEEL TO BRACKET | ||

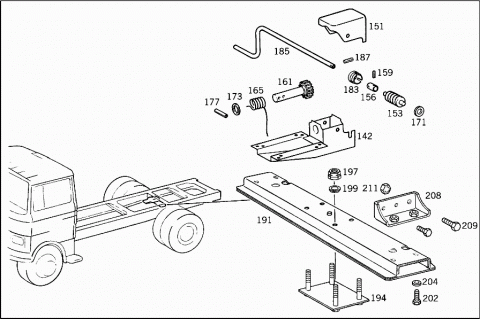

| 142 | A 3814001739 | BRACKET |
| Repalced by: A 3184004339 | ||
| 142 | A 3184004339 | BRACKET |
| SPARE WHEEL HOIST | ||
| 151 | A 3814030044 | COVER PLATE |
| SPARE WHEEL HOIST | ||
| 153 | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 153 | A 6204030085 | WORM |
| 156 | A 3814030250 | BUSHING |
| 159 | N 001481006027 | CLAMPING SLEEVE |
| 161 | A 3814030183 | STOP GEAR |
| Repalced by: A 6204030483 | ||
| 161 | A 6204030483 | STOP GEAR |
| 165 | A 3814030036 | CABLE |
| Repalced by: N 083331008500 | ||
| 165 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 165 | N 083334008000 | WIRE CABLE |
| 2700 MM | ||
| 171 | A 3819900340 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 171 | A 6179900540 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 173 | A 3819900140 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 177 | N 001481008038 | CLAMPING SLEEVE |
| Repalced by: N 308752008000 | ||
| 177 | N 308752008000 | CLAMPING PIN |
| WORM AND SHAFT TO BRACKET | ||
| N 002093031201 | DISC SPRING | |
| WORM AND SHAFT TO BRACKET | ||
| N 000933010105 | SCREW | |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| N 913002010001 | NUT | |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 183 | A 3814030150 | BUSHING |
| AT SIDE MEMBER | ||
| 185 | A 3814030045 | CRANK |
| 187 | N 001481006027 | CLAMPING SLEEVE |
| A 3184004139 | BRACKET | |
| Repalced by: A 3184005439 | ||
| 191 | A 3184005439 | BRACKET |
| SPARE WHEEL | ||
| 194 | A 3184000191 | STAY |
| SPARE WHEEL TO BRACKET | ||
| N 000125019010 | WASHER | |
| SPARE WHEEL TO BRACKET | ||
| 197 | N 074361018205 | NUT |
| SPARE WHEEL TO BRACKET | ||
| 199 | N 074361018352 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 202 | N 000961016142 | SCREW |
| SUPPORT TO FRAME | ||
| 204 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 204 | N 000125017016 | WASHER |
| SUPPORT TO FRAME | ||
| 208 | A 3184004239 | BRACKET |
| LEFT | ||
| A 3184004039 | BRACKET | |
| RIGHT | ||
| 209 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 209 | N 308676014020 | SCREW |
| BRACKET TO FRAME | ||
| 211 | N 913002014002 | NUT |
| BRACKET TO FRAME | ||
