Transporto priemonė: LP 1013; VIN numerio dalis: 318354

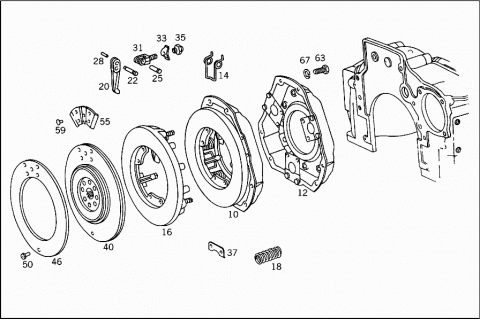

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0032501204 | CLUTCH PRESSURE PLATE |
| 010 | A 0022507004 | CLUTCH PRESSURE PLATE |
| 010 | A 0032506504 | CLUTCH PRESSURE PLATE |
| 012 | A 0002524732 | HOUSING |
| 014 | A 0002520527 | SPRING |
| 016 | A 0002524812 | PRESSURE PLATE |
| Repalced by: A 0002526312 | ||
| 016 | A 0002526312 | PRESSURE PLATE |
| 018 | A 0002527720 | PRESSURE SPRING |
| 020 | A 0002525513 | RELEASE LEVER |
| Repalced by: A 0002526613 | ||
| 020 | A 0002526613 | RELEASE LEVER |
| 022 | A 0002520016 | SPINDLE |
| Repalced by: A 0002523516 | ||
| 022 | A 0002523516 | SPINDLE |
| Repalced by: A 0002524216 | ||
| 022 | A 0002524216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 025 | A 0002520516 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 025 | A 0002523616 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 025 | A 0002523816 | SPINDLE |
| FOR BRACKETS | ||
| N 000094002059 | COTTER PIN | |
| N 006799007007 | LOCK PLATE | |
| 028 | A 0002520018 | ROLLER |
| RELEASE LEVER,BRACKET | ||
| 031 | A 0002522414 | BRACKET |
| Repalced by: A 0002522914 | ||
| 031 | A 0002522914 | BRACKET |
| 033 | A 0002521419 | LEAF SPRING |
| 035 | A 0002522872 | NUT |
| SETTING | ||
| 037 | A 0002520573 | LOCK |
| HOUSING TO PRESSURE PLATE | ||
| N 912004008102 | LOCK WASHER | |
| HOUSING TO PRESSURE PLATE | ||
| A 0002523071 | SCREW | |
| HOUSING TO PRESSURE PLATE | ||
| 040 | A 0072501803 | CLUTCH DISC |
| Repalced by: A 0102508503 | ||
| 040 | A 0102508503 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 040 | A 0072501903 | CLUTCH DISC |
| Repalced by: A 0132508903 | ||
| 040 | A 0132508903 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 040 | A 0012503603 | CLUTCH DISC |
| Repalced by: A 0042506603 | ||
| 040 | A 0042506603 | CLUTCH DISC |
| 040 | A 0092501203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 040 | A 0092501303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 040 | A 0032508203 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 040 | A 0022500403 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 040 | A 0052500603 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 040 | A 0052500703 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 040 | A 0032508603 | CLUTCH DISC |
| 046 | A 0012524410 | CLUTCH LINING |
| Repalced by: A 0012527810 | ||
| 046 | A 0012527810 | CLUTCH LINING |
| Repalced by: A 0002521310 | ||
| 046 | A 0002521310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| TO 013 250 89 03 | ||
| 046 | A 0012520610 | CLUTCH LINING |
| 046 | A 0012525010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 046 | A 0002529010 | CLUTCH LINING |
| 050 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 050 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 050 | A 0002524375 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 050 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 050 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 055 | A 0002520219 | LEAF SPRING |
| Repalced by: A 0002524519 | ||
| 055 | A 0002524519 | LEAF SPRING |
| 055 | A 0002522019 | LEAF SPRING |
| 059 | A 0002520175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 4X5 MM | ||
| 059 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 059 | A 0002522175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X8 MM | ||
| 059 | A 0002522575 | RIVET |
| Repalced by: A 0002523975 | ||
| 059 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 063 | N 000933008317 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 067 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 072 | A 3522511801 | BELL HOUSING |
| Repalced by: A 3522512001 | ||
| 072 | A 3522511501 | BELL HOUSING |
| Repalced by: A 3522512001 | ||
| 072 | A 3522512001 | BELL HOUSING |
| 072 | A 3522512101 | BELL HOUSING |
| N 000908016008 | SCREW PLUG | |
| BELL HOUSING | ||
| N 007603016401 | SEAL RING | |
| BELL HOUSING | ||
| 076 | A 0009902605 | STUD |
| BELL HOUSING | ||
| 082 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 082 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12 X 35 | ||
| 086 | N 000931012277 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12 X 135 | ||
| 090 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 096 | A 3602510004 | END COVER |
| AT BELL HOUSING,TOP | ||
| 100 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 100 | N 304017006034 | SCREW |
| END COVER TO BELL HOUSING | ||
| 104 | N 000137006204 | SPRING WASHER |
| END COVER TO BELL HOUSING | ||
| 110 | A 3122511006 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 110 | A 3522500055 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 110 | A 3522510106 | PROTECTIVE PLATE |
| BELL HOUSING | ||
| 115 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 115 | N 304017006018 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| N 914125006306 | SCREW | |
| Repalced by: N 910106006006 | ||
| N 910106006006 | SCREW | |
| Repalced by: N 000000002270 | ||
| N 000000002270 | SCREW | |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 118 | N 912004006102 | LOCK WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| N 000137006204 | SPRING WASHER | |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 125 | A 3812510102 | BELL HOUSING |
| Repalced by: A 3522503105 | ||
| 125 | A 3522503105 | HOUSING |
| Repalced by: A 3522510202 | ||
| 125 | A 3522510202 | BELL HOUSING |
| BOTTOM | ||
| 130 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 130 | N 304017006018 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 130 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 130 | N 910106006006 | SCREW |
| Repalced by: N 000000002270 | ||
| 130 | N 000000002270 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 133 | N 912004006102 | LOCK WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| N 000137006204 | SPRING WASHER | |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 136 | A 3102500155 | COVER |
| BELL HOUSING | ||
| 142 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 142 | N 304017008016 | SCREW |
| COVER TO BELL HOUSING | ||
| 145 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 155 | A 0002958307 | SLAVE CYLINDER |
| CLUTCH OPERATION | ||
| A 0002950233 | ROD | |
| 164 | A 0002950873 | LOCK |
| Repalced by: A 0005863829 | ||
| 168 | A 0004202155 | BLEEDER VALVE |
| Repalced by: A 0004310265 | ||
| 168 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 168 | A 3075530107 | VALVE |
| A 0004212687 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| 172 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 172 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 172 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 172 | A 0004210887 | PROTECTIVE CAP |
| 178 | A 0005863829 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 186 | N 912004008102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 190 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 190 | N 304017008034 | SCREW |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 195 | N 071805016402 | SECURING CLIP |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 200 | A 3812540097 | BOOT |
| Repalced by: A 6152540097 | ||
| 200 | A 6152540097 | BOOT |
| RELEASE LEVER | ||
| 203 | A 3812540040 | BRACKET |
| Repalced by: A 3522540040 | ||
| 203 | A 3522540040 | BRACKET |
| INSIDE | ||
| 207 | A 3522540135 | BEARING |
| Repalced by: A 3802540035 | ||
| 207 | A 3802540035 | BEARING |
| OUTSIDE | ||
| 207 | A 3802540135 | BEARING |
| OUTSIDE | ||
| 208 | A 3802540059 | SEAL RING |
| SOFT | ||
| 208 | A 3802540259 | SEAL RING |
| SOFT | ||
| 208E | A 3802540159 | SEAL RING |
| HARD | ||
| 208E | A 3802540359 | SEAL RING |
| HARD | ||
| 209 | A 3812500043 | BRACKET |
| Repalced by: A 3522500243 | ||
| 209 | A 3522500243 | BRACKET |
| OUTSIDE | ||
| 212 | N 912004008102 | LOCK WASHER |
| BEARING TO BELL HOUSING | ||
| 215 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 215 | N 304017008021 | SCREW |
| BEARING TO BELL HOUSING | ||
| 218 | A 0002503115 | RELEASE BEARING |
| CLUTCH | ||
| 218 | A 0002504015 | RELEASE BEARING |
| CLUTCH | ||
| 218 | A 0002504615 | RELEASE BEARING |
| Repalced by: A 0012509315 | ||
| 218 | A 0012509315 | RELEASE BEARING |
| CLUTCH | ||
| 218 | A 0002504215 | RELEASE BEARING |
| CLUTCH | ||
| N 071428004102 | SCREW-IN FITTING | |
| RELEASE BEARING LUBRICATION | ||
| 225 | A 3812540108 | RELEASE LEVER |
| CLUTCH | ||
| 225 | A 3812540208 | RELEASE LEVER |
| CLUTCH | ||
| 228 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 228 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 231 | A 3402540013 | SPRING LOCK |
| RELEASE LEVER TO RELEASE BEARING | ||
| 231 | A 3812540113 | SPRING LOCK |
| RELEASE LEVER TO RELEASE BEARING | ||
| 234 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 238 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 241 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 243 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 248 | N 003411002001 | GREASE CUP |
| RELEASE BEARING LUBRICATION | ||
