Transporto priemonė: LP 1013; VIN numerio dalis: 318354
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 713.1 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.0 | ||
| N 000933014014 | SCREW | |
| TRANSMISSION TO BELL HOUSING | ||
| M 14 X 40 | ||
| N 912004014100 | LOCK WASHER | |
| TRANSMISSION TO BELL HOUSING | ||

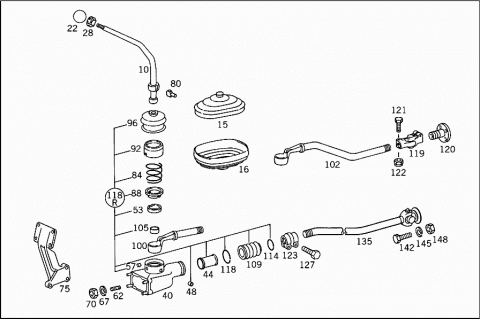

| 010 | A 3162600239 | SHIFT LEVER |
| Repalced by: A 3182601639 | ||
| 010 | A 3182601639 | SHIFT LEVER |
| 010 | A 3182600039 | SHIFT LEVER |
| Repalced by: A 3182601939 | ||
| 010 | A 3182601939 | SHIFT LEVER |
| 015 | A 3142680896 | BOOT |
| SHIFT LEVER UPPER PART | ||
| 016 | A 3182680596 | BOOT |
| SHIFT LEVER LOWER PART | ||
| A 3182600165 | COVER | |
| CAB SEALING | ||
| N 900262005100 | LOOM TIE | |
| BOOT TO CAB | ||
| N 900263005000 | STRAP | |
| BOOT TO CAB | ||
| 022 | A 3222600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 028 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 040 | A 3182600772 | SHIFT CASE |
| 3RD AND 4TH SPEED,AND REVERSE | ||
| 044 | A 3522680050 | BUSHING |
| SHIFTING ROD | ||
| 048 | A 3522680250 | BUSHING |
| SHIFTING ROD | ||
| 053 | A 3182680235 | BEARING |
| LOWER PART | ||
| 057 | N 001473005010 | GROOVED PIN |
| END COVER TO TRANSMISSION CASE | ||
| 062 | A 3182680070 | STUD |
| 067 | N 912004008102 | LOCK WASHER |
| SHIFT CASE TO BRACKET | ||
| 070 | N 304032008006 | NUT |
| SHIFT CASE TO BRACKET | ||
| 075 | A 3162680240 | BRACKET |
| SHIFT CASE | ||
| 075 | A 3182680040 | BRACKET |
| SHIFT CASE | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO CRANKCASE | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BRACKET TO CRANKCASE | ||
| N 000931010331 | SCREW | |
| BRACKET TO CRANKCASE | ||
| M 10X65 | ||
| N 000931010271 | SCREW | |
| BRACKET TO CRANKCASE | ||
| M 10X60 | ||
| 080 | A 3142680249 | SLIDE |
| SHIFT CASE | ||
| 084 | A 3189930101 | SPRING |
| SHIFT CASE | ||
| 088 | A 3182680335 | BEARING |
| UPPER PART | ||
| 092 | A 3182680105 | COVER |
| ADDITIONAL CLUSTER GEARBOX GV80 | ||
| 096 | A 3522670196 | BOOT |
| SHIFT CASE | ||
| 100 | A 3162600233 | SHIFTING ROD |
| SHIFT CASE | ||
| 102 | A 3182602133 | SHIFTING ROD |
| FROM SHIFT CASE TO TRANSMISSION | ||
| 102 | A 3182602233 | SHIFTING ROD |
| FROM SHIFT CASE TO TRANSMISSION | ||
| 105 | A 3522680450 | BUSHING |
| SHIFT CASE | ||
| 109 | A 3522680097 | BOOT |
| SHIFT CASE | ||
| 114 | N 009045028001 | SNAP RING |
| SHIFT CASE | ||
| 118 | N 009045055000 | SNAP RING |
| SHIFT CASE | ||
| 118R | A 3182600295 | REPAIR KIT |
| SHIFTING PARTS | ||
| 119 | A 3142680289 | JOINT |
| 120 | A 3182602333 | SHIFTING ROD |
| 121 | N 000931010282 | SCREW |
| JOINT TO CONNECTOR | ||
| 122 | N 913004010011 | NUT |
| JOINT TO CONNECTOR | ||
| 123 | A 3142680388 | CLAMPING PIECE |
| SHIFTING TUBE | ||
| 127 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 127 | N 304017010047 | SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| 135 | A 3162600333 | SHIFTING ROD |
| REAR | ||
| 135 | A 3182600033 | SHIFTING ROD |
| REAR | ||
| 142 | A 3179900301 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 145 | N 912004008102 | LOCK WASHER |
| SHIFTING ROD TO TRANSMISSION | ||
| 148 | N 304032008006 | NUT |
| SHIFTING ROD TO TRANSMISSION | ||

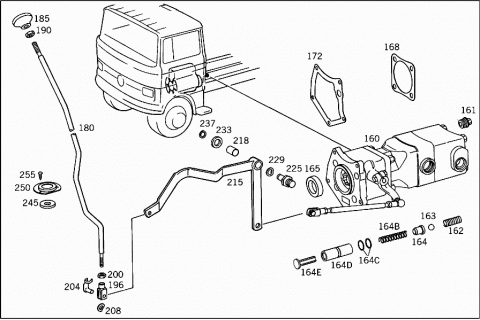

| 160 | A 0002367105 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| 161 | A 0009974430 | SCREW PLUG |
| Repalced by: A 0019974430 | ||
| 161 | A 0019974430 | SCREW PLUG |
| P.T.O.,DUMPER PUMP | ||
| 162 | A 0049936101 | SPRING |
| P.T.O.,DUMPER PUMP | ||
| 163 | N 005401310000 | BALL |
| P.T.O.,DUMPER PUMP | ||
| 10 MM | ||
| 164 | A 0002360835 | VALVE |
| (VALVE SEAT) | ||
| 164B | A 0049936201 | SPRING |
| P.T.O.,DUMPER PUMP | ||
| 164C | A 0002361060 | SEAL RING |
| P.T.O.,DUMPER PUMP | ||
| 164D | A 0002360717 | PISTON |
| P.T.O.,DUMPER PUMP | ||
| 164E | A 0002360635 | VALVE |
| PUMP SUCTION VALVE | ||
| A 0002360380 | GASKET | |
| P.T.O.,DUMPER PUMP | ||
| A 0002640479 | GASKET | |
| P.T.O.,DUMPER PUMP | ||
| 165 | A 0079977446 | SEAL RING |
| P.T.O.,DUMPER PUMP | ||
| 168 | A 0002640479 | GASKET |
| MEILLER DUMPER PUMP TO P.T.O. CASE | ||
| 172 | A 3522611180 | GASKET |
| Repalced by: A 3522611680 | ||
| 172 | A 3522611680 | GASKET |
| Repalced by: A 3522611980 | ||
| 172 | A 3522611980 | GASKET |
| P.T.O. TO TRANSMISSION | ||
| 180 | A 3182601833 | SHIFTING ROD |
| DUMPER PUMP | ||
| 180 | A 3182601933 | SHIFTING ROD |
| DUMPER PUMP | ||
| 185 | A 3372600040 | HANDLE |
| SHIFT LEVER | ||
| 190 | N 913004010014 | NUT |
| Repalced by: N 910113010003 | ||
| 190 | N 910113010003 | NUT |
| SHIFTING ROD | ||
| 196 | N 071752008001 | YOKE |
| SHIFTING ROD | ||
| 200 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 200 | N 913004008001 | NUT |
| SHIFTING ROD | ||
| 204 | N 918001008002 | PIN |
| SHIFTING ROD TO SHIFT LEVER | ||
| 208 | N 900055008002 | SPRING WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 215 | A 3182600937 | LEVER |
| GEARSHIFT MECHANISM | ||
| 215 | A 3182601937 | LEVER |
| GEARSHIFT MECHANISM | ||
| 215 | A 3182602737 | LEVER |
| GEARSHIFT MECHANISM | ||
| N 071803013207 | BALL PIVOT | |
| GEARSHIFT MECHANISM | ||
| 218 | A 0019920101 | BUSHING |
| LEVER | ||
| 225 | A 3212640074 | PIN |
| P.T.O. SHIFT LEVER | ||
| 229 | A 3129900148 | WASHER |
| LEVER TO PIN | ||
| 233 | N 000433015005 | WASHER |
| LEVER TO PIN | ||
| 237 | N 000471015000 | LOCK RING |
| LEVER TO PIN | ||
| 245 | A 3142680276 | WASHER |
| COVERING | ||
| 250 | A 3372640057 | LOCKING CAP |
| CAB | ||
| 255 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 255 | N 000000002062 | SCREW |
| CAB | ||
