Transporto priemonė: LP 1418; VIN numerio dalis: 338056

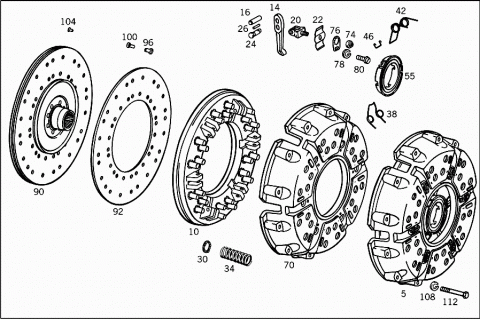

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0002501704 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032503404 | ||
| 005 | A 0002506704 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032503404 | ||
| 005 | A 0012500104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032503404 | ||
| 005 | A 0032503404 | CLUTCH PRESSURE PLATE |
| 010 | A 0002520512 | PRESSURE PLATE |
| Repalced by: A 0002526912 | ||
| 010 | A 0002526912 | PRESSURE PLATE |
| A 0002521713 | RELEASE LEVER | |
| 014 | A 0002523413 | RELEASE LEVER |
| Repalced by: A 0002526913 | ||
| 014 | A 0002526913 | RELEASE LEVER |
| 016 | A 0002520816 | SPINDLE |
| Repalced by: A 0002523716 | ||
| 016 | A 0002523716 | SPINDLE |
| FOR RELEASE LEVERS | ||
| A 0002520814 | BRACKET | |
| Repalced by: A 0002521714 | ||
| 020 | A 0002521214 | BRACKET |
| Repalced by: A 0002521714 | ||
| 020 | A 0002521714 | BRACKET |
| Repalced by: A 0002523314 | ||
| 020 | A 0002523314 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 022 | A 0002520619 | LEAF SPRING |
| THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 022 | A 0002524319 | LEAF SPRING |
| THIGH SPRING SUSPENDED BELOW LEAF SPRING | ||
| 024 | A 0002520516 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 024 | A 0002523816 | SPINDLE |
| FOR BRACKETS | ||
| 026 | A 0002520018 | ROLLER |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| N 000094002059 | COTTER PIN | |
| N 006799007007 | LOCK PLATE | |
| 030 | A 0002520024 | INSULATING WASHER |
| TO 000 250 17 04,000 250 67 04, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 250 01 04 | ||
| 038 | A 0002524427 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| TO 003 250 34 04 | ||
| 034 | A 0002522120 | PRESSURE SPRING |
| Repalced by: A 0002524120 | ||
| 034 | A 0002524120 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| 038 | A 0002520827 | SPRING |
| TO 006 250 17 04,000 250 67 04, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 250 01 04 | ||
| 038 | A 0002522127 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| TO 003 250 34 04 | ||
| A 0002520927 | SPRING | |
| TO 000 250 17 04,000 250 67 04 | ||
| 042 | A 0002521827 | SPRING |
| TO 001 250 01 04 | ||
| 042 | A 0002522227 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| TO 003 250 34 04 | ||
| 042 | A 0002524527 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| TO 003 250 34 04 | ||
| A 0002520429 | CLAMP | |
| 046 | A 0002520929 | CLAMP |
| Repalced by: A 0002521829 | ||
| 046 | A 0002521829 | CLAMP |
| 055 | A 0002520145 | FLANGE |
| 055 | A 0002520445 | FLANGE |
| A 0002520632 | HOUSING | |
| Repalced by: A 0002521832 | ||
| A 0002521832 | HOUSING | |
| 070 | A 0002522732 | HOUSING |
| 074 | A 0002522472 | NUT |
| Repalced by: A 0002523372 | ||
| 074 | A 0002523372 | NUT |
| 076 | A 0002520473 | LOCK |
| Repalced by: A 0002521173 | ||
| 076 | A 0002521173 | LOCK |
| 078 | N 912004005103 | LOCK WASHER |
| TO 000 250 17 04,000 250 67 04, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 250 01 04 | ||
| 080 | N 007985005157 | SCREW |
| M 5X10 | ||
| 080 | A 0002522971 | SCREW |
| M 5X8 | ||
| 090 | A 0092504003 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 090 | A 0002503203 | CLUTCH DISC |
| Repalced by: A 0002509103 | ||
| 090 | A 0002505103 | CLUTCH DISC |
| Repalced by: A 0002509103 | ||
| 090 | A 0002509103 | CLUTCH DISC |
| Repalced by: A 0042509003 | ||
| 090 | A 0042509003 | CLUTCH DISC |
| A 0002523419 | LEAF SPRING | |
| Repalced by: A 0002524419 | ||
| A 0002524419 | LEAF SPRING | |
| 092 | A 0002521210 | CLUTCH LINING |
| Repalced by: A 0002522910 | ||
| 092 | A 0002522910 | CLUTCH LINING |
| TO CLUTCH DISC LESS LINING SPRINGS; QUANTITY OF RIVETS: | ||
| 36,TO 000 250 32 03,000 250 51 03 | ||
| 092 | A 0012524810 | CLUTCH LINING |
| ASBESTOS-FREE;TO CLUTCH DISC WITH LINING SPRINGS;QUANTITY OF RIVETS: | ||
| 64 | ||
| 092 | A 0012524810 | CLUTCH LINING |
| ASBESTOS-FREE;TO CLUTCH DISC WITH LINING SPRINGS;QUANTITY OF RIVETS: | ||
| 64 | ||
| 092 | A 0002524310 | CLUTCH LINING |
| Repalced by: A 0002528810 | ||
| 092 | A 0002528810 | CLUTCH LINING |
| Repalced by: A 0012524310 | ||
| 092 | A 0012524310 | CLUTCH LINING |
| TO CLUTCH DISC WITH LINING SPRINGS; QUANTITY OF RIVETS: | ||
| 64 | ||
| 092 | A 0012524310 | CLUTCH LINING |
| TO CLUTCH DISC WITH LINING SPRINGS; QUANTITY OF RIVETS: | ||
| 64 | ||
| A 0002520575 | RIVET | |
| Repalced by: A 0002521175 | ||
| A 0002521175 | RIVET | |
| Repalced by: A 0002524075 | ||
| A 0002524075 | RIVET | |
| TO CLUTCH DISC LESS LINING SPRINGS | ||
| 096 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 096 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 096 | A 0002523875 | RIVET |
| TO CLUTCH DISC WITH LINING SPRINGS; LINING TO CLUTCH DISC | ||
| 100 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 100 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 100 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 100 | A 0002524375 | RIVET |
| TO CLUTCH DISC WITH LINING SPRINGS; LINING TO LINING SPRINGS | ||
| 104 | A 0002520675 | RIVET |
| Repalced by: A 0002522075 | ||
| 104 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 104 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 104 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 104 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 108 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 112 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 112 | N 304014008002 | SCREW |
| CLUTCH TO FLYWHEEL | ||

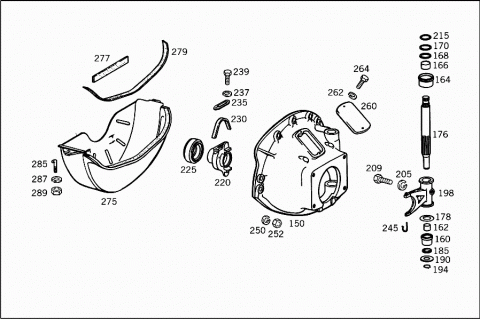

| A 3372510001 | BELL HOUSING | |
| Repalced by: A 3372510601 | ||
| A 3372510201 | BELL HOUSING | |
| Repalced by: A 3372510601 | ||
| A 3372510101 | BELL HOUSING | |
| Repalced by: A 3372510701 | ||
| A 3372510301 | BELL HOUSING | |
| Repalced by: A 3372510701 | ||
| N 006503024200 | SEAL RING | |
| BELL HOUSING | ||
| N 006503024200 | SEAL RING | |
| BELL HOUSING | ||
| N 006503024200 | SEAL RING | |
| BELL HOUSING | ||
| A 0029972946 | SEAL RING | |
| BELL HOUSING | ||
| N 000472037000 | LOCK RING | |
| BELL HOUSING | ||
| A 0009946541 | LOCK | |
| Repalced by: A 0009940640 | ||
| A 0009940640 | SNAP RING | |
| BELL HOUSING | ||
| A 0009940640 | SNAP RING | |
| BELL HOUSING | ||
| A 0009815810 | NEEDLE BEARING | |
| BELL HOUSING | ||
| A 0009815810 | NEEDLE BEARING | |
| BELL HOUSING | ||
| A 0009815810 | NEEDLE BEARING | |
| BELL HOUSING | ||
| A 0009818010 | NEEDLE BEARING | |
| Repalced by: A 6089810910 | ||
| A 6089810910 | NEEDLE BEARING | |
| BELL HOUSING | ||
| A 6089810910 | NEEDLE BEARING | |
| BELL HOUSING | ||
| N 000988026000 | FITTED WASHER | |
| BELL HOUSING | ||
| A 3372540162 | THRUST WASHER | |
| BELL HOUSING | ||
| A 3372540162 | THRUST WASHER | |
| BELL HOUSING | ||
| 150 | A 3372510601 | BELL HOUSING |
| A 3372510701 | BELL HOUSING | |
| 160 | A 3432510150 | BUSHING |
| CLUTCH SHAFT | ||
| 162 | A 3439920103 | BUSHING |
| CLUTCH SHAFT | ||
| 164 | A 3432510050 | BUSHING |
| CLUTCH SHAFT | ||
| 166 | A 3439920003 | BUSHING |
| CLUTCH SHAFT | ||
| 168 | N 005419035101 | FELT RING |
| CLUTCH SHAFT | ||
| 170 | A 3432930027 | COVER PLATE |
| CLUTCH SHAFT | ||
| A 3372540007 | SHAFT | |
| CLUTCH ACTUATION | ||
| A 3372540207 | SHAFT | |
| CLUTCH ACTUATION | ||
| A 3372540207 | SHAFT | |
| CLUTCH ACTUATION | ||
| A 3432930001 | RELEASE SHAFT | |
| Repalced by: A 3635860125 | ||
| 176 | A 3635860125 | REPAIR KIT |
| Repalced by: A 3632500114 | ||
| 176 | A 3632500114 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 178 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 178 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.90 MM | ||
| 178 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 | ||
| 178 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 178 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 178 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 185 | N 005419025101 | FELT RING |
| CLUTCH SHAFT | ||
| A 3179900440 | WASHER | |
| CLUTCH SHAFT | ||
| 190 | A 3432930052 | SPACER WASHER |
| CLUTCH SHAFT | ||
| N 000471022000 | LOCK RING | |
| CLUTCH SHAFT | ||
| 194 | N 000471024000 | LOCK RING |
| CLUTCH SHAFT | ||
| A 3172930111 | RELEASE YOKE | |
| 198 | A 3372540208 | RELEASE LEVER |
| Repalced by: A 6202540108 | ||
| 198 | A 6202540108 | RELEASE LEVER |
| 198 | A 6202540108 | RELEASE LEVER |
| N 006885008035 | KEY | |
| RELEASE LEVER TO SHAFT | ||
| N 912004010102 | LOCK WASHER | |
| RELEASE LEVER TO SHAFT | ||
| 205 | N 912004012100 | LOCK WASHER |
| RELEASE LEVER TO SHAFT | ||
| 205 | N 912004012100 | LOCK WASHER |
| RELEASE LEVER TO SHAFT | ||
| N 000931010264 | SCREW | |
| RELEASE LEVER TO SHAFT | ||
| 209 | N 000931012182 | SCREW |
| RELEASE LEVER TO SHAFT | ||
| 209 | N 000931012182 | SCREW |
| RELEASE LEVER TO SHAFT | ||
| A 3179970040 | SEAL RING | |
| TOP | ||
| A 3379905041 | WASHER | |
| Repalced by: A 0019872446 | ||
| 215 | A 0019872446 | SEALING CORD |
| TOP | ||
| 215 | A 0019872446 | SEALING CORD |
| TOP | ||
| 220 | A 3372540010 | RELEASE COLLAR |
| 225 | A 0009812525 | BALL BEARING |
| 230 | A 3179830010 | STRIP |
| RELEASE BEARING | ||
| 235 | A 3172540033 | COVER |
| RELEASE BEARING | ||
| 237 | N 912004006102 | LOCK WASHER |
| RELEASE BEARING | ||
| 239 | N 000933006229 | SCREW |
| RELEASE BEARING | ||
| 245 | A 3179930225 | SPRING |
| RELEASE COLLAR TO RELEASE YOKE | ||
| 250 | N 912004016101 | LOCK WASHER |
| BELL HOUSING TO ENGINE | ||
| 252 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 252 | N 308673016001 | NUT |
| BELL HOUSING TO ENGINE | ||
| 260 | A 3122511004 | END COVER |
| Repalced by: A 3602510004 | ||
| 260 | A 3602510004 | END COVER |
| BELL HOUSING | ||
| 262 | N 912004006102 | LOCK WASHER |
| COVER PLATE TO BELL HOUSING | ||
| 264 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 264 | N 304017006018 | SCREW |
| COVER PLATE TO BELL HOUSING | ||
| 275 | A 3375200043 | PROTECTIVE PLATE |
| BOTTOM | ||
| 277 | A 3045240085 | DAMPING STRIP |
| COVER PLATE TO BELL HOUSING | ||
| 279 | A 3375240085 | DAMPING STRIP |
| COVER PLATE TO BELL HOUSING | ||
| 285 | A 3039900034 | SCREW |
| COVER PLATE TO BELL HOUSING | ||
| 287 | N 912004010102 | LOCK WASHER |
| COVER PLATE TO BELL HOUSING | ||
| 289 | N 000934010014 | NUT |
| COVER PLATE TO BELL HOUSING | ||
