Transporto priemonė: LP 1418; VIN numerio dalis: 338056

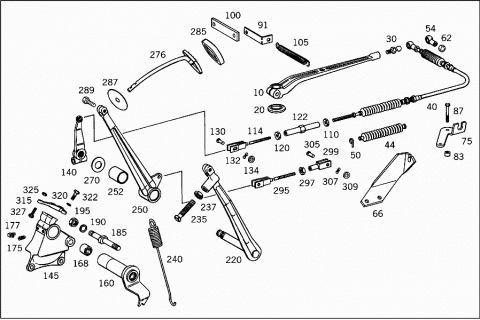

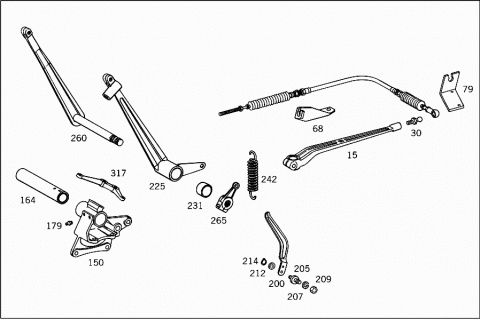

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3372540008 | RELEASE LEVER | |
| CLUTCH OPERATION | ||
| A 2272540025 | LEVER | |
| Repalced by: A 3372540025 | ||
| A 3372540025 | LEVER | |
| CLUTCH OPERATION | ||
| A 3372540025 | LEVER | |
| CLUTCH OPERATION | ||
| A 3372540025 | LEVER | |
| CLUTCH OPERATION | ||
| 010 | A 3352540825 | LEVER |
| CLUTCH OPERATION | ||
| 015 | A 3352540225 | LEVER |
| CLUTCH OPERATION | ||
| 015 | A 3352540225 | LEVER |
| CLUTCH OPERATION | ||
| A 3439900140 | WASHER | |
| LEVER TO RELEASE SHAFT | ||
| 020 | A 3439900040 | WASHER |
| LEVER TO RELEASE SHAFT | ||
| N 000931010100 | SCREW | |
| LEVER TO RELEASE SHAFT | ||
| N 912004010102 | LOCK WASHER | |
| LEVER TO RELEASE SHAFT | ||
| N 000934010014 | NUT | |
| LEVER TO RELEASE SHAFT | ||
| 030 | A 3179910015 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 030 | A 3179910515 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 030 | A 3029910015 | BALL PIVOT |
| CLUTCH OPERATION | ||
| 030 | A 3529910415 | BALL PIVOT |
| CLUTCH OPERATION | ||
| A 3262900578 | BALL SOCKET | |
| Repalced by: A 0002930023 | ||
| A 0002930023 | BALL SOCKET | |
| CLUTCH OPERATION | ||
| A 0002930023 | BALL SOCKET | |
| CLUTCH OPERATION | ||
| N 071805016300 | SNAP RING | |
| CLUTCH OPERATION | ||
| N 071805016300 | SNAP RING | |
| CLUTCH OPERATION | ||
| A 3352930130 | CABLE | |
| Repalced by: A 3352900285 | ||
| 040 | A 3352900285 | CABLE |
| CLUTCH OPERATION | ||
| 040 | A 3352900285 | CABLE |
| CLUTCH OPERATION | ||
| 044 | A 0002930086 | BOOT |
| 044 | A 0002930086 | BOOT |
| N 900286005100 | CABLE HOLDER | |
| Repalced by: A 0009950859 | ||
| 050 | A 0009950859 | SHACKLE |
| Repalced by: A 0019978390 | ||
| 050 | A 0019978390 | LOOM TIE |
| 050 | A 0019978390 | LOOM TIE |
| 054 | A 0009916222 | BALL SOCKET |
| 054 | A 0009916222 | BALL SOCKET |
| N 071805016301 | SNAP RING | |
| N 071805016301 | SNAP RING | |
| 062 | N 000934010014 | NUT |
| 062 | N 000934010014 | NUT |
| 066 | A 3382930540 | BRACKET |
| FRONT CABLE | ||
| 068 | A 3382930340 | BRACKET |
| FRONT CABLE | ||
| 068 | A 3382930340 | BRACKET |
| FRONT CABLE | ||
| N 000961012164 | SCREW | |
| CABLE TO SIDE MEMBER | ||
| N 000961012164 | SCREW | |
| CABLE TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| CABLE TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| CABLE TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| CABLE TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| CABLE TO SIDE MEMBER | ||
| 075 | A 3382930740 | BRACKET |
| REAR CABLE | ||
| 079 | A 3382930440 | BRACKET |
| Repalced by: A 3382930940 | ||
| 079 | A 3382930940 | BRACKET |
| REAR CABLE | ||
| 079 | A 3382930940 | BRACKET |
| REAR CABLE | ||
| 083 | A 3382930053 | SPACER TUBE |
| Repalced by: A 3872640974 | ||
| 083 | A 3872640974 | PIN |
| BRACKET TO TRANSMISSION | ||
| 083 | A 3872640974 | PIN |
| BRACKET TO TRANSMISSION | ||
| 087 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 087 | N 304017008053 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 087 | N 304017008053 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 091 | A 3544295040 | BRACKET |
| Repalced by: A 3474276641 | ||
| 091 | A 3474276641 | BRACKET |
| RELEASE SPRING | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 308676012012 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| N 000961012164 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 100 | A 3382930640 | BRACKET |
| RELEASE SPRING | ||
| N 000961012164 | SCREW | |
| BRACKET TO FRAME | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| N 000934012022 | NUT | |
| BRACKET TO FRAME | ||
| 105 | A 3359930010 | SPRING |
| (RELEASE SPRING) | ||
| 105 | A 3359930010 | SPRING |
| (RELEASE SPRING) | ||
| N 071805016402 | SECURING CLIP | |
| CLUTCH OPERATION | ||
| 110 | N 000936010008 | NUT |
| CLUTCH OPERATION | ||
| 114 | A 3372900439 | ROD |
| Repalced by: A 3382900239 | ||
| 114 | A 3382900239 | ROD |
| CLUTCH OPERATION | ||
| 120 | N 000936010023 | NUT |
| Repalced by: N 304035010002 | ||
| 120 | N 304035010002 | NUT |
| CLUTCH OPERATION | ||
| 122 | N 001480010200 | TURNBUCKLE |
| CLUTCH OPERATION | ||
| 130 | N 001434010009 | PIN |
| PULL ROD TO CLUTCH LEVER | ||
| 132 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 132 | N 000137010205 | SPRING WASHER |
| PULL ROD TO CLUTCH LEVER | ||
| 134 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 134 | N 000433010510 | WASHER |
| PULL ROD TO CLUTCH LEVER | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO CLUTCH LEVER | ||
| A 3379935210 | SPRING | |
| (RELEASE SPRING) | ||
| A 3379935210 | SPRING | |
| (RELEASE SPRING) | ||
| A 3372500043 | BRACKET | |
| RELEASE SPRING | ||
| A 3372500043 | BRACKET | |
| RELEASE SPRING | ||
| N 000835008003 | STUD | |
| BRACKET TO TRANSMISSION | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO TRANSMISSION | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO TRANSMISSION | ||
| N 304032008006 | NUT | |
| BRACKET TO TRANSMISSION | ||
| N 304032008006 | NUT | |
| BRACKET TO TRANSMISSION | ||
| A 3372930110 | LEVER | |
| CLUTCH PEDAL | ||
| A 3372930110 | LEVER | |
| CLUTCH PEDAL | ||
| 140 | A 3352930310 | LEVER |
| CLUTCH PEDAL | ||
| N 000931010295 | SCREW | |
| LEVER TO CLUTCH SHAFT | ||
| N 000934010014 | NUT | |
| LEVER TO CLUTCH SHAFT | ||
| A 3272945101 | BEARING BRACKET | |
| Repalced by: A 3382940501 | ||
| A 3272945101 | BEARING BRACKET | |
| Repalced by: A 3382940501 | ||
| 145 | A 3382940501 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 145 | A 3382940501 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| A 3382940001 | BEARING BRACKET | |
| PEDAL ASSEMBLY | ||
| A 3382940001 | BEARING BRACKET | |
| PEDAL ASSEMBLY | ||
| A 3372940201 | BEARING BRACKET | |
| Repalced by: A 3382940701 | ||
| 150 | A 3382940601 | BEARING BRACKET |
| Repalced by: A 3382940701 | ||
| 150 | A 3382940701 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| N 000961012151 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 12 X 30 | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 12 X 35 | ||
| N 308676012026 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 12 X 35 | ||
| N 000961012179 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 12X38 | ||
| N 000961012099 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 12X42 | ||
| N 000961012099 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 12X42 | ||
| N 912004012100 | LOCK WASHER | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| A 3212900336 | BEARING TUBE | |
| Repalced by: A 3372900236 | ||
| 160 | A 3372900236 | BEARING TUBE |
| PEDAL ASSEMBLY | ||
| 160 | A 3372900236 | BEARING TUBE |
| PEDAL ASSEMBLY | ||
| 164 | A 3372900036 | BEARING TUBE |
| PEDAL ASSEMBLY | ||
| A 3372940204 | BEARING TUBE | |
| PEDAL ASSEMBLY | ||
| A 3122941250 | BUSHING | |
| Repalced by: A 3529920901 | ||
| 168 | A 3529920901 | BUSHING |
| 168 | A 3529922001 | BUSHING |
| 175 | A 3529900080 | SCREW |
| PEDAL ASSEMBLY | ||
| 177 | N 071412010300 | GREASE NIPPLE |
| PEDAL ASSEMBLY | ||
| 179 | N 071412010100 | GREASE NIPPLE |
| PEDAL ASSEMBLY | ||
| A 3273230074 | PIN | |
| SHOCK ABSORBER | ||
| A 3273230074 | PIN | |
| SHOCK ABSORBER | ||
| A 3273230074 | PIN | |
| SHOCK ABSORBER | ||
| 185 | A 3383230174 | PIN |
| SHOCK ABSORBER | ||
| 185 | A 3383230174 | PIN |
| SHOCK ABSORBER | ||
| A 3383230074 | PIN | |
| SHOCK ABSORBER | ||
| A 3383230074 | PIN | |
| SHOCK ABSORBER | ||
| A 3383230074 | PIN | |
| SHOCK ABSORBER | ||
| 190 | N 912004016101 | LOCK WASHER |
| SHOCK ABSORBER | ||
| 190 | N 912004016101 | LOCK WASHER |
| SHOCK ABSORBER | ||
| 195 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 195 | N 308673016001 | NUT |
| SHOCK ABSORBER | ||
| 195 | N 308673016001 | NUT |
| SHOCK ABSORBER | ||
| 200 | A 3372910142 | EXTENSION |
| RELEASE SPRING | ||
| 205 | A 3372940174 | PIN |
| RELEASE SPRING | ||
| 207 | N 000127012000 | LOCK WASHER |
| PEDAL ASSEMBLY | ||
| 209 | N 000934012022 | NUT |
| PEDAL ASSEMBLY | ||
| 212 | N 000988012014 | FITTED WASHER |
| PEDAL ASSEMBLY | ||
| N 000988012010 | FITTED WASHER | |
| PEDAL ASSEMBLY | ||
| N 000988012020 | FITTED WASHER | |
| PEDAL ASSEMBLY | ||
| 214 | N 000471012001 | LOCK RING |
| PEDAL ASSEMBLY | ||
| 220 | A 3372900116 | PEDAL |
| CLUTCH | ||
| A 3372900416 | PEDAL | |
| CLUTCH | ||
| A 3372900416 | PEDAL | |
| CLUTCH | ||
| 225 | A 3382900316 | PEDAL |
| CLUTCH | ||
| 225 | A 3382900316 | PEDAL |
| CLUTCH | ||
| A 3122911350 | BUSHING | |
| Repalced by: A 3122911550 | ||
| 231 | A 3122911550 | BUSHING |
| N 071412010300 | GREASE NIPPLE | |
| TO 337 290 04 16 | ||
| 235 | A 3049900022 | SCREW |
| CLUTCH PEDAL RELEASE SPRING | ||
| 237 | N 000936018006 | NUT |
| CLUTCH PEDAL RELEASE SPRING | ||
| 240 | A 3379930110 | SPRING |
| (RELEASE SPRING) | ||
| 242 | A 3049931110 | SPRING |
| (RELEASE SPRING) | ||
| 250 | A 3372900418 | PEDAL |
| Repalced by: A 3382900118 | ||
| 250 | A 3212901318 | PEDAL |
| Repalced by: A 3382900118 | ||
| 250 | A 3382900118 | PEDAL |
| BRAKE PEDAL | ||
| 252 | A 3122911250 | BUSHING |
| 260 | A 3372900318 | PEDAL |
| BRAKE PEDAL | ||
| 265 | A 3372920131 | LEVER |
| BRAKE ACTUATION | ||
| N 000931010295 | SCREW | |
| LEVER TO PEDAL | ||
| N 000934010014 | NUT | |
| LEVER TO PEDAL | ||
| A 3202940251 | SPACER RING | |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 3.50 MM | ||
| 270 | A 3039910645 | RING |
| Repalced by: A 3039910345 | ||
| 270 | A 3039910345 | RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 270 | A 3039910345 | RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| N 000417040000 | HEADLESS SETSCREW | |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 276 | A 3212900024 | PEDAL PLATE |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| A 3222900224 | PEDAL PLATE | |
| CLUTCH | ||
| A 3222900324 | PEDAL PLATE | |
| CLUTCH AND BRAKE | ||
| A 3222900324 | PEDAL PLATE | |
| BRAKE | ||
| 285 | A 3202925082 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 287 | A 3296160476 | WASHER |
| Repalced by: A 3226880024 | ||
| 287 | A 3226880024 | WASHER |
| PEDAL PLATE | ||
| 289 | N 000933010105 | SCREW |
| PEDAL PLATE | ||
| 295 | A 3372900739 | ROD |
| FROM BRAKE PEDAL TO DOUBLE LEVER | ||
| 297 | N 000934010014 | NUT |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 299 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 299 | A 0009961501 | YOKE |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 305 | N 001434010009 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 307 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 307 | N 000137010205 | SPRING WASHER |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 309 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 309 | N 000433010510 | WASHER |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 315 | A 3372910141 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 317 | A 3372910341 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 320 | N 912004010102 | LOCK WASHER |
| STOP TO BEARING BRACKET | ||
| 322 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 322 | N 304017010002 | SCREW |
| STOP TO BEARING BRACKET | ||
| 325 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 325 | N 304035008001 | NUT |
| STOP TO BEARING BRACKET | ||
| 327 | A 3379900001 | SCREW |
| STOP TO BEARING BRACKET | ||
| 340 | A 0002930123 | BALL SOCKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| N 071805016301 | SNAP RING | |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 344 | A 3382930038 | CABLE |
| BRAKE | ||
| 346 | A 0002930086 | BOOT |
| 348 | A 0009916222 | BALL SOCKET |
| N 071805016301 | SNAP RING | |
| 352 | N 000934010014 | NUT |
| 360 | A 3382930040 | BRACKET |
| FRONT CABLE | ||
| N 000933010105 | SCREW | |
| CABLE TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| CABLE TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| CABLE TO SIDE MEMBER | ||
| 370 | A 3382030440 | BRACKET |
| REAR CABLE | ||
| 375 | A 3382930053 | SPACER TUBE |
| Repalced by: A 3872640974 | ||
| 375 | A 3872640974 | PIN |
| BRACKET TO TRANSMISSION | ||
| 380 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 380 | N 304017008053 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 385 | A 3474276641 | BRACKET |
| RELEASE SPRING | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 400 | A 3359930010 | SPRING |
| RELEASE SPRING | ||
| 405 | N 071805016402 | SECURING CLIP |
| 410 | N 900331010658 | PULL ROD |
| CLUTCH OPERATION | ||
| 412 | N 000936010008 | NUT |
| 414 | N 001480010200 | TURNBUCKLE |
| 416 | N 000936010023 | NUT |
| Repalced by: N 304035010002 | ||
| 416 | N 304035010002 | NUT |
| 425 | A 3372900439 | ROD |
| Repalced by: A 3382900239 | ||
| 425 | A 3382900239 | ROD |
| CLUTCH OPERATION | ||
| 430 | N 001434010009 | PIN |
| PULL ROD TO CLUTCH LEVER | ||
| 432 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 432 | N 000137010205 | SPRING WASHER |
| PULL ROD TO CLUTCH LEVER | ||
| 434 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 434 | N 000433010510 | WASHER |
| PULL ROD TO CLUTCH LEVER | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO CLUTCH LEVER | ||
| 440 | A 3372940501 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 445 | A 3372900020 | BEARING |
| PEDAL ASSEMBLY | ||
| 447 | A 3122941250 | BUSHING |
| Repalced by: A 3529920901 | ||
| 447 | A 3529920901 | BUSHING |
| PEDAL BEARING | ||
| 447 | A 3529922001 | BUSHING |
| PEDAL BEARING | ||
| 449 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 449 | N 071412008102 | GREASE NIPPLE |
| 451 | A 3529900080 | SCREW |
| PEDAL ASSEMBLY | ||
| 460 | A 3372901619 | BEARING BRACKET |
| Repalced by: A 3382901219 | ||
| 460 | A 3382901219 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 465 | A 3372900120 | BEARING |
| PEDAL ASSEMBLY | ||
| A 3209940150 | PART NAME MISSING | |
| Repalced by: A 3122941250 | ||
| A 3122941250 | BUSHING | |
| Repalced by: A 3529920901 | ||
| A 3529920901 | BUSHING | |
| PEDAL BEARING | ||
| A 3529922001 | BUSHING | |
| PEDAL BEARING | ||
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| A 3529900080 | SCREW | |
| PEDAL ASSEMBLY | ||
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| PEDAL ASSEMBLY | ||
| 470 | A 3372940074 | PIN |
| PEDAL ASSEMBLY | ||
| 472 | N 912004012100 | LOCK WASHER |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 474 | N 000934012022 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M12X35 | ||
| N 000960012342 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M12X45 | ||
| N 912004012100 | LOCK WASHER | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 480 | A 3372910041 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 485 | A 3372910241 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 487 | N 912004012100 | LOCK WASHER |
| STOP TO BEARING BRACKET | ||
| 489 | N 000960012015 | SCREW |
| STOP TO BEARING BRACKET | ||
| 492 | A 3379900001 | SCREW |
| STOP TO BEARING BRACKET | ||
| 494 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 494 | N 304035008001 | NUT |
| STOP TO BEARING BRACKET | ||
| 500 | A 3372930110 | LEVER |
| CLUTCH OPERATION | ||
| 505 | A 3372920031 | LEVER |
| BRAKE ACTUATION | ||
| N 000931010295 | SCREW | |
| LEVER TO PEDAL | ||
| N 000934010014 | NUT | |
| LEVER TO PEDAL | ||
| 510 | A 3372900016 | PEDAL |
| CLUTCH | ||
| 515 | A 3372900118 | PEDAL |
| CLUTCH COMPENSATING LEVER TO BEARING BRACKET | ||
| 520 | A 3372900218 | PEDAL |
| CLUTCH | ||
| 524 | A 3122911350 | BUSHING |
| Repalced by: A 3122911550 | ||
| 524 | A 3122911550 | BUSHING |
| 526 | N 071412010100 | GREASE NIPPLE |
| 530 | A 3049900022 | SCREW |
| CLUTCH PEDAL RELEASE SPRING | ||
| 532 | N 000936018006 | NUT |
| CLUTCH PEDAL RELEASE SPRING | ||
| 540 | A 3379930110 | SPRING |
| (RELEASE SPRING) | ||
| 542 | A 3372910242 | EXTENSION |
| RELEASE SPRING | ||
| 545 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 545 | N 000433013010 | WASHER |
| EXTENSION TO PIN | ||
| 547 | N 000471012001 | LOCK RING |
| EXTENSION TO PIN | ||
| 550 | A 3379930210 | SPRING |
| (RELEASE SPRING) | ||
| 560 | A 3372900018 | PEDAL |
| BRAKE | ||
| 564 | A 3122911350 | BUSHING |
| Repalced by: A 3122911550 | ||
| 564 | A 3122911550 | BUSHING |
| 566 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 566 | N 071412008102 | GREASE NIPPLE |
| 570 | A 3202940051 | SPACER RING |
| Repalced by: A 3202940251 | ||
| 570 | A 3202940151 | SPACER RING |
| Repalced by: A 3202940251 | ||
| 570 | A 3202940251 | SPACER RING |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 3.50 MM | ||
| 574 | A 3039910645 | RING |
| Repalced by: A 3039910345 | ||
| 574 | A 3039910345 | RING |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 578 | A 3219900324 | PART NAME MISSING |
| Repalced by: A 3212900324 | ||
| 578 | A 3212900324 | PEDAL PLATE |
| CLUTCH AND BRAKE | ||
| A 3212900424 | PEDAL PLATE | |
| CLUTCH AND BRAKE | ||
| 582 | A 3296160476 | WASHER |
| PEDAL PLATE TO PEDAL | ||
| 584 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 590 | A 3372900839 | ROD |
| BRAKE ACTUATION | ||
| 590 | A 3372900839 | ROD |
| BRAKE ACTUATION | ||
| 590 | A 3372900839 | ROD |
| BRAKE ACTUATION | ||
| 596 | N 000934010014 | NUT |
| 596 | N 000934010014 | NUT |
| 596 | N 000934010014 | NUT |
| 602 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 602 | A 0009961501 | YOKE |
| 602 | A 0009961501 | YOKE |
| 602 | A 0009961501 | YOKE |
| 610 | A 3272905339 | ROD |
| BRAKE ACTUATION | ||
| 615 | A 3382920004 | BEARING BRACKET |
| REVERSING LEVER | ||
| 620 | A 3382900025 | LEVER |
| (REVERSING LEVER) | ||
| 622 | A 3274275050 | BUSHING |
| 624 | A 3274275074 | PIN |
| 626 | N 071412008302 | GREASE NIPPLE |
| 628 | N 000125013008 | WASHER |
| N 000094003219 | COTTER PIN | |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 304032008006 | NUT | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 635 | A 3382900039 | ROD |
| REVERSING LEVER | ||
| N 071752010002 | YOKE | |
| Repalced by: A 0009961501 | ||
| A 0009961501 | YOKE | |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| N 000934010010 | NUT | |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| 640 | N 001434010014 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| N 000433010505 | WASHER | |
| Repalced by: N 000433010510 | ||
| N 000433010510 | WASHER | |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| 645 | N 001434010009 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| 647 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 647 | N 000137010205 | SPRING WASHER |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| 649 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 649 | N 000433010510 | WASHER |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
