Transporto priemonė: LP 1924; VIN numerio dalis: 336351

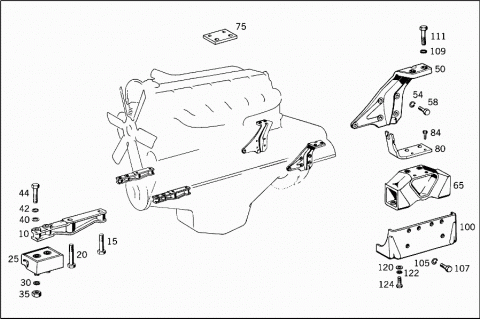

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3042410005 | SUPPORTING ARM |
| LEFT AND RIGHT | ||
| 010 | A 3042410005 | SUPPORTING ARM |
| RIGHT | ||
| A 3362410005 | SUPPORTING ARM | |
| Repalced by: A 3042410005 | ||
| A 3042410005 | SUPPORTING ARM | |
| LEFT | ||
| 015 | N 000931016026 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| M 16X65 | ||
| 020 | N 000931016037 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| M 16X82 | ||
| 025 | A 0002410113 | RUBBER MOUNTING |
| ENGINE FRONT MOUNTING | ||
| 025 | A 0002410513 | RUBBER MOUNTING |
| ENGINE FRONT MOUNTING | ||
| 030 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 035 | N 000934012022 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 040 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 040 | N 000125015019 | WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 042 | N 912004014100 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 044 | N 000960014108 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 050 | A 3352420801 | ENGINE SUPPORT |
| LEFT | ||
| A 3352420901 | ENGINE SUPPORT | |
| RIGHT | ||
| 054 | N 912004012100 | LOCK WASHER |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| N 000931012061 | SCREW | |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 058 | N 000931012139 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 065 | A 0002421213 | RUBBER MOUNTING |
| REAR | ||
| 075 | A 3352421426 | SHIM |
| REAR | ||
| 080 | A 3352421226 | SHIM |
| LEFT | ||
| A 3352421326 | SHIM | |
| RIGHT | ||
| 084 | N 000933006178 | SCREW |
| Repalced by: N 304017006019 | ||
| 084 | N 304017006019 | SCREW |
| SHIM TO RUBBER MOUNTING | ||
| 100 | A 3352400806 | CONSOLE |
| LEFT | ||
| A 3352400706 | CONSOLE | |
| RIGHT | ||
| 105 | N 912004012100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 107 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 109 | N 912004014100 | LOCK WASHER |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 111 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 111 | N 000961014064 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M 14X50 | ||
| N 000960014194 | SCREW | |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M 14X60 | ||
| 120 | N 000125013008 | WASHER |
| 122 | N 912004012100 | LOCK WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 124 | N 000961012164 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| M 12X28 | ||
| N 000960012336 | SCREW | |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| M 12X90 | ||
