Transporto priemonė: LP 1924; VIN numerio dalis: 336351

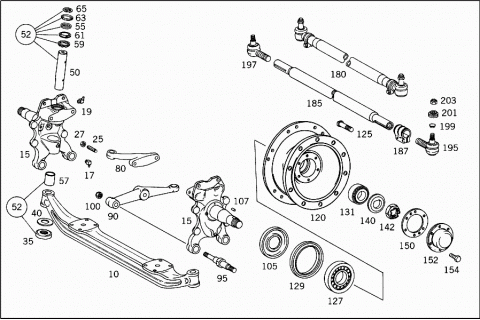

Grupė: 33 FRONT AXLE

#	Kodas	Pavadinimas
	A 3363302600	FRONT AXLE
		WITH BRAKE
	A 3353301400	FRONT AXLE
		WITH BRAKE
	A 3353301400	FRONT AXLE
		WITH BRAKE
	A 3363302700	FRONT AXLE
		WITH BRAKE
	A 3363302000	FRONT AXLE
		WITH BRAKE
	A 3363302000	FRONT AXLE
		WITH BRAKE
010	A 3353310201	FRONT AXLE BEAM
015	A 3353320101	STEERING KNUCKLE
		LESS BUSHING
017	N 071412008302	GREASE NIPPLE
019	N 071412008200	GREASE NIPPLE
025	A 3633320071	SCREW
027	N 000934014019	NUT
	Repalced by: N 308673014001
027	N 308673014001	NUT
035	A 0009818318	ROLLER BEARING
040	A 3173321952	SPACER WASHER
		AS REQUIRED
		0.7 MM
040	A 3173321852	SPACER WASHER
		AS REQUIRED
		0.8 MM
040	A 3173321752	SPACER WASHER
		AS REQUIRED
		0.9 MM
040	A 3173321252	SPACER WASHER
		AS REQUIRED
		1 MM
040	A 3173321652	SPACER WASHER
		AS REQUIRED
		1.1 MM
040	A 3173321552	SPACER WASHER
		AS REQUIRED
		1.2 MM
040	A 3173321452	SPACER WASHER
		AS REQUIRED
		1.3 MM
040	A 3173320652	SPACER WASHER
		AS REQUIRED
		1.9 MM
040	A 3173320852	SPACER WASHER
		AS REQUIRED
		2.1 MM
040	A 3173320952	SPACER WASHER
		AS REQUIRED
		2.2 MM
052	A 3433300219	KING PIN
		STANDARD
		45.0 MM
052	A 3435860333	REPAIR KIT
	Repalced by: A 3433300319
052	A 3433300319	KING PIN
		STANDARD SIZE I
		45.3 MM
052	A 3433300419	KING PIN
	Repalced by: A 3433320406
052	A 3433320406	KINGPIN
		REPAIR SIZE I
		45.6 MM
055	A 3179970045	SEAL RING
		TOP AND BOTTOM
057	A 3173320048	BUSHING
		BOTTOM
057	A 3433320048	BUSHING
		TOP
059	A 3173320051	SPACER RING
061	A 3173320229	SEALING CAP
		INSIDE
063	A 3173320129	SEALING CAP
		OUTSIDE
065	N 000472055000	LOCK RING
080	A 3613380001	STEERING ARM
080	A 3353380301	STEERING ARM
080	A 3353380301	STEERING ARM
080	A 3363380402	STEERING ARM
080	A 3363380302	STEERING ARM
080	A 3363380302	STEERING ARM
	A 3439900002	SCREW
	N 000935018000	NUT
	N 000094004065	COTTER PIN
090	A 3353380305	STEERING ARM
		LEFT
090	A 3353380306	STEERING ARM
		RIGHT
095	A 3354210218	PIVOT PIN
100	N 000935020001	NUT
	N 000094004065	COTTER PIN
105	A 3173340015	RING
107	N 001481005022	CLAMPING SLEEVE
120	A 3353340101	WHEEL HUB
125	A 3384015071	WHEEL MOUNTING BOLT
127	A 0019817705	TAPERED ROLLER BEARING
		INSIDE
127	A 0019817505	TAPERED ROLLER BEARING
		INSIDE
129	A 3359970047	SEAL RING
131	A 0019812905	TAPERED ROLLER BEARING
		OUTSIDE
131	A 0019817405	TAPERED ROLLER BEARING
		OUTSIDE
131	A 0019817605	TAPERED ROLLER BEARING
		OUTSIDE
140	A 3173340062	THRUST WASHER
142	A 0009901555	NUT
150	A 3173340059	SEAL RING
152	A 3173340025	HUB CAP
154	N 304017010027	SCREW
180	A 3463302903	TIE ROD
	Repalced by: A 3463304303
180	A 3463304303	TIE ROD
		LEMFOERDER
180	A 3463304403	TIE ROD
		EHRENREICH
185	A 0003380216	TIE ROD TUBE
187	A 0003382545	CLAMP
		TO 346 330 29 03
195	A 3023300035	JOINT
	Repalced by: A 3023300235
195	A 3023300235	JOINT
		L.H. THREAD
		LEMFOERDER
195	A 3023300335	JOINT
		L.H. THREAD
		EHRENREICH
197	A 0004633429	BALL JOINT
	Repalced by: A 0013300135
197	A 0013300135	JOINT
		R.H. THREAD
		LEMFOERDER
197	A 0013300235	JOINT
		R.H. THREAD
		EHRENREICH
201	A 0003301085	BOOT
203	N 000937020001	NUT
	N 000094004065	COTTER PIN
