Transporto priemonė: LP 1924; VIN numerio dalis: 336351
Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|

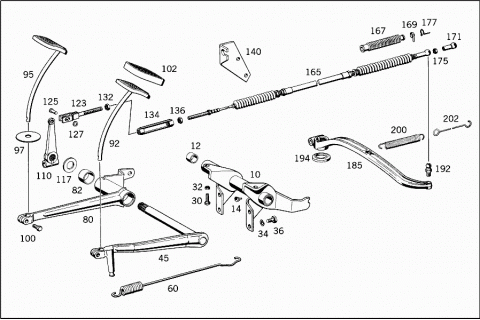

| 010 | A 3362900519 | BEARING BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 012 | A 3122941250 | BUSHING |
| Repalced by: A 3529920901 | ||
| 012 | A 3529920901 | BUSHING |
| 012 | A 3529922001 | BUSHING |
| 014 | N 071412008200 | GREASE NIPPLE |

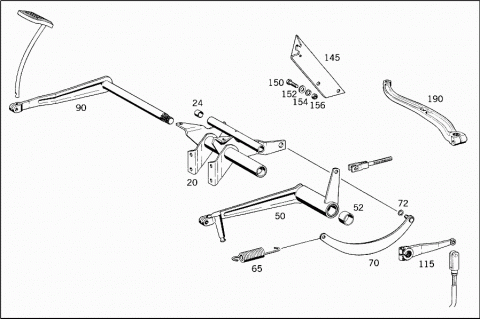

| 020 | A 3362900619 | BEARING BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| A 3122941250 | BUSHING | |
| Repalced by: A 3529920901 | ||
| A 3529920901 | BUSHING | |
| PEDAL BEARING | ||
| A 3529922001 | BUSHING | |
| PEDAL BEARING | ||
| 024 | A 3363010050 | BUSHING |
| PEDAL BEARING | ||
| N 071412008200 | GREASE NIPPLE | |
| 030 | N 000933010105 | SCREW |
| STOP | ||
| 032 | N 000936010008 | NUT |
| STOP | ||
| 034 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO STEERING | ||
| 036 | N 000961012056 | SCREW |
| Repalced by: N 308676012038 | ||
| 036 | N 308676012038 | SCREW |
| BEARING BRACKET TO STEERING | ||
| 045 | A 3362900916 | PEDAL |
| CLUTCH | ||
| 050 | A 3362901016 | PEDAL |
| CLUTCH | ||
| 052 | A 3122911550 | BUSHING |
| PEDAL BEARING | ||
| 060 | A 3359930310 | SPRING |
| CLUTCH PEDAL | ||
| 065 | A 3379930210 | SPRING |
| CLUTCH PEDAL | ||
| 070 | A 3362900034 | LEVER |
| (INTERMEDIATE LEVER) | ||
| 072 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 072 | N 000433013010 | WASHER |
| LEVER TO PEDAL BEARING BRACKET | ||
| N 000094004065 | COTTER PIN | |
| LEVER TO PEDAL BEARING BRACKET | ||
| 080 | A 3352900118 | PEDAL |
| BRAKE | ||
| 082 | A 3122911550 | BUSHING |
| PEDAL BEARING | ||
| 090 | A 3362900018 | PEDAL |
| BRAKE | ||
| 092 | A 3522900124 | PEDAL PLATE |
| CLUTCH | ||
| 095 | A 3522900224 | PEDAL PLATE |
| BRAKE | ||
| 097 | A 3296160476 | WASHER |
| PEDAL PLATE TO PEDAL | ||
| 100 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 102 | A 3202925082 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 110 | A 3352930210 | LEVER |
| CLUTCH OPERATION | ||
| 115 | A 3362930110 | LEVER |
| CLUTCH OPERATION | ||
| 117 | A 3039910345 | RING |
| LEVER TO PEDAL | ||
| N 000931010100 | SCREW | |
| LEVER TO PEDAL | ||
| N 000934010014 | NUT | |
| LEVER TO PEDAL | ||
| 123 | A 3382900239 | ROD |
| CLUTCH OPERATION | ||
| 125 | N 001434010009 | PIN |
| ROD TO LEVER | ||
| 127 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 127 | N 000433010510 | WASHER |
| ROD TO LEVER | ||
| N 000094003219 | COTTER PIN | |
| ROD TO LEVER | ||
| 132 | N 000936010023 | NUT |
| Repalced by: N 304035010002 | ||
| 132 | N 304035010002 | NUT |
| CLUTCH ADJUSTMENT | ||
| 134 | N 001480010200 | TURNBUCKLE |
| CLUTCH ADJUSTMENT | ||
| 136 | N 000936010008 | NUT |
| CLUTCH ADJUSTMENT | ||
| 140 | A 3352930240 | BRACKET |
| CABLE | ||
| 145 | A 3362930040 | BRACKET |
| CABLE | ||
| 150 | N 000961012179 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 152 | A 3209901340 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 154 | N 912004012100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 156 | N 000934012022 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 3352930030 | CABLE | |
| Repalced by: A 3352900185 | ||
| 165 | A 3352900185 | CABLE |
| CLUTCH OPERATION | ||
| 167 | A 0002930086 | BOOT |
| CABLE | ||
| 169 | A 0009950859 | SHACKLE |
| Repalced by: A 0019978390 | ||
| 169 | A 0019978390 | LOOM TIE |
| CABLE | ||
| 171 | A 0009916222 | BALL SOCKET |
| CABLE | ||
| N 071805016301 | SNAP RING | |
| CABLE | ||
| 175 | N 000934010014 | NUT |
| CABLE | ||
| 177 | N 071805016402 | SECURING CLIP |
| CABLE | ||
| 185 | A 3352540525 | LEVER |
| CLUTCH OPERATION | ||
| 190 | A 3352540725 | LEVER |
| CLUTCH OPERATION | ||
| A 3179910515 | BALL PIVOT | |
| Repalced by: A 3029910015 | ||
| 192 | A 3029910015 | BALL PIVOT |
| CABLE TO LEVER | ||
| 192 | A 3529910415 | BALL PIVOT |
| CABLE TO LEVER | ||
| 194 | A 3439900040 | WASHER |
| LEVER TO RELEASE SHAFT | ||
| N 000931010258 | SCREW | |
| LEVER TO RELEASE SHAFT | ||
| N 000934010014 | NUT | |
| LEVER TO RELEASE SHAFT | ||
| A 3359930010 | SPRING | |
| CLUTCH PEDAL RESET | ||
| 200 | A 3529931010 | SPRING |
| CLUTCH PEDAL RESET | ||
| 202 | A 3544275289 | CONNECTOR |
| CLUTCH PEDAL RESET | ||
| N 000961012151 | SCREW | |
| M 12X30 | ||
| N 000934012022 | NUT | |

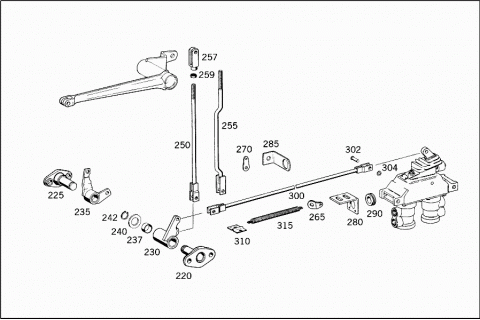

| 220 | A 3354201578 | BEARING BRACKET |
| FROM INTERMEDIATE LEVER TO TWO-CIRCUIT BRAKE VALVE,FRONT | ||
| 225 | A 3364201378 | BEARING BRACKET |
| FROM INTERMEDIATE LEVER TO TWO-CIRCUIT BRAKE VALVE,FRONT | ||
| N 000961014028 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| M 14 X 40 | ||
| N 000960014167 | SCREW | |
| Repalced by: N 000961014064 | ||
| N 000961014064 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| M 14X50 | ||
| N 000961014082 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| M 14X45 | ||
| N 000961014050 | SCREW | |
| Repalced by: N 308676014020 | ||
| N 308676014020 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| M 14X35 | ||
| N 913002014002 | NUT | |
| BEARING BRACKET TO FRAME | ||
| 230 | A 3354200842 | BRAKE LEVER |
| FROM INTERMEDIATE LEVER TO TWO-CIRCUIT BRAKE VALVE,FRONT | ||
| 235 | A 3364200342 | BRAKE LEVER |
| FROM INTERMEDIATE LEVER TO TWO-CIRCUIT BRAKE VALVE,FRONT | ||
| 237 | A 3359920503 | BUSHING |
| BRAKE LEVER | ||
| 240 | A 3039910645 | RING |
| Repalced by: A 3039910345 | ||
| 240 | A 3039910345 | RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 242 | N 000471025002 | LOCK RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 250 | A 3362900239 | ROD |
| FROM INTERMEDIATE LEVER TO BRAKE PEDAL | ||
| 255 | A 3362900439 | ROD |
| FROM INTERMEDIATE LEVER TO BRAKE PEDAL | ||
| 257 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 257 | A 0009961501 | YOKE |
| PULL RODS TO BRAKE LEVERS | ||
| 259 | N 000934010014 | NUT |
| FULL ROD TO YOKE | ||
| 265 | A 3152920140 | BRACKET |
| RELEASE SPRING | ||
| 270 | A 3214270741 | BRACKET |
| TENSION SPRING | ||
| N 000931006114 | SCREW | |
| Repalced by: N 304017006012 | ||
| N 304017006012 | SCREW | |
| BRACKET TO FRAME | ||
| N 000125006421 | WASHER | |
| BRACKET TO FRAME | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| N 000934006007 | NUT | |
| BRACKET TO FRAME | ||
| 280 | A 3354260040 | BRACKET |
| PULL ROD | ||
| 285 | A 3364260040 | BRACKET |
| PULL ROD | ||
| 290 | A 0009973481 | GROMMET |
| PULL ROD | ||
| N 000961012151 | SCREW | |
| BRACKET TO FRAME | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | NUT | |
| BRACKET TO FRAME | ||
| 300 | A 3542900339 | ROD |
| FROM INTERMEDIATE LEVER TO TWO-CIRCUIT BRAKE VALVE,FRONT | ||
| 302 | N 001434010009 | PIN |
| PULL ROD TO INTERMEDIATE LEVER AND TO TWO-CIRCUIT BRAKE VALVE | ||
| 304 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 304 | N 000433010510 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER AND TO TWO-CIRCUIT BRAKE VALVE | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO INTERMEDIATE LEVER AND TO TWO-CIRCUIT BRAKE VALVE | ||
| 310 | A 3374310440 | BRACKET |
| RELEASE SPRING | ||
| N 000933008177 | SCREW | |
| Repalced by: N 304017008024 | ||
| N 304017008024 | SCREW | |
| BRACKET TO FRAME | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| N 304032008006 | NUT | |
| BRACKET TO FRAME | ||
| A 3353930010 | PART NAME MISSING | |
| Repalced by: A 3529931010 | ||
| 315 | A 3529931010 | SPRING |
| RELEASE SPRING AND ENGINE SUPPORT | ||
