Transporto priemonė: LP 1924; VIN numerio dalis: 336362

Grupė: 30 CONTROL

#	Kodas	Pavadinimas

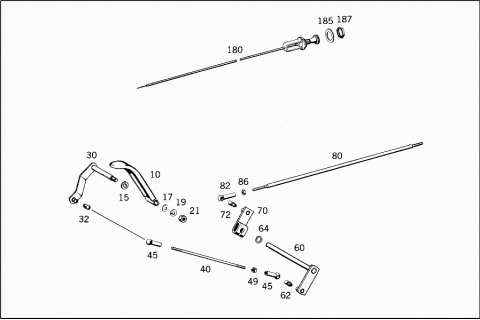

	A 3213010002	PEDAL PLATE
	Repalced by: A 3523000802
010	A 3523000802	PLATE
		ACCELERATOR PEDAL
015	A 3223010054	GUARD PLATE
		ACCELERATOR PEDAL
017	N 000125008418	WASHER
	Repalced by: N 000125008443
017	N 000125008443	WASHER
		BEARING TO FIRE WALL
019	N 912004008102	LOCK WASHER
		BEARING TO FIRE WALL
021	N 304032008006	NUT
		BEARING TO FIRE WALL
	A 3523010288	COVERING
		ACCELERATOR PEDAL
030	A 3353000025	LEVER
		ACCELERATOR PEDAL CONTROL
032	A 3129910120	BALL PIVOT
	Repalced by: N 071803010209
032	N 071803010209	BALL PIVOT
	Repalced by: A 3129910120
032	A 3129910120	BALL PIVOT
		CONTROL LEVER
040	N 900331006616	PULL ROD
		ACCELERAT0R CONTROL LINKAGE
	A 0009910522	BALL SOCKET
	Repalced by: A 0009912422
045	A 0009912422	BALL SOCKET
		PULL ROD TO LEVER
	N 071805010302	SNAP RING
		PULL ROD TO LEVER
049	N 000934006007	NUT
		PULL ROD TO LEVER
060	A 3353000925	LEVER
		(CONTROL LEVER)
062	A 3129910120	BALL PIVOT
	Repalced by: N 071803010209
062	N 071803010209	BALL PIVOT
	Repalced by: A 3129910120
062	A 3129910120	BALL PIVOT
		CONTROL LEVER
064	N 000125013008	WASHER
070	A 3353001025	LEVER
		(CONTROL LEVER)
072	A 3129910120	BALL PIVOT
	Repalced by: N 071803010209
072	N 071803010209	BALL PIVOT
	Repalced by: A 3129910120
072	A 3129910120	BALL PIVOT
		CONTROL LEVER
	N 000931008047	SCREW
	Repalced by: N 304017008018
	N 304017008018	SCREW
		CONTROL LEVER TO CONTROL SHAFT
	N 304032008006	NUT
		CONTROL LEVER TO CONTROL SHAFT
080	A 3353010415	ROD
		FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
082	A 0009910522	BALL SOCKET
	Repalced by: A 0009912422
082	A 0009912422	BALL SOCKET
		PULL ROD TO LEVER
	N 071805010302	SNAP RING
		PULL ROD TO LEVER
086	N 000934006007	NUT
		PULL ROD TO LEVER

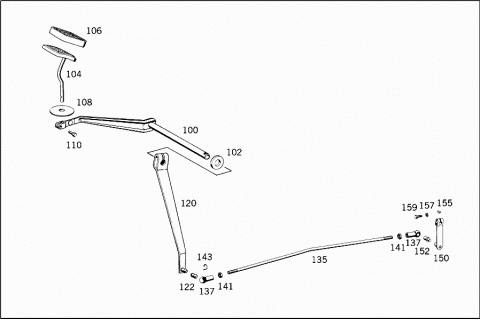

100	A 3363000104	ACCELERATOR PEDAL
		ACCELERATOR PEDAL CONTROL
102	N 007349019002	WASHER
		ACCELERATOR PEDAL
104	A 3363000002	PLATE
		ACCELERATOR PEDAL
106	A 3202925082	PAD
		ACCELERATOR PEDAL
108	A 3295110076	WASHER
		ACCELERATOR PEDAL TO JOINT
110	N 000933008154	SCREW
	Repalced by: N 304017008021
110	N 304017008021	SCREW
		ACCELERATOR PEDAL TO JOINT
120	A 3363000425	LEVER
		(INTERMEDIATE LEVER)
122	N 071803013207	BALL PIVOT
		INTERMEDIATE LEVER
	N 304017010030	SCREW
		FROM ACCELERATOR PEDAL TO FRONT INTERMEDIATE LEVER
	N 000125010518	WASHER
	Repalced by: N 000125010532
	N 000125010532	WASHER
		FROM ACCELERATOR PEDAL TO FRONT INTERMEDIATE LEVER
	N 000934010014	NUT
		FROM ACCELERATOR PEDAL TO FRONT INTERMEDIATE LEVER
135	A 3313010015	ROD
	Repalced by: A 3363010215
135	A 3363010215	ROD
		FROM LEVER TO INTERMEDIATE LEVER AT ENGINE
137	A 0009911022	BALL SOCKET
		FROM LEVER TO INTERMEDIATE LEVER AT ENGINE
	N 071805013302	SNAP RING
		FROM LEVER TO INTERMEDIATE LEVER AT ENGINE
141	N 304032008006	NUT
		FROM LEVER TO INTERMEDIATE LEVER AT ENGINE
143	N 071805013402	SECURING CLIP
		FROM LEVER TO INTERMEDIATE LEVER AT ENGINE
150	A 3363000125	LEVER
		(CONTROL LEVER)
152	N 071803013207	BALL PIVOT
		CONTROL LEVER
155	N 006888003001	WOODRUFF KEY
		ROD TO LEVER
157	N 912004006102	LOCK WASHER
		ROD TO LEVER
	N 000933006123	SCREW
		ROD TO LEVER
180	A 3353000026	MANUAL CONTROL
	Repalced by: A 3363000026
180	A 3363000026	MANUAL CONTROL
185	A 3359900240	WASHER
		MANUAL CONTROL TO BODY
187	A 3129901151	NUT
		MANUAL CONTROL TO BODY
