Transporto priemonė: LP 1924; VIN numerio dalis: 336362
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

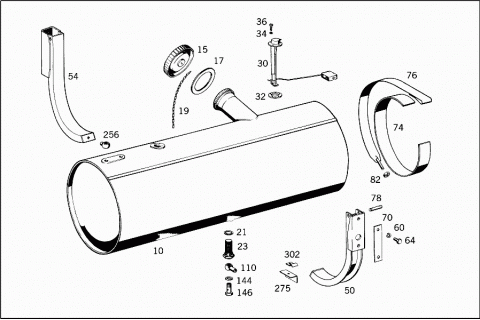

| A 3374700701 | FUEL TANK | |
| Repalced by: A 3464705201 | ||
| 010 | A 3464705201 | FUEL TANK |
| A 3044700005 | FILLER CAP | |
| Repalced by: A 3094700005 | ||
| 015 | A 3094700005 | FILLER CAP |
| 017 | A 3049970340 | SEAL RING |
| FILLER CAP | ||
| 019 | A 3034700031 | CHAIN |
| 021 | N 915035000010 | SEAL RING |
| FUEL STRAINER SCREEN | ||
| A 3034700206 | FUEL STRAINER | |
| Repalced by: A 3604700206 | ||
| 023 | A 3604700206 | FUEL STRAINER |
| A 3604700006 | FUEL STRAINER | |
| Repalced by: A 3074700106 | ||
| A 3074700106 | FUEL STRAINER | |
| 030 | A 0005428117 | SENDER UNIT |
| FUEL TANK | ||
| 032 | A 3524710080 | GASKET |
| Repalced by: A 4044710080 | ||
| 032 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 034 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 036 | N 000084005180 | SCREW |
| Repalced by: N 007985005175 | ||
| 036 | N 007985005175 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 050 | A 3354704542 | SUPPORT |
| FUEL TANK | ||
| A 3374701342 | SUPPORT | |
| Repalced by: A 3354704542 | ||
| A 3354704542 | SUPPORT | |
| FRONT | ||
| 054 | A 3354704142 | SUPPORT |
| REAR | ||
| 060 | N 912004014100 | LOCK WASHER |
| FUEL TANK TO FRAME | ||
| N 007349015003 | WASHER | |
| FUEL TANK TO FRAME | ||
| 064 | N 000961014100 | SCREW |
| FUEL TANK TO FRAME | ||
| M 14X30 | ||
| N 000961014118 | SCREW | |
| FUEL TANK TO FRAME | ||
| M 14X32 | ||
| N 000961014118 | SCREW | |
| FUEL TANK TO FRAME | ||
| M 14X32 | ||
| N 000961014055 | SCREW | |
| FUEL TANK TO FRAME | ||
| M 14X42 | ||
| N 000961014055 | SCREW | |
| FUEL TANK TO FRAME | ||
| M 14X42 | ||
| 070 | A 3354750019 | BASE |
| FUEL TANK TO FRAME | ||
| A 3044750019 | BASE | |
| FUEL TANK TO FRAME | ||
| A 3044750019 | BASE | |
| FUEL TANK TO FRAME | ||
| A 3359870270 | RUBBER SECTION | |
| Repalced by: A 3634750220 | ||
| 074 | A 3634750220 | PAD |
| FUEL TANK TO SUPPORT | ||
| 440MM | ||
| A 3634750320 | PAD | |
| AS REQUIRED | ||
| 630MMLANG | ||
| A 3374701240 | STRAP | |
| Repalced by: A 3464705140 | ||
| 076 | A 3464705140 | STRAP |
| FUEL TANK | ||
| 078 | N 001433016001 | PIN |
| STRAP TO SUPPORT | ||
| N 000094004051 | COTTER PIN | |
| STRAP TO SUPPORT | ||
| 082 | N 000934012022 | NUT |
| STRAP TO SUPPORT | ||

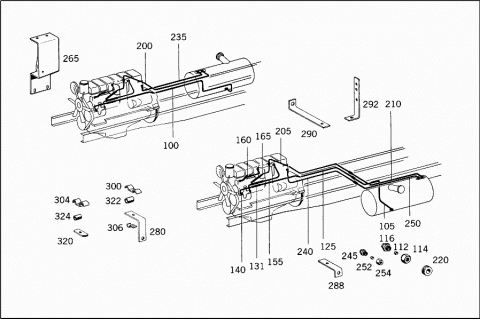

| 100 | A 3364701770 | LINE |
| Repalced by: A 3404701465 | ||
| 105 | A 3354704670 | LINE |
| Repalced by: A 3404701465 | ||
| A 3404701465 | LINE | |
| WITH BANJO UNION | ||
| 10MMX3000MM | ||
| 110 | N 915010008205 | BANJO UNION |
| FUEL LINE TO TANK | ||
| 112 | A 0009900267 | SEAL CONE |
| CONNECTION OF FUEL LINES ONE BELOW THE OTHER | ||
| 114 | N 915017010100 | UNION NUT |
| CONNECTION OF FUEL LINES ONE BELOW THE OTHER | ||
| 116 | N 915006008000 | DOUBLE FITTING |
| CONNECTION OF FUEL LINES ONE BELOW THE OTHER | ||
| A 3354700970 | LINE | |
| Repalced by: A 0004290901 | ||
| 125 | A 0004290901 | LINE |
| FROM TANK TO FITTING | ||
| 10MM | ||
| A 0009900267 | SEAL CONE | |
| CONNECTION OF FUEL LINES ONE BELOW THE OTHER | ||
| N 915017010100 | UNION NUT | |
| CONNECTION OF FUEL LINES ONE BELOW THE OTHER | ||
| A 3124760026 | HOSE | |
| Repalced by: A 3054760126 | ||
| 131 | A 3054760126 | HOSE |
| TO CONNECT THE FUEL LINES | ||
| N 900263005000 | STRAP | |
| TO CONNECT THE FUEL LINES | ||
| 145MM | ||
| N 900262005000 | LOOM TIE | |
| TO CONNECT THE FUEL LINES | ||
| A 3374702670 | LINE | |
| Repalced by: A 3404701265 | ||
| 140 | A 3404701265 | LINE |
| WITH BANJO UNION; FROM HOSE TO PUMP | ||
| N 915010008205 | BANJO UNION | |
| FUEL LINE TO FEED PUMP | ||
| 144 | N 007603014405 | SEAL RING |
| FUEL LINE | ||
| 146 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 146 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE | ||
| 155 | A 3354704170 | LINE |
| FROM FEED PUMP TO FILTER | ||
| 160 | A 3354703370 | LINE |
| FROM FINE-MESH FILTER TO INJECTION PUMP | ||
| 165 | A 3354702864 | LINE |
| FROM FEED PUMP TO PRE-FILTER | ||
| A 3364702170 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3664702270 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3364702370 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3364702470 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3364704964 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3364705064 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3404701265 | LINE | |
| WITH BANJO UNION | ||
| 10MM X 1000MM | ||
| A 0019977490 | LOOM TIE | |
| Repalced by: A 0019978490 | ||
| A 0019978490 | LOOM TIE | |
| A 3124760026 | HOSE | |
| Repalced by: A 3054760126 | ||
| A 3054760126 | HOSE | |
| FEED LINE AND RETURN LINE | ||
| N 900263005000 | STRAP | |
| 145 MM | ||
| N 900262005000 | LOOM TIE | |
| 200 | A 3364702164 | LINE |
| Repalced by: A 3404701265 | ||
| A 3354704164 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3404701265 | LINE | |
| WITH BANJO UNION | ||
| 10MM X 1000MM | ||
| 205 | A 3354705464 | LINE |
| Repalced by: A 0004290901 | ||
| A 0004290901 | LINE | |
| LEAK RETURN | ||
| 10MM | ||
| A 3354705664 | LINE | |
| Repalced by: A 3404701465 | ||
| 210 | A 3404701465 | LINE |
| LEAK RETURN; FROM FITTING TO FUEL TANK | ||
| 10MM X 3000MM | ||
| N 915010008205 | BANJO UNION | |
| FUEL LINE | ||
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| FUEL LINE | ||
| N 915017010201 | UNION NUT | |
| FUEL LINE | ||
| A 0009900267 | SEAL CONE | |
| FUEL LINE | ||
| N 915017010100 | UNION NUT | |
| FUEL LINE | ||
| 220 | A 3035460237 | GROMMET |
| N 915006008000 | DOUBLE FITTING | |
| N 007603014405 | SEAL RING | |
| N 007603014106 | SEAL RING | |
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| A 3364700965 | LINE | |
| Repalced by: A 3384703065 | ||
| A 3364700965 | LINE | |
| Repalced by: A 3384703065 | ||
| A 3354701465 | LINE | |
| Repalced by: A 3384703065 | ||
| 235 | A 3384703065 | LINE |
| ENGINE-TO-FUEL-TANK LEAK LINE | ||
| 6MM X 3000MM | ||
| A 3354702165 | LINE | |
| Repalced by: A 0004290701 | ||
| 240 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 240 | A 0004296201 | LINE |
| LEAK RETURN | ||
| 6 MM | ||
| A 0009900988 | BANJO UNION | |
| ENGINE-TO-FUEL-TANK LEAK LINE | ||
| A 0009900567 | SEAL CONE | |
| ENGINE-TO-FUEL-TANK LEAK LINE | ||
| N 915017006100 | UNION NUT | |
| ENGINE-TO-FUEL-TANK LEAK LINE | ||
| A 0109977082 | HOSE | |
| 6 X 4 MM | ||
| 245 | N 915006004002 | DOUBLE FITTING |
| ENGINE-TO-FUEL-TANK LEAK LINE | ||
| A 3354702365 | LINE | |
| Repalced by: A 3384703065 | ||
| 250 | A 3384703065 | LINE |
| LEAK RETURN; FROM FITTING TO FUEL TANK | ||
| 6MM X 3000MM | ||
| 252 | A 0009900567 | SEAL CONE |
| ENGINE-TO-FUEL-TANK LEAK LINE | ||
| 254 | N 915017006100 | UNION NUT |
| ENGINE-TO-FUEL-TANK LEAK LINE | ||
| 256 | A 0009900988 | BANJO UNION |
| ENGINE-TO-FUEL-TANK LEAK LINE | ||
| A 3035460237 | GROMMET | |
| A 0089975482 | HOSE | |
| FEED LINE AND RETURN LINE | ||
| 11X8 MM | ||
| A 0109977082 | HOSE | |
| FEED LINE AND RETURN LINE | ||
| 6X4 MM | ||
| A 0009905088 | BANJO UNION | |
| Repalced by: N 915052008019 | ||
| N 915052008019 | BANJO UNION | |
| FOR HOSE | ||
| 11X8 MM | ||
| N 915052008016 | BANJO UNION | |
| FOR HOSE | ||
| 11X8 MM | ||
| A 0004760524 | ELBOW FITTING | |
| FOR HOSE | ||
| 11X8 MM | ||
| A 0009920205 | BUSHING | |
| Repalced by: N 915062004000 | ||
| N 915062004000 | SLEEVE | |
| A 0009920105 | BUSHING | |
| Repalced by: N 915062004000 | ||
| N 915062004000 | SLEEVE | |
| FOR HOSE | ||
| 6X4 MM | ||
| N 003861006007 | GLAND | |
| Repalced by: A 0019901667 | ||
| A 0019901667 | SEAL CONE | |
| FOR HOSE | ||
| 6X4 MM | ||
| N 915017006100 | UNION NUT | |
| FOR HOSE | ||
| 6X4 MM | ||
| A 0009904388 | BANJO UNION | |
| Repalced by: N 915052004007 | ||
| N 915052004026 | BANJO UNION | |
| FOR HOSE | ||
| 6X4 MM | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| FUEL LINE | ||
| N 007603014405 | SEAL RING | |
| FUEL LINE | ||
| 265 | A 3354700281 | BRACKET |
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| BRACKET TO FRAME | ||
| M 12X25 | ||
| N 000961012151 | SCREW | |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| N 000961012151 | SCREW | |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| N 000961012179 | SCREW | |
| BRACKET TO FRAME | ||
| M 12X38 | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| N 000934012022 | NUT | |
| BRACKET TO FRAME | ||
| 275 | A 3044760435 | BRACKET |
| 280 | A 3354660640 | BRACKET |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| M 8X20 | ||
| N 000127008102 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 304032008006 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 288 | A 3374295840 | BRACKET |
| A 3354760136 | BRACKET | |
| Repalced by: A 3354292640 | ||
| 290 | A 3354292640 | BRACKET |
| 292 | A 3354760236 | BRACKET |
| N 000933006178 | SCREW | |
| Repalced by: N 304017006019 | ||
| N 304017006019 | SCREW | |
| BRACKET TO SIDE MEMBER OR CROSS MEMBER | ||
| M 6X22 | ||
| N 000125006421 | WASHER | |
| BRACKET TO SIDE MEMBER OR CROSS MEMBER | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER OR CROSS MEMBER | ||
| N 000934006007 | NUT | |
| BRACKET TO SIDE MEMBER OR CROSS MEMBER | ||
| 300 | A 3039950232 | CLAMP |
| LINES TO BRACKET | ||
| 302 | A 3049950220 | CLAMP |
| Repalced by: A 3129952420 | ||
| 302 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 302 | A 1109950401 | CLAMP |
| LINES TO BRACKET | ||
| 304 | A 3049950132 | CLAMP |
| LINES TO BRACKET | ||
| 306 | N 071434008100 | CLAMP |
| LINES TO BRACKET | ||
| A 3044760019 | BASE | |
| Repalced by: A 3142030084 | ||
| 320 | A 3142030084 | SHIM |
| LINES TO BRACKET | ||
| 322 | A 3044760081 | RUBBER PAD |
| LINES TO BRACKET | ||
| 324 | A 3044280081 | RUBBER PAD |
| Repalced by: A 3129973482 | ||
| 324 | A 3129973482 | HOSE |
| LINES TO BRACKET | ||
| N 000084005180 | SCREW | |
| Repalced by: N 007985005175 | ||
| N 007985005175 | SCREW | |
| LINES TO BRACKET | ||
| M 5X16 | ||
| N 912004005103 | LOCK WASHER | |
| LINES TO BRACKET | ||
| N 304032005002 | NUT | |
| Repalced by: N 304032005005 | ||
| N 304032005005 | NUT | |
| LINES TO BRACKET | ||
