Transporto priemonė: LP 1924; VIN numerio dalis: 336362

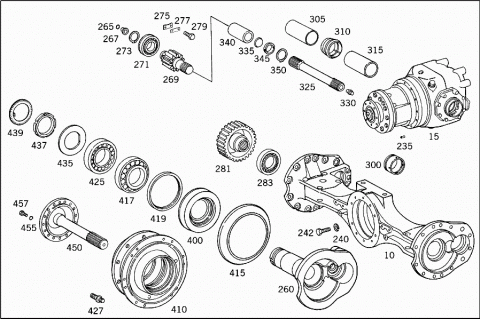

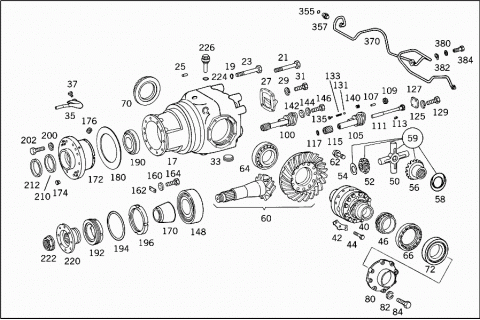

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3363501400 | REAR AXLE | |
| WITH BRAKES;RATIO: | ||
| 1:5.77 | ||
| 010 | A 3663510901 | AXLE CASING |
| 015 | A 3663500423 | DIFFERENTIAL GEAR |
| RATIO: | ||
| 11:28 | ||
| 017 | A 3663500441 | HOUSING |
| 019 | N 912004016101 | LOCK WASHER |
| 021 | N 000960016114 | SCREW |
| 023 | N 000960016172 | SCREW |
| 025 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 025 | N 000007010102 | CYLINDRICAL PIN |
| 027 | A 3663530206 | COVER |
| 029 | N 912004010102 | LOCK WASHER |
| 031 | N 000933010164 | SCREW |
| 033 | A 3039970006 | PLUG |
| 035 | A 3663500063 | OIL COLLECTOR |
| 037 | N 000933008123 | SCREW |
| Repalced by: N 304017008008 | ||
| 037 | N 304017008008 | SCREW |
| 040 | A 3463506923 | DIFFERENTIAL GEAR |
| 042 | A 3663530073 | LOCK |
| 044 | N 000960012219 | SCREW |
| 046 | A 3663530068 | GEAR |
| 050 | A 3663530020 | DIFFERENTIAL SPIDER |
| 050 | A 3663530220 | DIFFERENTIAL SPIDER |
| 052 | A 3663530414 | DIFFERENTIAL PINION |
| 054 | A 3663530362 | THRUST WASHER |
| 056 | A 3663530015 | SIDE GEAR |
| 058 | A 3663530262 | THRUST WASHER |
| 059 | A 3465860235 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 060 | A 3663500439 | RING GEAR AND PINION |
| RATIO: | ||
| 28:11 | ||
| 062 | A 3669900103 | SCREW |
| 064 | A 0029814905 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 066 | A 0009810205 | TAPERED ROLLER BEARING |
| LEFT | ||
| 070 | A 3663530225 | SCREW COLLAR |
| RIGHT | ||
| 072 | A 3663530325 | SCREW COLLAR |
| LEFT | ||
| 080 | A 3663570021 | END PIECE |
| 082 | N 000127010203 | LOCK WASHER |
| Repalced by: N 912004010102 | ||
| 082 | N 912004010102 | LOCK WASHER |
| 084 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 084 | N 304017010002 | SCREW |
| 100 | A 3663500169 | OIL PUMP |
| 105 | A 3043500578 | PUMP HOUSING |
| Repalced by: A 3433500078 | ||
| 105 | A 3433500078 | PUMP HOUSING |
| 105 | A 3663500078 | PUMP HOUSING |
| 107 | A 3049910101 | PIN |
| 109 | A 3043530269 | GEAR |
| 111 | A 3663530269 | GEAR |
| 111 | A 3663530069 | GEAR |
| 111 | A 3663530169 | GEAR |
| Repalced by: A 3663530469 | ||
| 111 | A 3663530469 | GEAR |
| 113 | N 006888005012 | WOODRUFF KEY |
| 115 | A 3663530168 | GEAR |
| Repalced by: A 3633530068 | ||
| 115 | A 3633530068 | GEAR |
| 117 | N 000471014000 | LOCK RING |
| 125 | A 3043530167 | COVER |
| 127 | N 912004006102 | LOCK WASHER |
| 129 | N 000933006102 | SCREW |
| 131 | N 005401307000 | BALL |
| 133 | A 3049931001 | SPRING |
| 135 | A 3049970430 | SCREW PLUG |
| 140 | N 915042009000 | PLUG |
| 142 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 142 | N 000125010532 | WASHER |
| 144 | N 912004010102 | LOCK WASHER |
| 146 | N 000933010105 | SCREW |
| 148 | A 0019814901 | CYLINDR. ROLLER BEARING |
| 160 | A 3269940010 | LOCK |
| 162 | A 3159945030 | LOCK |
| 164 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 164 | N 304017008016 | SCREW |
| 170 | A 3663530044 | SPACER BUSHING |
| 172 | A 3663500050 | BUSHING |
| 174 | N 915042011000 | PLUG |
| 176 | N 000906016002 | SCREW PLUG |
| 180 | A 3263530152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 180 | A 3263530252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.25 MM | ||
| 180 | A 3263530352 | SPACER WASHER |
| Repalced by: A 3263530252 | ||
| 180 | A 3263530252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| 180 | A 3263530452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| 190 | A 0029814505 | TAPERED ROLLER BEARING |
| 190 | A 0019800502 | TAPERED ROLLER BEARING |
| 190 | A 0039810605 | TAPERED ROLLER BEARING |
| 190 | A 0139816205 | TAPERED ROLLER BEARING |
| 192 | A 3663500043 | SET COLLAR |
| 194 | A 3663530173 | LOCK |
| 196 | A 3663530026 | NUT |
| 200 | N 912004012100 | LOCK WASHER |
| 202 | N 000960012050 | SCREW |
| 210 | A 0049979546 | SEAL RING |
| INSIDE | ||
| 212 | A 0049979646 | SEAL RING |
| OUTSIDE | ||
| 220 | A 3663530045 | FLANGE |
| 222 | A 3853510672 | NUT |
| 224 | N 007603024106 | SEAL RING |
| 224 | N 915035000022 | SEAL RING |
| 226 | A 3663500090 | VALVE |
| Repalced by: A 3043500190 | ||
| 226 | A 3043500190 | VALVE |
| 226 | A 1112600058 | BREATHER |
| 235 | A 3039910060 | DOWEL PIN |
| 240 | N 912004012100 | LOCK WASHER |
| 242 | N 000960012197 | SCREW |
| 260 | A 3663510406 | REAR AXLE TUBE |
| 265 | A 0009976446 | SEAL RING |
| 267 | A 3153510068 | SLIDE |
| 267 | A 3153510168 | SLIDE |
| 267 | A 3433510168 | SLIDE |
| REPAIR SIZE I | ||
| 267 | A 3433510268 | SLIDE |
| REPAIR SIZE I | ||
| 269 | A 3663542610 | SPUR GEAR |
| Repalced by: A 3663543510 | ||
| 269 | A 3663543510 | SPUR GEAR |
| RATIO: | ||
| I=15:34 | ||
| 271 | A 0019813701 | CYLINDR. ROLLER BEARING |
| 273 | N 000471055000 | LOCK RING |
| 275 | A 3663510040 | BRACKET |
| 277 | A 3159945130 | LOCK |
| 279 | N 000933008103 | SCREW |
| 281 | A 3663542512 | OUTSIDE GEAR |
| RATIO: | ||
| I=15:34 | ||
| 283 | A 0019813601 | CYLINDR. ROLLER BEARING |
| 300 | A 3663570121 | END PIECE |
| 305 | A 3663570020 | REAR AXLE TUBE |
| OUTSIDE | ||
| 90 MM | ||
| 310 | A 3663570022 | BOOT |
| 310 | A 3663570222 | BOOT |
| A 0029881078 | CLIP | |
| TO 366 357 00 22/02 22 | ||
| 315 | A 3663570120 | REAR AXLE TUBE |
| INSIDE | ||
| 95 MM | ||
| N 900263005000 | STRAP | |
| 840 MM | ||
| N 900262005101 | LOOM TIE | |
| 325 | A 3663570102 | REAR AXLE SHAFT |
| Repalced by: A 3663570302 | ||
| 325 | A 3663570302 | REAR AXLE SHAFT |
| 330 | A 3049910010 | PIN |
| 335 | A 3663570152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| 335 | A 3663570252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.8 MM | ||
| 335 | A 3663570352 | SPACER WASHER |
| Repalced by: A 3663570152 | ||
| 335 | A 3663570152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| 335 | A 3663570452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.2 MM | ||
| 335 | A 3663570552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.5 MM | ||
| 340 | A 3663570053 | SPACER TUBE |
| 345 | A 3663570151 | SPACER RING |
| AS REQUIRED | ||
| 9.5 MM | ||
| 345 | A 3663570351 | SPACER RING |
| AS REQUIRED | ||
| 10.0 MM | ||
| 345 | A 3663570551 | SPACER RING |
| AS REQUIRED | ||
| 10.5 MM | ||
| 350 | N 000471063000 | LOCK RING |
| 355 | N 007603014405 | SEAL RING |
| 357 | A 3049970072 | FITTING |
| 370 | A 3663500080 | LINE |
| A 0009900267 | SEAL CONE | |
| N 915017010100 | UNION NUT | |
| 380 | N 007603014405 | SEAL RING |
| 382 | N 900117014001 | LOCK |
| 384 | N 900117014200 | HOLLOW SCREW |
| 400 | A 3663500067 | THRUST WASHER |
| 400 | A 3663500167 | THRUST WASHER |
| 410 | A 3663560101 | WHEEL HUB |
| 415 | A 3663560182 | OIL COLLECTOR |
| 415 | A 3663560482 | OIL COLLECTOR |
| 417 | N 000720032024 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 419 | A 3049971747 | SEAL RING |
| 419 | A 0099970046 | SEAL RING |
| 419 | A 0109970046 | SEAL RING |
| 425 | N 000720032220 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 427 | A 3894010071 | WHEEL MOUNTING BOLT |
| 435 | A 3043340162 | THRUST WASHER |
| 437 | A 3043340026 | NUT |
| 439 | A 3043340073 | LOCK |
| 450 | A 3663560005 | FOLLOWER |
| 455 | N 912004014100 | LOCK WASHER |
| 457 | N 000961014028 | SCREW |
