Transporto priemonė: LP 1924; VIN numerio dalis: 336362

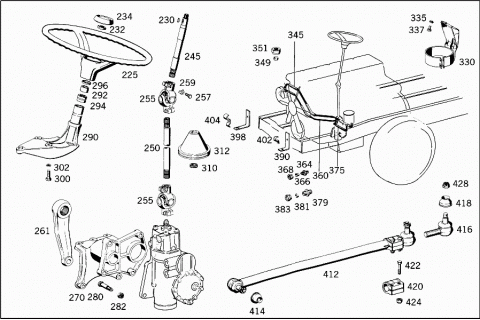

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

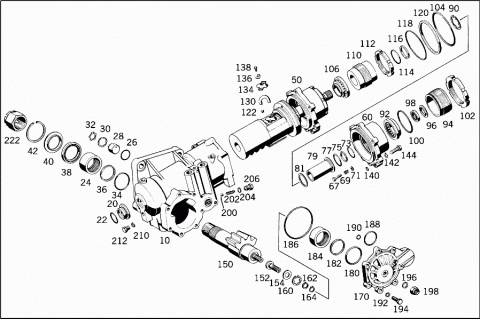

| A 3664605801 | STEERING BOX ASSEMBLY | |
| A 3664605901 | STEERING BOX ASSEMBLY | |
| 010 | A 3664606402 | STEERING BOX |
| Repalced by: A 3664607602 | ||
| A 3664607602 | STEERING BOX | |
| WITH SLEEVE VALVE | ||
| A 3664606502 | STEERING BOX | |
| Repalced by: A 3664607702 | ||
| A 3664607702 | STEERING BOX | |
| WITH SLEEVE VALVE | ||
| 020 | A 3604610005 | COVER |
| EXCHANGEABLE TOGETHER ONLY WITH: | ||
| 005 997 93 45 | ||
| 022 | A 0059979345 | SEAL RING |
| EXCHANGEABLE TOGETHER ONLY WITH: | ||
| 360 461 00 05 | ||
| 024 | A 0039812810 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| 026 | A 0059979445 | SEAL RING |
| VALVE HOUSING SEALING | ||
| 028 | A 3604660105 | COVER |
| VALVE HOUSING SEALING | ||
| 028 | A 3604660305 | COVER |
| VALVE HOUSING SEALING | ||
| 028 | A 3604660405 | COVER |
| VALVE HOUSING SEALING | ||
| 030 | A 0019943741 | LOCK |
| VALVE HOUSING SEALING | ||
| 032 | A 0009945541 | LOCK |
| VALVE HOUSING SEALING | ||
| 034 | A 0079971045 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 036 | A 3664665160 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 038 | A 0059975546 | SEAL RING |
| Repalced by: A 0119978046 | ||
| 040 | A 0029974540 | SEAL RING |
| Repalced by: A 0119978046 | ||
| A 0119978046 | SEAL RING | |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 042 | N 000472070000 | LOCK RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 050 | A 3664605885 | PISTON |
| WITH WORM AND STEERING NUT | ||
| A 3664606085 | PISTON | |
| WITH WORM AND STEERING NUT | ||
| A 3664660083 | PISTON | |
| 060 | A 3664606814 | STEERING BOX COVER |
| WITH PLUG AND CHECK VALVE | ||
| A 3664606914 | STEERING BOX COVER | |
| WITH PLUG AND CHECK VALVE | ||
| A 3605861646 | REPAIR KIT | |
| CHECK VALVE IN BEARING COVER | ||
| 067 | A 3604660071 | SCREW |
| 069 | A 3609930801 | SPRING |
| 071 | A 3604660075 | WASHER |
| 073 | A 0079973745 | SEAL RING |
| STEERING NUT BEARING | ||
| 075 | A 3604660460 | SEAL RING |
| STEERING NUT BEARING | ||
| 077 | A 0009979745 | SEAL RING |
| STEERING NUT BEARING | ||
| 079 | A 3664615050 | BUSHING |
| STEERING NUT BEARING | ||
| 081 | N 000988037006 | FITTED WASHER |
| AS REQUIRED | ||
| 37 X 47 X 1.0 MM | ||
| N 000988037007 | FITTED WASHER | |
| AS REQUIRED | ||
| 37 X 47 X 1.1 MM | ||
| N 000988037008 | FITTED WASHER | |
| AS REQUIRED | ||
| 37 X 47 X 1.2 MM | ||
| N 000988037009 | FITTED WASHER | |
| AS REQUIRED | ||
| 37 X 47 X 1.3 MM | ||
| 090 | A 0019943441 | LOCK |
| STEERING NUT BEARING | ||
| 092 | A 3609810027 | ANGULAR CONTACT BEARING |
| STEERING NUT BEARING | ||
| 094 | A 3604620034 | SCREW COLLAR |
| STEERING NUT BEARING | ||
| 096 | A 0059974346 | SEAL RING |
| Repalced by: A 0119977246 | ||
| 098 | A 0029974440 | SEAL RING |
| Repalced by: A 0119977246 | ||
| A 0119977246 | SEAL RING | |
| Repalced by: A 0149976947 | ||
| A 0149976947 | SEAL RING | |
| STEERING NUT BEARING | ||
| 100 | A 0029974745 | SEAL RING |
| STEERING NUT BEARING | ||
| 75 X 3 MM | ||
| 102 | N 070852085000 | NUT |
| Repalced by: A 6173560026 | ||
| 102 | A 6173560026 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 104 | A 0089971345 | SEAL RING |
| COVER TO STEERING BOX | ||
| 108 X 4 MM | ||
| 106 | A 3609810227 | ANGULAR CONTACT BEARING |
| STEERING NUT BEARING | ||
| 110 | A 3664665205 | COVER |
| STEERING NUT BEARING | ||
| 112 | N 070852070000 | NUT |
| STEERING NUT BEARING | ||
| 114 | A 0059979645 | SEAL RING |
| STEERING NUT BEARING | ||
| 41 X 3 | ||
| 116 | A 3604660060 | SEAL RING |
| STEERING NUT BEARING | ||
| 118 | A 0079979445 | SEAL RING |
| BETWEEN PISTON AND BOX | ||
| 102 X 5.5 MM | ||
| 120 | A 3604660660 | SEAL RING |
| BETWEEN PISTON AND BOX | ||
| 130 | A 3664625225 | BALL GUIDE |
| A 3664625325 | BALL GUIDE | |
| 134 | A 3669955020 | CLAMP |
| BALL GUIDE TO PISTON | ||
| 136 | A 1129940005 | LOCK |
| CLAMP TO PISTON | ||
| 138 | A 1209900520 | SCREW |
| CLAMP TO PISTON | ||
| A 3604603199 | INSTALLATION KIT | |
| CONICAL SPRING WASHER CUSHIONING | ||
| A 3604620028 | BEARING RING | |
| A 3604620128 | BEARING RING | |
| A 3604620228 | BEARING RING | |
| A 3609902140 | WASHER | |
| A 0059812510 | NEEDLE BEARING | |
| A 3859930026 | DISC SPRING | |
| A 3859930126 | DISC SPRING | |
| A 3859810018 | ROLLER BEARING | |
| 140 | A 0059979745 | SEAL RING |
| COVER TO BOX | ||
| 142 | N 912004010102 | LOCK WASHER |
| COVER TO BOX | ||
| 144 | N 000933010200 | SCREW |
| COVER TO BOX | ||
| 150 | A 3664605011 | STEERG. WORM SECTOR SHAFT |
| WITH SET SCREW | ||
| 152 | A 3054620171 | SCREW |
| STEERING WORM SECTOR SHAFT | ||
| 154 | A 3604620152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| A 3604620252 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.05 MM | ||
| A 3604620352 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 3604620452 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.95 MM | ||
| A 3604620552 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.90 MM | ||
| A 3604620652 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.85 MM | ||
| 160 | A 0019946541 | LOCK |
| Repalced by: A 0049949441 | ||
| 160 | A 0049949441 | LOCK |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 162 | A 3604620062 | THRUST WASHER |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 164 | N 000471015000 | LOCK RING |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 170 | A 3664606014 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| A 3664607114 | STEERING BOX COVER | |
| STEERING WORM SECTOR SHAFT | ||
| A 3664606114 | STEERING BOX COVER | |
| STEERING WORM SECTOR SHAFT | ||
| A 3664607214 | STEERING BOX COVER | |
| STEERING WORM SECTOR SHAFT | ||
| 180 | A 0079971045 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 182 | A 3664665160 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 184 | A 0039812910 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| 186 | A 0069972345 | SEAL RING |
| COVER TO BOX | ||
| 188 | A 0059979645 | SEAL RING |
| COVER TO BOX | ||
| 41 X 3 MM | ||
| 190 | A 0059979745 | SEAL RING |
| COVER TO BOX | ||
| 9 X 2.5 MM | ||
| 192 | N 912004012100 | LOCK WASHER |
| COVER TO BOX | ||
| 194 | N 000961012101 | SCREW |
| COVER TO BOX | ||
| 196 | N 007603014405 | SEAL RING |
| STEERING SHAFT TO BOX | ||
| 198 | A 0019904151 | NUT |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| A 3605861746 | REPAIR KIT | |
| CHECK VALVE IN BOX | ||
| 202 | A 3609930501 | SPRING |
| 204 | N 007603014405 | SEAL RING |
| 206 | A 3604610271 | SCREW |
| 210 | N 007603012405 | SEAL RING |
| OIL DRAIN | ||
| 212 | A 3859970030 | SCREW PLUG |
| Repalced by: N 000910012000 | ||
| 212 | N 000910012000 | SCREW PLUG |
| OIL DRAIN | ||
| A 3665865246 | REPAIR KIT | |
| STEERING WORM WITH NUT | ||
| A 3665865146 | REPAIR KIT | |
| STEERING WORM WITH NUT | ||
| A 3664625225 | BALL GUIDE | |
| A 3664625325 | BALL GUIDE | |
| A 3669955020 | CLAMP | |
| A 1209900520 | SCREW | |
| A 1129940005 | LOCK | |
| A 3609810227 | ANGULAR CONTACT BEARING | |
| A 3609810027 | ANGULAR CONTACT BEARING | |
| A 3665865446 | REPAIR KIT | |
| (GASKET KIT) | ||
| A 0009979745 | SEAL RING | |
| A 0029974745 | SEAL RING | |
| A 0059979445 | SEAL RING | |
| A 0059979645 | SEAL RING | |
| A 0059979745 | SEAL RING | |
| A 0069972345 | SEAL RING | |
| A 0079971045 | SEAL RING | |
| A 0079973745 | SEAL RING | |
| A 0079979445 | SEAL RING | |
| A 0089971345 | SEAL RING | |
| A 3604660060 | SEAL RING | |
| A 3604660460 | SEAL RING | |
| A 3604660660 | SEAL RING | |
| A 3664665160 | SEAL RING | |
| A 3604620396 | BOOT | |
| A 0119977246 | SEAL RING | |
| Repalced by: A 0149976947 | ||
| A 0149976947 | SEAL RING | |
| A 0119978046 | SEAL RING | |
| N 007603012405 | SEAL RING | |
| N 007603014405 | SEAL RING | |
| A 3604620396 | BOOT | |
| SEALING OF UNIVERSAL JOINT & STEERING | ||
| 222 | N 000937045000 | NUT |
| Repalced by: A 0029905051 | ||
| 222 | A 0029905051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 225 | A 0004640601 | STEERING WHEEL |
| Repalced by: A 0004641101 | ||
| 225 | A 0004641101 | STEERING WHEEL |
| 230 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 232 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| A 0004640131 | CAP | |
| Repalced by: A 0004641231 | ||
| 234 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 234 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 245 | A 3354620101 | STEERING SHAFT |
| Repalced by: A 3354621101 | ||
| 245 | A 3354621101 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 245 | A 3354620301 | STEERING SHAFT |
| Repalced by: A 3354621001 | ||
| 245 | A 3354621001 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 250 | A 3384625001 | STEERING SHAFT |
| BOTTOM | ||
| 255 | A 3524600057 | UNIVERSAL JOINT |
| 257 | A 3219900401 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 10X35 | ||
| 259 | N 000463010502 | LOCK PLATE |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 261 | A 3354630701 | PITMAN ARM |
| 270 | A 3364610240 | STEERING SUPPORT |
| A 3364610340 | STEERING SUPPORT | |
| N 000960014247 | SCREW | |
| Repalced by: N 308676014013 | ||
| N 308676014013 | SCREW | |
| STEERING SUPPORT TO FRAME | ||
| N 000960014111 | SCREW | |
| STEERING SUPPORT TO FRAME | ||
| N 000960014229 | SCREW | |
| STEERING SUPPORT TO FRAME | ||
| N 912004014100 | LOCK WASHER | |
| STEERING SUPPORT TO FRAME | ||
| N 000934014020 | NUT | |
| STEERING SUPPORT TO FRAME | ||
| N 000960016106 | SCREW | |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| N 000960016044 | SCREW | |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 280 | A 3359900114 | SCREW |
| 282 | N 000935016002 | NUT |
| N 000094004023 | COTTER PIN | |
| 290 | A 3354600137 | BEARING |
| Repalced by: A 3354600337 | ||
| 290 | A 3354600337 | BEARING |
| Repalced by: A 3354600437 | ||
| 290 | A 3354600437 | BEARING |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 292 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 292 | A 0119815110 | NEEDLE BEARING |
| 294 | A 3214620165 | RING |
| 296 | A 3224620023 | COVER |
| 300 | N 000931010282 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 302 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 310 | A 3214620060 | SEAL RING |
| UNIVERSAL JOINT,TOP | ||
| A 3604620196 | BOOT | |
| Repalced by: A 3604620296 | ||
| 312 | A 3604620296 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| N 900288140002 | CLAMP | |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| A 0004661302 | TANK | |
| A 0004660571 | FITTING | |
| A 0009879046 | SEALING CORD | |
| A 0004660158 | CONNECTOR | |
| A 0004660258 | CONNECTOR | |
| A 0004665065 | FILTER CARRIER | |
| A 0004660004 | FILTER | |
| A 0004660191 | VALVE DISC | |
| A 0004660291 | SPRING | |
| A 0004660380 | GASKET | |
| Repalced by: A 0004660580 | ||
| A 0004660580 | GASKET | |
| A 0004660505 | COVER | |
| A 0004660605 | COVER | |
| A 0004660280 | GASKET | |
| A 0004660075 | WASHER | |
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| 330 | A 3544605035 | BRACKET |
| OIL TANK | ||
| 335 | N 912004010102 | LOCK WASHER |
| OIL TANK | ||
| 337 | N 000933010128 | SCREW |
| OIL TANK | ||
| 345 | A 0014666065 | LINE |
| Repalced by: A 3364600324 | ||
| 345 | A 3364600324 | LINE |
| FROM OIL TANK TO HYDRAULIC PUMP | ||
| 22 MM | ||
| A 0014666165 | LINE | |
| Repalced by: A 3364600424 | ||
| A 3364600424 | LINE | |
| FROM OIL TANK TO HYDRAULIC PUMP | ||
| 349 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 349 | A 0019901267 | SEAL CONE |
| FOR OIL-TANK-TO-HYDRAULIC-PUMP LINE | ||
| 351 | N 003870022101 | UNION NUT |
| Repalced by: N 915017022100 | ||
| 351 | N 915017022100 | UNION NUT |
| FOR OIL-TANK-TO-HYDRAULIC-PUMP LINE | ||
| 360 | A 0014665665 | LINE |
| Repalced by: A 3364600024 | ||
| 360 | A 3364600024 | LINE |
| FROM OIL PUMP TO HIGH PRESSURE HOSE | ||
| 12 MM | ||
| A 0014665765 | LINE | |
| FROM OIL PUMP TO HIGH PRESSURE HOSE | ||
| 364 | N 003901012011 | SCREW-IN FITTING |
| HIGH PRESSURE LINE TO STEERING | ||
| 366 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 366 | A 0019901967 | SEAL CONE |
| HIGH PRESSURE LINE TO STEERING | ||
| 368 | N 003870012104 | UNION NUT |
| Repalced by: N 915017012100 | ||
| 368 | N 915017012100 | UNION NUT |
| HIGH PRESSURE LINE TO STEERING | ||
| 375 | A 0014665865 | LINE |
| Repalced by: A 3364600224 | ||
| A 0014665965 | LINE | |
| Repalced by: A 3364600224 | ||
| A 3364600224 | LINE | |
| FROM STEERING TO OIL TANK | ||
| 379 | N 003901015005 | SCREW-IN FITTING |
| FROM LINE TO OIL TANK | ||
| 381 | N 003861015004 | GLAND |
| FROM LINE TO OIL TANK | ||
| 383 | N 003870015101 | UNION NUT |
| Repalced by: N 915017015100 | ||
| 383 | N 915017015100 | UNION NUT |
| FROM LINE TO OIL TANK | ||
| 390 | A 3354660840 | BRACKET |
| DELIVERY AND SUCTION LINES | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO GUSSET PLATE | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO GUSSET PLATE | ||
| N 304032008006 | NUT | |
| BRACKET TO GUSSET PLATE | ||
| 398 | A 3354660640 | BRACKET |
| BRACKET TO STEERING BRACKET | ||
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| BRACKET TO STEERING BRACKET | ||
| 402 | A 3129953020 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 404 | A 3219950532 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| N 000084006137 | SCREW | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| N 000934006007 | NUT | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| A 3044760019 | BASE | |
| Repalced by: A 3142030084 | ||
| A 3142030084 | SHIM | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 412 | A 3354600505 | DRAG LINK |
| Repalced by: A 3354600705 | ||
| 412 | A 3354600705 | DRAG LINK |
| 412 | A 3354600805 | DRAG LINK |
| EHRENREICH | ||
| 414 | A 0003301085 | BOOT |
| FIXED PART OF JOINT | ||
| 416 | A 0004600148 | DRAG LINK END |
| Repalced by: A 0004602648 | ||
| 416 | A 0004602648 | DRAG LINK END |
| ADJUSTABLE | ||
| 418 | A 0004621896 | BOOT |
| 420 | A 0003380645 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 422 | N 000960012349 | SCREW |
| CLAMP TO DRAG LINK | ||
| 424 | N 000935012014 | NUT |
| CLAMP TO DRAG LINK | ||
| N 000094003019 | COTTER PIN | |
| CLAMP TO DRAG LINK | ||
| 428 | N 000937020001 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
