Transporto priemonė: LP 2226/6X4; VIN numerio dalis: 363472

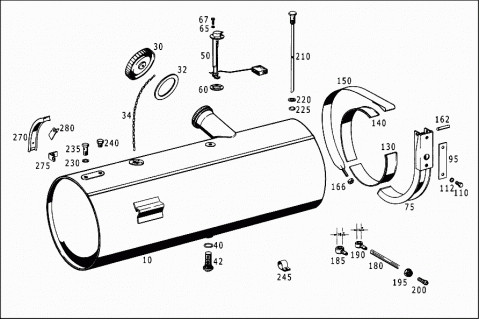

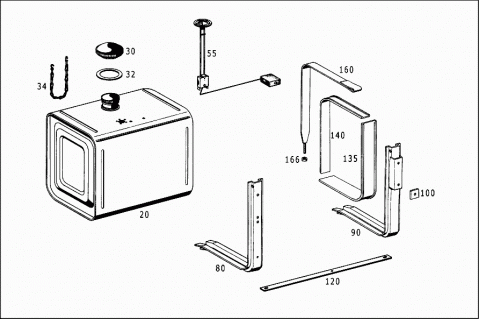

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3464705201 | FUEL TANK |
| 200L. | ||
| A 3634700201 | FUEL TANK | |
| Repalced by: A 3634701601 | ||
| 020 | A 3634701601 | FUEL TANK |
| 200L. | ||
| 020 | A 3634701601 | FUEL TANK |
| 200L. | ||
| A 3634700501 | FUEL TANK | |
| Repalced by: A 3634701001 | ||
| A 3634701001 | FUEL TANK | |
| 300L | ||
| A 3044700005 | FILLER CAP | |
| Repalced by: A 3094700005 | ||
| 030 | A 3094700005 | FILLER CAP |
| 032 | A 3049970340 | SEAL RING |
| FILLER CAP | ||
| 034 | A 3034700031 | CHAIN |
| 040 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN | ||
| 042 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3074700106 | ||
| 042 | A 3074700106 | FUEL STRAINER |
| AT TANK | ||
| 050 | A 0005428117 | SENDER UNIT |
| FUEL TANK | ||
| 055 | A 0015423117 | SENDER UNIT |
| FUEL TANK | ||
| 055 | A 0015423117 | SENDER UNIT |
| FUEL TANK | ||
| A 0015429317 | SENDER UNIT | |
| FUEL TANK | ||
| 060 | A 3524710080 | GASKET |
| Repalced by: A 4044710080 | ||
| 060 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 065 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 067 | N 000084005180 | SCREW |
| Repalced by: N 007985005175 | ||
| 067 | N 007985005175 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 075 | A 3354704542 | SUPPORT |
| FUEL TANK | ||
| A 3664750503 | CONSOLE | |
| Repalced by: A 3634700342 | ||
| 080 | A 3634700342 | SUPPORT |
| FUEL TANK | ||
| 080 | A 3634700342 | SUPPORT |
| FUEL TANK | ||
| A 3354750703 | CONSOLE | |
| FUEL TANK | ||
| 090 | A 3634700042 | SUPPORT |
| FUEL TANK | ||
| A 3634700242 | SUPPORT | |
| FUEL TANK | ||
| 095 | A 3354750019 | BASE |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 100 | A 3044750184 | SHIM |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| N 000961014054 | SCREW | |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 110 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 110 | N 308676014020 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 112 | N 912004014100 | LOCK WASHER |
| FUEL TANK | ||
| N 000934014019 | NUT | |
| Repalced by: N 308673014001 | ||
| N 308673014001 | NUT | |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 120 | A 3664750026 | REINFORCEMENT |
| FUEL TANK | ||
| 120 | A 3664750026 | REINFORCEMENT |
| FUEL TANK | ||
| A 3434750026 | REINFORCEMENT | |
| FUEL TANK | ||
| N 000961012151 | SCREW | |
| REINFORCEMENT RAIL TO CONSOLE | ||
| N 000961012151 | SCREW | |
| REINFORCEMENT RAIL TO CONSOLE | ||
| N 000961012151 | SCREW | |
| REINFORCEMENT RAIL TO CONSOLE | ||
| N 000125013008 | WASHER | |
| N 000125013008 | WASHER | |
| N 000125013008 | WASHER | |
| N 912004012100 | LOCK WASHER | |
| REINFORCEMENT RAIL TO CONSOLE | ||
| N 912004012100 | LOCK WASHER | |
| REINFORCEMENT RAIL TO CONSOLE | ||
| N 912004012100 | LOCK WASHER | |
| REINFORCEMENT RAIL TO CONSOLE | ||
| N 000934012022 | NUT | |
| REINFORCEMENT RAIL TO CONSOLE | ||
| N 000934012022 | NUT | |
| REINFORCEMENT RAIL TO CONSOLE | ||
| N 000934012022 | NUT | |
| REINFORCEMENT RAIL TO CONSOLE | ||
| 130 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 440 MM | ||
| 135 | A 3634750120 | PAD |
| FUEL TANK TO CONSOLE | ||
| 1060 MM | ||
| 140 | A 3634750320 | PAD |
| FUEL TANK TO CONSOLE | ||
| 140 | A 3634750320 | PAD |
| FUEL TANK TO CONSOLE | ||
| 150 | A 3464705140 | STRAP |
| FUEL TANK TO CONSOLE | ||
| A 3464705240 | STRAP | |
| 160 | A 3464705340 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 162 | N 001443016200 | PIN |
| STRAP TO SUPPORT | ||
| N 000094004049 | COTTER PIN | |
| STRAP TO SUPPORT | ||
| 166 | N 000934012022 | NUT |
| STRAP TO SUPPORT | ||
| 180 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 11X8 MM | ||
| 185 | A 0009905088 | BANJO UNION |
| Repalced by: N 915052008019 | ||
| 185 | N 915052008019 | BANJO UNION |
| FUEL LINE | ||
| 16 MM | ||
| 190 | N 915052008016 | BANJO UNION |
| FUEL LINE | ||
| 14 MM | ||
| 195 | N 915017010201 | UNION NUT |
| FUEL LINE | ||
| 200 | A 0019974972 | FITTING |
| FUEL LINE | ||
| 210 | A 3464705126 | RISING PIPE |
| Repalced by: A 0089975482 | ||
| A 3464705226 | RISING PIPE | |
| Repalced by: A 0089975482 | ||
| A 3464705326 | RISING PIPE | |
| Repalced by: A 0089975482 | ||
| A 0089975482 | HOSE | |
| FUEL LINE TO TANK | ||
| 446 MM | ||
| A 0089975482 | HOSE | |
| FUEL LINE TO TANK | ||
| 615 MM | ||
| A 0089975482 | HOSE | |
| FUEL LINE TO TANK | ||
| 535 MM | ||
| A 3609900263 | HOLLOW SCREW | |
| FUEL LINE TO TANK | ||
| 220 | N 915035000014 | SEAL RING |
| RISING PIPE | ||
| 16X20 | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 225 | A 0009971548 | SEAL RING |
| RISING PIPE | ||
| 230 | N 007603014405 | SEAL RING |
| FUEL LINE TO TANK | ||
| 235 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 235 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO TANK | ||
| M14X1.5 | ||
| 240 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 240 | N 007604014110 | SCREW PLUG |
| LEAK LINE TO TANK | ||
| 245 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 245 | N 916016018202 | CLAMP |
| FUEL LINES TO FUEL FILTER BRACKET | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| FUEL LINES TO FUEL FILTER BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| FUEL LINES TO FUEL FILTER BRACKET | ||
| N 000934006007 | NUT | |
| FUEL LINES TO FUEL FILTER BRACKET | ||
| A 3609951701 | CLAMP | |
| Repalced by: N 916016018202 | ||
| N 916016018202 | CLAMP | |
| FUEL LINES TO FRONT SPRING BRACKET SUPPORT | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| FUEL LINES TO FRONT SPRING BRACKET SUPPORT | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| FUEL LINES TO FRONT SPRING BRACKET SUPPORT | ||
| N 912004008102 | LOCK WASHER | |
| FUEL LINES TO FRONT SPRING BRACKET SUPPORT | ||
| N 304032008006 | NUT | |
| FUEL LINES TO FRONT SPRING BRACKET SUPPORT | ||
| 270 | A 3634700047 | COVERING |
| 275 | A 3634700181 | BRACKET |
| 280 | A 3634700281 | BRACKET |
| N 000931006114 | SCREW | |
| Repalced by: N 304017006012 | ||
| N 304017006012 | SCREW | |
| N 000125006421 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
