Transporto priemonė: LP 2232/6X4; VIN numerio dalis: 363451
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
44664
44665
44666
44667
44668
44669
44670
44671
44672
# Kodas Pavadinimas

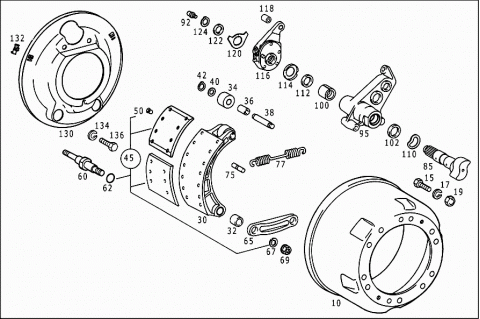

010 A 3354210301 BRAKE DRUM
015 A 0009900514 SCREW
BRAKE DRUM TO FRONT WHEEL SPIDER
017 N 912004014100 LOCK WASHER
BRAKE DRUM TO FRONT WHEEL SPIDER
019 N 000934014019 NUT
Repalced by: N 308673014001
019 N 308673014001 NUT
BRAKE DRUM TO FRONT WHEEL SPIDER
A 3354202920 BRAKE SHOE
Repalced by: A 3354200119
A 3354203020 BRAKE SHOE
Repalced by: A 3354200119
A 3354203120 BRAKE SHOE
Repalced by: A 3354200119
030 A 3354200119 BRAKE SHOE
032 A 3354210450 BUSHING
A 3174200139 ROLLER
Repalced by: A 3014200039
A 3464200039 ROLLER
Repalced by: A 3014200039
034 A 3014200039 ROLLER
Repalced by: A 3354200039
A 3174210250 BUSHING
Repalced by: A 3464210550
A 3464210250 BUSHING
Repalced by: A 3464210550
036 A 3464210550 BUSHING
TO 346 420 00 39
036 A 6204210050 BUSHING
TO 346 420 00 39
036 A 3014210050 BUSHING
TO 301 420 00 39
A 0039971548 SEAL RING
038 A 3354210074 PIN
Repalced by: A 3354200039
A 3354200039 REPAIR KIT
BRAKE SHOE ROLLER
040 A 3179901640 WASHER
042 N 000471017000 LOCK RING
045 A 3494210610 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.00 MM;8X 349 421 03 10)
045 A 3494211210 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.00 MM,8X 349 421 09 10)
045 A 3494210710 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.00 MM;8X 349 421 04 10)
045 A 3494211310 BRAKE LINING
Repalced by: A 3494211410
045 A 3494211410 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.00 MM,8X 349 421 10 10)
045 A 3494210810 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.00 MM;8X 349 421 05 10)
045 A 3494211410 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.00 MM,8X 349 421 11 10)
050 N 007338008307 RIVET
Repalced by: A 3079900297
050 A 3079900297 RIVET
060 A 3354210218 PIVOT PIN
BRAKE SHOE BEARING
062 A 0089974245 SEAL RING
BRAKE SHOE BEARING
065 A 3354230144 THRUST SHACKLE
067 N 074361022351 LOCK WASHER
BRAKE SHOE BEARING
069 N 074361022205 NUT
BRAKE SHOE BEARING
A 3464200182 REPAIR KIT
BRAKE SHOE BEARING
075 A 3354210174 PIN
077 A 3354210192 SPRING
085 A 3354210336 BRAKE CAMSHAFT
LEFT
A 3354210436 BRAKE CAMSHAFT
RIGHT
092 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
092 N 071412008102 GREASE NIPPLE
095 A 3354202878 BEARING BRACKET
LEFT
A 3354202778 BEARING BRACKET
RIGHT
100 A 3354210250 BUSHING
102 A 0029976946 SEAL RING
Repalced by: A 0219972947
102 A 0219972947 SEAL RING
N 000960016172 SCREW
BEARING BRACKET TO STEERING KNUCKLE
N 912004016101 LOCK WASHER
BEARING BRACKET TO STEERING KNUCKLE
N 000934016011 NUT
Repalced by: N 308673016001
N 308673016001 NUT
BEARING BRACKET TO STEERING KNUCKLE
110 A 3354210752 SPACER WASHER
112 A 0059978145 SEAL RING
114 A 3354211052 SPACER WASHER
116 A 3054200038 ADJUSTER
118 A 0004230550 BUSHING
120 A 3614230157 STOP WASHER
122 A 3174210352 SPACER WASHER
SLACK ADJUSTER TO BRAKE SHAFT
2.0 MM
124 N 000471030000 LOCK RING
SLACK ADJUSTER TO BRAKE SHAFT
130 A 3354200144 PROTECTIVE PLATE
132 A 3094210211 PLUG
134 N 912004010102 LOCK WASHER
PROTECTIVE PLATE TO BRAKE ANCHOR
136 N 304017010027 SCREW
PROTECTIVE PLATE TO BRAKE ANCHOR

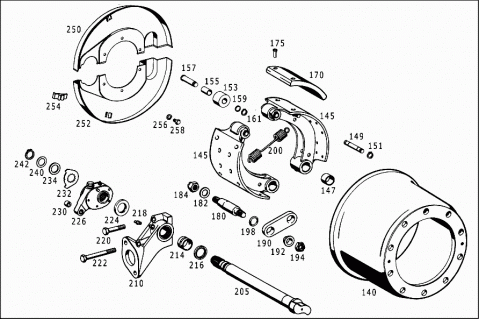

140 A 3174230801 BRAKE DRUM
A 3704200019 BRAKE SHOE
Repalced by: A 3704201819
A 3704200119 BRAKE SHOE
Repalced by: A 3704201819
A 3704200219 BRAKE SHOE
Repalced by: A 3704201819
145 A 3704201819 BRAKE SHOE
147 A 3174210050 BUSHING
Repalced by: A 3024210050
147 A 3024210050 BUSHING
149 A 3174210874 PIN
151 N 000471016001 LOCK RING
Repalced by: A 0079942041
151 A 0079942041 LOCK
A 3174200139 ROLLER
Repalced by: A 3014200039
A 3464200039 ROLLER
Repalced by: A 3014200039
153 A 3014200039 ROLLER
Repalced by: A 3174200339
A 3174210250 BUSHING
Repalced by: A 3464210550
A 3464210250 BUSHING
Repalced by: A 3464210550
155 A 3464210550 BUSHING
TO 346 420 00 39
155 A 6204210050 BUSHING
TO 346 420 00 39
155 A 3014210050 BUSHING
TO 301 420 00 39
A 0039971548 SEAL RING
157 A 3174210774 PIN
Repalced by: A 3174200339
A 3174200339 REPAIR KIT
BRAKE SHOE ROLLER
159 A 3179901640 WASHER
161 N 000471017000 LOCK RING
170 A 3554232210 BRAKE LINING
(PARTS KIT) (BRAKE LINING
20.00 MM,8X 355 423 00 10)
170 A 3554233410 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
20.00 MM,8X 355 423 25 10)
170 A 3554232310 BRAKE LINING
(PARTS KIT) (BRAKE LINING
20.80 MM,8X 355 423 01 10)
170 A 3554233510 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
20.80 MM,8X 355 423 26 10)
170 A 3554232410 BRAKE LINING
(PARTS KIT) (BRAKE LINING
21.50 MM,8X 355 423 02 10)
170 A 3554233610 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
21.50 MM,8X 355 423 27 10)
175 N 007338008307 RIVET
Repalced by: A 3079900297
175 A 3079900297 RIVET
180 A 3174230118 PIVOT PIN
Repalced by: A 3024200082
182 N 000125023006 WASHER
BRAKE SHOE PIN TO BRAKE ANCHOR
184 N 000935022000 NUT
BRAKE SHOE PIN TO BRAKE ANCHOR
N 000094005045 COTTER PIN
BRAKE SHOE PIN TO BRAKE ANCHOR
190 A 3174230044 THRUST SHACKLE
BRAKE SHOE TO BRAKE ANCHOR
192 A 3174210016 THRUST PIECE
BRAKE SHOE TO BRAKE ANCHOR
194 N 000937022000 NUT
BRAKE SHOE TO BRAKE ANCHOR
N 000094005045 COTTER PIN
BRAKE SHOE TO BRAKE ANCHOR
198 A 3029970145 SEAL RING
BRAKE SHOE TO BRAKE ANCHOR
A 3024200082 REPAIR KIT
BRAKE SHOE SHACKLE
200 A 3179931010 SPRING
205 A 3614232036 BRAKE CAMSHAFT
LEFT, REAR AXLE I
A 3614232336 BRAKE CAMSHAFT
RIGHT, REAR AXLE I
A 3614232236 BRAKE CAMSHAFT
LEFT,REAR AXLE II
A 3614232136 BRAKE CAMSHAFT
RIGHT, REAR AXLE II
210 A 3614200278 BEARING BRACKET
LEFT
A 3614200378 BEARING BRACKET
RIGHT
214 A 3044230050 BUSHING
216 A 0069977546 SEAL RING
218 N 071412010100 GREASE NIPPLE
220 N 000960016052 SCREW
BEARING BRACKET TO REAR AXLE
M 16X75
222 N 000960016078 SCREW
BEARING BRACKET TO REAR AXLE
M 16X140
224 A 3354210652 SPACER WASHER
226 A 3614200238 ADJUSTER
LEFT
A 3614200338 ADJUSTER
RIGHT
230 A 0004230550 BUSHING
232 A 3614230157 STOP WASHER
234 A 3614210752 SPACER WASHER
AS REQUIRED
1.5 MM
A 3614210852 SPACER WASHER
AS REQUIRED
2.0 MM
A 3614210952 SPACER WASHER
AS REQUIRED
2.5 MM
240 A 3614211052 SPACER WASHER
242 N 000471032000 LOCK RING
SLACK ADJUSTER TO BRAKE SHAFT
250 A 3474230920 PROTECTIVE PLATE
252 A 3474230820 PROTECTIVE PLATE
254 A 3464210011 PLUG
256 N 912004010102 LOCK WASHER
258 N 304017010027 SCREW

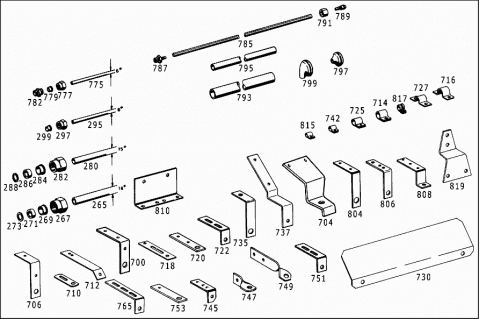

A 0004290401 LINE
Repalced by: A 0005516456
265 A 0005516456 TUBE
18 MM
267 N 915018018000 UNION NUT
269 N 003861018003 GLAND
Repalced by: A 0019901167
269 A 0019901167 SEAL CONE
271 N 915065018101 THRUST RING
273 N 915045015100 SEAL RING
A 0004290201 LINE
Repalced by: A 0005516256
280 A 0005516256 TUBE
15 MM
282 N 915018015000 UNION NUT
284 N 003861015004 GLAND
286 N 915065015101 THRUST RING
288 N 915045012100 SEAL RING
Repalced by: N 007603012121
288 N 007603012121 SEAL RING
295 A 0004290801 LINE
8 MM
297 N 915017008100 UNION NUT
299 N 003861008005 GLAND
A 0004291838 ELBOW FITTING
LINE CONNECTION TO AIR COMPRESSOR
305 N 074313018201 FITTING
LINE CONNECTION TO AIR COMPRESSOR
307 N 007603026104 SEAL RING
LINE CONNECTION TO AIR COMPRESSOR
309 N 074305026202 NUT
LINE CONNECTION TO AIR COMPRESSOR
311 A 0004291584 SEAL RING
Repalced by: N 915045015100
311 N 915045015100 SEAL RING
LINE CONNECTION TO AIR COMPRESSOR

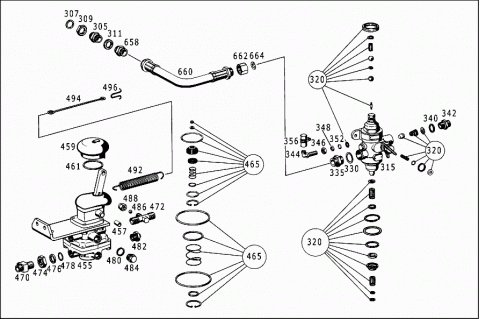

315 A 0004317906 PRESSURE REGULATOR
Repalced by: A 0024316006
315 A 0024316006 PRESSURE REGULATOR
A 0004313834 STRAINER
320 A 0005867743 REPAIR KIT
A 0025863643 REPAIR KIT
330 N 007603026104 SEAL RING
AT PRESSURE REGULATOR
A 0004292138 ELBOW FITTING
AT PRESSURE REGULATOR
335 N 074313018201 FITTING
AT PRESSURE REGULATOR
N 074305026202 NUT
AT PRESSURE REGULATOR
340 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
342 N 074298022203 DOUBLE FITTING
AT PRESSURE REGULATOR
344 N 003911006100 FITTING
Repalced by: A 0019904071
344 A 0019904071 ELBOW FITTING
AT PRESSURE REGULATOR
346 N 080705012003 NUT
AT PRESSURE REGULATOR
348 A 0004290827 THRUST RING
AT PRESSURE REGULATOR
A 0004290527 THRUST RING
AT PRESSURE REGULATOR
352 A 0019970845 SEAL RING
AT PRESSURE REGULATOR
A 0009872846 SEALING CORD
AT PRESSURE REGULATOR
356 A 0004312031 TEST CONNECTION
AT PRESSURE REGULATOR
VOSS
356 A 0004314531 TEST CONNECTION
AT PRESSURE REGULATOR
SCHAEFER
356 A 0004314831 TEST CONNECTION
WESTINGHOUSE
356 A 0004316131 TEST CONNECTION
WIRA
A 0009979486 PLUG
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
PRESSURE REGULATOR TO AIR RESERVOIR
N 912004008102 LOCK WASHER
PRESSURE REGULATOR TO AIR RESERVOIR
N 304032008006 NUT
PRESSURE REGULATOR TO AIR RESERVOIR
A 0004315006 VALVE
Repalced by: A 0004318106

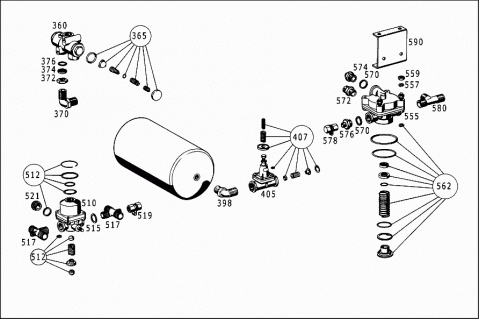

360 A 0004318106 VALVE
TWO-CIRCUIT
A 0005866943 REPAIR KIT
Repalced by: A 0015860843
365 A 0015860843 REPAIR KIT
N 007603022102 SEAL RING
AT TWO-CIRCUIT PROTECTIVE VALVE
N 074298022203 DOUBLE FITTING
AT TWO-CIRCUIT PROTECTIVE VALVE
370 A 0004293838 ELBOW FITTING
Repalced by: A 0004294638
370 A 0004294638 ELBOW FITTING
AT TWO-CIRCUIT PROTECTIVE VALVE
372 N 074305022202 NUT
AT TWO-CIRCUIT PROTECTIVE VALVE
374 A 0004290227 THRUST RING
AT TWO-CIRCUIT PROTECTIVE VALVE
376 A 0009870446 SEALING CORD
AT TWO-CIRCUIT PROTECTIVE VALVE

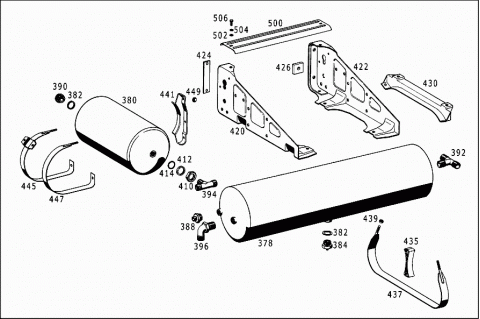

378 A 0004321701 RESERVOIR
Repalced by: A 0034322701
378 A 0034322701 RESERVOIR
60 L
380 A 0004323201 RESERVOIR
Repalced by: A 0004324301
380 A 0004324301 RESERVOIR
Repalced by: A 0034321301
380 A 0034321301 RESERVOIR
20 L
382 N 007603022102 SEAL RING
AT AIR RESERVOIR
384 A 0004321107 VALVE
DRAIN
384 A 0004322107 VALVE
DRAIN
384 A 0004322407 VALVE
DRAIN
N 074298022203 DOUBLE FITTING
AT AIR RESERVOIR
N 074313008101 FITTING
Repalced by: A 0009970171
388 A 0009970171 FITTING
AT AIR RESERVOIR
390 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
390 A 3469970230 SCREW PLUG
AT AIR RESERVOIR
392 N 074302022202 T-FITTING
AT AIR RESERVOIR
394 N 074302022405 T-FITTING
Repalced by: A 0029901970
394 A 0029901970 T-FITTING
AT AIR RESERVOIR
396 N 074301022203 ELBOW FITTING
AT AIR RESERVOIR
398 A 0004293838 ELBOW FITTING
Repalced by: A 0004294638
398 A 0004294638 ELBOW FITTING
AT AIR RESERVOIR
A 0004296444 VALVE
Repalced by: A 0014295244
A 0004296344 VALVE
Repalced by: A 0014295244
405 A 0014295244 VALVE
(OVERFLOW VALVE)
WESTINGHOUSE
A 0014297944 VALVE
(OVERFLOW VALVE)
GRAU
A 0014299844 VALVE
(OVERFLOW VALVE)
BOSCH
A 0034290244 VALVE
(OVERFLOW VALVE)
KNORR
A 0004303260 REPAIR KIT
TO 003 429 02 44
407 A 0005863642 REPAIR KIT
Repalced by: A 0005865842
407 A 0005865842 REPAIR KIT
TO 000 429 64 44,000 429 63 44
A 0015862042 REPAIR KIT
TO 001 429 52 44
410 N 074305022202 NUT
AT AIR RESERVOIR
412 A 0004290227 THRUST RING
AT AIR RESERVOIR
414 A 0009870446 SEALING CORD
AT AIR RESERVOIR
420 A 3634300139 SUPPORT
FRONT
422 A 3634300239 SUPPORT
REAR
424 A 3354750019 BASE
SUPPORT TO SIDE MEMBER
426 A 3044750184 SHIM
SUPPORT TO SIDE MEMBER
N 007349015003 WASHER
SUPPORT TO SIDE MEMBER
N 000961014050 SCREW
Repalced by: N 308676014020
N 308676014020 SCREW
SUPPORT TO SIDE MEMBER
N 000961014028 SCREW
SUPPORT TO SIDE MEMBER
N 000960014167 SCREW
Repalced by: N 000961014064
N 000961014064 SCREW
SUPPORT TO SIDE MEMBER
N 000960014167 SCREW
Repalced by: N 000961014064
N 000961014064 SCREW
SUPPORT TO SIDE MEMBER
N 912004014100 LOCK WASHER
SUPPORT TO SIDE MEMBER
N 000934014019 NUT
Repalced by: N 308673014001
N 308673014001 NUT
SUPPORT TO SIDE MEMBER
430 A 3634320016 SUPPORT
40-LITER AIR RESERVOIR
N 000961012151 SCREW
RESERVOIR TO SUPPORT
N 912004012100 LOCK WASHER
RESERVOIR TO SUPPORT
N 000934012022 NUT
RESERVOIR TO SUPPORT
435 A 3354320218 BASE
RESERVOIR TO SUPPORT
437 A 3634300040 STRAP
Repalced by: A 3854300140
437 A 3854300140 STRAP
RESERVOIR TO SUPPORT
439 N 000934010014 NUT
RESERVOIR TO SUPPORT
441 A 3634320240 BRACKET
20-LITER AIR RESERVOIR
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
N 912004008102 LOCK WASHER
BRACKET TO APPARATUS SUPPORT
N 304032008006 NUT
BRACKET TO APPARATUS SUPPORT
445 A 3634300440 STRAP
Repalced by: A 3854300140
445 A 3854300140 STRAP
AIR RESERVOIR TO BRACKET
447 A 3634300140 STRAP
AIR RESERVOIR TO BRACKET
449 N 000934010014 NUT
AIR RESERVOIR TO BRACKET
455 A 0014310805 BRAKE VALVE
TWO-CIRCUIT
457 A 0019920701 BUSHING
459 A 0004315587 PROTECTIVE CAP
461 A 0029974148 SEAL RING
465 A 0005868643 REPAIR KIT
A 0029974148 SEAL RING
66X3 MM
470 N 074302022304 T-FITTING
FRONT
472 A 0009901670 T-FITTING
REAR
474 N 074305022202 NUT
AT TRUCK-TRACTOR BRAKE VALVE
476 A 0004290227 THRUST RING
AT TRUCK-TRACTOR BRAKE VALVE
478 A 0009870446 SEALING CORD
AT TRUCK-TRACTOR BRAKE VALVE
20.30X2.40 MM
480 N 007603022102 SEAL RING
AT TRUCK-TRACTOR BRAKE VALVE
N 074313008101 FITTING
Repalced by: A 0009970171
482 A 0009970171 FITTING
AT TRUCK-TRACTOR BRAKE VALVE
484 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
484 N 000908022011 SCREW PLUG
486 A 3029970286 PLUG
488 N 007605014000 LOCK NUT
N 000933010105 SCREW
BRAKE VALVE TO SUPPORT
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
BRAKE VALVE TO SUPPORT
N 912004010102 LOCK WASHER
BRAKE VALVE TO SUPPORT
N 000934010014 NUT
BRAKE VALVE TO SUPPORT
492 A 3359930110 SPRING
494 A 3374275089 CONNECTOR
496 A 3614320088 EYE
500 A 3613250255 COVER PLATE
TRUCK-TRACTOR BRAKE VALVE
502 N 000125008418 WASHER
Repalced by: N 000125008443
502 N 000125008443 WASHER
504 N 912004008102 LOCK WASHER
506 N 000933008147 SCREW
Repalced by: N 304017008021
506 N 304017008021 SCREW
A 0004305881 VALVE
Repalced by: A 0004304881
510 A 0004304881 VALVE
(REGULATING VALVE)
512 A 0005867343 REPAIR KIT
Repalced by: A 0034304381
512 A 0034304381 REPAIR KIT
TO 000 430 58 81,000 430 48 81
N 074305022202 NUT
AT CONTROL VALVE
A 0004290227 THRUST RING
AT CONTROL VALVE
A 0009870446 SEALING CORD
AT CONTROL VALVE
515 N 007603022102 SEAL RING
AT CONTROL VALVE
517 N 074303000202 CROSS FITTING
AT CONTROL VALVE
519 A 0004312031 TEST CONNECTION
AT CONTROL VALVE
VOSS
519 A 0004314531 TEST CONNECTION
AT CONTROL VALVE
SCHAEFER
519 A 0004314831 TEST CONNECTION
AT CONTROL VALVE
WESTINGHOUSE
519 A 0004316131 TEST CONNECTION
AT CONTROL VALVE
WIRA
A 0009979486 PLUG
521 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
521 A 3469970230 SCREW PLUG
AT CONTROL VALVE
N 074303000202 CROSS FITTING
AT CONTROL VALVE
525 A 0004205524 BRAKE CYLINDER
Repalced by: A 0014203624
525 A 0014203624 BRAKE CYLINDER
FRONT LEFT
WESTINGHOUSE
A 0004207424 BRAKE CYLINDER
Repalced by: A 0014203924
525 A 0014203924 BRAKE CYLINDER
FRONT LEFT
KNORR
A 0004209124 BRAKE CYLINDER
Repalced by: A 0014203724
525 A 0014203724 BRAKE CYLINDER
FRONT LEFT
GRAU
525 A 0014206724 BRAKE CYLINDER
FRONT LEFT
BOSCH
A 0004205624 BRAKE CYLINDER
Repalced by: A 0014203524
525 A 0014203524 BRAKE CYLINDER
FRONT RIGHT
WESTINGHOUSE
A 0004207524 BRAKE CYLINDER
Repalced by: A 0014204024
525 A 0014204024 BRAKE CYLINDER
FRONT RIGHT
KNORR
A 0004209224 BRAKE CYLINDER
Repalced by: A 0014203824
525 A 0014203824 BRAKE CYLINDER
FRONT RIGHT
GRAU
525 A 0014206824 BRAKE CYLINDER
FRONT RIGHT
BOSCH
532 A 0004212086 DIAPHRAGM
TO 000 420 55 24,000 420 56 24
A 0004311528 DIAPHRAGM
TO 000 420 91 24,000 420 92 24
Y YYYYYYYYYYYY PART NAME MISSING
TO 001 420 37 24,001 420 38 24
532 A 0004311828 DIAPHRAGM
Repalced by: A 0004314128
532 A 0004311428 DIAPHRAGM
Repalced by: A 0004314128
532 A 0004314128 DIAPHRAGM
TO 001 420 39 24,001 420 40 24
534 A 0004212286 CUP
Repalced by: A 0004215286
534 A 0004215286 CUP
TO 000 420 55 24,000 420 56 24
A 0004319786 CUP
TO 000 420 91 24,000 420 92 24
Y YYYYYYYYYYYY PART NAME MISSING
TO 001 420 37 24,001 420 38 24
534 A 0014311286 CUP
Repalced by: A 0004216186
534 A 0004216186 CUP
TO 001 420 39 24,001 420 40 24
A 0009978786 PLUG
TO 001 420 39 24,001 420 40 24
535 A 0004210763 GUIDE
TO 000 420 55 24,000 420 56 24
A 0025863442 REPAIR KIT
TO 001 420 39 24,001 420 40 24
536 N 074301022203 ELBOW FITTING
DIAPHRAGM CYLINDER
538 N 074305022202 NUT
DIAPHRAGM CYLINDER
540 A 0004290227 THRUST RING
DIAPHRAGM CYLINDER
542 A 0009870446 SEALING CORD
DIAPHRAGM CYLINDER
544 N 912004016101 LOCK WASHER
AT BEARING BRACKET
546 N 000934016012 NUT
AT BEARING BRACKET
TO 000 420 55 24,74 24,91 24
T YYYYYYYYYYYY PART NAME MISSING
TO 000 420 56 24,75 24,92 24
546 N 913004016004 NUT
Repalced by: N 910113016002
546 N 910113016002 NUT
TO 001 420 36 24,39 24,37 24,67 24
T YYYYYYYYYYYY PART NAME MISSING
TO 001 420 35 24,40 24,38 24,68 24
550 N 001434014002 PIN
552 N 000433015005 WASHER
N 000094004065 COTTER PIN
A 0014295444 VALVE
Repalced by: A 0034295244
A 0034295244 VALVE
RELAY VALVE
KNORR
555 A 0004296544 VALVE
RELAY
WESTINGHOUSE
A 0014293044 VALVE
RELAY VALVE
GRAU
A 0059972648 SEAL RING
22.3X2.4 MM;TO 001 429 30 44
A 0004312788 VALVE SEAT
TO 001 429 30 44
A 0059972748 SEAL RING
80X3 MM;TO 000 429 28 95, GRAU
A 0014311660 SEAL RING
28X2 MM;TO 001 429 30 44
A 0014311760 SEAL RING
86X2 MM;TO 001 429 30 44
A 0004311980 GASKET
TO 001 429 30 44
A 0025863542 REPAIR KIT
TO 001 429 54 44, 003 429 52 44
557 N 912004008102 LOCK WASHER
RELAY VALVE TO BRACKET
559 N 304032008006 NUT
RELAY VALVE TO BRACKET
562 A 0005865742 REPAIR KIT
TO 000 429 65 44
570 N 007603022102 SEAL RING
AT RELAY VALVE
572 N 074298022203 DOUBLE FITTING
AT RELAY VALVE
N 074313008101 FITTING
Repalced by: A 0009970171
574 A 0009970171 FITTING
AT RELAY VALVE
576 N 074313006100 FITTING
Repalced by: A 0039972072
576 A 0039972072 FITTING
AT RELAY VALVE
578 A 0004312031 TEST CONNECTION
AT RELAY VALVE
VOSS
578 A 0004314531 TEST CONNECTION
AT RELAY VALVE
SCHAEFER
578 A 0004314831 TEST CONNECTION
AT RELAY VALVE
WESTINGHOUSE
578 A 0004316131 TEST CONNECTION
AT RELAY VALVE
WIRA
A 0009979486 PLUG
580 N 074302022202 T-FITTING
AT RELAY VALVE
N 074305022202 NUT
AT RELAY VALVE
A 0004290227 THRUST RING
AT RELAY VALVE
A 0009870446 SEALING CORD
AT RELAY VALVE
590 A 3614296040 BRACKET
RELAY VALVE
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
N 912004008102 LOCK WASHER
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
N 304032008006 NUT
A 0034205018 WHEEL BRAKE CYLINDER
Repalced by: A 0074204018
A 0054208918 WHEEL BRAKE CYLINDER
Repalced by: A 0074204018
595 A 0074204018 WHEEL BRAKE CYLINDER
(TRISTOP CYLINDER),LEFT
A 0034205118 WHEEL BRAKE CYLINDER
Repalced by: A 0074204118
A 0054209018 WHEEL BRAKE CYLINDER
Repalced by: A 0074204118
597 A 0074204118 WHEEL BRAKE CYLINDER
(TRISTOP CYLINDER),RIGHT
600 A 0004212086 DIAPHRAGM
TO 003 420 50 18,003 420 51 18
602 A 0004233087 PROTECTIVE CAP
TO 003 420 50 18,003 420 51 18
604 A 0004212286 CUP
Repalced by: A 0004215286
604 A 0004215286 CUP
TO 003 420 50 18,003 420 51 18
606 A 0099979482 HOSE
TO 003 420 50 18,003 420 51 18
608 A 0019976590 LOOM TIE
Repalced by: N 900288014002
608 N 900288014002 CLAMP
003 420 50 18,003 420 51 18
610 N 007603022102 SEAL RING
TO 003 420 50 18,003 420 51 18
612 N 074298022203 DOUBLE FITTING
TO 003 420 50 18,003 420 51 18
614 A 0005868142 REPAIR KIT
TO 003 420 50 18,003 420 51 18
N 913004016004 NUT
Repalced by: N 910113016002
N 910113016002 NUT
635 A 3464295032 T-FITTING
REAR AXLE I TRISTOP CYLINDER
A 0009900987 CROSS FITTING
REAR AXLE I TRISTOP CYLINDER
639 N 074305022202 NUT
REAR AXLE I TRISTOP CYLINDER
641 A 0004290227 THRUST RING
REAR AXLE I TRISTOP CYLINDER
643 A 0009870446 SEALING CORD
REAR AXLE I TRISTOP CYLINDER
645 N 912004016101 LOCK WASHER
TRISTOP CYLINDER TO BEARING BRACKET
647 N 000934016012 NUT
TRISTOP CYLINDER TO BEARING BRACKET
650 A 3619910005 PIN
SLACK ADJUSTER TO TRISTOP CYLINDER
652 N 000433015005 WASHER
SLACK ADJUSTER TO TRISTOP CYLINDER
N 000094004065 COTTER PIN
SLACK ADJUSTER TO TRISTOP CYLINDER
658 N 074313018201 FITTING
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
A 0004293335 BRAKE HOSE
Repalced by: A 0004295635
A 0004295635 BRAKE HOSE
Repalced by: A 0004297335
660 A 0004297335 BRAKE HOSE
COMPRESSED AIR LINE
N 074298022203 DOUBLE FITTING
662 A 3434290034 ADAPTER FITTING
COMPRESSED AIR LINE TO PRESSURE REGULATOR
664 N 074297014400 SEAL RING
Repalced by: N 915045014100
664 N 915045014100 SEAL RING
COMPRESSED AIR LINE TO PRESSURE REGULATOR
666 N 074302022304 T-FITTING
FOR LINE TO BRAKE BOOSTER
668 A 0004312031 TEST CONNECTION
T-FITTING
VOSS
668 A 0004314531 TEST CONNECTION
T-FITTING
SCHAEFER
668 A 0004314831 TEST CONNECTION
T-FITTING
WESTINGHOUSE
668 A 0004316131 TEST CONNECTION
T-FITTING
WIRA
A 0009979486 PLUG
670 A 3464296540 BRACKET
672 N 074305022202 NUT
T-FITTING TO BRACKET
N 000933006121 SCREW
Repalced by: N 304017006020
N 304017006020 SCREW
SHOCK ABSORBER BRACKET
N 912004006102 LOCK WASHER
SHOCK ABSORBER BRACKET
N 000934006007 NUT
SHOCK ABSORBER BRACKET
N 001593015500 CLAMP
Repalced by: A 3609950210
A 3609950210 CLAMP
LINE MOUNTING
N 000933006030 SCREW
Repalced by: N 304017006022
N 304017006022 SCREW
LINE MOUNTING
N 000125006421 WASHER
LINE MOUNTING
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
LINE MOUNTING
680 A 3434293608 LINE
LEFT
682 N 915018015000 UNION NUT
684 N 003861015004 GLAND
N 074304022200 FITTING
A 0009950565 CLAMP
Repalced by: A 0029973890
A 0029973890 LOOM TIE
Repalced by: N 916017020000
N 916017020000 CLAMP
Repalced by: N 000000000667
N 000000000667 CLAMP
N 000933006124 SCREW
N 000934006007 NUT
688 A 3434293608 LINE
RIGHT
690 N 915018015000 UNION NUT
692 N 003861015004 GLAND
695 N 915045012100 SEAL RING
A 0009950565 CLAMP
Repalced by: A 0029973890
A 0029973890 LOOM TIE
Repalced by: N 916017020000
N 916017020000 CLAMP
Repalced by: N 000000000667
N 000000000667 CLAMP
N 000933006124 SCREW
N 000934006007 NUT
N 001593015500 CLAMP
Repalced by: A 3609950210
A 3609950210 CLAMP
N 000933006030 SCREW
Repalced by: N 304017006022
N 304017006022 SCREW
N 000125006421 WASHER
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
700 A 3634293940 BRACKET
LINE MOUNTING
A 3634293840 BRACKET
Repalced by: A 3634294240
704 A 3634294240 BRACKET
LINE MOUNTING
706 A 3614296240 BRACKET
LINE MOUNTING
N 000933006121 SCREW
Repalced by: N 304017006020
N 304017006020 SCREW
LINE MOUNTING
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
LINE MOUNTING
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
LINE MOUNTING
N 912004008102 LOCK WASHER
LINE MOUNTING
N 304032008006 NUT
LINE MOUNTING
710 A 3375420140 BRACKET
LINE MOUNTING
712 A 3634292840 BRACKET
LINE MOUNTING
714 A 3609950601 CLAMP
LINE MOUNTING
716 N 001593019001 CLAMP
LINE MOUNTING
718 A 3524281640 BRACKET
LINE MOUNTING
720 A 3354290340 BRACKET
LINE MOUNTING
722 A 3464295940 BRACKET
Repalced by: A 3464296040
722 A 3464296040 BRACKET
LINE MOUNTING
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
LINE MOUNTING
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
LINE MOUNTING
N 912004008102 LOCK WASHER
LINE MOUNTING
N 304032008006 NUT
LINE MOUNTING
A 3609950501 CLAMP
Repalced by: A 3609952001
725 A 3609952001 CLAMP
Repalced by: A 6739950001
725 A 6739950001 CLAMP
LINE MOUNTING
727 N 001593015500 CLAMP
Repalced by: A 3609950210
727 A 3609950210 CLAMP
LINE MOUNTING
N 000000001147 SCREW
LINE MOUNTING
M 6X20
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
730 A 3634210020 PROTECTIVE PLATE
BRAKE HOSE,FRONT
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO SIDE MEMBER
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRACKET TO SIDE MEMBER
N 912004008102 LOCK WASHER
BRACKET TO SIDE MEMBER
N 304032008006 NUT
BRACKET TO SIDE MEMBER
735 A 3354292440 BRACKET
737 A 3614296140 BRACKET
A 3464295940 BRACKET
Repalced by: A 3464296040
A 3464296040 BRACKET
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO FRAME
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
BRACKET TO FRAME
N 009021008205 WASHER
Repalced by: N 009021008213
N 009021008213 WASHER
BRACKET TO FRAME
N 912004008102 LOCK WASHER
BRACKET TO FRAME
N 304032008006 NUT
BRACKET TO FRAME
A 3309950501 CLAMP
LINE MOUNTING
742 A 3609950201 CLAMP
Repalced by: A 3604300143
742 A 3604300143 CLAMP
Repalced by: N 916016008200
742 N 916016008200 CLAMP
LINE MOUNTING
N 001593015500 CLAMP
Repalced by: A 3609950210
A 3609950210 CLAMP
LINE MOUNTING
N 000000001147 SCREW
MOUNTING CLAMP TO BRACKET AND TO FRAME
M 6X20
N 912004006102 LOCK WASHER
MOUNTING CLAMP TO BRACKET AND TO FRAME
N 000934006007 NUT
MOUNTING CLAMP TO BRACKET AND TO FRAME
745 A 3614295240 BRACKET
LINE MOUNTING
747 A 3634291740 BRACKET
LINE MOUNTING
749 A 3634291840 BRACKET
LINE MOUNTING
A 3375420140 BRACKET
LINE MOUNTING
751 A 3464295640 BRACKET
Repalced by: A 3464296040
751 A 3464296040 BRACKET
LINE MOUNTING
753 A 3634660140 BRACKET
LINE MOUNTING
N 000933012058 SCREW
LINE MOUNTING
N 912004012100 LOCK WASHER
LINE MOUNTING
A 3609950601 CLAMP
LINE MOUNTING
N 001593019001 CLAMP
LINE MOUNTING
N 000000001147 SCREW
LINE MOUNTING
M 6X20
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
A 3609950501 CLAMP
Repalced by: A 3609952001
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
LINE MOUNTING
N 001593015500 CLAMP
Repalced by: A 3609950210
A 3609950210 CLAMP
LINE MOUNTING
N 000000001147 SCREW
LINE MOUNTING
M 6X20
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
A 3609950501 CLAMP
Repalced by: A 3609952001
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
LINE MOUNTING
N 000000001147 SCREW
LINE MOUNTING
M 6X20
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
A 3464295740 BRACKET
Repalced by: A 3833020540
A 3833020540 BRACKET
LINE MOUNTING
765 A 3464296040 BRACKET
LINE MOUNTING
A 3614296140 BRACKET
LINE MOUNTING
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
LINE MOUNTING
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
LINE MOUNTING
N 912004008102 LOCK WASHER
LINE MOUNTING
N 304032008006 NUT
LINE MOUNTING
A 3609950501 CLAMP
Repalced by: A 3609952001
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
LINE MOUNTING
N 001593015500 CLAMP
Repalced by: A 3609950210
A 3609950210 CLAMP
LINE MOUNTING
N 000000001147 SCREW
LINE MOUNTING
M 6X20
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
N 000000001147 SCREW
LINE MOUNTING
M 6X20
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
775 A 0004290701 LINE
Repalced by: A 0004296201
775 A 0004296201 LINE
6 MM
777 N 915017006100 UNION NUT
779 N 003861006007 GLAND
Repalced by: A 0019901667
779 A 0019901667 SEAL CONE
782 N 003902006001 CONNECTION FITTING
Repalced by: A 0039979172
782 A 0039979172 FITTING
LINE CONNECTIONS
785 A 0089976082 HOSE
Repalced by: A 0009872627
785 A 0009872627 PLASTIC PIPE
BLACK
6X4 MM
787 A 0019973572 FITTING
Repalced by: N 915059004000
787 N 915059004001 FITTING
789 A 0019975072 FITTING
PRESSURE GAUGE
791 N 915017006200 UNION NUT
PRESSURE GAUGE
793 N 040621022204 INSULATING HOSE
795 N 040621010211 INSULATING HOSE
797 A 1869970481 GROMMET
799 A 3149970181 GROMMET
804 A 3634291340 BRACKET
AT ENGINE MOUNTING;TO MOUNT LINES
806 A 3525420440 BRACKET
Repalced by: A 3525422840
806 A 3525422840 BRACKET
AT SIDE MEMBER
0
A 3634292240 BRACKET
Repalced by: A 3364290440
808 A 3364290440 BRACKET
RADIATOR MOUNTING
810 A 3634291940 BRACKET
AT SIDE MEMBER
A 3634292540 BRACKET
AT OIL TANK
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
BRACKET TO SIDE MEMBER
N 912004008102 LOCK WASHER
BRACKET TO SIDE MEMBER
N 304032008006 NUT
N 000933010105 SCREW
BRACKET TO SIDE MEMBER
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
BRACKET TO SIDE MEMBER
N 912004010102 LOCK WASHER
BRACKET TO SIDE MEMBER
N 000934010014 NUT
BRACKET TO SIDE MEMBER
815 A 3609950101 CLAMP
AT BRACKET
A 3609950201 CLAMP
Repalced by: A 3604300143
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
AT BRACKET
A 0009954901 CLAMP
Repalced by: N 916016022202
817 N 916016022202 CLAMP
AT BRACKET
819 A 3634292040 BRACKET
CAB
821 A 3634291640 BRACKET
BRACKET TO BUMPER STRUT
N 000933006121 SCREW
Repalced by: N 304017006020
N 304017006020 SCREW
LINE MOUNTING
N 000000001147 SCREW
LINE MOUNTING
M 6X20
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
A 0019974290 LOOM TIE
Repalced by: A 0019974390
A 0019974390 LOOM TIE
LINE MOUNTING
A 0009952101 CLAMP
Repalced by: N 916016012200
825 N 916016012200 CLAMP
LINE MOUNTING
N 000000001147 SCREW
LINE MOUNTING
M 6X20
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
N 000000001147 SCREW
LINE MOUNTING
M 6X20
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
A 0004290201 LINE
Repalced by: A 0005516256
830 A 0005516256 TUBE
15 MM
N 915018015000 UNION NUT
835 N 915018015000 UNION NUT
837 N 003861015004 GLAND
839 N 915065015101 THRUST RING
841 N 915045012100 SEAL RING
845 A 0004290801 LINE
8 MM
847 N 915017008100 UNION NUT
849 N 003861008005 GLAND

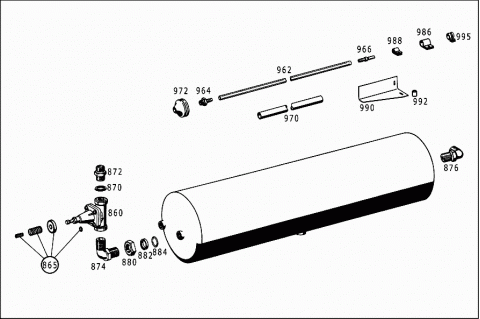

A 0004296044 VALVE
Repalced by: A 0014294944
860 A 0014294944 VALVE
(OVERFLOW VALVE)
WESTINGHOUSE
A 0024296744 VALVE
(OVERFLOW VALVE)
GRAU
A 0034294844 VALVE
(OVERFLOW VALVE)
KNORR
A 0004290545 DIAPHRAGM
TO 001 429 49 44
A 0004290945 DIAPHRAGM
TO 003 429 48 44
N 007985006193 SCREW
Repalced by: N 000000001146
N 000000001146 SCREW
TO 001 429 49 44 M 6X16
N 912004006102 LOCK WASHER
TO 001 429 49 44
865 A 0005865842 REPAIR KIT
TO 000 429 60 44
870 N 007603022102 SEAL RING
872 N 074298022203 DOUBLE FITTING
874 A 0004293838 ELBOW FITTING
Repalced by: A 0004294638
874 A 0004294638 ELBOW FITTING
876 N 074301022203 ELBOW FITTING
880 N 074305022202 NUT
882 A 0004290227 THRUST RING
884 A 0009870446 SEALING CORD
890 A 0004296544 VALVE
RELAY
WESTINGHOUSE
A 0014295444 VALVE
Repalced by: A 0034295244
A 0034295244 VALVE
RELAY
KNORR
A 0014293044 VALVE
FROM BRAKE CIRCUIT II TEST CONNECTION TO BRAKE HOSE,REAR AXLE I
GRAU
A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 30 44
A 0004312788 VALVE SEAT
TO 001 429 30 44
A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
A 0014311660 SEAL RING
28X2 MM;TO 001 429 30 44
A 0014311760 SEAL RING
86X2 MM;TO 001 429 30 44
A 0004311980 GASKET
TO 001 429 30 44
A 0025863542 REPAIR KIT
TO 001 429 54 44, 003 429 52 44
891 A 0005865742 REPAIR KIT
TO 000 429 65 44
892 N 912004008102 LOCK WASHER
RELAY VALVE TO BRACKET
894 N 304032008006 NUT
RELAY VALVE TO BRACKET
900 N 007603022102 SEAL RING
AT RELAY VALVE
902 N 074313006100 FITTING
Repalced by: A 0039972072
902 A 0039972072 FITTING
AT RELAY VALVE
904 A 0004312031 TEST CONNECTION
AT RELAY VALVE
VOSS
904 A 0004314531 TEST CONNECTION
AT RELAY VALVE
SCHAEFER
904 A 0004314831 TEST CONNECTION
AT RELAY VALVE
WESTINGHOUSE
904 A 0004316131 TEST CONNECTION
AT RELAY VALVE
WIRA
A 0009979486 PLUG
N 074313008101 FITTING
Repalced by: A 0009970171
906 A 0009970171 FITTING
AT RELAY VALVE
N 003954008101 FITTING
Repalced by: A 0009909970
908 A 0009909970 T-FITTING
AT RELAY VALVE
910 N 007605014000 LOCK NUT
AT RELAY VALVE
912 A 3209970286 PLUG
AT RELAY VALVE
914 N 074302022304 T-FITTING
AT RELAY VALVE
916 N 074302022202 T-FITTING
AT RELAY VALVE
918 N 074305022202 NUT
AT RELAY VALVE
920 A 0004290227 THRUST RING
AT RELAY VALVE
922 A 0009870446 SEALING CORD
AT RELAY VALVE
930 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
930 A 0004306781 VALVE
HAND BRAKE VALVE
KNORR
930 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
935 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
935 A 0004305760 REPAIR KIT
TO 000 430 55 81,NR.1020 WABCO
A 0004305760 REPAIR KIT
TO 000 430 55 81,NR.1050,WABCO
A 0004305860 REPAIR KIT
TO 000 430 56 81,NR.1150,WABCO
A 0005868143 REPAIR KIT
Repalced by: A 0004305860
A 0004305860 REPAIR KIT
TO 000 430 56 81,NR.1120 WABCO
A 0025866243 REPAIR KIT
Repalced by: A 0034303881
A 0034303881 REPAIR KIT
TO 000 430 66 81,000 430 67 81,KNORR
950 N 007603014405 SEAL RING
952 A 0039979972 FITTING
A 3634312340 BRACKET
Repalced by: A 3634311540
956 A 3634311540 BRACKET
N 000963006024 SCREW
HAND BRAKE VALVE TO BRACKET
N 000934006007 NUT
HAND BRAKE VALVE TO BRACKET
N 000933006102 SCREW
BRACKET TO CAB FLOOR
N 000933006127 SCREW
BRACKET TO CAB FLOOR
N 912004006102 LOCK WASHER
BRACKET TO CAB FLOOR
N 000125006421 WASHER
BRACKET TO CAB FLOOR
N 000934006007 NUT
BRACKET TO CAB FLOOR
N 003902008001 CONNECTION FITTING
Repalced by: A 0019972672
960 A 0019972672 FITTING
Repalced by: A 0039978972
960 A 0039978972 FITTING
Repalced by: A 0029905971
960 A 0029905971 FITTING
962 A 0089979082 HOSE
6 X 8 MM
964 A 0019976772 FITTING
Repalced by: N 915059006000
964 N 915059006002 FITTING
966 A 0019976672 FITTING
Repalced by: N 915058006000
966 N 915058006000 FITTING
AT HAND BRAKE VALVE
N 915017008100 UNION NUT
AT HAND BRAKE VALVE
N 003861008005 GLAND
AT HAND BRAKE VALVE
970 N 040621016200 INSULATING HOSE
500 MM
972 A 3639970181 GROMMET
974 N 074310013002 HOSE
974 N 916027013006 HOSE
13X535 MM
N 074304000101 FITTING
Repalced by: A 0029971872
976 A 0029971872 FITTING
FROM RELAY VALVE TO T-FITTING
978 N 915045012100 PART NAME MISSING
FROM RELAY VALVE TO T-FITTING
980 N 915001013002 UNION NUT
Repalced by: N 915017015200
980 N 915017015200 UNION NUT
FROM RELAY VALVE TO T-FITTING
A 0009950565 CLAMP
Repalced by: A 0029973890
A 0029973890 LOOM TIE
Repalced by: N 916017020000
N 916017020000 CLAMP
Repalced by: N 000000000667
N 000000000667 CLAMP
FROM RELAY VALVE TO T-FITTING
N 000933006124 SCREW
FROM RELAY VALVE TO T-FITTING
N 000934006007 NUT
FROM RELAY VALVE TO T-FITTING
984 N 074302022304 T-FITTING
A 3609950501 CLAMP
Repalced by: A 3609952001
986 A 3609952001 CLAMP
Repalced by: A 6739950001
986 A 6739950001 CLAMP
LINE MOUNTING
988 A 3609950201 CLAMP
Repalced by: A 3604300143
988 A 3604300143 CLAMP
Repalced by: N 916016008200
988 N 916016008200 CLAMP
LINE MOUNTING
N 040621008200 INSULATING HOSE
LINE MOUNTING
10 MM
N 000000001147 SCREW
LINE MOUNTING
M 6X20
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
990 A 3634290047 COVERING
ENGINE COMPARTMENT,ON THE LEFT
N 000933006063 SCREW
HEAT SHIELD TO SIDE MEMBER
992 A 1159911540 SPACER TUBE
HEAT SHIELD TO SIDE MEMBER
N 000125006421 WASHER
HEAT SHIELD TO SIDE MEMBER
N 913002006005 NUT
Repalced by: N 913002006009
N 913002006009 NUT
HEAT SHIELD TO SIDE MEMBER
A 0009954901 CLAMP
Repalced by: N 916016022202
995 N 916016022202 CLAMP
HEAT SHIELD TO SIDE MEMBER
N 007985008119 SCREW
HEAT SHIELD TO SIDE MEMBER
N 912004008102 LOCK WASHER
HEAT SHIELD TO SIDE MEMBER
N 000125006421 WASHER
HEAT SHIELD TO SIDE MEMBER
N 000934008013 NUT
HEAT SHIELD TO SIDE MEMBER
N 000934008013 NUT
HEAT SHIELD TO SIDE MEMBER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
