Transporto priemonė: LP 2232/6X4; VIN numerio dalis: 363451

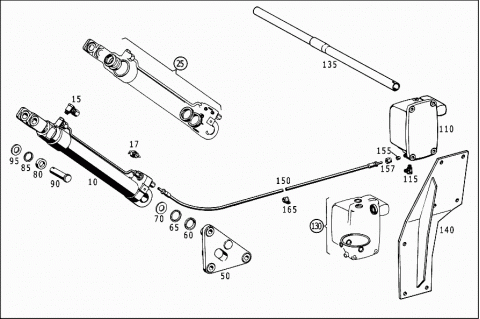

Grupė: 55 HYDRAULIC TILTING SYSTEM - 001 HYDRAULIC SYSTEM

#	Kodas	Pavadinimas
010	A 3635530005	CYLINDER
	Repalced by: A 3635530205
015	A 0005510001	HOUSING
		NIKE
017	A 0005531007	VALVE
		NIKE
025	A 0005860155	REPAIR KIT
		HYDRAULIC CYLINDER
		NIKE
	A 3635530105	CYLINDER
	Repalced by: A 3635530205
	A 3635530205	CYLINDER
		HYDRAULIC SYSTEM USED FOR CAB TILTING
		WEBER
	A 0019901268	FITTING
		TO 363 553 01 05
	A 0005532507	VALVE
		(SHUT-OFF VALVE)
		TO 363 553 01 05
	A 0009812031	JOINT BEARING
	Repalced by: A 6208910417
	A 6208910417	BUSHING
		HYDRAULIC CYLINDER TO BEARING BRACKET
		TO 363 553 01 05
	A 0005860255	REPAIR KIT
		HYDRAULIC CYLINDER
		TO 363 553 01 05
	A 0005500835	REPAIR KIT
		HYDRAULIC CYLINDER
		TO 363 553 02 05
050	A 3635530038	BEARING BRACKET
		HYDRAULIC CYLINDER
	N 000961014044	SCREW
		BEARING BRACKET TO SIDE MEMBER
	N 000934014019	NUT
	Repalced by: N 308673014001
	N 308673014001	NUT
		BEARING BRACKET TO SIDE MEMBER
060	A 3635530076	WASHER
		HYDRAULIC CYLINDER TO BEARING BRACKET
065	A 3635530060	SEAL RING
		HYDRAULIC CYLINDER TO BEARING BRACKET
070	N 000125025005	WASHER
	Repalced by: N 000125025008
070	N 000125025008	WASHER
		HYDRAULIC CYLINDER TO BEARING BRACKET
	N 000094006327	COTTER PIN
		HYDRAULIC CYLINDER TO BEARING BRACKET
	A 3635530176	WASHER
	Repalced by: A 3635530051
080	A 3635530051	SPACER RING
		HYDRAULIC CYLINDER TO SWIVEL ARM
	A 3635530160	SEAL RING
	Repalced by: A 3635530260
085	A 3635530260	SEAL RING
		HYDRAULIC CYLINDER TO SWIVEL ARM
090	N 001434020013	PIN
		HYDRAULIC CYLINDER TO SWIVEL ARM
095	N 000125021006	WASHER
		HYDRAULIC CYLINDER TO SWIVEL ARM
	N 000094005045	COTTER PIN
		HYDRAULIC CYLINDER TO SWIVEL ARM
110	A 3635530001	PUMP
	Repalced by: A 3635530101
110	A 3635530101	PUMP
		(HAND PUMP)
		WEBER
115	A 0019904368	FITTING
		NIKE
130	A 0005860055	REPAIR KIT
		HAND PUMP
		NIKE
	A 0009909268	FITTING
		WEBER
	A 0009970197	FASTENER
		WEBER
	A 0005860355	REPAIR KIT
		HAND PUMP
		WEBER
	A 3635530013	LEVER
	Repalced by: A 0005832545
	A 0005832145	ROD
	Repalced by: A 0005832545
135	A 0005832545	ROD
		HAND PUMP
140	A 3635500040	BRACKET
		HAND PUMP
	N 000961012052	SCREW
	Repalced by: N 308676012012
	N 308676012012	SCREW
		BRACKET TO SUPPORT
	N 912004012100	LOCK WASHER
		BRACKET TO SUPPORT
	N 000933010129	SCREW
	Repalced by: N 304017010002
	N 304017010002	SCREW
		HAND PUMP TO BRACKET
	N 912004010102	LOCK WASHER
		HAND PUMP TO BRACKET
	N 000934010014	NUT
		HAND PUMP TO BRACKET
	A 0009906471	ELBOW FITTING
		HIGH PRESSURE HOSE TO HAND PUMP
150	A 3635530182	HOSE
		FROM HAND PUMP TO HYDRAULIC CYLINDER
		1500 MM
	A 3635530382	HOSE
		FROM HAND PUMP TO HYDRAULIC CYLINDER
		1740 MM
155	N 003861006007	GLAND
	Repalced by: A 0019901667
155	A 0019901667	SEAL CONE
		HIGH PRESSURE HOSE
157	N 915017006100	UNION NUT
		HIGH PRESSURE HOSE
165	N 916016008200	CLAMP
		HIGH PRESSURE HOSE TO FRAME
	N 000000001147	SCREW
		HIGH PRESSURE HOSE TO FRAME
		M 6X20
	N 912004006102	LOCK WASHER
		HIGH PRESSURE HOSE TO FRAME
	N 000934006007	NUT
		HIGH PRESSURE HOSE TO FRAME
