Transporto priemonė: LP 608; VIN numerio dalis: 314057

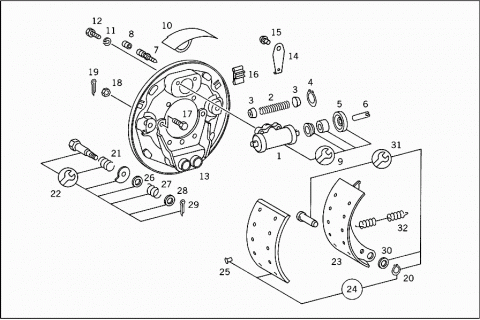

Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 0014209518 | WHEEL BRAKE CYLINDER |
| Repalced by: A 3144200018 | ||
| 001 | A 3144200018 | WHEEL BRAKE CYLINDER |
| Repalced by: A 3144200218 | ||
| 001 | A 3144200218 | WHEEL BRAKE CYLINDER |
| Repalced by: A 3144200518 | ||
| 001 | A 3144200418 | WHEEL BRAKE CYLINDER |
| Repalced by: A 3144200518 | ||
| 001 | A 3144200518 | WHEEL BRAKE CYLINDER |
| LESS THRUST PIN | ||
| 38.1 MM,SCHAEFER | ||
| 001 | A 3144200318 | WHEEL BRAKE CYLINDER |
| LESS THRUST PIN | ||
| 38.1 MM,TEVES | ||
| 002 | A 0004300289 | SPRING RETAINER |
| Repalced by: A 3144210190 | ||
| 002 | A 3144210090 | SPRING |
| Repalced by: A 3144210190 | ||
| 002 | A 3144210190 | SPRING |
| TO 314 420 02 18 | ||
| 003 | A 3144210089 | SPRING RETAINER |
| Repalced by: A 3144210189 | ||
| 003 | A 3144210189 | FILLER |
| TO 314 420 02 18 | ||
| 004 | A 0009948241 | LOCK |
| TO 001 420 95 18 | ||
| 005 | A 0004213487 | PROTECTIVE CAP |
| Repalced by: A 0004230187 | ||
| 005 | A 0004230187 | PROTECTIVE CAP |
| TO 314 420 02 18 | ||
| 005 | A 0004215287 | PROTECTIVE CAP |
| Repalced by: A 3164210087 | ||
| 005 | A 3164210087 | PROTECTIVE CAP |
| TO 314 420 02 18,314 420 03 18 | ||
| 005 | A 3164210087 | PROTECTIVE CAP |
| TO 314 420 04 18,314 420 05 18 | ||
| 005 | A 3164210087 | PROTECTIVE CAP |
| TO 314 420 04 18 | ||
| 006 | A 0004212088 | THRUST PIN |
| Repalced by: A 3144210088 | ||
| 006 | A 3144210088 | THRUST PIN |
| TO 314 420 02 18 | ||
| 007 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 007 | A 3075530107 | VALVE |
| BLEEDING | ||
| 008 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 008 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 008 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 008 | A 0004210887 | PROTECTIVE CAP |
| 009 | A 0005864942 | REPAIR KIT |
| Repalced by: A 0015862342 | ||
| 009 | A 0005867942 | REPAIR KIT |
| TO 001 420 95 18 | ||
| 009 | A 0015862342 | REPAIR KIT |
| TO 314 420 00 18,314 420 02 18, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 314 420 03 18 | ||
| 009 | A 0004200451 | REPAIR KIT |
| TO 314 420 04 18,314 420 05 18 | ||
| 010 | A 3244210120 | PROTECTIVE PLATE |
| 011 | N 912004010102 | LOCK WASHER |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 012 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 012 | N 304017010028 | SCREW |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 013 | A 3144200616 | BRAKE ANCHOR PLATE |
| 013 | A 3144201016 | BRAKE ANCHOR PLATE |
| 014 | A 3194210068 | INSPECTION HOLE COVER |
| 015 | A 3129900096 | RIVET |
| 016 | A 3094210211 | PLUG |
| 017 | N 000960012008 | SCREW |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 017 | N 000960012021 | SCREW |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 017 | N 000960012034 | SCREW |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 017 | A 3539900204 | SCREW |
| Repalced by: N 900170012001 | ||
| 017 | N 900170012001 | SCREW |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 018 | N 000935012003 | NUT |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 019 | N 000094003219 | COTTER PIN |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| A 3144210118 | PIVOT PIN | |
| Repalced by: A 3144200082 | ||
| 020 | N 000471020001 | LOCK RING |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| A 3194230019 | ADJUSTING PIN | |
| Repalced by: A 3095860142 | ||
| A 3094210119 | PIN | |
| Repalced by: A 3095860142 | ||
| 021 | A 1209931201 | SPRING |
| ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE | ||
| A 1874210236 | ADJUSTING CAM | |
| Repalced by: A 3095860142 | ||
| A 3094210036 | ADJUSTING CAM | |
| Repalced by: A 3095860142 | ||
| A 3095860142 | REPAIR KIT | |
| Repalced by: A 3094200138 | ||
| 022 | A 3094200138 | REPAIR KIT |
| BRAKE READJUSTMENT | ||
| 023 | A 3144200620 | BRAKE SHOE |
| Repalced by: A 3144200419 | ||
| 023 | A 3144200720 | BRAKE SHOE |
| Repalced by: A 3144200419 | ||
| 023 | A 3144200820 | BRAKE SHOE |
| Repalced by: A 3144200419 | ||
| 023 | A 3144200319 | BRAKE SHOE |
| Repalced by: A 3144200419 | ||
| 023 | A 3144200419 | BRAKE SHOE |
| LESS LINING | ||
| A 3244211910 | BRAKE LINING | |
| (PARTS KIT) (BRAKE LINING | ||
| 11.00 MM,4X 324 421 16 10) | ||
| 024 | A 3144210710 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 11.00 MM,4X 314 421 02 10) | ||
| A 3244212210 | BRAKE LINING | |
| (PARTS KIT),FOR EXPORT (BRAKE LINING | ||
| 10.60 MM,4X 324 421 15 10) | ||
| 024 | A 3144210610 | BRAKE LINING |
| (PARTS KIT),FOR EXPORT (ASBESTOS-FREE BRAKE LINING | ||
| 10.60 MM,4X 314 421 05 10) | ||
| A 3244212010 | BRAKE LINING | |
| (PARTS KIT) (BRAKE LINING | ||
| 11.80 MM,4X 324 421 17 10) | ||
| 024 | A 3144210810 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 11.80 MM,4X 314 421 03 10) | ||
| A 3244212110 | BRAKE LINING | |
| (PARTS KIT) (BRAKE LINING | ||
| 12.50 MM,4X 324 421 18 10) | ||
| 024 | A 3144210910 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 12.50 MM,4X 314 421 04 10) | ||
| 025 | A 3129900395 | RIVET |
| Repalced by: A 3079900197 | ||
| 025 | A 3079900197 | RIVET |
| BRAKE LINING TO BRAKE SHOE | ||
| 026 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 026 | N 009021008213 | WASHER |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 027 | A 3149930601 | SPRING |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 028 | N 000433008406 | WASHER |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 029 | N 000094003000 | COTTER PIN |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 030 | A 3244210452 | SPACER WASHER |
| Repalced by: A 3144210052 | ||
| 030 | A 3244210552 | SPACER WASHER |
| Repalced by: A 3144210052 | ||
| 030 | A 3244210652 | SPACER WASHER |
| Repalced by: A 3144210052 | ||
| 030 | A 3244210752 | SPACER WASHER |
| Repalced by: A 3144210052 | ||
| 030 | A 3144210052 | SPACER WASHER |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 2.50 MM | ||
| 031 | A 3144200082 | REPAIR KIT |
| Repalced by: A 3144210118 | ||
| 031 | A 3144210118 | PIVOT PIN |
| BRAKE SHOE BEARING | ||
| 032 | A 3149930710 | SPRING |
| Repalced by: A 3149931110 | ||
| 032 | A 3149931110 | SPRING |
| (RELEASE SPRING) | ||
| A 0014209518 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 3144200018 | ||
| A 3144200018 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 3144200218 | ||
| A 3144200218 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 3144200518 | ||
| A 3144200418 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 3144200518 | ||

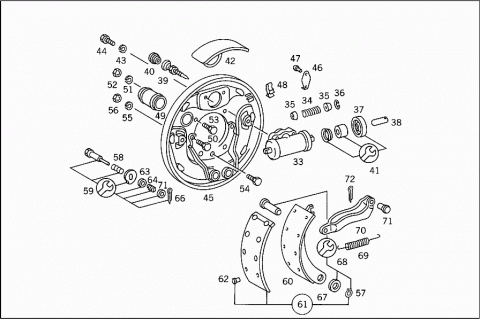

| 033 | A 3144200518 | WHEEL BRAKE CYLINDER |
| LESS THRUST PIN | ||
| 38.10 MM,SCHAEFER | ||
| 033 | A 3144200318 | WHEEL BRAKE CYLINDER |
| LESS THRUST PIN | ||
| 38.10 MM,TEVES | ||
| 034 | A 0004300289 | SPRING RETAINER |
| Repalced by: A 3144210190 | ||
| 034 | A 3144210090 | SPRING |
| Repalced by: A 3144210190 | ||
| 034 | A 3144210190 | SPRING |
| TO 314 420 02 18 | ||
| A 3144210089 | SPRING RETAINER | |
| Repalced by: A 3144210189 | ||
| 035 | A 3144210189 | FILLER |
| TO 314 420 02 18 | ||
| 036 | A 0009948241 | LOCK |
| TO 001 420 95 18 | ||
| 037 | A 0004213487 | PROTECTIVE CAP |
| Repalced by: A 0004230187 | ||
| 037 | A 0004230187 | PROTECTIVE CAP |
| TO 314 420 02 18 | ||
| 037 | A 0004215287 | PROTECTIVE CAP |
| Repalced by: A 3164210087 | ||
| 037 | A 3164210087 | PROTECTIVE CAP |
| TO 314 420 02 18,314 420 03 18 | ||
| 037 | A 3164210087 | PROTECTIVE CAP |
| TO 314 420 04 18,314 420 05 18 | ||
| 038 | A 0004212088 | THRUST PIN |
| Repalced by: A 3144210088 | ||
| 038 | A 3144210088 | THRUST PIN |
| TO 314 420 02 18 | ||
| 039 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 039 | A 3075530107 | VALVE |
| BLEEDING | ||
| 040 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 040 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 040 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 040 | A 0004210887 | PROTECTIVE CAP |
| 041 | A 0005864942 | REPAIR KIT |
| Repalced by: A 0015862342 | ||
| 041 | A 0005867942 | REPAIR KIT |
| TO 001 420 95 18 | ||
| 041 | A 0015862342 | REPAIR KIT |
| TO 314 420 00 18,314 420 02 18, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 314 420 03 18 | ||
| 041 | A 0004200451 | REPAIR KIT |
| TO 314 420 04 18,314 420 05 18 | ||
| 042 | A 3244210120 | PROTECTIVE PLATE |
| HAND BRAKE SHAFT | ||
| 043 | N 912004010102 | LOCK WASHER |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 044 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 044 | N 304017010028 | SCREW |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 045 | A 3144201517 | BRAKE ANCHOR PLATE |
| Repalced by: A 3144201617 | ||
| 045 | A 3144201617 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 045 | A 3144201417 | BRAKE ANCHOR PLATE |
| Repalced by: A 3144201717 | ||
| 045 | A 3144201717 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 046 | A 3194210068 | INSPECTION HOLE COVER |
| 047 | A 3129900096 | RIVET |
| 048 | A 3094210211 | PLUG |
| 049 | A 3144230054 | PIPE SOCKET |
| HAND BRAKE SHAFT | ||
| 050 | A 3149900114 | SCREW |
| Repalced by: A 3169900014 | ||
| 050 | A 3169900014 | SCREW |
| BRAKE ANCHOR TO AXLE HOUSING | ||
| 051 | N 912004014100 | LOCK WASHER |
| BRAKE ANCHOR TO AXLE HOUSING | ||
| 052 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 052 | N 308673014001 | NUT |
| BRAKE ANCHOR TO AXLE HOUSING | ||
| 053 | N 000960012029 | SCREW |
| BRAKE ANCHOR TO AXLE HOUSING | ||
| 054 | N 000960012043 | SCREW |
| BRAKE ANCHOR TO AXLE HOUSING | ||
| 055 | N 912004012100 | LOCK WASHER |
| BRAKE ANCHOR TO AXLE HOUSING | ||
| 056 | A 3229900050 | NUT |
| Repalced by: A 3189900150 | ||
| 056 | A 3189900150 | NUT |
| BRACKET TO CAB FLOOR | ||
| A 3144210118 | PIVOT PIN | |
| Repalced by: A 3144200082 | ||
| 057 | N 000471020001 | LOCK RING |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| A 3194230019 | ADJUSTING PIN | |
| Repalced by: A 3095860142 | ||
| A 3094210119 | PIN | |
| Repalced by: A 3095860142 | ||
| 058 | A 1209931201 | SPRING |
| ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE | ||
| A 1874210236 | ADJUSTING CAM | |
| Repalced by: A 3095860142 | ||
| A 3094210036 | ADJUSTING CAM | |
| Repalced by: A 3095860142 | ||
| A 3095860142 | REPAIR KIT | |
| Repalced by: A 3094200138 | ||
| 059 | A 3094200138 | REPAIR KIT |
| BRAKE READJUSTMENT | ||
| A 3144200620 | BRAKE SHOE | |
| Repalced by: A 3144200419 | ||
| A 3144200720 | BRAKE SHOE | |
| Repalced by: A 3144200419 | ||
| A 3144200820 | BRAKE SHOE | |
| Repalced by: A 3144200419 | ||
| A 3144200319 | BRAKE SHOE | |
| Repalced by: A 3144200419 | ||
| 060 | A 3144200419 | BRAKE SHOE |
| LESS LINING | ||
| A 3244211910 | BRAKE LINING | |
| (PARTS KIT) (BRAKE LINING | ||
| 11.00 MM,4X 324 421 16 10) | ||
| 061 | A 3144210710 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 11.00 MM,4X 314 421 02 10) | ||
| 061 | A 3244212210 | BRAKE LINING |
| (PARTS KIT),FOR EXPORT (BRAKE LINING | ||
| 10.60 MM,4X 324 421 15 10) | ||
| 061 | A 3144210610 | BRAKE LINING |
| (PARTS KIT),FOR EXPORT (ASBESTOS-FREE BRAKE LINING | ||
| 10.60 MM,4X 314 421 05 10) | ||
| A 3244212010 | BRAKE LINING | |
| (PARTS KIT) (BRAKE LINING | ||
| 11.80 MM,4X 324 421 17 10) | ||
| 061 | A 3144210810 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 11.80 MM,4X 314 421 03 10) | ||
| 061 | A 3244212110 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 12.50 MM,4X 324 421 18 10) | ||
| 061 | A 3144210910 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 12.50 MM,4X 314 421 04 10) | ||
| A 3129900395 | RIVET | |
| Repalced by: A 3079900197 | ||
| 062 | A 3079900197 | RIVET |
| BRAKE LINING TO BRAKE SHOE | ||
| 063 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 063 | N 009021008213 | WASHER |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 064 | A 3149930601 | SPRING |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| N 000433008406 | WASHER | |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 066 | N 000094003219 | COTTER PIN |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| A 3244210452 | SPACER WASHER | |
| Repalced by: A 3144210052 | ||
| A 3244210552 | SPACER WASHER | |
| Repalced by: A 3144210052 | ||
| A 3244210652 | SPACER WASHER | |
| Repalced by: A 3144210052 | ||
| A 3244210752 | SPACER WASHER | |
| Repalced by: A 3144210052 | ||
| A 3244210852 | SPACER WASHER | |
| Repalced by: A 3144210052 | ||
| 067 | A 3144210052 | SPACER WASHER |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 2.50 MM | ||
| 068 | A 3144200082 | REPAIR KIT |
| Repalced by: A 3144210118 | ||
| 068 | A 3144210118 | PIVOT PIN |
| BRAKE SHOE BEARING | ||
| 069 | A 3149930810 | SPRING |
| (RELEASE SPRING) | ||
| A 3144230147 | ROD | |
| Repalced by: A 3144230044 | ||
| A 3144230044 | THRUST SHACKLE | |
| Repalced by: A 3164230144 | ||
| A 3164230044 | THRUST SHACKLE | |
| Repalced by: A 3164230144 | ||
| 070 | A 3164230144 | THRUST SHACKLE |
| 071 | N 001434014021 | PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 071 | N 001434014049 | PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 072 | N 000094004065 | COTTER PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| A 0014303401 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024300701 | ||
| A 0024300701 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0034301801 | ||

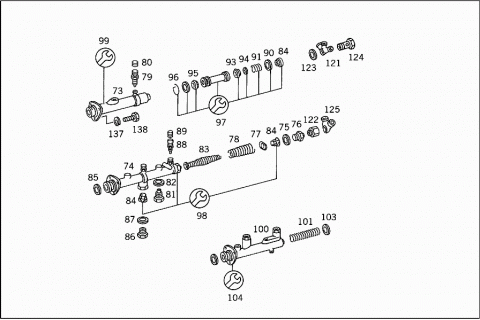

| 073 | A 0034301801 | BRAKE MASTER CYLINDER |
| 074 | A 0014305101 | BRAKE MASTER CYLINDER |
| 075 | N 007603040102 | SEAL RING |
| 076 | A 0004310522 | THREADED UNION |
| FRONT | ||
| 077 | A 0004312676 | WASHER |
| 078 | A 0004314393 | SPRING |
| A 0004310989 | SPRING RETAINER | |
| 079 | A 0004200655 | BLEEDER VALVE |
| TO 001 430 34 01,002 430 07 01 | ||
| 079 | A 0004200655 | BLEEDER VALVE |
| TO 001 430 34 01,002 430 07 01 | ||
| 080 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 080 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 080 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 080 | A 0004210887 | PROTECTIVE CAP |
| TO 001 430 34 01,002 430 07 01 | ||
| 080 | A 0004210887 | PROTECTIVE CAP |
| TO 001 430 34 01,002 430 07 01 | ||
| 081 | A 0004310671 | SCREW |
| 082 | N 007603008109 | SEAL RING |
| 083 | A 0004315493 | SPRING |
| A 0004310989 | SPRING RETAINER | |
| A 0004310760 | SEAL RING | |
| Repalced by: A 0004300381 | ||
| A 0004300081 | VALVE | |
| Repalced by: A 0004300381 | ||
| 084 | A 0004300381 | VALVE |
| TO 001 430 34 01,002 430 07 01 | ||
| 084 | A 0004300381 | VALVE |
| TO 001 430 34 01,002 430 07 01 | ||
| 085 | A 0004311176 | WASHER |
| 086 | A 0004310475 | THREADED UNION |
| BOTTOM | ||
| 087 | N 007603032101 | SEAL RING |
| A 0009930605 | SPRING | |
| TO 001 430 34 01,002 430 07 01 | ||
| A 0009930605 | SPRING | |
| TO 001 430 34 01,002 430 07 01 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| 088 | A 3075530107 | VALVE |
| 089 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 089 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 089 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 089 | A 0004210887 | PROTECTIVE CAP |
| 090 | A 0004312076 | WASHER |
| TO 001 430 34 01,002 430 07 01 | ||
| 090 | A 0004312076 | WASHER |
| TO 001 430 34 01,002 430 07 01 | ||
| 091 | A 0004316293 | SPRING |
| TO 001 430 34 01 | ||
| 091 | A 0004316293 | SPRING |
| TO 001 430 34 01 | ||
| 091 | A 0014310693 | SPRING |
| TO 002 430 07 01 | ||
| A 0004312176 | WASHER | |
| TO 001 430 34 01,002 430 07 01 | ||
| A 0004312176 | WASHER | |
| TO 001 430 34 01,002 430 07 01 | ||
| 093 | A 0004310186 | CUP |
| TO 002 430 07 01 | ||
| A 0004315883 | PISTON | |
| TO 003 430 07 01 | ||
| 094 | A 0004310685 | FILLER RING |
| TO 003 430 07 01 | ||
| 095 | A 0004310086 | CUP |
| TO 002 430 07 01 | ||
| 096 | A 0009940135 | SNAP RING |
| TO 002 430 07 01 | ||
| 097 | A 0005864243 | REPAIR KIT |
| BRAKE MASTER CYLINDER | ||
| TO 001 430 34 01 | ||
| 097 | A 0005864443 | REPAIR KIT |
| BRAKE MASTER CYLINDER | ||
| TO 002 430 07 01 | ||
| 098 | A 0005864643 | REPAIR KIT |
| BRAKE MASTER CYLINDER | ||
| A 0015864443 | REPAIR KIT | |
| Repalced by: A 0044309601 | ||
| 099 | A 0044309601 | REPAIR KIT |
| BRAKE MASTER CYLINDER | ||
| TO 003 430 18 01 | ||
| A 0004310565 | VALVE | |
| TO 003 430 18 01 | ||
| A 0014309301 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024304701 | ||
| 100 | A 0024304701 | BRAKE MASTER CYLINDER |
| 101 | A 0004319593 | SPRING |
| A 0004319693 | SPRING | |
| A 0004312189 | SPRING RETAINER | |
| A 0004313176 | WASHER | |
| A 0004312176 | WASHER | |
| A 0004315593 | SPRING | |
| A 0009979672 | FITTING | |
| A 0004310871 | SCREW | |
| A 0002950071 | SCREW | |
| A 0004313587 | PROTECTIVE CAP | |
| A 0004311856 | SCREW PLUG | |
| 103 | N 007603035101 | SEAL RING |
| 104 | A 0005864543 | REPAIR KIT |
| BRAKE MASTER CYLINDER | ||
| TO 001 430 93 01,002 430 47 01 | ||
| A 0034307201 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0034309401 | ||

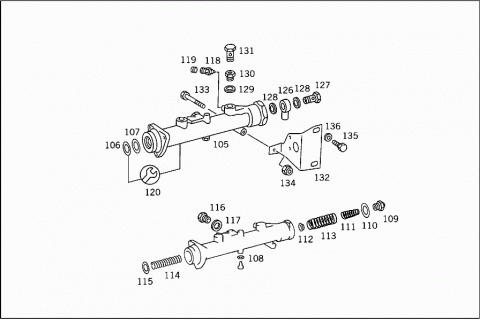

| 105 | A 0034309401 | BRAKE MASTER CYLINDER |
| SCHAEFER | ||
| 105 | A 0034308101 | BRAKE MASTER CYLINDER |
| TEVES | ||
| A 0099971748 | SEAL RING | |
| Repalced by: A 0014312960 | ||
| 106 | A 0014312960 | SEAL RING |
| TO 003 430 81 01,TEVES | ||
| A 0099971848 | SEAL RING | |
| Repalced by: A 0014313060 | ||
| 107 | A 0014313060 | SEAL RING |
| TO 003 430 81 01,TEVES | ||
| A 0004310971 | SCREW | |
| TO 003 430 72 01,SCHAEFER | ||
| 108 | A 0004319360 | SEAL RING |
| TO 003 430 72 01,SCHAEFER | ||
| 109 | A 0004312675 | THREADED UNION |
| TO 003 430 72 01,SCHAEFER | ||
| 110 | A 0004319260 | SEAL RING |
| TO 003 430 72 01,SCHAEFER | ||
| A 0004308281 | VALVE | |
| TO 003 430 72 01,SCHAEFER | ||
| 111 | A 0009933705 | SPRING |
| TO 003 430 72 01,SCHAEFER | ||
| 112 | A 0004312789 | SPRING RETAINER |
| TO 003 430 72 01,SCHAEFER | ||
| 113 | A 0014313093 | SPRING |
| TO 003 430 72 01,SCHAEFER | ||
| 114 | A 0014313193 | SPRING |
| TO 003 430 72 01,SCHAEFER | ||
| 115 | A 0004314176 | WASHER |
| TO 003 430 72 01,SCHAEFER | ||
| 116 | A 0004312575 | THREADED UNION |
| TO 003 430 72 01,SCHAEFER | ||
| 117 | A 0004319160 | SEAL RING |
| TO 003 430 72 01,SCHAEFER | ||
| A 0004202155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| 118 | A 3075530107 | VALVE |
| 119 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 119 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 119 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 119 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 119 | A 0004210887 | PROTECTIVE CAP |
| 120 | A 0025863143 | REPAIR KIT |
| Repalced by: A 0035860143 | ||
| 120 | A 0035860143 | REPAIR KIT |
| BRAKE MASTER CYLINDER | ||
| TO 003 430 94 01,003 430 72 01 | ||
| 120 | A 0025866843 | REPAIR KIT |
| BRAKE MASTER CYLINDER | ||
| TO 003 430 81 01,TEVES | ||
| 121 | A 0004284024 | DISTRIBUTOR |
| 121 | A 0004284024 | DISTRIBUTOR |
| 122 | A 0004230184 | FITTING |
| 123 | N 007603014405 | SEAL RING |
| 124 | A 0004280026 | HOLLOW SCREW |
| 124 | A 0004280026 | HOLLOW SCREW |
| 125 | A 0004293037 | DISTRIBUTOR |
| 126 | A 0004280830 | CONNECTOR |
| CONNECTIONS "21,22" | ||
| 127 | A 0004280026 | HOLLOW SCREW |
| CONNECTIONS "21,22" | ||
| 128 | N 007603014405 | SEAL RING |
| CONNECTIONS "21,22" | ||
| 129 | N 007603022102 | SEAL RING |
| MASTER CYLINDER,CONNECTIONS: | ||
| 01,02 | ||
| 129 | N 007603022102 | SEAL RING |
| MASTER CYLINDER,CONNECTIONS: | ||
| 01,02 | ||
| 129 | N 007603016401 | SEAL RING |
| MASTER CYLINDER,CONNECTIONS: | ||
| 01,02 | ||
| 130 | A 0009904968 | FITTING |
| MASTER CYLINDER,CONNECTIONS: | ||
| 01,02 | ||
| 130 | A 0009905168 | FITTING |
| MASTER CYLINDER,CONNECTIONS: | ||
| 01,02 | ||
| 131 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 131 | N 915036010108 | HOLLOW SCREW |
| MASTER CYLINDER,CONNECTIONS: | ||
| 01,02 | ||
| 131 | N 915036018204 | HOLLOW SCREW |
| MASTER CYLINDER,CONNECTIONS: | ||
| 01,02 | ||
| 131 | N 915036012203 | HOLLOW SCREW |
| MASTER CYLINDER,CONNECTIONS: | ||
| 01,02 | ||
| N 007603014405 | SEAL RING | |
| MASTER CYLINDER,CONNECTIONS: | ||
| 01,02 | ||
| A 3184313140 | BRACKET | |
| Repalced by: A 3184314040 | ||
| A 3184313140 | BRACKET | |
| Repalced by: A 3184314040 | ||
| 132 | A 3184314040 | BRACKET |
| BRAKE MASTER CYLINDER | ||
| A 3604292440 | BRACKET | |
| Repalced by: A 3604292940 | ||
| A 6205240340 | BRACKET | |
| BRAKE MASTER CYLINDER | ||
| A 6205240340 | BRACKET | |
| BRAKE MASTER CYLINDER | ||
| A 3604292340 | BRACKET | |
| Repalced by: A 3604292940 | ||
| A 3184290840 | BRACKET | |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 133 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 133 | N 304014008001 | SCREW |
| BRAKE MASTER CYLINDER TO BRACKET | ||
| 134 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 134 | N 913004008001 | NUT |
| BRAKE MASTER CYLINDER TO BRACKET | ||
| 135 | N 000961012151 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 136 | N 000125013008 | WASHER |
| 136 | N 000125013008 | WASHER |
| N 910113012002 | NUT | |
| BRACKET TO FRAME SIDE MEMBER | ||
| 137 | N 912004010102 | LOCK WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 138 | N 000933010260 | SCREW |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 138 | N 000933010145 | SCREW |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| A 3184290840 | BRACKET | |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 139 | N 007603022102 | SEAL RING |
| FLUID RESERVOIR | ||
| A 0004311502 | RESERVOIR | |
| Repalced by: A 0004312102 | ||
| 140 | A 0004312102 | RESERVOIR |
| 141 | A 0004310933 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 141 | A 0004313233 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 141 | A 0004315133 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 141 | A 0004313533 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 141 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| 142 | A 0009972940 | SEAL RING |
| 43,7 X 30 MM | ||
| A 0004310034 | STRAINER | |
| Repalced by: A 0004313734 | ||
| A 0004313734 | STRAINER | |
| Repalced by: A 0004314334 | ||
| 143 | A 0004314334 | STRAINER |
| 144 | A 0004311040 | CLAMP |
| 145 | A 0004310802 | RESERVOIR |
| 145 | A 0004310802 | RESERVOIR |
| 145 | A 0004314702 | RESERVOIR |
| 145 | A 0014312902 | RESERVOIR |

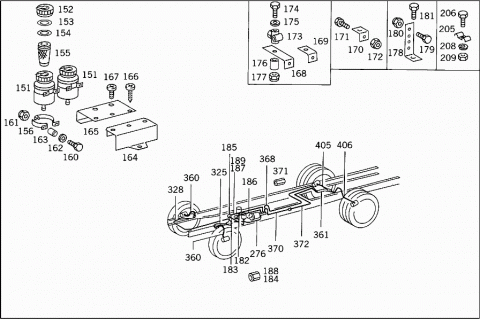

| 146 | A 0004313133 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 146 | A 0004314333 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 146 | A 0004315133 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 146 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| 146 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 146 | A 0002950237 | SCREW PLUG |
| KNUCKLE THREAD | ||
| 146 | A 0002950237 | SCREW PLUG |
| 147 | A 0009972940 | SEAL RING |
| 43,7 X 30 MM | ||
| 148 | A 0039976440 | SEAL RING |
| 42 X 21,5 MM | ||
| 149 | A 0004310034 | STRAINER |
| Repalced by: A 0004313734 | ||
| 149 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 149 | A 0004314334 | STRAINER |
| TO 000 431 47 02,001 431 29 02 | ||
| A 0002950023 | STRAINER | |
| Repalced by: A 0004313734 | ||
| 150 | A 0004311040 | CLAMP |
| TO 000 431 47 02 | ||
| 151 | A 0004315802 | RESERVOIR |
| WITH WARNING DEVICE | ||
| 151 | A 0014313802 | RESERVOIR |
| WITH WARNING DEVICE | ||
| 152 | A 0004314933 | FILLER CAP |
| Repalced by: A 0004313733 | ||
| 152 | A 0004313733 | FILLER CAP |
| Repalced by: A 0004316533 | ||
| 152 | A 0004316533 | FILLER CAP |
| Repalced by: A 0004317633 | ||
| 152 | A 0004317633 | FILLER CAP |
| TO 001 431 38 02,000 431 58 02 | ||
| 153 | A 0009972940 | SEAL RING |
| 43,7 X 30 MM | ||
| 154 | A 0039976440 | SEAL RING |
| 42 X 21,5 MM | ||
| 155 | A 0004313134 | STRAINER |
| TO 000 431 58 02,001 431 38 02 | ||
| A 0004314534 | STRAINER | |
| Repalced by: A 0004313134 | ||
| 156 | A 0004311040 | CLAMP |
| TO 000 431 58 02 | ||
| 157 | A 0004310435 | CONNECTOR |
| 158 | N 912004006102 | LOCK WASHER |
| FLUID RESERVOIR TO BRACKET | ||
| 159 | N 007985006109 | SCREW |
| FLUID RESERVOIR TO BRACKET | ||
| A 3144311640 | BRACKET | |
| 160 | N 000933006102 | SCREW |
| FLUID RESERVOIR TO SEAT BOX | ||
| 160 | N 000933006102 | SCREW |
| RESERVOIR TO DRIVER'S SEAT BOX | ||
| 160 | N 000933006124 | SCREW |
| RESERVOIR TO DRIVER'S SEAT BOX | ||
| 161 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 161 | N 913004006001 | NUT |
| RESERVOIR TO DRIVER'S SEAT BOX | ||
| 162 | N 000125006421 | WASHER |
| RESERVOIR TO DRIVER'S SEAT BOX | ||
| 163 | A 3892680525 | TUBE |
| RESERVOIR TO DRIVER'S SEAT BOX | ||
| 164 | A 3184300410 | BRACKET |
| FLUID RESERVOIR | ||
| 165 | A 3184314340 | BRACKET |
| FLUID RESERVOIR | ||
| 166 | N 007981005211 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 167 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 167 | N 007985006580 | SCREW |
| BRACKET TO CAB | ||
| 168 | A 3184313740 | BRACKET |
| Repalced by: A 3812710540 | ||
| 168 | A 3812710540 | BRACKET |
| 169 | A 3184280043 | ANGLE |
| Repalced by: A 4220980239 | ||
| 169 | A 4220980239 | BRACKET |
| Repalced by: A 4420981239 | ||
| 169 | A 4420981239 | BRACKET |
| Repalced by: A 4420981839 | ||
| 169 | A 4420981839 | BRACKET |
| 170 | A 3604280243 | ANGLE |
| 171 | N 000933006102 | SCREW |
| BRACKET TO CAB CROSS MEMBER | ||
| 171 | N 000933006102 | SCREW |
| BRACKET TO CAB CROSS MEMBER | ||
| 171 | N 000933006102 | SCREW |
| BRACKET TO CAB | ||
| 171 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 171 | N 304017008021 | SCREW |
| ANGLE TO FRAME | ||
| 172 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 172 | N 913004006001 | NUT |
| BRACKET TO CAB | ||
| 172 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 172 | N 913004008001 | NUT |
| ANGLE TO FRAME | ||
| 173 | A 0004311231 | TEST CONNECTION |
| HYDRAULIC BRAKE | ||
| 173 | A 0004316631 | TEST CONNECTION |
| HYDRAULIC BRAKE | ||
| 174 | N 304017006026 | SCREW |
| Repalced by: N 304017006026 | ||
| 174 | N 304017006026 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 174 | N 000931006187 | SCREW |
| Repalced by: N 304014006005 | ||
| 174 | N 304014006005 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 174 | N 000931008266 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 175 | N 000125006421 | WASHER |
| TEST CONNECTION TO BRACKET | ||
| 175 | N 000125006421 | WASHER |
| TEST CONNECTION TO BRACKET | ||
| 176 | A 3354310053 | SPACER TUBE |
| Repalced by: A 3094310249 | ||
| 176 | A 3094310249 | GUIDE BUSHING |
| TEST CONNECTION TO BRACKET | ||
| 177 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 177 | N 913004006001 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 177 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 177 | N 913004006001 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 177 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 177 | N 913004008001 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 178 | A 6205240340 | BRACKET |
| 179 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 179 | N 304017008016 | SCREW |
| BRACKET TO CONSOLE | ||
| 180 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 180 | N 913004008001 | NUT |
| BRACKET TO CONSOLE | ||
| 181 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 182 | A 3144201328 | LINE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 182 | A 3144201328 | LINE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 183 | A 3144202228 | LINE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| A 3144201028 | LINE | |
| Repalced by: A 3144200328 | ||
| A 3144200328 | LINE | |
| Repalced by: A 3404204129 | ||
| 183 | A 3404204129 | LINE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 183 | A 3404204129 | LINE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| A 3144203028 | LINE | |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 184 | A 0009970273 | FITTING |
| A 3099970382 | HOSE | |
| Repalced by: A 3109970382 | ||
| A 3109970382 | HOSE | |
| Repalced by: A 6039970482 | ||
| 185 | A 6039970482 | HOSE |
| A 3144284301 | LINE | |
| A 3144284401 | LINE | |
| A 3144284601 | LINE | |
| N 900288014002 | CLAMP | |
| A 3219970581 | GROMMET | |
| Repalced by: A 1819970181 | ||
| A 1819970181 | GROMMET | |
| 185 | A 3149970182 | HOSE |
| BETWEEN THE LINES | ||
| 185 | A 3149970182 | HOSE |
| BETWEEN THE LINES | ||
| A 3149970982 | HOSE | |
| Repalced by: A 3109970382 | ||
| A 3109970382 | HOSE | |
| Repalced by: A 6039970482 | ||
| 185 | A 6039970482 | HOSE |
| BETWEEN THE LINES | ||
| A 3144201228 | LINE | |
| Repalced by: A 3144200328 | ||
| A 3144200328 | LINE | |
| Repalced by: A 3404204129 | ||
| A 3144201728 | LINE | |
| Repalced by: A 3144200328 | ||
| A 3144200328 | LINE | |
| Repalced by: A 3404204129 | ||
| 186 | A 3404204129 | LINE |
| FROM RUBBER HOSE TO MASTER CYLINDER | ||
| 186 | A 3404204129 | LINE |
| FROM RUBBER HOSE TO MASTER CYLINDER | ||
| 187 | A 3144202128 | LINE |
| FROM RUBBER HOSE TO MASTER CYLINDER | ||
| A 3144202928 | LINE | |
| FROM RUBBER HOSE TO MASTER CYLINDER | ||
| 188 | A 0009970273 | FITTING |
| A 3144284501 | LINE | |
| A 3144284701 | LINE | |
| A 3144284801 | LINE | |
| 189 | A 3144284901 | LINE |
| 8 MM,800 MM | ||
| 190 | N 900288014002 | CLAMP |
| 191 | A 1809900066 | UNION SCREW |
| 192 | N 007603022102 | SEAL RING |
| 193 | A 0004310335 | CONNECTOR |
| 194 | A 3099900054 | NUT |
| 195 | A 0004280130 | CONNECTOR |
| 196 | A 0004280126 | HOLLOW SCREW |
| 197 | N 007603022102 | SEAL RING |
| 198 | A 0004293137 | DISTRIBUTOR |
| 199 | A 0004293037 | DISTRIBUTOR |
| 200 | A 0004280830 | CONNECTOR |
| 201 | N 007603014405 | SEAL RING |
| 201 | N 007603012110 | SEAL RING |
| 202 | A 0009901763 | HOLLOW SCREW |
| 203 | A 3149950220 | CLAMP |
| A 0009951801 | CLAMP | |
| Repalced by: N 916016008200 | ||
| 204 | N 916016008200 | CLAMP |
| A 3129950032 | CLAMP | |
| Repalced by: A 3179950832 | ||
| 205 | A 3179950832 | CLAMP |
| A 3144760137 | BRACKET | |
| Repalced by: A 3124761036 | ||
| A 3124761036 | BRACKET | |
| 206 | N 000084006111 | SCREW |
| 206 | N 007985006107 | SCREW |
| 207 | N 007971005210 | SHEET METAL SCREW |
| 208 | N 912004006102 | LOCK WASHER |
| 209 | N 000934006007 | NUT |
| 210 | A 0089975482 | HOSE |
| 11X8 MM | ||
| 211 | N 040621022200 | INSULATING HOSE |
| 212 | N 900288011002 | CLAMP |
| 213 | A 3099900054 | NUT |
| 214 | N 007603022102 | SEAL RING |
| 215 | N 915052008008 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 8/22 MM | ||
| 215 | N 915052008019 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 8/16 MM | ||
| A 3044293040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| A 3604292040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 216 | A 6205240340 | BRACKET |
| 217 | N 007985006112 | SCREW |
| 218 | N 000125006421 | WASHER |
| 219 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 219 | N 913002006009 | NUT |
| A 3144290240 | BRACKET | |
| Repalced by: A 3812950440 | ||
| A 3812950440 | BRACKET | |
| A 3184312440 | BRACKET | |
| Repalced by: A 3604293140 | ||
| 221 | A 3604293140 | BRACKET |
| A 3144290240 | BRACKET | |
| Repalced by: A 3812950440 | ||
| A 3812950440 | BRACKET | |
| A 3604292540 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 224 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 224 | N 304017008021 | SCREW |
| 225 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 225 | N 000125008443 | WASHER |
| 226 | N 913004008008 | NUT |
| Repalced by: N 910113008007 | ||
| 226 | N 910113008007 | NUT |
| 227 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 227 | N 916016018202 | CLAMP |
| 228 | A 0019978490 | LOOM TIE |
| 229 | N 007985006109 | SCREW |
| 230 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 230 | N 913002006009 | NUT |

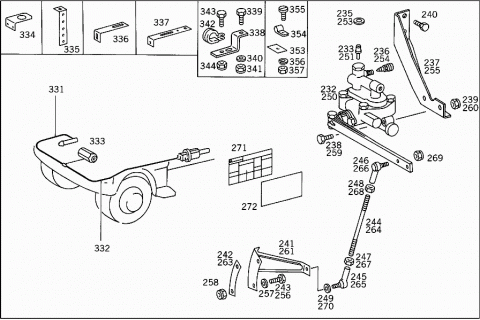

| 232 | A 0004317512 | BRAKE PRESSURE REGULATOR |
| A 0004312339 | LEVER | |
| TOOTHED | ||
| A 0004312439 | LEVER | |
| 233 | A 0004311068 | VALVE PART |
| A 0014315793 | SPRING | |
| 235 | N 007603018101 | SEAL RING |
| A 0004310465 | VALVE | |
| Repalced by: A 0004310265 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| 236 | A 3075530107 | VALVE |
| 237 | A 3604300339 | SUPPORT |
| 238 | N 000931010258 | SCREW |
| BRAKE POWER REGULATOR TO SUPPORT | ||
| 239 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 239 | N 910113010000 | NUT |
| BRAKE POWER REGULATOR TO SUPPORT | ||
| 240 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 240 | N 308676012026 | SCREW |
| SUPPORT TO FRAME | ||
| N 910113012002 | NUT | |
| SUPPORT TO FRAME | ||
| 241 | A 3604311740 | BRACKET |
| 242 | A 3554310384 | SHIM |
| BRACKET TO AXLE HOUSING | ||
| 243 | N 000933010157 | SCREW |
| BRACKET TO AXLE HOUSING | ||
| 244 | N 900331008420 | PULL ROD |
| R.H. THREAD | ||
| 244 | N 900331008427 | PULL ROD |
| L.H. AND R.H. THREAD | ||
| A 0004310467 | YOKE | |
| Repalced by: A 0004310667 | ||
| 245 | A 0004310667 | YOKE |
| R.H. THREAD | ||
| 245 | A 0004310667 | YOKE |
| R.H. THREAD | ||
| 246 | A 0004310867 | YOKE |
| L.H. THREAD | ||
| 247 | N 304032008006 | NUT |
| R.H. THREAD | ||
| 247 | N 304032008006 | NUT |
| R.H. THREAD | ||
| 248 | N 000934008035 | NUT |
| L.H. THREAD | ||
| 249 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 249 | N 000125008443 | WASHER |
| PULL ROD TO BRACKET AND TO BRAKEPRESSURE-REGULATOR LEVER | ||
| 250 | A 0004314312 | BRAKE PRESSURE REGULATOR |
| A 0004310968 | VALVE PART | |
| Repalced by: A 0004311068 | ||
| 251 | A 0004311068 | VALVE PART |
| A 0014315793 | SPRING | |
| 253 | N 007603018101 | SEAL RING |
| A 0004310465 | VALVE | |
| Repalced by: A 0004310265 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| 254 | A 3075530107 | VALVE |
| A 3604311540 | BRACKET | |
| Repalced by: A 3604300339 | ||
| 255 | A 3604300339 | SUPPORT |
| 256 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 256 | N 304017010002 | SCREW |
| BRACKET TO FRAME | ||
| 256 | N 000933010157 | SCREW |
| A 3609900040 | WASHER | |
| Repalced by: A 4219905440 | ||
| 257 | A 4219905440 | WASHER |
| BRACKET TO FRAME | ||
| 258 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 258 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 259 | N 000931010258 | SCREW |
| REGULATOR TO BRACKET | ||
| 260 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 260 | N 910113010000 | NUT |
| REGULATOR TO BRACKET | ||
| 261 | A 3604311740 | BRACKET |
| OPERATING ROD | ||
| 263 | A 3554310384 | SHIM |
| A 0004310567 | YOKE | |
| Repalced by: A 0004310467 | ||
| A 3534300592 | ROD | |
| Repalced by: N 900331008426 | ||
| 264 | N 900331008420 | PULL ROD |
| R.H. THREAD | ||
| 200 MM | ||
| 264 | N 900331008426 | PULL ROD |
| L.H. AND R.H. THREAD | ||
| A 0004310467 | YOKE | |
| Repalced by: A 0004310667 | ||
| 265 | A 0004310667 | YOKE |
| R.H. THREAD | ||
| 265 | A 0004310667 | YOKE |
| R.H. THREAD | ||
| 266 | A 0004310867 | YOKE |
| L.H. THREAD | ||
| 267 | N 304032008006 | NUT |
| R.H. THREAD | ||
| 267 | N 304032008006 | NUT |
| R.H. THREAD | ||
| 268 | N 000934008035 | NUT |
| L.H. THREAD | ||
| 269 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 269 | N 913004008001 | NUT |
| 270 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 270 | N 000125008443 | WASHER |
| 271 | A 3145841021 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 271 | A 3145840421 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 271 | A 3145841121 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 272 | A 3875840055 | ADHESIVE FOIL |
| LOAD-DEPENDING BRAKE | ||
| A 3144200028 | LINE | |
| Repalced by: A 3404202529 | ||
| A 3144207428 | LINE | |
| Repalced by: A 3404202529 | ||
| A 3144207528 | LINE | |
| Repalced by: A 3404202529 | ||
| A 3144202428 | LINE | |
| Repalced by: A 3404202529 | ||
| 275 | A 3404202529 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 1400 MM | ||
| 275 | A 3404202529 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 1400 MM | ||
| 275 | A 3404202529 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 1400 MM | ||
| 276 | A 3404202329 | LINE |
| 1300 MM | ||
| A 3144200928 | LINE | |
| Repalced by: A 3404292929 | ||
| 276 | A 3404202929 | LINE |
| 1600 MM | ||
| 276 | A 3404202929 | LINE |
| 1600 MM | ||
| A 3144202828 | LINE | |
| Repalced by: A 3404202729 | ||
| 276 | A 3404202729 | LINE |
| FROM MASTER CYLINDER TO FRONT AXLE | ||
| 1500 MM | ||
| 277 | A 3404200129 | LINE |
| FROM BRAKE MASTER CYLINDER TO TEST CONNECTION | ||
| 200 MM | ||
| A 3144204728 | LINE | |
| Repalced by: A 3404290329 | ||
| 277 | A 3404200329 | LINE |
| 300 MM | ||
| 277 | A 3404200129 | LINE |
| 100 MM | ||
| 278 | A 3404200629 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 450 MM | ||
| 279 | A 3404201029 | LINE |
| FROM BRAKE POWER REGULATOR TO TEST CONNECTION | ||
| 650 MM | ||
| 280 | A 3404202729 | LINE |
| FROM TEST CONNECTION TO DISTRIBUTOR | ||
| 1500 MM | ||
| 280 | A 3404203229 | LINE |
| FROM TEST CONNECTION TO DISTRIBUTOR | ||
| 1750 MM | ||
| 280 | A 3404203229 | LINE |
| FROM BRAKE CIRCUIT II TEST CONNECTION TO BRAKE POWER REGULATOR | ||
| 1750 MM | ||
| 280 | A 3404200429 | LINE |
| FROM BRAKE CIRCUIT II TEST CONNECTION TO BRAKE POWER REGULATOR | ||
| 2600 MM | ||
| N 074233012000 | UNION SCREW | |
| Repalced by: A 0004280072 | ||
| 281 | A 0004280072 | UNION SCREW |
| 282 | A 0004311231 | TEST CONNECTION |
| 282 | A 0004316631 | TEST CONNECTION |
| 282 | A 0004312231 | TEST CONNECTION |
| HYDRAULIC BRAKE | ||
| 282 | A 0004316531 | TEST CONNECTION |
| HYDRAULIC BRAKE | ||
| 283 | A 3464295940 | BRACKET |
| Repalced by: A 3464296040 | ||
| 283 | A 3464296040 | BRACKET |
| 284 | N 000931006041 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 284 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 284 | N 304017008034 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 285 | N 000125006421 | WASHER |
| TEST CONNECTION TO BRACKET | ||
| 286 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 286 | N 913004006001 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 286 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 286 | N 913004008001 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 287 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 287 | N 304017010002 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 288 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 288 | N 910113010000 | NUT |
| TEST CONNECTION TO BRACKET | ||

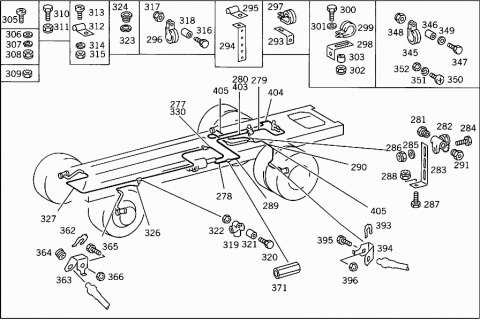

| 289 | A 3404204029 | LINE |
| FROM INTERMEDIATE PIECE TO BRAKE PRESSURE REGULATOR | ||
| 2600 MM | ||
| A 3144202528 | LINE | |
| Repalced by: A 3404200229 | ||
| 290 | A 3404200529 | LINE |
| FROM TEST CONNECTION TO BRAKE HOSE BRACKET | ||
| 400 MM | ||
| 291 | A 0004280072 | UNION SCREW |
| A 3144290240 | BRACKET | |
| Repalced by: A 3812950440 | ||
| A 3524281740 | BRACKET | |
| Repalced by: A 3184280240 | ||
| 293 | A 3184280240 | BRACKET |
| BRAKE LINES TO RIGHT SIDE MEMBER | ||
| 293 | A 3184280240 | BRACKET |
| BRAKE LINES TO RIGHT SIDE MEMBER | ||
| A 3604292040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 294 | A 6205240340 | BRACKET |
| A 3145420004 | BRACKET | |
| 295 | A 3149950220 | CLAMP |
| A 0009954501 | CLAMP | |
| Repalced by: N 916016006200 | ||
| 296 | N 916016006200 | CLAMP |
| 297 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 297 | N 916016008200 | CLAMP |
| 297 | N 916016008200 | CLAMP |
| 298 | A 3464295840 | BRACKET |
| Repalced by: A 3812950440 | ||
| 298 | A 3144290240 | BRACKET |
| Repalced by: A 3812950440 | ||
| 298 | A 3812950440 | BRACKET |
| 299 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 299 | N 916016008200 | CLAMP |
| 300 | N 000931006118 | SCREW |
| 300 | N 000933006102 | SCREW |
| AT BRAKE BOOSTER CONSOLE | ||
| 301 | N 000125006421 | WASHER |
| 302 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 302 | N 913004006001 | NUT |
| 303 | A 3892680525 | TUBE |
| 305 | N 007985006109 | SCREW |
| 305 | N 007985005113 | SCREW |
| 305 | N 007985006115 | SCREW |
| 305 | N 007985006155 | SCREW |
| 305 | N 007985006112 | SCREW |
| 306 | N 000125006421 | WASHER |
| 307 | N 912004006102 | LOCK WASHER |
| 307 | N 912004005103 | LOCK WASHER |
| 308 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 308 | N 913004006001 | NUT |
| 308 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 308 | N 913004006001 | NUT |
| 309 | N 304032005005 | NUT |
| 310 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 310 | N 304017008021 | SCREW |
| 311 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 311 | N 913004008001 | NUT |
| 312 | A 1369950920 | CLAMP |
| 313 | N 007985006109 | SCREW |
| 314 | N 912004006102 | LOCK WASHER |
| 315 | N 000934006007 | NUT |
| A 3144290240 | BRACKET | |
| Repalced by: A 3812950440 | ||
| A 3144210494 | BRACKET | |
| 316 | N 000931008244 | SCREW |
| 316 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 316 | N 304014008001 | SCREW |
| 316 | N 000931008028 | SCREW |
| 317 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 317 | N 913004008001 | NUT |
| A 1801550053 | SPACER TUBE | |
| A 3149910340 | SPACER TUBE | |
| Repalced by: A 3524310353 | ||
| 318 | A 3524310353 | SPACER TUBE |
| A 3144280143 | ANGLE | |
| 319 | A 0004290437 | DISTRIBUTOR |
| FRONT AXLE BRAKE CIRCUIT | ||
| 319 | A 0004294337 | DISTRIBUTOR |
| FRONT AXLE BRAKE CIRCUIT | ||
| 320 | N 000931008244 | SCREW |
| DISTRIBUTOR TO SIDE MEMBER | ||
| 321 | A 1801550053 | SPACER TUBE |
| DISTRIBUTOR TO SIDE MEMBER | ||
| 322 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 322 | N 913004008001 | NUT |
| DISTRIBUTOR TO SIDE MEMBER | ||
| A 0004291837 | DISTRIBUTOR | |
| 323 | N 007603012405 | SEAL RING |
| 324 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 324 | N 000908012009 | SCREW PLUG |
| A 3144201128 | LINE | |
| Repalced by: A 3404200729 | ||
| A 3144200928 | LINE | |
| Repalced by: A 3404200729 | ||
| 325 | A 3404200729 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 500 MM | ||
| A 3144202628 | LINE | |
| 325 | A 3404202129 | LINE |
| LEFT FRONT WHEEL CYLINDER | ||
| 1150 MM | ||
| A 3144201728 | LINE | |
| 325 | A 3404204029 | LINE |
| LEFT FRONT WHEEL CYLINDER | ||
| 2600 MM | ||
| 326 | A 3404200829 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 550 MM | ||
| 327 | A 3404204129 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 2800 MM | ||
| A 3144200128 | LINE | |
| Repalced by: A 3404204029 | ||
| A 3164200828 | LINE | |
| Repalced by: A 3404204029 | ||
| 328 | A 3404204029 | LINE |
| RIGHT FRONT WHEEL CYLINDER | ||
| 2600 MM | ||
| 328 | A 3404204129 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 2800 MM | ||
| A 3144200829 | LINE | |
| Repalced by: A 3404201929 | ||
| 328 | A 3404201929 | LINE |
| RIGHT FRONT WHEEL CYLINDER | ||
| 1100 MM | ||
| A 3144202728 | LINE | |
| Repalced by: A 3404202529 | ||
| 328 | A 3404202529 | LINE |
| RIGHT FRONT WHEEL CYLINDER | ||
| 1400 MM | ||
| 328 | A 3404200729 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 330 | A 3404202429 | LINE |
| FROM BRAKE MASTER CYLINDER TO TEST CONNECTION | ||
| 1350 MM | ||
| 330 | A 3404203229 | LINE |
| FROM BRAKE MASTER CYLINDER TO TEST CONNECTION | ||
| 1750 MM | ||
| 330 | A 3404203929 | LINE |
| FROM BRAKE MASTER CYLINDER TO TEST CONNECTION | ||
| 2400 MM | ||
| 330 | A 3404201429 | LINE |
| FROM MASTER CYLINDER TO TEST CONNECTION | ||
| 850 MM | ||
| 330 | A 3404202629 | LINE |
| FROM MASTER CYLINDER TO TEST CONNECTION | ||
| 1450 MM | ||
| 330 | A 3404200629 | LINE |
| FROM MASTER CYLINDER TO TEST CONNECTION | ||
| 450 MM | ||
| A 3812905613 | LINE | |
| Repalced by: A 6202901113 | ||
| A 6202901113 | LINE | |
| Repalced by: A 3812902114 | ||
| 331 | A 3812902114 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 1500 MM | ||
| 331 | A 3812902114 | LINE |
| FROM CONNECTOR TO SLAVE CYLINDER | ||
| 1390 MM | ||
| 331 | A 3812902114 | LINE |
| FROM CONNECTOR TO MASTER CYLINDER | ||
| 1390 MM | ||
| A 3812903213 | LINE | |
| Repalced by: A 3812902414 | ||
| 332 | A 3812902414 | LINE |
| FROM SLAVE CYLINDER TO CONNECTOR | ||
| 3000 MM | ||
| 332 | A 3812902414 | LINE |
| FROM CONNECTOR TO MASTER CYLINDER | ||
| 1375 MM | ||
| A 3812906813 | LINE | |
| Repalced by: A 3812906413 | ||
| A 3812906413 | LINE | |
| Repalced by: A 3812902314 | ||
| 332 | A 3812902314 | LINE |
| FROM SLAVE CYLINDER TO CONNECTOR | ||
| 2500 MM | ||
| 333 | A 0002950736 | INTERMEDIATE PIECE |
| A 0004280243 | ANGLE | |
| 334 | A 3144280240 | BRACKET |
| A 3044293040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 335 | A 6205240340 | BRACKET |
| A 3144291140 | BRACKET | |
| Repalced by: A 3044760335 | ||
| A 3044760335 | BRACKET | |
| Repalced by: A 6205244040 | ||
| 336 | A 6205244040 | BRACKET |
| A 3144290240 | BRACKET | |
| Repalced by: A 3812950440 | ||
| A 3184280140 | BRACKET | |
| Repalced by: A 3184280240 | ||
| 337 | A 3184280240 | BRACKET |
| 338 | A 3164290040 | BRACKET |
| AT CROSS MEMBER | ||
| A 3144290240 | BRACKET | |
| Repalced by: A 3812950440 | ||
| 339 | N 000933006102 | SCREW |
| BRACKET TO FRONT CROSS MEMBER | ||
| 339 | N 000931006118 | SCREW |
| BRACKET TO FRONT CROSS MEMBER | ||
| 340 | N 000125006421 | WASHER |
| BRACKET TO FRONT CROSS MEMBER | ||
| 341 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 341 | N 913004006001 | NUT |
| BRACKET TO FRONT CROSS MEMBER | ||
| 342 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 342 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 342 | N 916016008200 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 343 | N 000933006102 | SCREW |
| CLAMP TO BRACKET | ||
| 343 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 343 | N 304017008034 | SCREW |
| BRACKET TO CONSOLE | ||
| 343 | N 304017008034 | SCREW |
| BRACKET TO CONSOLE | ||
| 344 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 344 | N 913004006001 | NUT |
| CLAMP TO BRACKET | ||
| 344 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 344 | N 913004008001 | NUT |
| BRACKET TO CONSOLE | ||
| 344 | N 913004008001 | NUT |
| BRACKET TO CONSOLE | ||
| 345 | A 0009954301 | CLAMP |
| 345 | A 0009954501 | CLAMP |
| Repalced by: N 916016006200 | ||
| 345 | N 916016006200 | CLAMP |
| 345 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 345 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 345 | N 916016008200 | CLAMP |
| 345 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 345 | N 916016008200 | CLAMP |
| 346 | A 3892680525 | TUBE |
| 346 | A 3529910340 | SPACER TUBE |
| Repalced by: A 4082910153 | ||
| 346 | A 4082910153 | SPACER TUBE |
| 346 | A 3892680525 | TUBE |
| 347 | N 000931006118 | SCREW |
| M 6X35 | ||
| 347 | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 347 | N 000933006151 | SCREW |
| M 6X50 | ||
| 347 | N 000933006102 | SCREW |
| 347 | N 000931006118 | SCREW |
| M 6X35 | ||
| 347 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 347 | N 304017008021 | SCREW |
| 348 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 348 | N 913004006001 | NUT |
| 348 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 348 | N 913004008001 | NUT |
| 348 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 348 | N 913002006009 | NUT |
| 349 | N 000125006421 | WASHER |
| 350 | N 007985005106 | SCREW |
| 350 | N 007985005109 | SCREW |
| 350 | N 007985006115 | SCREW |
| 351 | N 912004005103 | LOCK WASHER |
| 352 | N 304032005005 | NUT |
| 353 | A 3125421039 | PLATE |
| 354 | A 3129950332 | CLAMP |
| Repalced by: A 3609950101 | ||
| 354 | A 3609950101 | CLAMP |
| 355 | N 000084004108 | SCREW |
| 356 | N 000127004206 | LOCK WASHER |
| 357 | N 000934004006 | NUT |
| 360 | A 0004288235 | BRAKE HOSE |
| FRONT | ||
| 550 MM | ||
| A 0004280235 | BRAKE HOSE | |
| Repalced by: A 0024280535 | ||
| A 0004287635 | BRAKE HOSE | |
| Repalced by: A 0024280535 | ||
| 361 | A 0024280535 | BRAKE HOSE |
| REAR | ||
| 361 | A 0014285535 | BRAKE HOSE |
| REAR | ||
| 362 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 362 | A 6525040038 | MOUNTING PLATE |
| FRONT WHEEL BRAKE CYLINDER;TO CONNECT BRAKE HOSE | ||
| 363 | A 3144280043 | ANGLE |
| AT FRAME, FRONT | ||
| A 3144280243 | ANGLE | |
| 364 | A 3149970481 | GROMMET |
| AT FRAME, FRONT | ||
| 365 | N 000933010105 | SCREW |
| FRONT ANGLE TO FRAME | ||
| M 10X25 | ||
| 365 | N 000933010128 | SCREW |
| FRONT ANGLE TO FRAME | ||
| 365 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 365 | N 304017010002 | SCREW |
| FRONT ANGLE TO FRAME | ||
| M 10X30 | ||
| 366 | N 913002010001 | NUT |
| FRONT ANGLE TO FRAME | ||
| A 3144200228 | LINE | |
| Repalced by: A 3404203929 | ||
| 368 | A 3404203929 | LINE |
| FROM MASTER CYLINDER TO REAR AXLE | ||
| 2400 MM | ||
| A 3144203128 | LINE | |
| Repalced by: A 3404204229 | ||
| 368 | A 3404204229 | LINE |
| FROM MASTER CYLINDER TO REAR AXLE | ||
| 3000 MM | ||
| 368 | A 3404204229 | LINE |
| FROM MASTER CYLINDER TO REAR AXLE | ||
| 3000 MM | ||
| A 3144203728 | LINE | |
| Repalced by: A 3404204329 | ||
| 368 | A 3404204329 | LINE |
| FROM MASTER CYLINDER TO REAR AXLE | ||
| 3200 MM | ||
| A 3144200328 | LINE | |
| Repalced by: A 3404204129 | ||
| 368 | A 3404204129 | LINE |
| FROM MASTER CYLINDER TO REAR AXLE | ||
| 2800 MM | ||
| A 3144203228 | LINE | |
| Repalced by: A 3404204529 | ||
| A 3404204529 | LINE | |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 3600 MM | ||
| A 3144203828 | LINE | |
| Repalced by: A 3404204629 | ||
| 368 | A 3404204629 | LINE |
| FROM MASTER CYLINDER TO REAR AXLE | ||
| 3800 MM | ||
| A 3144200428 | LINE | |
| Repalced by: A 3404203429 | ||
| 368 | A 3404203429 | LINE |
| FROM MASTER CYLINDER TO REAR AXLE | ||
| 1850 MM | ||
| A 3144203328 | LINE | |
| Repalced by: A 3404204029 | ||
| 368 | A 3404204029 | LINE |
| FROM MASTER CYLINDER TO REAR AXLE | ||
| 2600 MM | ||
| A 3144294928 | SEAL CONE | |
| Repalced by: A 3404203829 | ||
| 368 | A 3404203829 | LINE |
| FROM MASTER CYLINDER TO REAR AXLE | ||
| 2200 MM | ||
| A 3144203928 | LINE | |
| Repalced by: A 3404204029 | ||
| 368 | A 3404204029 | LINE |
| FROM MASTER CYLINDER TO REAR AXLE | ||
| 2800 MM | ||
| A 3144204828 | LINE | |
| Repalced by: A 3404202729 | ||
| 369 | A 3404202729 | LINE |
| FROM DISTRIBUTOR TO CONNECTOR | ||
| 1500 MM | ||
| 369 | A 3404200529 | LINE |
| 400 MM | ||
| A 3144204228 | LINE | |
| Repalced by: A 3404203729 | ||
| 370 | A 3404203729 | LINE |
| FROM DISTRIBUTOR TO CONNECTOR | ||
| 2000 MM | ||
| 370 | A 3404200429 | LINE |
| 350 MM | ||
| A 0004280531 | CONNECTOR | |
| Repalced by: A 0004292736 | ||
| 371 | A 0004292736 | CONNECTOR |
| A 3144201528 | LINE | |
| Repalced by: A 3404204329 | ||
| 372 | A 3404204329 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 3200 MM | ||
| A 3144203428 | LINE | |
| Repalced by: A 3404203829 | ||
| 372 | A 3404203829 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 2200 MM | ||
| 372 | A 3404203829 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 2200 MM | ||
| A 3144201628 | LINE | |
| Repalced by: A 3404204629 | ||
| 372 | A 3404204629 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 3800 MM | ||
| A 3144203528 | LINE | |
| Repalced by: A 3404204129 | ||
| A 3144201428 | LINE | |
| Repalced by: A 3404204129 | ||
| 372 | A 3404204129 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 2800 MM | ||
| 372 | A 3404204129 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 2800 MM | ||
| 372 | A 3404204129 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 2800 MM | ||
| A 3144203628 | LINE | |
| Repalced by: A 3404203329 | ||
| 372 | A 3404203329 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 1800 MM | ||
| 372 | A 3404203329 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 1800 MM | ||
| 372 | A 3404204129 | LINE |
| 2800 MM | ||
| 372 | A 3404204329 | LINE |
| 3200 MM | ||
| 372 | A 3404203929 | LINE |
| 2400 MM | ||
| 372 | A 3404203929 | LINE |
| 2400 MM | ||
| 372 | A 3404203729 | LINE |
| 2000 MM | ||
| 373 | A 3184290340 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 374 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 374 | N 304017008021 | SCREW |
| BRAKE LINE MOUNTING | ||
| 375 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 375 | N 913004008001 | NUT |
| BRAKE LINE MOUNTING | ||
| 376 | N 074313012304 | FITTING |
| BRAKE LINE MOUNTING | ||
| 377 | N 080705018002 | NUT |
| BRAKE LINE MOUNTING | ||
| 378 | A 0004313731 | TEST CONNECTION |
| Repalced by: A 0004312931 | ||
| 378 | A 0004312931 | TEST CONNECTION |
| 379 | A 0019978490 | LOOM TIE |
| 380 | A 3609902340 | WASHER |
| A 0004280243 | ANGLE | |
| A 0004280143 | ANGLE | |
| A 0009954501 | CLAMP | |
| Repalced by: N 916016006200 | ||
| 381 | N 916016006200 | CLAMP |
| A 3149910240 | SPACER TUBE | |
| 382 | N 007985005106 | SCREW |
| 382 | N 007985005174 | SCREW |
| M 5X30 | ||
| 382 | N 007985005109 | SCREW |
| 383 | N 912004005103 | LOCK WASHER |
| 384 | N 304032005005 | NUT |
| A 3144290240 | BRACKET | |
| Repalced by: A 3812950440 | ||
| 385 | A 3812950440 | BRACKET |
| 386 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 386 | N 304017008021 | SCREW |
| 387 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 387 | N 913004008001 | NUT |
| 388 | A 3609950601 | CLAMP |
| 389 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 389 | N 916016008200 | CLAMP |
| 390 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 390 | N 000000001146 | SCREW |
| 391 | N 000125006421 | WASHER |
| 392 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 392 | N 913004008001 | NUT |
| 393 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 393 | A 6525040038 | MOUNTING PLATE |
| AT FRAME, FRONT | ||
| 394 | A 3144280043 | ANGLE |
| REAR | ||
| 394 | A 3144280043 | ANGLE |
| REAR | ||
| A 3144280243 | ANGLE | |
| REAR | ||
| 395 | N 000933010105 | SCREW |
| 396 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 396 | N 910113010000 | NUT |
| 397 | A 0004290437 | DISTRIBUTOR |
| HYDRAULIC BRAKE | ||
| 397 | A 0004294337 | DISTRIBUTOR |
| HYDRAULIC BRAKE | ||
| 398 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 398 | N 304017008018 | SCREW |
| 399 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 399 | N 913004008001 | NUT |
| A 3144280140 | BRACKET | |
| Repalced by: A 3184280340 | ||
| A 3104280240 | BRACKET | |
| Repalced by: A 3184280340 | ||
| A 3144280840 | BRACKET | |
| Repalced by: A 3184280340 | ||
| 400 | A 3184280340 | BRACKET |
| LEFT | ||
| A 3144280940 | BRACKET | |
| Repalced by: A 3184280440 | ||
| 400 | A 3184280440 | BRACKET |
| RIGHT | ||
| 401 | N 912004008102 | LOCK WASHER |
| 402 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 402 | N 304017008016 | SCREW |
| 403 | A 3404200429 | LINE |
| FROM BRAKE CIRCUIT II TEST CONNECTION TO BRAKE POWER REGULATOR | ||
| 2600 MM | ||
| 404 | A 3404201029 | LINE |
| FROM BRAKE POWER REGULATOR TO BRAKE HOSE | ||
| A 3144200528 | LINE | |
| Repalced by: A 3404201129 | ||
| A 3164200428 | LINE | |
| Repalced by: A 3404201129 | ||
| A 3404201129 | LINE | |
| Repalced by: A 3404200929 | ||
| 405 | A 3404200929 | LINE |
| FROM TEST CONNECTION TO RIGHT REAR WHEEL | ||
| 600 MM | ||
| A 3164200528 | LINE | |
| Repalced by: A 3404202529 | ||
| A 3144200628 | LINE | |
| Repalced by: A 3404202529 | ||
| 405 | A 3404202529 | LINE |
| FROM TEST CONNECTION TO LEFT REAR WHEEL | ||
| 1400 MM | ||
| 406 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 406 | A 3604293140 | BRACKET |
| AT CROSS MEMBER | ||
| 406 | A 3604293140 | BRACKET |
| AT CROSS MEMBER | ||
| 407 | N 000933006102 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 407 | N 000933006102 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 408 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 408 | N 913004006001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 408 | N 913004006001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 409 | N 000125006421 | WASHER |
| 410 | A 3129973482 | HOSE |
| 411 | A 3129951020 | CLAMP |
| 412 | N 912004008102 | LOCK WASHER |
| 413 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 413 | N 304017008016 | SCREW |
| A 3524281740 | BRACKET | |
| Repalced by: A 3184280240 | ||
| 414 | A 3184280240 | BRACKET |
| 415 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 415 | N 304017008021 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 416 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 416 | N 913004008001 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 417 | A 3184291340 | BRACKET |
| AT SIDE MEMBER | ||
| 418 | N 000933010164 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 419 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 419 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 420 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 420 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 420 | N 916016008200 | CLAMP |
| CLAMP TO BRACKET | ||
| 421 | N 000933006102 | SCREW |
| CLAMP TO BRACKET | ||
| 422 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 422 | N 913004006001 | NUT |
| CLAMP TO BRACKET | ||
| 425 | N 007603022102 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 426 | N 074299026201 | DOUBLE FITTING |
| AT AIR COMPRESSOR | ||
| 426 | N 074298022203 | DOUBLE FITTING |
| AT AIR COMPRESSOR | ||
| A 0004290401 | LINE | |
| Repalced by: A 0005516456 | ||
| 427 | A 0005516456 | TUBE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 18 MM | ||
| 428 | A 3144290140 | BRACKET |
| Repalced by: A 3184291540 | ||
| 428 | A 3184291540 | BRACKET |
| A 3144290440 | BRACKET | |
| 429 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 429 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| 430 | N 912004008102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 431 | N 304032008006 | NUT |
| BRACKET TO FRAME | ||
| A 3129952320 | CLAMP | |
| Repalced by: A 3049950120 | ||
| A 3049950120 | CLAMP | |
| Repalced by: A 3609950601 | ||
| 432 | A 3609950601 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| A 0009954801 | CLAMP | |
| Repalced by: N 916016018201 | ||
| 433 | N 916016018201 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 434 | N 007985006109 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 435 | N 912004006102 | LOCK WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 436 | N 000934006007 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 437 | N 915018018000 | UNION NUT |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 438 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 438 | A 0019901167 | SEAL CONE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 439 | N 915065018101 | THRUST RING |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 440 | N 915045014100 | SEAL RING |
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 441 | A 0005516256 | TUBE |
| AIR RESERVOIR,RELAY VALVE,TWO-WAY VALVE,HAND BRAKE VALVE | ||
| 15 MM | ||
| 441 | A 0004291401 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 15 MM | ||
| 441 | A 0004291401 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 15 MM | ||
| 442 | N 915018015000 | UNION NUT |
| 443 | N 003861015004 | GLAND |
| 444 | N 915065015101 | THRUST RING |
| 445 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 445 | N 007603012121 | SEAL RING |
| 446 | N 003910015002 | BULKHEAD FITTING |
| BETWEEN THE LINES | ||
| 446 | N 074298022201 | DOUBLE FITTING |
| BETWEEN THE LINES | ||
| 448 | A 0005516156 | TUBE |
| FROM PRESSURE REGULATOR TO PROTECTIVE VALVE | ||
| 12 MM | ||
| 450 | A 0089979082 | HOSE |
| 6X8 MM | ||
| A 0007630043 | SLEEVE | |
| Repalced by: N 915062006000 | ||
| 451 | N 915062006000 | SLEEVE |
| 452 | N 003861008005 | GLAND |
| 453 | N 915017008100 | UNION NUT |
| 454 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 | ||
| 454 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 | ||
| 456 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 456 | A 0009872827 | PLASTIC PIPE |
| 4-CIRCUIT PROTECT.VALVE,AIR RESERVOIR, 2-CIRCUIT BRAKE VALVE,BRAKE CYLINDER | ||
| 9X12 MM | ||
| A 0049971772 | FITTING | |
| Repalced by: A 0029906171 | ||
| 457 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 010 997 59 82 | ||
| A 0009921505 | BUSHING | |
| Repalced by: N 915062009000 | ||
| 458 | N 915062009000 | SLEEVE |
| 459 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 459 | A 0019901967 | SEAL CONE |
| 460 | N 915017012100 | UNION NUT |
| 461 | N 915052009009 | BANJO UNION |
| 461 | A 0019901088 | BANJO UNION |
| A 0009873272 | EDGE GUARD SECTION | |
| Repalced by: A 0029873572 | ||
| 462 | A 0029873572 | EDGE GUARD SECTION |
| 130 MM | ||
| 465 | A 0089975482 | HOSE |
| 2X4 MM | ||
| 467 | N 915052008016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 8/14 MM | ||
| 467 | N 915052008008 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 8/22 MM | ||
| 469 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 469 | A 0009872627 | PLASTIC PIPE |
| BLACK | ||
| 4X6 MM | ||
| A 0009920105 | BUSHING | |
| Repalced by: N 915062004000 | ||
| 470 | N 915062004000 | SLEEVE |
| 471 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 471 | A 0019901667 | SEAL CONE |
| 472 | N 915017006100 | UNION NUT |
| 473 | A 3149900188 | BANJO UNION |
| 475 | A 0003270088 | COUPLING PIECE |
| AT CAB FLOOR | ||
| 476 | A 0003270188 | COUPLING PIECE |
| 477 | N 007983006301 | SHEET METAL SCREW |
| 478 | A 0009903978 | CONNECTOR |
| HOSE WIDTH, / I.D., | ||
| 4 MM | ||
| 479 | A 0009904078 | CONNECTOR |
| HOSE WIDTH, / I.D., | ||
| 6 MM | ||
| 480 | A 0009904278 | CONNECTOR |
| HOSE WIDTH, / I.D., | ||
| 4 MM | ||
| 481 | A 0009904378 | CONNECTOR |
| HOSE WIDTH, / I.D., | ||
| 6 MM | ||
| 482 | A 0019875046 | SEALING CORD |
| 10,8X1,8,MM | ||
| 483 | A 0149977648 | SEAL RING |
| 6X2 MM | ||
| 484 | A 3169970381 | GROMMET |
| 485 | N 915044009000 | PLUG |
| 486 | A 3144290080 | GASKET |
| 488 | A 0019978490 | LOOM TIE |
| 488 | A 0019978390 | LOOM TIE |
| 488 | A 0019978390 | LOOM TIE |
| A 3144290140 | BRACKET | |
| Repalced by: A 3184291540 | ||
| 489 | A 3184291540 | BRACKET |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 490 | N 308676012012 | SCREW |
| 491 | N 910113012002 | NUT |
| A 3144290240 | BRACKET | |
| Repalced by: A 3812950440 | ||
| 492 | N 000933006130 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 493 | N 000125006421 | WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 494 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 494 | N 913004006001 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| A 3604292240 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 495 | A 6205240340 | BRACKET |
| A 3604293140 | BRACKET | |
| COMPRESSED AIR LINE | ||
| 496 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 496 | N 304017008021 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 496 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 496 | N 304017008016 | SCREW |
| BRACKET TO CONSOLE | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO FRAME SIDE MEMBER | ||
| N 913004008001 | NUT | |
| BRACKET TO CONSOLE | ||
| A 3144290340 | BRACKET | |
| A 3609950501 | CLAMP | |
| Repalced by: A 3609952001 | ||
| 497 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 497 | A 6739950001 | CLAMP |
| 498 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 498 | N 304017006020 | SCREW |
| 499 | N 000125006421 | WASHER |
| 500 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 500 | N 913004006001 | NUT |
| 501 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 501 | N 304017008021 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 502 | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 503 | N 304032008006 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 504 | A 3609902340 | WASHER |
| 504 | A 3609902340 | WASHER |
| 504 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 504 | N 000125008443 | WASHER |
| A 0004280243 | ANGLE | |
| COMPRESSED AIR LINE MOUNTING | ||
| A 3524280940 | BRACKET | |
| COMPRESSED AIR LINE MOUNTING | ||
| A 0009950501 | CLAMP | |
| Repalced by: N 916016015201 | ||
| 505 | N 916016015201 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| A 0009954701 | CLAMP | |
| Repalced by: N 916016015202 | ||
| 505 | N 916016015202 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 506 | N 007985005119 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 506 | N 007985005159 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| M 5X20 | ||
| 506 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 506 | N 000000001146 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 507 | N 912004005103 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 507 | N 912004006102 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 508 | N 304032005005 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 508 | N 000934006007 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 509 | A 0004318887 | PROTECTIVE CAP |
| COMPRESSED AIR LINE MOUNTING | ||
| 511 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION: | ||
| 01,02 | ||
| 511 | A 0004290227 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 01,02 | ||
| 512 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION: | ||
| 512 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION: | ||
| N 074313016401 | FITTING | |
| Repalced by: A 0019972372 | ||
| 513 | A 0019972372 | FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 513 | N 074299026300 | DOUBLE FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 514 | A 0029971172 | FITTING |
| PRESSURE REGULATOR,CONNECTION "2" | ||
| 515 | N 074301022203 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 515 | N 074301022203 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 515 | A 0009905871 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 516 | N 074305022202 | NUT |
| AT PRESSURE REGULATOR | ||
| 516 | N 074305022205 | HOLLOW SCREW |
| PRESSURE REGULATOR TO FRAME | ||
| A 0004314006 | VALVE | |
| Repalced by: A 0014314106 | ||
| A 0014314306 | PRESSURE REGULATOR | |
| Repalced by: A 0024316006 | ||
| A 0014312206 | PRESSURE REGULATOR | |
| Repalced by: A 0024316006 | ||
| 517 | A 0024316006 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| WABCO | ||
| A 0014314206 | PRESSURE REGULATOR | |
| Repalced by: A 0024315906 | ||
| A 0014314106 | PRESSURE REGULATOR | |
| Repalced by: A 0024313506 | ||
| A 0024313506 | PRESSURE REGULATOR | |
| Repalced by: A 0024315906 | ||
| 517 | A 0024315906 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| BOSCH | ||
| A 0004319206 | PRESSURE REGULATOR | |
| Repalced by: A 0004319106 | ||
| 518 | A 0004319106 | PRESSURE REGULATOR |
| 519 | A 0004318360 | SEAL RING |
| A 0007630253 | SLEEVE | |
| Repalced by: A 0007630553 | ||
| 520 | A 0007630553 | SLEEVE |
| 521 | A 0004311434 | STRAINER |
| 522 | A 0004310681 | VALVE DISC |
| 523 | A 0004311081 | VALVE DISC |
| 524 | A 0004311381 | VALVE DISC |
| A 0004314787 | PROTECTIVE CAP | |
| Repalced by: A 0009979486 | ||
| 525 | A 0009979486 | PLUG |
| 526 | A 0004315687 | PROTECTIVE CAP |
| A 0014310006 | PRESSURE REGULATOR | |
| Repalced by: A 0024314906 | ||
| A 0014310606 | PRESSURE REGULATOR | |
| Repalced by: A 0024313406 | ||
| A 0024313406 | PRESSURE REGULATOR | |
| Repalced by: A 0024314306 | ||
| 528 | A 0024314906 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| WABCO | ||
| A 0014313406 | PRESSURE REGULATOR | |
| Repalced by: A 0024314306 | ||
| 528 | A 0024314306 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| BOSCH | ||
| 528 | A 0014311206 | PRESSURE REGULATOR |
| Repalced by: A 0024314906 | ||
| 528 | A 0024318306 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| KNORR | ||
| 529 | A 0014304960 | REPAIR KIT |
| TO 002 431 49 06,WABCO 975 303 460 0 | ||
| 529 | A 0025866043 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 34 06,BOSCH 0 481 039 221 | ||
| 529 | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 00 06,WABCO 975 300 110 0 | ||
| 529 | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 22 06,WABCO 975 300 111 0 | ||
| 529 | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 002 431 60 06,WABCO 975 303 440 0 | ||
| 530 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 34 06,BOSCH 0 481 039 221 | ||
| 530 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 35 06,BOSCH 0 481 039 222 | ||
| 530 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| 530 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| A 0015864343 | REPAIR KIT | |
| 530 | A 0004301107 | REPAIR KIT |
| TO 001 431 00 06,WABCO 975 300 110 0 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 001 431 22 06,WABCO 975 300 111 0 | ||
| 531 | A 0025864143 | REPAIR KIT |
| TO 000 431 92 06,000 431 40 06 | ||
| 531 | A 0025864143 | REPAIR KIT |
| BOSCH 0 481 039 012/007 | ||
| 531 | A 0025865043 | REPAIR KIT |
| TO 000 431 92 06,91 06,40 06 | ||
| 531 | A 0025865043 | REPAIR KIT |
| BOSCH 0 481 039 012/011/007 | ||
| 531 | A 0025864243 | REPAIR KIT |
| TO 000 431 91 06,BOSCH 0 481 039 011 | ||
| 532 | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 532 | A 0004301407 | REPAIR KIT |
| TO 001 431 41 06,BOSCH 0 481 039 102 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 001 431 06 06,BOSCH 0 481 039 101 | ||
| 532 | A 0004301407 | REPAIR KIT |
| TO 002 431 35 06,BOSCH 0 481 039 222 | ||
| 532 | A 0004301407 | REPAIR KIT |
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 532 | A 0004301407 | REPAIR KIT |
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| 532 | A 0025866743 | REPAIR KIT |
| TO 001 431 43 06,001 431 12 06,KNORR | ||
| 533 | A 0005461830 | INSULATING HOSE |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 534 | A 0004300170 | MUFFLER |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 535 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 535 | N 000000000667 | CLAMP |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 535 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 535 | A 0059970190 | LOOM TIE |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 540 | A 0024310406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 540 | A 0014313506 | VALVE |
| Repalced by: A 0014318406 | ||
| 540 | A 0014318406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| KNORR | ||
| 540 | A 0014314706 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| WABCO | ||
| 540 | A 0014316806 | VALVE |
| Repalced by: A 0024312906 | ||
| 540 | A 0024312906 | VALVE |
| Repalced by: A 0024319306 | ||
| 540 | A 0024319306 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| GRAU | ||
| 543 | A 0014310986 | CUP |
| TO 002 431 04 06 | ||
| A 0009934905 | SPRING | |
| Repalced by: A 0009935205 | ||
| 544 | A 0009935205 | SPRING |
| TO 002 431 04 06 | ||
| 545 | A 0014311860 | SEAL RING |
| 34X2.3 MM,TO 001 431 68 06 | ||
| 546 | A 0024298844 | VALVE |
| TO 001 431 68 06,GRAU 37001 | ||
| 547 | A 0099972448 | SEAL RING |
| 19.3X2.4 TO 001 431 68 06,GRAU 37001 | ||
| 548 | A 0059973248 | SEAL RING |
| 25.3X2.4 MM,TO 001 431 68 06 | ||
| 549 | A 0004313188 | VALVE SEAT |
| TO 001 431 68 06,GRAU 37001 | ||
| A 0014311960 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 550 | A 0009971548 | SEAL RING |
| 15X2 MM,T0 001 431 68 06,GRAU 19001 | ||
| 552 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 34 06,BOSCH 0 481 039 221 | ||
| 552 | A 0004302906 | GASKET KIT |
| BOOT | ||
| TO 002 431 04 06,BOSCH | ||
| 552 | A 0025861743 | REPAIR KIT |
| BOOT | ||
| TO 001 431 38 06,BOSCH | ||
| 552 | A 0015868443 | REPAIR KIT |
| SEAL RING | ||
| TO 001 431 38 06,BOSCH | ||
| 552 | A 0015863842 | REPAIR KIT |
| TO 001 431 35 06,KNORR | ||
| 552 | A 0025860643 | REPAIR KIT |
| Repalced by: A 0025862843 | ||
| 552 | A 0025862843 | REPAIR KIT |
| TO 002 431 47 06,WABCO 210 0 | ||
| 552 | A 0004300468 | REPAIR KIT |
| TO 001 431 47 06,WABCO 221 0 | ||
| 552 | A 0004303160 | REPAIR KIT |
| TO 001 431 84 06,KNORR | ||
| A 0004312115 | ANTI-FREEZE DEVICE | |
| Repalced by: A 0004312615 | ||
| A 0004312515 | ANTI-FREEZE DEVICE | |
| Repalced by: A 0004312615 | ||
| 555 | A 0004312615 | ANTI-FREEZE DEVICE |
| 556 | A 0004316787 | PROTECTIVE CAP |
| TO 000 431 25 15,000 431 26 15 | ||
| 557 | A 0004321107 | VALVE |
| ANTI-FREEZE DEVICE DRAIN | ||
| 558 | A 0004314476 | WASHER |
| ANTI-FREEZE DEVICE DRAIN | ||
| 559 | A 0009890679 | WICK |
| PARTS KIT | ||
| 560 | A 0005869343 | REPAIR KIT |
| TO 000 431 21 15,WABCO 432 199 001 0 | ||
| 560 | A 0025861143 | REPAIR KIT |
| TO 000 431 25 15,000 431 26 15 | ||
| 560 | A 0025861143 | REPAIR KIT |
| WABCO 432 199 015 0; 432 199 030 0 | ||
| 562 | N 074305022202 | NUT |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 562 | N 074305026202 | NUT |
| 563 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 564 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 565 | A 0009907771 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 566 | A 0009905168 | FITTING |
| CONNECTION "1" | ||
| 567 | N 915036012203 | HOLLOW SCREW |
| CONNECTION "1" | ||
| 568 | N 007603016401 | SEAL RING |
| CONNECTION "1" | ||
| 569 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| 570 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 571 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| 572 | A 0019903471 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| 573 | N 000908016001 | SCREW PLUG |
| CONNECTIONS: | ||
| 23,24 | ||
| 573 | N 000908016001 | SCREW PLUG |
| CONNECTIONS: | ||
| 23,24 | ||
| 573 | N 000908016001 | SCREW PLUG |
| CONNECTIONS: | ||
| 23,24 | ||
| 573 | N 000908016001 | SCREW PLUG |
| CONNECTIONS: | ||
| 23,24 | ||
| N 007603016401 | SEAL RING | |
| Repalced by: A 0004290927 | ||
| 574 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 23,24 | ||
| 574 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 23,24 | ||
| 574 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 23,24 | ||
| 574 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 23,24 | ||
| 575 | A 0009971548 | SEAL RING |
| CONNECTION "23" | ||
| 575 | A 0009971548 | SEAL RING |
| CONNECTION "23" | ||
| 575 | A 0009971548 | SEAL RING |
| CONNECTION "23" | ||
| 575 | A 0009971548 | SEAL RING |
| CONNECTION "23" | ||
| 576 | A 0009904770 | T-FITTING |
| CONNECTION "23" | ||
| 576 | A 0009904770 | T-FITTING |
| CONNECTION "23" | ||
| 577 | N 080705016003 | NUT |
| CONNECTION "23" | ||
| 578 | A 0004290927 | THRUST RING |
| CONNECTION "22" | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 579 | A 0009971548 | SEAL RING |
| CONNECTION "23" | ||
| 580 | A 0029971572 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "11,12" | ||
| N 007603016401 | SEAL RING | |
| Repalced by: A 0004290927 | ||
| 581 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 11,12,24 | ||
| 582 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 11,12,24 | ||
| 583 | A 0029979072 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 584 | A 0009905871 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 585 | N 074305022202 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 586 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 587 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| A 3184312040 | BRACKET | |
| 588 | N 000931008251 | SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 589 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 589 | N 913004008001 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| A 0014314506 | VALVE | |
| Repalced by: A 0024310706 | ||
| A 0014315906 | VALVE | |
| Repalced by: A 0024310706 | ||
| 590 | A 0024310706 | VALVE |
| (FOUR-CIRCUIT PROTECTIVE VALVE) | ||
| 591 | A 0014310986 | CUP |
| TO 002 431 07 06,BOSCH 0 481 062 103 | ||
| A 0009934905 | SPRING | |
| Repalced by: A 0009935205 | ||
| 592 | A 0009935205 | SPRING |
| TO 002 431 07 06,BOSCH 0 481 062 103 | ||
| 593 | N 000472052000 | LOCK RING |
| TO 002 431 07 06,BOSCH 0 481 062 103 | ||
| 594 | N 000933006127 | SCREW |
| TO 002 431 07 06,BOSCH 0 481 062 103 | ||
| 595 | A 0034304681 | GASKET KIT |
| TO 001 431 59 06,BOSCH 062 013 | ||
| 595 | A 0004302906 | GASKET KIT |
| TO 002 431 07 06,BOSCH 0 481 062 103 | ||
| 596 | A 0025863943 | REPAIR KIT |
| BOOT | ||
| TO 001 431 45 06,BOSCH 0 481 062 003 | ||
| 596 | A 0025861743 | REPAIR KIT |
| BOOT | ||
| TO 001 431 45 06 | ||
| 596 | A 0025861743 | REPAIR KIT |
| BOOT | ||
| BOSCH 0 481 062 001,003,006 | ||
| 596 | A 0015868443 | REPAIR KIT |
| SEAL RING | ||
| TO 001 431 45 06 | ||
| 598 | N 074299022203 | DOUBLE FITTING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 599 | N 007603022102 | SEAL RING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 600 | A 0019979672 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| 21 | ||
| 601 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| 21 | ||
| N 074315012100 | FITTING | |
| Repalced by: A 0019903371 | ||
| 602 | A 0019903371 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| 21 | ||
| 603 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| 21,22 | ||
| 604 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| 21,22 | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 605 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| 21,22 | ||
| 606 | N 000908016001 | SCREW PLUG |
| 607 | N 007603016401 | SEAL RING |
| 610 | A 3214300205 | RESERVOIR |
| Repalced by: A 0034322501 | ||
| 610 | A 0034322501 | RESERVOIR |
| 611 | A 0004326501 | RESERVOIR |
| Repalced by: A 0034321501 | ||
| 611 | A 0034321501 | RESERVOIR |
| 20 L | ||
| 611 | A 0034321501 | RESERVOIR |
| 20 L | ||
| 611 | A 3524308005 | RESERVOIR |
| Repalced by: A 0024320501 | ||
| 611 | A 0024320501 | RESERVOIR |
| Repalced by: A 0034322501 | ||
| 611 | A 0034322501 | RESERVOIR |
| 40 L | ||
| 611 | A 0004323401 | RESERVOIR |
| Repalced by: A 0034321301 | ||
| 611 | A 0034321301 | RESERVOIR |
| 20 L | ||
| 614 | A 3604750020 | PAD |
| 615 | N 007603022102 | SEAL RING |
| A 0004320407 | VALVE | |
| Repalced by: A 0004320807 | ||
| A 0004320607 | VALVE | |
| Repalced by: A 0004321107 | ||
| A 0004320106 | SCREW | |
| Repalced by: A 0004321107 | ||
| 616 | A 0004320206 | SCREW |
| N 074313012100 | FITTING | |
| Repalced by: A 0029971172 | ||
| 617 | A 0029971172 | FITTING |
| CONNECTIONS "11,22" | ||
| 618 | N 074298022203 | DOUBLE FITTING |
| 619 | A 0009902370 | T-FITTING |
| 619 | N 074302022201 | T-FITTING |
| 620 | A 0009907771 | ELBOW FITTING |
| N 003952012101 | FITTING | |
| Repalced by: A 0019902771 | ||
| 621 | A 0019902771 | ELBOW FITTING |
| 621 | A 0019902771 | ELBOW FITTING |
| 622 | N 074305022202 | NUT |
| CONNECTIONS "12,21" | ||
| 622 | N 074305022200 | NUT |
| 623 | A 0004290227 | THRUST RING |
| AIR RESERVOIR,CONNECTIONS: | ||
| 11,12,21,22,31,32 | ||
| 624 | A 0009870446 | SEALING CORD |
| AIR RESERVOIR,CONNECTIONS: | ||
| 11,12,21,22,31,32 | ||
| 625 | N 074301022203 | ELBOW FITTING |
| 625 | N 074301022200 | ELBOW FITTING |
| 626 | A 0009905168 | FITTING |
| CONNECTIONS "12,21" | ||
| 627 | A 0009870446 | SEALING CORD |
| CONNECTIONS "12,21" | ||
| 628 | N 915047012203 | HOLLOW SCREW |
| CONNECTIONS "12,21" | ||
| 629 | A 0004290227 | THRUST RING |
| CONNECTIONS "12,21" | ||
| 630 | N 007603016401 | SEAL RING |
| CONNECTIONS "12,21" | ||
| 631 | A 0004312031 | TEST CONNECTION |
| AIR RESERVOIR,CONNECTIONS: | ||
| 12,21,VOSS | ||
| 631 | A 0004314531 | TEST CONNECTION |
| AIR RESERVOIR,CONNECTIONS: | ||
| 12,21,SCHAEFER | ||
| 631 | A 0004314831 | TEST CONNECTION |
| AIR RESERVOIR,CONNECTIONS: | ||
| 12,21,WABCO | ||
| 631 | A 0004316131 | TEST CONNECTION |
| AIR RESERVOIR,CONNECTIONS: | ||
| 12,21,WIRA | ||
| 632 | A 0009979486 | PLUG |
| 633 | A 0004321107 | VALVE |
| DRAIN VALVE | ||
| 633 | A 0004322107 | VALVE |
| DRAIN VALVE | ||
| 633 | A 0004322407 | VALVE |
| DRAIN VALVE | ||
| A 3214320015 | CONSOLE | |
| Repalced by: A 3224300111 | ||
| A 3224300111 | CONSOLE | |
| Repalced by: A 3224320215 | ||
| 634 | A 3224320215 | CONSOLE |
| A 3184300511 | CONSOLE | |
| Repalced by: A 3604301311 | ||
| 635 | A 3604301311 | CONSOLE |
| AIR RESERVOIR | ||
| 635 | A 3604301311 | CONSOLE |
| AIR RESERVOIR | ||
| A 3144300511 | CONSOLE | |
| 636 | N 000961012106 | SCREW |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 636 | N 000961012041 | SCREW |
| 637 | N 000440014100 | WASHER |
| CONSOLE TO FRAME SIDE MEMBER | ||
| A 3214750084 | SHIM | |
| Repalced by: N 006796012102 | ||
| 638 | N 006796012102 | CONICAL SPRING WASHER |
| CONSOLE TO FRAME SIDE MEMBER | ||
| A 3354320126 | PLATE | |
| Repalced by: A 3434320026 | ||
| 639 | A 3434320026 | PLATE |
| 640 | A 3219870214 | RUBBER STRIP |
| 641 | A 3214300240 | STRAP |
| AIR RESERVOIR | ||
| 641 | A 3224300240 | STRAP |
| AIR RESERVOIR | ||
| 642 | A 3184300240 | STRAP |
| AIR RESERVOIR | ||
| 642 | A 3604300040 | STRAP |
| AIR RESERVOIR | ||
| 643 | N 000934010014 | NUT |
| AIR RESERVOIR | ||
| 644 | A 3354320218 | BASE |
| AIR RESERVOIR | ||
| 644 | A 3354320218 | BASE |
| AIR RESERVOIR | ||
| 645 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 645 | N 304017008016 | SCREW |
| AIR RESERVOIR | ||
| 646 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 646 | N 913004008001 | NUT |
| AIR RESERVOIR | ||
| 647 | N 912004010102 | LOCK WASHER |
| AIR RESERVOIR | ||
| 648 | A 3149900188 | BANJO UNION |
| AIR RESERVOIR | ||
| 649 | N 001434010024 | PIN |
| AIR RESERVOIR | ||
| 650 | N 000094003219 | COTTER PIN |
| AIR RESERVOIR | ||
| N 074299022202 | DOUBLE FITTING | |
| 653 | A 0004311675 | THREADED UNION |
| 653 | A 0004311675 | THREADED UNION |
| 654 | N 000936016001 | NUT |
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 655 | A 0009971548 | SEAL RING |
| 656 | A 0004310051 | SPACER RING |
| 657 | A 3529970272 | FITTING |
| 658 | A 3529900071 | ELBOW FITTING |
| 658 | A 3529900071 | ELBOW FITTING |
| 659 | N 080705016003 | NUT |
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 660 | A 0009971548 | SEAL RING |
| 661 | A 0004310051 | SPACER RING |
| A 0004315605 | BRAKE VALVE | |
| Repalced by: A 0004319014 | ||
| A 0004315914 | BRAKE BOOSTER | |
| Repalced by: A 0004319014 | ||
| 663 | A 0004319014 | BRAKE CYLINDER |
| 663 | A 0004319014 | BRAKE CYLINDER |
| 664 | A 0004312886 | SEAL RING |
| 665 | A 0059974745 | SEAL RING |
| 666 | A 0004314983 | PISTON |
| 667 | A 0004315683 | PISTON |
| TO 000 431 59 14 | ||
| A 0004316386 | SEAL RING | |
| 668 | A 0004317060 | SEAL RING |
| TO 000 431 59 14 | ||
| A 0004311281 | VALVE DISC | |
| 669 | A 0003270032 | VALVE PART |
| TO 000 431 59 14 | ||
| A 0004317160 | SEAL RING | |
| Repalced by: A 0004319460 | ||
| 670 | A 0004319460 | SEAL RING |
| TO 000 431 59 14 | ||
| 671 | A 0004310386 | CUP |
| TO 000 431 59 14 | ||
| 672 | N 912004010102 | LOCK WASHER |
| TO 000 431 59 14 | ||
| A 0029975840 | SEAL RING | |
| TO 000 431 59 14 | ||
| 673 | A 0004289435 | BRAKE HOSE |
| Repalced by: A 0004289535 | ||
| 673 | A 0004289535 | BRAKE HOSE |
| 505 MM,TO 000 431 59 14 | ||
| 674 | N 007603014405 | SEAL RING |
| TO 000 431 59 14 | ||
| 675 | A 0049978145 | SEAL RING |
| A 0004316586 | CUP | |
| 676 | A 0004317186 | CUP |
| TO 000 431 59 14 | ||
| A 0069977845 | SEAL RING | |
| TO 000 431 59 14 | ||
| 677 | A 0039978245 | SEAL RING |
| TO 000 431 59 14 | ||
| A 0019976540 | SEAL RING | |
| TO 000 431 59 14 | ||
| 678 | A 0000741159 | SEAL RING |
| TO 000 431 59 14 | ||
| 679 | A 0025860243 | REPAIR KIT |
| TO 000 431 90 14 | ||
| A 0004318314 | BRAKE CYLINDER | |
| Repalced by: A 0014318514 | ||
| A 0004318414 | BRAKE CYLINDER | |
| 680 | A 0014318514 | BRAKE CYLINDER |
| BOSCH-SCHAEFER | ||
| A 0014310914 | BRAKE CYLINDER | |
| Repalced by: A 0014318614 | ||
| A 0014311014 | BRAKE CYLINDER | |
| Repalced by: A 0014318614 | ||
| A 0024301230 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0014318614 | ||
| A 0014315014 | BRAKE CYLINDER | |
| Repalced by: A 0014318614 | ||
| 681 | A 0014318614 | BRAKE CYLINDER |
| BOSCH-SCHAEFER | ||
| 682 | A 0004312681 | VALVE DISC |
| TO 001 431 85 14 | ||
| A 0039974347 | SEAL RING | |
| TO 000 431 83 14,001 431 09 14 | ||
| 683 | A 0059977348 | SEAL RING |
| TO 000 431 83 14,001 431 09 14 | ||
| 683 | A 0059977348 | SEAL RING |
| TO 001 431 85 14,001 431 86 14 | ||
| 684 | A 0004317983 | PISTON |
| TO 000 431 83 14 | ||
| 684 | A 0004317983 | PISTON |
| TO 001 431 85 14,001 431 86 14 | ||
| 685 | A 0014315593 | SPRING |
| TO 000 431 83 14,001 431 09 14 | ||
| 686 | A 0014315893 | SPRING |
| TO 001 431 09 14 | ||
| 687 | A 0014315993 | SPRING |
| TO 001 431 09 14 | ||
| 688 | A 0069975645 | SEAL RING |
| TO 000 431 83 14,001 431 09 14 | ||
| A 0059979448 | SEAL RING | |
| Repalced by: A 0039979348 | ||
| 689 | A 0039979348 | SEAL RING |
| TO 000 431 83 14,001 431 09 14 | ||
| 690 | A 0014310660 | SEAL RING |
| TO 000 431 83 14,001 431 09 14 | ||
| 691 | A 0014313993 | SPRING |
| TO 000 431 83 14,001 431 09 14 | ||
| 692 | A 0059977448 | SEAL RING |
| TO 000 431 83 14,001 431 09 14 | ||
| 693 | A 0004311349 | GUIDE BUSHING |
| TO 000 431 83 14 | ||
| 694 | A 0009882735 | CAP |
| TO 000 431 83 14 | ||
| 695 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 695 | N 007603010110 | SEAL RING |
| TO 001 431 09 14,001 431 10 14,TEVES | ||
| 696 | N 000472017000 | LOCK RING |
| TO 001 431 85 14; 001 431 86 14 | ||
| 697 | A 0004311022 | COVER |
| TO 001 431 85 14 | ||
| 698 | N 000933008191 | SCREW |
| TO 001 431 85 14,001 431 86 14 | ||
| 698 | N 000933010094 | SCREW |
| TO 001 431 85 14,001 431 86 14 | ||
| 699 | A 0004315586 | CUP |
| TO 000 431 84 14 | ||
| A 0044205518 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0074202018 | ||
| A 0074202018 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0044206818 | ||
| 700 | A 0044206818 | WHEEL BRAKE CYLINDER |
| SLAVE CYLINDER | ||
| TEVES,TO 001 431 09 14,001 431 10 14 | ||
| A 0004204155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| A 0004202155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| 701 | A 3075530107 | VALVE |
| 702 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 702 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 702 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 702 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 702 | A 0004210887 | PROTECTIVE CAP |
| 704 | A 0025866643 | REPAIR KIT |
| COMPRESSED AIR CYLINDER | ||
| TO 001 431 10 14,002 430 12 30 | ||
| 704 | A 0025860743 | REPAIR KIT |
| Repalced by: A 0004302108 | ||
| 704 | A 0004302108 | REPAIR KIT |
| COMPRESSED AIR CYLINDER | ||
| TO 000 431 83 14,001 431 09 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 431 50 14,001 431 85 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 431 86 14 | ||
| 704 | A 0025865843 | REPAIR KIT |
| COMPRESSED AIR CYLINDER | ||
| TO 000 431 84 14 | ||
| 705 | A 0005864829 | REPAIR KIT |
| SLAVE CYLINDER | ||
| TO 004 420 55 18 | ||
| 705 | A 0025862442 | REPAIR KIT |
| SLAVE CYLINDER | ||
| TO 007 420 20 18 | ||
| 705 | A 0025860942 | REPAIR KIT |
| SLAVE CYLINDER | ||
| TO 004 420 68 18 | ||
| 705 | A 0025865542 | REPAIR KIT |
| SLAVE CYLINDER | ||
| TO 004 420 68 18 | ||
| 707 | N 915036012203 | HOLLOW SCREW |
| BRAKE CYLINDER,CONNECTIONS "11,12" | ||
| 708 | N 007603016401 | SEAL RING |
| BRAKE CYLINDER,CONNECTIONS "11,12" | ||
| 709 | N 000908016001 | SCREW PLUG |
| BRAKE CYLINDER, CONNECTIONS "21,22" | ||
| 710 | A 0004290927 | THRUST RING |
| BRAKE CYLINDER, CONNECTIONS "21,22" | ||
| 711 | A 0009971548 | SEAL RING |
| BRAKE CYLINDER, CONNECTIONS "21,22" | ||
| 712 | A 0005455214 | SWITCH |
| BRAKE READJUSTMENT | ||
| M 24 X 1 MM | ||
| 713 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 713 | N 007603010110 | SEAL RING |
| BRAKE READJUSTMENT | ||
| 714 | A 0089979082 | HOSE |
| LEAK CONNECTION | ||
| 715 | A 0004317014 | BRAKE BOOSTER |
| A 0004315187 | PROTECTIVE CAP | |
| Repalced by: A 0004311087 | ||
| 716 | A 0004311087 | PROTECTIVE CAP |
| 717 | A 0015864943 | REPAIR KIT |
| TO 000 431 70 14 | ||
| 718 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 718 | N 000908022011 | SCREW PLUG |
| 718 | N 000908014001 | SCREW PLUG |
| Repalced by: N 000908014009 | ||
| 718 | N 000908014009 | SCREW PLUG |
| 719 | N 007603022102 | SEAL RING |
| 719 | N 007603014405 | SEAL RING |
| 720 | A 0009970171 | FITTING |
| 721 | A 0019979572 | FITTING |
| 722 | A 0009907570 | T-FITTING |
| 723 | A 0009904670 | T-FITTING |
| A 0004293638 | ELBOW FITTING | |
| Repalced by: A 0019907571 | ||
| 724 | A 0019907571 | ELBOW FITTING |
| 725 | N 074305022202 | NUT |
| 725 | N 080705014002 | NUT |
| 726 | A 0004290227 | THRUST RING |
| 726 | A 0004290627 | THRUST RING |
| 727 | A 0009870446 | SEALING CORD |
| 727 | A 0079974245 | SEAL RING |
| M 14 | ||
| 728 | N 007603022102 | SEAL RING |
| 729 | N 007604010102 | SCREW PLUG |
| 730 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 730 | N 007603010110 | SEAL RING |
| 731 | A 0019902171 | ELBOW FITTING |
| 733 | N 000127010206 | LOCK WASHER |
| 734 | N 000933010105 | SCREW |
| 735 | A 3144300211 | CONSOLE |
| 735 | A 3144300711 | CONSOLE |
| 735 | A 3144300711 | CONSOLE |
| A 3184313840 | BRACKET | |
| Repalced by: A 3184314140 | ||
| A 3184314140 | BRACKET | |
| Repalced by: A 3184313940 | ||
| 735 | A 3184300111 | CONSOLE |
| A 3184312740 | BRACKET | |
| 736 | A 3184313940 | BRACKET |
| BRAKE BOOSTER | ||
| A 3144300811 | CONSOLE | |
| A 3184280540 | BRACKET | |
| N 000933010105 | SCREW | |
| BRAKE BOOSTER TO CONSOLE | ||
| N 000933010145 | SCREW | |
| BRAKE BOOSTER TO CONSOLE | ||
| N 912004010102 | LOCK WASHER | |
| BRAKE BOOSTER TO CONSOLE | ||
| N 913002010001 | NUT | |
| BRAKE BOOSTER TO CONSOLE | ||
| A 3184290640 | BRACKET | |
| 741 | N 000961012151 | SCREW |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 742 | N 910113012002 | NUT |
| CONSOLE TO FRAME SIDE MEMBER | ||
| A 3144290040 | BRACKET | |
| A 3144200486 | BRACKET | |
| A 3604292440 | BRACKET | |
| Repalced by: A 3604292940 | ||
| A 3144291040 | BRACKET | |
| A 3604292040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 743 | A 6205240340 | BRACKET |
| 744 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 744 | N 304017008021 | SCREW |
| 745 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 745 | N 913004008001 | NUT |
| A 3144312240 | BRACKET | |
| A 3144312240 | BRACKET | |
| 746 | A 3184300310 | BRACKET |
| LEVER | ||
| 747 | A 3184300123 | LEVER |
| BRAKE BOOSTER | ||
| A 0009815610 | NEEDLE BEARING | |
| Repalced by: A 0119813410 | ||
| A 0089811110 | NEEDLE BEARING | |
| Repalced by: A 0119813410 | ||
| 748 | A 0119813410 | NEEDLE BEARING |
| BRAKE BOOSTER | ||
| A 0089978046 | SEAL RING | |
| Repalced by: A 0069979147 | ||
| 749 | A 0069979147 | SEAL RING |
| BRAKE BOOSTER | ||
| 750 | A 3804310092 | ROD |
| BRAKE BOOSTER | ||
| 751 | A 3529910007 | PIN |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| N 000433010505 | WASHER | |
| Repalced by: N 000433010510 | ||
| N 000433010510 | WASHER | |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| 753 | N 000094003201 | COTTER PIN |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| A 3184310150 | BUSHING | |
| Repalced by: A 3184310053 | ||
| 754 | A 3184310053 | SPACER TUBE |
| BRAKE BOOSTER | ||
| 755 | A 3859930010 | SPRING |
| BRAKE BOOSTER | ||
| 756 | N 000931010239 | SCREW |
| CONSOLE AND BRACKET TO BRAKE BOOSTER | ||
| 757 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 757 | N 910113010000 | NUT |
| CONSOLE AND BRACKET TO BRAKE BOOSTER | ||
| 758 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 758 | N 304017010002 | SCREW |
| BRACKET TO CONSOLE | ||
| 759 | N 000934010014 | NUT |
| BRACKET TO CONSOLE | ||
| A 3184290740 | BRACKET | |
| 760 | N 000933010105 | SCREW |
| BRACKET TO CONSOLE | ||
| M 10X25 | ||
| 760 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| M 10X20 | ||
| 760 | N 000966008006 | SCREW |
| Repalced by: N 000966008031 | ||
| 760 | N 000966008031 | SCREW |
| BRACKET TO CONSOLE | ||
| 760 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 761 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 761 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 761 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 761 | N 913004008001 | NUT |
| BRACKET TO CONSOLE | ||
| 761 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 761 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 762 | N 900331010634 | PULL ROD |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 763 | A 0009961501 | YOKE |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 764 | N 000934010014 | NUT |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 765 | A 3529910007 | PIN |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| A 3149910107 | PIN | |
| Repalced by: A 3529910007 | ||
| 765 | A 3529910007 | PIN |
| 766 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 766 | N 000433010510 | WASHER |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| 766 | N 000433010510 | WASHER |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| 767 | N 000094003219 | COTTER PIN |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| 767 | N 000094003219 | COTTER PIN |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| A 3184290440 | BRACKET | |
| BRAKE CYLINDER TO SUPPORT | ||
| A 3184311840 | BRACKET | |
| BRAKE CYLINDER TO SUPPORT | ||
| A 3144312340 | BRACKET | |
| BRAKE CYLINDER TO SUPPORT | ||
| 768 | N 000933006102 | SCREW |
| BRAKE CYLINDER TO SUPPORT | ||
| 768 | N 000933010105 | SCREW |
| BRAKE CYLINDER TO SUPPORT | ||
| 768 | N 000961012151 | SCREW |
| BRAKE CYLINDER TO SUPPORT | ||
| 768 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 768 | N 304014008001 | SCREW |
| 769 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 769 | N 000125010532 | WASHER |
| BRAKE CYLINDER TO SUPPORT | ||
| 769 | N 000125013008 | WASHER |
| 770 | N 912004010102 | LOCK WASHER |
| BRAKE CYLINDER TO SUPPORT | ||
| 770 | N 912004010102 | LOCK WASHER |
| BRAKE CYLINDER TO SUPPORT | ||
| 771 | N 000934010014 | NUT |
| BRAKE CYLINDER TO SUPPORT | ||
| 771 | N 000934010014 | NUT |
| BRAKE CYLINDER TO SUPPORT | ||
| 772 | N 910113012002 | NUT |
| 772 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 772 | N 913004006001 | NUT |
| BRAKE CYLINDER TO SUPPORT | ||
| 772 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 772 | N 913004008001 | NUT |
| 774 | N 074302022202 | T-FITTING |
| 775 | A 0009870446 | SEALING CORD |
| 776 | A 0004290227 | THRUST RING |
| 777 | A 0009904468 | FITTING |
| 778 | A 0000750032 | FILTER |
| 779 | N 007603022102 | SEAL RING |
| 780 | N 007603012405 | SEAL RING |
| 781 | N 074301022201 | ELBOW FITTING |
| 782 | A 3169900070 | T-FITTING |
| 783 | A 0009907771 | ELBOW FITTING |
| 784 | N 074305022201 | NUT |
| 784 | N 074305022202 | NUT |
| 785 | A 0004316105 | BRAKE VALVE |
| 785 | A 0004317905 | BRAKE VALVE |
| 786 | A 0004313086 | CUP |
| A 0004318486 | CUP | |
| Repalced by: A 0004313086 | ||
| A 0004312976 | WASHER | |
| A 0004311228 | DIAPHRAGM | |
| Repalced by: A 0004313186 | ||
| 787 | A 0004313186 | CUP |
| 788 | A 0004350390 | VALVE DISC |
| 789 | A 0014313705 | BRAKE VALVE |
| TRAILER CONTROL VALVE | ||
| WABCO | ||
| 789 | A 0014313705 | BRAKE VALVE |
| TRAILER CONTROL VALVE | ||
| WABCO | ||
| 789 | A 0014311805 | BRAKE VALVE |
| TRAILER CONTROL VALVE | ||
| BOSCH | ||
| 789 | A 0014311805 | BRAKE VALVE |
| TRAILER CONTROL VALVE | ||
| BOSCH | ||
| 789 | A 0014314805 | BRAKE VALVE |
| TRAILER CONTROL VALVE | ||
| GRAU | ||
| 789 | A 0014314805 | BRAKE VALVE |
| TRAILER CONTROL VALVE | ||
| GRAU | ||
| A 0014313405 | BRAKE VALVE | |
| Repalced by: A 0014313705 | ||
| 790 | A 0025865943 | REPAIR KIT |
| TO 001 431 48 05 | ||
| 790 | A 0025865943 | REPAIR KIT |
| TO 001 431 48 05 | ||
| 790 | A 0015866043 | REPAIR KIT |
| Repalced by: A 0024306581 | ||
| 790 | A 0024306581 | REPAIR KIT |
| TO 001 431 37 05 | ||
| 790 | A 0024306581 | REPAIR KIT |
| TO 001 431 37 05 | ||
| 790 | A 0024304781 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 37 05 | ||
| 790 | A 0015868643 | REPAIR KIT |
| Repalced by: A 0004304606 | ||
| 790 | A 0004304606 | BRAKE VALVE |
| SEAL RING | ||
| TO 001 431 18 05 | ||
| 790 | A 0004304606 | BRAKE VALVE |
| SEAL RING | ||
| TO 001 431 18 05 | ||
| 790 | A 0015868043 | REPAIR KIT |
| TO 001 431 34 05 | ||
| 790 | A 0015868043 | REPAIR KIT |
| TO 001 431 34 05 | ||
| A 3144311840 | BRACKET | |
| 791 | A 0029971572 | FITTING |
| 792 | N 007603016401 | SEAL RING |
| N 074313008104 | FITTING | |
| Repalced by: A 0029979572 | ||
| 793 | A 0029979572 | FITTING |
| 794 | A 0009904570 | T-FITTING |
| 795 | A 0009906670 | T-FITTING |
| CONNECTION "1" | ||
| 796 | A 0029972672 | FITTING |
| CONNECTION "2" | ||
| 797 | A 0009905970 | T-FITTING |
| CONNECTION: | ||
| 41 | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| A 0009971548 | SEAL RING | |
| A 0004290927 | THRUST RING | |
| N 080705016003 | NUT | |
| 800 | A 3184312140 | BRACKET |
| N 000933008150 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| 801 | A 0024292144 | VALVE |
| 802 | A 0019901971 | ELBOW FITTING |
| CONNECTION "1" | ||
| A 0079974245 | SEAL RING | |
| CONNECTION "1" | ||
| A 0004290627 | THRUST RING | |
| CONNECTION "1" | ||
| N 080705014002 | NUT | |
| CONNECTION "1" | ||
| 805 | A 0029977472 | FITTING |
| CONNECTION "2" | ||
| N 007603014405 | SEAL RING | |
| CONNECTION "2" | ||
| N 003953012100 | FITTING | |
| Repalced by: A 0019903170 | ||
| 806 | A 0019903170 | T-FITTING |
| CONNECTION "2" | ||
| N 915036006202 | HOLLOW SCREW | |
| CONNECTION: | ||
| 41 | ||
| N 007603010103 | SEAL RING | |
| Repalced by: N 007603010110 | ||
| N 007603010110 | SEAL RING | |
| CONNECTION: | ||
| 41 | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 807 | A 0009971548 | SEAL RING |
| 808 | A 0004290927 | THRUST RING |
| 809 | N 080705016003 | NUT |
| A 3184312640 | BRACKET | |
| N 000931005011 | SCREW | |
| BRACKET TO TWO-WAY VALVE | ||
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| BRACKET TO TWO-WAY VALVE | ||
| N 913004005001 | NUT | |
| BRACKET TO TWO-WAY VALVE | ||
| 810 | A 3144300010 | BRACKET |
| 811 | A 3144311540 | BRACKET |
| 812 | A 3184290340 | BRACKET |
| A 3164310440 | BRACKET | |
| A 3144290047 | COVERING | |
| N 000961012011 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 000961012011 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| N 913002012004 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| N 913002010001 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 814 | N 900331008420 | PULL ROD |
| 814 | N 900331008420 | PULL ROD |
| N 071805013203 | BALL SOCKET | |
| N 071805013203 | BALL SOCKET | |
| N 071805013300 | SNAP RING | |
| N 304032008006 | NUT | |
| N 304032008006 | NUT | |
| N 071803013102 | BALL PIVOT | |
| N 071803013102 | BALL PIVOT | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| N 071805013402 | SECURING CLIP | |
| N 071805013402 | SECURING CLIP | |
| N 074315012100 | FITTING | |
| Repalced by: A 0019903371 | ||
| 818 | A 0019903371 | ELBOW FITTING |
| 819 | A 0029971572 | FITTING |
| 820 | A 0009907470 | T-FITTING |
| 821 | N 074313008104 | FITTING |
| Repalced by: A 0029979572 | ||
| 821 | A 0029979572 | FITTING |
| 822 | N 074301022201 | ELBOW FITTING |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| 823 | N 074298022203 | DOUBLE FITTING |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| 824 | N 074313012304 | FITTING |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| N 007605016000 | LOCK NUT | |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| N 007603016401 | SEAL RING | |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| N 007603016401 | SEAL RING | |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| A 0009870446 | SEALING CORD | |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| A 0004290227 | THRUST RING | |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| A 0004310051 | SPACER RING | |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| N 007603022102 | SEAL RING | |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| A 0009971548 | SEAL RING | |
| N 074305022201 | NUT | |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| N 080705018002 | NUT | |
| LINE TO TRAILER BRAKE VALVE & SHUT-OFF COCK | ||
| N 080705016003 | NUT | |
| A 0004290631 | SHUT-OFF COCK | |
| Repalced by: A 0004291431 | ||
| 826 | A 0004291431 | SHUT-OFF COCK |
| 826 | A 0004291631 | SHUT-OFF COCK |
| A 0009974077 | HANDLE | |
| TO 000 429 16 31 | ||
| A 0004290278 | HANDLE | |
| TO 000 429 06 31 | ||
| N 001473004003 | GROOVED PIN | |
| TO 000 429 06 31 | ||
| A 0004290162 | THRUST WASHER | |
| TO 000 429 06 31 | ||
| A 0004290284 | SEAL RING | |
| TO 000 429 06 31 | ||
| A 0119976748 | SEAL RING | |
| TO 000 429 16 31 | ||
| A 0004292684 | SEAL RING | |
| TO 000 429 16 31 | ||
| A 0004290085 | SEAL HOLDER | |
| TO 000 429 06 31 | ||
| A 0004290393 | SPRING | |
| TO 000 429 06 31 | ||
| A 0004292293 | SPRING | |
| TO 000 429 16 31 | ||
| A 0004292393 | SPRING | |
| TO 000 429 16 31 | ||
| N 007603038300 | SEAL RING | |
| TO 000 429 06 31 | ||
| 827 | A 0005910156 | SCREW PLUG |
| TO 000 429 06 31 | ||
| 828 | A 0004290181 | GROMMET |
| TO 000 429 06 31 | ||
| 829 | A 0005866342 | REPAIR KIT |
| TO 000 429 14 31 | ||
| 830 | A 0014296044 | VALVE |
| OVERFLOW VALVE | ||
| 830 | A 0024290344 | VALVE |
| OVERFLOW VALVE | ||
| 830 | A 0024295244 | VALVE |
| OVERFLOW VALVE | ||
| 831 | A 0004290545 | DIAPHRAGM |
| TO 001 429 60 44 | ||
| 832 | A 0015862042 | REPAIR KIT |
| TO 001 429 60 44 | ||
| A 0004290141 | FITTING | |
| Repalced by: N 074304022201 | ||
| 833 | N 074304022201 | FITTING |
| A 0009870446 | SEALING CORD | |
| A 0004290227 | THRUST RING | |
| 835 | A 0004290181 | GROMMET |
| A 3144290042 | BRACKET | |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO CAB CROSS MEMBER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| BRACKET TO CAB CROSS MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO CAB CROSS MEMBER | ||
| N 304032008006 | NUT | |
| BRACKET TO CAB CROSS MEMBER | ||
| N 000931008254 | SCREW | |
| Repalced by: N 304014008002 | ||
| N 304014008002 | SCREW | |
| SHUT-OFF COCK TO BRACKET | ||
| N 912004008102 | LOCK WASHER | |
| SHUT-OFF COCK TO BRACKET | ||
| N 304032008006 | NUT | |
| SHUT-OFF COCK TO BRACKET | ||
| 836 | A 0009904770 | T-FITTING |
| 837 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 837 | A 0004296201 | LINE |
| 6 MM | ||
| N 915017006100 | UNION NUT | |
| N 003861006007 | GLAND | |
| Repalced by: A 0019901667 | ||
| A 0019901667 | SEAL CONE | |
| 838 | A 3379970072 | FITTING |
| N 000936012002 | NUT | |
| 839 | A 3215420035 | HOSE |
| 840 | A 3145401261 | ELECTRIC CABLE |
| LINE TO PRESSURE GAUGE | ||
| 841 | A 3125421039 | PLATE |
| 842 | A 3129950332 | CLAMP |
| Repalced by: A 3609950101 | ||
| 842 | A 3609950101 | CLAMP |
| 842 | A 3229950120 | CLAMP |
| Repalced by: A 3609950101 | ||
| 842 | A 3609950101 | CLAMP |
| 842 | A 3229950120 | CLAMP |
| Repalced by: A 3609950101 | ||
| 842 | A 3609950101 | CLAMP |
| N 007985004106 | SCREW | |
| N 000127004206 | LOCK WASHER | |
| N 000934004006 | NUT | |
| N 007981003271 | SHEET METAL SCREW | |
| A 3125421139 | PLATE | |
| 843 | A 3129950033 | CLAMP |
| AIR PRESSURE GAUGE LINES | ||
| A 3229950120 | CLAMP | |
| Repalced by: A 3609950101 | ||
| A 3145420053 | SPACER TUBE | |
| N 007985005174 | SCREW | |
| N 007985005106 | SCREW | |
| CLAMP TO BRACKET | ||
| N 007985005109 | SCREW | |
| N 912004005103 | LOCK WASHER | |
| N 304032005005 | NUT | |
| 844 | A 3144290240 | BRACKET |
| Repalced by: A 3812950440 | ||
| 844 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 844 | N 304017008021 | SCREW |
| 845 | N 912004008102 | LOCK WASHER |
| 846 | N 304032008006 | NUT |
| 847 | A 3609950101 | CLAMP |
| 848 | A 3144270120 | HANDLE |
| PISTOL-GRIP HAND BRAKE | ||
| 848 | A 3144270120 | HANDLE |
| PISTOL-GRIP HAND BRAKE | ||
| 848 | A 3144270120 | HANDLE |
| PISTOL-GRIP HAND BRAKE | ||
| 849 | N 000964006017 | SCREW |
| 849 | N 000964006017 | SCREW |
| 849 | N 000964006017 | SCREW |
| 850 | A 3144270072 | NUT |
| 850 | A 3144270072 | NUT |
| 850 | A 3144270072 | NUT |
| 851 | A 3124271086 | DAMPING RING |
| 851 | A 3124271086 | DAMPING RING |
| 851 | A 3124271086 | DAMPING RING |
| 852 | A 3144200784 | PARKING BRAKE |
| 852 | A 3144200784 | PARKING BRAKE |
| 852 | A 3144200784 | PARKING BRAKE |
| 853 | A 3144201878 | BEARING BRACKET |
| Repalced by: A 3144201178 | ||
| 853 | A 3145860042 | REPAIR KIT |
| Repalced by: A 3144201178 | ||
| 853 | A 3144201178 | BEARING BRACKET |
| PISTOL-GRIP HAND BRAKE | ||
| 853 | A 3144201178 | BEARING BRACKET |
| PISTOL-GRIP HAND BRAKE | ||
| 853 | A 3144201178 | BEARING BRACKET |
| PISTOL-GRIP HAND BRAKE | ||
| N 001473004027 | GROOVED PIN | |
| N 001473004027 | GROOVED PIN | |
| N 001473004027 | GROOVED PIN | |
| A 3124271215 | PAWL | |
| Repalced by: A 3145860142 | ||
| A 1539930701 | SPRING | |
| Repalced by: A 3145860142 | ||
| A 3129900043 | PLATE | |
| Repalced by: A 3145860142 | ||
| N 000472015000 | LOCK RING | |
| N 000472015000 | LOCK RING | |
| N 000472015000 | LOCK RING | |
| 855 | A 3819970486 | PLUG |
| HAND BRAKE | ||
| 856 | A 3144270079 | GASKET |
| HAND BRAKE | ||
| 856 | A 3144270079 | GASKET |
| HAND BRAKE | ||
| 856 | A 3144270079 | GASKET |
| HAND BRAKE | ||
| N 000966006018 | SCREW | |
| N 000966006018 | SCREW | |
| N 000966006018 | SCREW | |
| 857 | A 3145860142 | REPAIR KIT |
| Repalced by: A 3144200092 | ||
| 857 | A 3144200092 | REPAIR KIT |
| PAWL | ||
| 857 | A 3144200092 | REPAIR KIT |
| PAWL | ||
| 857 | A 3144200092 | REPAIR KIT |
| PAWL | ||
| 858 | A 3529910407 | PIN |
| 858 | A 3529910407 | PIN |
| 858 | A 3529910407 | PIN |
| 859 | N 000433008406 | WASHER |
| 859 | N 000433008406 | WASHER |
| 859 | N 000433008406 | WASHER |
| N 900055008002 | SPRING WASHER | |
| N 900055008002 | SPRING WASHER | |
| N 900055008002 | SPRING WASHER | |
| N 000094002060 | COTTER PIN | |
| 860 | A 3144202078 | BEARING BRACKET |
| HAND BRAKE LEVER | ||
| N 910005010042 | RIVET | |
| 861 | A 6205240340 | BRACKET |
| N 000933010105 | SCREW | |
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| 862 | A 3144200412 | BRAKE LEVER |
| 862 | A 3144200412 | BRAKE LEVER |
| A 3144200612 | BRAKE LEVER | |
| 863 | A 3124271550 | BUSHING |
| 863 | A 3124271550 | BUSHING |
| 863 | A 3124271550 | BUSHING |
| 864 | N 071412010100 | GREASE NIPPLE |
| 864 | N 071412010100 | GREASE NIPPLE |
| 864 | N 071412010100 | GREASE NIPPLE |
| 865 | A 3129901540 | WASHER |
| BRAKE LEVER TO BEARING BRACKET | ||
| 865 | A 3129901540 | WASHER |
| BRAKE LEVER TO BEARING BRACKET | ||
| 865 | A 3129901540 | WASHER |
| BRAKE LEVER TO BEARING BRACKET | ||
| 866 | N 000471022002 | LOCK RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 866 | N 000471022002 | LOCK RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 866 | N 000471022002 | LOCK RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 867 | A 3144200674 | ROD |
| Repalced by: A 3144200174 | ||
| 867 | A 3144201974 | ROD |
| Repalced by: A 3144200174 | ||
| 867 | A 3144200174 | ROD |
| 867 | A 3144200174 | ROD |
| A 3144202674 | ROD | |
| 868 | A 3144203974 | ROD |
| Repalced by: N 900331010660 | ||
| 868 | N 900331010660 | PULL ROD |
| 869 | A 3214200176 | END PIECE |
| 870 | A 0009961501 | YOKE |
| 870 | A 0009961501 | YOKE |
| 870 | A 0009961501 | YOKE |
| 870 | A 0009961501 | YOKE |
| 870 | A 0009961501 | YOKE |
| 870 | A 0009961501 | YOKE |
| N 000934010014 | NUT | |
| N 000934010014 | NUT | |
| N 000934010014 | NUT | |
| 871 | A 3149910107 | PIN |
| Repalced by: A 3529910007 | ||
| 871 | A 3529910007 | PIN |
| 871 | A 3529910007 | PIN |
| 871 | A 3529910007 | PIN |
| N 000433010505 | WASHER | |
| Repalced by: N 000433010510 | ||
| N 000433010510 | WASHER | |
| N 000433010510 | WASHER | |
| N 000433010510 | WASHER | |
| N 000094003219 | COTTER PIN | |
| N 000094003219 | COTTER PIN | |
| N 000094003219 | COTTER PIN | |
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| N 900055010002 | SPRING WASHER | |
| Repalced by: N 000137010205 | ||
| N 000137010205 | SPRING WASHER | |
| 874 | A 3144200481 | LEVER |
| 874 | A 3144200481 | LEVER |
| 874 | A 3144200481 | LEVER |
| 874 | A 3144201581 | LEVER |
| 874 | A 3144200681 | LEVER |
| 874 | A 3144201681 | LEVER |
| 874 | A 3144200581 | LEVER |
| A 3144200881 | LEVER | |
| 875 | A 3144270150 | BUSHING |
| 875 | A 3144270150 | BUSHING |
| 875 | A 3144270150 | BUSHING |
| N 071412010200 | GREASE NIPPLE | |
| N 071412010200 | GREASE NIPPLE | |
| N 071412010200 | GREASE NIPPLE | |
| 876 | N 000471018002 | LOCK RING |
| INTERMEDIATE LEVER TO BRACKET | ||
| 877 | N 001440018001 | WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| 878 | A 3144200286 | BRACKET |
| 879 | A 3144200586 | BRACKET |
| Repalced by: A 3144200986 | ||
| 879 | A 3144200986 | BRACKET |
| 879 | A 3144200986 | BRACKET |
| 879 | A 3144270074 | PIN |
| Repalced by: A 3144270574 | ||
| 879 | A 3144270574 | PIN |
| Repalced by: A 3144200986 | ||
| 879 | A 3144200986 | BRACKET |
| 879 | A 3144270941 | BRACKET |
| INTERMEDIATE LEVER | ||
| 880 | A 3144200786 | BRACKET |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO FRAME | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| BRACKET TO FRAME | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| N 304032008006 | NUT | |
| BRACKET TO FRAME | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO FRAME | ||
| A 0009901696 | RIVET | |
| Repalced by: N 910005010018 | ||
| N 910005010018 | RIVET | |
| 10X30 MM | ||
| N 910005012032 | RIVET | |
| 881 | A 3144270674 | PIN |
| N 000471018000 | LOCK RING | |
| N 000471018000 | LOCK RING | |
| N 000471018000 | LOCK RING | |
| 882 | A 3144200874 | ROD |
| 882 | A 3144200874 | ROD |
| 882 | A 3144200974 | ROD |
| 882 | A 3144200974 | ROD |
| 882 | A 3144200774 | ROD |
| 882 | A 3144200774 | ROD |
| 882 | A 3144200774 | ROD |
| 882 | A 3144200774 | ROD |
| A 3144203774 | ROD | |
| A 3144202174 | ROD | |
| 883 | N 001480010200 | TURNBUCKLE |
| 883 | N 001480010200 | TURNBUCKLE |
| 883 | N 001480010200 | TURNBUCKLE |
| A 3129962441 | ROD | |
| Repalced by: N 900331010482 | ||
| 885 | N 900331010482 | PULL ROD |
| Repalced by: N 900331010668 | ||
| 885 | N 900331010668 | PULL ROD |
| 885 | N 900331010668 | PULL ROD |
| 885 | N 900331010667 | PULL ROD |
| 886 | A 3144204074 | ROD |
| 887 | A 3214200176 | END PIECE |
| 887 | A 0009961501 | YOKE |
| N 000934010014 | NUT | |
| N 000934010014 | NUT | |
| N 000934010014 | NUT | |
| N 000934010003 | NUT | |
| L.H. THREAD | ||
| N 000934010003 | NUT | |
| L.H. THREAD | ||
| N 000934010003 | NUT | |
| L.H. THREAD | ||
| 888 | A 3149910107 | PIN |
| Repalced by: A 3529910007 | ||
| 888 | A 3529910007 | PIN |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| 888 | A 3529910007 | PIN |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| N 000433010505 | WASHER | |
| Repalced by: N 000433010510 | ||
| N 000433010510 | WASHER | |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| N 000433010510 | WASHER | |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO REVERSING AND DOUBLE LEVERS | ||
| N 900055010002 | SPRING WASHER | |
| Repalced by: N 000137010205 | ||
| N 000137010205 | SPRING WASHER | |
| N 900055010002 | SPRING WASHER | |
| Repalced by: N 000137010205 | ||
| N 000137010205 | SPRING WASHER | |
| 890 | A 3144200680 | BRAKE INTERMEDIATE SHAFT |
| Repalced by: A 3144201280 | ||
| 890 | A 3144201080 | BRAKE INTERMEDIATE SHAFT |
| 890 | A 3144200880 | BRAKE INTERMEDIATE SHAFT |
| 890 | A 3144201280 | BRAKE INTERMEDIATE SHAFT |
| 890 | A 3144201280 | BRAKE INTERMEDIATE SHAFT |
| 891 | A 3164200280 | BRAKE INTERMEDIATE SHAFT |
| 891 | A 3164200280 | BRAKE INTERMEDIATE SHAFT |
| 891 | A 3164200280 | BRAKE INTERMEDIATE SHAFT |
| 891 | A 3184201480 | BRAKE INTERMEDIATE SHAFT |
| 893 | A 3274270058 | SEAL HOLDER |
| BRAKE INTERMEDIATE SHAFT BEARING BRACKET | ||
| 894 | A 3279970040 | SEAL RING |
| BRAKE INTERMEDIATE SHAFT BEARING BRACKET | ||
| 895 | A 3144201778 | BEARING BRACKET |
| Repalced by: A 3144201978 | ||
| 895 | A 3144201978 | BEARING BRACKET |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 895 | A 3144201978 | BEARING BRACKET |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 895 | A 3144202178 | BEARING BRACKET |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 896 | A 3124272350 | BUSHING |
| 897 | N 071412010100 | GREASE NIPPLE |
| 898 | A 3184200578 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 899 | A 3024260083 | SPHERICAL PIECE |
| Repalced by: A 3025860242 | ||
| 899 | A 3025860242 | REPAIR KIT |
| Repalced by: A 3534200067 | ||
| 899 | N 000470050001 | EXPANSION PLUG |
| 900 | A 3025860242 | REPAIR KIT |
| Repalced by: A 3534200067 | ||
| 900 | A 3534200067 | REPAIR KIT |
| Repalced by: A 3534200167 | ||
| 900 | A 3534200167 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| N 000933010128 | SCREW | |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| N 000933010164 | SCREW | |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| 901 | A 3214200076 | END PIECE |
| Repalced by: A 3224200247 | ||
| 901 | A 3224200247 | YOKE |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| 901 | A 3144200047 | YOKE |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| 902 | N 000934010014 | NUT |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| 903 | A 3372900737 | BEARING |
| Repalced by: A 3144271131 | ||
| 903 | A 3144271131 | ROD |
| 903 | N 900331010669 | PULL ROD |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 904 | A 3224200076 | END PIECE |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 905 | A 0009961501 | YOKE |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 000934010035 | NUT | |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| N 000934010014 | NUT | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 906 | N 001434010064 | PIN |
| PULL ROD TO INTERMEDIATE LEVER SHAFT | ||
| 906 | A 3149910207 | PIN |
| PULL ROD TO INTERMEDIATE LEVER SHAFT | ||
| 906 | N 001434010055 | PIN |
| PULL RODS TO BRAKE LEVERS | ||
| 906 | A 3149910107 | PIN |
| Repalced by: A 3529910007 | ||
| 906 | A 3529910007 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 900055010002 | SPRING WASHER | |
| Repalced by: N 000137010205 | ||
| N 000137010205 | SPRING WASHER | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 908 | A 3149931210 | SPRING |
| 908 | A 3149931210 | SPRING |
| BRAKE LEVER,REAR AXLE | ||
| 909 | A 3244200180 | BRAKE INTERMEDIATE SHAFT |
| Repalced by: A 3144201380 | ||
| 909 | A 3144201380 | BRAKE INTERMEDIATE SHAFT |
| 910 | A 1809902740 | WASHER |
| N 000094004021 | COTTER PIN | |
| 911 | A 3164270096 | CUP |
| 912 | A 3144260010 | LEVER |
| Repalced by: A 3144260210 | ||
| 912 | A 3144260210 | LEVER |
| LINKS | ||
| 912 | A 3144260110 | LEVER |
| Repalced by: A 3144260310 | ||
| 912 | A 3144260310 | LEVER |
| RECHTS | ||
| 914 | A 3124231051 | SPACER RING |
| Repalced by: A 3164230151 | ||
| 914 | A 3164230151 | SPACER RING |
| 3.00 MM | ||
| 914 | A 3164230551 | SPACER RING |
| 3.50 MM | ||
| 914 | A 3164230251 | SPACER RING |
| 4.00 MM | ||
| 914 | A 3164230351 | SPACER RING |
| 5.00 MM | ||
| 914 | A 3164230451 | SPACER RING |
| 6.00 MM | ||
| 914 | A 3124231552 | SPACER WASHER |
| 0.20 MM | ||
| 914 | A 3124231652 | SPACER WASHER |
| 1.00 MM | ||
| A 3124231752 | SPACER WASHER | |
| 2.00 MM | ||
| 915 | A 3124231187 | PROTECTIVE CAP |
| 916 | A 3124261283 | SPHERICAL PIECE |
| Repalced by: A 3224260183 | ||
| 916 | A 3224260183 | SPHERICAL PIECE |
| 917 | A 3124261550 | BUSHING |
| 918 | N 070952035101 | LOCK PLATE |
| 919 | N 070852035000 | NUT |
| A 3145860242 | REPAIR KIT | |
| Repalced by: A 3144200167 | ||
| 920 | A 3144200167 | REPAIR KIT |
| HAND BRAKE SHAFT | ||
| A 0009901696 | RIVET | |
| Repalced by: N 910005010018 | ||
| N 910005010018 | RIVET | |
| 10X30 MM | ||
| N 910005010018 | RIVET | |
| 10X30 MM | ||
| 921 | A 0004311316 | VALVE |
| 921 | A 0004311316 | VALVE |
| 922 | A 0014311086 | CUP |
| 922 | A 0014311086 | CUP |
| 923 | A 0014300081 | VALVE |
| Repalced by: A 0014306581 | ||
| 923 | A 0014306581 | VALVE |
| PARKING BRAKE | ||
| WABCO | ||
| 923 | A 0014306581 | VALVE |
| PARKING BRAKE | ||
| WABCO | ||
| 923 | A 0014306581 | VALVE |
| PARKING BRAKE | ||
| WABCO | ||
| A 0014300781 | VALVE | |
| Repalced by: A 0024300381 | ||
| 923 | A 0024300381 | VALVE |
| PARKING BRAKE | ||
| BOSCH | ||
| 923 | A 0024300381 | VALVE |
| PARKING BRAKE | ||
| BOSCH | ||
| 923 | A 0024300381 | VALVE |
| PARKING BRAKE | ||
| BOSCH | ||
| A 0014301881 | VALVE | |
| PARKING BRAKE | ||
| KNORR | ||
| A 0014301881 | VALVE | |
| PARKING BRAKE | ||
| KNORR | ||
| A 0014301881 | VALVE | |
| PARKING BRAKE | ||
| KNORR | ||
| 924 | A 0014311287 | PROTECTIVE CAP |
| TO 001 430 18 81 | ||
| 924 | A 0014310887 | PROTECTIVE CAP |
| TO 001 430 00 81,001 430 65 81 | ||
| 924 | A 0014311087 | PROTECTIVE CAP |
| TO 001 430 07 81 | ||
| 925 | A 0009972877 | HANDLE |
| TO 002 430 03 81 | ||
| 925 | A 0009972877 | HANDLE |
| TO 001 430 07 81 | ||
| 925 | A 0009972777 | HANDLE |
| TO 001 430 65 81 | ||
| 926 | A 0004311122 | COVER |
| TO 001 430 07 81 | ||
| 927 | A 0009911501 | PIN |
| TO 002 430 03 81,001 430 07 81 | ||
| 928 | A 0004311064 | ACTUATING PART |
| TO 002 430 03 81,001 430 07 81 | ||
| 928 | A 0004311164 | ACTUATING PART |
| TO 001 430 07 81 | ||
| 929 | A 0009911601 | PIN |
| TO 002 430 03 81,001 430 07 81 | ||
| 930 | A 0009922905 | BUSHING |
| TO 001 430 07 81 | ||
| 931 | A 0004312139 | LEVER |
| Repalced by: A 0034302881 | ||
| 931 | A 0034302881 | REPAIR KIT |
| HAND BRAKE LEVER | ||
| TO 001 430 65 81 | ||
| 932 | A 0009910855 | PIN |
| TO 001 430 65 81 | ||
| A 0004300227 | HANDLE | |
| (PARTS KIT) | ||
| TO 001 430 18 81 | ||
| 933 | A 0004300127 | HANDLE |
| (PARTS KIT) | ||
| TO 001 430 07 81 | ||
| 934 | A 0004301760 | REPAIR KIT |
| GASKETS | ||
| TO 002 430 03 81 | ||
| 934 | A 0025866343 | REPAIR KIT |
| GASKETS | ||
| TO 001 430 07 81 | ||
| 935 | A 0025864443 | REPAIR KIT |
| TO 000 431 13 16 | ||
| 935 | A 0025864443 | REPAIR KIT |
| TO 000 431 13 16 | ||
| 935 | A 0025867443 | REPAIR KIT |
| Repalced by: A 0034303181 | ||
| 935 | A 0034303181 | REPAIR KIT |
| TO 001 430 00 81,001 430 65 81 | ||
| A 0004300360 | REPAIR KIT | |
| TO 001 430 18 81 | ||
| N 000931008326 | SCREW | |
| Repalced by: N 304014008009 | ||
| N 304014008009 | SCREW | |
| VALVE TO CAB | ||
| N 304014008009 | SCREW | |
| VALVE TO CAB | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| VALVE TO CAB | ||
| N 304017008021 | SCREW | |
| VALVE TO CAB | ||
| N 304017008021 | SCREW | |
| VALVE TO CAB | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| VALVE TO CAB | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| VALVE TO CAB | ||
| N 913004008001 | NUT | |
| VALVE TO CAB | ||
| N 074313012304 | FITTING | |
| CONNECTION "1" | ||
| N 074313012304 | FITTING | |
| CONNECTION "1" | ||
| N 007603016401 | SEAL RING | |
| CONNECTION "1" | ||
| N 007603016401 | SEAL RING | |
| CONNECTION "1" | ||
| 937 | A 3164270006 | COVER |
| PARKING BRAKE TO CAB | ||
| 937 | A 3164270006 | COVER |
| PARKING BRAKE TO CAB | ||
| N 000966006018 | SCREW | |
| PARKING BRAKE TO CAB | ||
| N 000966006018 | SCREW | |
| PARKING BRAKE TO CAB | ||
| 938 | A 3185840238 | GUMMED LABEL |
| PARKING BRAKE | ||
| N 080705016003 | NUT | |
| CONNECTION "2" | ||
| N 080705016003 | NUT | |
| CONNECTION "2" | ||
| A 0004290927 | THRUST RING | |
| CONNECTION "2" | ||
| A 0004290927 | THRUST RING | |
| CONNECTION "2" | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| A 0009971548 | SEAL RING | |
| CONNECTION "2" | ||
| A 0009971548 | SEAL RING | |
| CONNECTION "2" | ||
| 939 | A 0029971572 | FITTING |
| CONNECTION "2" | ||
| 940 | A 0009905070 | T-FITTING |
| CONNECTION "2" | ||
| 940 | A 0009905070 | T-FITTING |
| CONNECTION "2" | ||
| N 003952006102 | FITTING | |
| Repalced by: A 0019909871 | ||
| 941 | A 0019909871 | ELBOW FITTING |
| CONNECTION "2" | ||
| 941 | A 0019909871 | ELBOW FITTING |
| CONNECTION "2" | ||
| 942 | N 007603016401 | SEAL RING |
| CONNECTION "2" | ||
| 943 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 943 | N 915036010108 | HOLLOW SCREW |
| CONNECTIONS "11,21" | ||
| 943 | N 915036010108 | HOLLOW SCREW |
| CONNECTIONS "11,21" | ||
| 943 | N 915036010108 | HOLLOW SCREW |
| CONNECTIONS "11,21" | ||
| 944 | N 007603014405 | SEAL RING |
| 14X18 MM | ||
| 944 | N 007603014405 | SEAL RING |
| 14X18 MM | ||
| 944 | N 007603014405 | SEAL RING |
| 14X18 MM | ||
| 945 | A 0014292044 | VALVE |
| Repalced by: A 0034291644 | ||
| 945 | A 0034291644 | VALVE |
| BOSCH | ||
| 945 | A 0014299144 | VALVE |
| GRAU | ||
| 945 | A 0024290744 | VALVE |
| Repalced by: A 0034295344 | ||
| 945 | A 0034295344 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| 945 | A 0014296844 | VALVE |
| RELAY VALVE | ||
| WABCO | ||
| 946 | A 0059972648 | SEAL RING |
| 22.3X2.4 MM,TO 001 429 91 44 | ||
| 947 | A 0004312788 | VALVE SEAT |
| TO 001 429 91 44 | ||
| 948 | A 0059972748 | SEAL RING |
| 80X3 MM,TO 000 429 28 95,GRAU | ||
| 949 | A 0014311660 | SEAL RING |
| 28X2 MM,TO 001 429 91 44 | ||
| 950 | A 0014311760 | SEAL RING |
| 86X2 MM,TO 001 429 91 44 | ||
| 951 | A 0014311980 | GASKET |
| Repalced by: A 0004311980 | ||
| 951 | A 0004311980 | GASKET |
| 34X2X6 MM,TO 001 429 91 44 | ||
| 952 | A 0025865642 | REPAIR KIT |
| Repalced by: A 0004201071 | ||
| 952 | A 0004201071 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44 ; UP TO 03.82 | ||
| 952 | A 0004201271 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44 ; FROM 04.82 | ||
| 953 | A 0025865742 | REPAIR KIT |
| Repalced by: A 0004301109 | ||
| 953 | A 0004301109 | REPAIR KIT |
| BLEEDER VALVE | ||
| TO 003 429 16 44 | ||
| 953 | A 0005865742 | REPAIR KIT |
| TO 001 429 68 44 | ||
| 953 | A 0025863542 | REPAIR KIT |
| TO 002 429 07 44, 003 429 53 44 | ||
| 954 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 954 | N 913004008001 | NUT |
| RELAY VALVE TO CROSS MEMBER | ||
| 955 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 955 | N 000125008443 | WASHER |
| RELAY VALVE TO CROSS MEMBER | ||
| 956 | A 0009905168 | FITTING |
| CONNECTION "1" | ||
| N 007603022102 | SEAL RING | |
| 957 | A 0004290227 | THRUST RING |
| CONNECTION "1" | ||
| 958 | A 0009870446 | SEALING CORD |
| CONNECTION "2",LEFT | ||
| 959 | N 915036012203 | HOLLOW SCREW |
| AT RELAY VALVE | ||
| 960 | N 007603016401 | SEAL RING |
| AT RELAY VALVE | ||
| 16X20 MM | ||
| 961 | N 000908016001 | SCREW PLUG |
| CONNECTION "21" | ||
| 962 | A 0004290927 | THRUST RING |
| CONNECTION "2",LEFT | ||
| 963 | A 0009971548 | SEAL RING |
| CONNECTION "2",LEFT | ||
| 964 | A 0014311314 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| WABCO | ||
| 964 | A 0014311314 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| WABCO | ||
| 964 | A 0014311314 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| WABCO | ||
| 964 | A 0004312114 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| BOSCH | ||
| 964 | A 0004312114 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| BOSCH | ||
| 964 | A 0004312114 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| BOSCH | ||
| 964 | A 0004317714 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| KNORR | ||
| 964 | A 0004317714 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| KNORR | ||
| 964 | A 0004317714 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| KNORR | ||
| 965 | A 0004318186 | CUP |
| Repalced by: A 0015864342 | ||
| A 0004310736 | FILTER BOTTOM | |
| TO 000 431 21 14,BOSCH | ||
| 965 | A 0004317486 | CUP |
| Repalced by: A 0004319186 | ||
| 965 | A 0004319186 | CUP |
| Repalced by: A 0004312786 | ||
| 965 | A 0014310786 | CUP |
| Repalced by: A 0004312786 | ||
| 965 | A 0004312786 | CUP |
| TO 000 431 21 14,BOSCH | ||
| 966 | A 0004318583 | PISTON |
| TO 000 431 21 14,BOSCH | ||
| 967 | A 0089977548 | SEAL RING |
| TO 000 431 21 14,BOSCH | ||
| 967 | A 0049971740 | SEAL RING |
| TO 000 431 21 14,BOSCH | ||
| A 0004310649 | SLIDE | |
| TO 000 431 21 14,BOSCH | ||
| 969 | A 0004318587 | PROTECTIVE CAP |
| TO 001 431 13 14,WABCO | ||
| 970 | A 0004319586 | CUP |
| TO 000 431 77 14,KNORR | ||
| 971 | A 0004319686 | CUP |
| TO 000 431 77 14,KNORR | ||
| 972 | A 0029973690 | LOOM TIE |
| TO 000 431 77 14,KNORR | ||
| 973 | A 0004311160 | SEAL RING |
| TO 000 431 77 14,KNORR | ||
| 974 | A 0004311880 | GASKET |
| TO 000 431 77 14,KNORR | ||
| 975 | A 0059971148 | SEAL RING |
| TO 000 431 77 14,KNORR | ||
| 976 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 976 | N 304017006020 | SCREW |
| TO 000 431 77 14,KNORR | ||
| N 000934006012 | NUT | |
| TO 000 431 77 14,KNORR | ||
| N 000934016011 | NUT | |
| Repalced by: N 308673016001 | ||
| N 308673016001 | NUT | |
| TO 000 431 77 14,KNORR | ||
| 977 | N 912004006102 | LOCK WASHER |
| TO 000 431 77 14,KNORR | ||
| 978 | A 0025861443 | REPAIR KIT |
| TO 001 431 13 14,WABCO | ||
| A 0015864342 | REPAIR KIT | |
| Repalced by: A 0034201724 | ||
| 979 | A 0034201724 | REPAIR KIT |
| TO 000 431 21 14,BOSCH | ||
| 980 | A 0009904770 | T-FITTING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 980 | A 0009904770 | T-FITTING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 981 | A 0009901387 | CROSS FITTING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 982 | A 0009971548 | SEAL RING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 982 | A 0009971548 | SEAL RING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 982 | A 0009971548 | SEAL RING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 983 | A 0004290927 | THRUST RING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 983 | A 0004290927 | THRUST RING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 983 | A 0004290927 | THRUST RING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 984 | N 080705016003 | NUT |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 984 | N 080705016003 | NUT |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 984 | N 080705016003 | NUT |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 985 | A 0004312031 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| VOSS | ||
| 985 | A 0004312031 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| VOSS | ||
| 985 | A 0004312031 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| VOSS | ||
| 985 | A 0004314531 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| SCHAEFER | ||
| 985 | A 0004314531 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| SCHAEFER | ||
| 985 | A 0004314531 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| SCHAEFER | ||
| 985 | A 0004314831 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| WABCO | ||
| 985 | A 0004314831 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| WABCO | ||
| 985 | A 0004314831 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| WABCO | ||
| 985 | A 0004316131 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| WIRA | ||
| 985 | A 0004316131 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| WIRA | ||
| 985 | A 0004316131 | TEST CONNECTION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| WIRA | ||
| 986 | A 0009979486 | PLUG |
| 987 | A 0004292101 | LINE |
| 12 MM | ||
| 988 | N 915017012100 | UNION NUT |
| 989 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 989 | A 0019901967 | SEAL CONE |
| 990 | A 0029971472 | FITTING |
| Repalced by: A 0049971772 | ||
| 990 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 990 | A 0029906171 | FITTING |
| 991 | N 074317012301 | FITTING |
| 992 | A 3609950401 | CLAMP |
| 993 | A 3529910340 | SPACER TUBE |
| Repalced by: A 4082910153 | ||
| 993 | A 4082910153 | SPACER TUBE |
| 994 | N 007985005146 | SCREW |
| 995 | A 3604301411 | CONSOLE |
| BRAKE CYLINDER | ||
| 995 | A 3604301411 | CONSOLE |
| BRAKE CYLINDER | ||
| 995 | A 3604301411 | CONSOLE |
| BRAKE CYLINDER | ||
| 995 | A 3164300111 | CONSOLE |
| BRAKE CYLINDER | ||
| A 3609900040 | WASHER | |
| Repalced by: A 4219905440 | ||
| 996 | A 4219905440 | WASHER |
| 996 | A 4219905440 | WASHER |
| 996 | A 4219905440 | WASHER |
| 997 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 997 | N 000125010532 | WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 997 | N 000125010532 | WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 997 | N 000125010532 | WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 998 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 998 | N 304017010002 | SCREW |
| CONSOLE TO CROSS MEMBER | ||
| M 10X30 | ||
| 998 | N 304017010002 | SCREW |
| CONSOLE TO CROSS MEMBER | ||
| M 10X30 | ||
| 998 | N 304017010002 | SCREW |
| CONSOLE TO CROSS MEMBER | ||
| M 10X30 | ||
| 998 | N 000933010128 | SCREW |
| ANGLE | ||
| M 10X20 | ||
| 998 | N 000933010105 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| M 10X25 | ||
| 998 | N 000933010105 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| M 10X25 | ||
| 998 | N 000933010105 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| M 10X25 | ||
| 999 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 999 | N 910113010000 | NUT |
| BRAKE CYLINDER TO CONSOLE | ||
| 999 | N 910113010000 | NUT |
| CONSOLE TO CROSS MEMBER | ||
| 999 | N 910113010000 | NUT |
| ANGLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
