Transporto priemonė: LP 608; VIN numerio dalis: 314057

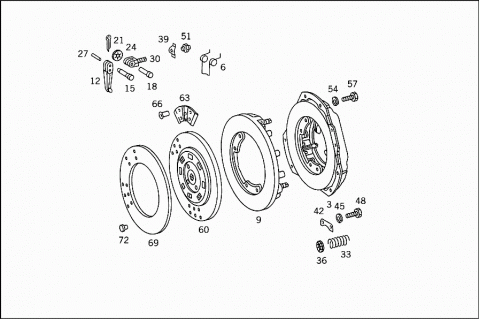

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0002505204 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0032501004 | ||
| A 0002509904 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0032501004 | ||
| A 0012507504 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0032501004 | ||
| 003 | A 0032501004 | CLUTCH PRESSURE PLATE |
| A 0002521632 | HOUSING | |
| 006 | A 0002520527 | SPRING |
| A 0002507204 | CLUTCH PRESSURE PLATE | |
| A 0002522206 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0002526212 | ||
| 009 | A 0002526212 | PRESSURE PLATE |
| A 0002522613 | RELEASE LEVER | |
| Repalced by: A 0002525713 | ||
| A 0002525713 | RELEASE LEVER | |
| Repalced by: A 0002526413 | ||
| 012 | A 0002526413 | RELEASE LEVER |
| A 0002520016 | SPINDLE | |
| Repalced by: A 0002523516 | ||
| A 0002523516 | SPINDLE | |
| Repalced by: A 0002524216 | ||
| 015 | A 0002524216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| A 0002520516 | SPINDLE | |
| Repalced by: A 0002523816 | ||
| A 0002523616 | SPINDLE | |
| Repalced by: A 0002523816 | ||
| 018 | A 0002523816 | SPINDLE |
| FOR BRACKETS | ||
| 021 | N 000094002059 | COTTER PIN |
| 024 | N 006799007007 | LOCK PLATE |
| 027 | A 0002520018 | ROLLER |
| A 0002521014 | BRACKET | |
| Repalced by: A 0002522514 | ||
| A 0002522514 | BRACKET | |
| Repalced by: A 0002523114 | ||
| 030 | A 0002523114 | BRACKET |
| A 0002523920 | PRESSURE SPRING | |
| Repalced by: A 0002527020 | ||
| 033 | A 0002527020 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4,0 MM,TO 000 250 52 04 | ||
| A 0002524720 | PRESSURE SPRING | |
| Repalced by: A 0002528120 | ||
| 033 | A 0002528120 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.2 MM,TO 002 250 99 04 | ||
| A 0002526320 | PRESSURE SPRING | |
| Repalced by: A 0002527920 | ||
| 033 | A 0002527920 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.5 MM,TO 001 250 75 04,003 250 10 04 | ||
| 036 | A 0002520024 | INSULATING WASHER |
| 039 | A 0002520819 | LEAF SPRING |
| 042 | A 0002520573 | LOCK |
| 045 | N 912004008102 | LOCK WASHER |
| 048 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 048 | N 304017008039 | SCREW |
| A 0002521171 | NUT | |
| Repalced by: A 0002523372 | ||
| 051 | A 0002523372 | NUT |
| 054 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 057 | A 3122521071 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| A 0072502103 | CLUTCH DISC | |
| Repalced by: A 0142509403 | ||
| A 0142509403 | CLUTCH DISC | |
| ASBESTOS-FREE LINING | ||
| A 0002506303 | CLUTCH DISC | |
| Repalced by: A 0022507403 | ||
| A 0012500603 | CLUTCH DISC | |
| Repalced by: A 0022507403 | ||
| 060 | A 0022507403 | CLUTCH DISC |
| 063 | A 0002520919 | LEAF SPRING |
| A 0002525819 | LEAF SPRING | |
| TO 014 250 94 03 | ||
| 066 | A 0002520175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| A 0002522075 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| TO 014 250 94 03 | ||
| 069 | A 0012525310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 069 | A 0002522310 | CLUTCH LINING |
| TO 014 250 94 03 | ||
| 069 | A 0002528110 | CLUTCH LINING |
| A 0002521275 | RIVET | |
| Repalced by: A 0002524375 | ||
| 072 | A 0002524375 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 072 | A 0002524375 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| TO 014 250 94 03 | ||

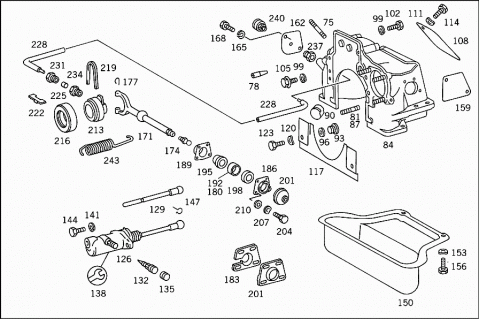

| A 3222500405 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3222500505 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3222500705 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3522500005 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3522500405 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3222500605 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3222500805 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3102500105 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3222500905 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3142500605 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3122911040 | BRACKET | |
| Repalced by: A 3142540074 | ||
| 075 | A 3142540074 | PIN |
| BELL HOUSING | ||
| 078 | A 3122511127 | POINTER |
| SETTING | ||
| 081 | N 000939010027 | STUD BOLT |
| BELL HOUSING | ||
| A 3102510301 | BELL HOUSING | |
| Repalced by: A 3102510501 | ||
| 084 | A 3102510501 | BELL HOUSING |
| Repalced by: A 3102510601 | ||
| 084 | A 3102510601 | BELL HOUSING |
| 087 | A 0009902805 | STUD |
| BELL HOUSING | ||
| 090 | A 3242510083 | PLUG |
| BELL HOUSING | ||
| 093 | N 000908016008 | SCREW PLUG |
| BELL HOUSING | ||
| 096 | N 007603016401 | SEAL RING |
| BELL HOUSING | ||
| 099 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 102 | N 000931012180 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X110 | ||
| 105 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 105 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| A 3242510004 | END COVER | |
| Repalced by: A 3602510004 | ||
| 108 | A 3602510004 | END COVER |
| BELL HOUSING | ||
| 111 | N 000137006204 | SPRING WASHER |
| END COVER TO BELL HOUSING | ||
| 114 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 114 | N 304017006034 | SCREW |
| END COVER TO BELL HOUSING | ||
| A 3122511006 | PROTECTIVE PLATE | |
| Repalced by: A 3522500055 | ||
| 117 | A 3522500055 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 117 | A 3522510106 | PROTECTIVE PLATE |
| BELL HOUSING | ||
| 120 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 123 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 123 | N 910106006006 | SCREW |
| Repalced by: N 000000002270 | ||
| 123 | N 000000002270 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 126 | A 0002958307 | SLAVE CYLINDER |
| CLUTCH RELEASE | ||
| 129 | A 0002950233 | ROD |
| A 0002950873 | LOCK | |
| Repalced by: A 0005863829 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| 132 | A 3075530107 | VALVE |
| A 3164210187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| Repalced by: A 0004217187 | ||
| 135 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 135 | A 0004210887 | PROTECTIVE CAP |
| 138 | A 0005863829 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 141 | N 912004008102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 144 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 144 | N 304017008034 | SCREW |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 147 | N 071805016402 | SECURING CLIP |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| A 3122511002 | BELL HOUSING | |
| Repalced by: A 3142510002 | ||
| A 3142510002 | BELL HOUSING | |
| Repalced by: A 3142500905 | ||
| A 3142500905 | HOUSING | |
| Repalced by: A 3142501005 | ||
| 150 | A 3142501005 | HOUSING |
| Repalced by: A 3142510302 | ||
| 150 | A 3142510302 | BELL HOUSING |
| LOWER PART | ||
| 153 | N 000137006204 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 156 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 156 | N 910106006006 | SCREW |
| Repalced by: N 000000002270 | ||
| 156 | N 000000002270 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| A 3272510033 | COVER | |
| Repalced by: A 3522510004 | ||
| 159 | A 3522510004 | END COVER |
| CASE,LEFT | ||
| 162 | A 3102500155 | COVER |
| CASE,RIGHT | ||
| 165 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 168 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 168 | N 304017008016 | SCREW |
| COVER TO BELL HOUSING | ||
| A 3142900029 | RELEASE YOKE | |
| Repalced by: A 3272930111 | ||
| A 3272900029 | RELEASE YOKE | |
| Repalced by: A 3272930111 | ||
| A 3272930111 | RELEASE YOKE | |
| Repalced by: A 3402500013 | ||
| 171 | A 3402500013 | RELEASE LEVER |
| RELEASE LEVER TO RELEASE COLLAR | ||
| A 3142900129 | RELEASE YOKE | |
| Repalced by: A 3522930311 | ||
| A 3142900229 | RELEASE YOKE | |
| Repalced by: A 3522930311 | ||
| 171 | A 3522930311 | RELEASE YOKE |
| CLUTCH | ||
| 171 | A 3142540008 | RELEASE LEVER |
| CLUTCH | ||
| 174 | A 3149910115 | BALL PIVOT |
| RELEASE YOKE | ||
| A 3179910515 | BALL PIVOT | |
| Repalced by: A 3029910015 | ||
| 174 | A 3149910215 | BALL PIVOT |
| RELEASE YOKE | ||
| 174 | A 3529910415 | BALL PIVOT |
| RELEASE YOKE | ||
| 174 | A 3529910415 | BALL PIVOT |
| RELEASE YOKE | ||
| 174 | A 3029910015 | BALL PIVOT |
| RELEASE YOKE | ||
| 174 | A 3029910015 | BALL PIVOT |
| RELEASE YOKE | ||
| 177 | A 3122541013 | SPRING LOCK |
| RELEASE LEVER TO RELEASE COLLAR | ||
| 177 | A 3402540013 | SPRING LOCK |
| RELEASE LEVER TO RELEASE COLLAR | ||
| 177 | A 3812540113 | SPRING LOCK |
| RELEASE LEVER TO RELEASE COLLAR | ||
| A 3122901131 | BEARING | |
| Repalced by: A 3522900031 | ||
| 180 | A 3522900031 | BEARING |
| OUTSIDE | ||
| A 3122901231 | BEARING | |
| Repalced by: A 3522900131 | ||
| 180 | A 3522900131 | BEARING |
| OUTSIDE | ||
| A 3122931212 | BRACKET | |
| Repalced by: A 3522930012 | ||
| 183 | A 3522930012 | BRACKET |
| INSIDE | ||
| A 3122931412 | BRACKET | |
| Repalced by: A 3522930112 | ||
| 183 | A 3522930112 | BRACKET |
| INSIDE | ||
| A 3102500043 | BRACKET | |
| Repalced by: A 3102540540 | ||
| 186 | A 3102540540 | BRACKET |
| OUTSIDE | ||
| A 3102540140 | BRACKET | |
| Repalced by: A 3102540440 | ||
| 189 | A 3102540440 | BRACKET |
| INSIDE | ||
| A 3522540135 | BEARING | |
| Repalced by: A 3802540035 | ||
| 192 | A 3802540035 | BEARING |
| OUTSIDE | ||
| 192 | A 3802540135 | BEARING |
| OUTSIDE | ||
| 195 | A 3802540059 | SEAL RING |
| SOFT | ||
| 195 | A 3802540259 | SEAL RING |
| SOFT | ||
| 198 | A 3802540159 | SEAL RING |
| HARD | ||
| 198 | A 3802540359 | SEAL RING |
| HARD | ||
| A 3142540097 | BOOT | |
| Repalced by: A 3142540197 | ||
| 201 | A 3142540197 | BOOT |
| RELEASE LEVER | ||
| 204 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 204 | N 304017008021 | SCREW |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| M 8X20 | ||
| 204 | N 914126008016 | SCREW |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| M 8X25 | ||
| 207 | N 912004008102 | LOCK WASHER |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 210 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 210 | N 000125008443 | WASHER |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| A 3522500115 | RELEASE BEARING | |
| Repalced by: A 3402500215 | ||
| 213 | A 3402500215 | RELEASE BEARING |
| 213 | A 0002503115 | RELEASE BEARING |
| 213 | A 0002504015 | RELEASE BEARING |
| 213 | A 0002504615 | RELEASE BEARING |
| Repalced by: A 0012509315 | ||
| 213 | A 0012509315 | RELEASE BEARING |
| 213 | A 0002504215 | RELEASE BEARING |
| 216 | A 0002540020 | RELEASE BEARING |
| 216 | A 0002540120 | RELEASE BEARING |
| 219 | A 3129870110 | STRIP |
| Repalced by: A 3409830010 | ||
| 219 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 352 250 01 15 | ||
| 219 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 340 250 02 15 | ||
| 222 | A 3052540033 | COVER |
| TO 352 250 01 15 | ||
| 228 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| A 6209970288 | GREASE NIPPLE | |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 225 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 231 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 234 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 237 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| A 6209970088 | GREASE NIPPLE | |
| RELEASE BEARING LUBRICATION | ||
| 240 | N 003411002001 | GREASE CUP |
| Repalced by: A 6209880135 | ||
| 240 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 243 | A 3149930310 | SPRING |
| RELEASE SPRING | ||
| A 3149930610 | SPRING | |
| Repalced by: A 3149930910 | ||
| 243 | A 3149930910 | SPRING |
| RELEASE SPRING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
