Transporto priemonė: LP 608; VIN numerio dalis: 314057
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3143000504 | ACCELERATOR PEDAL | |
| Repalced by: A 3183000004 | ||
| 003 | A 3183000004 | ACCELERATOR PEDAL |
| A 1233000104 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| 006 | A 1233000204 | ACCELERATOR PEDAL |
| 009 | A 3143010050 | BUSHING |
| 012 | N 000007008121 | CYLINDRICAL PIN |
| 015 | N 001473003016 | GROOVED PIN |
| A 1163010182 | PAD | |
| Repalced by: A 1233000204 | ||
| 018 | A 1233010082 | PAD |
| 021 | A 1233010022 | JOINT |
| 024 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 024 | N 304017008018 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 027 | N 304032008006 | NUT |
| PEDAL TO CAB FLOOR | ||
| 030 | N 912004008102 | LOCK WASHER |
| PEDAL TO CAB FLOOR | ||
| 033 | N 071803010301 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 036 | N 912004006102 | LOCK WASHER |
| BALL PIVOT TO ACCELERATOR PEDAL | ||
| 039 | N 000934006007 | NUT |
| BALL PIVOT TO ACCELERATOR PEDAL | ||
| A 1073010040 | BRACKET | |
| Repalced by: A 1249888678 | ||
| 042 | A 1249888678 | CLIP |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 045 | A 3183001225 | LEVER |
| (PEDAL LEVER) | ||
| 045 | A 3183002325 | LEVER |
| (PEDAL LEVER) | ||
| 048 | N 071803013208 | BALL PIVOT |
| 051 | A 3183000136 | BEARING BRACKET |
| ACCELERATOR PEDAL | ||
| 054 | A 3813020050 | BUSHING |
| LEVER TO BEARING BRACKET | ||
| A 3813010388 | COVERING | |
| Repalced by: A 6153010088 | ||
| 057 | A 6153010088 | COVERING |
| LEVER TO BEARING BRACKET | ||
| 060 | N 006799010001 | LOCK PLATE |
| LEVER TO BEARING BRACKET | ||
| 063 | A 1153010241 | STOP |
| FULL THROTTLE | ||
| 066 | A 1159970640 | SEAL RING |
| ACCELERATOR PEDAL | ||
| 069 | N 000933006102 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 072 | N 912004006102 | LOCK WASHER |
| PEDAL TO CAB FLOOR | ||
| 075 | A 3183010179 | BOOT |
| PEDAL LEVER | ||
| 078 | A 3183010240 | BRACKET |
| PEDAL LEVER | ||
| 081 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 081 | N 000000002062 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 084 | A 3183000340 | BRACKET |
| INTERMEDIATE BEARING | ||
| 087 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 087 | N 304017008016 | SCREW |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 090 | N 912004008102 | LOCK WASHER |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| A 3813000328 | LEVER | |
| Repalced by: A 6153000028 | ||
| 093 | A 6153000028 | LEVER |
| Repalced by: A 6203000628 | ||
| 093 | A 6203000628 | LEVER |
| (INTERMEDIATE LEVER) | ||
| 096 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 096 | A 3129910120 | BALL PIVOT |
| 099 | N 071803013208 | BALL PIVOT |
| 102 | A 3813020050 | BUSHING |
| INTERMEDIATE LEVER | ||
| A 3813010388 | COVERING | |
| Repalced by: A 6153010088 | ||
| 105 | A 6153010088 | COVERING |
| LEVER TO BRACKET | ||
| 108 | N 006799010001 | LOCK PLATE |
| LEVER TO BRACKET | ||
| 111 | A 3143010041 | STOP |
| ACCELERATOR PEDAL | ||
| 114 | N 000965006014 | SCREW |
| STOP TO LEVER | ||
| 117 | N 912004006102 | LOCK WASHER |
| STOP TO LEVER | ||
| 120 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 120 | N 913004006001 | NUT |
| STOP TO LEVER | ||
| 123 | N 000965006014 | SCREW |
| PEDAL TO CAB FLOOR | ||
| A 3143000915 | ROD | |
| Repalced by: N 900331006311 | ||
| 126 | N 900331006615 | PULL ROD |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| 129 | N 900331008419 | PULL ROD |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| 132 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| 135 | N 304032008006 | NUT |
| BALL SOCKET TO ROD | ||
| 138 | N 071805010204 | BALL SOCKET |
| PULL ROD | ||
| 141 | N 071805013203 | BALL SOCKET |
| PULL ROD | ||
| 144 | N 071805010302 | SNAP RING |
| 147 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 150 | N 071805013402 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 153 | A 3143001425 | LEVER |
| CONTROL | ||
| A 3129910120 | BALL PIVOT | |
| Repalced by: N 071803010209 | ||
| 156 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 156 | A 3129910120 | BALL PIVOT |
| 159 | A 3144340150 | BUSHING |
| 162 | N 000988012017 | FITTED WASHER |
| LEVER TO PIN | ||
| 165 | N 006799009002 | LOCK PLATE |
| LEVER TO PIN | ||
| A 3143000815 | ROD | |
| Repalced by: N 900331006315 | ||
| N 900331006315 | PULL ROD | |
| Repalced by: N 900331006619 | ||
| 168 | N 900331006619 | PULL ROD |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 171 | N 000934006007 | NUT |
| BALL SOCKET TO BALL PIVOT | ||
| 174 | A 0009912422 | BALL SOCKET |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 177 | N 071805010302 | SNAP RING |
| 180 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| A 3143000507 | KNOB | |
| Repalced by: A 3183000007 | ||
| A 3143000907 | KNOB | |
| Repalced by: A 3183000007 | ||
| 183 | A 3183000007 | KNOB |
| WITH SPINDLE,WIRE CABLE,AND END PIECE | ||
| 183 | A 3183000307 | KNOB |
| WITH SPINDLE,WIRE CABLE,AND END PIECE | ||
| A 3143020506 | TUBE | |
| A 3143000230 | WIRE CABLE | |
| Repalced by: A 3523000230 | ||
| A 3603000030 | WIRE CABLE | |
| Repalced by: A 3523000230 | ||
| 186 | A 3523000230 | WIRE CABLE |
| A 3123021101 | KNOB | |
| Repalced by: A 3523020201 | ||
| A 3523020001 | KNOB | |
| Repalced by: A 3523020201 | ||
| A 3523020101 | KNOB | |
| Repalced by: A 3523020201 | ||
| 189 | A 3523020201 | KNOB |
| 189 | A 3093020001 | KNOB |
| TO 318 300 03 07 | ||
| 192 | A 3129902140 | WASHER |
| A 3523020108 | GUIDE | |
| Repalced by: A 3523020308 | ||
| A 3523020208 | GUIDE | |
| Repalced by: A 3523020308 | ||
| 195 | A 3523020308 | GUIDE |
| A 1363020103 | COVER | |
| 198 | A 3523020176 | WASHER |
| 198 | A 0019900040 | WASHER |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| 198 | A 0003020052 | SPACER WASHER |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| 201 | A 3129901151 | NUT |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| 201 | A 0003020072 | NUT |
| Repalced by: A 3129901151 | ||
| 201 | A 3129901151 | NUT |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| A 3143020020 | CLAMP | |
| Repalced by: A 3609950301 | ||
| 204 | A 3609950301 | CLAMP |
| WIRE CABLE TO CAB | ||
| A 3523020091 | GROMMET | |
| Repalced by: A 3183020091 | ||
| 207 | A 3183020091 | GROMMET |
| WIRE CABLE | ||
| 210 | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 210 | N 000000000459 | SCREW |
| CLAMP TO BRACKET | ||
| 213 | N 000933006102 | SCREW |
| CLAMP TO BODY | ||
| 216 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 216 | N 913004006001 | NUT |
| CLAMP TO BODY | ||
| 216 | N 304032008006 | NUT |
| KNOB WITH SPINDLE TO BRACKET | ||
| A 1203020087 | RING | |
| Repalced by: A 1233000086 | ||
| 219 | A 1233000086 | END PIECE |
| WIRE CABLE TO LEVER | ||
| 222 | N 000933005058 | SCREW |
| WIRE CABLE TO LEVER | ||
| 225 | A 3093020050 | BUSHING |
| WIRE CABLE TO LEVER | ||
| 228 | A 0009881878 | CLIP |
| WIRE CABLE TO CAB | ||
| 300 | A 3143001304 | ACCELERATOR PEDAL |
| 303 | A 3143010050 | BUSHING |
| 306 | N 000007008121 | CYLINDRICAL PIN |
| ACCELERATOR PEDAL BEARING | ||
| 309 | N 001473003023 | GROOVED PIN |
| ACCELERATOR PEDAL BEARING | ||
| 312 | N 000965006014 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 315 | N 071803010301 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 318 | N 912004006102 | LOCK WASHER |
| BALL PIVOT TO ACCELERATOR PEDAL | ||
| 321 | N 000934006007 | NUT |
| BALL PIVOT TO ACCELERATOR PEDAL | ||
| 324 | A 3149910023 | BALL SOCKET |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 327 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| A 3143000640 | BRACKET | |
| Repalced by: A 3143000940 | ||
| 330 | A 3143000940 | BRACKET |
| RIGHT CONTROL LEVER | ||
| 336 | A 3143000274 | PIN |
| RIGHT CONTROL LEVER | ||
| 339 | A 3813020050 | BUSHING |
| RIGHT CONTROL LEVER | ||
| 342 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 342 | N 000125008443 | WASHER |
| CONTROL LEVER TO PIVOT PIN | ||
| 345 | N 913004008005 | NUT |
| CONTROL LEVER TO PIVOT PIN | ||
| 348 | A 3143010095 | REINFORCEMENT |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 351 | A 3143010195 | REINFORCEMENT |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 351 | A 3143010395 | REINFORCEMENT |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 354 | N 000965008008 | SCREW |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 357 | N 910113008001 | NUT |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 360 | A 3143002325 | LEVER |
| CONTROL,RIGHT | ||
| 363 | A 3183000325 | LEVER |
| CONTROL,RIGHT | ||
| 363 | A 3143002825 | LEVER |
| CONTROL,RIGHT | ||
| 366 | N 071803010204 | BALL PIVOT |
| 369 | A 3144340150 | BUSHING |
| 372 | N 000988012017 | FITTED WASHER |
| LEVER TO BRACKET | ||
| 375 | N 000471012001 | LOCK RING |
| LEVER TO BRACKET | ||
| 378 | N 900331006629 | PULL ROD |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 381 | N 071805010204 | BALL SOCKET |
| PULL ROD | ||
| 384 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 387 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| A 3143001115 | ROD | |
| Repalced by: A 3143001215 | ||
| 390 | A 3143001215 | ROD |
| FROM RIGHT LEVER TO LEFT LEVER | ||
| 393 | N 900331006619 | PULL ROD |
| BETWEEN LEFT AND RIGHT CONTROL LEVERS | ||
| 396 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| 399 | N 071805010204 | BALL SOCKET |
| PULL ROD | ||
| 402 | N 071805010302 | SNAP RING |
| 405 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 408 | A 3143001725 | LEVER |
| CONTROL,LEFT | ||
| 408 | A 3143002925 | LEVER |
| CONTROL,LEFT | ||
| 411 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 411 | A 3129910120 | BALL PIVOT |
| 414 | A 3144340150 | BUSHING |
| 417 | A 3143000074 | PIN |
| LEFT CONTROL LEVER | ||
| 417 | A 3143000274 | PIN |
| LEFT CONTROL LEVER | ||
| 420 | A 3813020050 | BUSHING |
| LEFT CONTROL LEVER | ||
| 423 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 423 | N 000125008443 | WASHER |
| CONTROL LEVER TO PIVOT PIN | ||
| 426 | N 910113008001 | NUT |
| CONTROL LEVER TO PIVOT PIN | ||
| 429 | N 000965008008 | SCREW |
| PIN TO SUBSTRUCTURE | ||
| M 8X20 | ||
| 432 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 432 | N 304017008016 | SCREW |
| PIN TO SUBSTRUCTURE | ||
| M 8X16 | ||
| 435 | N 000988012017 | FITTED WASHER |
| LEVER TO PIN | ||
| 438 | N 000471012001 | LOCK RING |
| LEVER TO PIN | ||
| A 3143001015 | ROD | |
| Repalced by: N 900331006315 | ||
| N 900331006315 | PULL ROD | |
| Repalced by: N 900331006619 | ||
| 441 | N 900331006619 | PULL ROD |
| FROM INTERMEDIATE LEVER TO ENGINE | ||
| 444 | N 000934006007 | NUT |

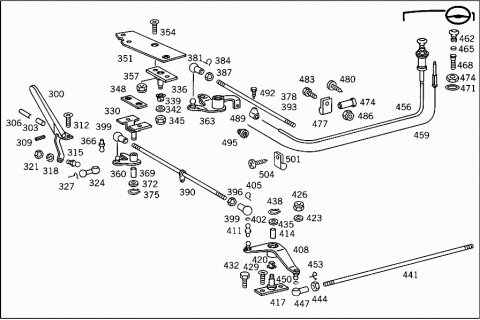

| BALL SOCKET TO ROD | ||
| 447 | A 0009912422 | BALL SOCKET |
| PULL ROD | ||
| 450 | N 071805010302 | SNAP RING |
| 453 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| A 3143000607 | KNOB | |
| Repalced by: A 3183000007 | ||
| A 3143001007 | KNOB | |
| Repalced by: A 3183000007 | ||
| A 3603000107 | KNOB | |
| Repalced by: A 3183000007 | ||
| 456 | A 3183000007 | KNOB |
| WITH SPINDLE,WIRE CABLE,AND END PIECE | ||
| A 3143020606 | TUBE | |
| A 3143000330 | WIRE CABLE | |
| Repalced by: A 3603000030 | ||
| A 3603000030 | WIRE CABLE | |
| Repalced by: A 3523000230 | ||
| 459 | A 3523000230 | WIRE CABLE |
| A 3123021101 | KNOB | |
| Repalced by: A 3523020201 | ||
| A 3523020001 | KNOB | |
| Repalced by: A 3523020201 | ||
| A 3523020101 | KNOB | |
| Repalced by: A 3523020201 | ||
| 462 | A 3523020201 | KNOB |
| 465 | A 3129902140 | WASHER |
| A 3523020108 | GUIDE | |
| Repalced by: A 3523020308 | ||
| A 3523020208 | GUIDE | |
| Repalced by: A 3523020308 | ||
| 468 | A 3523020308 | GUIDE |
| A 1363020103 | COVER | |
| 471 | A 3523020176 | WASHER |
| 471 | A 0019900040 | WASHER |
| 471 | A 0003020052 | SPACER WASHER |
| 474 | A 3129901151 | NUT |
| 474 | A 0003020072 | NUT |
| Repalced by: A 3129901151 | ||
| 474 | A 3129901151 | NUT |
| 474 | A 3183020091 | GROMMET |
| WIRE CABLE | ||
| A 3143020020 | CLAMP | |
| Repalced by: A 3609950301 | ||
| 477 | A 3609950301 | CLAMP |
| WIRE CABLE TO CAB | ||
| 480 | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 480 | N 000000000459 | SCREW |
| CLAMP TO BRACKET | ||
| 483 | N 000933006102 | SCREW |
| CLAMP TO BODY | ||
| 486 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 486 | N 913004006001 | NUT |
| CLAMP TO BODY | ||
| A 1203020087 | RING | |
| Repalced by: A 3093020068 | ||
| A 3093020068 | END PIECE | |
| Repalced by: A 1233000086 | ||
| 489 | A 1233000086 | END PIECE |
| WIRE CABLE TO LEVER | ||
| A 3099900015 | SCREW | |
| Repalced by: N 000933005058 | ||
| 492 | N 000933005058 | SCREW |
| WIRE CABLE TO LEVER | ||
| 495 | A 3093020050 | BUSHING |
| WIRE CABLE TO LEVER | ||
| A 3183020040 | BRACKET | |
| IDLING ADJUSTMENT | ||
| N 000933008130 | SCREW | |
| Repalced by: N 304017008039 | ||
| N 304017008039 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| A 3129951801 | CLAMP | |
| Repalced by: A 3609950101 | ||
| 501 | A 3609950101 | CLAMP |
| WIRE CABLE TO BRACKET | ||
| 504 | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 504 | N 000000000459 | SCREW |
| CLAMP TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
