Transporto priemonė: LP 608; VIN numerio dalis: 314057
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

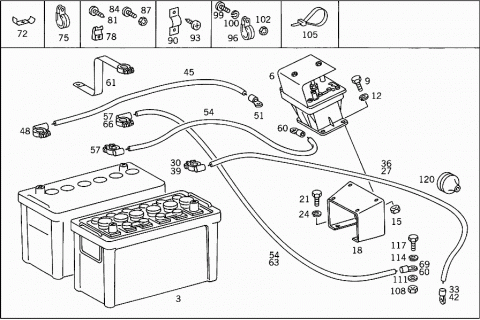

| A 0005418001 | BATTERY | |
| Repalced by: A 3875400801 | ||
| A 3875400801 | BATTERY | |
| Repalced by: A 0035410101 | ||
| A 0035410101 | BATTERY | |
| Repalced by: A 0035411801 | ||
| A 0015419401 | BATTERY | |
| Repalced by: A 0035411801 | ||
| 003 | A 0035411801 | BATTERY |
| Repalced by: A 0025412301 | ||
| 003 | A 0025412301 | BATTERY |
| 12 V/135 AH | ||
| 003 | A 0025412301 | BATTERY |
| 12 V/135 AH | ||
| A 0005419401 | BATTERY | |
| Repalced by: A 0005417401 | ||
| A 0005417401 | BATTERY | |
| Repalced by: A 0025419901 | ||
| 003 | A 0025419901 | BATTERY |
| 12 V/70 AH | ||
| 003 | A 0015417901 | BATTERY |
| Repalced by: A 0025414301 | ||
| 003 | A 0025414301 | BATTERY |
| Repalced by: A 0045412301 | ||
| 003 | A 0045412301 | BATTERY |
| 12 V/66 AH | ||
| 006 | A 0005450908 | SWITCH |
| BATTERY CHANGE-OVER SWITCH | ||
| 009 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 009 | N 304017008034 | SCREW |
| SWITCH TO APPARATUS PLATE | ||
| 012 | N 912004008102 | LOCK WASHER |
| SWITCH TO APPARATUS PLATE | ||
| 015 | N 304032008006 | NUT |
| SWITCH TO APPARATUS PLATE | ||
| 018 | A 3145402373 | BRACKET |
| BATTERY CHANGE-OVER SWITCH | ||
| 021 | N 000933006102 | SCREW |
| BRACKET TO BATTERY CASE | ||
| 024 | N 912004006102 | LOCK WASHER |
| BRACKET TO BATTERY CASE | ||
| A 3145400030 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| A 3145400430 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| A 3015400430 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| A 3145400630 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| A 3145400330 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 027 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 027 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 027 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 030 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 033 | N 046234010007 | CABLE SHOE |
| POS. CABLE | ||
| A 3125405830 | POS.CABLE | |
| Repalced by: N 072551095880 | ||
| A 3055400330 | POS.CABLE | |
| Repalced by: N 072551095880 | ||
| N 072551095880 | ELECTRIC CABLE | |
| Repalced by: N 922002095000 | ||
| 036 | N 922002095000 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 039 | N 072332015100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 042 | N 046234010006 | CABLE SHOE |
| POS. CABLE | ||
| A 3525400130 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| A 3285401730 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| A 3155400530 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| A 3525401130 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 045 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 045 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 048 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 051 | N 046234010007 | CABLE SHOE |
| BATTERY CHANGE-OVER SWITCH | ||
| A 3525400131 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| 054 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 054 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| A 3145400031 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| A 3095401131 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| A 3525400431 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 054 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 054 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO CAB REAR CROSS MEMBER | ||
| 054 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 057 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 060 | N 046234010007 | CABLE SHOE |
| NEG. CABLE | ||
| A 3145400831 | NEG. CABLE | |
| Repalced by: A 3145400931 | ||
| 061 | A 3145400931 | NEG. CABLE |
| FROM BATTERY TO CAB REAR CROSS MEMBER | ||
| 061 | A 3145400931 | NEG. CABLE |
| FROM BATTERY TO CAB REAR CROSS MEMBER | ||
| A 3185400131 | NEG. CABLE | |
| Repalced by: N 072551095880 | ||
| N 072551095880 | ELECTRIC CABLE | |
| Repalced by: N 922002095000 | ||
| 063 | N 922002095000 | ELECTRIC CABLE |
| FROM BATTERY TO CAB REAR CROSS MEMBER | ||
| 066 | N 072332015200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 069 | N 046234010006 | CABLE SHOE |
| NEG. CABLE | ||
| 072 | A 3145460175 | CLAMP |
| BATTERY CABLE | ||
| 072 | A 3145460175 | CLAMP |
| STARTING CABLE | ||
| 075 | N 916016022206 | CLAMP |
| BATTERY CABLE | ||
| 078 | A 0009953944 | CLAMP |
| BATTERY CABLE TO BATTERY CASE SIDE AND TO CAB CROSS MEMBER | ||
| 081 | N 007981004263 | SHEET METAL SCREW |
| BATTERY CASE | ||
| 084 | N 007985006139 | SCREW |
| BATTERY CASE | ||
| 087 | N 000934006007 | NUT |
| BATTERY CASE | ||
| 090 | N 072573002004 | CLAMP |
| BATTERY CABLE | ||
| 093 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 093 | N 000000000460 | SCREW |
| CLAMP MOUNTING | ||
| A 0009954801 | CLAMP | |
| Repalced by: N 916016018201 | ||
| 096 | N 916016018201 | CLAMP |
| BATTERY CABLE TO STARTING MOTOR,AND MAIN CABLE HARNESS TO FLOOR PLATE | ||
| 099 | N 007985006163 | SCREW |
| CLAMP MOUNTING | ||
| 100 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 102 | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| 105 | A 0019978390 | LOOM TIE |
| BATTERY CABLE | ||
| A 3149950132 | CLAMP | |
| BATTERY CABLE | ||
| N 000933008137 | SCREW | |
| SIDE MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| AT LEFT SIDE MEMBER | ||
| 108 | N 000934010014 | NUT |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 111 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 111 | N 009021010209 | WASHER |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 114 | N 912004010102 | LOCK WASHER |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 117 | N 000933010128 | SCREW |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| A 3145460144 | CLAMPING PIECE | |
| BATTERY CABLE | ||
| N 007985006171 | SCREW | |
| CABLE CLAMPING PIECE | ||
| N 000125006421 | WASHER | |
| CABLE CLAMPING PIECE | ||
| N 000934006007 | NUT | |
| CABLE CLAMPING PIECE | ||
| N 007985006154 | SCREW | |
| Repalced by: A 0029903712 | ||
| A 0029903712 | SCREW | |
| Repalced by: N 000000001149 | ||
| N 000000001149 | SCREW | |
| BATTERY CASE | ||
| N 912004006102 | LOCK WASHER | |
| BATTERY CASE | ||
| N 000934006007 | NUT | |
| BATTERY CASE | ||
| 120 | A 3359970081 | GROMMET |
| BATTERY CABLES THRU BATTERY CASE | ||

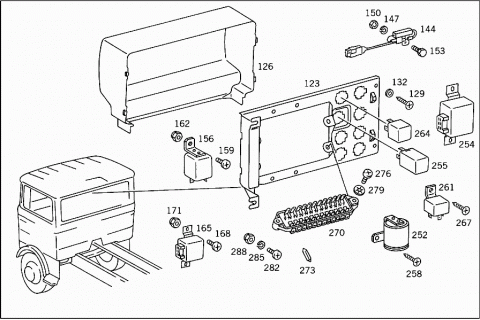

| 123 | A 3145420139 | PLATE |
| APPARATUS | ||
| 123 | A 3145402573 | BRACKET |
| APPARATUS | ||
| 126 | A 3145420091 | COVERING |
| PLATE | ||
| 129 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 129 | N 000000000460 | SCREW |
| GLOVE COMPARTMENT | ||
| 132 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 132 | N 009021005205 | WASHER |
| GLOVE COMPARTMENT | ||
| A 0011546906 | REGULATOR AND CUT-OUT | |
| Repalced by: A 0021542806 | ||
| A 0021542806 | REGULATOR AND CUT-OUT | |
| Repalced by: A 0021543606 | ||
| 135 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 135 | A 0021547406 | REGULATOR AND CUT-OUT |
| ALTERNATOR | ||
| 138 | N 912004006102 | LOCK WASHER |
| REGULATOR AND CUT-OUT TO BODY | ||
| 141 | N 000934006007 | NUT |
| REGULATOR AND CUT-OUT TO BODY | ||
| 144 | A 0015452518 | RESISTOR |
| 147 | N 912004005103 | LOCK WASHER |
| RESISTOR TO APPARATUS PANEL | ||
| 150 | N 304032005005 | NUT |
| RESISTOR TO APPARATUS PANEL | ||
| 153 | N 000933005011 | SCREW |
| RESISTOR TO APPARATUS PANEL | ||
| 156 | A 0005423023 | BUZZER |
| BLINKER | ||
| 159 | N 007985005504 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 162 | N 913004005001 | NUT |
| BLINKER SENDER UNIT MOUNTING | ||
| 165 | A 0055450524 | SENDER UNIT |
| Repalced by: A 0055451324 | ||
| 165 | A 0055451324 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 165 | A 0055451524 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 168 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 168 | N 000000001145 | SCREW |
| SWITCH | ||
| 171 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 171 | N 913004006001 | NUT |
| SWITCH | ||

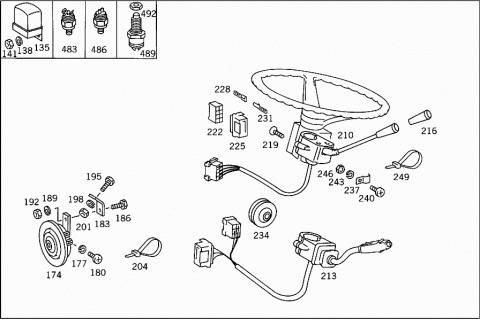

| A 0015427920 | HORN | |
| Repalced by: A 0025426220 | ||
| A 0025426220 | HORN | |
| Repalced by: A 0035423220 | ||
| 174 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 174 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 174 | A 0035422720 | HORN |
| A 0015428320 | HORN | |
| Repalced by: A 0025426420 | ||
| A 0025425320 | HORN | |
| Repalced by: A 0025426420 | ||
| 174 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 174 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 174 | A 0035422720 | HORN |
| 177 | N 912004004102 | LOCK WASHER |
| CABLE TO DISC-TYPE HORN | ||
| 180 | N 007985004101 | SCREW |
| CABLE TO DISC-TYPE HORN | ||
| A 3145420140 | BRACKET | |
| Repalced by: A 3805420040 | ||
| A 3185420040 | BRACKET | |
| Repalced by: A 3805420040 | ||
| A 3805420040 | BRACKET | |
| Repalced by: A 3095421340 | ||
| 183 | A 3095421340 | BRACKET |
| HORN | ||
| 186 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 186 | N 304017010002 | SCREW |
| HORN TO BRACKET | ||
| 189 | N 912004010102 | LOCK WASHER |
| HORN TO BRACKET | ||
| 192 | N 000934010014 | NUT |
| HORN TO BRACKET | ||
| 195 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 198 | N 912004010102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 201 | N 000934010014 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 204 | A 0019978390 | LOOM TIE |
| ELECTRIC CABLE TO HORN BRACKET | ||
| A 0015457524 | SWITCH,AUTOMATIC | |
| Repalced by: A 0025457724 | ||
| A 0025452624 | SWITCH,AUTOMATIC | |
| Repalced by: A 0025457724 | ||
| 210 | A 0025457724 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| A 0015459624 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035458324 | ||
| A 0035458124 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035458324 | ||
| 210 | A 0035458324 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 210 | A 0035458324 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 210 | A 0035458324 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 213 | A 0055451824 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 213 | A 0055452424 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| A 0005452037 | BUTTON | |
| Repalced by: A 0005454237 | ||
| 216 | A 0005454237 | BUTTON |
| 216 | A 0005452637 | BUTTON |
| 219 | N 000091004141 | SCREW |
| 219 | N 000966005027 | SCREW |
| 222 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 225 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 225 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 225 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 228 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 228 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 228 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 228 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 231 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 231 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3149970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 234 | A 3359970081 | GROMMET |
| BLINKER-DIMMER SWITCH CABLE THRU BODY | ||
| 237 | A 3129952020 | CLAMP |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 240 | N 007985005128 | SCREW |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 243 | N 912004005101 | LOCK WASHER |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 246 | N 304032005005 | NUT |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 249 | A 0019978390 | LOOM TIE |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 252 | A 0005449932 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 252 | A 0015440632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 252 | A 0015441232 | SENDER UNIT |
| Repalced by: A 0015447532 | ||
| 252 | A 0015447532 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0015445032 | SENDER UNIT | |
| Repalced by: A 0025447732 | ||
| A 0025440732 | SENDER UNIT | |
| Repalced by: A 0025447732 | ||
| 254 | A 0025447732 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 254 | A 0015448032 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0025440932 | SENDER UNIT | |
| Repalced by: A 0025447332 | ||
| 255 | A 0025447332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 255 | A 0015447932 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 255 | A 0025444832 | SENDER UNIT |
| Repalced by: A 0025449832 | ||
| 255 | A 0025449832 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| STRIEBEL | ||
| 255 | A 0025444132 | SENDER UNIT |
| Repalced by: A 0025448632 | ||
| 255 | A 0025448632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| HELLA | ||
| 258 | N 007981005214 | SHEET METAL SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 258 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 258 | N 000000000460 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 261 | A 0005458605 | RELAY |
| BRAKE FLUID | ||
| 12 V;BOSCH | ||
| 261 | A 0005458905 | RELAY |
| BRAKE FLUID | ||
| 12 V;HELLA | ||
| 264 | A 0005455505 | RELAY |
| BRAKE FLUID CONTROL | ||
| 12 V;BOSCH | ||
| 264 | A 0005455505 | RELAY |
| OIL SUPPLY | ||
| 12 V;BOSCH | ||
| 264 | A 0005459705 | RELAY |
| OIL SUPPLY | ||
| 267 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 267 | N 000000000460 | SCREW |
| RELAY | ||
| 270 | A 3145450001 | FUSE BOX |
| 10-POLE; TERMINALS 1-2-3;5-6;7-8;9-10 SHUNTED | ||
| 270 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED | ||
| 270 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED | ||
| 273 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 273 | N 072581008101 | FUSE |
| 8 A | ||
| 276 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| 279 | N 006797004333 | TOOTHED WASHER |
| CABLE TO FUSE BOX | ||
| 282 | N 007985005168 | SCREW |
| FUSE BOX TO BRACKET | ||
| 282 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 282 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 282 | N 000000001149 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 285 | N 912004005101 | LOCK WASHER |
| FUSE BOX TO BRACKET | ||
| 288 | N 304032005005 | NUT |
| FUSE BOX TO BRACKET | ||
| 288 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 288 | N 913004006001 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||

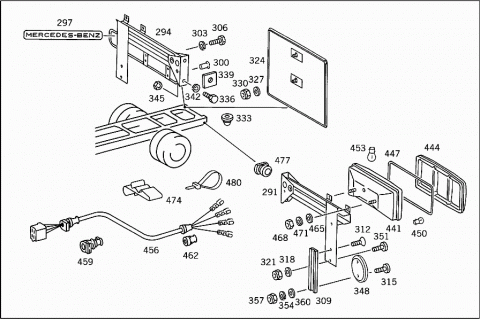

| 291 | A 3145401273 | BRACKET |
| LEFT TAIL LAMP | ||
| 291 | A 3145401373 | BRACKET |
| RIGHT REAR | ||
| A 3165400173 | BRACKET | |
| Repalced by: A 3165403873 | ||
| A 3165400373 | BRACKET | |
| Repalced by: A 3165403873 | ||
| 291 | A 3165403873 | BRACKET |
| LEFT TAIL LAMP | ||
| A 3165401973 | BRACKET | |
| Repalced by: A 3165403573 | ||
| A 3165401873 | BRACKET | |
| Repalced by: A 3165403573 | ||
| A 3165401173 | BRACKET | |
| Repalced by: A 3165403573 | ||
| A 3165402473 | BRACKET | |
| Repalced by: A 3165403573 | ||
| 294 | A 3165403573 | BRACKET |
| LEFT TAIL LAMP | ||
| A 3145401973 | BRACKET | |
| LEFT TAIL LAMP | ||
| A 3165401073 | BRACKET | |
| Repalced by: A 3165403473 | ||
| A 3165401773 | BRACKET | |
| Repalced by: A 3165403473 | ||
| A 3165401273 | BRACKET | |
| Repalced by: A 3165403473 | ||
| A 3165402373 | BRACKET | |
| Repalced by: A 3164403473 | ||
| 294 | A 3165403473 | BRACKET |
| RIGHT TAIL LAMP | ||
| A 3145402073 | BRACKET | |
| RIGHT TAIL LAMP | ||
| A 3165400273 | BRACKET | |
| Repalced by: A 3165403973 | ||
| A 3165400473 | BRACKET | |
| Repalced by: A 3165403973 | ||
| 294 | A 3165403973 | BRACKET |
| RIGHT TAIL LAMP | ||
| 297 | A 3605840025 | NAME PLATE |
| 300 | N 910006004018 | RIVET |
| NAME PLATE TO LEFT AND RIGHT TAIL LAMPS | ||
| 300 | N 910001004105 | RIVET |
| NAME PLATE TO LEFT AND RIGHT TAIL LAMPS | ||
| A 3165440938 | BRACKET | |
| NAME PLATE TO LEFT AND RIGHT TAIL LAMPS | ||
| 303 | N 912004006102 | LOCK WASHER |
| NAME PLATE TO LEFT AND RIGHT TAIL LAMPS | ||
| 306 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 306 | N 304017006018 | SCREW |
| NAME PLATE TO LEFT AND RIGHT TAIL LAMPS | ||
| A 3225440138 | BRACKET | |
| Repalced by: A 3525440538 | ||
| 309 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 312 | N 000965006049 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| M 6X18 | ||
| 315 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 315 | N 000000001146 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 315 | N 000000001146 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| A 3225440084 | SHIM | |
| Repalced by: N 000125006421 | ||
| 318 | N 000125006421 | WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 318 | N 000125006421 | WASHER |
| LICENSE PLATE TO BRACKET | ||
| 321 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 321 | N 913004006001 | NUT |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 321 | N 913004006001 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 324 | A 3095200046 | LICENSE PLATE MOULDING |
| LICENSE PLATE | ||
| 327 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 327 | N 000125008443 | WASHER |
| LICENSE PLATE | ||
| 330 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 330 | N 913004008001 | NUT |
| LICENSE PLATE | ||
| 333 | A 0009870440 | RUBBER BUFFER |
| HAND BRAKE | ||
| 336 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 336 | N 304017010002 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 339 | A 3144750084 | SHIM |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 342 | N 912004010102 | LOCK WASHER |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 345 | N 000934010014 | NUT |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| A 0005441605 | REFLECTOR | |
| Repalced by: A 0005443305 | ||
| 348 | A 0005443305 | REFLECTOR |
| 351 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 354 | N 912004005103 | LOCK WASHER |
| REFLECTOR TO BRACKET | ||
| 357 | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| A 3225440184 | SHIM | |
| Repalced by: N 000125006421 | ||
| 360 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 360 | N 000433005304 | WASHER |
| REFLECTOR TO BRACKET | ||

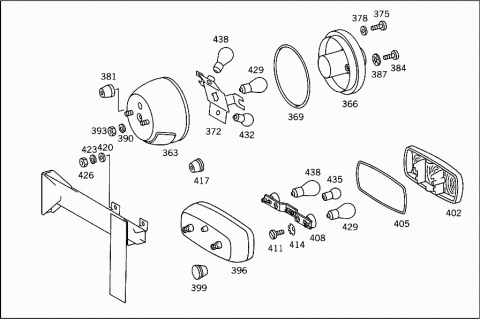

| 363 | A 0005445903 | TAIL LAMP |
| Repalced by: A 0015446403 | ||
| 363 | A 0015446403 | TAIL LAMP |
| WITH LICENSE PLATE LAMP | ||
| 363 | A 0005446003 | TAIL LAMP |
| Repalced by: A 0015446303 | ||
| 363 | A 0015446303 | TAIL LAMP |
| LESS LICENSE PLATE LAMP | ||
| 366 | A 0015443490 | LENS |
| 369 | A 0005446880 | GASKET |
| 372 | A 0005444093 | LAMP SOCKET |
| A 0005440122 | BUFFER | |
| 375 | N 007985005225 | SCREW |
| 378 | N 007603005102 | SEAL RING |
| 381 | A 0009978081 | GROMMET |
| 384 | N 000084004101 | SCREW |
| 387 | N 006797004132 | TOOTHED WASHER |
| 390 | N 912004006102 | LOCK WASHER |
| 393 | N 000934006007 | NUT |
| A 0005447803 | TAIL LAMP | |
| Repalced by: A 0015444003 | ||
| 396 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 396 | A 0005447003 | TAIL LAMP |
| Repalced by: A 0015444503 | ||
| 396 | A 0015444503 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 396 | A 0005447703 | TAIL LAMP |
| Repalced by: A 0015444103 | ||
| 396 | A 0015444103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 396 | A 0005447103 | TAIL LAMP |
| Repalced by: A 0015444603 | ||
| 396 | A 0015444603 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 396 | A 0015444203 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 396 | A 0005447303 | TAIL LAMP |
| Repalced by: A 0015444803 | ||
| 396 | A 0015444803 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 396 | A 0015444303 | TAIL LAMP |
| Repalced by: A 0015445903 | ||
| 396 | A 0015445903 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 396 | A 0015444903 | TAIL LAMP |
| Repalced by: A 0005447403 | ||
| 396 | A 0005447403 | TAIL LAMP |
| Repalced by: A 0015446103 | ||
| 396 | A 0015446103 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 399 | A 0009871344 | EXPANSION PLUG |
| HELLA | ||
| A 0015444890 | LENS | |
| Repalced by: A 0015445590 | ||
| 402 | A 0015445590 | LENS |
| HELLA | ||
| 402 | A 0015444590 | LENS |
| Repalced by: A 0015445990 | ||
| 402 | A 0015446290 | LENS |
| Repalced by: A 0015445990 | ||
| 402 | A 0015445990 | LENS |
| R & S | ||
| 402 | A 0015447190 | LENS |
| R & S | ||
| 402 | A 0015447290 | LENS |
| Repalced by: A 0015445990 | ||
| 402 | A 0015445990 | LENS |
| R & S | ||
| A 0005447880 | GASKET | |
| Repalced by: A 0005448480 | ||
| A 0005448080 | GASKET | |
| Repalced by: A 0005448480 | ||
| 405 | A 0005448480 | GASKET |
| HELLA | ||
| 405 | A 0005447580 | GASKET |
| R & S | ||
| N 007985006238 | SCREW | |
| TO R & S | ||
| A 0005444393 | LAMP SOCKET | |
| HELLA | ||
| 408 | A 0005445293 | LAMP SOCKET |
| HELLA | ||
| 408 | A 0005444293 | LAMP SOCKET |
| R & S | ||
| 408 | A 0005445193 | LAMP SOCKET |
| R & S | ||
| 411 | N 000085004101 | SCREW |
| TO HELLA | ||
| 411 | N 000084004103 | SCREW |
| TO R & S | ||
| 414 | N 006797004130 | TOOTHED WASHER |
| TO R & S | ||
| 417 | A 0009978081 | GROMMET |
| HELLA | ||
| 417 | A 0019971581 | GROMMET |
| R & S | ||
| 420 | A 0019904040 | WASHER |
| HELLA | ||
| A 0005440376 | WASHER | |
| Repalced by: A 0005440476 | ||
| 420 | A 0005440476 | WASHER |
| R & S | ||
| 420 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 420 | N 009021008213 | WASHER |
| HELLA | ||
| 420 | A 0019901940 | WASHER |
| R & S | ||
| 423 | N 912004008102 | LOCK WASHER |
| TO MOUNT TAIL LAMPS | ||
| 426 | N 304032008006 | NUT |
| TO MOUNT TAIL LAMPS | ||
| 429 | N 072601012190 | BULB |
| BLINKER LIGHT | ||
| 21 W | ||
| 432 | N 072601012701 | BULB |
| TAIL LIGHT | ||
| 5 W | ||
| 435 | N 072601012702 | BULB |
| TAIL LIGHT | ||
| 10 W | ||
| 438 | N 072601012160 | BULB |
| STOP LIGHT | ||
| 18 W | ||
| A 0005405070 | TAIL LAMP | |
| Repalced by: A 0015446903 | ||
| A 0005406270 | TAIL LAMP | |
| Repalced by: A 0015446903 | ||
| 441 | A 0015446903 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 441 | A 0015448003 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 441 | A 0005405470 | TAIL LAMP |
| Repalced by: A 0015447103 | ||
| 441 | A 0015447103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 441 | A 0015448203 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 441 | A 0005405170 | TAIL LAMP |
| Repalced by: A 0015446803 | ||
| 441 | A 0015446803 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 441 | A 0015448103 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 441 | A 0005405570 | TAIL LAMP |
| Repalced by: A 0015447003 | ||
| 441 | A 0005406470 | TAIL LAMP |
| Repalced by: A 0015447003 | ||
| 441 | A 0015447003 | TAIL LAMP |
| Repalced by: A 0025440203 | ||
| 441 | A 0025440203 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 441 | A 0015448303 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 444 | A 0015448390 | LENS |
| HELLA | ||
| 444 | A 0015448490 | LENS |
| R & S | ||
| 447 | A 0005448580 | GASKET |
| 447 | A 0005448880 | GASKET |
| 450 | N 072601012702 | BULB |
| TAIL LIGHT | ||
| 10 W | ||
| 453 | N 072601012190 | BULB |
| BLINKER AND STOP LIGHTS | ||
| 21 W | ||
| A 0005401538 | ELECTRIC CABLE | |
| Repalced by: A 0005401838 | ||
| A 0005401838 | ELECTRIC CABLE | |
| Repalced by: A 6175400307 | ||
| A 6175400307 | CABLE HARNESS | |
| Repalced by: A 6215402207 | ||
| 456 | A 6215402207 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| A 0005401638 | ELECTRIC CABLE | |
| Repalced by: A 0005401938 | ||
| A 0005401938 | ELECTRIC CABLE | |
| Repalced by: A 6175400107 | ||
| A 6175400107 | CABLE HARNESS | |
| Repalced by: A 6175400207 | ||
| A 6175401107 | CABLE HARNESS | |
| Repalced by: A 6175400207 | ||
| A 6175400207 | CABLE HARNESS | |
| Repalced by: A 6175401507 | ||
| 456 | A 6175401507 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 459 | A 3875460437 | GROMMET |
| AT CABLE CONNECTOR | ||
| 462 | A 6019972081 | GROMMET |
| AT TAIL LAMP SHELL | ||
| 465 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 465 | N 009021008213 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 468 | N 304032008006 | NUT |
| TAIL LAMP TO BRACKET | ||
| 471 | N 912004008102 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| A 3045460275 | CLAMP | |
| Repalced by: A 0005460875 | ||
| 474 | A 0005460875 | CLAMP |
| CABLE TO REAR CROSS MEMBER | ||
| 477 | A 3169970081 | GROMMET |
| TAIL LAMP CABLES THRU SIDE MEMBER | ||
| 480 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 480 | A 0019978390 | LOOM TIE |
| LINE TO BRACKET | ||
| A 0005452209 | SWITCH | |
| Repalced by: A 0005456109 | ||
| 483 | A 0005456109 | SWITCH |
| Repalced by: A 0015450809 | ||
| 483 | A 0015450809 | SWITCH |
| IN BRAKE MASTER CYLINDER | ||
| 483 | A 0015450809 | SWITCH |
| IN BRAKE MASTER CYLINDER | ||
| 483 | A 0015450809 | SWITCH |
| IN DUMPER VALVE | ||
| A 0005454709 | SWITCH | |
| Repalced by: A 0005455909 | ||
| A 0005455009 | SWITCH | |
| Repalced by: A 0005455909 | ||
| 486 | A 0005455909 | SWITCH |
| IN BRAKE MASTER CYLINDER | ||
| 486 | A 0005455909 | SWITCH |
| IN BRAKE MASTER CYLINDER | ||
| 486 | A 0005455909 | SWITCH |
| IN BRAKE MASTER CYLINDER | ||
| 486 | A 0005455909 | SWITCH |
| IN DUMPER VALVE | ||
| A 0005455209 | SWITCH | |
| Repalced by: A 0005457909 | ||
| 489 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 489 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 489 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 489 | A 0015452709 | SWITCH |
| STOP LIGHT | ||
| 489 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 492 | A 0029901951 | NUT |
| SWITCH TO BRAKE PEDAL | ||
| 492 | A 0009909251 | NUT |
| SWITCH TO BRAKE PEDAL | ||
| 500 | A 3145400005 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3145400305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3145400305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3145400105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3165400105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3165400305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3165400705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3145401905 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3145402805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3145403205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3145403605 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3145400205 | CABLE HARNESS |
| Repalced by: A 3165400005 | ||
| 500 | A 3165400005 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3185400305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3185400505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3185400705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3185401205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3185401805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3185402205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 500 | A 3185402805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 503 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 503 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| A 0015457228 | PLUG | |
| Repalced by: A 0025459528 | ||
| 506 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| A 0025451728 | PIN BUSHING HOUSING | |
| 4-POLE | ||
| 512 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 515 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 518 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 521 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 524 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 527 | A 0075457328 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 530 | A 0045454028 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 530 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 533 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 536 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 539 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 542 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 545 | A 0045451428 | PLUG |
| 8-POLE | ||
| 548 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 551 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 554 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 557 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 557 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 557 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 557 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 557 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 560 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 560 | A 0075457426 | PIN BUSHING |
| OFFSET | ||
| 563 | A 0005457926 | PIN BUSHING |
| OFFSET | ||
| 566 | A 0015458628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 566 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 569 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| A 0005467741 | CABLE CONNECTOR | |
| 1,5 - 6,6 MM2 | ||
| 572 | A 0015466641 | CABLE CONNECTOR |
| 6-10 MM2 | ||
| 575 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 578 | A 0005463440 | CABLE SHOE |
| A 3169970181 | GROMMET | |
| Repalced by: A 3169970581 | ||
| 581 | A 3169970581 | GROMMET |
| 584 | A 3149970181 | GROMMET |
| A 3219970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 587 | A 3359970081 | GROMMET |
| 42 MM | ||
| 587 | A 1869970481 | GROMMET |
| 26 MM | ||
| A 8339970581 | GROMMET | |
| Repalced by: A 8339970281 | ||
| A 8339970281 | GROMMET | |
| Repalced by: A 0009973381 | ||
| 590 | A 0009973381 | GROMMET |
| 16 MM | ||
| 593 | A 0009970381 | GROMMET |
| 3 MM | ||
| 593 | A 0009970581 | GROMMET |
| 5 MM | ||
| 596 | A 1119970281 | GROMMET |
| 26 MM | ||
| A 0005455028 | PLUG | |
| Repalced by: A 3805400181 | ||
| A 0005450645 | BOOT | |
| Repalced by: A 0005400481 | ||
| A 0005400181 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| A 0005400481 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 599 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 599 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 599 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 599 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 599 | A 3185400081 | PLUG SOCKET |
| REPAIR VERSION; PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| A 0009902054 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| A 3185450026 | PLUG SOCKET | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| A 0009906840 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| 602 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| 605 | A 3229971381 | GROMMET |
| Repalced by: A 4429970081 | ||
| 605 | A 4429970081 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 36 MM | ||
| 608 | N 916016018201 | CLAMP |
| MAIN CABLE HARNESS TO SIDE MEMBER | ||
| 608 | N 916016012200 | CLAMP |
| BRANCH-OFF TO HEADLAMPS | ||
| 608 | N 916016012200 | CLAMP |
| BRANCH-OFF TO ALTERNATOR TO CAB LEFT SIDE MEMBER | ||
| 608 | N 916016022206 | CLAMP |
| CABLE TO BLINKER SENDER UNIT | ||
| 608 | N 916016022206 | CLAMP |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| 608 | N 916016022206 | CLAMP |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| 608 | N 916016022206 | CLAMP |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 608 | A 0009955201 | CLAMP |
| Repalced by: N 916016025201 | ||
| 608 | N 916016025201 | CLAMP |
| CABLE TO BLINKER SENDER UNIT | ||
| 611 | N 007981005223 | SHEET METAL SCREW |
| CABLE TO BLINKER SENDER UNIT | ||
| 611 | N 007981004257 | SHEET METAL SCREW |

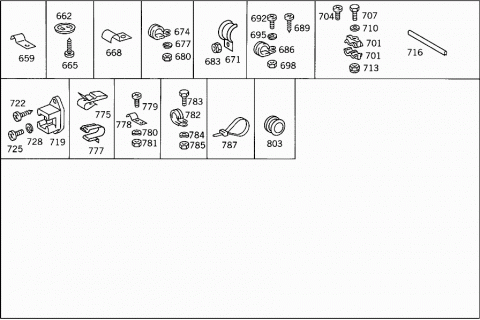

| CLAMP MOUNTING | ||
| 611 | N 007981004279 | SHEET METAL SCREW |
| MOUNTING CLAMP TO CAB | ||
| 611 | N 007981004283 | SHEET METAL SCREW |
| CLAMP MOUNTING | ||
| 614 | A 0009888978 | CLIP |
| BRANCH-OFF CABLE TO HORN TO FRAME LEFT SIDE MEMBER | ||
| 614 | A 0029883578 | CLIP |
| MAIN CABLE HARNESS TO ENGINE COVERING | ||
| 614 | A 0009881778 | CLIP |
| BRAKE-FLUID-RESERVOIR CABLE | ||
| 617 | N 000933006102 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 620 | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 623 | N 000934006007 | NUT |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 623 | N 304032005005 | NUT |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 623 | N 000934006007 | NUT |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 626 | N 000137005203 | SPRING WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 626 | N 000137006204 | SPRING WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 629 | N 916016015201 | CLAMP |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 15 MM | ||
| 632 | N 000084005134 | SCREW |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 635 | N 000933005059 | SCREW |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 638 | N 000137005102 | SPRING WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 641 | N 009021005100 | WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 644 | N 304032005005 | NUT |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 647 | A 0019978490 | LOOM TIE |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| 647 | A 0019978390 | LOOM TIE |
| STARTING CABLE | ||
| 647 | A 0019978390 | LOOM TIE |
| TO MOUNT MAIN CABLE HARNESS | ||
| 650 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 650 | N 000000001146 | SCREW |
| CLAMP MOUNTING | ||
| 650 | N 007985005109 | SCREW |
| MOUNTING CLAMP TO CAB | ||
| 653 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 653 | N 912004005103 | LOCK WASHER |
| MOUNTING CLAMP TO CAB | ||
| 656 | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| 656 | N 304032005005 | NUT |
| MOUNTING CLAMP TO CAB | ||
| 659 | N 072571001012 | CLAMP |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 659 | N 072571001010 | CLAMP |
| PANE WASHER SYSTEM | ||
| 659 | N 072571001010 | CLAMP |
| BRAKE-FLUID-RESERVOIR CABLE | ||
| 662 | A 3816820086 | BRACKET |
| MAIN CABLE HARNESS TO SEAT BOX | ||
| 662 | A 3816820086 | BRACKET |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| 662 | A 3816820086 | BRACKET |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 662 | A 3816820086 | BRACKET |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS STOP LIGHT SWITCH TO SIDE MEMBER | ||
| 662 | A 3816820086 | BRACKET |
| BRANCH-OFF TO HEADLAMPS | ||
| 665 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 665 | N 000000000460 | SCREW |
| CLAMP MOUNTING | ||
| N 006797012153 | TOOTHED WASHER | |
| HOSE TO CAB | ||
| 668 | A 3049951520 | CLAMP |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 12 MM | ||
| 668 | A 3049951620 | CLAMP |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 14 MM | ||
| 671 | A 1369950135 | CLAMP |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 674 | N 916016015202 | CLAMP |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 677 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 680 | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| 683 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 683 | N 913004006001 | NUT |
| CLAMP MOUNTING | ||
| A 0009954801 | CLAMP | |
| Repalced by: N 916016018201 | ||
| 686 | N 916016018201 | CLAMP |
| MAIN CABLE HARNESS TO ENGINE COVERING | ||
| 686 | A 0009952101 | CLAMP |
| Repalced by: N 916016012200 | ||
| 686 | N 916016012200 | CLAMP |
| CABLE TO SIDE MEMBER TO ALTERNATOR | ||
| 689 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 689 | N 000000000460 | SCREW |
| CLAMP MOUNTING | ||
| 692 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 692 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 692 | N 000000001149 | SCREW |
| CLAMP MOUNTING | ||
| 695 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 698 | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| A 0005469644 | CLAMPING PIECE | |
| Repalced by: A 3835460044 | ||
| 701 | A 3835460044 | CLAMPING PIECE |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| 701 | A 3835460044 | CLAMPING PIECE |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 704 | N 007985006163 | SCREW |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| 707 | N 000603006044 | SCREW |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 710 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 710 | N 009021006208 | WASHER |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 713 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 713 | N 913004006001 | NUT |
| LINE TO CAB | ||
| A 3149850151 | METAL SECTION | |
| Repalced by: A 0019877625 | ||
| 716 | A 0019877625 | PLASTIC SECTION |
| MAIN CABLE HARNESS & SPEEDOMETER FLEX. SHAFT THRU WINDOW LEVEL GIRDER | ||
| 719 | A 0015463541 | CABLE CONNECTOR |
| FRONT | ||
| 722 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 722 | N 000000000453 | SHEET METAL SCREW |
| CABLE CONNECTOR TO FIRE WALL | ||
| 725 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 725 | N 007985006580 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 728 | N 912004006102 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||

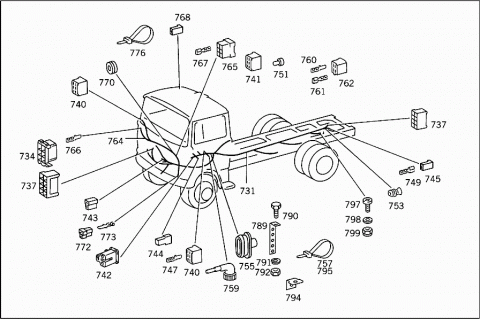

| 731 | A 3145400127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145402627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145400527 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145404227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145404727 | ELECTRIC CABLE | |
| Repalced by: A 3185401727 | ||
| 731 | A 3185401727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3165402327 | ELECTRIC CABLE | |
| Repalced by: A 3165402627 | ||
| A 3165402427 | ELECTRIC CABLE | |
| Repalced by: A 3165402627 | ||
| A 3165402527 | ELECTRIC CABLE | |
| Repalced by: A 3165402627 | ||
| 731 | A 3165402627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3165404727 | ELECTRIC CABLE | |
| Repalced by: A 3165405427 | ||
| 731 | A 3165405427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145400227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145402727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145400627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145404327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145404827 | ELECTRIC CABLE |
| Repalced by: A 3185401627 | ||
| 731 | A 3185401627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145400427 | ELECTRIC CABLE |
| Repalced by: A 3145400127 | ||
| 731 | A 3145400127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145402827 | ELECTRIC CABLE |
| Repalced by: A 3145402627 | ||
| 731 | A 3145402627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145402627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145400827 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145404427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145404427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145404927 | ELECTRIC CABLE |
| Repalced by: A 3185401727 | ||
| 731 | A 3145401527 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145403727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145401627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145404027 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145400327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145402427 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145400727 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145402927 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145401327 | ELECTRIC CABLE | |
| Repalced by: A 3145403627 | ||
| 731 | A 3145403627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145401227 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145403927 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3145405227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3165402727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 731 | A 3165404827 | ELECTRIC CABLE |
| Repalced by: A 3165405527 | ||
| 731 | A 3165405527 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 734 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 737 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 740 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 740 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 741 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 742 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 743 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 744 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 745 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 747 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 747 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 747 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6MM2 | ||
| 749 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 749 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 749 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 749 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 749 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0005467741 | CABLE CONNECTOR | |
| 1,5 - 6,6 MM2 | ||
| 751 | A 0015466641 | CABLE CONNECTOR |
| 6-10 MM2 | ||
| 753 | A 0005461237 | GROMMET |
| 753 | A 0005461237 | GROMMET |
| 753 | A 3805461937 | GROMMET |
| 753 | A 3805461937 | GROMMET |
| 753 | A 3805462037 | GROMMET |
| A 3169970281 | GROMMET | |
| Repalced by: A 3169970681 | ||
| 755 | A 3169970681 | GROMMET |
| 757 | A 0019978390 | LOOM TIE |
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 759 | A 3805402281 | PLUG SOCKET |
| REPAIR SIZE | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 759 | A 3805402181 | PLUG SOCKET |
| REPAIR SIZE | ||
| A 3145401537 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO DUMPER CONTROL PRESSURE-SWITCH AND TO GROUND | ||
| A 3145400937 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO DUMPER CONTROL PRESSURE-SWITCH AND TO GROUND | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 759 | A 3805402281 | PLUG SOCKET |
| REPAIR SIZE | ||
| 2.5 MM2 | ||
| 760 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 761 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 761 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 762 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 764 | A 3165401037 | ELECTRIC CABLE |
| Repalced by: A 3165401237 | ||
| 764 | A 3165401237 | ELECTRIC CABLE |
| FROM BLINKER LAMP PLUG CONNECTION TO SIDE BLINKER LAMP | ||
| 764 | A 3165401137 | ELECTRIC CABLE |
| FROM BLINKER LAMP PLUG CONNECTION TO SIDE BLINKER LAMP | ||
| 765 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 766 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 766 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6MM2 | ||
| 767 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 767 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 767 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 767 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 768 | A 0005451745 | BOOT |
| 770 | A 0009972881 | GROMMET |
| AT STOP LIGHT SWITCH | ||
| A 3145401027 | ELECTRIC CABLE | |
| AT STOP LIGHT SWITCH | ||
| 772 | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 773 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3129951040 | CLAMP | |
| Repalced by: A 0005460875 | ||
| A 3045460275 | CLAMP | |
| Repalced by: A 0005460875 | ||
| 775 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 775 | A 0005460875 | CLAMP |
| STOP LIGHT SWITCH CABLE TO FRAME SIDE MEMBER | ||
| A 3219950040 | CLAMP | |
| Repalced by: A 0005460875 | ||
| 775 | A 0005460875 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 776 | A 0019978490 | LOOM TIE |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 376 MM | ||
| 776 | A 0019978390 | LOOM TIE |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 280 MM | ||
| 777 | A 0009881778 | CLIP |
| CABLE HARNESS MOUNTING | ||
| 778 | N 071434010120 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 779 | N 007985005113 | SCREW |
| CLAMP MOUNTING | ||
| 780 | N 912004005101 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 781 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 781 | N 304032005005 | NUT |
| CLAMP MOUNTING | ||
| 782 | N 916016012202 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 783 | N 000933005059 | SCREW |
| CLAMP MOUNTING | ||
| 784 | N 000137005203 | SPRING WASHER |
| CLAMP MOUNTING | ||
| 784 | N 000137005203 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 784 | N 000137006204 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 785 | N 304032005005 | NUT |
| CLAMP MOUNTING | ||
| 785 | N 304032005005 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 785 | N 000934006007 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 787 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 787 | A 0019974190 | LOOM TIE |
| 100 MM | ||
| 787 | A 0019974390 | LOOM TIE |
| 250 MM | ||
| A 3604292240 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 789 | A 6205240340 | BRACKET |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 790 | N 000933010128 | SCREW |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 791 | N 912004010102 | LOCK WASHER |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 792 | N 000934010014 | NUT |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 794 | A 3604280243 | ANGLE |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 795 | A 0019978390 | LOOM TIE |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 797 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 797 | N 000000001146 | SCREW |
| GROUND TO NO.4 FRAME CROSS MEMBER | ||
| 798 | N 000125006421 | WASHER |
| GROUND TO NO.4 FRAME CROSS MEMBER | ||
| 799 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 799 | N 913002006009 | NUT |
| GROUND TO NO.4 FRAME CROSS MEMBER | ||
| 800 | N 000933010128 | SCREW |
| GROUND TO FRAME | ||
| 801 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 801 | N 000125010532 | WASHER |
| GROUND TO FRAME | ||
| 802 | N 913002010001 | NUT |
| GROUND TO FRAME | ||
| 803 | A 3129970481 | GROMMET |
| FUEL-GAUGE-SENDER-UNIT CABLE THRU SIDE MEMBER | ||
| 803 | A 3529970281 | GROMMET |
| FUEL-GAUGE-SENDER-UNIT CABLE THRU SIDE MEMBER | ||
| 803 | A 3469975081 | GROMMET |
| CABLE HARNESS THRU RIGHT SIDE MEMBER, FRONT | ||
| 805 | A 0005466141 | CABLE CONNECTOR |
| REAR,6-POLE | ||
| 805 | A 0005466141 | CABLE CONNECTOR |
| FRONT | ||
| A 0005469541 | CABLE CONNECTOR | |
| Repalced by: A 0015463341 | ||
| A 0015463341 | CABLE CONNECTOR | |
| Repalced by: A 0015463841 | ||
| 805 | A 0015463841 | CABLE CONNECTOR |
| Repalced by: A 0015465441 | ||
| A 0045458928 | PLUG | |
| Repalced by: A 0105456728 | ||
| 806 | A 0105456728 | PLUG |
| A 0015465441 | CABLE CONNECTOR | |
| REAR | ||
| A 0015465441 | CABLE CONNECTOR | |
| REAR | ||
| A 0015465441 | CABLE CONNECTOR | |
| FRONT | ||
| A 0005460481 | COVERING | |
| Repalced by: A 0005460581 | ||
| 807 | A 0005460581 | COVERING |
| 808 | A 0005460283 | ANGLE |
| 809 | A 0009872844 | EXPANSION PLUG |
| A 3145460043 | BRACKET | |
| CABLE CONNECTOR | ||
| 810 | A 3145402473 | BRACKET |
| CABLE CONNECTOR | ||
| 811 | A 3609902440 | WASHER |
| Repalced by: A 3609902340 | ||
| 811 | A 3609902340 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 812 | N 007985004159 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 812 | N 007985005149 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 812 | N 007985005165 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 812 | N 007985005147 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 812 | N 007985004155 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 812 | N 007985004113 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 813 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 813 | N 304017008021 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 814 | N 009021004100 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 814 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 814 | N 009021005205 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 815 | N 000127004206 | LOCK WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 815 | N 912004008102 | LOCK WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 816 | N 000934004006 | NUT |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 816 | N 913004005003 | NUT |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 819 | A 3145400007 | CABLE HARNESS |
| Repalced by: A 3525400507 | ||
| 819 | A 3525400507 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 819 | A 3145400407 | CABLE HARNESS |
| Repalced by: A 3145400607 | ||
| 819 | A 3145400607 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 820 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 820 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 820 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 820 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 821 | A 0019971581 | GROMMET |
| A 3145401427 | ELECTRIC CABLE | |
| Repalced by: A 3165400207 | ||
| A 3165400207 | CABLE HARNESS | |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 823 | A 3145400107 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 823 | A 3145400507 | CABLE HARNESS |
| Repalced by: A 3145400607 | ||
| 823 | A 3145400607 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 824 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 824 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 824 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 824 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 825 | A 0019971581 | GROMMET |
| A 3129951040 | CLAMP | |
| Repalced by: A 0005460875 | ||
| 826 | A 0005460875 | CLAMP |
| CABLE TO TAIL LAMP | ||
| 827 | A 0019978490 | LOOM TIE |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 828 | N 046225004102 | CABLE SHOE |
| 828 | N 046225010101 | CABLE SHOE |
| 830 | A 3129970481 | GROMMET |
| ELECTRIC CABLE THRU TAIL LAMP BRACKET | ||
| 19,5 MM | ||
| 830 | A 3239970081 | GROMMET |
| ELECTRIC CABLE THRU TAIL LAMP BRACKET | ||
| 14 MM | ||
| 830 | A 8339970081 | GROMMET |
| ELECTRIC CABLE THRU TAIL LAMP BRACKET | ||
| 20 MM | ||
| 830 | A 0009972281 | GROMMET |
| ELECTRIC CABLE THRU TAIL LAMP BRACKET | ||
| 15 MM | ||
| A 3185400238 | ELECTRIC CABLE | |
| FROM PLUG CONNECTION TO OIL PRESSURE GAUGE SENDER UNIT | ||
| 832 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 833 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 835 | A 3145460320 | GROUND STRAP |
| FROM FRAME SIDE MEMBER TO CAB CROSS MEMBER | ||
| A 3145400241 | GROUND STRAP | |
| Repalced by: A 3145400041 | ||
| A 3145400041 | GROUND STRAP | |
| Repalced by: A 3525400041 | ||
| 835 | A 3525400041 | GROUND STRAP |
| FROM BELL HOUSING TO CAB CROSS MEMBER | ||
| 836 | N 000933010128 | SCREW |
| GROUND STRAP | ||
| M 10X20 | ||
| 836 | N 000933010105 | SCREW |
| GROUND STRAP | ||
| M 10X25 | ||
| 837 | N 009021010100 | WASHER |
| GROUND STRAP | ||
| 838 | N 912004010102 | LOCK WASHER |
| GROUND STRAP | ||
| 839 | N 000934010014 | NUT |
| GROUND STRAP | ||
| A 0045426506 | SPEEDOMETER | |
| Repalced by: A 0035428706 | ||
| A 0035428706 | SPEEDOMETER | |
| A 0035428706 | SPEEDOMETER | |
| A 0075422506 | SPEEDOMETER | |
| Repalced by: A 0075429210 | ||
| A 0075422906 | SPEEDOMETER | |
| Repalced by: A 0075429210 | ||
| 840 | A 0075429210 | TACHOGRAPH |
| A 0045421310 | TACHOGRAPH | |
| Repalced by: A 0055428810 | ||
| 840 | A 0055428810 | TACHOGRAPH |
| A 0095424310 | TACHOGRAPH | |
| Repalced by: A 0095424410 | ||
| A 0095424410 | TACHOGRAPH | |
| Repalced by: A 0085425310 | ||
| 840 | A 0085425310 | TACHOGRAPH |
| 841 | A 0025429330 | ANGLE DRIVE |
| TO 009 542 43 10,009 542 44 10 | ||
| A 0005421994 | DIAGRAM PAPER | |
| TO 005 542 88 10 | ||
| A 0005423394 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| TO 007 542 92 10,009 542 43 10, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 009 542 44 10 | ||
| 842 | A 0005421347 | COUPLER |
| TACHOGRAPH | ||
| 842 | A 0005421347 | COUPLER |
| TACHOGRAPH | ||
| 843 | A 0005421840 | BRACKET |
| TACHOGRAPH | ||
| A 0005421172 | NUT | |
| Repalced by: N 000934005008 | ||
| 844 | N 304032005005 | NUT |
| TACHOGRAPH | ||
| 845 | N 000466005000 | NUT |
| TACHOGRAPH | ||
| 846 | A 3145402673 | BRACKET |
| TACHOGRAPH | ||
| A 3145840240 | DECALCOMANIA | |
| MEASURING RANGE,90 KM/H OR 60 M.P.H.; FOR USE WITH REAR AXLE RATIO 41:8 | ||
| A 3145840240 | DECALCOMANIA | |
| MEASURING RANGE,90 KM/H OR 60 M.P.H.; FOR USE WITH REAR AXLE RATIO 41:8 | ||
| A 3145840240 | DECALCOMANIA | |
| MEASURING RANGE,90 KM/H OR 60 M.P.H.; FOR USE WITH REAR AXLE RATIO 41:8 | ||
| A 3145840440 | DECALCOMANIA | |
| MEASURING RANGE,100 KM/H,OR 60 M.P.H.; FOR USE WITH REAR AXLE RATIO 41:8 | ||
| A 3145840140 | DECALCOMANIA | |
| MEASURING RANGE,90 KM/H OR 60 M.P.H.; FOR USE WITH REAR AXLE RATIO 43:10 | ||
| A 3145840140 | DECALCOMANIA | |
| MEASURING RANGE,90 KM/H OR 60 M.P.H.; FOR USE WITH REAR AXLE RATIO 43:10 | ||
| A 3145840740 | DECALCOMANIA | |
| MEASURING RANGE,100 KM/H,OR 60 MPH; W/REAR AXLE RATIO 43:7 & 10.00-20TIRES | ||
| 847 | N 072601012800 | BULB |
| TACHOGRAPH | ||
| 2 W | ||
| 847 | A 0015442594 | BULB |
| Repalced by: A 0005453419 | ||
| 847 | A 0005453419 | SOCKET LAMP |
| TACHOGRAPH | ||
| 12 V/1.2 W | ||
| 850 | A 0015425907 | FLEXIBLE SHAFT |
| 3000 MM | ||
| 850 | A 0025426007 | FLEXIBLE SHAFT |
| Repalced by: A 0045427207 | ||
| 850 | A 0045427207 | FLEXIBLE SHAFT |
| 3050 MM | ||
| 850 | A 0025429807 | FLEXIBLE SHAFT |
| 3200 MM | ||
| 850 | A 0025429807 | FLEXIBLE SHAFT |
| 3200 MM | ||
| 850 | A 0025426207 | FLEXIBLE SHAFT |
| Repalced by: A 0055422707 | ||
| 850 | A 0055422707 | FLEXIBLE SHAFT |
| Repalced by: A 0045424307 | ||
| 850 | A 0045424307 | FLEXIBLE SHAFT |
| 3650 MM | ||
| 850 | A 0045423307 | FLEXIBLE SHAFT |
| Repalced by: A 0045424207 | ||
| 850 | A 0045424207 | FLEXIBLE SHAFT |
| 3500 MM | ||
| 850 | A 0045423407 | FLEXIBLE SHAFT |
| 3350 MM | ||
| 851 | N 007331006114 | RIVET |
| FLEXIBLE SHAFT | ||
| 854 | A 0005420630 | ANGLE DRIVE |
| RATIO: | ||
| 1:1 | ||
| 854 | A 0015429030 | ANGLE DRIVE |
| Repalced by: A 0005424230 | ||
| 854 | A 0005424230 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 43.10 AND WITH 7.00-16 TIRES | ||
| 854 | A 0005424230 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 43.10 AND WITH 7.00-16 TIRES | ||
| 854 | A 0005424230 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 43.10 AND WITH 7.00-16 TIRES | ||
| 854 | A 0015429230 | ANGLE DRIVE |
| Repalced by: A 0015421830 | ||
| 854 | A 0015421830 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 41:8 AND WITH 7.00-16 TIRES | ||
| 854 | A 0015421830 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 41:8 AND WITH 7.00-16 TIRES | ||
| 854 | A 0015421830 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 41:8 AND WITH 7.00-16 TIRES | ||
| 854 | A 0015421130 | ANGLE DRIVE |
| Repalced by: A 0005420630 | ||
| 854 | A 0005420630 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 41:8 AND WITH 7.00-16 TIRES | ||
| A 3145420004 | BRACKET | |
| FLEXIBLE SHAFT | ||
| A 3524281740 | BRACKET | |
| Repalced by: A 3184280240 | ||
| 855 | A 3184280240 | BRACKET |
| FLEXIBLE SHAFT | ||
| 856 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 856 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 857 | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 858 | N 304032008006 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 859 | A 0019978390 | LOOM TIE |
| FLEXIBLE SHAFT MOUNTING | ||
| 859 | A 0019978490 | LOOM TIE |
| FLEXIBLE SHAFT MOUNTING | ||
| A 0009952101 | CLAMP | |
| Repalced by: N 916016012200 | ||
| 860 | N 916016012200 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 12 MM | ||
| A 0009950301 | CLAMP | |
| Repalced by: N 916016015200 | ||
| 860 | N 916016015200 | CLAMP |
| FLEXIBLE SHAFT TO WINDSHIELD WIPER MOTOR | ||
| 15 MM | ||
| 861 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 861 | N 000000001146 | SCREW |
| CLAMP MOUNTING | ||
| 862 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 863 | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| A 3604292040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 864 | A 6205240340 | BRACKET |
| FLEXIBLE SHAFT | ||
| A 3529950040 | CLAMP | |
| Repalced by: A 3099950140 | ||
| 865 | A 3099950140 | CLAMP |
| FLEXIBLE SHAFT TO FRAME SIDE MEMBER | ||
| A 3149970381 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 866 | A 3359970081 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| 866 | A 3149970681 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| 867 | A 3169970781 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| 868 | A 3816890808 | COVERING |
| TACHOMETER | ||
| 869 | A 0015421316 | TACHOMETER |
| 870 | N 072601012800 | BULB |
| TACHOMETER | ||
| 12 V/2 W | ||
| 871 | A 0009970381 | GROMMET |
| TACHOMETER | ||
| 872 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 875 | A 0015402347 | INSTRUMENT CLUSTER |
| 875 | A 0025402047 | INSTRUMENT CLUSTER |
| 875 | A 0025405747 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407547 | ||
| 875 | A 0035407547 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407247 | ||
| 875 | A 0035407247 | INSTRUMENT CLUSTER |
| A 0025425505 | TEMPERATURE GAUGE | |
| Repalced by: A 0035421005 | ||
| 876 | A 0035421005 | TEMPERATURE GAUGE |
| TO 001 540 23 47,002 540 20 47 | ||
| 876 | A 0035423805 | TEMPERATURE GAUGE |
| TO 002 540 57 47 | ||
| 876 | A 0035428905 | TEMPERATURE GAUGE |
| TO 003 540 75 47 | ||
| 876 | A 0035429605 | TEMPERATURE GAUGE |
| TO 003 540 72 47 | ||
| A 0005427508 | AIR PRESSURE GAUGE | |
| Repalced by: A 0005429108 | ||
| 877 | A 0005429108 | AIR PRESSURE GAUGE |
| TO 001 540 23 47,002 540 20 47 | ||
| 877 | A 0015420408 | AIR PRESSURE GAUGE |
| TO 002 540 57 47 | ||
| 877 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 75 47 | ||
| 877 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 542 72 47 | ||
| 878 | A 0015424102 | OIL PRESSURE GAUGE |
| TO 001 540 23 47,002 540 20 47 | ||
| 878 | A 0025420202 | OIL PRESSURE GAUGE |
| TO 002 540 57 47 | ||
| 878 | A 0025422802 | OIL PRESSURE GAUGE |
| TO 003 540 75 47 | ||
| 878 | A 0025423202 | OIL PRESSURE GAUGE |
| TO 003 542 72 47 | ||
| 879 | A 0005428503 | FUEL GAUGE DASH UNIT |
| TO 001 540 23 47,002 540 20 47 | ||
| 879 | A 0015425103 | FUEL GAUGE DASH UNIT |
| TO 002 540 57 47 | ||
| 879 | A 0025429103 | FUEL GAUGE DASH UNIT |
| TO 003 540 75 47 | ||
| 879 | A 0025429303 | FUEL GAUGE DASH UNIT |
| TO 003 542 72 47 | ||
| 880 | A 0005422178 | CONNECTION PLATE |
| TO 002 540 57 47 | ||
| 880 | A 0005423078 | CONNECTION PLATE |
| TO 003 540 75 47 | ||
| 880 | A 0005423678 | CONNECTION PLATE |
| TO 003 540 72 47 | ||
| 881 | A 0005420332 | TELL-TALE LAMP |
| 882 | N 072601012800 | BULB |
| 2 W | ||
| 882 | A 0015442594 | BULB |
| Repalced by: A 0005453419 | ||
| 882 | A 0005453419 | SOCKET LAMP |
| TO 003 542 72 47 | ||
| 883 | A 0005451219 | SOCKET |
| 884 | A 0005421740 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 884 | A 0005421740 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 885 | A 3145402773 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 886 | A 3145402873 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 887 | A 0005421072 | NUT |
| INSTRUMENT CLUSTER | ||
| 888 | A 0005421080 | GASKET |
| INSTRUMENT CLUSTER | ||
| 890 | A 0015422317 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 891 | N 007603014400 | SEAL RING |
| TEMPERATURE GAUGE | ||
| 893 | A 0015422117 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| M 10X1 | ||
| 893 | A 0015424917 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 893 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| M 14X1.5 | ||
| 894 | N 007603014104 | SEAL RING |
| OIL PRESSURE GAUGE | ||
| A 0005453526 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| A 0005453926 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| A 0005454426 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| 896 | A 0015458526 | PLUG SOCKET |
| 896 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 896 | A 0045454326 | PLUG SOCKET |
| AT INSTRUMENT PANEL | ||
| 897 | A 0009900946 | WASHER |
| AT INSTRUMENT PANEL | ||
| 899 | A 0005455414 | SWITCH |
| SPRING-LOADED BRAKE INDICATOR | ||
| 899 | A 0005455414 | SWITCH |
| SPRING-LOADED BRAKE INDICATOR | ||
| 899 | A 0005455414 | SWITCH |
| SUPPLY CONTROL;BRAKE CIRCUIT III | ||
| 899 | A 0005455414 | SWITCH |
| SPRING-LOADED BRAKE INDICATOR | ||
| 900 | A 0009970303 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 902 | A 0005453807 | SWITCH |
| AT INSTRUMENT PANEL | ||
| 903 | A 0029882278 | CLIP |
| SWITCH | ||
| 905 | A 0005459211 | SWITCH |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 905 | A 0005459311 | SWITCH |
| WINDSHIELD WIPER O F F O N | ||
| 906 | A 0005451583 | CAP |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 906 | A 0005451483 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| 908 | A 0005453013 | SWITCH |
| AT INSTRUMENT PANEL | ||
| A 0005450176 | WASHER | |
| Repalced by: A 0005450376 | ||
| 909 | A 0005450376 | WASHER |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| A 0005450672 | NUT | |
| Repalced by: A 0005451072 | ||
| 910 | A 0005451072 | NUT |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 911 | A 0005451235 | KEY |
| TO SWITCH BOX | ||
| A 0005421425 | POTENTIOMETER | |
| Repalced by: A 3015420025 | ||
| A 3015420025 | POTENTIOMETER | |
| 913 | A 3015420025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| A 0005422525 | POTENTIOMETER | |
| Repalced by: A 0005422925 | ||
| A 0005422925 | POTENTIOMETER | |
| Repalced by: A 6155420125 | ||
| 913 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| A 0005421189 | KNOB | |
| Repalced by: A 0005421889 | ||
| 914 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING SWITCH | ||
| 915 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| M12 | ||
| 915 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| M10 | ||
| 915 | A 0005451472 | NUT |
| Repalced by: A 0029906251 | ||
| 915 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| 916 | N 006797012153 | TOOTHED WASHER |
| INSTRUMENT LIGHTING SWITCH | ||
| A 0015450615 | TELL-TALE LAMP | |
| Repalced by: A 0005451630 | ||
| 917 | A 0005451630 | SHELL |
| LESS LENS | ||
| 918 | A 0005452319 | SOCKET |
| 919 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 920 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| A 0005453790 | LENS | |
| Repalced by: A 0035453290 | ||
| 920 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 921 | A 0005451190 | LENS |
| HIGH BEAM | ||
| A 0005455290 | LENS | |
| Repalced by: A 0035453390 | ||
| A 0035453390 | LENS | |
| Repalced by: A 0065451990 | ||
| 921 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 922 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| A 0005455390 | LENS | |
| Repalced by: A 0035454190 | ||
| A 0035454190 | LENS | |
| Repalced by: A 0035455290 | ||
| 922 | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 923 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| A 0005456290 | LENS | |
| Repalced by: A 0035455190 | ||
| 924 | A 0035455190 | LENS |
| OIL SUPPLY | ||
| 925 | A 0005450790 | LENS |
| DUMPER INDICATOR | ||
| 925 | A 0005454590 | LENS |
| DUMPER INDICATOR | ||
| 926 | A 0005452290 | LENS |
| BRAKE FLUID | ||
| 926 | A 0005455090 | LENS |
| Repalced by: A 0055458890 | ||
| 926 | A 0055458890 | LENS |
| BRAKE FLUID | ||
| 927 | A 0005451790 | LENS |
| PARKING BRAKE | ||
| 927 | A 0005451790 | LENS |
| PARKING BRAKE | ||
| A 0005455190 | LENS | |
| Repalced by: A 0035453790 | ||
| 927 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 928 | N 072601012800 | BULB |
| 929 | A 0015454914 | SWITCH |
| STARTING IN CAB | ||
| A 0035453924 | SWITCH,AUTOMATIC | |
| Repalced by: A 0025457124 | ||
| 930 | A 0025457124 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT | ||
| 930 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 931 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 932 | N 072601012110 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| 932 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| 933 | A 3015400165 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 935 | A 3149870340 | RUBBER BUFFER |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 18 MM | ||
| 935 | A 3149870440 | RUBBER BUFFER |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 8 MM | ||
| 936 | A 0009973535 | PLUG |
| TELL-TALE LAMP | ||
| 936 | A 0009974335 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 937 | A 0009974435 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 938 | A 3099870144 | EXPANSION PLUG |
| PUSHBUTTON SWITCH | ||
| 939 | A 0009970425 | EXPANSION PLUG |
| PUSHBUTTON SWITCH | ||
| 939 | A 0009970525 | EXPANSION PLUG |
| PUSH BUTTON SWITCH | ||
| 941 | A 3226890030 | CAP |
| TO PLUG THE FREE HOLE FOR STARTER PILOT PUMP | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
