Transporto priemonė: LP 608; VIN numerio dalis: 314057

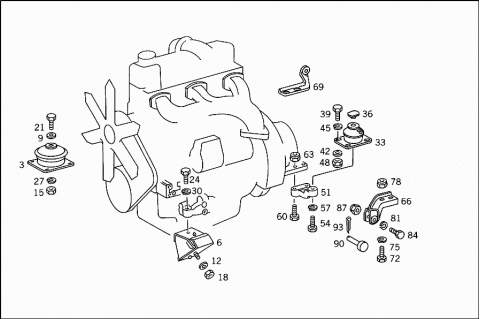

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3142230112 | RUBBER MOUNTING |
| FRONT | ||
| 006 | A 3102410313 | RUBBER MOUNTING |
| FRONT | ||
| 009 | A 3149900440 | WASHER |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 009 | N 000433015005 | WASHER |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 012 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 012 | N 000125017016 | WASHER |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 015 | N 000934014020 | NUT |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 018 | N 913001016001 | NUT |
| Repalced by: A 1409900151 | ||
| 018 | A 1409900151 | NUT |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 021 | N 000960014180 | SCREW |
| Repalced by: N 308765014009 | ||
| 021 | N 308765014009 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 024 | N 000961016105 | SCREW |
| Repalced by: N 308676016004 | ||
| 024 | N 308676016004 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 027 | N 912004014100 | LOCK WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 030 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 033 | A 3142230012 | RUBBER MOUNTING |
| REAR | ||
| 036 | N 915042015000 | PLUG |
| RUBBER MOUNT | ||
| 039 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 042 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 042 | N 000125010532 | WASHER |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 045 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 048 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 048 | N 910113010000 | NUT |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 051 | A 3142231004 | ENGINE SUPPORT |
| REAR | ||
| 054 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 054 | N 308676016005 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 057 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 060 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 060 | N 308676014013 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 14X65 | ||
| 063 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 063 | N 910113014000 | NUT |
| ENGINE SUPPORT TO BELL HOUSING | ||
| 066 | A 3142400640 | BRACKET |
| ENGINE REAR SUSPENSION | ||
| A 3142930036 | BEARING BRACKET | |
| ENGINE REAR SUSPENSION | ||
| 069 | A 3142930136 | BEARING BRACKET |
| ENGINE REAR SUSPENSION | ||
| 069 | A 3182930336 | BEARING BRACKET |
| ENGINE REAR SUSPENSION | ||
| 072 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 072 | N 308676014014 | SCREW |
| BEARING BRACKET TO BELL HOUSING | ||
| M 14X70 | ||
| 072 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 072 | N 308676014013 | SCREW |
| BEARING BRACKET TO BELL HOUSING | ||
| M 14X65 | ||
| 072 | N 308676014013 | SCREW |
| BEARING BRACKET TO BELL HOUSING | ||
| M 14X65 | ||
| 072 | N 000960014219 | SCREW |
| BEARING BRACKET TO BELL HOUSING | ||
| M 14X75 | ||
| 075 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO BELL HOUSING | ||
| 078 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 078 | N 910113014000 | NUT |
| BEARING BRACKET TO BELL HOUSING | ||
| 081 | N 912004016101 | LOCK WASHER |
| BRACKET TO ENGINE | ||
| 084 | N 000961016105 | SCREW |
| Repalced by: N 308676016004 | ||
| 084 | N 308676016004 | SCREW |
| BRACKET TO ENGINE | ||
| A 3142400425 | ROD | |
| BRACKET TO ENGINE | ||
| A 0002400125 | ROD | |
| ENGINE REAR SUSPENSION | ||
| A 0002410313 | RUBBER MOUNTING | |
| ENGINE REAR SUSPENSION | ||
| 087 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 087 | N 308673014001 | NUT |
| ENGINE REAR SUSPENSION | ||
| 090 | N 001434014020 | PIN |
| ROD TO BRACKET | ||
| 093 | N 000094004051 | COTTER PIN |
| ROD TO BRACKET | ||
