Transporto priemonė: LP 608; VIN numerio dalis: 314057

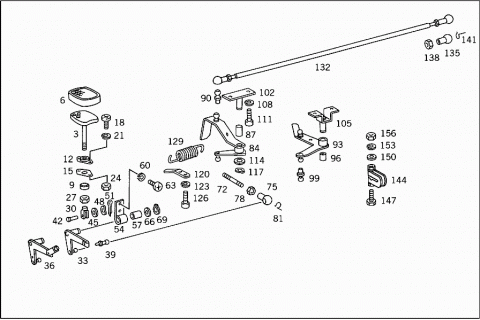

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3144300318 | BRAKE PEDAL |
| EXHAUST BRAKE | ||
| 003 | A 3144300618 | BRAKE PEDAL |
| EXHAUST BRAKE | ||
| 006 | A 3203015082 | PAD |
| 009 | A 3524340123 | GUIDE |
| 012 | A 3524340140 | BRACKET |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 012 | A 3524341040 | BRACKET |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 015 | A 3524340187 | SHIM |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 018 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 018 | N 000000001145 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 021 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB FLOOR | ||
| 024 | N 000934006007 | NUT |
| BRACKET TO CAB FLOOR | ||
| 024 | N 000934006007 | NUT |
| BRACKET TO CAB FLOOR | ||
| 027 | N 304032008006 | NUT |
| BRACKET TO CAB FLOOR | ||
| 030 | N 071752006006 | YOKE |
| YOKE TO INTERMEDIATE LEVER | ||
| 030 | N 071752008002 | YOKE |
| YOKE TO INTERMEDIATE LEVER | ||
| 033 | A 3144300523 | LEVER |
| EXHAUST BRAKE | ||
| 033 | A 3144300352 | LEVER |
| EXHAUST BRAKE | ||
| 033 | A 3144300852 | LEVER |
| EXHAUST BRAKE | ||
| A 3144301023 | LEVER | |
| Repalced by: A 3104300023 | ||
| 036 | A 3104300023 | LEVER |
| EXHAUST BRAKE | ||
| 039 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 039 | A 3129910120 | BALL PIVOT |
| 042 | N 001434006005 | PIN |
| YOKE TO INTERMEDIATE LEVER | ||
| 042 | N 001434008038 | PIN |
| YOKE TO INTERMEDIATE LEVER | ||
| 045 | N 000125006421 | WASHER |
| YOKE TO INTERMEDIATE LEVER | ||
| 045 | N 000125008400 | WASHER |
| YOKE TO INTERMEDIATE LEVER | ||
| 048 | N 900055008002 | SPRING WASHER |
| YOKE TO INTERMEDIATE LEVER | ||
| 051 | N 000094001518 | COTTER PIN |
| YOKE TO INTERMEDIATE LEVER | ||
| 051 | N 000094002032 | COTTER PIN |
| YOKE TO INTERMEDIATE LEVER | ||
| 054 | A 3144300155 | GUIDE |
| INTERMEDIATE LEVER | ||
| 057 | A 3144340150 | BUSHING |
| 060 | N 912004006102 | LOCK WASHER |
| LEVER TO GUIDE TUBE | ||
| 063 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 063 | N 000000001145 | SCREW |
| LEVER TO GUIDE TUBE | ||
| 066 | N 000988012006 | FITTED WASHER |
| LEVER TO GUIDE TUBE | ||
| 069 | N 000471012001 | LOCK RING |
| LEVER TO GUIDE TUBE | ||
| A 3144301592 | ROD | |
| Repalced by: N 900331006615 | ||
| A 3144301892 | ROD | |
| Repalced by: N 900331006619 | ||
| 072 | N 900331006615 | PULL ROD |
| EXHAUST BRAKE CONTROL | ||
| 072 | N 900331006619 | PULL ROD |
| EXHAUST BRAKE CONTROL | ||
| 075 | N 071805010204 | BALL SOCKET |
| EXHAUST BRAKE CONTROL | ||
| 078 | N 000934006007 | NUT |
| EXHAUST BRAKE CONTROL | ||
| 081 | N 071805010403 | SECURING CLIP |
| EXHAUST BRAKE CONTROL | ||
| 084 | A 3144300723 | LEVER |
| (DOUBLE LEVER) | ||
| 084 | A 3144301323 | LEVER |
| (DOUBLE LEVER) | ||
| 087 | A 3144340050 | BUSHING |
| 090 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 090 | A 3129910120 | BALL PIVOT |
| 093 | A 3144300252 | LEVER |
| (DOUBLE LEVER) | ||
| 093 | A 3144301052 | LEVER |
| (DOUBLE LEVER) | ||
| 096 | A 3144340150 | BUSHING |
| 099 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 099 | A 3129910120 | BALL PIVOT |
| 102 | A 3144301038 | BEARING |
| DOUBLE LEVER | ||
| 105 | A 3143000640 | BRACKET |
| DOUBLE LEVER | ||
| 108 | N 912004008102 | LOCK WASHER |
| DOUBLE LEVER TO BRACKET | ||
| 111 | N 007985008109 | SCREW |
| DOUBLE LEVER TO BRACKET | ||
| 114 | N 000988012008 | FITTED WASHER |
| DOUBLE LEVER TO BRACKET | ||
| 117 | N 000471012001 | LOCK RING |
| DOUBLE LEVER TO BRACKET | ||
| 120 | A 3144340940 | BRACKET |
| RELEASE SPRING | ||
| 123 | N 912004006102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 126 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 126 | N 000000001145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 129 | A 3149930110 | SPRING |
| (RELEASE SPRING) | ||
| 132 | A 3144301792 | ROD |
| 132 | A 3144302592 | ROD |
| Repalced by: N 900331006618 | ||
| N 900331006618 | PULL ROD | |
| 132 | A 3144302092 | ROD |
| 132 | A 3144302792 | ROD |
| 135 | N 071805010204 | BALL SOCKET |
| 138 | N 000934010014 | NUT |
| 141 | N 071805010403 | SECURING CLIP |
| 144 | A 3144300147 | STOP |
| EXHAUST BRAKE | ||
| 147 | N 000931006118 | SCREW |
| 150 | N 000125006421 | WASHER |
| 153 | N 912004006102 | LOCK WASHER |
| 156 | N 000934006007 | NUT |
