Transporto priemonė: LP 608; VIN numerio dalis: 314057
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

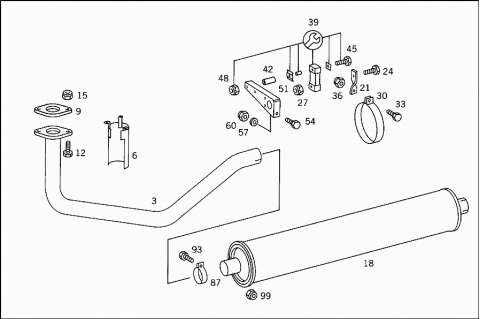

| A 3144900519 | EXHAUST PIPE | |
| Repalced by: A 3144900719 | ||
| A 3144900519 | EXHAUST PIPE | |
| Repalced by: A 3144900719 | ||
| A 3144900519 | EXHAUST PIPE | |
| Repalced by: A 3144900719 | ||
| A 3144900519 | EXHAUST PIPE | |
| Repalced by: A 3144900719 | ||
| 003 | A 3144900719 | EXHAUST PIPE |
| FRONT | ||
| 003 | A 3144901019 | EXHAUST PIPE |
| FRONT | ||
| 003 | A 3144901619 | EXHAUST PIPE |
| Repalced by: A 3144901819 | ||
| 003 | A 3144901819 | EXHAUST PIPE |
| FRONT | ||
| 003 | A 3144900919 | EXHAUST PIPE |
| FRONT | ||
| 003 | A 3144901319 | EXHAUST PIPE |
| FRONT | ||
| 006 | A 3144900130 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 009 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 009 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 009 | N 917003060003 | GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 012 | N 000931010271 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 012 | N 000931012114 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 015 | N 000934010014 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 0019904751 | NUT | |
| Repalced by: N 913004012010 | ||
| 015 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3144900301 | EXHAUST MUFFLER | |
| Repalced by: A 3144900501 | ||
| 018 | A 3144900501 | EXHAUST MUFFLER |
| A 3144920719 | BRACKET | |
| Repalced by: A 3144910341 | ||
| A 6734910941 | BRACKET | |
| Repalced by: A 3144910341 | ||
| 021 | A 3144910341 | BRACKET |
| EXHAUST MUFFLER | ||
| A 3404920919 | BRACKET | |
| EXHAUST MUFFLER | ||
| 024 | N 000931008244 | SCREW |
| BRACKET TO DAMPING PAD | ||
| 027 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 027 | A 1201420072 | NUT |
| BRACKET TO DAMPING PAD | ||
| 030 | A 3184910041 | BRACKET |
| EXHAUST MUFFLER | ||
| 033 | N 000933010128 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| 036 | N 913004010000 | NUT |
| Repalced by: N 910113010004 | ||
| 036 | N 910113010004 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| A 1204920482 | DAMPING PAD | |
| Repalced by: A 3095860049 | ||
| A 1204920118 | BASE PLATE | |
| Repalced by: A 3095860049 | ||
| A 1209911140 | SPACER TUBE | |
| Repalced by: A 3095860049 | ||
| A 1204920083 | INSULATION | |
| Repalced by: A 3095860049 | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| 039 | A 3094900037 | SUSPENSION |
| EXHAUST MUFFLER TO SUPPORT | ||
| 042 | A 3354310053 | SPACER TUBE |
| Repalced by: A 3094310249 | ||
| 042 | A 3094310249 | GUIDE BUSHING |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 045 | N 000931008266 | SCREW |
| DAMPING PAD TO SUPPORT | ||
| 048 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 048 | N 913004008001 | NUT |
| DAMPING PAD TO SUPPORT | ||
| 051 | A 3144920416 | SUPPORT |
| EXHAUST PIPE SUSPENSION | ||
| A 3164920216 | SUPPORT | |
| Repalced by: A 3164920316 | ||
| A 3164920116 | SUPPORT | |
| Repalced by: A 3164920316 | ||
| 051 | A 3164920316 | SUPPORT |
| EXHAUST PIPE SUSPENSION | ||
| A 3144921119 | BRACKET | |
| A 3144920716 | SUPPORT | |
| EXHAUST PIPE SUSPENSION | ||
| A 3144920017 | ANGLE | |
| EXHAUST PIPE SUSPENSION | ||
| 054 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 054 | N 000933010128 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 057 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 057 | N 000125010532 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 060 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 060 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| A 3144900121 | EXHAUST PIPE | |
| Repalced by: A 3164900521 | ||
| A 3144900321 | EXHAUST PIPE | |
| Repalced by: A 3164900721 | ||
| A 3144900221 | EXHAUST PIPE | |
| Repalced by: A 3164900621 | ||
| A 3144900421 | EXHAUST PIPE | |
| Repalced by: A 3164900821 | ||

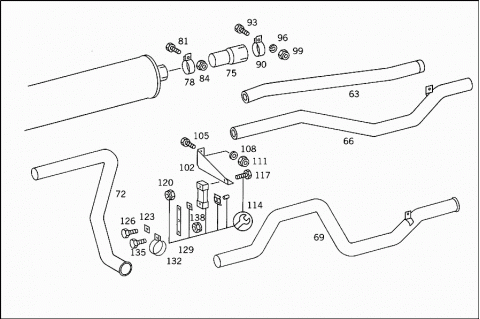

| 063 | A 3144920704 | REAR EXHAUST PIPE |
| REAR;FIRST PART | ||
| 063 | A 3144920704 | REAR EXHAUST PIPE |
| REAR;FIRST PART | ||
| 063 | A 3144921104 | REAR EXHAUST PIPE |
| REAR;FIRST PART | ||
| 063 | A 3144921104 | REAR EXHAUST PIPE |
| REAR;FIRST PART | ||
| 066 | A 3144901321 | EXHAUST PIPE |
| REAR,SECOND PART | ||
| 066 | A 3144901321 | EXHAUST PIPE |
| REAR,SECOND PART | ||
| 066 | A 3144901421 | EXHAUST PIPE |
| REAR,SECOND PART | ||
| 066 | A 3144901221 | EXHAUST PIPE |
| REAR,SECOND PART | ||
| 066 | A 3144901221 | EXHAUST PIPE |
| REAR,SECOND PART | ||
| 066 | A 3144901521 | EXHAUST PIPE |
| REAR,SECOND PART | ||
| 069 | A 3144901021 | EXHAUST PIPE |
| (TAIL PIPE) | ||
| 069 | A 3144901021 | EXHAUST PIPE |
| (TAIL PIPE) | ||
| 069 | A 3144901821 | EXHAUST PIPE |
| (TAIL PIPE) | ||
| 069 | A 3144901721 | EXHAUST PIPE |
| (TAIL PIPE) | ||
| 069 | A 3144901621 | EXHAUST PIPE |
| (TAIL PIPE) | ||
| A 3164900521 | EXHAUST PIPE | |
| Repalced by: A 3144923604 | ||
| 072 | A 3144923604 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| A 3164900621 | EXHAUST PIPE | |
| Repalced by: A 3144923504 | ||
| 072 | A 3144923504 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 072 | A 3144902121 | EXHAUST PIPE |
| (TAIL PIPE) | ||
| A 3164900721 | EXHAUST PIPE | |
| Repalced by: A 3184924304 | ||
| A 3164900721 | EXHAUST PIPE | |
| Repalced by: A 3184923904 | ||
| A 3164900821 | EXHAUST PIPE | |
| Repalced by: A 3184923904 | ||
| A 3184923904 | REAR EXHAUST PIPE | |
| Repalced by: A 3184924304 | ||
| 072 | A 3184924304 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 075 | A 3184921307 | CONNECTOR |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 078 | A 3144910240 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 081 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 081 | N 304017008034 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 084 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 084 | A 1201420072 | NUT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| A 3144921319 | BRACKET | |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 087 | N 071555055500 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 087 | N 071555055500 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 090 | N 071555058500 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 093 | N 000933008128 | SCREW |
| CLAMP TO BRACKET | ||
| 093 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 093 | N 304017008021 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 093 | N 000931008244 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 096 | N 912004008102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 096 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 099 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 099 | N 913004008001 | NUT |
| CLAMP TO BRACKET | ||
| 099 | N 304032008006 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 099 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 099 | A 1201420072 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| A 3224910516 | SUPPORT | |
| EXHAUST PIPE SUSPENSION | ||
| 102 | A 3224910616 | SUPPORT |
| EXHAUST PIPE SUSPENSION | ||
| A 3144920916 | SUPPORT | |
| EXHAUST PIPE SUSPENSION | ||
| A 3164920016 | SUPPORT | |
| Repalced by: A 3164920316 | ||
| A 3164920116 | SUPPORT | |
| Repalced by: A 3164920316 | ||
| 102 | A 3164920316 | SUPPORT |
| EXHAUST PIPE SUSPENSION | ||
| 105 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 108 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 108 | N 000125010532 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 111 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 111 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| A 1204920482 | DAMPING PAD | |
| Repalced by: A 3095860049 | ||
| A 1204920118 | BASE PLATE | |
| Repalced by: A 3095860049 | ||
| A 1209911140 | SPACER TUBE | |
| Repalced by: A 3095860049 | ||
| A 1204920083 | INSULATION | |
| Repalced by: A 3095860049 | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| 114 | A 3094900037 | SUSPENSION |
| EXHAUST MUFFLER TO SUPPORT | ||
| 117 | N 000931008266 | SCREW |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 120 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 120 | N 913004008001 | NUT |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 123 | A 3144750084 | SHIM |
| EXHAUST PIPE SUSPENSION | ||
| 126 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 126 | N 304017010002 | SCREW |
| EXHAUST PIPE SUSPENSION | ||
| 129 | A 3184923441 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 132 | N 071555050503 | CLAMP |
| Repalced by: N 000000001641 | ||
| 132 | N 000000001641 | CLAMP |
| Repalced by: A 9424310043 | ||
| 132 | A 9424310043 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 50.5 MM | ||
| 132 | N 071555060500 | CLAMP |
| Repalced by: N 000000001642 | ||
| 132 | N 000000001642 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 60.5 MM | ||
| 135 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 135 | N 304017008028 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X50 | ||
| 135 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 135 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X30 | ||
| 138 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 138 | A 1201420072 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
