Transporto priemonė: LP 608; VIN numerio dalis: 314057

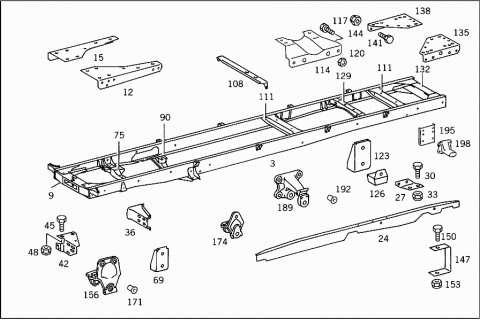

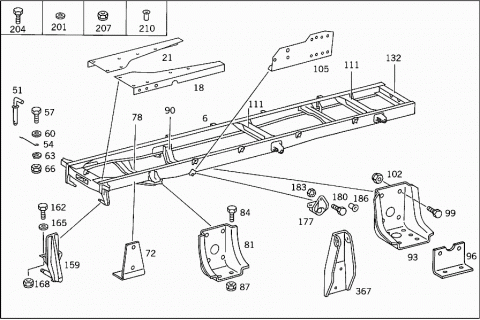

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3143101701 | FRAME |
| 003 | A 3143104901 | FRAME |
| 003 | A 3143107301 | FRAME |
| 003 | A 3143101801 | FRAME |
| A 3143105001 | FRAME | |
| Repalced by: A 3163101801 | ||
| 003 | A 3163101801 | FRAME |
| 006 | A 3143107401 | FRAME |
| 006 | A 3143102801 | FRAME |
| 006 | A 3143104801 | FRAME |
| 006 | A 3143107201 | FRAME |
| 006 | A 3143104701 | FRAME |
| 006 | A 3143106301 | FRAME |
| 006 | A 3143103101 | FRAME |
| 006 | A 3143105101 | FRAME |
| 006 | A 3143107601 | FRAME |
| 006 | A 3143101901 | FRAME |
| 006 | A 3143105201 | FRAME |
| 006 | A 3143107501 | FRAME |
| A 3143100322 | CROSS MEMBER | |
| Repalced by: A 3143120501 | ||
| 009 | A 3143120501 | CROSS MEMBER |
| FRONT | ||
| 009 | A 3163120101 | CROSS MEMBER |
| FRONT | ||
| 012 | A 3143122887 | GUSSET PLATE |
| LEFT TOP AND RIGHT BOTTOM | ||
| 012 | A 3143122987 | GUSSET PLATE |
| LEFT BOTTOM | ||
| 012 | A 3163120087 | GUSSET PLATE |
| LEFT TOP | ||
| 012 | A 3163120287 | GUSSET PLATE |
| LEFT BOTTOM | ||
| 015 | A 3143100071 | GUSSET PLATE |
| RIGHT TOP | ||
| 015 | A 3163120187 | GUSSET PLATE |
| RIGHT TOP | ||
| 015 | A 3163120387 | GUSSET PLATE |
| RIGHT BOTTOM | ||
| 018 | A 3163120887 | GUSSET PLATE |
| RIGHT TOP AND LEFT BOTTOM | ||
| 021 | A 3163120987 | GUSSET PLATE |
| LEFT TOP AND RIGHT BOTTOM | ||
| A 3143110360 | REINFORCEMENT | |
| LEFT | ||
| A 3143110760 | REINFORCEMENT | |
| LEFT | ||
| 024 | A 3143111360 | REINFORCEMENT |
| LEFT | ||
| A 3143110460 | REINFORCEMENT | |
| RIGHT | ||
| A 3143110860 | REINFORCEMENT | |
| RIGHT | ||
| 024 | A 3143111460 | REINFORCEMENT |
| RIGHT | ||
| A 3143110053 | ANGLE | |
| FRAME TRUSSING TO SIDE MEMBER | ||
| 027 | A 3143110153 | ANGLE |
| FRAME TRUSSING TO LEFT FRAME SIDE MEMBER | ||
| 027 | A 3143110253 | ANGLE |
| FRAME TRUSSING TO RIGHT FRAME SIDE MEMBER | ||
| 030 | N 000933010128 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 033 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 033 | N 910113010000 | NUT |
| ANGLE TO SIDE MEMBER | ||
| A 3143133225 | CONSOLE | |
| Repalced by: A 3143134125 | ||
| 036 | A 3143134125 | CONSOLE |
| BUMPER AT TORSION BAR | ||
| 036 | A 3145250039 | BRACKET |
| BUMPER AT TORSION BAR | ||
| 042 | A 3145250239 | BRACKET |
| BUMPER,LEFT | ||
| 042 | A 3145250339 | BRACKET |
| BUMPER,RIGHT | ||
| 045 | N 000933010145 | SCREW |
| CROSS MEMBER AND BRACKET TO SIDE MEMBERS | ||
| M 10X35 | ||
| 045 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X20 | ||
| 048 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 048 | N 910113010000 | NUT |
| CROSS MEMBER AND BRACKET TO SIDE MEMBERS | ||
| 048 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 048 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| A 3164290140 | BRACKET | |
| LINE MOUNTING | ||
| 051 | A 3143150206 | COUPLING PIN |
| Repalced by: A 3143150406 | ||
| 051 | A 3143150406 | COUPLING PIN |
| FRONT | ||
| 051 | A 3143150406 | COUPLING PIN |
| FRONT | ||
| 054 | A 3143150173 | LOCK |
| COUPLING PIN | ||
| 057 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 057 | N 304017008021 | SCREW |
| LOCK TO FRONT CROSS MEMBER | ||
| 060 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 060 | N 000125008443 | WASHER |
| LOCK TO FRONT CROSS MEMBER | ||
| 063 | N 912004008102 | LOCK WASHER |
| LOCK TO FRONT CROSS MEMBER | ||
| 066 | N 913004008001 | NUT |
| LOCK TO FRONT CROSS MEMBER | ||
| 069 | A 3143110260 | REINFORCEMENT |
| FRAME TRUSSING | ||
| 072 | A 3163120041 | ANGLE |
| FRAME TRUSSING | ||
| 075 | A 3143101226 | ENGINE CROSS MEMBER |
| FRONT | ||
| NO.2 | ||
| 075 | A 3143101326 | ENGINE CROSS MEMBER |
| FRONT | ||
| NO.2 | ||
| 078 | A 3143101526 | ENGINE CROSS MEMBER |
| FRONT | ||
| NO.2 | ||
| 081 | A 3143120140 | BRACKET |
| CAB MOUNTING,REAR | ||
| 084 | N 000933010145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X35 | ||
| 087 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 087 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 090 | A 3143101028 | ENGINE CROSS MEMBER |
| REAR | ||
| NO.3 | ||
| 093 | A 3143130306 | CONSOLE |
| CAB MOUNTING | ||
| 096 | A 3143122160 | REINFORCEMENT |
| CAB MOUNTING | ||
| 099 | N 000933010105 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X25 | ||
| 099 | N 000933010145 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X35 | ||
| 102 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 102 | N 910113010000 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| A 3143121360 | REINFORCEMENT | |
| LEFT | ||
| 105 | A 3163120260 | REINFORCEMENT |
| LEFT | ||
| A 3143121460 | REINFORCEMENT | |
| RIGHT | ||
| 105 | A 3163120360 | REINFORCEMENT |
| RIGHT | ||
| 108 | A 3144030201 | SUPPORT |
| SPARE WHEEL CARRIER | ||
| 111 | A 3143100038 | CROSS MEMBER |
| REAR SPRING BRACKET | ||
| NO.4,6 | ||
| 111 | A 3143100038 | CROSS MEMBER |
| REAR SPRING BRACKET | ||
| NO.4,5,7 | ||
| 111 | A 3143100038 | CROSS MEMBER |
| REAR SPRING BRACKET | ||
| NO.4 | ||
| 111 | A 3183120217 | CROSS MEMBER |
| REAR SPRING BRACKET | ||
| NO.4,5,7 | ||
| 111 | A 3183120217 | CROSS MEMBER |
| REAR SPRING BRACKET | ||
| NO.4 | ||
| 114 | A 3143120652 | ANGLE |
| AT CROSS MEMBER | ||
| 117 | N 000961014154 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 120 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 120 | N 308673014001 | NUT |
| ANGLE TO SIDE MEMBER | ||
| 123 | A 3143110260 | REINFORCEMENT |
| ANGLE TO SIDE MEMBER | ||
| 123 | A 3143110260 | REINFORCEMENT |
| ANGLE TO SIDE MEMBER | ||
| 126 | A 3143200077 | RUBBER SPRING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| A 3143100240 | CROSS MEMBER | |
| Repalced by: A 3183100140 | ||
| A 3143100440 | CROSS MEMBER | |
| Repalced by: A 3183100140 | ||
| 129 | A 3183100140 | CROSS MEMBER |
| NO.5 | ||
| 129 | A 3183100140 | CROSS MEMBER |
| NO.6 | ||
| A 3143110040 | BRACKET | |
| BETWEEN NO.4 AND NO.5 CROSS MEMBERS | ||
| N 308676012012 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 132 | A 3143100446 | CROSS MEMBER |
| REAR | ||
| A 3143120835 | CROSS MEMBER | |
| Repalced by: A 3143120935 | ||
| 132 | A 3143120935 | CROSS MEMBER |
| REAR | ||
| 132 | A 3143120935 | CROSS MEMBER |
| REAR | ||
| 135 | A 3143122687 | GUSSET PLATE |
| LEFT TOP AND RIGHT BOTTOM | ||
| 135 | A 3143123087 | GUSSET PLATE |
| LEFT TOP | ||
| 138 | A 3143122787 | GUSSET PLATE |
| LEFT BOTTOM, AND RIGHT TOP | ||
| 138 | A 3143123187 | GUSSET PLATE |
| RIGHT TOP | ||
| 141 | N 000933010105 | SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 144 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 144 | N 910113010000 | NUT |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 147 | A 3183110055 | COVER |
| LEFT AND RIGHT REAR SIDE MEMBERS | ||
| 150 | N 000933010105 | SCREW |
| COVER TO SIDE MEMBER | ||
| 153 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 153 | N 910113010000 | NUT |
| COVER TO SIDE MEMBER | ||
| 156 | A 3123221401 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 156 | A 3143220201 | FRONT SPRING BRACKET |
| FRONT | ||
| 159 | A 3183200370 | REAR SUBFRAME |
| FRONT | ||
| N 910005012080 | RIVET | |
| 162 | N 000960012357 | SCREW |
| Repalced by: N 000961012184 | ||
| 162 | N 000961012184 | SCREW |
| Repalced by: N 308676012018 | ||
| 162 | N 308676012018 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M 12X65 | ||
| 162 | N 308676012010 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M 12X40 | ||
| 165 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 165 | N 007349013005 | WASHER |
| SPRING BRACKET TO SIDE MEMBER | ||
| 168 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 168 | N 910113012003 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 171 | N 910005012080 | RIVET |
| SPRING BRACKET TO SIDE MEMBER | ||
| 174 | A 3143220003 | FRONT SPRING BRACKET |
| REAR | ||
| 177 | A 3183220003 | FRONT SPRING BRACKET |
| REAR | ||
| 180 | N 000961012106 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 183 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 183 | N 308673012002 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 186 | N 910005012080 | RIVET |
| SPRING BRACKET TO SIDE MEMBER | ||
| 189 | A 3143250303 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 189 | A 3183250503 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 189 | A 3143250103 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 189 | A 3183250403 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 192 | N 910005014056 | RIVET |
| SPRING BRACKET TO SIDE MEMBER | ||
| 195 | A 3143250441 | STIFFENING |
| STRUTTING TO REAR CROSS MEMBER | ||
| 195 | A 3143250441 | STIFFENING |
| STRUTTING TO REAR CROSS MEMBER | ||
| A 3213250017 | HELPER SPRING BRACKET | |
| Repalced by: A 3143250117 | ||
| A 3143250017 | HELPER SPRING BRACKET | |
| Repalced by: A 3143250117 | ||
| 198 | A 3143250117 | HELPER SPRING BRACKET |
| REAR SPRING | ||
| 198 | A 3143250117 | HELPER SPRING BRACKET |
| REAR SPRING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 201 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 201 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 201 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 204 | A 3859900514 | SCREW |
| M 10X11X26.5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 204 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 204 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 204 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 204 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 204 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 204 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 204 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 204 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 204 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 204 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 204 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 204 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 204 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 204 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 204 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 204 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 204 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 204 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 204 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 204 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 204 | A 3229903101 | SCREW |
| M 14X14X14X32 | ||
| 204 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 204 | A 3229903101 | SCREW |
| M 14X14X16X32 | ||
| 204 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 204 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 204 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 204 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 204 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 204 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 204 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 204 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 204 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 204 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 204 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 204 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 204 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 204 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 204 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 204 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 204 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 204 | A 3859900914 | SCREW |
| M 16X16X18X36 | ||
| 204 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 204 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 204 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 204 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 204 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 204 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 204 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 204 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 204 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 204 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 204 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 204 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 204 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 204 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 204 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 204 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 204 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 204 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 204 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 204 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 204 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 204 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 207 | N 913004010011 | NUT |
| 207 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 207 | N 910113012003 | NUT |
| 207 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 207 | N 910113014000 | NUT |
| 207 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 207 | N 910113016001 | NUT |
| 207 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 210 | N 910005010009 | RIVET |
| 10X22 MM | ||
| 210 | N 910005010012 | RIVET |
| 10X24 MM | ||
| 210 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 210 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 210 | N 910005010020 | RIVET |
| 10X32 MM | ||
| 210 | N 910005010022 | RIVET |
| 10X34 MM | ||
| 210 | N 910005010027 | RIVET |
| 10X40 MM | ||

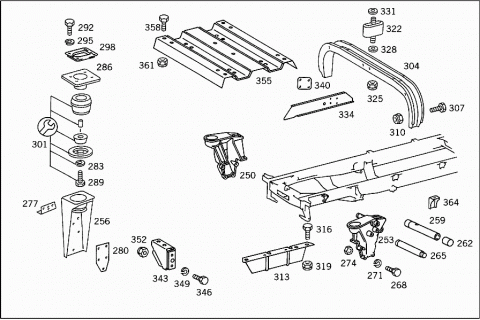

| 250 | A 3143133625 | CONSOLE |
| CAB SUSPENSION,FRONT RIGHT | ||
| 250 | A 3143133725 | CONSOLE |
| CAB SUSPENSION,FRONT LEFT | ||
| 253 | A 3143100963 | CONSOLE |
| CAB SUSPENSION,REAR LEFT | ||
| 253 | A 3143100863 | CONSOLE |
| CAB SUSPENSION,REAR RIGHT | ||
| 253 | A 3143101163 | CONSOLE |
| CAB SUSPENSION,REAR RIGHT | ||
| 256 | A 3143101463 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 259 | A 3142900426 | SHAFT |
| CAB SUSPENSION | ||
| A 3142900526 | SHAFT | |
| CAB SUSPENSION | ||
| H 403198920117 | BUSHING | |
| Repalced by: A 3198920117 | ||
| 262 | A 3198920117 | BUSHING |
| 262 | A 3142920150 | BUSHING |
| A 3144270250 | BUSHING | |
| 262 | A 3144270350 | BUSHING |
| 265 | A 3144270374 | PIN |
| HAND BRAKE LEVER | ||
| A 3144270474 | PIN | |
| HAND BRAKE LEVER | ||
| 268 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 268 | N 304017010002 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X30 | ||
| 268 | N 000933010145 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X35 | ||
| 268 | N 000931010264 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X45 | ||
| 268 | N 304017010030 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X50 | ||
| 268 | N 000933010145 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X35 | ||
| 268 | N 000933010094 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X40 | ||
| 271 | N 912004010102 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 274 | N 000934010014 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 277 | A 3143110140 | BRACKET |
| CAB SUSPENSION | ||
| 280 | A 3143170128 | REINFORCEMENT |
| CAB SUSPENSION | ||
| A 1203330567 | RETAINER | |
| CAB MOUNTING,FRONT | ||
| 283 | N 912004012100 | LOCK WASHER |
| CAB MOUNTING,FRONT | ||
| A 3148910020 | MOUNTING | |
| Repalced by: A 3148910220 | ||
| 286 | A 3148910220 | MOUNTING |
| CAB MOUNTING,FRONT | ||
| A 1803330165 | RUBBER BUFFER | |
| CAB MOUNTING,FRONT | ||
| A 3183170153 | SPACER TUBE | |
| CAB MOUNTING,FRONT | ||
| A 1203331965 | RUBBER BUFFER | |
| CAB MOUNTING,FRONT | ||
| 289 | N 000961012079 | SCREW |
| Repalced by: N 308676012032 | ||
| 289 | N 308676012032 | SCREW |
| CAB MOUNTING,FRONT | ||
| M 12X60 | ||
| 289 | N 000912014023 | SCREW |
| CAB MOUNTING,FRONT | ||
| M 14X60 | ||
| 292 | N 000933008148 | SCREW |
| Repalced by: N 304017008023 | ||
| 292 | N 304017008023 | SCREW |
| CAB MOUNTING,FRONT | ||
| M 8X20 | ||
| 295 | N 912004008102 | LOCK WASHER |
| CAB MOUNTING,FRONT | ||
| 298 | A 3146110011 | PLATE |
| CAB MOUNTING,FRONT | ||
| 298 | A 3146110111 | PLATE |
| CAB MOUNTING,FRONT | ||
| 301 | A 3185860031 | REPAIR KIT |
| CAB MOUNTING,FRONT | ||
| 304 | A 3143120433 | CROSS MEMBER |
| CAB SUSPENSION,REAR | ||
| 307 | N 000933010105 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 310 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 310 | N 910113010000 | NUT |
| CROSS MEMBER TO FRAME | ||
| 313 | A 3184320016 | SUPPORT |
| CAB SUSPENSION,REAR | ||
| 316 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 316 | N 304017008021 | SCREW |
| SUPPORT TO CAB CROSS MEMBER | ||
| 319 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 319 | N 913004008001 | NUT |
| SUPPORT TO CAB CROSS MEMBER | ||
| 322 | A 3148900001 | MOUNTING |
| RIGID SUSPENSION OF CAB | ||
| 325 | N 913002012004 | NUT |
| RUBBER MOUNTING TO CROSS MEMBER | ||
| 328 | N 000125013008 | WASHER |
| 331 | N 009021013200 | WASHER |
| RUBBER MOUNTING TO CROSS MEMBER | ||
| 334 | A 3143111060 | REINFORCEMENT |
| CAB,LEFT | ||
| 334 | A 3143111160 | REINFORCEMENT |
| CAB, RIGHT | ||
| 340 | A 3143121084 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 343 | A 3143110263 | CONSOLE |
| LEFT | ||
| 343 | A 3143110363 | CONSOLE |
| CAB, RIGHT | ||
| 346 | N 000933010145 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 349 | N 912004010102 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 352 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 352 | N 910113010000 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| A 3143110960 | REINFORCEMENT | |
| CAB SUSPENSION,REAR | ||
| 355 | A 3143100053 | STRUT |
| CAB SUSPENSION,REAR | ||
| 358 | N 000933010105 | SCREW |
| STRUT TO REINFORCEMENT | ||
| 361 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 361 | N 910113010000 | NUT |
| STRUT TO REINFORCEMENT | ||
| 364 | A 3143133325 | CONSOLE |
| BODY MOUNTING | ||
| 367 | A 3143232663 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| 367 | A 3143232663 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| A 3163130025 | CONSOLE | |
| Repalced by: A 3183170001 | ||
| 370 | A 3183170001 | CONSOLE |
| CAB,LEFT | ||
| A 3163130125 | CONSOLE | |
| Repalced by: A 3183170101 | ||
| 370 | A 3183170101 | CONSOLE |
| CAB, RIGHT | ||
| 373 | N 000933010105 | SCREW |
| CONSOLE TO FRAME | ||
| 376 | N 913002010001 | NUT |
| CONSOLE TO FRAME | ||
| 379 | A 3183170084 | SHIM |
| CAB SUSPENSION | ||
| 382 | A 3163100137 | CROSS MEMBER |
| CAB SUSPENSION,REAR | ||
| 382 | A 3183100137 | CROSS MEMBER |
| CAB SUSPENSION,REAR | ||
| 385 | N 000933010105 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| 388 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 388 | N 000125010532 | WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 391 | N 912004010102 | LOCK WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 394 | A 3163100109 | BRACKET |
| CAB SUSPENSION,REAR | ||
| 394 | A 3183120040 | BRACKET |
| CAB SUSPENSION,REAR | ||
| 394 | A 3183120040 | BRACKET |
| CAB SUSPENSION,REAR | ||
| 394 | A 3520100740 | BRACKET |
| CAB SUSPENSION,REAR | ||
| 397 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 400 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 400 | N 000125010532 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 403 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 403 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||

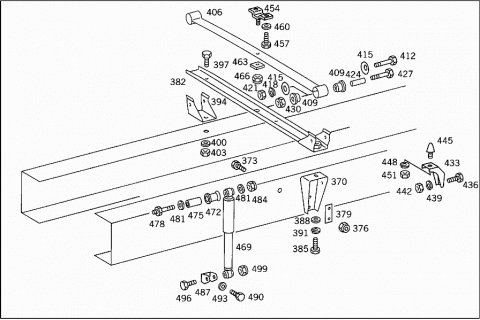

| 406 | A 3163170085 | SPRING LEAF |
| CAB SUSPENSION,REAR | ||
| 409 | A 3358910672 | MOUNTING |
| SPRING LEAF | ||
| 412 | A 3358910171 | SCREW |
| SPRING LEAF TO CROSS MEMBER | ||
| 415 | A 3358910080 | SPRING |
| SPRING LEAF TO CROSS MEMBER | ||
| 418 | N 912004018101 | LOCK WASHER |
| SPRING LEAF TO CROSS MEMBER | ||
| 421 | N 000439018204 | NUT |
| SPRING LEAF TO CROSS MEMBER | ||
| 424 | A 3183170053 | SPACER TUBE |
| SPRING LEAF TO CROSS MEMBER | ||
| 427 | N 000960012264 | SCREW |
| Repalced by: N 308765012003 | ||
| 427 | N 308765012003 | SCREW |
| SPRING LEAF TO CROSS MEMBER | ||
| 430 | N 910113012002 | NUT |
| SPRING LEAF TO CROSS MEMBER | ||
| 433 | A 3163130225 | CONSOLE |
| CAB SUSPENSION | ||
| 436 | N 000933010128 | SCREW |
| CONSOLE TO FRAME | ||
| 439 | N 912004010102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 442 | N 000934010014 | NUT |
| CONSOLE TO FRAME | ||
| 445 | A 3523170012 | RUBBER BUFFER |
| CAB SUSPENSION | ||
| 448 | N 912004008102 | LOCK WASHER |
| BUFFER TO BRACKET | ||
| 451 | N 304032008006 | NUT |
| BUFFER TO BRACKET | ||
| 454 | A 3163100209 | BRACKET |
| CAB MOUNTING,REAR (LEAF SPRING SUSPENSION) | ||
| 457 | N 000933010105 | SCREW |
| BRACKET TO CAB | ||
| 460 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 460 | N 000125010532 | WASHER |
| BRACKET TO CAB | ||
| 463 | A 3163170084 | SHIM |
| SPRING LEAF TO CROSS MEMBER | ||
| 466 | N 910113012002 | NUT |
| BRACKET TO SPRING LEAF | ||
| 469 | A 0008910205 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 469 | A 0008910805 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 472 | A 0003232644 | RUBBER BUFFER |
| Repalced by: A 0003234385 | ||
| 472 | A 0003234385 | RUBBER MOUNTING |
| TO 000 891 02 05 | ||
| 472 | A 0008910001 | RUBBER MOUNTING |
| TO 000 891 08 05 | ||
| A 0003231450 | BUSHING | |
| Repalced by: A 0002410150 | ||
| 475 | A 0002410150 | BUSHING |
| TO 000 891 02 05 | ||
| 475 | A 0008910017 | BUSHING |
| TO 000 891 08 05 | ||
| 478 | A 3163170074 | PIN |
| SHOCK ABSORBER TO CAB | ||
| A 3163170176 | WASHER | |
| Repalced by: A 6739901040 | ||
| 481 | A 6739901040 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 484 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 487 | A 3163120240 | BRACKET |
| SHOCK ABSORBER TO FRAME | ||
| 490 | N 000960012162 | SCREW |
| Repalced by: N 000961012205 | ||
| 490 | N 000961012205 | SCREW |
| BRACKET TO FRAME | ||
| 493 | N 000125013008 | WASHER |
| A 3143170052 | SPACER WASHER | |
| BRACKET TO FRAME | ||
| 496 | N 000960012197 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 499 | N 910113012002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
