Transporto priemonė: LP 608; VIN numerio dalis: 314057

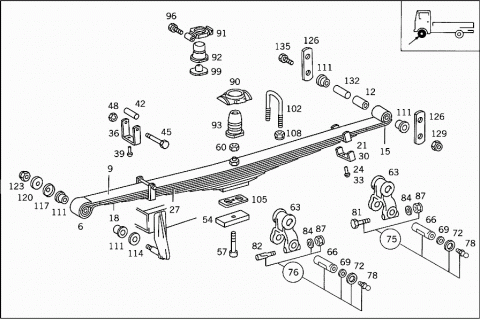

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3143200602 | FRONT SPRING |
| Repalced by: A 3143201302 | ||
| 006 | A 3143201302 | FRONT SPRING |
| 10-LEAF | ||
| 006 | A 3143201102 | FRONT SPRING |
| 7-LEAF | ||
| 006 | A 3143201002 | FRONT SPRING |
| Repalced by: A 3143201502 | ||
| 006 | A 3143201502 | FRONT SPRING |
| 8-LEAF | ||
| 006 | A 3143200902 | FRONT SPRING |
| Repalced by: A 3143201402 | ||
| 006 | A 3143201402 | FRONT SPRING |
| 8-LEAF | ||
| 006 | A 3143201702 | FRONT SPRING |
| 8-LEAF | ||
| 006 | A 3143201802 | FRONT SPRING |
| 6-LEAF | ||
| 006 | A 3143201802 | FRONT SPRING |
| 6-LEAF | ||
| 006 | A 3143202402 | FRONT SPRING |
| 6-LEAF | ||
| 006 | A 3143202202 | FRONT SPRING |
| 5-LEAF | ||
| 006 | A 3143202502 | FRONT SPRING |
| 7-LEAF | ||
| 009 | A 3143200394 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3143201694 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3143201494 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3143200994 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3143201294 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3143200694 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3143201894 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3163200094 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3143202294 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3143202294 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3143202794 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3143202594 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3143203094 | SPRING LEAF |
| NO.1 | ||
| 012 | A 3123211050 | BUSHING |
| 012 | A 3123211350 | BUSHING |
| 012 | A 3143210050 | BUSHING |
| 012 | A 3183220150 | BUSHING |
| 015 | A 3143210512 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3143211112 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3143211012 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3143210912 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3143211312 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3143210812 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3143211212 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3143211512 | SPRING LEAF |
| Repalced by: A 3163210212 | ||
| 015 | A 3163210212 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3143211612 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3143212212 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3143212012 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3143212312 | SPRING LEAF |
| NO.2 | ||
| 018 | A 3143200494 | SPRING LEAF |
| Repalced by: A 3143210512 | ||
| 018 | A 3143210512 | SPRING LEAF |
| NO.3,WITH SPRING CLAMP | ||
| 018 | A 3143201794 | SPRING LEAF |
| NO.3,WITH SPRING CLAMP | ||
| 018 | A 3143201594 | SPRING LEAF |
| NO.3,WITH SPRING CLAMP | ||
| 018 | A 3143201094 | SPRING LEAF |
| NO.3,WITH SPRING CLAMP | ||
| 018 | A 3143201394 | SPRING LEAF |
| NO.3,WITH SPRING CLAMP | ||
| 018 | A 3143200794 | SPRING LEAF |
| NO.3,WITH SPRING CLAMP | ||
| 018 | A 3143201994 | SPRING LEAF |
| NO.3,WITH SPRING CLAMP | ||
| 018 | A 3143202194 | SPRING LEAF |
| NO.3,WITH SPRING CLAMP | ||
| 018 | A 3143202394 | SPRING LEAF |
| Repalced by: A 3143202894 | ||
| 018 | A 3143202894 | SPRING LEAF |
| NO.3 | ||
| 018 | A 3143202894 | SPRING LEAF |
| NO.3 | ||
| 018 | A 3143202894 | SPRING LEAF |
| NO.3 | ||
| 018 | A 3143202694 | SPRING LEAF |
| NO.3,WITH SPRING CLAMP | ||
| 018 | A 3143203194 | SPRING LEAF |
| NO.3 | ||
| 021 | A 3143210133 | SPRING CLAMP |
| Repalced by: A 0013219633 | ||
| 021 | A 3143210233 | SPRING CLAMP |
| Repalced by: A 0013219633 | ||
| 021 | A 0013219633 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 021 | A 0013211633 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 021 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 024 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 024 | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 027 | A 3143210514 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143210914 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143210814 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143210714 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143211114 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143210614 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143211014 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143211314 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143211814 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143202494 | SPRING LEAF |
| Repalced by: A 3143202994 | ||
| 027 | A 3143202994 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143202994 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143202994 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3143203294 | SPRING LEAF |
| NO.4 | ||
| 030 | A 0013211733 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 030 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 033 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 036 | A 0013217233 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 036 | A 0033212733 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 036 | A 0013211533 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 036 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 036 | A 3123240633 | SPRING CLAMP |
| AT LEAF NO.7 | ||
| 039 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.7 | ||
| 042 | A 0033213033 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 042 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 042 | A 0003213253 | SPACER TUBE |
| SPRING CLAMP | ||
| 045 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 045 | N 304014008009 | SCREW |
| SPRING CLAMP | ||
| 048 | N 304032008006 | NUT |
| SPRING CLAMP | ||
| 054 | A 3183240035 | SPACER |
| 054 | A 3143220984 | SHIM |
| 054 | A 3143220984 | SHIM |
| 054 | A 3143221284 | SHIM |
| 054 | A 3143221184 | SHIM |
| 057 | N 004626012128 | SPRING BOLT |
| M 12X85 | ||
| 057 | N 004626012136 | SPRING BOLT |
| M 12X110 | ||
| 057 | N 004626012136 | SPRING BOLT |
| M 12X110 | ||
| 057 | N 004626012142 | SPRING BOLT |
| M 12X80 | ||
| 057 | N 004626012151 | SPRING BOLT |
| M 12X90 | ||
| 057 | N 004626012106 | SPRING BOLT |
| M 12X105 | ||
| 060 | N 000934012010 | NUT |
| 063 | A 3123201462 | SHACKLE |
| FRONT SPRING | ||
| 063 | A 3143200062 | SHACKLE |
| FRONT SPRING | ||
| 063 | A 3143200062 | SHACKLE |
| FRONT SPRING | ||
| 066 | A 3123221050 | BUSHING |
| Repalced by: A 3183220050 | ||
| 066 | A 3183220050 | BUSHING |
| 069 | A 3143220176 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 069 | A 3143220276 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 069 | A 3143220376 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 072 | A 0029972940 | SEAL RING |
| FRONT SPRING TO SPRING BRACKET | ||
| 075 | A 3123221830 | SHACKLE PIN |
| Repalced by: A 3145860332 | ||
| 075 | A 3145860032 | REPAIR KIT |
| Repalced by: A 3145860332 | ||
| 075 | A 3145860332 | REPAIR KIT |
| Repalced by: A 3143200165 | ||
| 075 | A 3143200165 | SHACKLE PIN |
| PARTS KIT | ||
| 076 | A 3143220330 | SHACKLE PIN |
| Repalced by: A 3145860432 | ||
| 076 | A 3143220230 | SHACKLE PIN |
| Repalced by: A 3145860432 | ||
| 076 | A 3145860132 | REPAIR KIT |
| Repalced by: A 3145860432 | ||
| 076 | A 3145860432 | REPAIR KIT |
| Repalced by: A 3143200365 | ||
| 076 | A 3143200365 | SHACKLE PIN |
| PARTS KIT | ||
| 078 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 081 | N 000931010258 | SCREW |
| SHACKLE PIN TO SPRING BRACKET | ||
| 082 | A 3529900337 | BOLT |
| SHACKLE PIN TO SPRING BRACKET | ||
| 084 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 084 | N 000433010510 | WASHER |
| SHACKLE PIN TO SPRING BRACKET | ||
| 087 | N 000934010014 | NUT |
| SHACKLE PIN TO SPRING BRACKET | ||
| 087 | N 913002010001 | NUT |
| SHACKLE PIN TO SPRING BRACKET | ||
| 090 | A 3143310027 | SPACER |
| FRONT SPRING | ||
| 090 | A 3143310527 | SPACER |
| LEFT FRONT SPRING | ||
| 090 | A 3183310227 | SPACER |
| FRONT SPRING | ||
| 090 | A 3143310627 | SPACER |
| RIGHT FRONT SPRING | ||
| 091 | A 3163310027 | SPACER |
| Repalced by: A 3143310727 | ||
| 091 | A 3163310027 | SPACER |
| Repalced by: A 3143310727 | ||
| 091 | A 3143310727 | SPACER |
| FRONT SPRING | ||
| 091 | A 3143310727 | SPACER |
| FRONT SPRING | ||
| 091 | A 3183310027 | SPACER |
| Repalced by: A 3183310227 | ||
| 091 | A 3163310127 | SPACER |
| Repalced by: A 3143310827 | ||
| 091 | A 3163310127 | SPACER |
| Repalced by: A 3143310827 | ||
| 091 | A 3143310827 | SPACER |
| FRONT SPRING | ||
| 091 | A 3143310827 | SPACER |
| FRONT SPRING | ||
| 092 | A 3123311444 | RUBBER BUFFER |
| FRONT SPRING | ||
| 093 | A 3163240008 | HELPER SPRING |
| Repalced by: A 3183240008 | ||
| 093 | A 3163240008 | HELPER SPRING |
| Repalced by: A 3183240008 | ||
| 093 | A 3183240008 | HELPER SPRING |
| LEFT AND RIGHT FRONT SPRINGS | ||
| 096 | N 000960012118 | SCREW |
| SHACKLE TO GUIDE PLATE | ||
| M 12X170 | ||
| 096 | N 000960012145 | SCREW |
| SHACKLE TO GUIDE PLATE | ||
| M 12X120 | ||
| 099 | A 3163240035 | SPACER |
| FRONT SPRING | ||
| 102 | A 3123251147 | CLAMP |
| Repalced by: A 3143310025 | ||
| 102 | A 3143310025 | U-BOLT |
| Repalced by: A 3123513025 | ||
| 102 | A 3123513025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 130 MM | ||
| 102 | A 3143510425 | U-BOLT |
| Repalced by: A 6703510125 | ||
| 102 | A 6703510125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 160 MM | ||
| 102 | A 6703510125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 160 MM | ||
| 102 | A 3273310225 | U-BOLT |
| Repalced by: A 3143510525 | ||
| 102 | A 6703510225 | U-BOLT |
| Repalced by: A 3143510525 | ||
| 102 | A 3143510525 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 190 MM | ||
| 102 | A 3143510525 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 190 MM | ||
| 105 | A 3143220884 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 105 | A 3163220084 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 105 | A 3143200056 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 105 | A 3163220284 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 108 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 108 | N 910113016002 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 111 | A 3183220250 | BUSHING |
| Repalced by: A 6673220350 | ||
| 111 | A 6673220350 | BUSHING |
| FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 114 | A 3093250042 | SUPPORTING SHELL |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 117 | A 3093250142 | SUPPORTING SHELL |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 120 | A 3183250162 | THRUST WASHER |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 123 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 123 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 126 | A 3183220120 | SHACKLE |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 129 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 129 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 132 | A 3183220130 | SHACKLE PIN |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 135 | N 000960016175 | SCREW |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||

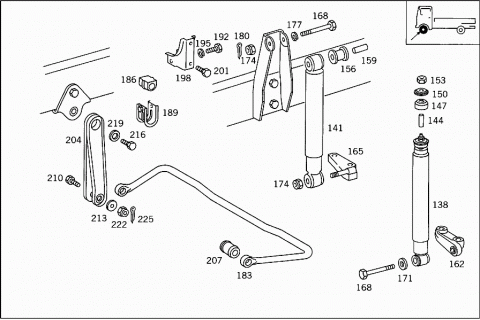

| 138 | A 3143230300 | SHOCK ABSORBER |
| Repalced by: A 3143230600 | ||
| 138 | A 3143230600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 138 | A 3143230500 | SHOCK ABSORBER |
| Repalced by: A 3143230700 | ||
| 138 | A 3143230700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 141 | A 3143230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 141 | A 3143230900 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 144 | A 0003261050 | BUSHING |
| Repalced by: A 0003231253 | ||
| 144 | A 0003231253 | SPACER TUBE |
| TO 314 323 03 00 | ||
| 144 | A 0003232950 | BUSHING |
| TO 314 323 05 00,314 323 07 00 | ||
| 147 | A 0003232785 | RUBBER MOUNTING |
| TO 314 323 03 00,314 323 06 00 | ||
| 147 | A 0003232744 | RUBBER BUFFER |
| TO 314 323 05 00,314 323 07 00 | ||
| 150 | A 0003230267 | RETAINER |
| TO 314 323 03 00,314 323 06 00 | ||
| 150 | A 0003230667 | RETAINER |
| TO 314 323 05 00,314 323 07 00 | ||
| 153 | A 0003260372 | NUT |
| Repalced by: N 000936010010 | ||
| 153 | N 000936010010 | NUT |
| TO 314 323 03 00,314 323 05 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 314 323 07 00 | ||
| 153 | N 000936010010 | NUT |
| TO 314 323 06 00 | ||
| 153 | A 0003260472 | NUT |
| Repalced by: N 000934010015 | ||
| 153 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 153 | N 308673010000 | NUT |
| TO 314 323 06 00 | ||
| 156 | A 0003232544 | RUBBER BUFFER |
| Repalced by: A 0003230185 | ||
| 156 | A 0003230185 | RUBBER MOUNTING |
| TO 314 323 03 00,314 323 07 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 314 323 09 00 | ||
| 156 | A 0003231585 | RUBBER MOUNTING |
| TO 314 323 08 00 | ||
| 156 | A 0003231585 | RUBBER MOUNTING |
| TO 314 323 06 00 | ||
| 159 | A 0003230353 | SPACER TUBE |
| Repalced by: A 0003232750 | ||
| 159 | A 0003233350 | BUSHING |
| Repalced by: A 0003232750 | ||
| 159 | A 0003232750 | BUSHING |
| 162 | A 3143232263 | BEARING BRACKET |
| LEFT SHOCK ABSORBER | ||
| 162 | A 3143232363 | BEARING BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 165 | A 3143200678 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 165 | A 3143200778 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 168 | A 3143230074 | PIN |
| Repalced by: N 000960014205 | ||
| 168 | N 000960014205 | SCREW |
| Repalced by: N 308765014006 | ||
| 168 | N 308765014006 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| M 14X90 | ||
| 168 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 168 | N 308676014013 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| M 14X65 | ||
| 168 | N 000960014205 | SCREW |
| Repalced by: N 308765014006 | ||
| 168 | N 308765014006 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| M 14X90 | ||
| 171 | A 1989900740 | WASHER |
| Repalced by: A 3193260076 | ||
| 171 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 171 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 174 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 174 | N 910113014000 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 174 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 174 | N 910113014000 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 177 | N 912004014100 | LOCK WASHER |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 180 | N 000094003226 | COTTER PIN |
| 183 | A 3143230565 | TORSION BAR |
| FRONT AXLE | ||
| 183 | A 3163230065 | TORSION BAR |
| Repalced by: A 3163230165 | ||
| 183 | A 3163230165 | TORSION BAR |
| FRONT AXLE | ||
| 183 | A 3163230165 | TORSION BAR |
| FRONT AXLE | ||
| 183 | A 3163230165 | TORSION BAR |
| FRONT AXLE | ||
| 186 | A 3143230285 | RUBBER MOUNTING |
| TORSION BAR TO CONSOLE | ||
| 186 | A 3163230185 | RUBBER MOUNTING |
| TORSION BAR TO CONSOLE | ||
| 186 | A 3163230185 | RUBBER MOUNTING |
| TORSION BAR TO CONSOLE | ||
| 186 | A 3163230185 | RUBBER MOUNTING |
| TORSION BAR TO CONSOLE | ||
| 189 | A 3143200145 | STRAP |
| TORSION BAR TO CONSOLE | ||
| 189 | A 3143200145 | STRAP |
| TORSION BAR TO CONSOLE | ||
| 189 | A 3143200145 | STRAP |
| TORSION BAR TO CONSOLE | ||
| 192 | N 000931010220 | SCREW |
| TORSION BAR TO CONSOLE | ||
| M 10X58 S | ||
| 192 | N 000931010220 | SCREW |
| TORSION BAR TO CONSOLE | ||
| M 10X58 S | ||
| 192 | N 000931010220 | SCREW |
| TORSION BAR TO CONSOLE | ||
| M 10X58 S | ||
| 195 | N 912004010102 | LOCK WASHER |
| TORSION BAR TO CONSOLE | ||
| 195 | N 912004010102 | LOCK WASHER |
| TORSION BAR TO CONSOLE | ||
| 195 | N 912004010102 | LOCK WASHER |
| TORSION BAR TO CONSOLE | ||
| 198 | A 3143200378 | CONSOLE |
| TORSION BAR,FRONT | ||
| 198 | A 3143200378 | CONSOLE |
| TORSION BAR,FRONT | ||
| 198 | A 3143200378 | CONSOLE |
| TORSION BAR,FRONT | ||
| 201 | N 000933010128 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X20 | ||
| 201 | N 000933010128 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X20 | ||
| 201 | N 000961012056 | SCREW |
| Repalced by: N 308676012038 | ||
| 201 | N 308676012038 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X1,5X20 | ||
| 201 | N 308676012038 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X1,5X20 | ||
| 204 | A 3143200363 | SHACKLE |
| TORSION BAR TO FRONT AXLE | ||
| 204 | A 3163200063 | SHACKLE |
| TORSION BAR TO FRONT AXLE | ||
| 204 | A 3163200063 | SHACKLE |
| TORSION BAR TO FRONT AXLE | ||
| 204 | A 3163200063 | SHACKLE |
| TORSION BAR TO FRONT AXLE | ||
| 207 | A 3143260181 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 207 | A 3143260481 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 207 | A 3143260053 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 207 | A 3143260153 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 207 | A 3093200073 | BEARING |
| SHACKLE TO TORSION BAR | ||
| 207 | A 3093200073 | BEARING |
| SHACKLE TO TORSION BAR | ||
| 210 | N 000960012213 | SCREW |
| SHACKLE TO TORSION BAR | ||
| 210 | N 000960012213 | SCREW |
| SHACKLE TO TORSION BAR | ||
| 210 | N 000960012213 | SCREW |
| SHACKLE TO TORSION BAR | ||
| 213 | N 009021013200 | WASHER |
| SHACKLE TO TORSION BAR | ||
| 213 | N 009021013200 | WASHER |
| SHACKLE TO TORSION BAR | ||
| 213 | N 009021013200 | WASHER |
| SHACKLE TO TORSION BAR | ||
| 216 | N 000960012296 | SCREW |
| SHACKLE TO TORSION BAR | ||
| 216 | N 000960012296 | SCREW |
| SHACKLE TO TORSION BAR | ||
| 216 | N 000960012296 | SCREW |
| SHACKLE TO TORSION BAR | ||
| 219 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 219 | N 000433013010 | WASHER |
| SHACKLE TO TORSION BAR | ||
| 219 | N 000433013010 | WASHER |
| SHACKLE TO TORSION BAR | ||
| 219 | N 000433013010 | WASHER |
| SHACKLE TO TORSION BAR | ||
| 222 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 222 | N 910113012003 | NUT |
| SHACKLE TO TORSION BAR | ||
| 222 | N 910113012003 | NUT |
| SHACKLE TO TORSION BAR | ||
| 222 | N 910113012003 | NUT |
| SHACKLE TO TORSION BAR | ||
| 225 | N 000094003219 | COTTER PIN |
| SHACKLE TO TORSION BAR | ||
| 225 | N 000094003219 | COTTER PIN |
| SHACKLE TO TORSION BAR | ||
| 225 | N 000094003219 | COTTER PIN |
| SHACKLE TO TORSION BAR | ||

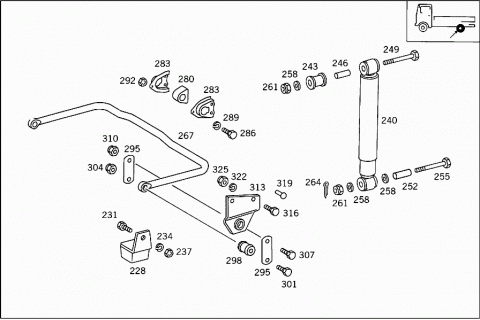

| 228 | A 3143200077 | RUBBER SPRING |
| REAR SPRING | ||
| 231 | N 000933010105 | SCREW |
| RUBBER SPRING TO SUBSTRUCTURE | ||
| 234 | N 912004010102 | LOCK WASHER |
| RUBBER SPRING TO SUBSTRUCTURE | ||
| 237 | N 000934010014 | NUT |
| RUBBER SPRING TO SUBSTRUCTURE | ||
| 240 | A 3143260100 | SHOCK ABSORBER |
| Repalced by: A 3143260400 | ||
| 240 | A 3143260400 | SHOCK ABSORBER |
| REAR AXLE | ||
| 240 | A 3143260400 | SHOCK ABSORBER |
| REAR AXLE | ||
| 240 | A 3143260200 | SHOCK ABSORBER |
| Repalced by: A 3143260500 | ||
| 240 | A 3143260500 | SHOCK ABSORBER |
| REAR AXLE | ||
| 240 | A 3143260500 | SHOCK ABSORBER |
| REAR AXLE | ||
| 240 | A 3143260300 | SHOCK ABSORBER |
| REAR AXLE | ||
| 243 | A 0003231585 | RUBBER MOUNTING |
| 243 | A 0003231585 | RUBBER MOUNTING |
| 243 | A 0003230185 | RUBBER MOUNTING |
| 246 | A 0003230353 | SPACER TUBE |
| Repalced by: A 0003232750 | ||
| 246 | A 0003232750 | BUSHING |
| 246 | A 0003232750 | BUSHING |
| 249 | A 3129901314 | SCREW |
| Repalced by: N 000960014077 | ||
| 249 | N 000960014263 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| M 14X120 | ||
| 249 | N 000960014219 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| M 14X75 | ||
| 252 | A 3143120150 | BUSHING |
| Repalced by: A 6673210153 | ||
| 252 | A 6673210153 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 255 | A 3143260071 | SCREW |
| Repalced by: N 000960014071 | ||
| 255 | N 000960014248 | SCREW |
| Repalced by: N 308765014008 | ||
| 255 | N 308765014008 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| M 14X100 | ||
| 255 | A 3143260171 | SCREW |
| Repalced by: N 000960014180 | ||
| 255 | N 000960014180 | SCREW |
| Repalced by: N 308765014009 | ||
| 255 | N 308765014009 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| M 14X100 | ||
| 258 | A 1989900740 | WASHER |
| Repalced by: A 3193260076 | ||
| 258 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 258 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 261 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 261 | N 910113014000 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 264 | N 000094003226 | COTTER PIN |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 267 | A 3143260065 | TORSION BAR |
| REAR | ||
| 280 | A 3143260081 | RUBBER MOUNTING |
| TORSION BAR | ||
| 280 | A 3143260381 | RUBBER MOUNTING |
| TORSION BAR | ||
| 283 | A 3143260240 | BRACKET |
| TORSION BAR | ||
| 283 | A 3163260040 | BRACKET |
| TORSION BAR | ||
| 286 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 286 | N 304017008053 | SCREW |
| BRACKET TO REAR AXLE | ||
| M 8X60 | ||
| 286 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 286 | N 304017008021 | SCREW |
| BRACKET TO REAR AXLE | ||
| M 8X20 | ||
| 289 | N 912004008102 | LOCK WASHER |
| BRACKET TO REAR AXLE | ||
| 292 | N 304032008006 | NUT |
| BRACKET TO REAR AXLE | ||
| 295 | A 3143200063 | SHACKLE |
| Repalced by: A 3143260247 | ||
| 295 | A 3143260247 | SHACKLE |
| TORSION BAR | ||
| 298 | A 3143260181 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 298 | A 3143260481 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 298 | A 3143260053 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 298 | A 3143260153 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 298 | A 3093200073 | BEARING |
| TORSION BAR | ||
| 298 | A 3093200073 | BEARING |
| TORSION BAR | ||
| 301 | N 000960012357 | SCREW |
| Repalced by: N 000961012184 | ||
| 301 | N 000961012184 | SCREW |
| Repalced by: N 308676012018 | ||
| 301 | N 308676012018 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 12X65 | ||
| 301 | N 000960012296 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 12X60 | ||
| 304 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 304 | N 910113012003 | NUT |
| SHACKLE TO TORSION BAR | ||
| 307 | N 000931010271 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 310 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 310 | N 910113010000 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 313 | A 3143200478 | CONSOLE |
| TORSION BAR,LEFT | ||
| 313 | A 3183201078 | CONSOLE |
| TORSION BAR,LEFT | ||
| 313 | A 3143200578 | CONSOLE |
| TORSION BAR,RIGHT | ||
| 313 | A 3183201178 | CONSOLE |
| TORSION BAR,RIGHT | ||
| 316 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 316 | N 304017010002 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X30 | ||
| 316 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 316 | N 308676014020 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X35 | ||
| 319 | N 910005014056 | RIVET |
| CONSOLE TO FRAME | ||
| 14X45 MM | ||
| 322 | N 912004010102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 325 | N 000934010014 | NUT |
| CONSOLE TO FRAME | ||
| 325 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 325 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| 330 | A 3143200606 | REAR SPRING |
| Repalced by: A 3143202406 | ||
| 330 | A 3143201006 | REAR SPRING |
| Repalced by: A 3143202406 | ||
| 330 | A 3143202406 | REAR SPRING |
| 7-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 330 | A 3143202406 | REAR SPRING |
| 7-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 330 | A 3143202306 | REAR SPRING |
| Repalced by: A 3143203106 | ||
| 330 | A 3143203106 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 330 | A 3143203106 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 330 | A 3143201606 | REAR SPRING |
| Repalced by: A 3143202806 | ||
| 330 | A 3143202806 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 330 | A 3143201506 | REAR SPRING |
| Repalced by: A 3143202506 | ||
| 330 | A 3143202506 | REAR SPRING |
| 6-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 330 | A 3143203306 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 330 | A 3143202806 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 333 | A 3143200706 | REAR SPRING |
| Repalced by: A 3143201406 | ||
| 333 | A 3143201406 | REAR SPRING |
| LESS HELPER SPRING | ||
| 333 | A 3143201406 | REAR SPRING |
| LESS HELPER SPRING | ||
| 333 | A 3143203806 | REAR SPRING |
| LESS HELPER SPRING | ||
| 333 | A 3143203706 | REAR SPRING |
| LESS HELPER SPRING | ||
| 333 | A 3143204206 | REAR SPRING |
| LESS HELPER SPRING | ||
| 333 | A 3143204206 | REAR SPRING |
| LESS HELPER SPRING | ||
| 333 | A 3143201906 | REAR SPRING |
| LESS HELPER SPRING | ||
| 333 | A 3143204006 | REAR SPRING |
| LESS HELPER SPRING | ||
| 333 | A 3143201806 | REAR SPRING |
| LESS HELPER SPRING | ||
| 333 | A 3143203906 | REAR SPRING |
| LESS HELPER SPRING | ||
| 333 | A 3143204306 | REAR SPRING |
| LESS HELPER SPRING | ||
| 333 | A 3143204006 | REAR SPRING |
| LESS HELPER SPRING | ||
| 336 | A 3143200093 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3143200293 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3143200293 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3143201693 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3143201493 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3143200693 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3143202493 | SPRING LEAF |
| Repalced by: A 3143202093 | ||
| 336 | A 3143202093 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3143202093 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3143200493 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3143201893 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3143202793 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3143202093 | SPRING LEAF |
| NO.1 | ||
| 339 | A 3123241050 | BUSHING |
| Repalced by: A 3853220050 | ||
| 339 | A 3123241250 | BUSHING |
| Repalced by: A 3853220050 | ||
| 339 | A 3853220050 | BUSHING |
| 339 | A 3853220050 | BUSHING |
| 339 | A 3853220050 | BUSHING |
| 339 | A 3523220050 | BUSHING |
| 339 | A 3523220050 | BUSHING |
| 339 | A 3523220050 | BUSHING |
| 339 | A 3163240050 | BUSHING |
| Repalced by: A 3163240350 | ||
| 339 | A 3163240350 | BUSHING |
| 339 | A 3163240450 | BUSHING |
| 342 | A 3143240512 | SPRING LEAF |
| Repalced by: A 3143240612 | ||
| 342 | A 3143240612 | SPRING LEAF |
| NO.2 | ||
| 342 | A 3143241412 | SPRING LEAF |
| NO.2 | ||
| 342 | A 3143241312 | SPRING LEAF |
| NO.2 | ||
| 342 | A 3143241012 | SPRING LEAF |
| NO.2 | ||
| 342 | A 3143242112 | SPRING LEAF |
| Repalced by: A 3143241812 | ||
| 342 | A 3143241812 | SPRING LEAF |
| NO.2 | ||
| 342 | A 3143241812 | SPRING LEAF |
| NO.2 | ||
| 342 | A 3143240912 | SPRING LEAF |
| NO.2 | ||
| 342 | A 3143241512 | SPRING LEAF |
| NO.2 | ||
| 342 | A 3143242312 | SPRING LEAF |
| NO.2 | ||
| 342 | A 3143241812 | SPRING LEAF |
| NO.2 | ||
| 345 | A 3143240413 | SPRING LEAF |
| Repalced by: A 3143240613 | ||
| 345 | A 3143240613 | SPRING LEAF |
| NO.3 | ||
| 345 | A 3143241313 | SPRING LEAF |
| NO.3 | ||
| 345 | A 3143241213 | SPRING LEAF |
| NO.3 | ||
| 345 | A 3143242013 | SPRING LEAF |
| NO.3 | ||
| 345 | A 3143242013 | SPRING LEAF |
| NO.3 | ||
| 345 | A 3143240913 | SPRING LEAF |
| NO.3 | ||
| 345 | A 3143240813 | SPRING LEAF |
| NO.3 | ||
| 345 | A 3143241413 | SPRING LEAF |
| NO.3 | ||
| 345 | A 3143241713 | SPRING LEAF |
| Repalced by: A 3143240613 | ||
| 345 | A 3143242213 | SPRING LEAF |
| Repalced by: A 3143240613 | ||
| 345 | A 3143240613 | SPRING LEAF |
| NO.3 | ||
| 345 | A 3143240613 | SPRING LEAF |
| NO.3 | ||
| 348 | A 3143201793 | SPRING LEAF |
| NO.4 | ||
| 348 | A 3143201593 | SPRING LEAF |
| NO.4 | ||
| 348 | A 3143200793 | SPRING LEAF |
| NO.4 | ||
| 348 | A 3143200393 | SPRING LEAF |
| Repalced by: A 3143202893 | ||
| 348 | A 3143200193 | SPRING LEAF |
| Repalced by: A 3143202893 | ||
| 348 | A 3143202593 | SPRING LEAF |
| Repalced by: A 3143202893 | ||
| 348 | A 3143202193 | SPRING LEAF |
| Repalced by: A 3143202893 | ||
| 348 | A 3143202893 | SPRING LEAF |
| NO.4 | ||
| 348 | A 3143202893 | SPRING LEAF |
| NO.4 | ||
| 348 | A 3143202893 | SPRING LEAF |
| NO.4 | ||
| 348 | A 3143202893 | SPRING LEAF |
| NO.4 | ||
| 348 | A 3143202893 | SPRING LEAF |
| NO.4 | ||
| 348 | A 3143200593 | SPRING LEAF |
| NO.4 | ||
| 348 | A 3143201993 | SPRING LEAF |
| NO.4 | ||
| 351 | A 3273210033 | SPRING CLAMP |
| Repalced by: A 3223240233 | ||
| 351 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 351 | A 6173210333 | SPRING CLAMP |
| 351 | A 6173210333 | SPRING CLAMP |
| 351 | A 6173210333 | SPRING CLAMP |
| 354 | N 910006008024 | RIVET |
| 354 | N 910006008024 | RIVET |
| 354 | N 910006008024 | RIVET |
| 357 | A 3143200092 | HELPER SPRING |
| 5-LEAF | ||
| 357 | A 3143200010 | HELPER SPRING |
| 6-LEAF | ||
| 357 | A 3143200010 | HELPER SPRING |
| 6-LEAF | ||
| 357 | A 3143200510 | HELPER SPRING |
| 6-LEAF | ||
| 357 | A 3143200410 | HELPER SPRING |
| 7-LEAF | ||
| 357 | A 3143200610 | HELPER SPRING |
| 7-LEAF | ||
| 357 | A 3143200610 | HELPER SPRING |
| 7-LEAF | ||
| 357 | A 3143200210 | HELPER SPRING |
| 7-LEAF | ||
| 357 | A 3143200710 | HELPER SPRING |
| 7-LEAF | ||
| 357 | A 3143200110 | HELPER SPRING |
| 6-LEAF | ||
| 357 | A 3143200810 | HELPER SPRING |
| 6-LEAF | ||
| 357 | A 3143201010 | HELPER SPRING |
| 7-LEAF | ||
| 357 | A 3143200710 | HELPER SPRING |
| 7-LEAF | ||
| 360 | A 3143240340 | SPRING LEAF |
| Repalced by: A 3143241940 | ||
| 360 | A 3143240540 | SPRING LEAF |
| Repalced by: A 3143241940 | ||
| 360 | A 3143241240 | SPRING LEAF |
| Repalced by: A 3143241940 | ||
| 360 | A 3143241140 | SPRING LEAF |
| Repalced by: A 3143241940 | ||
| 360 | A 3143240840 | SPRING LEAF |
| Repalced by: A 3143241940 | ||
| 360 | A 3143241740 | SPRING LEAF |
| Repalced by: A 3143241940 | ||
| 360 | A 3143241540 | SPRING LEAF |
| Repalced by: A 3143241940 | ||
| 360 | A 3143241940 | SPRING LEAF |
| NO.1 | ||
| 360 | A 3143241940 | SPRING LEAF |
| NO.1 | ||
| 360 | A 3143241940 | SPRING LEAF |
| NO.1 | ||
| 360 | A 3143241940 | SPRING LEAF |
| NO.1 | ||
| 360 | A 3143240740 | SPRING LEAF |
| Repalced by: A 3143241340 | ||
| 360 | A 3143241340 | SPRING LEAF |
| NO.1 | ||
| 366 | A 3143240341 | SPRING LEAF |
| Repalced by: A 3143241941 | ||
| 366 | A 3143240541 | SPRING LEAF |
| Repalced by: A 3143241941 | ||
| 366 | A 3143241541 | SPRING LEAF |
| Repalced by: A 3143241941 | ||
| 366 | A 3143241241 | SPRING LEAF |
| Repalced by: A 3143241941 | ||
| 366 | A 3143240841 | SPRING LEAF |
| Repalced by: A 3143241941 | ||
| 366 | A 3143241941 | SPRING LEAF |
| NO.2 | ||
| 366 | A 3143241941 | SPRING LEAF |
| NO.2 | ||
| 366 | A 3143241141 | SPRING LEAF |
| Repalced by: A 3143241741 | ||
| 366 | A 3143241741 | SPRING LEAF |
| NO.2 | ||
| 366 | A 3143241741 | SPRING LEAF |
| NO.2 | ||
| 366 | A 3143240741 | SPRING LEAF |
| Repalced by: A 3143241341 | ||
| 366 | A 3143241341 | SPRING LEAF |
| NO.2 | ||
| 369 | A 3143240342 | SPRING LEAF |
| NO.3 | ||
| 369 | A 3143241242 | SPRING LEAF |
| Repalced by: A 3143240542 | ||
| 369 | A 3143240542 | SPRING LEAF |
| NO.3 | ||
| 369 | A 3143240742 | SPRING LEAF |
| Repalced by: A 3143241342 | ||
| 369 | A 3143241342 | SPRING LEAF |
| NO.3 | ||
| 369 | A 3143241142 | SPRING LEAF |
| Repalced by: A 3143241942 | ||
| 369 | A 3143241742 | SPRING LEAF |
| Repalced by: A 3143241942 | ||
| 369 | A 3143240842 | SPRING LEAF |
| Repalced by: A 3143241942 | ||
| 369 | A 3143241542 | SPRING LEAF |
| Repalced by: A 3143241942 | ||
| 369 | A 3143241942 | SPRING LEAF |
| NO.3 | ||
| 369 | A 3143241942 | SPRING LEAF |
| NO.3 | ||
| 369 | A 3143241942 | SPRING LEAF |
| NO.3 | ||
| 369 | A 3143241942 | SPRING LEAF |
| NO.3 | ||
| 372 | A 3143240343 | SPRING LEAF |
| Repalced by: A 3143240543 | ||
| 372 | A 3143241243 | SPRING LEAF |
| Repalced by: A 3143240543 | ||
| 372 | A 3143240543 | SPRING LEAF |
| NO.4 | ||
| 372 | A 3143240743 | SPRING LEAF |
| Repalced by: A 3143241343 | ||
| 372 | A 3143241343 | SPRING LEAF |
| NO.4 | ||
| 372 | A 3143241143 | SPRING LEAF |
| Repalced by: A 3143241943 | ||
| 372 | A 3143240843 | SPRING LEAF |
| Repalced by: A 3143241943 | ||
| 372 | A 3143241743 | SPRING LEAF |
| Repalced by: A 3143241943 | ||
| 372 | A 3143241543 | SPRING LEAF |
| Repalced by: A 3143241943 | ||
| 372 | A 3143241943 | SPRING LEAF |
| NO.4 | ||
| 372 | A 3143241943 | SPRING LEAF |
| NO.4 | ||
| 372 | A 3143241943 | SPRING LEAF |
| NO.4 | ||
| 372 | A 3143241943 | SPRING LEAF |
| NO.4 | ||
| 375 | A 3213240035 | SPACER |
| 375 | A 3213240035 | SPACER |
| 375 | A 3213240035 | SPACER |
| 378 | N 004626012164 | SPRING BOLT |
| M 12X140 | ||
| 378 | N 004626012171 | SPRING BOLT |
| M 12X150 | ||
| 378 | N 004626012171 | SPRING BOLT |
| M 12X150 | ||
| 378 | N 004626012112 | SPRING BOLT |
| M 12X160 | ||
| 378 | N 004626012112 | SPRING BOLT |
| M 12X160 | ||
| 378 | N 004626012112 | SPRING BOLT |
| M 12X160 | ||
| 378 | N 004626012112 | SPRING BOLT |
| M 12X160 | ||
| 378 | N 004626012112 | SPRING BOLT |
| M 12X160 | ||
| 381 | N 000934012021 | NUT |
| 381 | N 000934012021 | NUT |
| 381 | N 000934012021 | NUT |
| 400 | A 3143204806 | REAR SPRING |
| 6-LEAF | ||
| 400 | A 3143202006 | REAR SPRING |
| Repalced by: A 3143202906 | ||
| 400 | A 3143202906 | REAR SPRING |
| 8-LEAF | ||
| 400 | A 3143202906 | REAR SPRING |
| 8-LEAF | ||
| 400 | A 3143203606 | REAR SPRING |
| 8-LEAF | ||
| 400 | A 3143203406 | REAR SPRING |
| 8-LEAF | ||
| 400 | A 3143204506 | REAR SPRING |
| 8-LEAF | ||
| 400 | A 3143204606 | REAR SPRING |
| 8-LEAF | ||
| 403 | A 3143203693 | SPRING LEAF |
| NO.1 | ||
| 403 | A 3143201293 | SPRING LEAF |
| NO.1 | ||
| 403 | A 3143202693 | SPRING LEAF |
| Repalced by: A 3143200293 | ||
| 403 | A 3143200293 | SPRING LEAF |
| NO.1 | ||
| 403 | A 3143200293 | SPRING LEAF |
| NO.1 | ||
| A 3143203093 | SPRING LEAF | |
| NO.1 | ||
| 403 | A 3143202993 | SPRING LEAF |
| Repalced by: A 3143202793 | ||
| 403 | A 3143202793 | SPRING LEAF |
| NO.1 | ||
| 403 | A 3143202793 | SPRING LEAF |
| NO.1 | ||
| 403 | A 3143203393 | SPRING LEAF |
| NO.1 | ||
| 403 | A 3143203493 | SPRING LEAF |
| Repalced by: A 3143200093 | ||
| 403 | A 3143200093 | SPRING LEAF |
| NO.1 | ||
| 406 | A 3123241050 | BUSHING |
| Repalced by: A 3853220050 | ||
| 406 | A 3123241250 | BUSHING |
| Repalced by: A 3853220050 | ||
| 406 | A 3853220050 | BUSHING |
| 406 | A 3853220050 | BUSHING |
| 406 | A 3853220050 | BUSHING |
| 406 | A 3523220050 | BUSHING |
| 406 | A 3523220050 | BUSHING |
| 406 | A 3523220050 | BUSHING |
| 406 | A 3163240050 | BUSHING |
| Repalced by: A 3163240350 | ||
| 406 | A 3163240350 | BUSHING |
| 406 | A 3163240450 | BUSHING |
| 409 | A 3143243012 | SPRING LEAF |
| NO.2 | ||
| 409 | A 3143241212 | SPRING LEAF |
| NO.2 | ||
| 409 | A 3143241912 | SPRING LEAF |
| Repalced by: A 3143242812 | ||
| 409 | A 3143242812 | SPRING LEAF |
| NO.2 | ||
| 409 | A 3143242812 | SPRING LEAF |
| NO.2 | ||
| 409 | A 3143242612 | SPRING LEAF |
| NO.2 | ||
| 409 | A 3143242612 | SPRING LEAF |
| NO.2 | ||
| 409 | A 3143242412 | SPRING LEAF |
| Repalced by: A 3143242312 | ||
| 409 | A 3143242312 | SPRING LEAF |
| NO.2 | ||
| 409 | A 3143242312 | SPRING LEAF |
| NO.2 | ||
| 409 | A 3143242712 | SPRING LEAF |
| NO.2 | ||
| 412 | A 3143242913 | SPRING LEAF |
| NO.3 | ||
| 412 | A 3143241113 | SPRING LEAF |
| NO.3 | ||
| 412 | A 3143242513 | SPRING LEAF |
| NO.3 | ||
| 412 | A 3143241813 | SPRING LEAF |
| Repalced by: A 3143242713 | ||
| 412 | A 3143242313 | SPRING LEAF |
| Repalced by: A 3143242713 | ||
| 412 | A 3143242613 | SPRING LEAF |
| Repalced by: A 3143242713 | ||
| 412 | A 3143242713 | SPRING LEAF |
| NO.3 | ||
| 412 | A 3143242713 | SPRING LEAF |
| NO.3 | ||
| 412 | A 3143242713 | SPRING LEAF |
| NO.3 | ||
| 415 | A 3143241114 | SPRING LEAF |
| NO.4 | ||
| 415 | A 3143241814 | SPRING LEAF |
| Repalced by: A 3143242714 | ||
| 415 | A 3143242314 | SPRING LEAF |
| Repalced by: A 3143242714 | ||
| 415 | A 3143242614 | SPRING LEAF |
| Repalced by: A 3143242714 | ||
| 415 | A 3143242714 | SPRING LEAF |
| NO.4 | ||
| 415 | A 3143242714 | SPRING LEAF |
| NO.4 | ||
| 415 | A 3143242714 | SPRING LEAF |
| NO.4 | ||
| 415 | A 3143242514 | SPRING LEAF |
| NO.4 | ||
| 415 | A 3143203793 | SPRING LEAF |
| NO.4 | ||
| 418 | A 3243240033 | SPRING CLAMP |
| Repalced by: A 3223240233 | ||
| 418 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 418 | A 6173210333 | SPRING CLAMP |
| 421 | N 910006008024 | RIVET |
| 424 | A 3143203593 | SPRING LEAF |
| NO.5 | ||
| 427 | A 3243240033 | SPRING CLAMP |
| Repalced by: A 3223240233 | ||
| 427 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 427 | A 6173210333 | SPRING CLAMP |
| AT SPRING LEAF NO.5 | ||
| 430 | N 910006008024 | RIVET |
| 433 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 433 | A 6173210333 | SPRING CLAMP |
| 433 | A 6173210333 | SPRING CLAMP |
| 433 | A 6173210333 | SPRING CLAMP |
| 436 | N 910006008024 | RIVET |
| 436 | N 910006008024 | RIVET |
| 436 | N 910006008024 | RIVET |
| 439 | N 004626012136 | SPRING BOLT |
| 439 | N 004626012136 | SPRING BOLT |
| 439 | N 004626012136 | SPRING BOLT |
| 439 | N 004626012136 | SPRING BOLT |
| 439 | N 004626012136 | SPRING BOLT |
| 442 | N 000934012010 | NUT |
| 445 | A 3123201663 | SHACKLE |
| REAR SPRING | ||
| 445 | A 3143200563 | SHACKLE |
| REAR SPRING | ||
| 448 | A 3123251050 | BUSHING |
| Repalced by: A 3183250050 | ||
| 448 | A 3183250050 | BUSHING |
| 451 | A 3403220130 | SHACKLE PIN |
| Repalced by: A 3405860332 | ||
| 451 | A 3405860032 | REPAIR KIT |
| Repalced by: A 3405860332 | ||
| 451 | A 3405860332 | REPAIR KIT |
| Repalced by: A 3403200364 | ||
| 451 | A 3403200364 | SHACKLE PIN |
| PARTS KIT | ||
| 451 | A 3143250030 | SHACKLE PIN |
| Repalced by: A 3145860532 | ||
| 451 | A 3145860232 | REPAIR KIT |
| Repalced by: A 3145860532 | ||
| 451 | A 3145860532 | REPAIR KIT |
| Repalced by: A 3143200065 | ||
| 451 | A 3143200065 | SHACKLE PIN |
| PARTS KIT | ||
| 454 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 457 | A 3129941209 | LOCK |
| REAR SPRING TO SPRING BRACKET | ||
| 11 MM | ||
| 457 | A 3129941209 | LOCK |
| REAR SPRING TO SPRING SHACKLE | ||
| 11 MM | ||
| 457 | A 3129941309 | LOCK |
| REAR SPRING TO SPRING SHACKLE | ||
| 15 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| ZAE 171/81 | ||
| 460 | N 000933008145 | SCREW |
| REAR SPRING TO SPRING SHACKLE | ||
| 463 | N 912004008102 | LOCK WASHER |
| REAR SPRING TO SPRING SHACKLE | ||
| 466 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 466 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 466 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 469 | A 0029973140 | SEAL RING |
| REAR SPRING TO SPRING BRACKET | ||
| 472 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING BRACKET | ||
| 475 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 475 | N 000433010510 | WASHER |
| REAR SPRING TO SPRING BRACKET | ||
| 478 | N 913002010001 | NUT |
| REAR SPRING TO SPRING BRACKET | ||
| 481 | A 3213250931 | PLATE |
| Repalced by: A 3183250931 | ||
| 481 | A 3183250931 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 484 | A 3143510725 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 220 MM | ||
| 484 | A 3143510725 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 220 MM | ||
| 484 | A 3143510925 | U-BOLT |
| Repalced by: A 6763510025 | ||
| 484 | A 6763510025 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 260 MM | ||
| 484 | A 3143510625 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 180 MM | ||
| 484 | A 3143510625 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 180 MM | ||
| 484 | A 3143510625 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 180 MM | ||
| 487 | A 3143200156 | SHIM |
| REAR AXLE TO TO REAR SPRINGS | ||
| 490 | A 3123251070 | SPHERICAL WASHER |
| REAR AXLE TO TO REAR SPRINGS | ||
| 493 | N 913002016002 | NUT |
| REAR AXLE TO TO REAR SPRINGS | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
