Transporto priemonė: LP 911 B; VIN numerio dalis: 353056

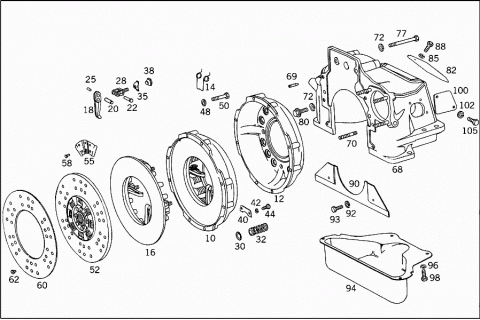

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0002508204 | CLUTCH PRESSURE PLATE |
| 010 | A 0002508704 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032501104 | ||
| 010 | A 0032501104 | CLUTCH PRESSURE PLATE |
| 010 | A 0002506304 | CLUTCH PRESSURE PLATE |
| 012 | A 0002522032 | HOUSING |
| 012 | A 0002521932 | HOUSING |
| 014 | A 0002520527 | SPRING |
| 014 | A 0002520827 | SPRING |
| 016 | A 0002509204 | CLUTCH PRESSURE PLATE |
| 016 | A 0002509504 | PRESSURE PLATE |
| 016 | A 0002525312 | PRESSURE PLATE |
| Repalced by: A 0002526012 | ||
| 016 | A 0002526012 | PRESSURE PLATE |
| 016 | A 0002525412 | PRESSURE PLATE |
| Repalced by: A 0002526112 | ||
| 015 | A 0002526112 | PRESSURE PLATE |
| 018 | A 0002522613 | RELEASE LEVER |
| Repalced by: A 0002525713 | ||
| 018 | A 0002525713 | RELEASE LEVER |
| Repalced by: A 0002526413 | ||
| 018 | A 0002526413 | RELEASE LEVER |
| 018 | A 0002522513 | RELEASE LEVER |
| Repalced by: A 0002526513 | ||
| 018 | A 0002526513 | RELEASE LEVER |
| 020 | A 0002520016 | SPINDLE |
| Repalced by: A 0002523516 | ||
| 020 | A 0002523516 | SPINDLE |
| Repalced by: A 0002524216 | ||
| 020 | A 0002524216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 020 | A 0002520816 | SPINDLE |
| Repalced by: A 0002523716 | ||
| 020 | A 0002523716 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 022 | A 0002520516 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 022 | A 0002520516 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 022 | A 0002523616 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 022 | A 0002523816 | SPINDLE |
| FOR BRACKETS | ||
| 022 | A 0002523816 | SPINDLE |
| FOR BRACKETS | ||
| N 000094002059 | COTTER PIN | |
| N 006799007007 | LOCK PLATE | |
| 025 | A 0002520018 | ROLLER |
| 025 | A 0002520018 | ROLLER |
| 028 | A 0002521414 | BRACKET |
| Repalced by: A 0002522414 | ||
| 028 | A 0002522414 | BRACKET |
| Repalced by: A 0002522914 | ||
| 028 | A 0002522914 | BRACKET |
| 028 | A 0002521314 | BRACKET |
| Repalced by: A 0002522514 | ||
| 028 | A 0002522514 | BRACKET |
| Repalced by: A 0002523014 | ||
| 028 | A 0002523014 | BRACKET |
| 030 | A 0002520024 | INSULATING WASHER |
| 030 | A 0002520024 | INSULATING WASHER |
| 032 | A 0002523220 | PRESSURE SPRING |
| 032 | A 0002523220 | PRESSURE SPRING |
| 032 | A 0002523820 | PRESSURE SPRING |
| 032 | A 0002524720 | PRESSURE SPRING |
| Repalced by: A 0002528120 | ||
| 032 | A 0002528120 | PRESSURE SPRING |
| 032 | A 0002524120 | PRESSURE SPRING |
| 035 | A 0002521419 | LEAF SPRING |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 035 | A 0002521319 | LEAF SPRING |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 038 | A 0002522872 | NUT |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 038 | A 0002523372 | NUT |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 040 | A 0002520573 | LOCK |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 040 | A 0002520473 | LOCK |
| Repalced by: A 0002521173 | ||
| 040 | A 0002521173 | LOCK |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 042 | N 912004008102 | LOCK WASHER |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 042 | N 912004005103 | LOCK WASHER |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 044 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 044 | N 304017008039 | SCREW |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 044 | A 0009902721 | SCREW |
| Repalced by: N 007985005157 | ||
| 044 | N 007985005157 | SCREW |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| M 5X8 | ||
| 044 | A 0009907021 | SCREW |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| M 5X6 | ||
| 048 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 050 | A 3122521071 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 050 | N 000931008210 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X55 | ||
| 052 | A 0072501803 | CLUTCH DISC |
| Repalced by: A 0102508503 | ||
| 052 | A 0102508503 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 052 | A 0072501903 | CLUTCH DISC |
| Repalced by: A 0132508903 | ||
| 052 | A 0132508903 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 052 | A 0012500503 | CLUTCH DISC |
| Repalced by: A 0042506603 | ||
| 052 | A 0012503603 | CLUTCH DISC |
| Repalced by: A 0042506603 | ||
| 052 | A 0042506603 | CLUTCH DISC |
| 052 | A 0092503203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 052 | A 0092503303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 052 | A 0012503803 | CLUTCH DISC |
| 055 | A 0002520219 | LEAF SPRING |
| Repalced by: A 0002524519 | ||
| 055 | A 0002524519 | LEAF SPRING |
| 055 | A 0002520719 | LEAF SPRING |
| Repalced by: A 0002525219 | ||
| 055 | A 0002525219 | LEAF SPRING |
| 058 | A 0002520175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 4X5 MM | ||
| 058 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 060 | A 0012524410 | CLUTCH LINING |
| Repalced by: A 0012527810 | ||
| 060 | A 0012527810 | CLUTCH LINING |
| Repalced by: A 0002521310 | ||
| 060 | A 0002523910 | CLUTCH LINING |
| Repalced by: A 0012520610 | ||
| 060 | A 0012520610 | CLUTCH LINING |
| Repalced by: A 0002521310 | ||
| 060 | A 0002521310 | CLUTCH LINING |
| 060 | A 0012525510 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 060 | A 0002523810 | CLUTCH LINING |
| 062 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 062 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 062 | A 0002524375 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| A 3522500005 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3522500405 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3222500605 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3222500805 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3102500105 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3102510301 | BELL HOUSING | |
| Repalced by: A 3102510501 | ||
| A 3102510501 | BELL HOUSING | |
| Repalced by: A 3102510601 | ||
| A 3102510601 | BELL HOUSING | |
| N 000939010027 | STUD BOLT | |
| TO 322 250 08 05,310 250 01 05 | ||
| A 0009902805 | STUD | |
| TO 310 251 03 01,310 251 05 01 | ||
| 068 | A 3522500305 | HOUSING |
| Repalced by: A 3522512001 | ||
| 068 | A 3522502005 | HOUSING |
| Repalced by: A 3522512001 | ||
| 068 | A 3522501605 | HOUSING |
| Repalced by: A 3522512001 | ||
| 068 | A 3522511501 | BELL HOUSING |
| Repalced by: A 3522512001 | ||
| 068 | A 3522512001 | BELL HOUSING |
| 068 | A 3522512101 | BELL HOUSING |
| N 000908016008 | SCREW PLUG | |
| BELL HOUSING | ||
| N 007603016401 | SEAL RING | |
| BELL HOUSING | ||
| 069 | A 3122511127 | POINTER |
| SETTING | ||
| 070 | N 000939010104 | STUD BOLT |
| BELL HOUSING | ||
| 070 | A 0009902605 | STUD |
| BELL HOUSING | ||
| 072 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 077 | N 000931012148 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M12X100 | ||
| 077 | N 000931012156 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M12X110 | ||
| 077 | N 000931012277 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M12X135 | ||
| 080 | N 900170012004 | SCREW |
| Repalced by: N 914141012800 | ||
| 080 | N 914141012800 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M12X40 | ||
| 080 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 080 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M12X35 | ||
| 082 | A 3122511004 | END COVER |
| Repalced by: A 3602510004 | ||
| 082 | A 3602510004 | END COVER |
| AT BELL HOUSING,TOP | ||
| 085 | N 000137006204 | SPRING WASHER |
| COVER TO BELL HOUSING | ||
| 088 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 088 | N 304017006018 | SCREW |
| COVER TO BELL HOUSING | ||
| 090 | A 3122511006 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 090 | A 3522510106 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 090 | A 3522500055 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 090 | A 3522510106 | PROTECTIVE PLATE |
| BELL HOUSING | ||
| 092 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 093 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 093 | N 304017006018 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 094 | A 3122511002 | BELL HOUSING |
| Repalced by: A 3142510002 | ||
| 094 | A 3142510002 | BELL HOUSING |
| Repalced by: A 3142501005 | ||
| 094 | A 3142501005 | HOUSING |
| Repalced by: A 3142510302 | ||
| 094 | A 3142510302 | BELL HOUSING |
| LOWER PART | ||
| 094 | A 3522510102 | BELL HOUSING |
| Repalced by: A 3522503105 | ||
| 094 | A 3812510102 | BELL HOUSING |
| Repalced by: A 3522503105 | ||
| 094 | A 3522510202 | BELL HOUSING |
| Repalced by: A 3522503105 | ||
| 094 | A 3522503105 | HOUSING |
| Repalced by: A 3522510202 | ||
| 094 | A 3522510202 | BELL HOUSING |
| LOWER PART | ||
| 096 | N 000137006204 | SPRING WASHER |
| LOWER PART TO HOUSING | ||
| 098 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 098 | N 304017006018 | SCREW |
| LOWER PART TO HOUSING | ||
| 100 | A 3272510033 | COVER |
| Repalced by: A 3522510004 | ||
| 100 | A 3522510004 | END COVER |
| BELL HOUSING | ||
| 100 | A 3522510004 | END COVER |
| BELL HOUSING | ||
| 102 | N 912004008102 | LOCK WASHER |
| COVER PLATE TO BELL HOUSING | ||
| 105 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 105 | N 304017008016 | SCREW |
| COVER PLATE TO BELL HOUSING | ||
