Transporto priemonė: LP 911 B; VIN numerio dalis: 353056

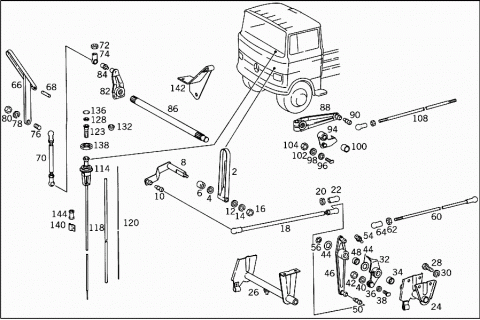

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 3523010002 | PEDAL PLATE |
| Repalced by: A 3523000702 | ||
| 002 | A 3523000702 | PLATE |
| ACCELERATOR PEDAL | ||
| 004 | A 3223010054 | GUARD PLATE |
| ACCELERATOR PEDAL | ||
| 006 | A 3523010288 | COVERING |
| ACCELERATOR PEDAL | ||
| 008 | A 3353000025 | LEVER |
| FRONT | ||
| 010 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 010 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 010 | A 3129910120 | BALL PIVOT |
| 012 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 012 | N 000125008443 | WASHER |
| PEDAL PLATE TO SHAFT | ||
| 014 | N 912004008102 | LOCK WASHER |
| PEDAL PLATE TO SHAFT | ||
| 016 | N 304032008006 | NUT |
| PEDAL PLATE TO SHAFT | ||
| 018 | A 3523001715 | ROD |
| Repalced by: A 3604302692 | ||
| 018 | A 3604302692 | ROD |
| FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE | ||
| 020 | N 000934006007 | NUT |
| N 071805010204 | BALL SOCKET | |
| 022 | A 0009910522 | BALL SOCKET |
| Repalced by: A 0009912422 | ||
| 022 | A 0009912422 | BALL SOCKET |
| N 071805010403 | SECURING CLIP | |
| 024 | A 3533000020 | SHAFT |
| CONTROL | ||
| 026 | A 3524300338 | BEARING |
| CONTROL | ||
| 028 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 028 | N 304017008016 | SCREW |
| CONTROL SHAFT TO WINDOW SILL GIRDER | ||
| 030 | N 912004008102 | LOCK WASHER |
| CONTROL SHAFT TO WINDOW SILL GIRDER | ||
| N 304032008006 | NUT | |
| CONTROL SHAFT TO WINDOW SILL GIRDER | ||
| 032 | A 3523000017 | LEVER |
| (FOLLOWER LEVER) | ||
| 034 | A 3529920101 | BUSHING |
| 036 | A 3523020050 | BUSHING |
| 038 | A 3523020071 | SCREW |
| 040 | N 000125006421 | WASHER |
| 042 | N 000934006007 | NUT |
| 044 | N 000988018003 | FITTED WASHER |
| 046 | A 3523000428 | LEVER |
| CONTROL | ||
| 048 | A 3529920101 | BUSHING |
| 050 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 050 | A 3129910120 | BALL PIVOT |
| 050 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 050 | A 3129910120 | BALL PIVOT |
| 050 | N 071803010301 | BALL PIVOT |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 054 | N 071412010100 | GREASE NIPPLE |
| 056 | N 000471018000 | LOCK RING |
| CONTROL | ||
| N 071805010403 | SECURING CLIP | |
| CONTROL | ||
| 060 | A 3524300592 | ROD |
| Repalced by: A 3604302192 | ||
| 060 | N 900331006313 | PULL ROD |
| Repalced by: A 3604302192 | ||
| 060 | A 3604302192 | ROD |
| CONTROL | ||
| 062 | N 000934010014 | NUT |
| CONTROL | ||
| 062 | N 000934006007 | NUT |
| CONTROL | ||
| N 071805010204 | BALL SOCKET | |
| CONTROL | ||
| 064 | A 0009910522 | BALL SOCKET |
| Repalced by: A 0009912422 | ||
| 064 | A 0009912422 | BALL SOCKET |
| CONTROL | ||
| N 071805010403 | SECURING CLIP | |
| 066 | A 3523000002 | PLATE |
| ACCELERATOR PEDAL | ||
| 068 | A 3123011009 | PIN |
| ACCELERATOR PEDAL TO CAB | ||
| N 000094002059 | COTTER PIN | |
| ACCELERATOR PEDAL TO CAB | ||
| 070 | A 3523002215 | ROD |
| Repalced by: A 3604302792 | ||
| 070 | A 3604302792 | ROD |
| FROM ACCELERATOR PEDAL TO FRONT INTERMEDIATE LEVER | ||
| 072 | N 000934006007 | NUT |
| ROD TO INTERMEDIATE LEVER | ||
| N 071805010204 | BALL SOCKET | |
| ROD TO INTERMEDIATE LEVER | ||
| 074 | A 0009910522 | BALL SOCKET |
| Repalced by: A 0009912422 | ||
| 074 | A 0009912422 | BALL SOCKET |
| ROD TO INTERMEDIATE LEVER | ||
| N 071805010403 | SECURING CLIP | |
| ROD TO INTERMEDIATE LEVER | ||
| 076 | N 071803010301 | BALL PIVOT |
| ROD TO ACCELERATOR PEDAL | ||
| N 071805010403 | SECURING CLIP | |
| ROD TO BALL PIVOT | ||
| 078 | N 912004006102 | LOCK WASHER |
| ROD TO ACCELERATOR PEDAL | ||
| 080 | N 000934006007 | NUT |
| ROD TO ACCELERATOR PEDAL | ||
| 082 | A 3603000025 | LEVER |
| (INTERMEDIATE LEVER) | ||
| 084 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 084 | A 3129910120 | BALL PIVOT |
| 086 | A 3523010219 | SHAFT |
| INTERMEDIATE SHAFT | ||
| 088 | A 3523000425 | LEVER |
| INTERMEDIATE LEVER | ||
| 090 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 090 | A 3129910120 | BALL PIVOT |
| N 000931008221 | SCREW | |
| LEVER TO SHAFT | ||
| N 912004008102 | LOCK WASHER | |
| LEVER TO SHAFT | ||
| N 304032008006 | NUT | |
| LEVER TO SHAFT | ||
| 094 | A 3523000117 | LEVER |
| (FOLLOWER LEVER) | ||
| 096 | A 3523020071 | SCREW |
| 098 | A 3523020050 | BUSHING |
| 100 | A 3229920301 | BUSHING |
| 102 | N 000125006421 | WASHER |
| 104 | N 000934006007 | NUT |
| N 000471014000 | LOCK RING | |
| FOLLOWER TO CONTROL LEVER | ||
| 108 | A 3524300492 | ROD |
| Repalced by: A 3604302492 | ||
| 108 | A 3604302492 | ROD |
| FROM INTERMEDIATE LEVER TO ENGINE | ||
| N 000934010014 | NUT | |
| ROD TO INTERMEDIATE LEVER | ||
| N 000934006007 | NUT | |
| ROD TO INTERMEDIATE LEVER | ||
| N 071805010204 | BALL SOCKET | |
| ROD TO INTERMEDIATE LEVER | ||
| A 0009910522 | BALL SOCKET | |
| Repalced by: A 0009912422 | ||
| A 0009912422 | BALL SOCKET | |
| ROD TO INTERMEDIATE LEVER | ||
| N 071805010403 | SECURING CLIP | |
| ROD TO INTERMEDIATE LEVER | ||
| 114 | A 3523000007 | KNOB |
| Repalced by: A 3523001407 | ||
| 114 | A 3123001108 | MANUAL CONTROL |
| Repalced by: A 3523001407 | ||
| 114 | A 3523000107 | KNOB |
| Repalced by: A 3523001407 | ||
| 114 | A 3523000607 | KNOB |
| Repalced by: A 3523001407 | ||
| 114 | A 3523001407 | KNOB |
| WITH SPINDLE | ||
| 118 | A 3523020006 | TUBE |
| Repalced by: A 3123021006 | ||
| 118 | A 3123021006 | TUBE |
| 118 | A 3523020106 | TUBE |
| 120 | A 3523000030 | WIRE CABLE |
| Repalced by: A 3523000230 | ||
| 120 | A 3523000130 | WIRE CABLE |
| Repalced by: A 3523000230 | ||
| 120 | A 3523000230 | WIRE CABLE |
| 123 | A 3523020108 | GUIDE |
| Repalced by: A 3523020308 | ||
| 123 | A 3523020208 | GUIDE |
| Repalced by: A 3523020308 | ||
| 123 | A 3523020308 | GUIDE |
| A 3523020176 | WASHER | |
| 128 | A 3129902140 | WASHER |
| 132 | A 3123021101 | KNOB |
| Repalced by: A 3523020001 | ||
| 132 | A 3523020001 | KNOB |
| Repalced by: A 3523020201 | ||
| 132 | A 3523020101 | KNOB |
| Repalced by: A 3523020201 | ||
| 132 | A 3523020201 | KNOB |
| 136 | A 1363020103 | COVER |
| 138 | A 3129901151 | NUT |
| 140 | A 1539950020 | CLAMP |
| WIRE CABLE TO BRACKET | ||
| N 000433005304 | WASHER | |
| WIRE CABLE TO BRACKET | ||
| N 007971004224 | SHEET METAL SCREW | |
| WIRE CABLE TO BRACKET | ||
| 142 | A 3523020040 | BRACKET |
| MANUAL CONTROL | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO STEERING BRACKET | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO STEERING BRACKET | ||
| N 304032008006 | NUT | |
| BRACKET TO STEERING BRACKET | ||
| 144 | A 3523020091 | GROMMET |
| Repalced by: A 3183020091 | ||
| 144 | A 3183020091 | GROMMET |
| WIRE CABLE TO BRACKET | ||
| A 3183020091 | GROMMET | |
| WIRE CABLE TO BRACKET | ||
| N 000933006102 | SCREW | |
| WIRE CABLE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| WIRE CABLE TO BRACKET | ||
| N 000934006007 | NUT | |
| WIRE CABLE TO BRACKET | ||
