Transporto priemonė: LP 911 B; VIN numerio dalis: 353056

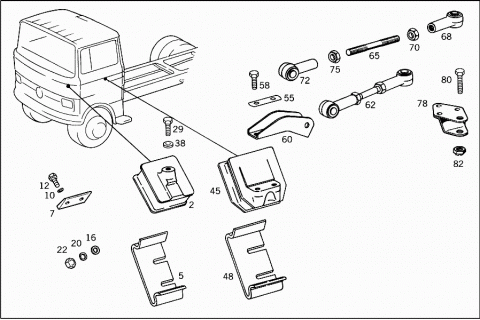

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 3022400417 | RUBBER MOUNTING |
| Repalced by: A 3522400217 | ||
| 002 | A 3522400217 | RUBBER MOUNTING |
| Repalced by: A 3522400417 | ||
| 002 | A 3522400417 | RUBBER MOUNTING |
| FRONT | ||
| A 3522410084 | SHIM | |
| FRONT | ||
| 005 | A 3022420209 | ENGINE STAY |
| Repalced by: A 3522420509 | ||
| 005 | A 3522420509 | ENGINE STAY |
| FRONT | ||
| 007 | A 3022420043 | STOP |
| FRONT | ||
| 010 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 010 | N 000137008212 | SPRING WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 012 | N 000933008145 | SCREW |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 016 | N 009021013200 | WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 020 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 022 | N 000934012022 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| A 3022400045 | PROTECTIVE PLATE | |
| FRONT | ||
| 029 | N 000960014237 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 029 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 029 | N 308676016007 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 029 | N 000960016237 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| N 000137014201 | SPRING WASHER | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 038 | A 3529901040 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 038 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 045 | A 3522400018 | RUBBER MOUNTING |
| Repalced by: A 3522400318 | ||
| 045 | A 3522400318 | RUBBER MOUNTING |
| REAR | ||
| 048 | A 3022420109 | ENGINE STAY |
| Repalced by: A 3522420409 | ||
| 048 | A 3522420409 | ENGINE STAY |
| REAR | ||
| A 3022420143 | STOP | |
| REAR | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| N 009021013200 | WASHER | |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| N 000934012022 | NUT | |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 055 | A 3529940032 | LOCK |
| ENGINE TO ENGINE REAR SUPPORT | ||
| 058 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 058 | N 308676014008 | SCREW |
| ENGINE TO ENGINE REAR SUPPORT | ||
| M 14X35 | ||
| 058 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 058 | A 9429901304 | SCREW |
| ENGINE TO ENGINE REAR SUPPORT | ||
| M 14X40 | ||
| 060 | A 3522420207 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 060 | A 3522420307 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 062 | A 3522400125 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 065 | A 3522420037 | ROD |
| Repalced by: A 3522420237 | ||
| 065 | A 3522420237 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 068 | A 0009961540 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| 070 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 070 | N 308673016001 | NUT |
| ENGINE ALONGSIDE FIXING | ||
| 072 | A 0009961740 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| 075 | N 000934016014 | NUT |
| ENGINE ALONGSIDE FIXING | ||
| 078 | A 3522400035 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 080 | A 3522420071 | SCREW |
| ROD TO FRONT AND REAR BEARING BRACKETS | ||
| 082 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 082 | N 000979016007 | NUT |
| ROD TO FRONT AND REAR BEARING BRACKETS | ||
| N 000433017004 | WASHER | |
| ROD TO FRONT AND REAR BEARING BRACKETS | ||
| N 000094004065 | COTTER PIN | |
| ROD TO FRONT AND REAR BEARING BRACKETS | ||
| N 000960012189 | SCREW | |
| Repalced by: N 308676012031 | ||
| N 308676012031 | SCREW | |
| Repalced by: N 308676012011 | ||
| N 308676012011 | SCREW | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 912004012100 | LOCK WASHER | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 000934012022 | NUT | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
