Transporto priemonė: LP 911 B; VIN numerio dalis: 353056

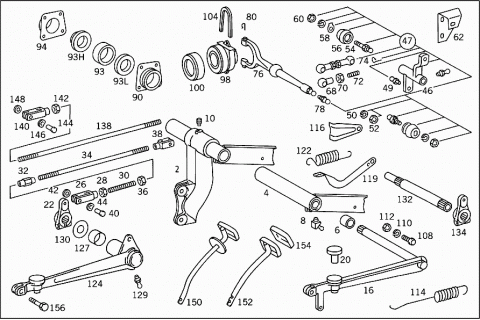

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 3522900419 | BEARING BRACKET |
| Repalced by: A 3522901519 | ||
| 002 | A 3522901519 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 002 | A 3522900319 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 004 | A 3522900120 | BEARING |
| Repalced by: A 3522900220 | ||
| 004 | A 3522900220 | BEARING |
| 004 | A 3522900320 | BEARING |
| 004 | A 3522900136 | BEARING TUBE |
| 006 | A 3122941250 | BUSHING |
| Repalced by: A 3529920901 | ||
| 006 | A 3402940050 | BUSHING |
| Repalced by: A 3529920901 | ||
| 006 | A 3529920901 | BUSHING |
| 006 | A 3529922001 | BUSHING |
| 006 | A 3122940150 | BUSHING |
| Repalced by: A 3529920701 | ||
| 006 | A 3402940150 | BUSHING |
| Repalced by: A 3529920701 | ||
| 006 | A 3529920701 | BUSHING |
| 008 | N 071412010200 | GREASE NIPPLE |
| 008 | N 071412010100 | GREASE NIPPLE |
| 010 | A 3529900080 | SCREW |
| N 000960012015 | SCREW | |
| BEARING BRACKET TO STEERING | ||
| M12X35 | ||
| N 000961012122 | SCREW | |
| BEARING BRACKET TO STEERING | ||
| M 12X40 | ||
| N 000960012342 | SCREW | |
| BEARING BRACKET TO STEERING | ||
| M 12X45 | ||
| N 912004012100 | LOCK WASHER | |
| BEARING BRACKET TO STEERING | ||
| N 000934012022 | NUT | |
| BEARING BRACKET TO STEERING | ||
| 016 | A 3522900316 | PEDAL |
| Repalced by: A 3522903016 | ||
| 016 | A 3522900916 | PEDAL |
| Repalced by: A 3522903016 | ||
| 016 | A 3522940105 | SHAFT |
| Repalced by: A 3522903016 | ||
| 016 | A 3522940405 | SHAFT |
| Repalced by: A 3522903016 | ||
| 016 | A 3522901216 | PEDAL |
| Repalced by: A 3522903016 | ||
| 016 | A 3522903016 | PEDAL |
| CLUTCH | ||
| 016 | A 3522900416 | PEDAL |
| Repalced by: A 3522903516 | ||
| 016 | A 3522901316 | PEDAL |
| Repalced by: A 3522903516 | ||
| 016 | A 3522903516 | PEDAL |
| CLUTCH | ||
| A 3122911550 | BUSHING | |
| Repalced by: A 3529920401 | ||
| A 3529920401 | BUSHING | |
| N 071412010100 | GREASE NIPPLE | |
| 020 | A 3529870240 | RUBBER BUFFER |
| N 000094004065 | COTTER PIN | |
| N 000471040002 | LOCK RING | |
| CLUTCH PEDAL TO BEARING TUBE | ||
| 022 | A 3522930310 | LEVER |
| CLUTCH OPERATION | ||
| N 000931010258 | SCREW | |
| CLUTCH PEDAL TO SHAFT | ||
| M 10X55 | ||
| N 000931010260 | SCREW | |
| Repalced by: N 304017010030 | ||
| N 304017010030 | SCREW | |
| Repalced by: N 304017010053 | ||
| N 304017010053 | SCREW | |
| CLUTCH PEDAL TO SHAFT | ||
| M 10X50 | ||
| N 912004010102 | LOCK WASHER | |
| CLUTCH LEVER TO PEDAL SHAFT | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| CLUTCH PEDAL TO SHAFT | ||
| 026 | A 0009961501 | YOKE |
| CLUTCH LINKAGE | ||
| 028 | N 000934010014 | NUT |
| YOKE TO ROD | ||
| A 3522900839 | ROD | |
| Repalced by: N 900331010465 | ||
| A 3522900939 | ROD | |
| Repalced by: N 900331010481 | ||
| 030 | N 900331010667 | PULL ROD |
| ROD TO CLUTCH LEVER | ||
| 032 | N 001479010000 | TURNBUCKLE |
| CLUTCH ADJUSTMENT | ||
| 034 | N 900331010657 | PULL ROD |
| ROD TO CLUTCH LEVER | ||
| 036 | N 000934010035 | NUT |
| CLUTCH ADJUSTMENT | ||
| 038 | A 0009961401 | YOKE |
| CLUTCH LINKAGE | ||
| 040 | A 3529910007 | PIN |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 042 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 042 | N 000433010510 | WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| N 000094003219 | COTTER PIN | |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 044 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 044 | N 000137010205 | SPRING WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 046 | A 3522900328 | LEVER |
| Repalced by: A 3525860229 | ||
| 046 | A 3522901428 | LEVER |
| Repalced by: A 3525860229 | ||
| 046 | A 3522901728 | LEVER |
| Repalced by: A 3525860229 | ||
| 046 | A 3522901428 | LEVER |
| Repalced by: A 3522905839 | ||
| 046 | A 3522901828 | LEVER |
| Repalced by: A 3522905839 | ||
| 047 | A 3522905839 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| 047 | A 3525860229 | REPAIR KIT |
| Repalced by: A 3522905639 | ||
| 047 | A 3522905639 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| N 071805016302 | BALL SOCKET | |
| CLUTCH OPERATION | ||
| 049 | A 3529910415 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 049 | A 3029910015 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 050 | N 912004012100 | LOCK WASHER |
| BALL PIVOT TO BRACKET | ||
| 052 | N 000936012010 | NUT |
| Repalced by: N 304035012002 | ||
| 052 | N 304035012002 | NUT |
| BALL PIVOT TO BRACKET | ||
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| N 071412010100 | GREASE NIPPLE | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 054 | A 3529910115 | BALL PIVOT |
| Repalced by: A 3529910615 | ||
| 054 | A 3529910615 | BALL PIVOT |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| 056 | A 3522930060 | SEAL RING |
| CLUTCH OPERATION | ||
| 058 | N 000463013003 | LOCK PLATE |
| CLUTCH OPERATION | ||
| 060 | N 000934012021 | NUT |
| CLUTCH OPERATION | ||
| 062 | A 3522930436 | BEARING BRACKET |
| CLUTCH OPERATION | ||
| 062 | A 3522930536 | BEARING BRACKET |
| CLUTCH OPERATION | ||
| A 3529910815 | BALL PIVOT | |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| A 3522930060 | SEAL RING | |
| Repalced by: A 3522930160 | ||
| A 3522930160 | SEAL RING | |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| N 000125013008 | WASHER | |
| N 912004012100 | LOCK WASHER | |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| N 000934012021 | NUT | |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| A 3522901039 | ROD | |
| Repalced by: A 3522905439 | ||
| A 3522905439 | ROD | |
| CLUTCH OPERATION | ||
| 068 | A 0009916222 | BALL SOCKET |
| ROD TO LEVER | ||
| N 071805016301 | SNAP RING | |
| 070 | N 000936010008 | NUT |
| ROD TO LEVER | ||
| 072 | N 900331010653 | PULL ROD |
| ROD TO CLUTCH PEDAL | ||
| 074 | N 071805016402 | SECURING CLIP |
| CLUTCH LINKAGE | ||
| 076 | A 3522900111 | RELEASE YOKE |
| Repalced by: A 3522930311 | ||
| 076 | A 3522900029 | RELEASE YOKE |
| Repalced by: A 3522930311 | ||
| 076 | A 3522500113 | RELEASE LEVER |
| Repalced by: A 3522930311 | ||
| 076 | A 3522930311 | RELEASE YOKE |
| CLUTCH RELEASE | ||
| 078 | A 3179910515 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 078 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 078 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 080 | A 3122541013 | SPRING LOCK |
| BEARING TO RELEASE YOKE | ||
| 080 | A 3402540013 | SPRING LOCK |
| BEARING TO RELEASE YOKE | ||
| A 3522900031 | BEARING | |
| OUTSIDE | ||
| A 3522900131 | BEARING | |
| OUTSIDE | ||
| A 3522930012 | BRACKET | |
| INSIDE | ||
| A 3522930112 | BRACKET | |
| INSIDE | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BELL HOUSING | ||
| N 912004008102 | LOCK WASHER | |
| BELL HOUSING | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| BELL HOUSING | ||
| 090 | A 3522540040 | BRACKET |
| INSIDE | ||
| 092 | A 3522540135 | BEARING |
| Repalced by: A 3802540035 | ||
| 093 | A 3802540035 | BEARING |
| OUTSIDE | ||
| 093 | A 3802540135 | BEARING |
| OUTSIDE | ||
| 093H | A 3802540059 | SEAL RING |
| SOFT | ||
| 093H | A 3802540259 | SEAL RING |
| SOFT | ||
| 093L | A 3802540159 | SEAL RING |
| HARD | ||
| 093L | A 3802540359 | SEAL RING |
| HARD | ||
| 094 | A 3522500243 | BRACKET |
| OUTSIDE | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO BELL HOUSING | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO BELL HOUSING | ||
| 098 | A 3522500115 | RELEASE BEARING |
| Repalced by: A 3405200215 | ||
| 098 | A 3522500515 | RELEASE BEARING |
| Repalced by: A 3402500215 | ||
| 098 | A 3402500215 | RELEASE BEARING |
| CLUTCH | ||
| 100 | A 0002540020 | RELEASE BEARING |
| 100 | A 0002540120 | RELEASE BEARING |
| 104 | A 3129870110 | STRIP |
| Repalced by: A 3409830010 | ||
| 104 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 352 250 01 15,352 250 05 15 | ||
| 104 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 340 250 02 15 | ||
| A 3052540033 | COVER | |
| TO 352 250 01 15 | ||
| A 3522540097 | BOOT | |
| Repalced by: A 3142540197 | ||
| A 3142540197 | BOOT | |
| RELEASE LEVER | ||
| 108 | A 3522910074 | PIN |
| Repalced by: A 3142910074 | ||
| 108 | A 3142910074 | PIN |
| CLUTCH PEDAL RELEASE SPRING | ||
| 108 | A 3522910174 | PIN |
| CLUTCH PEDAL RELEASE SPRING | ||
| 108 | A 3522910474 | PIN |
| Repalced by: A 3522910674 | ||
| 108 | A 3522910674 | PIN |
| CLUTCH PEDAL RELEASE SPRING | ||
| 110 | N 912004014100 | LOCK WASHER |
| CLUTCH PEDAL RELEASE SPRING | ||
| 112 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 112 | N 308673014001 | NUT |
| CLUTCH PEDAL RELEASE SPRING | ||
| 114 | A 3529930110 | SPRING |
| CLUTCH PEDAL RELEASE SPRING | ||
| 114 | A 3529930810 | SPRING |
| Repalced by: A 3529931110 | ||
| 114 | A 3529931110 | SPRING |
| Repalced by: A 3559930110 | ||
| 114 | A 3559930110 | SPRING |
| CLUTCH PEDAL | ||
| 116 | A 3522910240 | BRACKET |
| CLUTCH PEDAL RELEASE SPRING | ||
| 116 | A 3522910740 | BRACKET |
| CLUTCH PEDAL RELEASE SPRING | ||
| 116 | A 3522900533 | BRACKET |
| CLUTCH PEDAL RELEASE SPRING | ||
| N 000933010105 | SCREW | |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 119 | A 3522910032 | LEVER |
| CLUTCH PEDAL RELEASE SPRING | ||
| 119 | A 3522910432 | LEVER |
| CLUTCH PEDAL RELEASE SPRING | ||
| 119 | A 3552910032 | LEVER |
| Repalced by: A 3552910132 | ||
| 119 | A 3552910132 | LEVER |
| CLUTCH PEDAL RELEASE SPRING | ||
| N 000471016001 | LOCK RING | |
| Repalced by: A 0079942041 | ||
| A 0079942041 | LOCK | |
| 122 | A 3379930210 | SPRING |
| BETWEEN CLUTCH PEDAL AND LEVER | ||
| 122 | A 3529931210 | SPRING |
| BETWEEN CLUTCH PEDAL AND LEVER | ||
| 124 | A 3522900218 | PEDAL |
| Repalced by: A 3522900718 | ||
| 124 | A 3522900718 | PEDAL |
| BRAKE | ||
| 124 | A 3522900118 | PEDAL |
| Repalced by: A 3522900818 | ||
| 124 | A 3522900818 | PEDAL |
| BRAKE | ||
| 127 | A 3122911550 | BUSHING |
| Repalced by: A 3529920401 | ||
| 127 | A 3529920401 | BUSHING |
| 129 | N 071412010100 | GREASE NIPPLE |
| A 3529870240 | RUBBER BUFFER | |
| N 000094004065 | COTTER PIN | |
| 130 | A 3039910345 | RING |
| PEDAL TO BEARING TUBE | ||
| 132 | A 3522900236 | BEARING TUBE |
| BRAKE PEDAL | ||
| A 3122941050 | BUSHING | |
| Repalced by: A 3529920201 | ||
| A 3529920201 | BUSHING | |
| 134 | A 3522920031 | LEVER |
| BRAKE PEDAL | ||
| N 000931010258 | SCREW | |
| BRAKE PEDAL LEVER AND LEVER TO BEARING TUBE | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRAKE PEDAL LEVER AND LEVER TO BEARING TUBE | ||
| A 3522900439 | ROD | |
| 138 | N 900331010672 | PULL ROD |
| BRAKE LINKAGE | ||
| 140 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 140 | A 0009961501 | YOKE |
| LEVER TO PULL ROD | ||
| A 3419960001 | YOKE | |
| LEVER TO PULL ROD | ||
| 142 | N 000934010014 | NUT |
| YOKE TO ROD | ||
| N 000934010035 | NUT | |
| YOKE TO ROD | ||
| 144 | A 3529910007 | PIN |
| YOKE TO LEVER | ||
| 146 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 146 | N 000137010205 | SPRING WASHER |
| YOKE TO LEVER | ||
| 148 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 148 | N 000433010510 | WASHER |
| YOKE TO LEVER | ||
| N 000094003219 | COTTER PIN | |
| YOKE TO LEVER | ||
| 150 | A 3522900524 | PEDAL PLATE |
| CLUTCH | ||
| 152 | A 3522900124 | PEDAL PLATE |
| BRAKE | ||
| 152 | A 3522900224 | PEDAL PLATE |
| CLUTCH AND BRAKE | ||
| 154 | A 3202925082 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 156 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| A 3226880024 | WASHER | |
| CAB FLOOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
