Transporto priemonė: LP 911 B; VIN numerio dalis: 353056
Grupė: 60 PLATFORM
| # | Kodas | Pavadinimas |
|---|---|---|

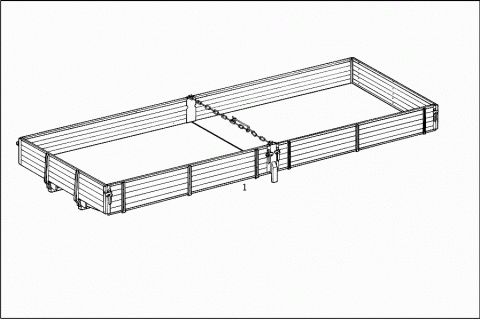

| 001 | A 3526000303 | PLATFORM |
| WITH CHAIN LOCK | ||
| 5300X2350X500 MM | ||
| 001 | A 3526000403 | PLATFORM |
| WITH TENSION CHAINS,LOADING SPACE, 6250X2350X500 MM | ||
| 001 | A 3526000203 | PLATFORM |
| LOADING SPACE,4500X2350X500 MM | ||
| A 3526100901 | SUBSTRUCTURE | |
| Repalced by: A 3526110923 | ||
| A 3526100701 | SUBSTRUCTURE | |
| Repalced by: A 3526110923 | ||
| A 3526100801 | SUBSTRUCTURE | |
| Repalced by: A 3526110923 | ||

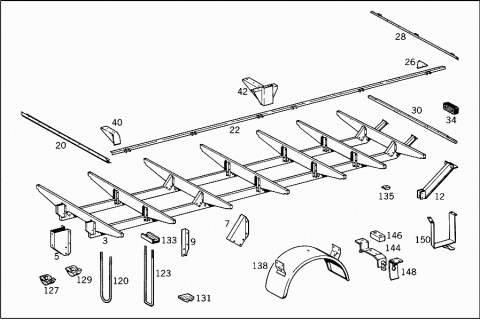

| 003 | A 3526110923 | TUBE |
| FRONT | ||
| 003 | A 3526110923 | TUBE |
| REAR | ||
| A 3526101001 | SUBSTRUCTURE | |
| Repalced by: A 3526111023 | ||
| 003 | A 3526111023 | TUBE |
| FRONT | ||
| 005 | A 3526100230 | CONSOLE |
| FRONT | ||
| 007 | A 3226110416 | REINFORCEMENT |
| CONSOLE TO SIDE MEMBER | ||
| A 3226140012 | ANGLE | |
| Repalced by: A 3406140012 | ||
| 009 | A 3406140012 | ANGLE |
| LEFT | ||
| A 3226140112 | ANGLE | |
| Repalced by: A 3406140112 | ||
| 009 | A 3406140112 | ANGLE |
| RIGHT | ||
| 012 | A 3526100034 | SUPPORT |
| SUBSTRUCTURE BRACING,REAR | ||

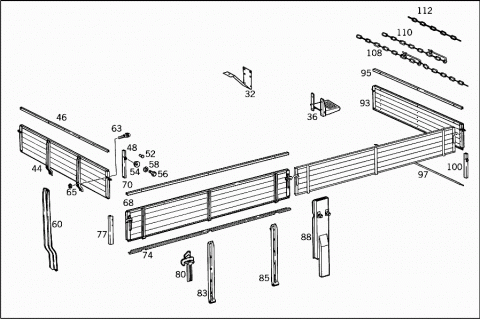

| 020 | A 3526100085 | EDGING |
| Repalced by: A 3606102885 | ||
| 020 | A 3606102885 | EDGING |
| FRONT | ||
| A 3526100485 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3526100585 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3526100685 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3526100785 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3526100285 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3526100385 | EDGING | |
| Repalced by: A 0009853547 | ||
| 022 | A 0009853547 | METAL SECTION |
| LEFT AND RIGHT | ||
| 5314 MM | ||
| 026 | A 3128510145 | PANELLING |
| (CONNECTING RAIL) | ||
| 028 | A 3526100185 | EDGING |
| Repalced by: A 0009853547 | ||
| 028 | A 0009853547 | METAL SECTION |
| REAR | ||
| 5314 MM | ||
| A 3526160061 | LEDGE | |
| Repalced by: A 3526160261 | ||
| 030 | A 3526160261 | LEDGE |
| REAR | ||
| 032 | A 3526160686 | STOP |
| FOR REAR PANEL | ||
| N 000603008050 | SCREW | |
| STOP TO FLOOR | ||
| 8X45 MM | ||
| N 000603008051 | SCREW | |
| STOP TO FLOOR | ||
| 8X55 MM | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| STOP TO FLOOR | ||
| N 000440009103 | WASHER | |
| STOP TO FLOOR | ||
| 034 | A 3129870040 | RUBBER BUFFER |
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| RUBBER BUFFER TO PLATFORM | ||
| N 000096005027 | WOOD SCREW | |
| RUBBER BUFFER TO PLATFORM | ||
| N 000096005027 | WOOD SCREW | |
| RUBBER BUFFER TO PLATFORM | ||
| N 007985005146 | SCREW | |
| RUBBER BUFFER TO PLATFORM | ||
| N 304032005005 | NUT | |
| RUBBER BUFFER TO PLATFORM | ||
| 036 | A 0008700008 | FOLDING STEP |
| FOR REAR PANEL | ||
| N 000966008020 | SCREW | |
| Repalced by: N 000965008007 | ||
| N 000965008007 | SCREW | |
| FOLDING STEP TO REAR PANEL | ||
| M 8 X 30 | ||
| A 0009842425 | THREADED CHUCK | |
| FOLDING STEP TO REAR PANEL | ||
| 040 | A 3406160088 | FLOOR |
| Repalced by: A 3826160286 | ||
| 040 | A 3826160286 | STOP |
| SIDE PANEL | ||
| 042 | A 3526100052 | TAKE-UP DEVICE |
| 044 | A 3526200002 | FRONT PANEL |
| A 3526270070 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| 046 | A 3146371470 | BINDING RAIL |
| TOP | ||
| A 3529900196 | RIVET | |
| BINDING RAIL TO PLATFORM FRONT PANEL | ||
| 048 | A 3526200043 | RAIL |
| LEFT | ||
| 048 | A 3526200143 | RAIL |
| RIGHT | ||
| A 3526370011 | PLATE | |
| THREADED | ||
| 052 | A 3529900296 | RIVET |
| BINDING RAIL TO PLATFORM FRONT PANEL | ||
| 054 | A 3526370013 | WASHER |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 056 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 056 | N 304017010002 | SCREW |
| FRONT PANEL | ||
| M 10X30 | ||
| 058 | N 912004010102 | LOCK WASHER |
| FRONT PANEL | ||
| 060 | A 3526200028 | BRACING |
| FRONT PANEL TO SUBSTRUCTURE | ||
| 063 | A 3526250015 | RING |
| FRONT PANEL | ||
| 065 | N 000934010014 | NUT |
| FRONT PANEL | ||
| 068 | A 3526300101 | SIDE PANEL |
| 068 | A 3526300901 | SIDE PANEL |
| 068 | A 3526300801 | SIDE PANEL |
| A 3526370170 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| A 3526370270 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| A 3526370070 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| 070 | A 3146371470 | BINDING RAIL |
| TOP | ||
| A 3529900196 | RIVET | |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| A 3526370570 | BINDING RAIL | |
| Repalced by: A 3146371970 | ||
| A 3526370670 | BINDING RAIL | |
| Repalced by: A 3146371970 | ||
| A 3526370770 | BINDING RAIL | |
| Repalced by: A 3146371970 | ||
| 074 | A 3146371970 | BINDING RAIL |
| BOTTOM;LESS BORE AND LESS CUT-OUT | ||
| A 3526370370 | BINDING RAIL | |
| BOTTOM LEFT | ||
| A 3526370470 | BINDING RAIL | |
| BOTTOM RIGHT | ||
| N 000097005025 | WOOD SCREW | |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 077 | A 3526370970 | BINDING RAIL |
| LEFT FRONT AND RIGHT REAR | ||
| 077 | A 3526371070 | BINDING RAIL |
| RIGHT FRONT AND LEFT REAR | ||
| A 3529900296 | RIVET | |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 080 | A 3526370063 | HOOK |
| LEFT FRONT AND RIGHT REAR | ||
| 080 | A 3526370163 | HOOK |
| RIGHT FRONT,LEFT REAR | ||
| 083 | A 3526370054 | HINGE |
| PLATFORM SIDE PANEL TO SUBSTRUCTURE | ||
| 085 | A 3526300082 | HINGE |
| WITH CHAIN FASTENER | ||
| N 001444012209 | PIN | |
| HINGE MOUNTING TO FLOOR BINDING ANGLE | ||
| N 000094004065 | COTTER PIN | |
| HINGE MOUNTING TO FLOOR BINDING ANGLE | ||
| 088 | A 3526600075 | INSERT RAIL |
| Repalced by: A 3606600075 | ||
| 088 | A 3606600075 | INSERT RAIL |
| CENTRAL LEFT AND RIGHT | ||
| A 3526370013 | WASHER | |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| FASTENER DETENT | ||
| M 10X30 | ||
| N 912004010102 | LOCK WASHER | |
| FASTENER DETENT | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| INSERT RAIL TO INSERT POCKET | ||
| M 8X20 | ||
| N 912004008102 | LOCK WASHER | |
| INSERT RAIL TO INSERT POCKET | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| INSERT RAIL TO INSERT POCKET | ||
| 093 | A 3526400202 | REAR PANEL |
| A 3526470070 | RAIL | |
| Repalced by: A 3146371470 | ||
| 095 | A 3146371470 | BINDING RAIL |
| TOP | ||
| A 3529900196 | RIVET | |
| BINDING RAIL TO PLATFORM REAR PANEL | ||
| A 3526470370 | RAIL | |
| Repalced by: A 3146371970 | ||
| 097 | A 3146371970 | BINDING RAIL |
| BOTTOM REAR | ||
| N 000097005025 | WOOD SCREW | |
| BINDING RAIL TO PLATFORM REAR PANEL | ||
| 100 | A 3526400054 | BINDING RAIL |
| LEFT | ||
| 100 | A 3526400154 | BINDING RAIL |
| RIGHT | ||
| A 3526370011 | PLATE | |
| THREADED | ||
| A 3529900296 | RIVET | |
| BINDING RAIL TO PLATFORM REAR PANEL | ||
| A 3526370013 | WASHER | |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| FASTENER DETENT | ||
| M 10X30 | ||
| N 912004010102 | LOCK WASHER | |
| FASTENER DETENT | ||
| A 3526370054 | HINGE | |
| REAR PANEL | ||
| A 3526250015 | RING | |
| ON REAR PANEL,LATERAL | ||
| N 000934010014 | NUT | |
| ON REAR PANEL,LATERAL | ||
| N 001444012209 | PIN | |
| REAR PANEL TO SUBSTRUCTURE | ||
| N 000094004065 | COTTER PIN | |
| REAR PANEL TO SUBSTRUCTURE | ||
| 108 | A 3406600093 | CHAIN |
| WITH CHAIN LOCK | ||
| 110 | A 3406600094 | FASTENER |
| Repalced by: A 3406600093 | ||
| 112 | N 000763006004 | CHAIN |
| N 000603008027 | SCREW | |
| MOUNTING OF PLATFORM PARTS | ||
| 8X35 MM | ||
| N 000603008049 | SCREW | |
| MOUNTING OF PLATFORM PARTS | ||
| 8X40 MM | ||
| N 000603008050 | SCREW | |
| MOUNTING OF PLATFORM PARTS | ||
| 8X45 MM | ||
| N 000603008051 | SCREW | |
| MOUNTING OF PLATFORM PARTS | ||
| 8X55 MM | ||
| N 000603008054 | SCREW | |
| MOUNTING OF PLATFORM PARTS | ||
| 8X60 MM | ||
| N 000603008048 | SCREW | |
| MOUNTING OF PLATFORM PARTS | ||
| 8X65 MM | ||
| N 000603008055 | SCREW | |
| MOUNTING OF PLATFORM PARTS | ||
| 8X90 MM | ||
| N 000603008056 | SCREW | |
| MOUNTING OF PLATFORM PARTS | ||
| 8X110 MM | ||
| N 000605008015 | SCREW | |
| MOUNTING OF PLATFORM PARTS | ||
| 8X50 MM | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| MOUNTING OF PLATFORM PARTS | ||
| 8X25 MM | ||
| N 912004008102 | LOCK WASHER | |
| MOUNTING OF PLATFORM PARTS | ||
| N 000440009103 | WASHER | |
| MOUNTING OF PLATFORM PARTS | ||
| N 304032008006 | NUT | |
| MOUNTING OF PLATFORM PARTS | ||
| N 000439008211 | NUT | |
| Repalced by: N 304035008001 | ||
| N 304035008001 | NUT | |
| MOUNTING OF PLATFORM PARTS | ||
| 120 | A 3128582530 | CLAMP |
| Repalced by: A 3228910630 | ||
| 120 | A 3228910630 | CLAMP |
| PLATFORM TO AUXILIARY FRAME | ||
| 395 MM | ||
| 120 | A 3128582030 | CLAMP |
| Repalced by: A 3608910630 | ||
| 120 | A 3608910630 | CLAMP |
| PLATFORM TO AUXILIARY FRAME | ||
| 420 MM | ||
| 123 | A 3288910830 | CLAMP |
| PLATFORM TO AUXILIARY FRAME | ||
| 365 MM | ||
| A 3528910930 | CLAMP | |
| Repalced by: G 613218910030 | ||
| H 613218910030 | CLAMP | |
| Repalced by: A 3218910030 | ||
| 123 | A 3218910030 | CLAMP |
| PLATFORM TO AUXILIARY FRAME | ||
| 385 MM | ||
| A 3288910196 | BASE | |
| Repalced by: A 3528910296 | ||
| 127 | A 3528910196 | BASE |
| Repalced by: A 3528910296 | ||
| A 3128582342 | PAD | |
| Repalced by: A 3528910296 | ||
| 129 | A 3528910296 | BASE |
| CLAMP TO FRAME | ||
| 131 | A 3218580042 | PAD |
| CLAMP TO FRAME | ||
| A 3128581244 | PLATE | |
| Repalced by: A 3528910011 | ||
| 133 | A 3528910011 | PLATE |
| CLAMP TO FRAME | ||
| N 913002012004 | NUT | |
| CLAMP TO FRAME | ||
| 135 | A 3528910013 | PLATE |
| PLATFORM TO FRAME | ||
| N 000960012388 | SCREW | |
| Repalced by: N 000960012443 | ||
| N 000960012443 | SCREW | |
| PLATFORM TO FRAME | ||
| M 12X150 | ||
| N 912004012100 | LOCK WASHER | |
| PLATFORM TO FRAME | ||
| N 000934012022 | NUT | |
| PLATFORM TO FRAME | ||
| 138 | A 3528800021 | REAR FENDER |
| N 000603008050 | SCREW | |
| REAR FENDER TO PLATFORM | ||
| 8X45 MM | ||
| N 000603008051 | SCREW | |
| REAR FENDER TO PLATFORM | ||
| 8X55 MM | ||
| N 000440009103 | WASHER | |
| REAR FENDER TO PLATFORM | ||
| N 912004008102 | LOCK WASHER | |
| REAR FENDER TO PLATFORM | ||
| N 000555008010 | NUT | |
| REAR FENDER TO PLATFORM | ||
| H 603128900289 | FASTENER | |
| Repalced by: A 3128900289 | ||
| 144 | A 3128900289 | FASTENER |
| FOR CHOCK | ||
| 146 | A 3129870040 | RUBBER BUFFER |
| FOR CHOCK | ||
| N 000084005117 | SCREW | |
| FASTENER TO PLATFORM | ||
| N 304032005005 | NUT | |
| FASTENER TO PLATFORM | ||
| H 603128990251 | HINGE | |
| Repalced by: A 3128990251 | ||
| 148 | A 3128990251 | HINGE |
| CHOCK TO PLATFORM | ||
| N 000603006040 | SCREW | |
| FASTENER TO PLATFORM | ||
| N 000934006007 | NUT | |
| FASTENER TO PLATFORM | ||
| 150 | A 3528900010 | FIXTURE |
| Repalced by: A 3528900110 | ||
| 150 | A 3528900110 | FIXTURE |
| CHOCK | ||
| N 000603008049 | SCREW | |
| BRACKET TO BODY | ||
| N 304032008006 | NUT | |
| BRACKET TO BODY | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

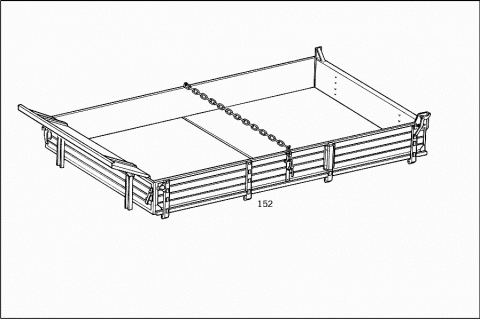

| PLATFORM FOR MEILLER THREE-WAY DUMP TRUCK | ||
| 152 | A 3536000003 | PLATFORM |
| 3600X2100X400 MM | ||
| 152 | A 3536000303 | PLATFORM |
| 3600X2100X400 MM | ||

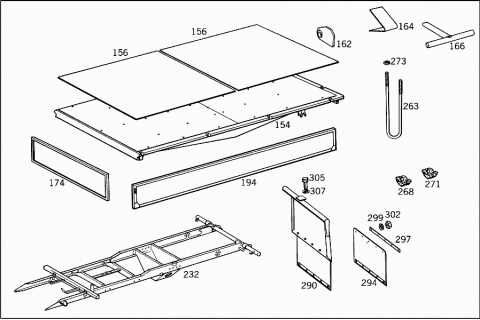

| 154 | A 3536100003 | SUBSTRUCTURE |
| AUXILIARY FRAME | ||
| 156 | A 3536160055 | FLOOR |
| FRONT | ||
| N 000603008059 | SCREW | |
| FLOOR TO PLATFORM FLOOR | ||
| 8X70 MM | ||
| N 000603008050 | SCREW | |
| FLOOR TO PLATFORM FLOOR | ||
| 8X45 MM | ||
| N 000603008001 | SCREW | |
| FLOOR TO PLATFORM FLOOR | ||
| 8X20 MM | ||
| N 000440009103 | WASHER | |
| FLOOR TO PLATFORM FLOOR | ||
| N 304032008006 | NUT | |
| FLOOR TO PLATFORM FLOOR | ||
| 162 | A 3526690111 | PLATE |
| 164 | A 3526690311 | PLATE |
| 166 | A 3526690050 | FASTENER |
| A 3128170093 | INSTRUCTION PLATE | |
| FOR OPERATION IN TILTED POSITION | ||
| N 001155025001 | WIRE NAIL | |
| TO MOUNT INSTRUCTION PLATE | ||

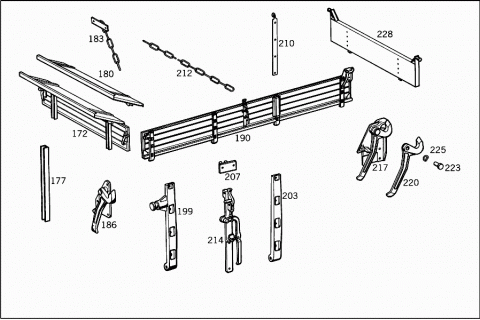

| 172 | A 3536200002 | FRONT PANEL |
| 174 | A 3536200023 | FRAME |
| (BINDING RAIL) | ||
| N 000603006045 | SCREW | |
| BINDING RAIL TO PLATFORM FRONT PANEL | ||
| M 6X30 | ||
| N 000934006007 | NUT | |
| BINDING RAIL TO PLATFORM FRONT PANEL | ||
| 177 | A 3536230025 | BRACING |
| LEFT | ||
| 177 | A 3536230125 | BRACING |
| RIGHT | ||
| N 000603008027 | SCREW | |
| BRACING TO FRONT PANEL | ||
| M 8X35 | ||
| N 304032008006 | NUT | |
| BRACING TO FRONT PANEL | ||
| 180 | A 3586200100 | BAFFLE PLATE |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BAFFLE PLATE TO COWL | ||
| 8X20 MM | ||
| N 000931008244 | SCREW | |
| BAFFLE PLATE TO COWL | ||
| 8X45 MM | ||
| N 000931008266 | SCREW | |
| BAFFLE PLATE TO COWL | ||
| 8X40 MM | ||
| N 304032008006 | NUT | |
| BAFFLE PLATE TO COWL | ||
| 183 | A 3126600193 | CHAIN |
| 186 | A 3586600084 | FASTENER |
| FRONT PANEL,LEFT | ||
| 186 | A 3586600184 | FASTENER |
| FRONT PANEL,RIGHT | ||
| N 000603008049 | SCREW | |
| LOCKING HOOK TO PLATFORM PANEL | ||
| M 8X40 | ||
| N 000440009103 | WASHER | |
| LOCKING HOOK TO PLATFORM PANEL | ||
| N 304032008006 | NUT | |
| LOCKING HOOK TO PLATFORM PANEL | ||
| 190 | A 3286300501 | SIDE PANEL |
| LEFT | ||
| 190 | A 3286300202 | SIDE PANEL |
| RIGHT | ||
| 194 | A 3536300017 | FRAME |
| (BINDING RAIL) | ||
| A 3536300117 | FRAME | |
| (BINDING RAIL) | ||
| N 000603006045 | SCREW | |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 6X30 MM | ||
| N 000605006014 | SCREW | |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 6X30 MM | ||
| N 000934006007 | NUT | |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 199 | A 3286600072 | HINGE PLATE |
| WITH LOCKING PIN,LEFT | ||
| 199 | A 3286600172 | HINGE PLATE |
| WITH LOCKING PIN,RIGHT | ||
| 203 | A 3536690171 | HINGE PLATE |
| WITH LOCKING PIN,LEFT AND RIGHT | ||
| N 000603008049 | SCREW | |
| HINGE TO PLATFORM SIDE PANEL | ||
| M 8X40 | ||
| N 304032008006 | NUT | |
| HINGE TO PLATFORM SIDE PANEL | ||
| 207 | A 3126600091 | HOOK |
| N 000603008049 | SCREW | |
| HOOK TO PLATFORM SIDE PANEL | ||
| 8X40 MM | ||
| N 000605008050 | SCREW | |
| HOOK TO PLATFORM SIDE PANEL | ||
| 8X55 MM | ||
| N 304032008006 | NUT | |
| HOOK TO PLATFORM SIDE PANEL | ||
| 210 | A 3126690014 | BRACKET |
| TENSION CHAIN | ||
| 212 | N 000763008006 | CHAIN |
| 214 | A 3586600194 | FASTENER |
| TENSION CHAIN | ||
| N 000603008049 | SCREW | |
| CHAIN TIGHTENER | ||
| M 8X40 | ||
| N 304032008006 | NUT | |
| CHAIN TIGHTENER | ||
| 217 | A 3586600484 | FASTENER |
| LEFT | ||
| 217 | A 3586600584 | FASTENER |
| RIGHT | ||
| 220 | A 3586690005 | HOOK |
| Repalced by: A 3586600484 | ||
| 220 | A 3586690105 | HOOK |
| Repalced by: A 3586600584 | ||
| 223 | N 001435018001 | PIN |
| FASTENER | ||
| 225 | N 000137018202 | SPRING WASHER |
| FASTENER | ||
| N 000603008049 | SCREW | |
| FASTENER TO SIDE PANEL | ||
| 8X40 MM | ||
| N 000605008013 | SCREW | |
| Repalced by: A 0009841229 | ||
| A 0009841229 | SCREW | |
| FASTENER TO SIDE PANEL | ||
| 8X40 MM | ||
| N 304032008006 | NUT | |
| FASTENER TO SIDE PANEL | ||
| 228 | A 3536400000 | REAR PANEL |
| N 001434012077 | PIN | |
| SIDE PANEL TO SUBSTRUCTURE | ||
| N 000094004065 | COTTER PIN | |
| SIDE PANEL TO SUBSTRUCTURE | ||
| 232 | A 3536100601 | SUBSTRUCTURE |
| (AUXILIARY FRAME) | ||
| 232 | A 3536100701 | SUBSTRUCTURE |
| (AUXILIARY FRAME) | ||
| N 001433016007 | PIN | |
| RETAINING ROPE TO PLATFORM | ||
| N 000094004065 | COTTER PIN | |
| RETAINING ROPE TO PLATFORM | ||

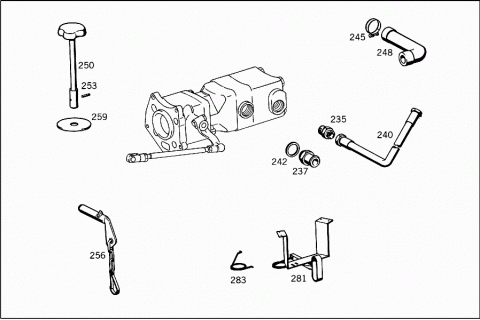

| 235 | A 0019971672 | FITTING |
| DELIVERY LINE TO PUMP | ||
| 237 | A 0019971872 | FITTING |
| SUCTION LINE TO PUMP | ||
| 240 | A 0089971882 | HOSE |
| FROM PUMP TO T-FITTING | ||
| 242 | N 007603030107 | SEAL RING |
| SUCTION LINE TO PUMP | ||
| 245 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 245 | N 000000000668 | CLAMP |
| DUMPING PLATFORM | ||
| 248 | A 3586190065 | LINE |
| SUCTION | ||
| 250 | A 3536190115 | SHAFT |
| DUMPER VALVE OPERATION | ||
| 253 | N 001481005030 | CLAMPING SLEEVE |
| DUMPER VALVE SHAFT TO DUMPER VALVE | ||
| 256 | A 0003150606 | COUPLING PIN |
| FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME | ||
| 259 | A 3296160476 | WASHER |
| (SEAL) | ||
| 263 | A 3528910030 | CLAMP |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| 270 MM | ||
| 263 | A 3408910530 | CLAMP |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| 300 MM | ||
| 263 | A 3528910330 | CLAMP |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| 320 MM | ||
| 268 | A 3528910196 | BASE |
| Repalced by: A 3528910296 | ||
| 271 | A 3528910296 | BASE |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| 273 | N 000934012022 | NUT |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| N 000931012137 | SCREW | |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| M 12X80 | ||
| A 3529901240 | WASHER | |
| Repalced by: A 3149900940 | ||
| A 3149900940 | WASHER | |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| N 913002012004 | NUT | |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| N 002093035101 | DISC SPRING | |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| A 3523160053 | SPACER TUBE | |
| Repalced by: A 3833160053 | ||
| A 3833160053 | SPACER TUBE | |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| A 0019904540 | WASHER | |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| A 3528900010 | FIXTURE | |
| Repalced by: A 3528900110 | ||
| 281 | A 3528900110 | FIXTURE |
| CHOCK | ||
| 283 | A 3528990035 | SPRING |
| CHOCK FIXTURE | ||
| N 000603008050 | SCREW | |
| BRACKET TO BODY | ||
| M 8X45 | ||
| N 000966008014 | SCREW | |
| BRACKET TO BODY | ||
| M 8X18 | ||
| N 304032008006 | NUT | |
| BRACKET TO BODY | ||
| 290 | A 3538800208 | MUD APRON |
| LEFT | ||
| 290 | A 3538800308 | MUD APRON |
| RIGHT | ||
| 294 | A 0008820404 | SPLASH GUARD |
| 450X300 MM | ||
| N 000085005167 | SCREW | |
| M 5X16 | ||
| 297 | A 0008820314 | BRACKET |
| MUD APRON | ||
| 299 | N 912004005103 | LOCK WASHER |
| 302 | N 304032005005 | NUT |
| 305 | N 000933012001 | SCREW |
| MUD APRON TO AUXILIARY FRAME | ||
| M 12X15 | ||
| 307 | N 912004012100 | LOCK WASHER |
| MUD APRON TO AUXILIARY FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
