Transporto priemonė: LP 911 B; VIN numerio dalis: 353056

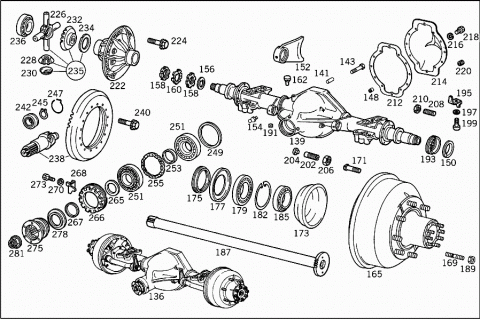

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE,SEE UNIT STANDARD VERSION | ||
| 001 | A 3583500200 | REAR AXLE |
| WITH BRAKES;RATIO: | ||
| 40:7 | ||
| A 3533500200 | REAR AXLE | |
| WITH BRAKES;RATIO: | ||
| 40:7 | ||
| 003 | A 3533500120 | AXLE HOUSING |
| 005 | N 000007008206 | CYLINDRICAL PIN |
| Repalced by: N 000007008101 | ||
| 005 | N 000007008101 | CYLINDRICAL PIN |
| BEARING COVER TO AXLE HOUSING | ||
| 007 | A 3129902201 | SCREW |
| Repalced by: N 914126016000 | ||
| 007 | N 914126016000 | SCREW |
| Repalced by: A 0009905704 | ||
| 007 | A 0009905704 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| A 3123511174 | PIN | |
| Repalced by: A 3523510174 | ||
| 009 | A 3523510174 | PIN |
| AXLE TUBE TO AXLE HOUSING | ||
| 011 | A 3129971002 | PLUG |
| AXLE TUBE TO AXLE HOUSING | ||
| 013 | A 3123571082 | OIL COLLECTOR |
| Repalced by: A 3853570082 | ||
| 013 | A 3853570082 | OIL COLLECTOR |
| REAR AXLE SHAFT | ||
| 015 | A 3533560015 | THRUST RING |
| LEFT | ||
| A 3533560115 | THRUST RING | |
| RIGHT | ||
| A 3534260008 | BEARING BRACKET | |
| BRAKE SHAFT | ||
| 017 | N 071412010100 | GREASE NIPPLE |
| BRAKE SHAFT | ||
| 019 | A 3123571052 | SPACER WASHER |
| OUTSIDE | ||
| 021 | A 3123560026 | GROOVED NUT |
| OUTSIDE | ||
| 023 | A 3123571073 | LOCK |
| OUTSIDE | ||
| 025 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 025 | A 3833510065 | FITTING |
| 027 | A 3533560102 | DRUM HUB |
| 029 | A 3129901605 | STUD |
| 031 | A 3124021071 | WHEEL MOUNTING BOLT |
| Repalced by: A 3524020171 | ||
| 031 | A 3524020171 | WHEEL MOUNTING BOLT |
| 033 | A 3213560082 | OIL COLLECTOR |
| 035 | A 0009976747 | SEAL RING |
| INSIDE | ||
| 037 | A 3123561151 | SPACER RING |
| INSIDE | ||
| 039 | A 0019818105 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 039 | A 0019818005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 039 | A 0009819305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 043 | N 000472110000 | LOCK RING |
| OUTSIDE | ||
| 045 | A 0029812305 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 045 | A 0019818205 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 045 | A 0019817905 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 045 | A 0019812405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 047 | A 3123574001 | REAR AXLE SHAFT |
| 049 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 049 | N 308673012002 | NUT |
| REAR AXLE SHAFT TO HUB | ||
| A 1869970032 | SCREW PLUG | |
| Repalced by: A 3529970032 | ||
| 051 | A 3529970032 | SCREW PLUG |
| OIL DRAIN | ||
| 053 | A 3853350025 | ADJUSTING NUT |
| Repalced by: A 6743530025 | ||
| 053 | A 6743530025 | SCREW COLLAR |
| DRIVE PINION BEARING | ||
| 055 | A 3123531173 | LOCK |
| DRIVE PINION BEARING | ||
| 057 | N 006797008120 | TOOTHED WASHER |
| LOCK TO DIFFERENTIAL CASE BEARING COVER | ||
| 059 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 059 | N 304017008016 | SCREW |
| LOCK TO DIFFERENTIAL CASE BEARING COVER | ||
| 061 | A 3123531076 | SET SCREW |
| Repalced by: A 6703530276 | ||
| 061 | A 6703530276 | SET SCREW |
| RING GEAR CHECK | ||
| 063 | A 3123531049 | SLIDE |
| RING GEAR CHECK | ||
| 065 | N 000936022002 | NUT |
| RING GEAR CHECK | ||
| 067 | A 3123511080 | GASKET |
| Repalced by: A 3123511480 | ||
| 067 | A 3123511480 | GASKET |
| DIFFERENTIAL GEAR | ||
| 069 | A 3813300121 | COVER |
| DIFFERENTIAL GEAR | ||
| 071 | N 912004010102 | LOCK WASHER |
| COVER TO REAR AXLE HOUSING | ||
| 073 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 073 | N 304017010028 | SCREW |
| COVER TO REAR AXLE HOUSING | ||
| A 1869970032 | SCREW PLUG | |
| Repalced by: A 3529970032 | ||
| 075 | A 3529970032 | SCREW PLUG |
| OIL FILLING | ||
| 077 | A 3803300723 | DIFFERENTIAL GEAR |
| A 3803300723 | DIFFERENTIAL GEAR | |
| WITH COVER AND SCREWS | ||
| 079 | N 900170014004 | SCREW |
| 081 | A 3213530220 | DIFFERENTIAL SPIDER |
| 083 | A 3223530614 | DIFFERENTIAL PINION |
| 085 | A 3123531224 | SPHERICAL WASHER |
| 087 | A 3123531515 | SIDE GEAR |
| 089 | A 3123531062 | THRUST WASHER |
| 091 | A 0029812305 | TAPERED ROLLER BEARING |
| 091 | A 0019817905 | TAPERED ROLLER BEARING |
| 091 | A 0019818205 | TAPERED ROLLER BEARING |
| 091 | A 0019812405 | TAPERED ROLLER BEARING |
| 094 | A 3833301639 | RING GEAR AND PINION |
| RATIO: | ||
| 40:7 | ||
| 094 | A 3233501539 | RING GEAR AND PINION |
| RATIO: | ||
| 40:7 | ||
| 096 | A 3223530273 | LOCK |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 098 | A 3239900101 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 100 | A 3129810601 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 102 | N 000471025002 | LOCK RING |
| 104 | A 3129940141 | LOCK |
| DRIVE PINION BEARING | ||
| 106 | A 3123533052 | SPACER WASHER |
| Repalced by: A 3603350052 | ||
| 106 | A 3603350052 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 108 | A 3123531352 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 0.10 MM | ||
| 108 | A 3123533252 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 0.50 MM | ||
| 108 | A 3123531452 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 0.25 MM | ||
| 110 | A 0009819801 | CYLINDR. ROLLER BEARING |
| 110 | A 0009819901 | CYLINDR. ROLLER BEARING |
| 112 | A 0009810027 | ANGULAR CONTACT BEARING |
| DRIVE PINION BEARING | ||
| 114 | A 3123531951 | SPACER RING |
| DRIVE PINION BEARING | ||
| 116 | A 3123532852 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 0.10 MM | ||
| 116 | A 3123533152 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 0.50 MM | ||
| 116 | A 3123532952 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 0.25 MM | ||
| 119 | A 3123511915 | FLANGE |
| 121 | N 912004010102 | LOCK WASHER |
| FLANGE TO AXLE HOUSING | ||
| 123 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 123 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 123 | N 304017010053 | SCREW |
| FLANGE TO AXLE HOUSING | ||
| 10X50 MM | ||
| 123 | N 000931010258 | SCREW |
| FLANGE TO AXLE HOUSING | ||
| 10X70 MM | ||
| A 0009976647 | SEAL RING | |
| Repalced by: A 0019973247 | ||
| 126 | A 0099976347 | SEAL RING |
| 126 | A 0019973247 | SEAL RING |
| Repalced by: A 0119977447 | ||
| 126 | A 0119977447 | SEAL RING |
| 126 | A 0129972947 | SEAL RING |
| 128 | A 3123501245 | FLANGE |
| 130 | A 3122621063 | PROTECTIVE PLATE |
| 133 | A 3243530072 | NUT |
| Repalced by: A 3853510372 | ||
| 133 | A 3853510372 | NUT |
| COUPLING FLANGE TO DRIVE PINION | ||
| 136 | A 3583502500 | REAR AXLE |
| REAR AXLE WITH BRAKES;RATIO: | ||
| 7:48 | ||
| 136 | A 3583502500 | REAR AXLE |
| REAR AXLE WITH BRAKES;RATIO: | ||
| 7:48 | ||
| 136 | A 3583501400 | REAR AXLE |
| REAR AXLE WITH BRAKES;RATIO: | ||
| 7:43 | ||
| 136 | A 3583500200 | REAR AXLE |
| REAR AXLE WITH BRAKES;RATIO: | ||
| 7:40 | ||
| 136 | A 3583500200 | REAR AXLE |
| REAR AXLE WITH BRAKES;RATIO: | ||
| 7:40 | ||
| 136 | A 3533501200 | REAR AXLE |
| REAR AXLE WITH BRAKES;RATIO: | ||
| 7:40 | ||
| 136 | A 3583506900 | REAR AXLE |
| REAR AXLE WITH BRAKES;RATIO: | ||
| 7:48 | ||
| 139 | A 3583500020 | AXLE HOUSING |
| 139 | A 3583500420 | AXLE HOUSING |
| 141 | N 000007006205 | CYLINDRICAL PIN |
| BEARING COVER TO AXLE HOUSING | ||
| 143 | A 3529900801 | SCREW |
| Repalced by: N 914126016005 | ||
| 143 | N 914126016005 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 145 | A 3523510174 | PIN |
| AXLE TUBE TO AXLE HOUSING | ||
| A 3223560015 | THRUST RING | |
| LEFT | ||
| A 3223560115 | THRUST RING | |
| RIGHT | ||
| 148 | A 3129971002 | PLUG |
| AXLE TUBE TO AXLE HOUSING | ||
| 150 | A 3213570082 | OIL COLLECTOR |
| REAR AXLE SHAFT | ||
| 152 | A 3534260008 | BEARING BRACKET |
| BRAKE SHAFT | ||
| 154 | N 071412010100 | GREASE NIPPLE |
| BRAKE SHAFT | ||
| 156 | A 3213560152 | SPACER WASHER |
| 158 | A 3213560126 | GROOVED NUT |
| OUTSIDE | ||
| 160 | A 3213560173 | LOCK PLATE |
| OUTSIDE | ||
| 162 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 162 | A 3833510065 | FITTING |
| 165 | A 3583560102 | DRUM HUB |
| 165 | A 3583560202 | DRUM HUB |
| 169 | A 3129901605 | STUD |
| 169 | A 3129902105 | STUD |
| 171 | A 3524020171 | WHEEL MOUNTING BOLT |
| 173 | A 3213560082 | OIL COLLECTOR |
| 175 | A 0009977446 | SEAL RING |
| Repalced by: A 3813500068 | ||
| 175 | A 3813500068 | REPAIR KIT |
| INSIDE | ||
| 177 | A 3213560051 | SPACER RING |
| 179 | A 0009817205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 179 | A 0009819405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 179 | A 0069810605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 182 | N 000472125000 | LOCK RING |
| OUTSIDE | ||
| 185 | A 0009814605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 185 | A 0009814105 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 187 | A 3223572601 | REAR AXLE SHAFT |
| 189 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 189 | N 308673012002 | NUT |
| REAR AXLE SHAFT TO HUB | ||
| 189 | A 3223530072 | NUT |
| REAR AXLE SHAFT TO HUB | ||
| A 1869970032 | SCREW PLUG | |
| Repalced by: A 3529970032 | ||
| 191 | A 3529970032 | SCREW PLUG |
| OIL DRAIN | ||
| 193 | A 3213530025 | SCREW COLLAR |
| DRIVE PINION BEARING | ||
| 195 | A 3123531173 | LOCK |
| DRIVE PINION BEARING | ||
| 197 | N 006797008120 | TOOTHED WASHER |
| LOCK TO DIFFERENTIAL CASE BEARING COVER | ||
| 199 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 199 | N 304017008016 | SCREW |
| LOCK TO DIFFERENTIAL CASE BEARING COVER | ||
| 202 | A 3833530376 | SET SCREW |
| Repalced by: A 6743530076 | ||
| 202 | A 6743530076 | SET SCREW |
| RING GEAR CHECK | ||
| 204 | A 3853530149 | SLIDE |
| RING GEAR CHECK | ||
| 206 | A 3159900051 | NUT |
| RING GEAR CHECK | ||
| 208 | A 3853370171 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 210 | N 080705014002 | NUT |
| BEARING COVER TO AXLE HOUSING | ||
| 212 | A 3223510180 | GASKET |
| Repalced by: A 6503510080 | ||
| 212 | A 6503510080 | GASKET |
| DIFFERENTIAL GEAR | ||
| 214 | A 3223500421 | COVER |
| DIFFERENTIAL GEAR | ||
| 216 | N 912004010102 | LOCK WASHER |
| COVER TO REAR AXLE HOUSING | ||
| 218 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 218 | N 304017010028 | SCREW |
| COVER TO REAR AXLE HOUSING | ||
| A 1869970032 | SCREW PLUG | |
| Repalced by: A 3529970032 | ||
| 220 | A 3529970032 | SCREW PLUG |
| OIL FILLING | ||
| 222 | A 3833502323 | DIFFERENTIAL GEAR |
| 224 | A 3229903001 | SCREW |
| 226 | A 3833530120 | DIFFERENTIAL SPIDER |
| A 3223530814 | DIFFERENTIAL PINION | |
| Repalced by: A 3023530014 | ||
| 228 | A 3023530014 | DIFFERENTIAL PINION |
| A 3223530024 | SPHERICAL WASHER | |
| Repalced by: A 3523530024 | ||
| 230 | A 3523530024 | SPHERICAL WASHER |
| A 3223530615 | SIDE GEAR | |
| Repalced by: A 3583530015 | ||
| 232 | A 3583530015 | SIDE GEAR |
| 234 | A 3223530162 | THRUST WASHER |
| Repalced by: A 6743530362 | ||
| 234 | A 6743530362 | THRUST WASHER |
| 235 | A 3815860135 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 236 | A 0029811605 | TAPERED ROLLER BEARING |
| 236 | A 0009815705 | TAPERED ROLLER BEARING |
| 236 | A 0029812605 | TAPERED ROLLER BEARING |
| 238 | A 3833500039 | RING GEAR AND PINION |
| Repalced by: A 6163500139 | ||
| 238 | A 6163500139 | RING GEAR AND PINION |
| RATIO: | ||
| 7:48 | ||
| 238 | A 6163500139 | RING GEAR AND PINION |
| RATIO: | ||
| 7:48 | ||
| 238 | A 3833500339 | RING GEAR AND PINION |
| Repalced by: A 3013500739 | ||
| 238 | A 3013500739 | RING GEAR AND PINION |
| RATIO: | ||
| 7:43 | ||
| 238 | A 3833500139 | RING GEAR AND PINION |
| RATIO: | ||
| 7:40 | ||
| 238 | A 3833500139 | RING GEAR AND PINION |
| RATIO: | ||
| 7:40 | ||
| 240 | A 3229902901 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 242 | A 0029817901 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 242 | A 0029819501 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 242 | A 0029818201 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 245 | N 000471035000 | LOCK RING |
| DRIVE PINION BEARING | ||
| 247 | A 3229940137 | SNAP RING |
| DRIVE PINION BEARING | ||
| 249 | A 3273536252 | SPACER WASHER |
| Repalced by: A 6703530852 | ||
| 249 | A 6703530852 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 0.10 MM | ||
| A 3273532262 | THRUST WASHER | |
| Repalced by: A 6703530752 | ||
| 249 | A 6703530752 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 0.15 MM | ||
| A 3273536352 | SPACER WASHER | |
| Repalced by: A 6703530652 | ||
| 249 | A 6703530652 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 0.20 MM | ||
| A 3273536452 | SPACER WASHER | |
| Repalced by: A 6703530552 | ||
| 249 | A 6703530552 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 0.50 MM | ||
| A 3273532362 | THRUST WASHER | |
| Repalced by: A 6703533752 | ||
| 249 | A 6703533752 | SPACER WASHER |
| DRIVE PINION BEARING | ||
| 1.50 MM | ||
| 251 | A 0009814005 | TAPERED ROLLER BEARING |
| 251 | A 0029811105 | TAPERED ROLLER BEARING |
| 251 | A 0019819805 | TAPERED ROLLER BEARING |
| 253 | A 3223530051 | SPACER RING |
| AS REQUIRED | ||
| 15.50 MM | ||
| 255 | A 3223531352 | SPACER WASHER |
| Repalced by: A 6163530152 | ||
| 255 | A 6163530152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.10 MM | ||
| A 3223531552 | SPACER WASHER | |
| Repalced by: A 6163530352 | ||
| 255 | A 6163530352 | SPACER WASHER |
| AS REQUIRED | ||
| 10.14 MM | ||
| A 3223531752 | SPACER WASHER | |
| Repalced by: A 6163530552 | ||
| 255 | A 6163530552 | SPACER WASHER |
| AS REQUIRED | ||
| 10.18 MM | ||
| A 3223531952 | SPACER WASHER | |
| Repalced by: A 6163530752 | ||
| 255 | A 6163530752 | SPACER WASHER |
| AS REQUIRED | ||
| 10.22 MM | ||
| A 3223532152 | SPACER WASHER | |
| Repalced by: A 6163530952 | ||
| 255 | A 6163530952 | SPACER WASHER |
| AS REQUIRED | ||
| 10.26 MM | ||
| A 3223530252 | SPACER WASHER | |
| Repalced by: A 6163531152 | ||
| 255 | A 6163531152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.30 MM | ||
| A 3223530452 | SPACER WASHER | |
| Repalced by: A 6163531352 | ||
| 255 | A 6163531352 | SPACER WASHER |
| AS REQUIRED | ||
| 10.34 MM | ||
| A 3223530652 | SPACER WASHER | |
| Repalced by: A 6163531552 | ||
| 255 | A 6163531552 | SPACER WASHER |
| AS REQUIRED | ||
| 10.38 MM | ||
| A 3223530852 | SPACER WASHER | |
| Repalced by: A 6163531752 | ||
| 255 | A 6163531752 | SPACER WASHER |
| AS REQUIRED | ||
| 10.42 MM | ||
| A 3223531052 | SPACER WASHER | |
| Repalced by: A 6163531952 | ||
| 255 | A 6163531952 | SPACER WASHER |
| AS REQUIRED | ||
| 10.46 MM | ||
| A 3223531252 | SPACER WASHER | |
| Repalced by: A 6163532152 | ||
| 255 | A 6163532152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.50 MM | ||
| 265 | A 3213530762 | THRUST WASHER |
| DRIVE PINION BEARING | ||
| 266 | A 3273531025 | SCREW COLLAR |
| DRIVE PINION BEARING | ||
| 267 | A 0039974446 | SEAL RING |
| Repalced by: A 0089970747 | ||
| 267 | A 0089970747 | SEAL RING |
| Repalced by: A 0169976847 | ||
| 267 | A 0169976847 | SEAL RING |
| DRIVE PINION BEARING | ||
| 268 | A 3223530073 | LOCK |
| DRIVE PINION BEARING | ||
| 270 | N 006797008120 | TOOTHED WASHER |
| LOCK TO AXLE HOUSING | ||
| 273 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 273 | N 304017008039 | SCREW |
| LOCK TO AXLE HOUSING | ||
| A 3273500245 | FLANGE | |
| Repalced by: A 3583500045 | ||
| 275 | A 3583500045 | FLANGE |
| 278 | A 3273530291 | PROTECTIVE PLATE |
| 281 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 281 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 281 | A 3853510172 | NUT |
| COUPLING FLANGE TO DRIVE PINION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
