Transporto priemonė: LP 911 B; VIN numerio dalis: 353056
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.0 | ||

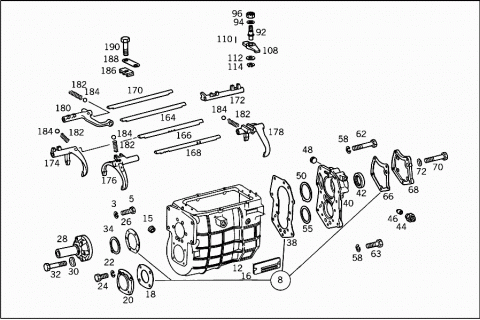

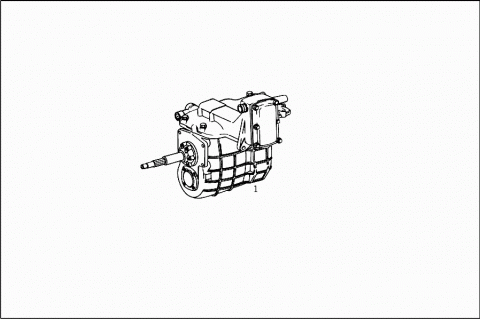

| 001 | A 3532600200 | TRANSMISSION |
| Repalced by: A 3532600000 | ||
| 001 | A 3532600000 | TRANSMISSION |
| 001 | A 3582600200 | TRANSMISSION |
| Repalced by: A 3582600000 | ||
| 001 | A 3582600000 | TRANSMISSION |
| 001 | A 3532600300 | TRANSMISSION |
| Repalced by: A 3532600100 | ||
| 001 | A 3532600100 | TRANSMISSION |
| 001 | A 3582600300 | TRANSMISSION |
| Repalced by: A 3582600100 | ||
| 001 | A 3582600100 | TRANSMISSION |
| Repalced by: A 3802601700 | ||
| 003 | N 912004014100 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 005 | N 000933014014 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 008 | A 0005861126 | REPAIR KIT |
| Repalced by: A 0002600400 | ||
| 008 | A 0002600400 | GASKET KIT |
| Repalced by: A 0002606800 | ||
| 008 | A 0002606800 | GASKET KIT |
| (GASKET KIT) | ||
| 012 | A 3212600211 | TRANSMISSION CASE |
| Repalced by: A 3022600611 | ||
| 012 | A 3522600011 | TRANSMISSION CASE |
| Repalced by: A 3022600611 | ||
| 012 | A 3022600311 | TRANSMISSION CASE |
| Repalced by: A 3022600611 | ||
| 012 | A 3022600611 | TRANSMISSION CASE |
| N 000007010239 | CYLINDRICAL PIN | |
| Repalced by: N 000007010102 | ||
| N 000007010102 | CYLINDRICAL PIN | |
| 015 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 015 | A 3529970032 | SCREW PLUG |
| OIL FILLING | ||
| A 0009973432 | SCREW PLUG | |
| OIL DRAIN | ||
| A 0009972632 | SCREW PLUG | |
| OIL DRAIN | ||
| 016 | A 3215841024 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855845824 | ||
| 016 | A 3855841824 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855845824 | ||
| 016 | A 3855845824 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 6755840024 | ||
| 016 | A 6755840024 | UNIT IDENTIFICATION PLATE |
| N 001476003007 | GROOVED NAIL | |
| 018 | A 3212610779 | GASKET |
| Repalced by: A 3522611280 | ||
| 018 | A 3522611280 | GASKET |
| Repalced by: A 3522611880 | ||
| 018 | A 3522611880 | GASKET |
| FRONT BOTTOM | ||
| 020 | A 3212610133 | COVER |
| FRONT BOTTOM | ||
| 022 | N 912004008102 | LOCK WASHER |
| END COVER TO TRANSMISSION CASE | ||
| 024 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 024 | N 304017008021 | SCREW |
| END COVER TO TRANSMISSION CASE | ||
| 026 | A 3122612179 | GASKET |
| Repalced by: A 3122611180 | ||
| 026 | A 3122611180 | GASKET |
| FRONT TOP | ||
| 028 | A 3212610318 | TRANSMISSION CASE COVER |
| Repalced by: A 3212610418 | ||
| 028 | A 3212610418 | TRANSMISSION CASE COVER |
| FRONT TOP | ||
| 030 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 030 | N 000137008212 | SPRING WASHER |
| CASE COVER TO TRANSMISSION | ||
| 032 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 032 | N 304017008028 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 034 | A 3122625362 | SEAL RING |
| AS REQUIRED | ||
| 2.85 MM | ||
| 034 | A 3122625462 | SEAL RING |
| AS REQUIRED | ||
| 2.90 MM | ||
| 034 | A 3122625562 | SEAL RING |
| AS REQUIRED | ||
| 2.95 MM | ||
| 034 | A 3122623462 | SEAL RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 034 | A 3122624362 | SEAL RING |
| AS REQUIRED | ||
| 3.05 MM | ||
| 034 | A 3122624462 | SEAL RING |
| AS REQUIRED | ||
| 3.10 MM | ||
| 034 | A 3122623562 | SEAL RING |
| AS REQUIRED | ||
| 3.15 MM | ||
| 034 | A 3122623662 | SEAL RING |
| AS REQUIRED | ||
| 3.20 MM | ||
| 034 | A 3122623762 | SEAL RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 038 | A 3212611379 | GASKET |
| Repalced by: A 3812610480 | ||
| 038 | A 3812610480 | GASKET |
| Repalced by: A 3812610780 | ||
| 038 | A 3812610780 | GASKET |
| REAR | ||
| 040 | A 3372610120 | TRANSMISSION CASE COVER |
| Repalced by: A 3372610220 | ||
| 040 | A 3372610220 | TRANSMISSION CASE COVER |
| REAR | ||
| 042 | N 006503058200 | SEAL RING |
| Repalced by: A 0089971146 | ||
| 042 | A 0089971146 | SEAL RING |
| CASE COVER | ||
| 044 | A 3212610031 | THREADED BUSHING |
| CASE COVER | ||
| 046 | A 1202610080 | GASKET |
| Repalced by: A 1152740060 | ||
| 046 | A 0119976647 | SEAL RING |
| Repalced by: A 1152740060 | ||
| 046 | A 1152740060 | SEAL RING |
| Repalced by: A 0119976447 | ||
| 046 | A 0119976447 | SEAL RING |
| CASE COVER | ||
| 048 | N 915015024000 | PLUG |
| CASE COVER | ||
| 050 | A 3212620962 | SEAL RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 050 | A 3212621162 | SEAL RING |
| AS REQUIRED | ||
| 3.20 MM | ||
| 050 | A 3212621362 | SEAL RING |
| AS REQUIRED | ||
| 3.40 MM | ||
| 050 | A 3212621562 | SEAL RING |
| AS REQUIRED | ||
| 3.60 MM | ||
| 055 | A 3122831752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 055 | A 3122831052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 055 | A 3122832452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 055 | A 3122831152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 055 | A 3122831252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 055 | A 3122832152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 058 | N 912004008102 | LOCK WASHER |
| CASE COVER TO TRANSMISSION | ||
| 060 | N 000931008123 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 062 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 062 | N 304017008043 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M 8X55 | ||
| 063 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 063 | N 304017008027 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M 8X30 | ||
| 066 | A 3212611479 | GASKET |
| Repalced by: A 3522611180 | ||
| 066 | A 3522611180 | GASKET |
| Repalced by: A 3522611680 | ||
| 066 | A 3522611680 | GASKET |
| Repalced by: A 3522611980 | ||
| 066 | A 3522611980 | GASKET |
| Repalced by: A 6752611280 | ||
| 066 | A 6752611280 | GASKET |
| 068 | A 3212610333 | COVER |
| CASE COVER | ||
| 070 | N 000931008266 | SCREW |
| CASE COVER | ||
| 072 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 072 | N 000137008212 | SPRING WASHER |
| CASE COVER | ||
| 074 | A 3212611279 | GASKET |
| Repalced by: A 3812610880 | ||
| 074 | A 3812610880 | GASKET |
| CASE COVER | ||

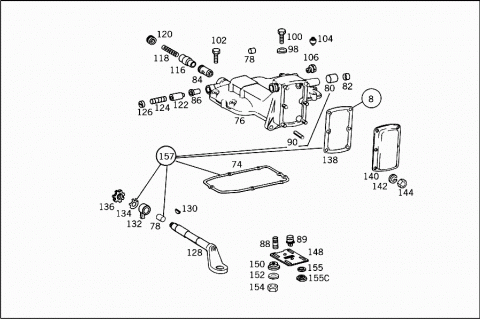

| 076 | A 3522600414 | TRANSMISSION CASE COVER |
| Repalced by: A 3522602914 | ||
| 076 | A 3522601514 | TRANSMISSION CASE COVER |
| Repalced by: A 3522602914 | ||
| 076 | A 3522602914 | TRANSMISSION CASE COVER |
| TOP | ||
| 076 | A 3522600514 | TRANSMISSION CASE COVER |
| Repalced by: A 3522603314 | ||
| 076 | A 3522601614 | TRANSMISSION CASE COVER |
| Repalced by: A 3522603314 | ||
| 076 | A 3522603314 | TRANSMISSION CASE COVER |
| TOP | ||
| 078 | A 3212610050 | BUSHING |
| SHIFTING SHAFT BEARING | ||
| 080 | A 3212610150 | BUSHING |
| SHIFTING SHAFT BEARING | ||
| 082 | N 000443020000 | EXPANSION PLUG |
| SHIFTING SHAFT BEARING | ||
| 084 | A 3212650250 | BUSHING |
| TRANSMISSION CASE TOP COVER | ||
| 086 | A 3212650150 | BUSHING |
| TRANSMISSION CASE TOP COVER | ||
| 088 | N 000835008007 | STUD |
| Repalced by: N 000835008077 | ||
| 088 | N 000835008077 | STUD |
| 089 | A 1362650247 | INTERLOCK PLUG |
| Repalced by: A 3142650044 | ||
| 089 | A 3142650044 | GUIDE PIN |
| 090 | N 000835008008 | STUD |
| 090 | N 000835008064 | STUD |
| 092 | A 3212650474 | PIN |
| 094 | N 000125013008 | WASHER |
| 096 | N 000937012001 | NUT |
| N 000094003219 | COTTER PIN | |
| 098 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 098 | N 000137008212 | SPRING WASHER |
| CASE COVER TO TRANSMISSION | ||
| 100 | N 000931008266 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M 8X40 | ||
| 102 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 102 | N 304017008028 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M 8X50 | ||
| 102 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 102 | N 304017008053 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M 8X60 | ||
| 104 | A 1112600058 | BREATHER |
| 106 | A 1369970830 | SCREW PLUG |
| CASE COVER | ||
| 108 | A 3372650007 | LEVER |
| HOUSING, TOP | ||
| 110 | N 005402302104 | CYLINDRICAL ROLLER |
| LEVER TO TRANSMISSION CASE | ||
| 112 | N 000433017004 | WASHER |
| LEVER TO TRANSMISSION CASE | ||
| 114 | N 900055017300 | LOCK RING |
| LEVER TO TRANSMISSION CASE | ||
| 116 | A 3212650316 | THRUST PIECE |
| Repalced by: A 3212650416 | ||
| 116 | A 3212650416 | THRUST PIECE |
| Repalced by: A 3802650016 | ||
| 116 | A 3802650016 | THRUST PIECE |
| DETENT PLATE | ||
| 118 | A 3219931701 | SPRING |
| DETENT PLATE | ||
| 120 | A 3219970103 | PLUG |
| DETENT PLATE | ||
| 122 | A 3212650248 | INTERLOCK PIN |
| DETENT PLATE | ||
| 124 | A 3219930601 | SPRING |
| DETENT PLATE | ||
| 126 | N 915015024000 | PLUG |
| 128 | A 3522680029 | SHIFTING ROD |
| Repalced by: A 3522605433 | ||
| 128 | A 3522680429 | SHIFTING ROD |
| Repalced by: A 3522605433 | ||
| 128 | A 3522605433 | SHIFTING ROD |
| 128 | A 3522680529 | SHIFTING ROD |
| Repalced by: A 3522605533 | ||
| 128 | A 3522605533 | SHIFTING ROD |
| 130 | N 006888005006 | WOODRUFF KEY |
| 132 | A 3212680533 | SHIFTING FINGER |
| 134 | N 070952020102 | LOCK PLATE |
| 136 | A 3219900160 | NUT |
| 138 | A 3522610080 | GASKET |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 138 | A 3522610280 | GASKET |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 140 | A 3522610033 | COVER |
| 140 | A 3522610333 | COVER |
| 142 | N 912004008102 | LOCK WASHER |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 144 | N 304032008006 | NUT |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 146 | A 0002680497 | BOOT |
| SHIFTING ROD | ||
| N 009045028001 | SNAP RING | |
| SHIFTING ROD | ||
| N 009045038001 | SNAP RING | |
| SHIFTING ROD | ||
| 148 | A 3212600746 | PLATE |
| Repalced by: A 3212600846 | ||
| 148 | A 3212600846 | PLATE |
| CASE COVER | ||
| 148 | A 3852600046 | PLATE |
| CASE COVER | ||
| 150 | A 3212650350 | BUSHING |
| CASE COVER | ||
| 152 | N 900055008002 | SPRING WASHER |
| CASE COVER | ||
| 154 | N 000979008000 | NUT |
| CASE COVER | ||
| N 000094002077 | COTTER PIN | |
| CASE COVER | ||
| 155 | A 1369908240 | WASHER |
| CASE COVER | ||
| 155C | A 1362650272 | NUT |
| CASE COVER | ||
| A 3212681029 | SHIFTING ROD | |
| Repalced by: A 3215860026 | ||
| 156 | A 3212601633 | SHIFTING ROD |
| Repalced by: A 3215860026 | ||
| 157 | A 3215860026 | REPAIR KIT |
| Repalced by: A 3212601933 | ||
| 157 | A 3212601933 | REPAIR KIT |
| Repalced by: A 3212602033 | ||
| 157 | A 3212602033 | SHIFTING ROD |
| PARTS KIT | ||
| N 007993024100 | SNAP RING | |
| SHIFTING ROD | ||
| N 006888005006 | WOODRUFF KEY | |
| SHIFTING ROD | ||
| 158 | A 3522650030 | SELECTOR LEVER |
| SHIFTING ROD | ||
| 160 | N 070952020102 | LOCK PLATE |
| SHIFTING ROD | ||
| 162 | A 3219900160 | NUT |
| SHIFTING ROD | ||
| 164 | A 3212650805 | SHIFTING ROD |
| 1ST SPEED | ||
| 166 | A 3212651805 | SHIFTING ROD |
| 2ND AND 3RD SPEED | ||
| 168 | A 3212651905 | SHIFTING ROD |
| 4TH AND 5TH SPEED | ||
| 170 | A 3212651705 | SHIFTING ROD |
| REVERSE SPEED | ||
| 170 | A 3222650305 | SHIFTING ROD |
| REVERSE SPEED | ||
| 172 | A 3212650423 | SHIFTING DOG |
| Repalced by: A 3222650123 | ||
| 172 | A 3222650123 | SHIFTING DOG |
| 1ST SPEED | ||
| 174 | A 3212651202 | SHIFTING FORK |
| 2ND AND 3RD SPEED | ||
| 176 | A 3212650802 | SHIFTING FORK |
| 4TH AND 5TH SPEED | ||
| 178 | A 3212651301 | SHIFTING FORK |
| 1ST SPEED | ||
| 180 | A 3212650403 | SHIFTING FORK |
| REVERSE SPEED | ||
| 182 | A 3129931001 | SPRING |
| 184 | N 005401311000 | BALL |
| 186 | A 3122651236 | BRACKET |
| CASE COVER | ||
| 188 | A 3129940332 | LOCK |
| CASE COVER | ||
| 190 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 190 | N 304017008034 | SCREW |
| CASE COVER | ||
| A 3215421340 | BRACKET | |
| CASE COVER | ||
| A 3215420071 | SCREW | |
| CASE COVER | ||
| A 3215420440 | BRACKET | |
| CASE COVER | ||
| N 000933006102 | SCREW | |
| CASE COVER | ||
| N 912004006102 | LOCK WASHER | |
| CASE COVER | ||
| N 000934006007 | NUT | |
| CASE COVER | ||

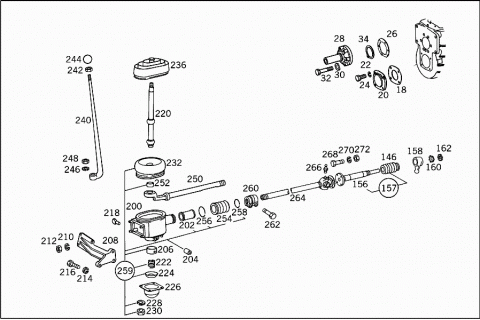

| 200 | A 3522600072 | SHIFT CASE |
| Repalced by: A 3522600872 | ||
| 200 | A 3522600472 | SHIFT CASE |
| Repalced by: A 3522600872 | ||
| 200 | A 3522600872 | SHIFT CASE |
| 202 | A 3522680050 | BUSHING |
| 204 | A 3522680250 | BUSHING |
| 204 | A 3522680250 | BUSHING |
| 206 | A 3522680035 | BEARING |
| Repalced by: A 3522680335 | ||
| 206 | A 3522680335 | BEARING |
| 208 | A 3522680236 | BRACKET |
| SHIFT CASE | ||
| 208 | A 3522680336 | BRACKET |
| SHIFT CASE | ||
| 208 | A 3522680336 | BRACKET |
| SHIFT CASE | ||
| 210 | N 912004010102 | LOCK WASHER |
| SHIFT CASE | ||
| 212 | N 000931010331 | SCREW |
| SHIFT CASE | ||
| 214 | N 912004008102 | LOCK WASHER |
| SHIFT CASE TO BRACKET | ||
| 216 | N 304032008006 | NUT |
| SHIFT CASE TO BRACKET | ||
| 218 | A 3142680149 | SLIDE |
| Repalced by: A 3142680249 | ||
| 218 | A 3142680249 | SLIDE |
| SHIFT CASE | ||
| 218 | A 3142680249 | SLIDE |
| SHIFT CASE | ||
| 220 | A 3522670002 | SHIFT LEVER LOWER PART |
| Repalced by: A 3522670102 | ||
| 220 | A 3522670102 | SHIFT LEVER LOWER PART |
| GEARSHIFT LEVER LOWER PART | ||
| 222 | A 3179930501 | SPRING |
| 224 | A 3172670108 | SPHERICAL PIECE |
| Repalced by: A 3022670008 | ||
| 224 | A 3022670008 | SPHERICAL PIECE |
| 226 | A 3522680005 | COVER |
| 228 | N 912004008102 | LOCK WASHER |
| SHIFT CASE | ||
| 230 | N 304032008006 | NUT |
| SHIFT CASE | ||
| 232 | A 3522680197 | BOOT |
| Repalced by: A 3522680497 | ||
| 232 | A 3522680497 | BOOT |
| SHIFT CASE | ||
| N 900263005000 | STRAP | |
| BOOT TO SHIFT CASE | ||
| 900 MM | ||
| N 900262005100 | LOOM TIE | |
| 236 | A 3222670096 | BOOT |
| Repalced by: A 3522670296 | ||
| 236 | A 3222670296 | BOOT |
| Repalced by: A 3522670296 | ||
| 236 | A 3522670096 | BOOT |
| Repalced by: A 3522670296 | ||
| 236 | A 3522670296 | BOOT |
| TOP | ||
| 236 | A 3522670396 | BOOT |
| TOP | ||
| 240 | A 3352670801 | SHIFT LEVER |
| Repalced by: A 3522670201 | ||
| 240 | A 3522670001 | SHIFT LEVER |
| Repalced by: A 3522670201 | ||
| 240 | A 3522670201 | SHIFT LEVER |
| Repalced by: A 3522603239 | ||
| 240 | A 3522603239 | SHIFT LEVER |
| GEARSHIFT LEVER UPPER PART | ||
| 242 | N 000936010010 | NUT |
| 244 | A 3222600040 | HANDLE |
| SHIFT LEVER | ||
| 246 | N 912004012100 | LOCK WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 248 | N 304032012001 | NUT |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 250 | A 3522601133 | SHIFTING ROD |
| Repalced by: A 3522602033 | ||
| 250 | A 3522602033 | SHIFTING ROD |
| FRONT | ||
| 252 | A 3522680450 | BUSHING |
| SHIFT CASE | ||
| 254 | A 3522680097 | BOOT |
| SHIFT CASE | ||
| 256 | N 009045055000 | SNAP RING |
| SHIFT CASE | ||
| 258 | N 009045028001 | SNAP RING |
| SHIFT CASE | ||
| 259 | A 3532600095 | REPAIR KIT |
| SHIFTING PARTS | ||
| 260 | A 3522680088 | CLAMPING PIECE |
| Repalced by: A 3142680388 | ||
| 260 | A 3142680388 | CLAMPING PIECE |
| BETWEEN FRONT AND REAR SHIFTING TUBES | ||
| 262 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 262 | N 304017010047 | SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| 264 | A 3522600933 | SHIFTING ROD |
| Repalced by: A 3522602133 | ||
| 264 | A 3522602133 | SHIFTING ROD |
| REAR | ||
| 264 | A 3522601033 | SHIFTING ROD |
| Repalced by: A 3522602233 | ||
| 264 | A 3522602233 | SHIFTING ROD |
| REAR | ||
| 266 | N 071412006101 | GREASE NIPPLE |
| 268 | A 3179900301 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 270 | N 912004008102 | LOCK WASHER |
| SHIFTING ROD TO TRANSMISSION | ||
| 272 | N 304032008006 | NUT |
| SHIFTING ROD TO TRANSMISSION | ||

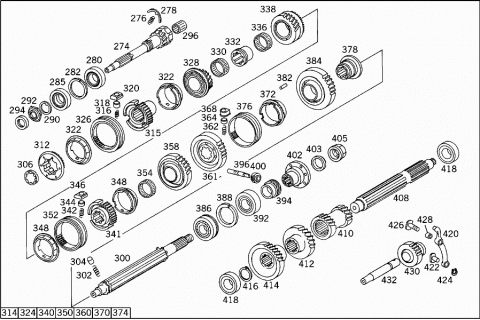

| 274 | A 3222620102 | DRIVE SHAFT |
| Repalced by: A 3222620802 | ||
| 274 | A 3222620802 | DRIVE SHAFT |
| 276 | A 3219931201 | SPRING |
| 278 | A 3212620073 | LOCK |
| 280 | A 0009816201 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0019813101 | ||
| 280 | A 0009817201 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0019813101 | ||
| 280 | A 0009817101 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0019813101 | ||
| 280 | A 0019813101 | CYLINDR. ROLLER BEARING |
| A 0019818701 | CYLINDR. ROLLER BEARING | |
| 282 | N 005417085001 | SNAP RING |
| AS REQUIRED | ||
| 1.70 MM | ||
| 282 | A 0009943435 | SNAP RING |
| AS REQUIRED | ||
| 1.80 MM | ||
| 282 | A 0009942835 | SNAP RING |
| AS REQUIRED | ||
| 1.90 MM | ||
| 285 | A 0009812827 | ANGULAR CONTACT BEARING |
| 285 | A 0009814327 | ANGULAR CONTACT BEARING |
| 285 | A 0019811627 | ANGULAR CONTACT BEARING |
| 290 | A 3122623162 | SEAL RING |
| 292 | A 3122621172 | NUT |
| L.H. THREAD | ||
| 294 | A 0029971346 | SEAL RING |
| Repalced by: A 0089970146 | ||
| 294 | A 0089970146 | SEAL RING |
| Repalced by: A 0159977747 | ||
| 294 | A 0159977747 | SEAL RING |
| FRONT | ||
| 294 | A 0159977647 | SEAL RING |
| FRONT | ||
| 294 | A 0179971447 | SEAL RING |
| FRONT | ||
| 296 | A 0009814312 | ROLLER ASSEMBLY |
| 296 | A 0009814512 | ROLLER ASSEMBLY |
| 296 | A 0009814612 | ROLLER ASSEMBLY |
| 300 | A 3222620005 | MAIN SHAFT |
| Repalced by: A 3222620505 | ||
| 300 | A 3222620505 | MAIN SHAFT |
| Repalced by: A 3222620705 | ||
| 300 | A 3222620705 | MAIN SHAFT |
| 302 | A 3129931701 | SPRING |
| MAIN SHAFT | ||
| 304 | A 3212620374 | PIN |
| Repalced by: A 3852621074 | ||
| 304 | A 3852621074 | PIN |
| MAIN SHAFT | ||
| 306 | A 3212622162 | SEAL RING |
| Repalced by: A 3212623862 | ||
| 306 | A 3212623862 | SEAL RING |
| AS REQUIRED | ||
| 6.90 MM | ||
| 306 | A 3212622062 | SEAL RING |
| Repalced by: A 3212623762 | ||
| 306 | A 3212623762 | SEAL RING |
| AS REQUIRED | ||
| 7.00 MM | ||
| 306 | A 3212621962 | SEAL RING |
| Repalced by: A 3212623662 | ||
| 306 | A 3212623662 | SEAL RING |
| AS REQUIRED | ||
| 7.10 MM | ||
| 306 | A 3212621862 | SEAL RING |
| Repalced by: A 3212623562 | ||
| 306 | A 3212623562 | SEAL RING |
| AS REQUIRED | ||
| 7.20 MM | ||
| 306 | A 3212621762 | SEAL RING |
| Repalced by: A 3212623462 | ||
| 306 | A 3212623462 | SEAL RING |
| AS REQUIRED | ||
| 7.30 MM | ||
| 306 | A 3212620462 | SEAL RING |
| Repalced by: A 3212623962 | ||
| 306 | A 3212623962 | SEAL RING |
| AS REQUIRED | ||
| 7.40 MM | ||
| 306 | A 3212622862 | SEAL RING |
| Repalced by: A 3212624662 | ||
| 306 | A 3212624662 | SEAL RING |
| AS REQUIRED | ||
| 7.45 MM | ||
| 306 | A 3212620562 | SEAL RING |
| Repalced by: A 3212624062 | ||
| 306 | A 3212624062 | SEAL RING |
| AS REQUIRED | ||
| 7.50 MM | ||
| 306 | A 3212622962 | SEAL RING |
| Repalced by: A 3212624762 | ||
| 306 | A 3212624762 | SEAL RING |
| AS REQUIRED | ||
| 7.55 MM | ||
| 306 | A 3212620662 | SEAL RING |
| Repalced by: A 3212624162 | ||
| 306 | A 3212624162 | SEAL RING |
| AS REQUIRED | ||
| 7.60 MM | ||
| 306 | A 3212623062 | SEAL RING |
| Repalced by: A 3212624862 | ||
| 306 | A 3212624862 | SEAL RING |
| AS REQUIRED | ||
| 7.65 MM | ||
| 306 | A 3212620762 | SEAL RING |
| Repalced by: A 3212624262 | ||
| 306 | A 3212624262 | SEAL RING |
| AS REQUIRED | ||
| 7.70 MM | ||
| 306 | A 3212622562 | SEAL RING |
| Repalced by: A 3212624362 | ||
| 306 | A 3212624362 | SEAL RING |
| AS REQUIRED | ||
| 7.80 MM | ||
| 306 | A 3212622662 | SEAL RING |
| Repalced by: A 3212624462 | ||
| 306 | A 3212624462 | SEAL RING |
| AS REQUIRED | ||
| 7.90 MM | ||
| 306 | A 3212622762 | SEAL RING |
| Repalced by: A 3212624562 | ||
| 306 | A 3212624562 | SEAL RING |
| AS REQUIRED | ||
| 8.00 MM | ||
| 312 | A 3222620034 | SYNCHRONIZER RING |
| Repalced by: A 3222620434 | ||
| 312 | A 3222620434 | SYNCHRONIZER RING |
| 5TH SPEED | ||
| 314 | A 3212601445 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 314 | A 3222600645 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 314 | A 3222600845 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 315 | A 3222620735 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 316 | A 3219930701 | SPRING |
| 318 | A 3212620774 | PIN |
| 320 | A 3212621040 | FOLLOWER |
| 322 | A 3212621537 | SYNCHRONIZER CONE |
| Repalced by: A 3222620137 | ||
| 322 | A 3222620137 | SYNCHRONIZER CONE |
| 324 | A 3212600469 | SPRING |
| 326 | A 3212620823 | SLIDING COLLAR |
| Repalced by: A 3212621223 | ||
| 326 | A 3212621223 | SLIDING COLLAR |
| 328 | A 3222600244 | GEAR |
| Repalced by: A 3222602044 | ||
| 328 | A 3222601744 | GEAR |
| Repalced by: A 3222602044 | ||
| 328 | A 3222602044 | GEAR |
| 4TH SPEED | ||
| 330 | A 3229810612 | ROLLER ASSEMBLY |
| Repalced by: A 3529810012 | ||
| 330 | A 3229810812 | ROLLER ASSEMBLY |
| Repalced by: A 3529810012 | ||
| 330 | A 3529810012 | ROLLER ASSEMBLY |
| 4TH SPEED | ||
| 332 | A 3222624050 | BUSHING |
| Repalced by: A 3222626550 | ||
| 332 | A 3222626550 | BUSHING |
| AS REQUIRED | ||
| 44.50 MM | ||
| 332 | A 3222624150 | BUSHING |
| Repalced by: A 3222626650 | ||
| 332 | A 3222626650 | BUSHING |
| AS REQUIRED | ||
| 44.60 MM | ||
| 336 | A 3229810512 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 336 | A 3229810712 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 336 | A 3529810112 | ROLLER ASSEMBLY |
| 3RD SPEED | ||
| 338 | A 3222600644 | GEAR |
| Repalced by: A 3222602444 | ||
| 338 | A 3222601944 | GEAR |
| Repalced by: A 3222602444 | ||
| 338 | A 3222602444 | GEAR |
| 3RD SPEED | ||
| 340 | A 3222600045 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 340 | A 3222600545 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 340 | A 3222600745 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 341 | A 3222620635 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 342 | A 3219930701 | SPRING |
| 2ND AND 3RD SPEED | ||
| 344 | A 3212620774 | PIN |
| 2ND AND 3RD SPEED | ||
| 346 | A 3212621040 | FOLLOWER |
| 2ND AND 3RD SPEED | ||
| 348 | A 3212621537 | SYNCHRONIZER CONE |
| Repalced by: A 3222620137 | ||
| 348 | A 3222620137 | SYNCHRONIZER CONE |
| 2ND AND 3RD SPEED | ||
| 350 | A 3212600469 | SPRING |
| 2ND AND 3RD SPEED | ||
| 352 | A 3212620823 | SLIDING COLLAR |
| Repalced by: A 3212621223 | ||
| 352 | A 3212621223 | SLIDING COLLAR |
| 2ND AND 3RD SPEED | ||
| 354 | A 3229810512 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 354 | A 3229810712 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 354 | A 3529810112 | ROLLER ASSEMBLY |
| 2ND SPEED | ||
| 358 | A 3222620112 | GEAR |
| Repalced by: A 3222620412 | ||
| 358 | A 3222620412 | GEAR |
| 2ND SPEED | ||
| 360 | A 3212600825 | GEAR |
| REVERSE IDLER GEAR | ||
| 360 | A 3222600425 | GEAR |
| REVERSE IDLER GEAR | ||
| 360 | A 3222600625 | GEAR |
| REVERSE IDLER GEAR | ||
| 360 | A 3222600925 | GEAR |
| REVERSE IDLER GEAR | ||
| 361 | A 3222630433 | REVERSE IDLER GEAR |
| 362 | A 3219930701 | SPRING |
| 1ST SPEED AND REVERSE | ||
| 364 | A 3212620674 | PIN |
| 1ST SPEED AND REVERSE | ||
| 368 | A 3212620940 | FOLLOWER |
| 1ST SPEED AND REVERSE | ||
| 370 | A 3212620376 | BALL SOCKET |
| Repalced by: A 3142620076 | ||
| 370 | A 3142620076 | BALL SOCKET |
| 372 | A 3212621537 | SYNCHRONIZER CONE |
| Repalced by: A 3222620137 | ||
| 372 | A 3222620137 | SYNCHRONIZER CONE |
| 1ST SPEED | ||
| 374 | A 3212600469 | SPRING |
| 376 | A 3212620723 | SLIDING COLLAR |
| Repalced by: A 3212621123 | ||
| 376 | A 3212621123 | SLIDING COLLAR |
| 1ST SPEED AND REVERSE | ||
| 376 | A 3222621450 | BUSHING |
| Repalced by: A 3222625950 | ||
| 378 | A 3222625950 | BUSHING |
| AS REQUIRED | ||
| 44.50 MM | ||
| 378 | A 3222621550 | BUSHING |
| Repalced by: A 3222626050 | ||
| 378 | A 3222626050 | BUSHING |
| AS REQUIRED | ||
| 44.60 MM | ||
| 378 | A 3222621650 | BUSHING |
| Repalced by: A 3222626150 | ||
| 378 | A 3222626150 | BUSHING |
| AS REQUIRED | ||
| 44.70 MM | ||
| 382 | N 005402004203 | CYLINDRICAL ROLLER |
| 384 | A 3212620611 | GEAR |
| 1ST SPEED | ||
| 384 | A 3222620111 | GEAR |
| Repalced by: A 3222620511 | ||
| 384 | A 3222620211 | GEAR |
| Repalced by: A 3222620511 | ||
| 384 | A 3222620511 | GEAR |
| 1ST SPEED | ||
| 386 | A 0009811201 | CYLINDR. ROLLER BEARING |
| STANDARD | ||
| 100 MM | ||
| A 0019818901 | CYLINDR. ROLLER BEARING | |
| REPAIR SIZE | ||
| 100.50 MM | ||
| 388 | A 3219940040 | SNAP RING |
| AS REQUIRED | ||
| 2.68 MM | ||
| 388 | A 3219940140 | SNAP RING |
| AS REQUIRED | ||
| 2.73 MM | ||
| 388 | A 3219940240 | SNAP RING |
| AS REQUIRED | ||
| 2.78 MM | ||
| 388 | A 3219940340 | SNAP RING |
| AS REQUIRED | ||
| 2.83 MM | ||
| 388 | A 3219940440 | SNAP RING |
| AS REQUIRED | ||
| 2.88 MM | ||
| 388 | A 3219940540 | SNAP RING |
| AS REQUIRED | ||
| 2.93 MM | ||
| 392 | A 0009810627 | ANGULAR CONTACT BEARING |
| Repalced by: A 0009812927 | ||
| 392 | A 0009812927 | ANGULAR CONTACT BEARING |
| 392 | A 0009814227 | ANGULAR CONTACT BEARING |
| 392 | A 0019811527 | ANGULAR CONTACT BEARING |
| 394 | A 3212640430 | DRIVE GEAR |
| Repalced by: A 3522640130 | ||
| 394 | A 3212640630 | DRIVE GEAR |
| Repalced by: A 3522640130 | ||
| 394 | A 3522640130 | DRIVE GEAR |
| SPEEDOMETER | ||
| 396 | A 3212640532 | SHAFT |
| Repalced by: A 3142640032 | ||
| 396 | A 3142640032 | SHAFT |
| Repalced by: A 3142640332 | ||
| 396 | A 3142640332 | SHAFT |
| SPEEDOMETER | ||
| 400 | A 3212640331 | DRIVE GEAR |
| Repalced by: A 3212640631 | ||
| 400 | A 3212640631 | DRIVE GEAR |
| Repalced by: A 3812640031 | ||
| 400 | A 3812640031 | DRIVE GEAR |
| SPEEDOMETER | ||
| 402 | A 3222620045 | FLANGE |
| 403 | A 3219900240 | WASHER |
| FLANGE TO MAIN SHAFT | ||
| 405 | N 000937028000 | NUT |
| FLANGE TO MAIN SHAFT | ||
| N 000094005045 | COTTER PIN | |
| FLANGE TO MAIN SHAFT | ||
| A 3222620072 | NUT | |
| FLANGE TO MAIN SHAFT | ||
| 408 | A 3212630502 | COUNTERSHAFT |
| 408 | A 3222630202 | COUNTERSHAFT |
| Repalced by: A 3222630302 | ||
| 408 | A 3222630302 | COUNTERSHAFT |
| 410 | A 3222630013 | GEAR |
| Repalced by: A 3222630513 | ||
| 410 | A 3222630313 | GEAR |
| Repalced by: A 3222630513 | ||
| 410 | A 3222630513 | GEAR |
| 2ND AND 3RD SPEED | ||
| 412 | A 3222630114 | GEAR |
| Repalced by: A 3222630314 | ||
| 412 | A 3222630314 | GEAR |
| Repalced by: A 3222630614 | ||
| 412 | A 3222630514 | GEAR |
| Repalced by: A 3222630614 | ||
| 412 | A 3222630614 | GEAR |
| 4TH SPEED | ||
| 414 | A 3222630010 | GEAR |
| Repalced by: A 3222630610 | ||
| 414 | A 3222630610 | GEAR |
| CONSTANT | ||
| 416 | N 900055052300 | LOCK RING |
| 418 | A 0019813105 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 418 | A 0019815005 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 418 | A 0069814305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 418 | A 0069815305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| A 0039814605 | TAPERED ROLLER BEARING | |
| COUNTERSHAFT,FRONT | ||
| 90.50 MM | ||
| A 0039816305 | TAPERED ROLLER BEARING | |
| COUNTERSHAFT,REAR | ||
| 90.50 MM | ||
| 420 | A 3212650208 | LEVER |
| REVERSE SPEED | ||
| 422 | A 3212650449 | SLIDE |
| Repalced by: A 3142650349 | ||
| 422 | A 3142650349 | SLIDE |
| 424 | N 000471010001 | LOCK RING |
| 426 | A 3212650074 | PIN |
| LEVER TO TRANSMISSION CASE | ||
| 428 | A 3212650050 | BUSHING |
| LEVER TO TRANSMISSION CASE | ||
| N 912004010102 | LOCK WASHER | |
| LEVER TO TRANSMISSION CASE | ||
| N 000934010014 | NUT | |
| LEVER TO TRANSMISSION CASE | ||
| A 3022650074 | PIN | |
| LEVER TO TRANSMISSION CASE | ||
| 430 | A 3222600025 | GEAR |
| Repalced by: A 3222600325 | ||
| 430 | A 3222600325 | GEAR |
| Repalced by: A 3222600825 | ||
| 430 | A 3222600825 | GEAR |
| REVERSE SPEED | ||
| 432 | A 3212630430 | REVERSE IDLER SHAFT |
| Repalced by: A 3212630630 | ||
| 432 | A 3212630530 | REVERSE IDLER SHAFT |
| Repalced by: A 3212630630 | ||
| 432 | A 3212630630 | REVERSE IDLER SHAFT |

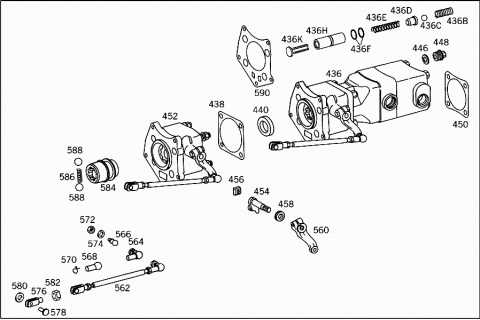

| 436 | A 0002362405 | HYDRAULIC PUMP |
| WITH CONTROL MECHANISM AND WITH LINKAGE | ||
| 436 | A 0002363005 | HYDRAULIC PUMP |
| WITH CONTROL MECHANISM AND WITH LINKAGE | ||
| 436B | A 0049936301 | SPRING |
| REAR | ||
| 436B | A 0049936101 | SPRING |
| REAR | ||
| 436C | A 0019814085 | BALL |
| Repalced by: A 0019815085 | ||
| 436C | A 0019815085 | BALL |
| 12.70 MM | ||
| 436C | N 005401310000 | BALL |
| 10.00 MM | ||
| 436D | A 0002360935 | VALVE |
| REAR | ||
| 436D | A 0002360835 | VALVE |
| REAR | ||
| 436E | A 0049936401 | SPRING |
| FRONT | ||
| 436E | A 0049936201 | SPRING |
| FRONT | ||
| 436F | A 0002361160 | SEAL RING |
| VALVE | ||
| 436F | A 0002361060 | SEAL RING |
| VALVE | ||
| 436H | A 0002360817 | PISTON |
| Repalced by: A 0002361117 | ||
| 436H | A 0002361117 | PISTON |
| MEILLER DUMPER PUMP | ||
| 436H | A 0002360717 | PISTON |
| MEILLER DUMPER PUMP | ||
| 436K | A 0002360735 | VALVE |
| FRONT | ||
| 436K | A 0002360635 | VALVE |
| FRONT | ||
| 438 | A 0002360180 | GASKET |
| MEILLER DUMPER PUMP | ||
| 438 | A 0002360380 | GASKET |
| MEILLER DUMPER PUMP | ||
| A 0059977246 | SEAL RING | |
| IN FLANGE BEARING | ||
| 440 | A 0002360376 | WASHER |
| IN FLANGE BEARING | ||
| 440 | A 0079977446 | SEAL RING |
| IN FLANGE BEARING | ||
| N 007603010107 | SEAL RING | |
| MEILLER DUMPER PUMP | ||
| A 0002360271 | SCREW | |
| MEILLER DUMPER PUMP | ||
| N 007603022101 | SEAL RING | |
| MEILLER DUMPER PUMP | ||
| A 0009979430 | SCREW PLUG | |
| MEILLER DUMPER PUMP | ||
| 446 | N 007603022102 | SEAL RING |
| MEILLER DUMPER PUMP | ||
| 448 | A 0019970630 | SCREW PLUG |
| MEILLER DUMPER PUMP | ||
| 450 | A 0002640479 | GASKET |
| MEILLER DUMPER PUMP | ||
| 452 | A 0002300045 | FLANGE |
| ASSEMBLY,WITH CONTROL MECHANISM | ||
| 454 | A 0002300120 | LEVER |
| Repalced by: A 0002300220 | ||
| 454 | A 0002300220 | LEVER |
| MEILLER DUMPER PUMP CONTROL | ||
| 456 | A 0002360016 | FOLLOWER |
| MEILLER DUMPER PUMP CONTROL | ||
| 458 | N 003760014200 | RADIAL SEAL RING |
| Repalced by: A 0019978346 | ||
| 458 | A 0019978346 | SEAL RING |
| MEILLER DUMPER PUMP CONTROL | ||
| 560 | A 0002300020 | LEVER |
| MEILLER DUMPER PUMP CONTROL | ||
| N 000933008150 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| MEILLER DUMPER PUMP CONTROL | ||
| N 912004008102 | LOCK WASHER | |
| MEILLER DUMPER PUMP CONTROL | ||
| N 304032008006 | NUT | |
| MEILLER DUMPER PUMP CONTROL | ||
| 562 | A 0002300021 | ROD |
| MEILLER DUMPER PUMP CONTROL | ||
| 564 | N 071802013203 | ANGLE JOINT |
| MEILLER DUMPER PUMP CONTROL | ||
| 566 | N 071803013102 | BALL PIVOT |
| MEILLER DUMPER PUMP CONTROL | ||
| 568 | N 071805013203 | BALL SOCKET |
| MEILLER DUMPER PUMP CONTROL | ||
| N 071805013302 | SNAP RING | |
| MEILLER DUMPER PUMP CONTROL | ||
| 570 | N 071805013402 | SECURING CLIP |
| MEILLER DUMPER PUMP CONTROL | ||
| 572 | N 304032008006 | NUT |
| MEILLER DUMPER PUMP CONTROL | ||
| 574 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 574 | N 000137008212 | SPRING WASHER |
| MEILLER DUMPER PUMP CONTROL | ||
| 576 | N 071752008002 | YOKE |
| MEILLER DUMPER PUMP CONTROL | ||
| 578 | A 0009910305 | PIN |
| MEILLER DUMPER PUMP CONTROL | ||
| 580 | N 000433008406 | WASHER |
| MEILLER DUMPER PUMP CONTROL | ||
| N 000094002059 | COTTER PIN | |
| MEILLER DUMPER PUMP CONTROL | ||
| 582 | N 304032008006 | NUT |
| MEILLER DUMPER PUMP CONTROL | ||
| 584 | A 0002300023 | DRIVE |
| MEILLER DUMPER PUMP | ||
| 586 | A 0029932701 | SPRING |
| MEILLER DUMPER PUMP | ||
| 588 | N 005401308000 | BALL |
| MEILLER DUMPER PUMP | ||
| 590 | A 0002640279 | GASKET |
| MEILLER DUMPER PUMP | ||

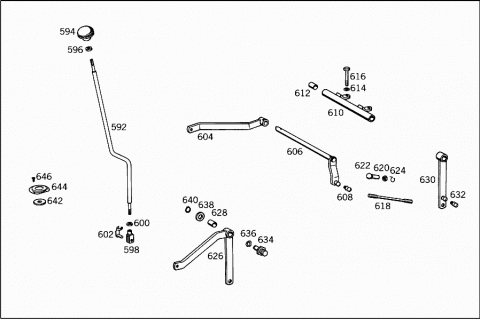

| 592 | A 3522600633 | SHIFTING ROD |
| Repalced by: A 3522605233 | ||
| 592 | A 3522605233 | SHIFTING ROD |
| MEILLER DUMPER PUMP | ||
| 592 | A 3522604633 | SHIFTING ROD |
| MEILLER DUMPER PUMP | ||
| 594 | A 3372600040 | HANDLE |
| SHIFT LEVER | ||
| 596 | N 000936010010 | NUT |
| SHIFT LEVER | ||
| 598 | N 071752008002 | YOKE |
| SHIFT LEVER | ||
| 600 | N 304032008006 | NUT |
| SHIFT LEVER | ||
| 602 | N 918001008002 | PIN |
| SHIFT LEVER | ||
| N 900055008002 | SPRING WASHER | |
| SHIFT LEVER | ||
| 604 | A 3522602137 | LEVER |
| SHIFTING SHAFT | ||
| N 001473006013 | GROOVED PIN | |
| LEVER TO SHIFTING SHAFT | ||
| 606 | A 3522600038 | SHAFT |
| (SHIFTING SHAFT) | ||
| 608 | N 071803013207 | BALL PIVOT |
| 610 | A 3522600195 | BEARING |
| SHIFTING SHAFT | ||
| 612 | A 0019920101 | BUSHING |
| 614 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 616 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 616 | N 304017008043 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 618 | A 3522600089 | PULL ROD |
| Repalced by: N 900331008262 | ||
| 618 | N 900331008262 | PULL ROD |
| Repalced by: N 900331008420 | ||
| 618 | N 900331008420 | PULL ROD |
| AT SHIFTING ROD | ||
| 620 | N 304032008006 | NUT |
| MEILLER DUMPER PUMP CONTROL | ||
| 622 | N 071805013203 | BALL SOCKET |
| MEILLER DUMPER PUMP CONTROL | ||
| N 071805013302 | SNAP RING | |
| MEILLER DUMPER PUMP CONTROL | ||
| 624 | N 071805013402 | SECURING CLIP |
| MEILLER DUMPER PUMP CONTROL | ||
| 626 | A 3522600037 | LEVER |
| SHIFTING SHAFT | ||
| 628 | A 0019920101 | BUSHING |
| 630 | A 3522600937 | LEVER |
| SHIFTING SHAFT | ||
| A 0019920101 | BUSHING | |
| 632 | N 071803013207 | BALL PIVOT |
| 634 | A 3212640074 | PIN |
| MEILLER DUMPER PUMP CONTROL | ||
| 636 | A 3129900148 | WASHER |
| MEILLER DUMPER PUMP CONTROL | ||
| 638 | N 000433015005 | WASHER |
| MEILLER DUMPER PUMP CONTROL | ||
| 640 | N 000471015000 | LOCK RING |
| MEILLER DUMPER PUMP CONTROL | ||
| 642 | A 3142680276 | WASHER |
| MEILLER DUMPER PUMP CONTROL | ||
| 644 | A 3372640057 | LOCKING CAP |
| MEILLER DUMPER PUMP CONTROL | ||
| 646 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 646 | N 000000002062 | SCREW |
| MEILLER DUMPER PUMP CONTROL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
