Transporto priemonė: LP 911 B; VIN numerio dalis: 353058
Grupė: 42 BRAKE SYSTEM - 001 BRAKES

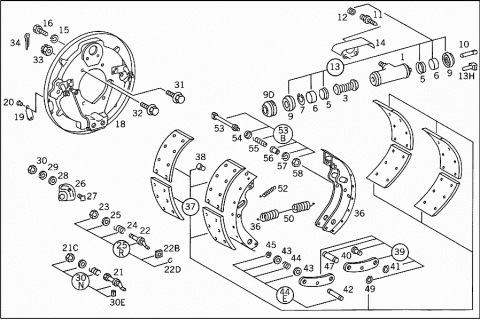

44008
44009
44010
44011
44012
44013
44014
44015
44016
44017
44018
44019
44020
44021
44022
44023
44024
44025
44026
44027

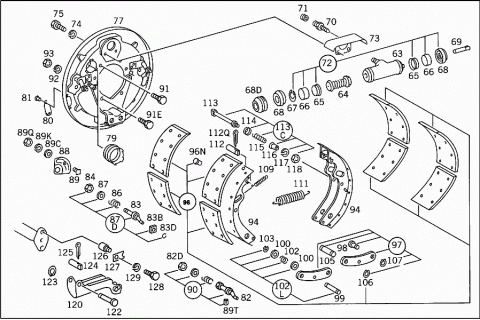

# Kodas Pavadinimas
001 A 0024201818 WHEEL BRAKE CYLINDER
Repalced by: A 0034207718
001 A 0024207618 WHEEL BRAKE CYLINDER
Repalced by: A 0034207718
001 A 0034207718 WHEEL BRAKE CYLINDER
FRONT WHEEL BRAKE
41.27 MM
003 A 0004212190 SPRING
TO 002 420 18 18
003 A 0004212590 SPRING
TO 002 420 76 18,003 420 77 18
005 A 0004211286 CUP
TO 002 420 18 18
006 A 0004212783 PISTON
TO 002 420 18 18
007 A 0009948141 LOCK
TO 002 420 18 18
009 A 0004213187 PROTECTIVE CAP
Repalced by: A 3164210087
009 A 3164210087 PROTECTIVE CAP
TO 002 420 76 18,003 420 77 18
009D A 0004213287 PROTECTIVE CAP
SHEET METAL VERSION
TO 003 420 77 18
010 A 0004231088 THRUST PIN
011 A 0004310265 VALVE
Repalced by: A 3075530107
011 A 3075530107 VALVE
TO 002 420 18 18,002 420 76 18,
Y YYYYYYYYYYYY PART NAME MISSING
003 420 77 18
012 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
012 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
012 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
012 A 0004210887 PROTECTIVE CAP
TO 002 420 76 18,003 420 77 18
013 A 0005865042 REPAIR KIT
TO 002 420 18 18,76 18,003 420 77 18
013H A 3024210088 THRUST PIN
014 A 3414210020 PROTECTIVE PLATE
WHEEL CYLINDER
014 A 3024210020 PROTECTIVE PLATE
WHEEL CYLINDER
015 N 912004010102 LOCK WASHER
PROTECTIVE PLATE AND WHEEL BRAKE CYLINDER TO BRAKE ANCHOR PLATE
016 N 000933010164 SCREW
PROTECTIVE PLATE AND WHEEL BRAKE CYLINDER TO BRAKE ANCHOR PLATE
018 A 3534200216 BRAKE ANCHOR PLATE
Repalced by: A 3534200516
018 A 3534200416 BRAKE ANCHOR PLATE
Repalced by: A 3534200516
018 A 3534200516 BRAKE ANCHOR PLATE
019 A 3124211068 INSPECTION HOLE COVER
020 A 3129900096 RIVET
021 A 3124201338 ADJUSTER
Repalced by: A 3285860142
021C N 000934014019 NUT
Repalced by: N 308673014001
021C N 308673014001 NUT
022 A 3024230019 ADJUSTING PIN
Repalced by: A 3025860042
022 A 3024230619 ADJUSTING PIN
Repalced by: A 3025860042
022B A 3024210029 SLIDE
Repalced by: A 3024210129
022B A 3024210129 SLIDE
Repalced by: A 3024210229
022B A 3024210229 SLIDE
Repalced by: A 3024210329
022B A 3024210329 SLIDE
022D A 3124211073 LOCK
023 A 3529900050 NUT
Repalced by: A 3589900051
023 A 3589900051 NUT
024 A 3129934901 SPRING
025 A 3029900340 WASHER
025R A 3025860042 REPAIR KIT
Repalced by: A 3024202938
025R A 3024202938 REPAIR KIT
BRAKE READJUSTMENT
A 3584210073 LOCK
Repalced by: A 3584210173
026 A 3584210173 LOCK
027 A 3024210071 SCREW
028 N 000125013008 WASHER
029 N 912004012100 LOCK WASHER
030 N 000934012022 NUT
030E N 001473004012 GROOVED PIN
A 3285860142 REPAIR KIT
Repalced by: A 3284200138
030N A 3284200138 REPAIR KIT
BRAKE READJUSTMENT
A 3539900104 SCREW
Repalced by: N 900170012019
A 3559900104 SCREW
Repalced by: N 900170012019
031 N 900170012055 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
M 12X1.50X45 MM
A 3539900204 SCREW
Repalced by: N 000961012043
032 N 000961012106 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
M 12X1.50X35 MM
033 N 000935012003 NUT
FRONT WHEEL BRAKE TO STEERING KNUCKLE
034 N 000094003219 COTTER PIN
FRONT WHEEL BRAKE TO STEERING KNUCKLE
A 3534200020 BRAKE SHOE
Repalced by: A 3534200019
A 3534200120 BRAKE SHOE
Repalced by: A 3534200019
A 3534200220 BRAKE SHOE
Repalced by: A 3534200019
A 3534200019 BRAKE SHOE
Repalced by: A 3534200819
A 3534200719 BRAKE SHOE
Repalced by: A 3534200819
036 A 3534200819 BRAKE SHOE
037 A 3534232610 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 353 423 00 10)
037 A 3534233910 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 353 423 35 10)
037 A 3534232710 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 353 423 01 10)
037 A 3534234010 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 353 423 36 10)
037 A 3534232810 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.30 MM,8X 353 423 02 10)
037 A 3534234110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 353 423 37 10)
038 N 007338008305 RIVET
Repalced by: A 3079900197
038 A 3079900197 RIVET
BRAKE LINING
A 3024210013 SHACKLE
Repalced by: A 3385860042
039 A 3385860042 REPAIR KIT
Repalced by: A 3384200289
039 A 3384200289 REPAIR KIT
BRAKE SHOE SHACKLE
A 3024210074 PIN
Repalced by: A 3024210174
040 A 3024210174 PIN
BRAKE SHOE TO THRUST SHACKLE
041 N 000471025002 LOCK RING
BRAKE SHOE TO THRUST SHACKLE
041 N 900055025301 LOCK RING
BRAKE SHOE TO THRUST SHACKLE
042 A 3124231174 PIN
Repalced by: A 3385860342
043 A 3024210052 SPACER WASHER
Repalced by: A 3385860342
044 A 3029930001 SPRING
Repalced by: A 3385860342
044 A 3029930201 SPRING
Repalced by: A 3385860342
A 3385860342 REPAIR KIT
Repalced by: A 3384200082
044E A 3384200082 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
045 A 3124211073 LOCK
BRAKE SHOE TO BRAKE ANCHOR PLATE
045 A 3124211073 LOCK
BRAKE SHOE TO BRAKE ANCHOR PLATE
A 3024210018 PIVOT PIN
Repalced by: A 3024210118
047 A 3024210118 PIVOT PIN
BRAKE SHOE WITH SHACKLE TO BRAKE ANCHOR
049 N 000471025002 LOCK RING
BRAKE SHOE WITH SHACKLE TO BRAKE ANCHOR
049 N 900055025301 LOCK RING
BRAKE SHOE WITH SHACKLE TO BRAKE ANCHOR
050 A 3414210092 SPRING
Repalced by: A 3524210192
050 A 3524210192 SPRING
RELEASE SPRING
A 3124211192 SPRING
Repalced by: A 3029930310
052 A 3029930310 SPRING
AT BRAKE SHOE
053 A 3414210174 PIN
Repalced by: A 3585860242
A 3415860042 REPAIR KIT
Repalced by: A 3585860242
053B A 3585860242 REPAIR KIT
Repalced by: A 3584200182
053B A 3584200182 REPAIR KIT
BRAKE SHOE MOUNTING BOLT
054 A 3124231089 FILLER
BRAKE SHOE TO BRAKE ANCHOR
055 A 3129933801 SPRING
Repalced by: A 3529930501
055 A 3529930501 SPRING
BRAKE SHOE TO BRAKE ANCHOR
056 A 3124231189 FILLER
BRAKE SHOE TO BRAKE ANCHOR
057 N 912004008102 LOCK WASHER
BRAKE SHOE TO BRAKE ANCHOR
058 N 304032008006 NUT
BRAKE SHOE TO BRAKE ANCHOR
063 A 0024201818 WHEEL BRAKE CYLINDER
REAR WHEEL BRAKE
41.27 MM
A 0024201918 WHEEL BRAKE CYLINDER
Repalced by: A 0034207818
A 0024207718 WHEEL BRAKE CYLINDER
Repalced by: A 0034207818
063 A 0034207818 WHEEL BRAKE CYLINDER
REAR WHEEL BRAKE
44.45 MM
064 A 0004212190 SPRING
TO 002 420 18 18
064 A 0004232493 SPRING
065 A 0004211286 CUP
TO 002 420 18 18
065 A 0004230886 CUP
TO 002 420 19 18,77 18,003 420 78 18
066 A 0004212783 PISTON
TO 002 420 18 18
066 A 0004232083 PISTON
TO 002 420 19 18,77 18,003 420 78 18
067 A 0009948141 LOCK
TO 002 420 18 18
067 N 000472045000 LOCK RING
TO 002 420 19 18
A 0004232287 PROTECTIVE CAP
Repalced by: A 0004213187
A 0004213187 PROTECTIVE CAP
Repalced by: A 3164210087
068 A 3164210087 PROTECTIVE CAP
TO 002 420 18 18
068 A 0004232187 PROTECTIVE CAP
068D A 0004212987 PROTECTIVE CAP
SHEET METAL VERSION
TO 003 420 78 18
069 A 0004231088 THRUST PIN
TO 002 420 18 18,002 420 19 18,77 18
070 A 0004310265 VALVE
Repalced by: A 3075530107
070 A 3075530107 VALVE
071 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
071 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
071 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
071 A 0004210887 PROTECTIVE CAP
072 A 0005863142 REPAIR KIT
TO 003 420 78 18,002 420 77 18
073 A 3414210020 PROTECTIVE PLATE
WHEEL CYLINDER
073 A 3024210020 PROTECTIVE PLATE
WHEEL CYLINDER
074 N 912004010102 LOCK WASHER
PROTECTIVE PLATE AND WHEEL BRAKE CYLINDER TO BRAKE ANCHOR PLATE
075 N 000933010164 SCREW
PROTECTIVE PLATE AND WHEEL BRAKE CYLINDER TO BRAKE ANCHOR PLATE
077 A 3534200017 BRAKE ANCHOR PLATE
LEFT
077 A 3584200017 BRAKE ANCHOR PLATE
Repalced by: A 3584200417
077 A 3584200417 BRAKE ANCHOR PLATE
Repalced by: A 3584200817
077 A 3584200817 BRAKE ANCHOR PLATE
LEFT
077 A 3534200117 BRAKE ANCHOR PLATE
RIGHT
077 A 3584200117 BRAKE ANCHOR PLATE
Repalced by: A 3584200517
077 A 3584200517 BRAKE ANCHOR PLATE
Repalced by: A 3584200917
077 A 3584200917 BRAKE ANCHOR PLATE
RIGHT
079 A 3024270054 PIPE SOCKET
080 A 3124211068 INSPECTION HOLE COVER
081 A 3129900096 RIVET
082 A 3124201338 ADJUSTER
Repalced by: A 3285860142
082D N 000934014019 NUT
Repalced by: N 308673014001
082D N 308673014001 NUT
083 A 3024230019 ADJUSTING PIN
Repalced by: A 3025860042
083 A 3024230619 ADJUSTING PIN
Repalced by: A 3025860042
083B A 3024210029 SLIDE
Repalced by: A 3024210129
083B A 3024210129 SLIDE
Repalced by: A 3024210229
083B A 3024210229 SLIDE
Repalced by: A 3024210329
083B A 3024210329 SLIDE
083D A 3124211073 LOCK
A 3529900050 NUT
Repalced by: A 3589900051
084 A 3589900051 NUT
086 A 3129934901 SPRING
087 A 3029900340 WASHER
087D A 3025860042 REPAIR KIT
Repalced by: A 3024202938
087D A 3024202938 REPAIR KIT
BRAKE READJUSTMENT
A 3584210073 LOCK
Repalced by: A 3584210173
088 A 3584210173 LOCK
089 A 3024210071 SCREW
089C N 000125013008 WASHER
089K N 912004012100 LOCK WASHER
089Q N 000934012022 NUT
089T N 001473004012 GROOVED PIN
A 3285860142 REPAIR KIT
Repalced by: A 3284200138
090 A 3284200138 REPAIR KIT
BRAKE READJUSTMENT
091 N 000961012190 SCREW
Repalced by: N 308676012012
091 N 308676012012 SCREW
REAR WHEEL BRAKE TO REAR AXLE
M 12X1.50X25 MM
091E N 308676012010 SCREW
REAR WHEEL BRAKE TO REAR AXLE
M 12X1.50X40 MM
092 N 912004012100 LOCK WASHER
REAR WHEEL BRAKE TO REAR AXLE
093 N 000934012023 NUT
Repalced by: N 308673012002
093 N 308673012002 NUT
REAR WHEEL BRAKE TO REAR AXLE
A 3534200020 BRAKE SHOE
Repalced by: A 3534200019
A 3414200620 BRAKE SHOE
Repalced by: A 3414200319
A 3534200120 BRAKE SHOE
Repalced by: A 3534200019
A 3414200720 BRAKE SHOE
Repalced by: A 3414200319
A 3534200220 BRAKE SHOE
Repalced by: A 3534200019
A 3414200820 BRAKE SHOE
Repalced by: A 3414200319
094 A 3534200019 BRAKE SHOE
Repalced by: A 3534200819
094 A 3534200719 BRAKE SHOE
Repalced by: A 3534200819
094 A 3534200819 BRAKE SHOE
094 A 3414200319 BRAKE SHOE
Repalced by: A 3414201019
094 A 3414201019 BRAKE SHOE
096 A 3534232610 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 353 423 00 10)
096 A 3534233910 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 353 423 35 10)
096 A 3414230810 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 341 423 00 10
096 A 3414234510 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 341 423 42 10)
096 A 3534232710 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 353 423 01 10)
096 A 3534234010 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 353 423 36 10)
096 A 3414230910 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 341 423 01 10)
096 A 3414234610 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 341 423 43 10)
096 A 3534232810 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.30 MM,8X 353 423 02 10)
096 A 3534234110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 353 423 37 10)
096 A 3414231010 BRAKE LINING
(PARTS KIT)
17.30 MM,8X 341 423 02 10)
A 3414234710 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 341 423 44 10)
096N N 007338008305 RIVET
Repalced by: A 3079900197
096N A 3079900197 RIVET
BRAKE LINING
A 3024210013 SHACKLE
Repalced by: A 3385860042
097 A 3385860042 REPAIR KIT
Repalced by: A 3384200289
097 A 3384200289 REPAIR KIT
BRAKE SHOE SHACKLE
A 3024210074 PIN
Repalced by: A 3024210174
098 A 3024210174 PIN
BRAKE SHOE TO THRUST SHACKLE
099 A 3124231174 PIN
Repalced by: A 3385860342
100 A 3024210052 SPACER WASHER
Repalced by: A 3385860342
A 3029930001 SPRING
Repalced by: A 3385860342
102 A 3029930201 SPRING
Repalced by: A 3385860342
A 3385860342 REPAIR KIT
Repalced by: A 3384200082
102L A 3384200082 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
103 A 3124211073 LOCK
BRAKE SHOE TO BRAKE ANCHOR PLATE
103 A 3124211073 LOCK
BRAKE SHOE TO BRAKE ANCHOR PLATE
A 3024210018 PIVOT PIN
Repalced by: A 3024210118
105 A 3024210118 PIVOT PIN
BRAKE SHOE WITH SHACKLE TO BRAKE ANCHOR
106 N 000471025002 LOCK RING
BRAKE SHOES TO BRAKE SHOE PIN
107 N 900055025301 LOCK RING
BRAKE SHOES TO BRAKE SHOE PIN
A 3124211192 SPRING
Repalced by: A 3029930310
109 A 3029930310 SPRING
AT BRAKE SHOE
A 3414230092 SPRING
Repalced by: A 3029930610
111 A 3029930610 SPRING
RELEASE SPRING
112 A 3024230018 PIVOT PIN
Repalced by: A 3024230518
112 A 3024230518 PIVOT PIN
BRAKE SHAFT TO BRAKE SHOE
112Q N 000094004065 COTTER PIN
113 A 3414210174 PIN
Repalced by: A 3585860242
A 3415860042 REPAIR KIT
Repalced by: A 3585860242
113C A 3585860242 REPAIR KIT
Repalced by: A 3584200182
113C A 3584200182 REPAIR KIT
BRAKE SHOE MOUNTING BOLT
114 A 3124231089 FILLER
BRAKE SHOE TO BRAKE ANCHOR
115 A 3129933801 SPRING
Repalced by: A 3529930501
115 A 3529930501 SPRING
BRAKE SHOE TO BRAKE ANCHOR
116 A 3124231189 FILLER
BRAKE SHOE TO BRAKE ANCHOR
117 N 912004008102 LOCK WASHER
BRAKE SHOE TO BRAKE ANCHOR
118 N 304032008006 NUT
BRAKE SHOE TO BRAKE ANCHOR
A 3024200119 THRUST SHACKLE
Repalced by: A 3024201419
120 A 3024201419 THRUST SHACKLE
Repalced by: A 3834200389
120 A 3834200389 SHACKLE
HAND BRAKE
122 A 3024230074 PIN
Repalced by: A 3024230774
122 A 3024230774 PIN
THRUST SHACKLE TO BRAKE SHOE
123 N 000471018000 LOCK RING
THRUST SHACKLE TO BRAKE SHOE
124 A 3024230174 PIN
THRUST SHACKLE TO BRAKE SHOE
125 N 000094004065 COTTER PIN
THRUST SHACKLE TO BRAKE SHOE
126 A 3024230474 PIN
Repalced by: A 3024230874
126 A 3024230874 PIN
Repalced by: A 3024230974
126 A 3024230974 PIN
BRAKE SHAFT TO THRUST SHACKLE
127 A 3029940109 LOCK
BRAKE SHAFT TO THRUST SHACKLE
128 N 000933008130 SCREW
Repalced by: N 304017008039
128 N 304017008039 SCREW
BRAKE SHAFT TO THRUST SHACKLE
129 N 912004008102 LOCK WASHER
BRAKE SHAFT TO THRUST SHACKLE

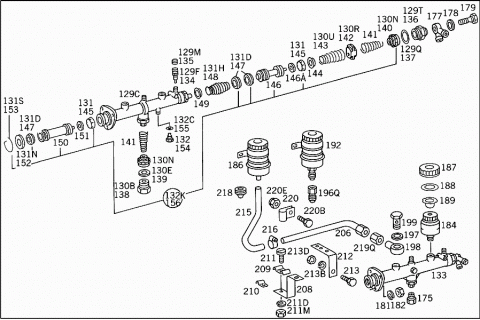

129C A 0014305101 BRAKE MASTER CYLINDER
A 0004310265 VALVE
Repalced by: A 3075530107
129F A 3075530107 VALVE
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
129M A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
129M A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
129M A 0004210887 PROTECTIVE CAP
129Q N 007603040102 SEAL RING
129T A 0004310522 THREADED UNION
130B A 0004310475 THREADED UNION
130E N 007603032100 SEAL RING
A 0004310760 SEAL RING
Repalced by: A 0004300381
A 0004300081 VALVE
Repalced by: A 0004300381
130N A 0004300381 VALVE
A 0009930605 SPRING
130R A 0004312676 WASHER
130U A 0004314393 SPRING
A 0004310989 SPRING RETAINER
131 A 0004315886 CUP
A 0004314683 PISTON
A 0004311785 FILLER RING
131D A 0039975246 SEAL RING
131H A 0004315493 SPRING
A 0004310989 SPRING RETAINER
A 0004314583 PISTON
A 0004311785 FILLER RING
A 0004310376 WASHER
Repalced by: A 0004311176
131N A 0004311176 WASHER
131S A 0004310194 LOCK
132 A 0004310671 SCREW
132C N 007603008109 SEAL RING
A 0005840910 INSTRUCTION PLATE
132K A 0005864643 REPAIR KIT
133 A 0024308201 BRAKE MASTER CYLINDER
133 A 0014306801 BRAKE MASTER CYLINDER
Repalced by: A 0024301901
133 A 0024301901 BRAKE MASTER CYLINDER
134 A 0004310265 VALVE
Repalced by: A 3075530107
134 A 3075530107 VALVE
135 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
135 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
135 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
135 A 0004210887 PROTECTIVE CAP
136 A 0004310522 THREADED UNION
137 N 007603040102 SEAL RING
138 A 0004310475 THREADED UNION
139 N 007603032100 SEAL RING
A 0004310760 SEAL RING
Repalced by: A 0004300381
140 A 0004300081 VALVE
Repalced by: A 0004300381
140 A 0004300381 VALVE
141 A 0009930605 SPRING
142 A 0004312676 WASHER
143 A 0004317393 SPRING
144 A 0004312089 SPRING RETAINER
145 A 0004316686 CUP
146 A 0004315083 PISTON
146A A 0004310585 FILLER RING
147 A 0049972046 SEAL RING
148 A 0004317493 SPRING
149 A 0004312089 SPRING RETAINER
150 A 0004315183 PISTON
151 A 0004310585 FILLER RING
152 A 0004310376 WASHER
Repalced by: A 0004311176
152 A 0004311176 WASHER
153 A 0004310194 LOCK
154 A 0004310671 SCREW
155 N 007603008109 SEAL RING
A 0005840910 INSTRUCTION PLATE
156 A 0005864943 REPAIR KIT
TO 001 430 68 01,002 430 19 01
156 A 0005869543 REPAIR KIT
Repalced by: A 0004303083
156 A 0004303083 PISTON
TO 002 430 82 01

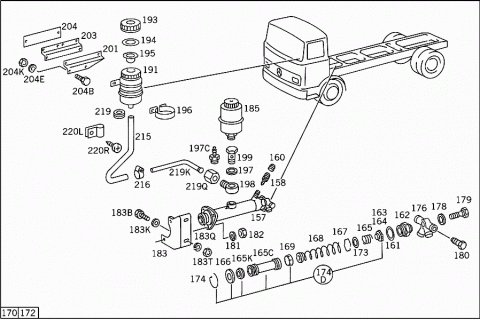

157 A 0024309101 BRAKE MASTER CYLINDER
Repalced by: A 0024302101
157 A 0024303601 BRAKE MASTER CYLINDER
Repalced by: A 0024302101
157 A 0024302101 BRAKE MASTER CYLINDER
TEVES
157 A 0024308401 BRAKE MASTER CYLINDER
SCHAEFER
158 A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
158 A 0004310265 VALVE
Repalced by: A 3075530107
158 A 3075530107 VALVE
160 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
160 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
160 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
160 A 0004210887 PROTECTIVE CAP
161 A 0004319260 SEAL RING
TO 002 430 91 01
161 N 007603040102 SEAL RING
TO 002 430 36 01,002 430 21 01
162 A 0004311075 THREADED UNION
TO 002 430 36 01,002 430 21 01
163 A 0004310760 SEAL RING
Repalced by: A 0004300381
164 A 0004300081 VALVE
Repalced by: A 0004300381
164 A 0004300381 VALVE
TO 002 430 36 01,002 430 21 01
A 0009934205 SPRING
TO 002 430 91 01
165 A 0009930605 SPRING
TO 002 430 36 01,002 430 21 01
165C A 0004312983 PISTON
TO 002 430 21 01,36 01
165K A 0004310886 CUP
TO 002 430 21 01,36 01
166 A 0004311776 WASHER
TO 002 430 36 01,002 430 21 01
166 A 0004313676 WASHER
TO 002 430 91 01
167 A 0009941835 SNAP RING
TO 002 430 36 01,002 430 21 01
168 A 0004314293 SPRING
TO 002 430 36 01,002 430 21 01
A 0009934405 SPRING
TO 002 430 91 01
169 A 0004317586 CUP
TO 002 430 36 01,002 430 21 01
Y YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
165 C
Y YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
165 K
173 A 0004311176 WASHER
TO 002 430 36 01,002 430 21 01
A 0004310994 LOCK
TO 002 430 91 01
174 A 0004310194 LOCK
TO 002 430 36 01,002 430 21 01
174D A 0005864843 REPAIR KIT
TO 002 430 36 01,001 430 21 01
174D A 0015860243 REPAIR KIT
Repalced by: A 0004303183
174D A 0004303183 PISTON
TO 002 430 91 01,002 430 84 01
175 A 0004230184 FITTING
BRAKE MASTER CYLINDER
176 A 0004280124 DISTRIBUTOR
BRAKE MASTER CYLINDER
177 A 0004281924 DISTRIBUTOR
BRAKE MASTER CYLINDER
178 N 007603014405 SEAL RING
BRAKE MASTER CYLINDER
179 A 0004280026 HOLLOW SCREW
BRAKE MASTER CYLINDER
180 A 0004280032 SCREW PLUG
TO BANJO UNION
181 N 912004010102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
182 N 000934010014 NUT
MASTER CYLINDER TO BRAKE BOOSTER
183 A 3524310740 BRACKET
BRAKE MASTER CYLINDER
183 A 3524310940 BRACKET
BRAKE MASTER CYLINDER
183B N 000933010157 SCREW
BRACKET TO SIDE MEMBER
M 10X28 MM
183B N 000933010145 SCREW
BRACKET TO SIDE MEMBER
M 10X35 MM
183K N 000125010518 WASHER
Repalced by: N 000125010532
183K N 000125010532 WASHER
BRACKET TO SIDE MEMBER
183Q N 912004010102 LOCK WASHER
BRACKET TO SIDE MEMBER
183T N 000934010014 NUT
BRACKET TO SIDE MEMBER
184 A 0004311602 RESERVOIR
AT BRAKE MASTER CYLINDER
A 0002951815 RESERVOIR
Repalced by: A 0004311602
185 A 0004312102 RESERVOIR
AT BRAKE MASTER CYLINDER
185 A 0004312102 RESERVOIR
AT BRAKE MASTER CYLINDER
185 A 0014313702 RESERVOIR
AT BRAKE MASTER CYLINDER
185 A 0014313702 RESERVOIR
AT BRAKE MASTER CYLINDER
186 A 0004314702 RESERVOIR
BRAKE FLUID
186 A 0004314702 RESERVOIR
BRAKE FLUID
186 A 0004314702 RESERVOIR
BRAKE FLUID
186 A 0014312902 RESERVOIR
BRAKE FLUID
186 A 0014312902 RESERVOIR
BRAKE FLUID
186 A 0014312902 RESERVOIR
BRAKE FLUID
187 A 0004313533 FILLER CAP
Repalced by: A 0004315433
187 A 0004311333 FILLER CAP
Repalced by: A 0004315133
187 A 0004313133 FILLER CAP
Repalced by: A 0004315133
187 A 0004314333 FILLER CAP
Repalced by: A 0004315133
187 A 0004315133 FILLER CAP
Repalced by: A 0004315433
187 A 0004315433 FILLER CAP
BUTTRESS THREAD
A 0002950237 SCREW PLUG
Repalced by: A 0004315433
188 A 0009972940 SEAL RING
43.7X30 MM
188 A 0039976440 SEAL RING
42X21.5 MM
188 A 0039976440 SEAL RING
TO 001 431 37 02,001 431 29 02
189 A 0004310034 STRAINER
Repalced by: A 0004313734
189 A 0004313734 STRAINER
Repalced by: A 0004314334
189 A 0004314334 STRAINER
TO 000 431 16 02,08 02,000 295 18 15
189 A 0004314334 STRAINER
TO 000 431 21 02,47 02,001 431 29 02
189 A 0004314334 STRAINER
TO 001 431 37 02
A 0002950023 STRAINER
Repalced by: A 0004313734
191 A 0004315302 RESERVOIR
BRAKE FLUID
192 A 0004310802 RESERVOIR
BRAKE FLUID
193 A 0004315433 FILLER CAP
BUTTRESS THREAD
194 A 0009972940 SEAL RING
43.7X30 MM
194 A 0039976440 SEAL RING
42X21.5 MM
195 A 0004314334 STRAINER
196 A 0004311040 CLAMP
TO 000 431 08 02,000 431 47 02
196 A 0004310743 CLAMP
TO 000 431 53 02
196Q A 0004310435 CONNECTOR
197 N 007603022102 SEAL RING
BRAKE MASTER CYLINDER
197C A 0009971473 FITTING
BRAKE MASTER CYLINDER
198 A 0004280130 CONNECTOR
198 A 0004280130 CONNECTOR
198 A 0004280130 CONNECTOR
198 A 0004280130 CONNECTOR
199 A 0004280126 HOLLOW SCREW
BRAKE MASTER CYLINDER
199 A 0004280126 HOLLOW SCREW
BRAKE MASTER CYLINDER
199 A 0004280126 HOLLOW SCREW
BRAKE MASTER CYLINDER
199 A 0004280126 HOLLOW SCREW
BRAKE MASTER CYLINDER
A 3524280440 BRACKET
BRAKE FLUID RESERVOIR
201 A 3524280540 BRACKET
BRAKE FLUID RESERVOIR
201 A 3524280540 BRACKET
BRAKE FLUID RESERVOIR
A 3524280640 BRACKET
BRAKE FLUID RESERVOIR
A 3524280640 BRACKET
BRAKE FLUID RESERVOIR
203 A 3534310440 BRACKET
BRAKE FLUID RESERVOIR
203 A 3534310440 BRACKET
BRAKE FLUID RESERVOIR
204 A 3524310084 SHIM
AT BRACKET
204 A 3524310084 SHIM
AT BRACKET
204B N 000933006103 SCREW
Repalced by: N 304017006018
204B N 304017006018 SCREW
BRAKE FLUID RESERVOIR
M 6X12
204B N 000933006102 SCREW
BRAKE FLUID RESERVOIR
M 6X15
204B N 000933006102 SCREW
BRAKE FLUID RESERVOIR
M 6X16
204E N 000137006204 SPRING WASHER
BRAKE FLUID RESERVOIR
204K N 913004006002 NUT
Repalced by: N 913004006001
204K N 913004006001 NUT
BRAKE FLUID RESERVOIR
204K N 000934006007 NUT
BRAKE FLUID RESERVOIR
A 3524206528 LINE
Repalced by: A 3524206628
A 3524200329 LINE
Repalced by: A 3524206628
206 A 3524206628 LINE
FROM FLUID RESERVOIR TO CYLINDER
1500 MM
A 3524200229 LINE
Repalced by: A 3524200628
206 A 3524200628 LINE
FROM FLUID RESERVOIR TO CYLINDER
1400 MM
A 3524207630 LINE
Repalced by: A 3524207730
206 A 3524207730 LINE
FROM FLUID RESERVOIR TO CYLINDER
1175 MM
A 3524207930 LINE
Repalced by: A 3524207830
206 A 3524207830 LINE
1365 MM
A 3524280140 BRACKET
AT CAB CONSOLE
208 A 3524280840 BRACKET
AT CAB CONSOLE
208 A 3524280840 BRACKET
AT CAB CONSOLE
209 A 3199950132 CLAMP
Repalced by: A 3379950332
209 A 3379950332 CLAMP
BRAKE LINE MOUNTING
209 A 3379950332 CLAMP
BRAKE LINE MOUNTING
210 A 1989950020 CLAMP
BRAKE LINE MOUNTING

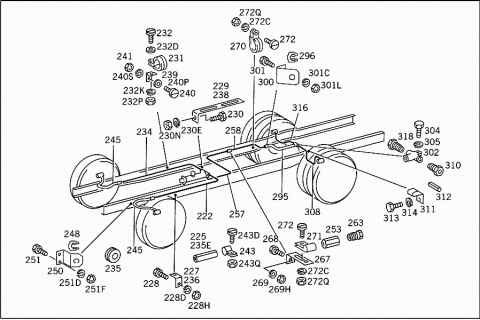

211 N 000084006134 SCREW
BRAKE LINE MOUNTING
211D N 912004006102 LOCK WASHER
BRAKE LINE MOUNTING
211M N 000934006007 NUT
BRAKE LINE MOUNTING
212 A 3525420440 BRACKET
Repalced by: A 3525422840
212 A 3525422840 BRACKET
BRAKE LINE MOUNTING
213 N 000933010128 SCREW
BRAKE LINE MOUNTING
213B N 912004010102 LOCK WASHER
BRAKE LINE MOUNTING
213D N 000934010014 NUT
BRAKE LINE MOUNTING
215 A 0069977082 HOSE
FROM FLUID RESERVOIR TO CYLINDER
A 0079972282 HOSE
FROM FLUID RESERVOIR TO CYLINDER
215 A 0079974382 HOSE
Repalced by: A 0009978952
215 A 0079974982 HOSE
Repalced by: A 0009978952
215 A 0079974282 HOSE
Repalced by: A 0009978952
215 A 0009978952 HOSE
FROM FLUID RESERVOIR TO CYLINDER
215 A 0009978952 HOSE
FROM FLUID RESERVOIR TO CYLINDER
216 N 900288012001 CLAMP
BRAKE LINE MOUNTING
216 N 900288015000 CLAMP
BRAKE LINE MOUNTING
216 N 900288015000 CLAMP
BRAKE LINE MOUNTING
A 3524206728 LINE
FROM FLUID RESERVOIR TO CYLINDER
A 3149970381 GROMMET
Repalced by: A 3359970081
218 A 3359970081 GROMMET
219 A 0009973081 GROMMET
219 A 0009973081 GROMMET
219 A 0009973081 GROMMET
219 A 0009973081 GROMMET
219 A 0009972881 GROMMET
219K A 3534282501 LINE
FROM RESERVOIR HOSE TO BRAKE MASTER CYLINDER
219Q A 0009970273 FITTING
FROM RESERVOIR HOSE TO BRAKE MASTER CYLINDER
220 A 3609951901 CLAMP
PRESSURE GAUGE LINE TO BRACKET
220 A 3609951901 CLAMP
BRAKE LINE TO BRACKET
220B N 000933006102 SCREW
BRAKE LINE TO BRACKET
220E N 913004006002 NUT
Repalced by: N 913004006001
220E N 913004006001 NUT
BRAKE LINE TO BRACKET
A 3609950501 CLAMP
Repalced by: A 3609952001
220L A 3609952001 CLAMP
Repalced by: A 6739950001
220L A 6739950001 CLAMP
HOSE TO CAB SUPPORT
220R N 007981006208 SHEET METAL SCREW
HOSE TO CAB SUPPORT
222 A 3224205428 LINE
Repalced by: A 3404203129
222 A 3404203129 LINE
FROM MASTER CYLINDER TO LEFT FRONT WHEEL CONNECTOR
1700 MM
222 A 3524201628 LINE
Repalced by: A 3404202929
222 A 3404202929 LINE
FROM MASTER CYLINDER TO LEFT FRONT WHEEL CONNECTOR
1600 MM
222 A 3224205528 LINE
Repalced by: A 3404203829
222 A 3404203829 LINE
FROM MASTER CYLINDER TO LEFT FRONT WHEEL CONNECTOR
2200 MM
222 A 3524201728 LINE
Repalced by: A 3404204029
222 A 3404204029 LINE
FROM MASTER CYLINDER TO LEFT FRONT WHEEL CONNECTOR
2600 MM
225 A 3129970582 HOSE
227 A 3604280243 ANGLE
LINE TO SIDE MEMBER
227 A 3604280243 ANGLE
LINE TO SIDE MEMBER
228 N 000933008147 SCREW
Repalced by: N 304017008021
228 N 304017008021 SCREW
ANGLE TO FRAME
228D N 912004008102 LOCK WASHER
ANGLE TO FRAME
228H N 304032008006 NUT
ANGLE TO FRAME
229 A 3524290740 BRACKET
BRAKE LINE TO CROSS MEMBER
229 A 3524290740 BRACKET
BRAKE LINE TO CROSS MEMBER
230 N 000933008177 SCREW
Repalced by: N 304017008024
230 N 304017008024 SCREW
BRACKET TO CROSS MEMBER
230E N 912004008102 LOCK WASHER
BRACKET TO CROSS MEMBER
230N N 304032008006 NUT
BRACKET TO CROSS MEMBER
231 A 3604300143 CLAMP
Repalced by: N 916016008200
231 N 916016008200 CLAMP
BRAKE LINE MOUNTING
232 N 000084006197 SCREW
BRAKE LINE MOUNTING
232D N 000125006421 WASHER
BRAKE LINE MOUNTING
232K N 912004006102 LOCK WASHER
BRAKE LINE MOUNTING
232P N 000934006007 NUT
BRAKE LINE MOUNTING
234 A 3224205628 LINE
Repalced by: A 3404203929
234 A 3404203929 LINE
FROM MASTER CYLINDER TO RIGHT FRONT WHEEL CONNECTOR
2400 MM
234 A 3524205829 LINE
Repalced by: A 3404204029
234 A 3404204029 LINE
FROM MASTER CYLINDER TO RIGHT FRONT WHEEL CONNECTOR
2600 MM
234 A 3224205728 LINE
Repalced by: A 3404203129
234 A 3404203129 LINE
FROM MASTER CYLINDER TO RIGHT FRONT WHEEL CONNECTOR
1700 MM
234 A 3524205929 LINE
Repalced by: A 3404202729
234 A 3404202729 LINE
FROM MASTER CYLINDER TO RIGHT FRONT WHEEL CONNECTOR
1500 MM
234 A 3404202929 LINE
FROM MASTER CYLINDER TO RIGHT FRONT WHEEL CONNECTOR
1600 MM
235 A 3859970081 GROMMET
LINE THRU FRAME
235E A 3129970582 HOSE
A 3524281640 BRACKET
Repalced by: A 3604280243
236 A 3604280243 ANGLE
LINE TO SIDE MEMBER
236 A 3604280243 ANGLE
LINE TO SIDE MEMBER
238 A 3524290740 BRACKET
BRAKE LINE TO CROSS MEMBER
238 A 3524290740 BRACKET
BRAKE LINE TO CROSS MEMBER
239 A 3604280143 ANGLE
LINE TO SIDE MEMBER
240 N 000084006137 SCREW
ANGLE TO FRAME
240P N 000125006421 WASHER
ANGLE TO FRAME
240S N 912004006102 LOCK WASHER
ANGLE TO FRAME
241 N 000934006007 NUT
ANGLE TO FRAME
243 A 3129950935 CLAMP
BRAKE LINE MOUNTING
243D N 000084004151 SCREW
BRAKE LINE MOUNTING
M 4X6 MM
243Q N 000934004006 NUT
BRAKE LINE MOUNTING
245 A 0004284335 BRAKE HOSE
Repalced by: A 0004288235
245 A 0004288735 BRAKE HOSE
Repalced by: A 0004288235
245 A 0014283235 BRAKE HOSE
Repalced by: A 0004288235
245 A 0004289135 BRAKE HOSE
Repalced by: A 0004288235
245 A 0004288235 BRAKE HOSE
FRONT
550 MM
248 A 0004280473 BRACKET
Repalced by: A 6525040038
248 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
250 A 3224280140 BRACKET
BRAKE HOSE,FRONT
251 N 000933008147 SCREW
Repalced by: N 304017008021
251 N 304017008021 SCREW
BRACKET TO SIDE MEMBER
251 N 000933008153 SCREW
Repalced by: N 304017008034
251 N 304017008034 SCREW
BRACKET TO SIDE MEMBER
251D N 912004008102 LOCK WASHER
BRACKET TO SIDE MEMBER
251F N 304032008006 NUT
STEERING NUT BEARING
A 0004280531 CONNECTOR
Repalced by: A 0004292736
253 A 0004292736 CONNECTOR
MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE
256 A 3224205886 BRACKET
Repalced by: A 3404204629

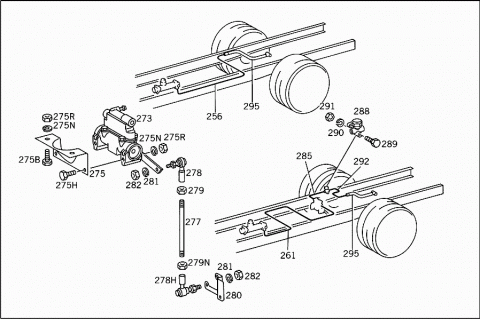

256 A 3404204629 LINE
FROM MASTER CYLINDER TO REAR AXLE
3800 MM
256 A 3404204929 LINE
FROM MASTER CYLINDER TO REAR AXLE
4400 MM
256 A 3404205229 LINE
FROM MASTER CYLINDER TO REAR AXLE
5000 MM
256 A 3404202929 LINE
FROM MASTER CYLINDER TO REAR AXLE
1600 MM
256 A 3524206429 LINE
Repalced by: A 3404203929
256 A 3404203929 LINE
FROM MASTER CYLINDER TO REAR AXLE
2400 MM
256 A 3404204229 LINE
FROM MASTER CYLINDER TO REAR AXLE
3000 MM
256 A 3404204529 LINE
FROM MASTER CYLINDER TO REAR AXLE
3600 MM
256 A 3404203729 LINE
FROM MASTER CYLINDER TO REAR AXLE
2000 MM
256 A 3404203729 LINE
FROM MASTER CYLINDER TO REAR AXLE
2000 MM
256 A 3224205928 LINE
Repalced by: A 3404204429
256 A 3404204429 LINE
FROM MASTER CYLINDER TO REAR AXLE
3400 MM
256 A 3404202929 LINE
FROM MASTER CYLINDER TO REAR AXLE
1600 MM
256 A 3404204029 LINE
FROM MASTER CYLINDER TO REAR AXLE
2600 MM
256 A 3404205129 LINE
FROM MASTER CYLINDER TO REAR AXLE
4800 MM
256 A 3404204329 LINE
FROM MASTER CYLINDER TO REAR AXLE
3200 MM
256 A 3404204229 LINE
FROM MASTER CYLINDER TO REAR AXLE
A 3524206529 LINE
Repalced by: A 3404203529
256 A 3404203529 LINE
FROM MASTER CYLINDER TO REAR AXLE
1900 MM
256 A 3404202729 LINE
FROM MASTER CYLINDER TO REAR AXLE
256 A 3404202729 LINE
FROM MASTER CYLINDER TO REAR AXLE
257 A 3404202529 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE AT REAR AXLE
140 MM
257 A 3404204029 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE AT REAR AXLE
257 A 3404201429 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE AT REAR AXLE
850 MM
257 A 3404204329 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE AT REAR AXLE
257 A 3404203729 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE AT REAR AXLE
2000 MM
257 A 3404202929 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE AT REAR AXLE
1600 MM
257 A 3404201429 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE AT REAR AXLE
850 MM
258 A 3404204329 LINE
FROM CONNECTOR TO BRAKE HOSE
3200 MM
258 A 3404204029 LINE
FROM CONNECTOR TO BRAKE HOSE
2600 MM
258 A 3404203729 LINE
FROM CONNECTOR TO BRAKE HOSE
2000 MM
A 3524201028 LINE
Repalced by: A 3404204529
261 A 3404204529 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
3600 MM
A 3534200528 LINE
Repalced by: A 3404203829
A 3584203928 LINE
Repalced by: A 3404203829
261 A 3404203829 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
2200 MM
A 3524201128 LINE
Repalced by: A 3404204529
261 A 3404204529 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
3600 MM
A 3524209928 LINE
Repalced by: A 3404203729
261 A 3404203729 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
2000 MM
A 3584204028 LINE
Repalced by: A 3404203829
261 A 3404203829 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
2200 MM
261 A 3404204929 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
4400 MM
A 3534200428 LINE
Repalced by: A 3404203229
A 3584204128 LINE
Repalced by: A 3404203229
261 A 3404203229 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
1750 MM
A 3524201228 LINE
Repalced by: A 3404204329
A 3524201328 LINE
Repalced by: A 3404204329
261 A 3404204329 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
3200 MM
A 3524209828 LINE
Repalced by: A 3404202929
261 A 3404202929 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
1600 MM
A 3584204228 LINE
Repalced by: A 3404203229
261 A 3404203229 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
1750 MM
261 A 3404203929 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
2400 MM
261 A 3404202529 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
1400 MM
261 A 3404201429 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
850 MM
263 A 0004280072 UNION SCREW
267 A 3524281740 BRACKET
Repalced by: A 3184280240
267 A 3184280240 BRACKET
MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE
268 N 000933008147 SCREW
Repalced by: N 304017008021
268 N 304017008021 SCREW
BRACKET TO RIGHT SIDE MEMBER
269 N 912004008102 LOCK WASHER
BRACKET TO RIGHT SIDE MEMBER
269H N 304032008006 NUT
BRACKET TO RIGHT SIDE MEMBER
A 0009955501 CLAMP
Repalced by: A 3604300143
270 A 3604300143 CLAMP
Repalced by: N 916016008200
270 N 916016008200 CLAMP
BRAKE LINE MOUNTING
271 A 3609950601 CLAMP
BRAKE LINE MOUNTING
272 N 000084006197 SCREW
BRAKE LINE MOUNTING
272C N 912004006102 LOCK WASHER
BRAKE LINE MOUNTING
272Q N 000934006007 NUT
BRAKE LINE MOUNTING
273 A 0004312512 BRAKE PRESSURE REGULATOR
275 A 3524311940 BRACKET
BRAKE POWER REGULATOR
275B N 000961012052 SCREW
Repalced by: N 308676012012
275B N 308676012012 SCREW
BRACKET TO CROSS MEMBER
M 12X1.50X25
275H N 000960012332 SCREW
BRAKE POWER REGULATOR TO BRACKET
M 12X1.50X105
275N N 912004012100 LOCK WASHER
BRAKE POWER REGULATOR
275R N 000934012022 NUT
BRAKE POWER REGULATOR
277 A 3534300192 ROD
Repalced by: N 900331008282
277 N 900331008427 PULL ROD
A 0004310267 YOKE
Repalced by: A 0004310467
A 0004310467 YOKE
Repalced by: A 0004310667
278 A 0004310667 YOKE
R.H. THREAD
278H A 0004310867 YOKE
L.H. THREAD
279 N 304032008006 NUT
R.H. THREAD
279N N 000934008035 NUT
L.H. THREAD
280 A 3534310040 BRACKET
OPERATING ROD
281 N 912004008102 LOCK WASHER
OPERATING ROD
282 N 304032008006 NUT
OPERATING ROD
A 3524205828 LINE
Repalced by: A 3404200229
285 A 3404200229 LINE
FROM BRAKE POWER REGULATOR TO TEST CONNECTION
250 MM
A 3534200728 LINE
Repalced by: A 3404202429
285 A 3404202429 LINE
FROM BRAKE POWER REGULATOR TO TEST CONNECTION
1350 MM
A 3524200029 LINE
Repalced by: A 3404203829
285 A 3404203829 LINE
FROM BRAKE POWER REGULATOR TO TEST CONNECTION
2200 MM
A 3584204328 LINE
Repalced by: A 3404202229
285 A 3404202229 LINE
FROM BRAKE POWER REGULATOR TO TEST CONNECTION
1250 MM
285 A 3404204029 LINE
FROM BRAKE POWER REGULATOR TO TEST CONNECTION
2600 MM
288 A 0004311031 TEST CONNECTION
Repalced by: A 0004311231
288 A 0004311231 TEST CONNECTION
288 A 0004316631 TEST CONNECTION
289 N 000933008150 SCREW
Repalced by: N 304017008018
289 N 304017008018 SCREW
TEST CONNECTION TO SIDE MEMBER
290 N 912004008102 LOCK WASHER
TEST CONNECTION TO SIDE MEMBER
291 N 304032008006 NUT
TEST CONNECTION TO SIDE MEMBER
A 3524205928 LINE
Repalced by: A 3404200529
292 A 3404200529 LINE
FROM TEST CONNECTION TO DISTRIBUTOR
400 MM
A 3534200628 LINE
Repalced by: A 3404200329
292 A 3404200329 LINE
FROM TEST CONNECTION TO DISTRIBUTOR
300 MM
292 A 3404204329 LINE
FROM TEST CONNECTION TO DISTRIBUTOR
3200 MM
A 0004284335 BRAKE HOSE
Repalced by: A 0024280735
A 0004288735 BRAKE HOSE
Repalced by: A 0024280735
A 0004289235 BRAKE HOSE
Repalced by: A 0024280735
A 0014283135 BRAKE HOSE
Repalced by: A 0024280735
295 A 0014282935 BRAKE HOSE
Repalced by: A 0024280735
295 A 0024280735 BRAKE HOSE
REAR
600 MM
296 A 0004280473 BRACKET
Repalced by: A 6525040038
296 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
300 A 3124281040 BRACKET
Repalced by: A 3834280140
300 A 3834280140 BRACKET
BRAKE HOSE,REAR
301 N 000933008147 SCREW
Repalced by: N 304017008021
301 N 304017008021 SCREW
BRACKET TO RIGHT SIDE MEMBER
301C N 912004008102 LOCK WASHER
BRACKET TO RIGHT SIDE MEMBER
301L N 304032008006 NUT
BRACKET TO RIGHT SIDE MEMBER
302 A 0004290437 DISTRIBUTOR
LEFT & RIGHT BRAKE LINES
302 A 0004294337 DISTRIBUTOR
LEFT & RIGHT BRAKE LINES
304 N 000933008152 SCREW
Repalced by: N 304017008027
304 N 304017008027 SCREW
DISTRIBUTOR TO REAR AXLE
305 N 912004008102 LOCK WASHER
DISTRIBUTOR TO REAR AXLE
A 3214200130 LINE
Repalced by: A 3404202429
A 3534200028 LINE
Repalced by: A 3404202429
A 3524206828 LINE
Repalced by: A 3404202429
308 A 3404202429 LINE
FROM DISTRIBUTOR TO LEFT REAR WHEEL
1350 MM
310 A 0004280072 UNION SCREW
311 A 3129951020 CLAMP
BRAKE LINE TO REAR AXLE
312 A 3129973482 HOSE
BRAKE LINE TO REAR AXLE
313 N 000933008212 SCREW
Repalced by: N 304017008016
313 N 304017008016 SCREW
BRAKE LINE TO REAR AXLE
314 N 912004008102 LOCK WASHER
BRAKE LINE TO REAR AXLE
A 3534200228 LINE
Repalced by: A 3404201029
A 3214200131 LINE
Repalced by: A 3404201029
A 3524207028 LINE
Repalced by: A 3404201029
316 A 3404201029 LINE
FROM DISTRIBUTOR TO RIGHT REAR WHEEL
650 MM
318 A 0004280072 UNION SCREW

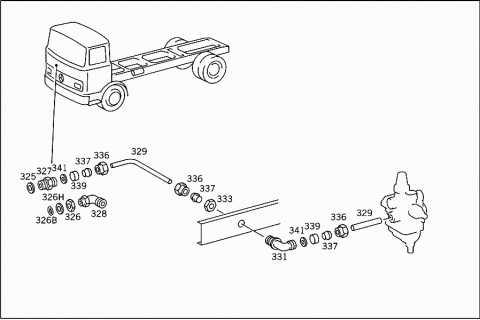

325 N 007603022102 SEAL RING
AT AIR COMPRESSOR
326 N 074305022202 NUT
AT AIR COMPRESSOR
326B A 0009870446 SEALING CORD
AT AIR COMPRESSOR
326H A 0004290227 THRUST RING
AT AIR COMPRESSOR
327 N 074313018201 FITTING
AT AIR COMPRESSOR
328 N 074301026202 ELBOW FITTING
AT AIR COMPRESSOR
A 0004290401 LINE
Repalced by: A 0005516456
329 A 0005516456 TUBE
FROM AIR COMPRESSOR TO ELBOW FITTING
18 MM
329 A 0005516456 TUBE
FROM ELBOW FITTING TO PRESSURE REGULATOR
18 MM
331 A 0009903371 ELBOW FITTING
333 N 074305026202 NUT
ELBOW FITTING TO SIDE MEMBER
336 N 915018018000 UNION NUT
337 N 003861018003 GLAND
Repalced by: A 0019901167
337 A 0019901167 SEAL CONE
339 N 915065018101 THRUST RING
341 N 915045014100 SEAL RING
342 N 007603022102 SEAL RING
343 N 074313018201 FITTING

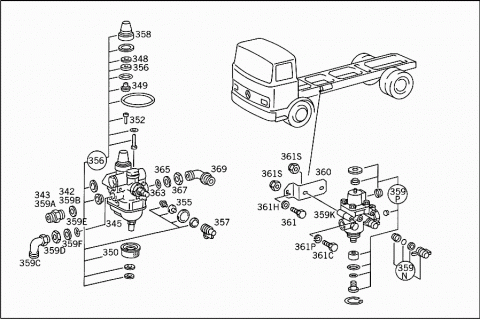

345 A 0004314006 VALVE
Repalced by: A 0004319106
345 A 0004319106 PRESSURE REGULATOR
BOSCH
345 A 0004314906 VALVE
Repalced by: A 0004319206
345 A 0004319206 PRESSURE REGULATOR
Repalced by: A 0004319106
345 A 0004319106 PRESSURE REGULATOR
BOSCH
348 A 0004318360 SEAL RING
349 A 0007630253 SLEEVE
Repalced by: A 0007630553
349 A 0007630553 SLEEVE
350 A 0004311434 STRAINER
352 A 0004310681 VALVE DISC
355 A 0004311381 VALVE DISC
356 A 0004311081 VALVE DISC
357 A 0004314787 PROTECTIVE CAP
Repalced by: A 0009979486
357 A 0009979486 PLUG
358 A 0004315687 PROTECTIVE CAP
359 A 0025864243 REPAIR KIT
TO 000 431 91 06,BOSCH 0 481 039 011
359 A 0025864143 REPAIR KIT
TO 000 431 92 06/40 06/49 06
359 A 0025864143 REPAIR KIT
BOSCH 0 481 039 012/007/008
359 A 0025865043 REPAIR KIT
TO 000 431 92 06/91 06/40 06/49 06
359 A 0025865043 REPAIR KIT
BOSCH 0 481 039 012/011/007/008
359A N 074313018201 FITTING
PRESSURE REGULATOR,CONNECTION "1"
359A N 074313018201 FITTING
PRESSURE REGULATOR,CONNECTION "1"
359B N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "1"
359B N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "1"
359C A 0004293238 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
359D N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
359E A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION "1"
359F A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
359K A 0014314106 PRESSURE REGULATOR
Repalced by: A 0024313506
359K A 0024313506 PRESSURE REGULATOR
Repalced by: A 0024315906
359K A 0024315906 PRESSURE REGULATOR
BOSCH
359K A 0014314306 PRESSURE REGULATOR
Repalced by: A 0024316006
359K A 0014312206 PRESSURE REGULATOR
Repalced by: A 0024316006
359K A 0024316006 PRESSURE REGULATOR
Repalced by: A 0024315906
359K A 0024315906 PRESSURE REGULATOR
WESTINGHOUSE
359N A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 35 06,BOSCH 0 481 039 222
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 59 06,BOSCH 0 481 039 202
359P A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 35 06,BOSCH 0 481 039 222
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 59 06,BOSCH 0 481 039 202
A 0015868543 REPAIR KIT
Repalced by: A 0004301407
A 0004301407 REPAIR KIT
TO 001 431 41 06,BOSCH 0 481 039 102
A 0015864343 REPAIR KIT
Repalced by: A 0004301107
A 0004301107 REPAIR KIT
TO 001 431 22 06,WEST. 975 300 111 0
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 22 06,WEST. 975 300 111 0
A 0014304960 REPAIR KIT
TO 002 431 60 06,WEST.975 303 440 0
A 3524313440 BRACKET
Repalced by: A 3524315340
A 3524313540 BRACKET
Repalced by: A 3524315340
360 A 3524315340 BRACKET
PRESSURE REGULATOR
360 A 3524315340 BRACKET
PRESSURE REGULATOR
360 A 3524316340 BRACKET
PRESSURE REGULATOR
361 N 000933008153 SCREW
Repalced by: N 304017008034
361 N 304017008034 SCREW
BRACKET TO SIDE MEMBER
361C N 000931008228 SCREW
Repalced by: N 000933008134
361C N 000933008134 SCREW
PRESSURE REGULATOR TO BRACKET
361H N 000125008418 WASHER
Repalced by: N 000125008443
361H N 000125008443 WASHER
BRACKET TO SIDE MEMBER
361H N 000125008443 WASHER
PRESSURE REGULATOR TO BRACKET
361P N 912004008102 LOCK WASHER
BRACKET TO SIDE MEMBER
361P N 912004008102 LOCK WASHER
PRESSURE REGULATOR TO BRACKET
361S N 913004008004 NUT
Repalced by: N 913004008001
361S N 913004008001 NUT
BRACKET TO SIDE MEMBER
361S N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
363 A 0009870446 SEALING CORD
PRESSURE REGULATOR, CONNECTION "21"
365 A 0004290227 THRUST RING
PRESSURE REGULATOR, CONNECTION "21"
367 N 074305022202 NUT
PRESSURE REGULATOR, CONNECTION "21"
369 N 074301022203 ELBOW FITTING
PRESSURE REGULATOR, CONNECTION "21"
A 3524296703 LINE
Repalced by: A 0005516256
A 0004290201 LINE
Repalced by: A 0005516256

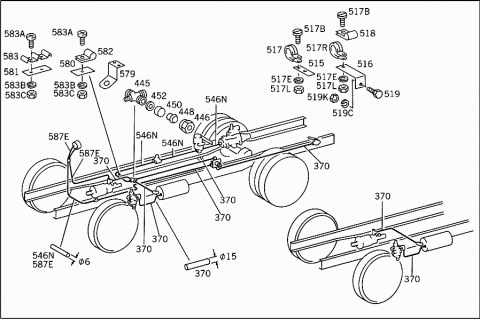

370 A 0005516256 TUBE
FROM PRESSURE REGULATOR TO AIR RESERVOIR
15 MM
370 A 0005516256 TUBE
FROM RESERVOIR TO BRAKE BOOSTER
15 MM
370 A 0005516256 TUBE
FROM AIR RESERVOIR TO T-FITTING
15 MM
370 A 0005516256 TUBE
FROM T-FITTING TO BRAKE BOOSTER
15 MM
370 A 0005516256 TUBE
FROM T-FITTING TO TRAILER BRAKE VALVE
15 MM
370 A 0005516256 TUBE
FROM AIR RESERVOIR TO CROSS FITTING
15 MM
370 A 0005516256 TUBE
FROM BRAKE BOOSTER TO TRAILER BRAKE VALVE
15 MM
370 A 0005516256 TUBE
FROM CROSS FITTING TO BRAKE BOOSTER
15 MM
370 A 0005516256 TUBE
FROM TRAILER BRAKE VALVE TO BRAKE LINE COUPLING
15 MM

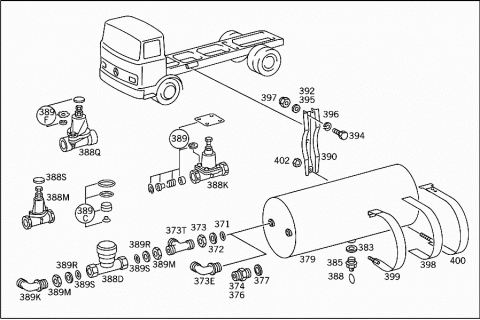

371 A 0009870446 SEALING CORD
AT AIR RESERVOIR
372 A 0004290227 THRUST RING
AT AIR RESERVOIR
373 N 074305022202 NUT
AT AIR RESERVOIR
373E N 074301022203 ELBOW FITTING
AT AIR RESERVOIR
373T N 074302022202 T-FITTING
BRANCH-OFF TO EXHAUST BRAKE
374 N 074313016401 FITTING
Repalced by: A 0019972372
374 A 0019972372 FITTING
AT AIR RESERVOIR
376 N 074298022203 DOUBLE FITTING
AT AIR RESERVOIR
377 N 007603022102 SEAL RING
AT AIR RESERVOIR
379 A 3214300205 RESERVOIR
Repalced by: A 0034322501
379 A 0034322501 RESERVOIR
40 L
379 A 3274300005 RESERVOIR
Repalced by: A 0034322701
379 A 0034322701 RESERVOIR
60 L
381 A 3124302705 RESERVOIR
7/33 L
381 A 3584300905 RESERVOIR
7/33 L
381 A 3584301205 RESERVOIR
5/35 L
A 0009970934 SCREW
AIR RESERVOIR,CONNECTIONS:
383 N 007603022102 SEAL RING
AT AIR RESERVOIR
385 A 0004320407 VALVE
Repalced by: A 0004320807
385 A 0004320607 VALVE
Repalced by: A 0004321107
385 A 0004322107 VALVE
AIR RESERVOIR
388 A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
388D A 0014299844 VALVE
(OVERFLOW VALVE)
BOSCH
388K A 0014295244 VALVE
(OVERFLOW VALVE)
WESTINGHOUSE
388M A 0014297944 VALVE
(OVERFLOW VALVE)
GRAU
388Q A 0034290244 VALVE
(OVERFLOW VALVE)
KNORR
388S A 0024298844 VALVE
DIAPHRAGM
TO 001 429 79 44
389 A 0015862042 REPAIR KIT
TO 001 429 52 44
389C A 0015862642 REPAIR KIT
TO 001 429 98 44
389F A 0004303260 REPAIR KIT
TO 003 429 02 44
389K A 3609900071 ELBOW FITTING
OVERFLOW VALVE,CONNECTION "2"
389M N 074305022202 NUT
OVERFLOW VALVE,CONNECTIONS "1,2"
389R A 0004290227 THRUST RING
OVERFLOW VALVE,CONNECTIONS "1,2"
389S A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTIONS "1,2"
A 3224300011 CONSOLE
Repalced by: A 3224320215
A 3224300111 CONSOLE
Repalced by: A 3224320215
390 A 3224320215 CONSOLE
RESERVOIR
392 A 3214750084 SHIM
Repalced by: N 007349013003
392 N 007349013003 WASHER
Repalced by: N 007349013005
392 N 007349013005 WASHER
CONSOLE TO SIDE MEMBER
394 N 000961012151 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.50X30
394 N 000961012151 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.50X30
394 N 000961012052 SCREW
Repalced by: N 308676012012
394 N 308676012012 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.50X25
394 N 308676012012 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.50X25
394 N 000961014100 SCREW
CONSOLE TO SIDE MEMBER
M 14X1.50X30
394 N 000961014050 SCREW
Repalced by: N 308676014020
394 N 308676014020 SCREW
CONSOLE TO SIDE MEMBER
M 14X1.50X35
394 N 000961012151 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.50X30
394 N 000961012097 SCREW
Repalced by: N 308676012026
394 N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.50X35
395 A 3529900640 WASHER
CONSOLE TO SIDE MEMBER
396 N 912004012100 LOCK WASHER
CONSOLE TO SIDE MEMBER
397 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
397 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
397 N 913004014002 NUT
Repalced by: N 910113014001
397 N 910113014001 NUT
CONSOLE TO SIDE MEMBER
398 A 3219870214 RUBBER STRIP
Repalced by: A 0009870814
398 A 0009870814 RUBBER STRIP
AIR RESERVOIR TO CONSOLE
399 A 3224300040 STRAP
AIR RESERVOIR TO CONSOLE
400 A 3224300240 STRAP
AIR RESERVOIR TO CONSOLE
402 N 000934010014 NUT
AIR RESERVOIR TO CONSOLE
402 N 910113012002 NUT
403 N 007603022102 SEAL RING
AT AIR RESERVOIR
405 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
405 A 3469970230 SCREW PLUG
AT AIR RESERVOIR
406 N 007603022102 SEAL RING
AT AIR RESERVOIR
407 N 074298022203 DOUBLE FITTING
AT AIR RESERVOIR
N 074313016401 FITTING
Repalced by: A 0019972372
408 A 0019972372 FITTING
AT AIR RESERVOIR
409 A 0009870446 SEALING CORD
AT AIR RESERVOIR
411 A 0004290227 THRUST RING
AT AIR RESERVOIR
413 N 074305022202 NUT
AT AIR RESERVOIR
415 N 074301022203 ELBOW FITTING
AT AIR RESERVOIR
A 0004298344 VALVE
Repalced by: A 0014294644
416 A 0014294644 VALVE
WESTINGHOUSE
416 A 0004295544 VALVE
BOSCH
417 A 0004290049 BUSHING
TO 000 429 83 44
418 N 000472020001 LOCK RING
TO 000 429 83 44
419 A 0014310793 SPRING
TO 000 429 83 44
420 A 0004310328 DIAPHRAGM
TO 000 429 83 44
421 N 912004006102 LOCK WASHER
TO 000 429 83 44
A 0005863642 REPAIR KIT
Repalced by: A 0005865842
422 A 0005865842 REPAIR KIT
TO 000 429 83 44
423 A 0004290044 VALVE
Repalced by: A 0014294144
423 A 0004299444 VALVE
Repalced by: A 0014294144
423 A 0014296144 VALVE
Repalced by: A 0024297244
423 A 0014294144 VALVE
Repalced by: A 0024297244
423 A 0024297244 VALVE
OVERFLOW VALVE
WESTINGHOUSE
424 A 0004290382 VALVE
425 A 0004290145 DIAPHRAGM
425D A 0015862642 REPAIR KIT
TO 001 429 41 44
425K A 0015862042 REPAIR KIT
TO 001 429 46 44,002 429 72 44
425K A 0015862042 REPAIR KIT
TO 001 429 61 44
426 N 007603022102 SEAL RING
427 N 074313016401 FITTING
Repalced by: A 0019972372
427 A 0019972372 FITTING
428 N 074305022202 NUT
430 A 0004290227 THRUST RING
431 A 0009870446 SEALING CORD
433 N 074315000301 FITTING
Repalced by: A 0009909171
433 A 0009909171 ELBOW FITTING
435 N 074305022202 NUT
436 A 0004290227 THRUST RING
437 A 0009870446 SEALING CORD
438 A 0009870446 SEALING CORD
439 A 0004290227 THRUST RING
440 N 074305022202 NUT
441 N 074301022203 ELBOW FITTING
444 A 0009902370 T-FITTING
444 A 0009902370 T-FITTING
445 A 0004292837 DISTRIBUTOR
446 N 915018015000 UNION NUT
448 N 003861015004 GLAND
450 N 915065015101 THRUST RING
452 N 915045012100 SEAL RING
Repalced by: N 007603012121
452 N 007603012121 SEAL RING
453 A 0004311675 THREADED UNION
AT BRAKE BOOSTER
453 A 0004311675 THREADED UNION
AT BRAKE BOOSTER
453 A 0004311675 THREADED UNION
AT BRAKE BOOSTER
453 A 0004311675 THREADED UNION
AT BRAKE BOOSTER
455 A 3529970272 FITTING
AT BRAKE BOOSTER
455 A 3529970272 FITTING
AT BRAKE BOOSTER
456 A 3529900071 ELBOW FITTING
AT BRAKE BOOSTER
457 N 080705016003 NUT
AT BRAKE BOOSTER
458 N 080705016003 NUT
AT BRAKE BOOSTER
458 N 080705016003 NUT
AT BRAKE BOOSTER
458 N 080705016003 NUT
AT BRAKE BOOSTER
A 0029971640 SEAL RING
Repalced by: A 0009971548
460 A 0009971548 SEAL RING
461 A 0004310051 SPACER RING
AT BRAKE BOOSTER
A 0004311314 BRAKE BOOSTER
Repalced by: A 0004318814
A 0004316114 BRAKE BOOSTER
Repalced by: A 0004318814
463 A 0004318814 BRAKE CYLINDER
AIR BRAKE BOOSTER
464 A 0004317186 CUP
465 A 0004312886 SEAL RING
466 A 0004315583 PISTON
467 A 0004317060 SEAL RING
468 A 0003270032 VALVE PART
469 A 0004317160 SEAL RING
Repalced by: A 0004319460
469 A 0004319460 SEAL RING
470 A 0004289435 BRAKE HOSE
Repalced by: A 0004289535
470 A 0004289535 BRAKE HOSE
505 MM
472 N 007603014405 SEAL RING
474 A 0004310336 FILTER BOTTOM
474L A 0025860143 REPAIR KIT
TO 000 431 88 14
475 A 3604310267 YOKE
AT BRAKE BOOSTER
476 N 000936010010 NUT
AT BRAKE BOOSTER
478 A 3524300211 CONSOLE
BRAKE BOOSTER
478 A 3524300311 CONSOLE
BRAKE BOOSTER
478 A 3604302011 CONSOLE
BRAKE BOOSTER
478 A 3604302111 CONSOLE
BRAKE BOOSTER
479 N 000933010105 SCREW
CONSOLE TO SIDE MEMBER
M 10X25
479 N 000933010145 SCREW
CONSOLE TO SIDE MEMBER
M 10X35
479 N 000933010157 SCREW
CONSOLE TO SIDE MEMBER
M 10X28
480 N 000125010518 WASHER
Repalced by: N 000125010532
480 N 000125010532 WASHER
CONSOLE TO SIDE MEMBER
480B N 912004010102 LOCK WASHER
CONSOLE TO SIDE MEMBER
480H N 000934010014 NUT
CONSOLE TO SIDE MEMBER
480M N 000933010129 SCREW
Repalced by: N 304017010002
480M N 304017010002 SCREW
BRAKE BOOSTER TO CONSOLE
480R N 912004010102 LOCK WASHER
BRAKE BOOSTER TO CONSOLE
482 A 3524300223 LEVER
Repalced by: A 3524301323
482 A 3524301323 LEVER
BRAKE BOOSTER
A 3524300323 LEVER
Repalced by: A 3524301423
482 A 3524301423 LEVER
BRAKE BOOSTER
A 3524310050 BUSHING
Repalced by: A 3529920801
484 A 3529920801 BUSHING
486 A 3524310074 PIN
LEVER TO CONSOLE
486 A 3604310074 PIN
LEVER TO CONSOLE
487 N 071412010200 GREASE NIPPLE
LEVER TO CONSOLE
488 N 000988030005 FITTED WASHER
LEVER TO CONSOLE
489 N 000471030000 LOCK RING
LEVER TO CONSOLE
491 A 3149940101 LOCK
LEVER TO CONSOLE
492 N 912004008102 LOCK WASHER
LEVER TO CONSOLE
493 N 000933008130 SCREW
Repalced by: N 304017008039
493 N 304017008039 SCREW
LEVER TO CONSOLE
495 N 001434010009 PIN
495 A 3529910007 PIN
YOKE TO LEVER
495D N 000094003219 COTTER PIN
YOKE TO LEVER
496 A 3529930010 SPRING
Repalced by: A 3529931010
496 A 3529931010 SPRING
RELEASE SPRING
497 N 074301022203 ELBOW FITTING
AT BRAKE VALVE
497K N 074298022203 DOUBLE FITTING
AT BRAKE VALVE
498 N 074305022202 NUT
AT BRAKE VALVE
498 N 074305022202 NUT
AT BRAKE VALVE
499 N 007603022102 SEAL RING
AT BRAKE VALVE
499 N 007603022102 SEAL RING
AT BRAKE VALVE
500 A 0009870446 SEALING CORD
AT BRAKE VALVE
500 A 0009870446 SEALING CORD
AT BRAKE VALVE
500N A 0004290227 THRUST RING
AT BRAKE VALVE
500N A 0004290227 THRUST RING
AT BRAKE VALVE
501 A 0004314405 BRAKE VALVE
501 A 0004314405 BRAKE VALVE
501 A 0004316105 BRAKE VALVE
501 A 0004316105 BRAKE VALVE
502 A 0004313086 CUP
502 A 0004313086 CUP
503 A 0004312976 WASHER
503 A 0004312976 WASHER
504 A 0004350390 VALVE DISC
504 A 0004350390 VALVE DISC
505 A 3524311540 BRACKET
BRAKE VALVE
505 A 3524311540 BRACKET
BRAKE VALVE
505 A 3524311640 BRACKET
BRAKE VALVE
505 A 3524311640 BRACKET
BRAKE VALVE
505E N 000933012064 SCREW
M 12X25 MM
505E N 000933012064 SCREW
M 12X25 MM
505E N 000933012056 SCREW
Repalced by: N 304017012020
505E N 304017012020 SCREW
M 12X30 MM
505L N 912004012100 LOCK WASHER
505L N 912004012100 LOCK WASHER
505Q N 000934012021 NUT
505Q N 000934012021 NUT
506 N 912004010102 LOCK WASHER
506 N 912004010102 LOCK WASHER
507 N 000934010014 NUT
507 N 000934010014 NUT
508 N 900331008420 PULL ROD
400 MM
508 N 900331008420 PULL ROD
400 MM
509 N 304032008006 NUT
509 N 304032008006 NUT
510 N 071805013203 BALL SOCKET
510 N 071805013203 BALL SOCKET
511 N 071805013302 SNAP RING
511 N 071805013302 SNAP RING
511P N 071805013402 SECURING CLIP
511P N 071805013402 SECURING CLIP
512 N 071803013102 BALL PIVOT
512 N 071803013102 BALL PIVOT
512 N 071803013102 BALL PIVOT
513 N 912004008102 LOCK WASHER
513 N 912004008102 LOCK WASHER
513 N 912004008102 LOCK WASHER
514 N 304032008006 NUT
514 N 304032008006 NUT
514 N 304032008006 NUT
515 A 3124291640 BRACKET
TRAILER COMPRESSED-AIR LINE
516 A 3524290040 BRACKET
Repalced by: A 3524281740
516 A 3524281740 BRACKET
Repalced by: A 3184280240
516 A 3184280240 BRACKET
TRAILER COMPRESSED-AIR LINE
A 0009950301 CLAMP
Repalced by: N 916016015200
517 N 916016015200 CLAMP
TRAILER COMPRESSED-AIR LINE
517B N 000084006197 SCREW
BRACKET AND CLAMP TO FRAME
M 6X16 MM
517B N 000084008101 SCREW
BRACKET AND CLAMP TO FRAME
M 8X15 MM
517E N 912004006102 LOCK WASHER
BRACKET AND CLAMP TO FRAME
517L N 000934006007 NUT
BRACKET AND CLAMP TO FRAME
A 0009954701 CLAMP
Repalced by: N 916016015202
517R N 916016015202 CLAMP
TRAILER COMPRESSED-AIR LINE
518 A 0009955701 CLAMP
Repalced by: A 3609952001
518 A 3609952001 CLAMP
Repalced by: A 6739950001
518 A 6739950001 CLAMP
TRAILER COMPRESSED-AIR LINE
519 N 000933008204 SCREW
Repalced by: N 304017008033
519 N 304017008033 SCREW
BRACKET AND CLAMP TO FRAME
M 8X25 MM
519C N 912004008102 LOCK WASHER
BRACKET AND CLAMP TO FRAME
519K N 304032008006 NUT
BRACKET AND CLAMP TO FRAME
520 N 074298022203 DOUBLE FITTING
AT BRAKE LINE COUPLING
521 N 007603022102 SEAL RING
AT BRAKE LINE COUPLING
522 A 0004291630 BRAKE LINE COUPLING
Repalced by: A 0004297530
522C A 0004297530 BRAKE LINE COUPLING
TRAILER BRAKE
BOSCH
522E A 0004294830 BRAKE LINE COUPLING
TRAILER BRAKE
KNORR
522L A 0004296730 BRAKE LINE COUPLING
TRAILER BRAKE
523 A 0004350390 VALVE DISC
OUTSIDE
TO 000 429 16 30
524 A 0004350391 VALVE DISC
INSIDE
TO 000 429 16 30
525 A 0009933201 SPRING
TO 000 429 16 30
526 A 0004350236 VALVE PART
TO 000 429 16 30
527 A 0004350780 GASKET
TO 000 429 16 30
528 A 0004350172 NUT
TO 000 429 16 30
529 A 0004350291 VALVE TAPPET
TO 000 429 16 30
530 N 009045026000 SNAP RING
TO 000 429 16 30
531 A 0004350014 COVER
TO 000 429 16 30
531H N 000094005045 COTTER PIN
TO 000 429 16 30
532 A 0009938901 SPRING
TO 000 429 16 30
533 A 0004350053 SPRING CAPSULE
TO 000 429 16 30
533B A 0019970541 SEAL RING
TO 000 429 48 30
533C A 0069974648 SEAL RING
TO 000 429 48 30
533D A 0004290074 PIN
TO 000 429 48 30
533E A 0004291090 COVER
TO 000 429 48 30
533F A 0004291390 COVER
TO 000 429 67 30
533H A 0004290391 VALVE CONE
TO 000 429 75 30
533K A 0079971248 SEAL RING
TO 000 429 75 30
A 0004303460 REPAIR KIT
TO 000 429 48 30
533P A 0025864942 REPAIR KIT
TO 000 429 67 30
534 A 0004290140 BRACKET
BRAKE LINE COUPLING
534C N 000933008153 SCREW
Repalced by: N 304017008034
534C N 304017008034 SCREW
BRACKET TO CROSS MEMBER
534E N 912004008102 LOCK WASHER
BRACKET TO CROSS MEMBER
534K N 304032008006 NUT
BRACKET TO CROSS MEMBER
534N N 074301022203 ELBOW FITTING
TRAILER COMPRESSED-AIR LINE
534Q N 074305022202 NUT
TRAILER COMPRESSED-AIR LINE
534T A 0004290227 THRUST RING
TRAILER COMPRESSED-AIR LINE
535 A 0009870446 SEALING CORD
TRAILER COMPRESSED-AIR LINE
535C N 007603022102 SEAL RING
TRAILER COMPRESSED-AIR LINE
535F N 074298022203 DOUBLE FITTING
TRAILER COMPRESSED-AIR LINE
A 0009955701 CLAMP
Repalced by: A 3609952001
535H A 3609952001 CLAMP
Repalced by: A 6739950001
535H A 6739950001 CLAMP
TRAILER COMPRESSED-AIR LINE
535L N 000084006197 SCREW
CLAMP
535P N 912004006102 LOCK WASHER
CLAMP
535S N 000934006007 NUT
CLAMP
536 A 0004290631 SHUT-OFF COCK
Repalced by: A 0004291431
536 A 0004291431 SHUT-OFF COCK
TRAILER BRAKE
536 A 0004291631 SHUT-OFF COCK
TRAILER BRAKE
537 A 0004290278 HANDLE
TO 000 429 06 31
A 0009974077 HANDLE
TO 000 429 16 31
537E N 001473004012 GROOVED PIN
TO 000 429 06 31
538 A 0004290162 THRUST WASHER
TO 000 429 06 31
539 A 0004290284 SEAL RING
TO 000 429 06 31
A 0004292684 SEAL RING
TO 000 429 16 31
A 0119976748 SEAL RING
TO 000 429 16 31
540 A 0004290085 SEAL HOLDER
TO 000 429 06 31
541 A 0004290393 SPRING
TO 000 429 06 31
A 0004292293 SPRING
TO 000 429 16 31
A 0004292393 SPRING
TO 000 429 16 31
542 N 007603038301 SEAL RING
Repalced by: N 007603038101
542 N 007603038101 SEAL RING
TO 000 429 06 31
543 A 0005910156 SCREW PLUG
TO 000 429 06 31
543F A 0005866342 REPAIR KIT
TO 000 429 14 31
544 A 0004290141 FITTING
Repalced by: N 074304022201
544 N 074304022201 FITTING
AT SHUT-OFF COCK
545 A 0004290181 GROMMET
545B N 007603022102 SEAL RING
545H N 000963008045 SCREW
545M N 912004008102 LOCK WASHER
545Q N 304032008006 NUT
546 A 3224290640 BRACKET
SHUT-OFF COCK
546 A 3224290740 BRACKET
SHUT-OFF COCK
546A A 3524291140 BRACKET
SHUT-OFF COCK
546C N 000933010164 SCREW
BRACKET TO CROSS MEMBER
546E N 912004010102 LOCK WASHER
BRACKET TO CROSS MEMBER
546H N 000934010014 NUT
BRACKET TO CROSS MEMBER
546N A 0004290701 LINE
Repalced by: A 0004296201
546N A 0004296201 LINE
6 MM
546N A 0004296201 LINE
FROM CROSS FITTING TO OVERFLOW VALVE
6 MM
546N A 0004296201 LINE
FROM OVERFLOW VALVE TO PRESSURE SENDER UNIT
6 MM
546N A 0004296201 LINE
FROM PRESSURE SENDER UNIT TO BRAKE POWER REGULATOR
6 MM
546P N 003870001105 UNION NUT
546R N 074297006203 SLIP RING
546T A 0039979072 FITTING
Repalced by: A 0029906071
546T A 0029906071 FITTING
547 N 007603022102 SEAL RING
AT VALVE
548 A 0004293034 ADAPTER FITTING
Repalced by: A 0039972072
548 A 0039972072 FITTING
AT VALVE
549 A 0004297544 VALVE
Repalced by: A 0014296444
549 A 0014296444 VALVE
OVERFLOW VALVE
A 0005863642 REPAIR KIT
Repalced by: A 0005865842
549D A 0005865842 REPAIR KIT
TO 000 429 75 44
549K A 0015862042 REPAIR KIT
TO 001 429 64 44
550 A 3524312640 BRACKET
VALVE
550B N 007985006193 SCREW
Repalced by: N 000000001146
550B N 000000001146 SCREW
VALVE TO BRACKET
M 6X16
550F N 000933008145 SCREW
BRACKET TO CROSS MEMBER
550L N 912004008102 LOCK WASHER
BRACKET TO CROSS MEMBER
550P N 304032008006 NUT
BRACKET TO CROSS MEMBER
551 A 0039979072 FITTING
Repalced by: A 0029906071
551 A 0029906071 FITTING
PRESSURE SENDER UNIT
552 N 007603012405 SEAL RING
PRESSURE SENDER UNIT
553 A 0004315806 VALVE
Repalced by: A 0004318606
553 A 0004318606 PRESSURE SENDER UNIT
LOAD-DEPENDING BRAKE
554 A 0003270032 VALVE PART
555 A 0004314883 PISTON
556 A 3524312340 BRACKET
PRESSURE SENDER UNIT
556B N 000933010128 SCREW
BRACKET TO FRAME
556D N 912004010102 LOCK WASHER
BRACKET TO FRAME
556F N 000934010014 NUT
BRACKET TO FRAME
556K N 000931008228 SCREW
Repalced by: N 000933008134
556K N 000933008134 SCREW
PRESSURE SENDER UNIT TO BRACKET
556N N 912004008102 LOCK WASHER
PRESSURE SENDER UNIT TO BRACKET
556R N 304032008006 NUT
PRESSURE SENDER UNIT TO BRACKET
557 A 3534300292 ROD
Repalced by: N 900331008420
557 A 3604305092 ROD
Repalced by: N 900331008281
A 3224310692 ROD
Repalced by: N 900331008282
558 N 900331008420 PULL ROD
558 N 900331008419 PULL ROD
558 A 0004312092 ROD
Repalced by: N 900331008282
558 N 900331008427 PULL ROD
PRESSURE SENDER UNIT
400 MM
558 N 900331008426 PULL ROD
PRESSURE SENDER UNIT
200 MM
559 A 0004310267 YOKE
Repalced by: A 0004310467
559 A 0004310467 YOKE
Repalced by: A 0004310667
559 A 0004310667 YOKE
R.H. THREAD
559 A 0004310667 YOKE
R.H. THREAD
559K A 0004310867 YOKE
L.H. THREAD
560 N 000439008211 NUT
Repalced by: N 304035008001
560 N 304035008001 NUT
R.H. THREAD
560 N 304032008006 NUT
R.H. THREAD
560N N 000934008035 NUT
L.H. THREAD
A 3534310040 BRACKET
PULL ROD
561 A 3524315140 BRACKET
PULL ROD
562 N 000933008154 SCREW
Repalced by: N 304017008021
562 N 304017008021 SCREW
BRACKET TO REAR AXLE HOUSING
565 A 3604311740 BRACKET
PULL ROD
566 A 3554310384 SHIM
AT BRACKET
567 N 000933010157 SCREW
BRACKET TO REAR AXLE HOUSING
568 A 3604230125 WEB
569 N 000933008147 SCREW
Repalced by: N 304017008021
569 N 304017008021 SCREW
WEB TO OPERATING ROD BRACKET
570 N 000125008418 WASHER
Repalced by: N 000125008443
570 N 000125008443 WASHER
WEB TO OPERATING ROD BRACKET
570B N 912004008102 LOCK WASHER
WEB TO OPERATING ROD BRACKET
570E N 304032008006 NUT
WEB TO OPERATING ROD BRACKET
570K N 912004008102 LOCK WASHER
ROD TO BRAKE POWER REGULATOR & BRACKET
570N N 304032008006 NUT
ROD TO BRAKE POWER REGULATOR & BRACKET
571 A 0039979072 FITTING
Repalced by: A 0029906071
571 A 0029906071 FITTING
ROD TO BRAKE POWER REGULATOR & BRACKET
571C N 007603012405 SEAL RING
572 A 0004312912 BRAKE PRESSURE REGULATOR
Repalced by: A 0004314212
572 A 0004314212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
572C A 0004314412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
572F A 0004312713 GUIDE BUSHING
572N A 0004316583 PISTON
573 A 0004314160 SEAL RING
TO 000 431 42 12
A 0014312160 SEAL RING
A 0109975845 SEAL RING
A 0004310949 GUIDE BUSHING
A 0014315693 SPRING
A 0079816310 NEEDLE BEARING
A 0014315493 SPRING
574 A 0004315786 CUP
575 A 0004314060 SEAL RING
Repalced by: A 0129975448
575 A 0129975448 SEAL RING
A 0089975646 SEAL RING
A 0014312260 SEAL RING
575B A 0004318560 SEAL RING
TO 000 431 44 12
A 0004310968 VALVE PART
Repalced by: A 0004311068
575D A 0004311068 VALVE PART
575E A 0014315793 SPRING
TO 000 431 44 12
A 0004318660 SEAL RING
A 0004311049 GUIDE BUSHING
A 0029937201 SPRING
A 0014315293 SPRING
575H N 007603018101 SEAL RING
TO 000 431 44 12
A 0004310265 VALVE
Repalced by: A 3075530107
575M A 3075530107 VALVE
TO 000 431 44 12
A 3224311040 BRACKET
BRAKE POWER REGULATOR
576 A 3604311140 BRACKET
BRAKE POWER REGULATOR
A 3604311540 BRACKET
Repalced by: A 3604300339
576C A 3604300339 SUPPORT
BRAKE POWER REGULATOR
576F N 000933010164 SCREW
BRAKE POWER REGULATOR TO SUPPORT
M 10X22
576F N 000931010258 SCREW
BRAKE POWER REGULATOR TO SUPPORT
M 10X55
576L N 912004010102 LOCK WASHER
BRAKE POWER REGULATOR TO SUPPORT
576P N 000934010014 NUT
BRAKE POWER REGULATOR TO SUPPORT
577 N 000961012122 SCREW
SUPPORT TO FRAME SIDE MEMBER
M 12X1.50X40
577C N 000960012216 SCREW
Repalced by: N 308765012007
577C N 308765012007 SCREW
SUPPORT TO FRAME SIDE MEMBER
M 12X1.50X120
577H N 912004012100 LOCK WASHER
SUPPORT TO FRAME SIDE MEMBER
577N N 000934012022 NUT
SUPPORT TO FRAME SIDE MEMBER
578 A 3604300143 CLAMP
Repalced by: N 916016008200
578 N 916016008200 CLAMP
LINE MOUNTING
578D N 000084006197 SCREW
LINE MOUNTING
578H N 912004006102 LOCK WASHER
LINE MOUNTING
578Q N 000934006007 NUT
LINE MOUNTING
579 A 3224280140 BRACKET
LINE MOUNTING
580 A 3125421039 PLATE
LINE MOUNTING
581 A 3125421139 PLATE
LINE MOUNTING
582 A 3129950332 CLAMP
Repalced by: A 3609950101
582 A 3609950101 CLAMP
LINE MOUNTING
583 A 3129950033 CLAMP
LINE MOUNTING
583A N 007985004107 SCREW
LINE MOUNTING
583B N 912004004102 LOCK WASHER
LINE MOUNTING
583C N 000934004006 NUT
LINE MOUNTING
583E A 3535840121 GUIDE SIGN
LOAD-DEPENDING BRAKE
583E A 3535840221 GUIDE SIGN
LOAD-DEPENDING BRAKE
583F A 3535840321 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
X XXXXXXXXXXXX PART NAME MISSING
PRESSURE GAUGE LINES
584 A 0039979072 FITTING
Repalced by: A 0029906071
584 A 0029906071 FITTING
A 0009977172 FITTING
Repalced by: A 3525420335
A 3525420035 HOSE
Repalced by: A 3525420335
585 A 3525420335 HOSE
BRAKE PRESSURE CONTROL
A 3525407561 ELECTRIC CABLE
Repalced by: A 0089976082
585D A 0089976082 HOSE
Repalced by: A 0009872627
585D A 0009872627 PLASTIC PIPE
BRAKE PRESSURE CONTROL
6 X 4 MM
585H N 040621010200 INSULATING HOSE
BRAKE PRESSURE CONTROL
585L A 0019975072 FITTING
BRAKE PRESSURE CONTROL
585P N 915017006200 UNION NUT
BRAKE PRESSURE CONTROL
A 0019973472 FITTING
Repalced by: N 915059004001
585T N 915059004001 FITTING
BRAKE PRESSURE CONTROL
586 N 006797012153 TOOTHED WASHER
HOSE TO FRONT PANEL
587 N 000936012016 NUT
HOSE TO FRONT PANEL
587E A 0004290701 LINE
Repalced by: A 0004296201
587E A 0004296201 LINE
FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER
6 MM
588 N 915017006100 UNION NUT
589 N 003861006007 GLAND
Repalced by: A 0019901667
589 A 0019901667 SEAL CONE
590 A 3525420440 BRACKET
Repalced by: A 3525422840
590 A 3525422840 BRACKET
PRESSURE GAUGE LINE
590D N 000933010128 SCREW
BRACKET TO FRAME SIDE MEMBER
590K N 912004010102 LOCK WASHER
BRACKET TO FRAME SIDE MEMBER
590R N 000934010014 NUT
BRACKET TO FRAME SIDE MEMBER
591 A 3129950332 CLAMP
Repalced by: A 3609950101
591 A 3609950101 CLAMP
PRESSURE GAUGE LINES
592 A 3609950101 CLAMP
PRESSURE GAUGE LINES
592E N 000084006197 SCREW
CLAMP TO BRACKET
592L N 000125006421 WASHER
CLAMP TO BRACKET
592P N 912004006102 LOCK WASHER
CLAMP TO BRACKET
592T N 000934006007 NUT
CLAMP TO BRACKET
A 3120780185 PIPE BRACKET
Repalced by: A 3129950332
593 A 3129950332 CLAMP
Repalced by: A 3609950101
593 A 3609950101 CLAMP
LINE TO SIDE PANEL
593C N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
593C N 000000000460 SHEET METAL SCREW
LINE TO SIDE PANEL
594 A 3184280140 BRACKET
Repalced by: A 3184280240
594 A 3184280240 BRACKET
PRESSURE GAUGE LINES
595 N 000933010238 SCREW
Repalced by: N 304017010028
595 N 304017010028 SCREW
BRACKET TO CONSOLE
596 N 912004010102 LOCK WASHER
BRACKET TO CONSOLE
597 N 000934010014 NUT
BRACKET TO CONSOLE
597D A 3609950101 CLAMP
PRESSURE GAUGE LINES
597K N 007985006180 SCREW
CLAMP TO BRACKET
597N N 912004006102 LOCK WASHER
CLAMP TO BRACKET
597R N 000934006007 NUT
CLAMP TO BRACKET
600 A 3604270120 HANDLE
Repalced by: A 3124271220
600 A 3124271220 HANDLE
PISTOL-GRIP HAND BRAKE
601 N 000964006028 SCREW
HANDLE TO RATCHET ROD
602 N 006797006145 TOOTHED WASHER
HANDLE TO RATCHET ROD
603 N 001587006002 CAP NUT
HANDLE TO RATCHET ROD
604 A 3124271086 DAMPING RING
AT BEARING BRACKET
605 A 3589900040 WASHER
AT BEARING BRACKET
606 N 001473005019 GROOVED PIN
AT BEARING BRACKET
607 A 3584200088 RATCHET ROD
Repalced by: A 3584200588
607 A 3584200588 RATCHET ROD
A 3584200188 RATCHET ROD
Repalced by: A 3604200188
607 A 3604200188 RATCHET ROD
608 A 3534270095 PROTECTIVE CAP
608D A 3124271151 SPACER RING
608N N 001473004021 GROOVED PIN
609 A 3124201578 BEARING BRACKET
Repalced by: A 3124201178
609 A 3535860042 REPAIR KIT
Repalced by: A 3124201178
609 A 3124201178 BEARING BRACKET
PISTOL-GRIP HAND BRAKE
A 3124271215 PAWL
Repalced by: A 3145860142
A 3129900043 PLATE
Repalced by: A 3145860142
A 1539930701 SPRING
Repalced by: A 3145860142
609S N 000472015000 LOCK RING
610 N 001473003001 GROOVED PIN
610 N 001473004023 GROOVED PIN
610R A 3145860142 REPAIR KIT
Repalced by: A 3144200092
610R A 3144200092 REPAIR KIT
PAWL
611 A 3584200044 PROTECTIVE PLATE
611 A 3584200144 PROTECTIVE PLATE
612 A 3584270084 SHIM
BEARING BRACKET
613F N 912004008102 LOCK WASHER
BEARING BRACKET TO PROTECTIVE PLATE
613F N 912004008102 LOCK WASHER
PROTECTIVE PLATE TO CAB FLOOR
613S N 007985008152 SCREW
BEARING BRACKET TO PROTECTIVE PLATE
M 8X25
613W N 007985008142 SCREW
PROTECTIVE PLATE TO CAB FLOOR
M 8X16
613W N 007985008142 SCREW
SEE FIG. NO.:
610R
613W N 007985008142 SCREW
SEE FIG. NO.:
610R
613W N 007985008142 SCREW
SEE FIG. NO.:
610R
613W N 007985008142 SCREW
SEE FIG. NO.:
609S
618 A 3529910407 PIN
BRAKE LEVER TO RATCHET ROD
619 N 000433008406 WASHER
BRAKE LEVER TO RATCHET ROD
619N N 000094002059 COTTER PIN
BRAKE LEVER TO RATCHET ROD
620 A 3584200012 BRAKE LEVER
PISTOL-GRIP HAND BRAKE
620 A 3584200212 BRAKE LEVER
PISTOL-GRIP HAND BRAKE
621 A 3124271550 BUSHING
Repalced by: A 3529921201
621 A 3529921201 BUSHING
622 N 071412010100 GREASE NIPPLE
BRAKE LEVER
623 A 3584200578 BEARING BRACKET
BRAKE LEVER
623 A 3584200678 BEARING BRACKET
BRAKE LEVER
623B N 000933010157 SCREW
BEARING BRACKET TO FRAME
M 10X28
623B N 000933010145 SCREW
BEARING BRACKET TO FRAME
M 10X35
623B N 000931010282 SCREW
BEARING BRACKET TO FRAME
M 10X40
623F N 912004010102 LOCK WASHER
BEARING BRACKET TO FRAME
623M N 000934010014 NUT
BEARING BRACKET TO FRAME
624 A 3129901540 WASHER
BRAKE LEVER TO BEARING BRACKET
625 N 000471022000 LOCK RING
BRAKE LEVER TO BEARING BRACKET
626 A 3584200185 BRAKE CABLE
FROM BRAKE LEVER TO INTERMEDIATE LEVER
1350 MM
626 A 3584200285 BRAKE CABLE
FROM BRAKE LEVER TO INTERMEDIATE LEVER
1410 MM
627 A 3214200176 END PIECE
BRAKE CABLE TO INTERMEDIATE LEVER
628 A 3524200093 CABLE PULLEY
629 A 3124272850 BUSHING
629C A 3529910007 PIN
BRAKE CABLE TO BRAKE LEVER
629F N 000125010518 WASHER
Repalced by: N 000125010532
629F N 000125010532 WASHER
BRAKE CABLE TO BRAKE LEVER
629M N 000094003219 COTTER PIN
BRAKE CABLE TO BRAKE LEVER
630 A 3604200278 BEARING BRACKET
CABLE PULLEY
630 A 3604200378 BEARING BRACKET
CABLE PULLEY
630E N 000933010128 SCREW
BEARING BRACKET TO ENGINE CROSS MEMBER
630N N 912004010102 LOCK WASHER
BEARING BRACKET TO ENGINE CROSS MEMBER
630S N 000934010014 NUT
BEARING BRACKET TO ENGINE CROSS MEMBER
631 A 3404270074 PIN
CABLE PULLEY TO BEARING BRACKET
632 N 000125013008 WASHER
633 N 000094003219 COTTER PIN
CABLE PULLEY TO BEARING BRACKET
634 N 071412010300 GREASE NIPPLE
CABLE PULLEY
635 N 000934010014 NUT
BRAKE CABLE
636 A 3529910007 PIN
BRAKE CABLE TO INTERMEDIATE LEVER
636H N 000094003219 COTTER PIN
BRAKE CABLE TO INTERMEDIATE LEVER
637 A 3224203678 BEARING BRACKET
INTERMEDIATE LEVER
637 A 3404200278 BEARING BRACKET
INTERMEDIATE LEVER
638 A 3224270341 BRACKET
RELEASE SPRING
638E A 3524270241 BRACKET
RELEASE SPRING
639 N 000933010105 SCREW
BEARING BRACKET TO CROSS MEMBER
M 10X25
639 N 000933010128 SCREW
BEARING BRACKET TO CROSS MEMBER
M 10X20
639C N 912004010102 LOCK WASHER
BEARING BRACKET TO CROSS MEMBER
639F N 000934010014 NUT
BEARING BRACKET TO CROSS MEMBER
639K N 000933008145 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
M 8X18
639N N 000933008147 SCREW
Repalced by: N 304017008021
639N N 304017008021 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
M 8X20
639P N 912004008102 LOCK WASHER
BRACKET TO CROSS MEMBER BEHIND CAB
639T N 304032008006 NUT
BRACKET TO CROSS MEMBER BEHIND CAB
640 A 3584200081 LEVER
(INTERMEDIATE LEVER)
640 A 3584200181 LEVER
(INTERMEDIATE LEVER)
A 3124271550 BUSHING
Repalced by: A 3529921201
641 A 3529921201 BUSHING
642 N 071412010300 GREASE NIPPLE
643 A 3124261574 PIN
INTERMEDIATE LEVER TO BEARING BRACKET
644 N 000471022000 LOCK RING
INTERMEDIATE LEVER TO BEARING BRACKET
645 A 3379935010 SPRING
RELEASE SPRING
646 N 071752012002 YOKE
PULL ROD TO INTERMEDIATE LEVER
647 A 3529910107 PIN
PULL ROD TO INTERMEDIATE LEVER
647 A 3529910107 PIN
PULL ROD TO INTERMEDIATE LEVER
647 A 3529910107 PIN
PULL ROD TO INTERMEDIATE LEVER
648 N 000433013005 WASHER
Repalced by: N 000433013010
648 N 000433013010 WASHER
PULL ROD TO INTERMEDIATE LEVER
648F N 000094004065 COTTER PIN
PULL ROD TO INTERMEDIATE LEVER
649 N 900331012331 PULL ROD
FROM INTERMEDIATE LEVER TO BRAKE INTERMEDIATE SHAFT
1200 MM
649 N 900331012332 PULL ROD
FROM INTERMEDIATE LEVER TO BRAKE INTERMEDIATE SHAFT
1800 MM
649 N 900331012334 PULL ROD
FROM INTERMEDIATE LEVER TO BRAKE INTERMEDIATE SHAFT
2400 MM
649 N 900331012329 PULL ROD
FROM INTERMEDIATE LEVER TO BRAKE INTERMEDIATE SHAFT
800 MM
651 N 001480012200 TURNBUCKLE
Repalced by: A 3859960034
651 A 3859960034 NUT
PULL ROD
652 N 000934012021 NUT
PULL ROD
653 N 900331012339 PULL ROD
FROM INTERMEDIATE LEVER TO BRAKE INTERMEDIATE SHAFT
400 MM
654 N 000934012020 NUT
L.H. THREAD
656 N 000934012021 NUT
PULL ROD
657 N 071752012002 YOKE
PULL ROD TO BRAKE INTERMEDIATE SHAFT
659 A 3529910107 PIN
PULL ROD TO BRAKE INTERMEDIATE SHAFT
660 N 000433013005 WASHER
Repalced by: N 000433013010
660 N 000433013010 WASHER
PULL ROD TO BRAKE INTERMEDIATE SHAFT
660L N 000094003210 COTTER PIN
PULL ROD TO BRAKE INTERMEDIATE SHAFT
661 A 3524200180 BRAKE INTERMEDIATE SHAFT
A 3524200280 BRAKE INTERMEDIATE SHAFT
Repalced by: A 3524201080
661 A 3524201080 BRAKE INTERMEDIATE SHAFT
663 A 3274270058 SEAL HOLDER
AT BEARING BRACKET
665 A 3279970040 SEAL RING
AT BEARING BRACKET
667 A 3524200478 BEARING BRACKET
667 A 3584201078 BEARING BRACKET
BRAKE INTERMEDIATE SHAFT
667 A 3584201078 BEARING BRACKET
BRAKE INTERMEDIATE SHAFT
A 3604200078 BEARING BRACKET
Repalced by: A 3604260005
A 3604260005 BEARING
BRAKE INTERMEDIATE SHAFT
A 3524270083 SPHERICAL PIECE
Repalced by: A 3025860242
669 A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860242
671 N 000470052000 EXPANSION PLUG
672 A 3025860242 REPAIR KIT
Repalced by: A 3534200067
672 A 3534200067 REPAIR KIT
Repalced by: A 3534200167
672 A 3534200167 BALL CUP
BRAKE INTERMEDIATE SHAFT BEARING
672D N 000961012151 SCREW
BEARING BRACKET TO CROSS MEMBER
672K N 912004012100 LOCK WASHER
BEARING BRACKET TO CROSS MEMBER
672P N 000934012022 NUT
BEARING BRACKET TO CROSS MEMBER
673 A 3529910107 PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
674 N 000094003210 COTTER PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
675 A 3524201574 ROD
Repalced by: A 3604200474
675A A 3604200474 ROD
FRONT
675D A 3534200074 ROD
REAR
675K N 000934012020 NUT
L.H. THREAD
675M N 000934012021 NUT
ROD
675Q N 001480012200 TURNBUCKLE
Repalced by: A 3859960034
675Q A 3859960034 NUT
ROD
676 A 3529910207 PIN
PULL ROD TO BRAKE INTERMEDIATE SHAFT
677 N 000433013005 WASHER
Repalced by: N 000433013010
677 N 000433013010 WASHER
PULL ROD TO BRAKE INTERMEDIATE SHAFT
677E N 900055012001 LOCK RING
PULL ROD TO BRAKE INTERMEDIATE SHAFT
677N N 000094003210 COTTER PIN
PULL ROD TO BRAKE INTERMEDIATE SHAFT
678 A 3224200086 BRACKET
Repalced by: A 3604200086
678 A 3604200086 BRACKET
Repalced by: A 3524200086
678 A 3524200086 BRACKET
HAND BRAKE LINKAGE
A 3214200286 BRACKET
HAND BRAKE LINKAGE
A 3524201986 BRACKET
Repalced by: A 3524200086
678 A 3524200086 BRACKET
HAND BRAKE LINKAGE
678 A 3524200086 BRACKET
HAND BRAKE LINKAGE
679 A 0009973481 GROMMET
HAND BRAKE LINKAGE
680 N 000933008147 SCREW
Repalced by: N 304017008021
680 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
681 N 000125008418 WASHER
Repalced by: N 000125008443
681 N 000125008443 WASHER
BRACKET TO CROSS MEMBER
682 N 912004008102 LOCK WASHER
BRACKET TO CROSS MEMBER
682C N 304032008006 NUT
BRACKET TO CROSS MEMBER
A 3024230336 BRAKE CAMSHAFT
Repalced by: A 3024230636
683 A 3024230636 BRAKE CAMSHAFT
683 A 3544230036 BRAKE CAMSHAFT
684 A 3024230086 CUP
BRAKE CAMSHAFT
684 A 3414230186 CUP
BRAKE CAMSHAFT
685 A 3024230037 ADJUSTING LEVER
LEFT
685 A 3024230137 ADJUSTING LEVER
RIGHT
687 A 3024230070 STUD
Repalced by: A 3024230170
687 A 3024230170 STUD
ADJUSTING LEVER
688 N 000439018204 NUT
ADJUSTING LEVER
689 A 3414230071 SCREW
Repalced by: A 3544230171
689 A 3544230171 SCREW
ADJUSTING LEVER
690 N 000936012005 NUT
Repalced by: N 308675012000
690 N 308675012000 NUT
ADJUSTING LEVER
691 A 3524260011 LEVER
Repalced by: A 3604260611
691 A 3604260011 LEVER
Repalced by: A 3604260611
691 A 3604260611 LEVER
LEFT
A 3524260111 LEVER
Repalced by: A 3604260711
A 3604260111 LEVER
Repalced by: A 3604260711
691 A 3604260711 LEVER
RIGHT
A 3274260283 SPHERICAL PIECE
Repalced by: A 3024260083
693 A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860142
695 N 003760045300 RADIAL SEAL RING
LEVER
697 N 071412010100 GREASE NIPPLE
LEVER
699 A 3029970020 EXPANSION PLUG
Repalced by: A 3609970020
699 A 3609970020 EXPANSION PLUG
LEVER
702 N 000472062000 LOCK RING
Repalced by: A 0039945241
702 A 0039945241 LOCK
LEVER
703 A 3024230753 SPACER TUBE
AS REQUIRED
10.50 MM
703 A 3024230153 SPACER TUBE
AS REQUIRED
11.00 MM
703 A 3024230253 SPACER TUBE
AS REQUIRED
11.50 MM
703 A 3024230353 SPACER TUBE
AS REQUIRED
12.00 MM
703 A 3024230453 SPACER TUBE
AS REQUIRED
12.50 MM
703 A 3024230553 SPACER TUBE
AS REQUIRED
13.00 MM
703 A 3024230653 SPACER TUBE
AS REQUIRED
13.50 MM
705 N 000471045000 LOCK RING
BRAKE CAMSHAFT
707 N 000471035000 LOCK RING
BRAKE CAMSHAFT
710 A 3025860142 REPAIR KIT
Repalced by: A 3024200067
710 A 3024200067 REPAIR KIT
BRAKE CAMSHAFT BEARING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
