Transporto priemonė: LP 911 B; VIN numerio dalis: 353058

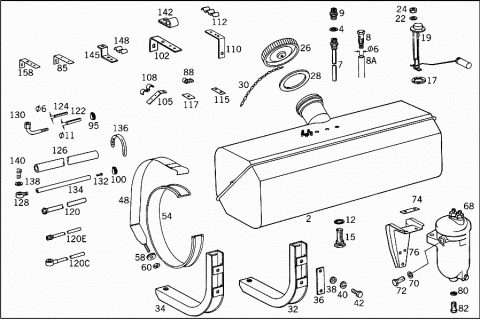

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 3524700101 | FUEL TANK |
| Repalced by: A 3834700601 | ||
| 002 | A 3834700601 | FUEL TANK |
| Repalced by: A 6734701201 | ||
| 002 | A 6734701201 | FUEL TANK |
| LESS SENDER UNIT | ||
| 105L. | ||
| 002 | A 6734701201 | FUEL TANK |
| LESS SENDER UNIT | ||
| 105L. | ||
| A 3524701001 | FUEL TANK | |
| Repalced by: A 3834700701 | ||
| A 3834700701 | FUEL TANK | |
| Repalced by: A 6734701001 | ||
| A 6734701001 | FUEL TANK | |
| LESS SENDER UNIT | ||
| 105 L. | ||
| A 6734701001 | FUEL TANK | |
| LESS SENDER UNIT | ||
| 105 L. | ||
| A 3834700901 | FUEL TANK | |
| LESS SENDER UNIT | ||
| 135 L. | ||
| A 3374705301 | FUEL TANK | |
| 140 L. | ||
| 004 | N 915035000014 | SEAL RING |
| AT TANK | ||
| 004 | N 915035000014 | SEAL RING |
| AT TANK | ||
| N 007603014405 | SEAL RING | |
| AT TANK | ||
| N 007604014106 | SCREW PLUG | |
| Repalced by: N 007604014110 | ||
| N 007604014110 | SCREW PLUG | |
| AT TANK | ||
| A 3524700226 | RISING PIPE | |
| Repalced by: A 3374700126 | ||
| 007 | A 3374700126 | RISING PIPE |
| AT TANK | ||
| A 3604700226 | RISING PIPE | |
| Repalced by: A 3609900263 | ||
| A 3464705126 | RISING PIPE | |
| Repalced by: A 3609900263 | ||
| A 3524700078 | HOLLOW SCREW | |
| Repalced by: A 3609900263 | ||
| 008 | A 3609900263 | HOLLOW SCREW |
| AT TANK | ||
| 008A | A 0089975482 | HOSE |
| AT TANK | ||
| 009 | A 3214710220 | FITTING |
| AT TANK | ||
| N 007603016300 | SEAL RING | |
| AT TANK | ||
| 012 | A 0029977245 | SEAL RING |
| AT TANK | ||
| A 3214700006 | FUEL STRAINER | |
| Repalced by: A 3604700006 | ||
| 015 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3074700106 | ||
| 015 | A 3074700106 | FUEL STRAINER |
| AT TANK | ||
| 017 | A 3524710080 | GASKET |
| Repalced by: A 4044710080 | ||
| 017 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 019 | A 0015422017 | SENDER UNIT |
| FUEL GAUGE | ||
| A 0055423317 | SENDER UNIT | |
| Repalced by: A 0085427617 | ||
| A 0085427617 | SENDER UNIT | |
| FUEL GAUGE | ||
| TO 383 470 06 01/07 01 | ||
| A 0045424617 | SENDER UNIT | |
| Repalced by: A 0055423417 | ||
| A 0055423417 | SENDER UNIT | |
| Repalced by: A 0085427717 | ||
| A 0085427717 | SENDER UNIT | |
| FUEL GAUGE | ||
| A 0005426317 | SENDER UNIT | |
| FUEL GAUGE | ||
| 022 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 022 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| A 0119970745 | SEAL RING | |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 024 | N 304032005005 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| A 3044700005 | FILLER CAP | |
| Repalced by: A 3094700005 | ||
| A 3524700405 | FILLER CAP | |
| Repalced by: A 3094700005 | ||
| 026 | A 3094700005 | FILLER CAP |
| 026 | A 3094700005 | FILLER CAP |
| A 0004710530 | FILLER CAP | |
| Repalced by: A 0004717930 | ||
| A 0004717930 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| A 0004700105 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| A 0004718030 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| A 0004700305 | FILLER CAP | |
| A 4044710079 | SEAL RING | |
| Repalced by: A 3049970340 | ||
| 028 | A 3049970340 | SEAL RING |
| 030 | A 3034700031 | CHAIN |
| AT TANK | ||
| A 3524700042 | SUPPORT | |
| FUEL TANK | ||
| A 3524702142 | SUPPORT | |
| Repalced by: A 3524703242 | ||
| 032 | A 3524703242 | SUPPORT |
| Repalced by: A 3834701442 | ||
| 032 | A 3834701442 | SUPPORT |
| Repalced by: A 3834701842 | ||
| 032 | A 3834701842 | SUPPORT |
| FUEL TANK | ||
| 034 | A 3524702342 | SUPPORT |
| Repalced by: A 3834701542 | ||
| 034 | A 3834701542 | SUPPORT |
| Repalced by: A 3834701942 | ||
| 034 | A 3834701942 | SUPPORT |
| FUEL TANK | ||
| A 3224700542 | SUPPORT | |
| Repalced by: A 3224700742 | ||
| A 3224700742 | SUPPORT | |
| Repalced by: A 3584700042 | ||
| A 3584700042 | SUPPORT | |
| FUEL TANK | ||
| 034 | A 3524703142 | SUPPORT |
| Repalced by: A 3534700042 | ||
| 034 | A 3534700042 | SUPPORT |
| Repalced by: A 3534700242 | ||
| 034 | A 3534700242 | SUPPORT |
| FUEL TANK | ||
| A 3224750184 | SHIM | |
| CONSOLE TO SIDE MEMBER | ||
| A 3604750084 | SHIM | |
| Repalced by: A 6245611240 | ||
| A 6245611240 | BRACKET | |
| CONSOLE TO SIDE MEMBER | ||
| A 3604750284 | SHIM | |
| CONSOLE TO SIDE MEMBER | ||
| A 3214750084 | SHIM | |
| Repalced by: N 007349013003 | ||
| A 3524750084 | SHIM | |
| Repalced by: A 3604750484 | ||
| A 3604750484 | SHIM | |
| CONSOLE TO SIDE MEMBER | ||
| A 3604750484 | SHIM | |
| CONSOLE TO SIDE MEMBER | ||
| 036 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 036 | N 007349013005 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 036 | N 007349013005 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 036 | N 007349013005 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 038 | A 3609900640 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 040 | N 912004012100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 040 | N 912004012100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 040 | N 912004014100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 042 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 1.5X30 | ||
| 042 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 1.5X30 | ||
| 042 | N 000961012122 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 1.5X40 | ||
| 042 | N 000961012174 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12 X 1.5 X 42 | ||
| 042 | N 000961014055 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14 X 1.5 X 42 | ||
| 042 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 042 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 042 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 042 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 042 | N 308676014020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 042 | N 308676014020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 042 | N 000961014100 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X1.5X30 | ||
| 042 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 042 | N 308676012015 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1.5X45 | ||
| 042 | N 000960012050 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1.5X48 | ||
| 042 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 042 | N 000961014064 | SCREW |
| M 14X1.5X50 | ||
| A 3529900640 | WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| 046 | A 3524700040 | STRAP |
| FUEL TANK | ||
| 048 | A 3604700140 | STRAP |
| Repalced by: A 3834700340 | ||
| 048 | A 3834700340 | STRAP |
| FUEL TANK | ||
| 048 | A 3834700040 | STRAP |
| Repalced by: A 6174700340 | ||
| 048 | A 6174700340 | STRAP |
| FUEL TANK | ||
| 048 | A 3834700140 | STRAP |
| Repalced by: A 6174700440 | ||
| 048 | A 6174700440 | STRAP |
| FUEL TANK | ||
| A 3224700340 | STRAP | |
| Repalced by: A 3224700140 | ||
| A 3224700140 | STRAP | |
| FUEL TANK | ||
| N 001443016203 | PIN | |
| STRAP TO SUPPORT | ||
| N 000094004065 | COTTER PIN | |
| STRAP TO SUPPORT | ||
| A 3609870014 | RUBBER STRIP | |
| Repalced by: A 3529870014 | ||
| A 3529870014 | RUBBER STRIP | |
| FUEL TANK TO CONSOLE | ||
| A 3379870014 | RUBBER STRIP | |
| FUEL TANK TO CONSOLE | ||
| 054 | A 3634750320 | PAD |
| FUEL TANK TO CONSOLE | ||
| 054 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 058 | A 3609970126 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 058 | N 000125013008 | WASHER |
| 060 | N 000934012022 | NUT |
| STRAP TO SUPPORT | ||
| M 12X1.5 | ||
| 060 | N 000934012022 | NUT |
| STRAP TO SUPPORT | ||
| M 12X1.5 | ||
| 060 | N 000934012021 | NUT |
| STRAP TO SUPPORT | ||
| M 12 | ||
| A 0049974882 | HOSE | |
| Repalced by: A 6360780025 | ||
| A 6360780025 | CONNECTING LINE | |
| A 0069973082 | HOSE | |
| 068 | A 0004774601 | FUEL FILTER |
| 068 | A 0014772901 | FUEL FILTER |
| A 3244770001 | FUEL FILTER | |
| A 4220900051 | FILTER ELEMENT | |
| Repalced by: A 0000901451 | ||
| A 0000901451 | FILTER ELEMENT | |
| TO 001 477 98 01 | ||
| A 0004773180 | SEAL RING | |
| TO 001 477 98 01 | ||
| A 4220900007 | HOUSING | |
| TO 001 477 98 01 | ||
| N 007603008109 | SEAL RING | |
| TO 001 477 98 01 | ||
| 070 | N 007603014405 | SEAL RING |
| FUEL LINE TO FUEL FILTER | ||
| 070 | N 007603014405 | SEAL RING |
| FUEL LINE TO FUEL FILTER | ||
| N 915013008002 | SCREW FITTING | |
| Repalced by: A 4039971172 | ||
| A 4039971172 | FITTING | |
| FUEL LINE TO FUEL FILTER | ||
| 072 | N 915011008103 | HOLLOW SCREW |
| Repalced by: N 915036010100 | ||
| 072 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 072 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FUEL FILTER | ||
| 074 | A 3524770084 | SHIM |
| FUEL FILTER TO BRACKET | ||
| N 000961012122 | SCREW | |
| FUEL FILTER TO BRACKET | ||
| N 912004012100 | LOCK WASHER | |
| FUEL FILTER TO BRACKET | ||
| N 000934012022 | NUT | |
| FUEL FILTER TO BRACKET | ||
| 076 | A 3524770241 | BRACKET |
| FUEL LINES | ||
| N 000933010164 | SCREW | |
| BRACKET TO FRAME | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| N 000934010014 | NUT | |
| BRACKET TO FRAME | ||
| 080 | N 007603014405 | SEAL RING |
| FUEL LINE TO FUEL FILTER | ||
| 082 | N 915011008103 | HOLLOW SCREW |
| Repalced by: N 915036010100 | ||
| 082 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 082 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FUEL FILTER | ||
| 085 | A 3214760036 | BRACKET |
| FUEL LINE | ||
| N 000933010105 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| A 3179950832 | CLAMP | |
| Repalced by: A 3609950301 | ||
| 088 | A 3609950301 | CLAMP |
| FUEL LINE | ||
| N 000094006107 | COTTER PIN | |
| FUEL LINE | ||
| N 912004006102 | LOCK WASHER | |
| FUEL LINE | ||
| N 000934006007 | NUT | |
| FUEL LINE | ||
| N 007603014405 | SEAL RING | |
| FUEL LINE TO FUEL FILTER | ||
| N 915011008103 | HOLLOW SCREW | |
| Repalced by: N 915036010100 | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| FUEL LINE TO FUEL FILTER | ||
| N 073379006203 | HOSE | |
| LEAK LINE TO CYLINDER HEAD | ||
| 095 | N 900288010001 | CLAMP |
| LEAK LINE TO CYLINDER HEAD | ||
| A 3124760026 | HOSE | |
| Repalced by: A 3054760126 | ||
| A 3054760126 | HOSE | |
| FUEL SYSTEM | ||
| 100 | N 900269017100 | CLAMP |
| FUEL LINE | ||
| 102 | A 3524760036 | BRACKET |
| Repalced by: A 3274925819 | ||
| 102 | A 3274925819 | BRACKET |
| FUEL LINE | ||
| N 000933010164 | SCREW | |
| FUEL LINE | ||
| N 912004010102 | LOCK WASHER | |
| FUEL LINE | ||
| N 000934010014 | NUT | |
| FUEL LINE | ||
| 105 | A 3525420440 | BRACKET |
| Repalced by: A 3525422840 | ||
| 105 | A 3525422840 | BRACKET |
| FUEL LINE | ||
| A 3224760436 | BRACKET | |
| FUEL LINE | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| FUEL LINE | ||
| N 912004008102 | LOCK WASHER | |
| FUEL LINE | ||
| N 000934008013 | NUT | |
| FUEL LINE | ||
| 108 | A 3179950832 | CLAMP |
| FUEL LINE | ||
| 110 | A 3525420440 | BRACKET |
| Repalced by: A 3525422840 | ||
| 110 | A 3525422840 | BRACKET |
| FUEL LINE | ||
| N 000933010128 | SCREW | |
| FUEL LINE | ||
| N 912004010102 | LOCK WASHER | |
| FUEL LINE | ||
| N 000934010014 | NUT | |
| FUEL LINE | ||
| 112 | A 3129950232 | CLAMP |
| Repalced by: A 4429955032 | ||
| 112 | A 4429955032 | CLAMP |
| FUEL LINE | ||
| A 3179950832 | CLAMP | |
| FUEL LINE | ||
| A 3609950301 | CLAMP | |
| FUEL LINE | ||
| 115 | A 3144760237 | BRACKET |
| Repalced by: A 3124761236 | ||
| 115 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 115 | A 3604293140 | BRACKET |
| FUEL LINE | ||
| 117 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 117 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 117 | A 3604293140 | BRACKET |
| FUEL LINE | ||
| N 000084006197 | SCREW | |
| FUEL LINE | ||
| N 912004006102 | LOCK WASHER | |
| FUEL LINE | ||
| N 000934006007 | NUT | |
| FUEL LINE | ||
| A 3524700264 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524700464 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524700864 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524704764 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524704665 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524704765 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524704865 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524704965 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524701566 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524701666 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524704766 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524704866 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3524700064 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524700164 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524700364 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524700564 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524700964 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524701064 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524701264 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524701464 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524702864 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524702965 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524707865 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524708365 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524708465 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3524700764 | LINE | |
| Repalced by: A 3404702665 | ||
| A 3524701164 | LINE | |
| Repalced by: A 3404702665 | ||
| A 3524701364 | LINE | |
| Repalced by: A 3404702665 | ||
| A 3404702665 | LINE | |
| WITH FITTING | ||
| 120 | A 3404701965 | LINE |
| RESERVOIR,FEED PUMP,BUBBLE SEPARATOR, FILTER | ||
| 1000 MM | ||
| 120C | A 3404701265 | LINE |
| RESERVOIR,FEED PUMP,BUBBLE SEPARATOR, FILTER | ||
| 1000 MM | ||
| 120E | A 3404702665 | LINE |
| RESERVOIR,FEED PUMP,HOSE | ||
| 1000 MM | ||
| A 3224700065 | LINE | |
| FROM HOSE TO TANK | ||
| A 3524708565 | LINE | |
| FROM HOSE TO TANK | ||
| A 0004290901 | LINE | |
| TO CONNECT THE FUEL LINES | ||
| 10X0.7 MM | ||
| A 3054760126 | HOSE | |
| TO CONNECT THE FUEL LINES | ||
| N 916017011000 | CLAMP | |
| Repalced by: N 916017011001 | ||
| N 000000000665 | CLAMP | |
| TO CONNECT THE FUEL LINES | ||
| 122 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| 124 | A 0109977082 | HOSE |
| LEAK, FEED/RETURN | ||
| 6X4 MM | ||
| A 0089979082 | HOSE | |
| FUEL LINE TO SENDER UNIT | ||
| 6X8 MM | ||
| N 916026010000 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| FUEL LINE | ||
| 126 | N 040621025500 | INSULATING HOSE |
| FUEL LINE | ||
| 126 | N 040621011200 | INSULATING HOSE |
| FUEL LINE | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| A 0009971548 | SEAL RING | |
| FUEL LINE TO TANK | ||
| 128 | A 0009904188 | BANJO UNION |
| Repalced by: N 915052008001 | ||
| 128 | N 915052008019 | BANJO UNION |
| FROM RETURN LINE TO FUEL TANK | ||
| 128 | A 0009905088 | BANJO UNION |
| Repalced by: N 915052008019 | ||
| 128 | N 915052008019 | BANJO UNION |
| RISING PIPE TO FUEL TANK | ||
| 16 MM | ||
| 128 | N 915052008016 | BANJO UNION |
| FUEL LINE TO FEED PUMP | ||
| 14 MM | ||
| 128 | A 0009904288 | BANJO UNION |
| Repalced by: N 915052004002 | ||
| 128 | N 915052004019 | BANJO UNION |
| LEAK LINE | ||
| 16 MM | ||
| 128 | A 0009908188 | BANJO UNION |
| FEED LINE | ||
| 16 MM | ||
| 130 | A 0004760524 | ELBOW FITTING |
| FUEL LINE | ||
| A 3879900078 | CONNECTOR | |
| Repalced by: N 915062008000 | ||
| N 915062008000 | SLEEVE | |
| FEED LINE AND RETURN LINE | ||
| A 0019975272 | FITTING | |
| RETURN LINE | ||
| N 915017008201 | UNION NUT | |
| RETURN LINE | ||
| A 0009920205 | BUSHING | |
| Repalced by: N 915062004000 | ||
| 132 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 132 | N 915062004000 | SLEEVE |
| LEAK LINE | ||
| 134 | N 073379006203 | HOSE |
| LEAK LINE | ||
| 6X10X50 MM | ||
| A 3054760126 | HOSE | |
| FEED LINE AND RETURN LINE | ||
| 10X16X60 MM | ||
| A 0029978790 | CLIP | |
| FEED LINE AND RETURN LINE | ||
| N 900269010100 | CLAMP | |
| FUEL LINE | ||
| 136 | A 0009972490 | LOOM TIE |
| Repalced by: A 0009974390 | ||
| 136 | A 0009974390 | LOOM TIE |
| FUEL LINE | ||
| 138 | N 915035000014 | SEAL RING |
| FUEL LINE TO TANK | ||
| 138 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 138 | A 0009971548 | SEAL RING |
| FUEL LINE TO TANK | ||
| 140 | N 915036012203 | HOLLOW SCREW |
| FUEL LINE TO TANK | ||
| N 007604016102 | SCREW PLUG | |
| FUEL LINE TO TANK | ||
| 142 | A 0664340043 | CLAMP |
| FUEL LINE | ||
| 142 | A 0664340043 | CLAMP |
| FUEL LINE | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| FUEL LINE TO BRACKET | ||
| N 000933006102 | SCREW | |
| FUEL LINE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| FUEL LINE TO BRACKET | ||
| N 000934006007 | NUT | |
| FUEL LINE TO BRACKET | ||
| A 3604292140 | BRACKET | |
| Repalced by: A 6205240340 | ||
| A 6205240340 | BRACKET | |
| 145 | A 3604292940 | BRACKET |
| AT ENGINE | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO ENGINE | ||
| N 000933008005 | SCREW | |
| BRACKET TO ENGINE | ||
| A 3604292440 | BRACKET | |
| Repalced by: A 3604292940 | ||
| A 3604292940 | BRACKET | |
| FUEL LINE TO SIDE MEMBER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| FUEL LINE | ||
| A 0019978490 | LOOM TIE | |
| FUEL LINE | ||
| 376 MM | ||
| A 0019978390 | LOOM TIE | |
| FUEL LINE | ||
| 280 MM | ||
| 148 | A 3379950032 | CLAMP |
| FUEL LINE | ||
| N 000933006102 | SCREW | |
| FUEL LINE | ||
| N 912004006102 | LOCK WASHER | |
| FUEL LINE | ||
| N 000934006007 | NUT | |
| FUEL LINE | ||
| N 007603014405 | SEAL RING | |
| FUEL LINES TO ENGINE | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| FUEL LINES TO ENGINE | ||
| A 0019978390 | LOOM TIE | |
| FUEL LINES TO ENGINE | ||
| A 3879970181 | GROMMET | |
| FUEL LINES | ||
| 158 | A 3144290240 | BRACKET |
| Repalced by: A 3812950440 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
