Transporto priemonė: LP 913; VIN numerio dalis: 318058

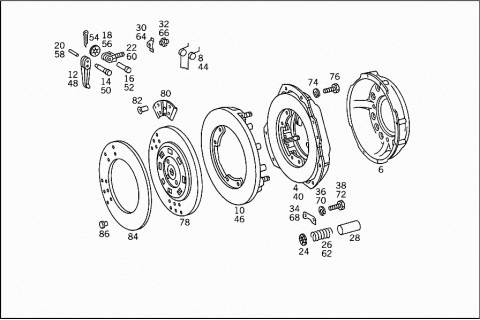

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 0012500304 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022509404 | ||
| 004 | A 0022509404 | CLUTCH PRESSURE PLATE |
| 004 | A 0022506104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022509604 | ||
| 004 | A 0022509604 | CLUTCH PRESSURE PLATE |
| 004 | A 0022509604 | CLUTCH PRESSURE PLATE |
| A 0002522332 | HOUSING | |
| Repalced by: A 0002524332 | ||
| A 0002524332 | HOUSING | |
| CLUTCH PRESSURE PLATE | ||
| A 0002523832 | HOUSING | |
| Repalced by: A 0002524432 | ||
| 006 | A 0002524432 | HOUSING |
| CLUTCH PRESSURE PLATE | ||
| 006 | A 0002524432 | HOUSING |
| CLUTCH PRESSURE PLATE | ||
| 008 | A 0002520827 | SPRING |
| RELEASE LEVER | ||
| 008 | A 0002520827 | SPRING |
| RELEASE LEVER | ||
| A 0012505104 | CLUTCH PRESSURE PLATE | |
| A 0002523912 | PRESSURE PLATE | |
| 010 | A 0002524312 | PRESSURE PLATE |
| 010 | A 0002524312 | PRESSURE PLATE |
| 012 | A 0002523713 | RELEASE LEVER |
| 012 | A 0002523713 | RELEASE LEVER |
| 014 | A 0002521616 | SPINDLE |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 014 | A 0002521616 | SPINDLE |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 016 | A 0002521716 | SPINDLE |
| RELEASE LEVER,BRACKET | ||
| 016 | A 0002521716 | SPINDLE |
| RELEASE LEVER,BRACKET | ||
| 018 | N 006799007007 | LOCK PLATE |
| 020 | A 0002520318 | ROLLER |
| 020 | A 0002520318 | ROLLER |
| A 0002521514 | BRACKET | |
| Repalced by: A 0002522314 | ||
| 022 | A 0002522314 | BRACKET |
| 022 | A 0002522314 | BRACKET |
| 024 | A 0002520024 | INSULATING WASHER |
| 026 | A 0002525020 | PRESSURE SPRING |
| 026 | A 0002525020 | PRESSURE SPRING |
| 028 | A 0002520253 | SPACER TUBE |
| 028 | A 0002520253 | SPACER TUBE |
| 030 | A 0002520619 | LEAF SPRING |
| 030 | A 0002520619 | LEAF SPRING |
| 032 | A 0002522472 | NUT |
| Repalced by: A 0002523372 | ||
| 032 | A 0002523372 | NUT |
| 032 | A 0002523372 | NUT |
| 034 | A 0002520473 | LOCK |
| Repalced by: A 0002521173 | ||
| 034 | A 0002521173 | LOCK |
| 036 | N 912004005103 | LOCK WASHER |
| 036 | N 000127007203 | LOCK WASHER |
| 036 | N 000127007203 | LOCK WASHER |
| A 0009902721 | SCREW | |
| Repalced by: N 007985005157 | ||
| A 0009900020 | SCREW | |
| Repalced by: N 007985005157 | ||
| 038 | N 007985005157 | SCREW |
| 038 | A 0002522971 | SCREW |
| 038 | A 0002522971 | SCREW |
| 040 | A 0022508404 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032501204 | ||
| 040 | A 0032501204 | CLUTCH PRESSURE PLATE |
| 040 | A 0032501204 | CLUTCH PRESSURE PLATE |
| A 0002524732 | HOUSING | |
| A 0002524732 | HOUSING | |
| 044 | A 0002520527 | SPRING |
| 044 | A 0002520527 | SPRING |
| 046 | A 0002524812 | PRESSURE PLATE |
| Repalced by: A 0002526312 | ||
| 046 | A 0002526312 | PRESSURE PLATE |
| 046 | A 0002526312 | PRESSURE PLATE |
| 048 | A 0002525513 | RELEASE LEVER |
| Repalced by: A 0002526613 | ||
| 048 | A 0002526613 | RELEASE LEVER |
| 048 | A 0002526613 | RELEASE LEVER |
| 050 | A 0002520016 | SPINDLE |
| Repalced by: A 0002523516 | ||
| 050 | A 0002523516 | SPINDLE |
| Repalced by: A 0002524216 | ||
| 050 | A 0002524216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 050 | A 0002524216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 052 | A 0002520516 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 052 | A 0002523616 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 052 | A 0002523816 | SPINDLE |
| FOR BRACKETS | ||
| 052 | A 0002523816 | SPINDLE |
| FOR BRACKETS | ||
| 054 | N 000094002059 | COTTER PIN |
| 054 | N 000094002059 | COTTER PIN |
| 056 | N 006799007007 | LOCK PLATE |
| 056 | N 006799007007 | LOCK PLATE |
| 058 | A 0002520018 | ROLLER |
| 058 | A 0002520018 | ROLLER |
| A 0002522414 | BRACKET | |
| Repalced by: A 0002522914 | ||
| 060 | A 0002522914 | BRACKET |
| 060 | A 0002522914 | BRACKET |
| 062 | A 0002527720 | PRESSURE SPRING |
| 062 | A 0002527720 | PRESSURE SPRING |
| 064 | A 0002521419 | LEAF SPRING |
| 064 | A 0002521419 | LEAF SPRING |
| 066 | A 0002522872 | NUT |
| SETTING | ||
| 066 | A 0002522872 | NUT |
| SETTING | ||
| 068 | A 0002520573 | LOCK |
| HOUSING TO PRESSURE PLATE | ||
| 068 | A 0002520573 | LOCK |
| HOUSING TO PRESSURE PLATE | ||
| 070 | N 912004008102 | LOCK WASHER |
| HOUSING TO PRESSURE PLATE | ||
| 070 | N 912004008102 | LOCK WASHER |
| HOUSING TO PRESSURE PLATE | ||
| 072 | A 0002523071 | SCREW |
| HOUSING TO PRESSURE PLATE | ||
| 072 | A 0002523071 | SCREW |
| HOUSING TO PRESSURE PLATE | ||
| 074 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 076 | A 3522520071 | SCREW |
| Repalced by: N 304017008036 | ||
| 076 | N 304017008036 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 076 | N 000931008229 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X35 | ||
| 076 | N 000931008229 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X35 | ||
| 076 | N 000933008317 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X18 | ||
| 076 | N 000933008317 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X18 | ||
| 078 | A 0092501203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 078 | A 0092501203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 078 | A 0092501303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 078 | A 0092501303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 078 | A 0032508203 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 078 | A 0032508203 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 078 | A 0022500403 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 078 | A 0022500403 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 078 | A 0052500603 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 078 | A 0052500603 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 078 | A 0052500703 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| A 0052500703 | CLUTCH DISC | |
| Repalced by: A 0032508603 | ||
| 078 | A 0032508603 | CLUTCH DISC |
| 078 | A 0032508603 | CLUTCH DISC |
| 078 | A 0072501803 | CLUTCH DISC |
| Repalced by: A 0102508503 | ||
| 078 | A 0102508503 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 078 | A 0102508503 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 078 | A 0072501903 | CLUTCH DISC |
| Repalced by: A 0132508903 | ||
| 078 | A 0132508903 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 078 | A 0132508903 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 078 | A 0042506603 | CLUTCH DISC |
| 078 | A 0042506603 | CLUTCH DISC |
| 080 | A 0002522019 | LEAF SPRING |
| 080 | A 0002522019 | LEAF SPRING |
| A 0002520219 | LEAF SPRING | |
| Repalced by: A 0002524519 | ||
| 080 | A 0002524519 | LEAF SPRING |
| 080 | A 0002524519 | LEAF SPRING |
| 082 | A 0002522175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 082 | A 0002522175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 082 | A 0002520175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 4X5 MM | ||
| 082 | A 0002520175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 4X5 MM | ||
| 082 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 082 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 084 | A 0012525010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 084 | A 0012525010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 084 | A 0002525210 | CLUTCH LINING |
| Repalced by: A 0002529010 | ||
| 084 | A 0002529010 | CLUTCH LINING |
| 084 | A 0002529010 | CLUTCH LINING |
| 084 | A 0012524410 | CLUTCH LINING |
| Repalced by: A 0012527810 | ||
| 084 | A 0012527810 | CLUTCH LINING |
| Repalced by: A 0002521310 | ||
| 084 | A 0002521310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| TO 013 250 89 03 | ||
| 084 | A 0002521310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| TO 013 250 89 03 | ||
| 084 | A 0012520610 | CLUTCH LINING |
| 084 | A 0012520610 | CLUTCH LINING |
| 086 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 086 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 086 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 086 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 086 | A 0002524375 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 086 | A 0002524375 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||

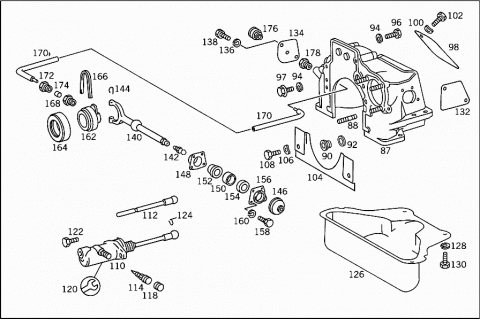

| A 3522500305 | HOUSING | |
| Repalced by: A 3522512001 | ||
| A 3522502005 | HOUSING | |
| Repalced by: A 3522512001 | ||
| A 3522501605 | HOUSING | |
| Repalced by: A 3522512001 | ||
| A 3522511501 | BELL HOUSING | |
| Repalced by: A 3522512001 | ||
| 087 | A 3522512001 | BELL HOUSING |
| 087 | A 3522512101 | BELL HOUSING |
| 088 | N 000939010027 | STUD BOLT |
| BELL HOUSING | ||
| 088 | A 0009902605 | STUD |
| BELL HOUSING | ||
| 090 | N 000908016008 | SCREW PLUG |
| BELL HOUSING | ||
| 092 | N 007603016401 | SEAL RING |
| BELL HOUSING | ||
| 094 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 096 | N 000931012277 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12 X 135 | ||
| 097 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 097 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12 X 35 | ||
| 098 | A 3602510004 | END COVER |
| AT BELL HOUSING,TOP | ||
| 100 | N 000137006204 | SPRING WASHER |
| END COVER TO BELL HOUSING | ||
| 102 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 102 | N 304017006034 | SCREW |
| END COVER TO BELL HOUSING | ||
| 104 | A 3122511006 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 104 | A 3522500055 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 104 | A 3522510106 | PROTECTIVE PLATE |
| BELL HOUSING | ||
| 106 | N 912004006102 | LOCK WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 106 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 108 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 108 | N 304017006018 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| M 6X12 | ||
| 108 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 108 | N 910106006006 | SCREW |
| Repalced by: N 000000002270 | ||
| 108 | N 000000002270 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| M 6X10 | ||
| 110 | A 0002958307 | SLAVE CYLINDER |
| CLUTCH | ||
| 112 | A 0002950233 | ROD |
| A 0002950873 | LOCK | |
| Repalced by: A 0005863829 | ||
| 114 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 114 | A 3075530107 | VALVE |
| 118 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 118 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 118 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 118 | A 0004210887 | PROTECTIVE CAP |
| 120 | A 0005863829 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 122 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 122 | N 304017008034 | SCREW |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 124 | N 071805016402 | SECURING CLIP |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
| A 3522510002 | BELL HOUSING | |
| Repalced by: A 3522503105 | ||
| A 3522510102 | BELL HOUSING | |
| Repalced by: A 3522503105 | ||
| A 3812510102 | BELL HOUSING | |
| Repalced by: A 3522503105 | ||
| 126 | A 3522503105 | HOUSING |
| Repalced by: A 3522510202 | ||
| 126 | A 3522510202 | BELL HOUSING |
| LOWER PART | ||
| 128 | N 912004006102 | LOCK WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 128 | N 000137006204 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 130 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 130 | N 304017006018 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| M 6X12 | ||
| 130 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 130 | N 910106006006 | SCREW |
| Repalced by: N 000000002270 | ||
| 130 | N 000000002270 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| M 6X10 | ||
| 132 | A 3522510004 | END COVER |
| LATERAL | ||
| 134 | A 3102500155 | COVER |
| LATERAL | ||
| 136 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 138 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 138 | N 304017008016 | SCREW |
| COVER TO BELL HOUSING | ||
| A 3142900229 | RELEASE YOKE | |
| Repalced by: A 3522930311 | ||
| 140 | A 3522930311 | RELEASE YOKE |
| CLUTCH | ||
| A 3182900029 | RELEASE YOKE | |
| Repalced by: A 3412930011 | ||
| 140 | A 3412930011 | RELEASE YOKE |
| CLUTCH | ||
| 140 | A 3812540108 | RELEASE LEVER |
| CLUTCH | ||
| 140 | A 3812540208 | RELEASE LEVER |
| CLUTCH | ||
| 142 | A 3149910215 | BALL PIVOT |
| RELEASE LEVER | ||
| 142 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 142 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 144 | A 3402540013 | SPRING LOCK |
| RELEASE LEVER TO RELEASE COLLAR | ||
| 144 | A 3812540113 | SPRING LOCK |
| RELEASE LEVER TO RELEASE COLLAR | ||
| 146 | A 3522540097 | BOOT |
| Repalced by: A 3142540197 | ||
| 146 | A 3142540197 | BOOT |
| RELEASE LEVER | ||
| 146 | A 3812540097 | BOOT |
| Repalced by: A 6152540097 | ||
| 146 | A 6152540097 | BOOT |
| RELEASE LEVER | ||
| 148 | A 3812540040 | BRACKET |
| Repalced by: A 3522540040 | ||
| 148 | A 3522540040 | BRACKET |
| INSIDE | ||
| A 3522540135 | BEARING | |
| Repalced by: A 3802540035 | ||
| 150 | A 3802540035 | BEARING |
| OUTSIDE | ||
| 150 | A 3802540135 | BEARING |
| OUTSIDE | ||
| 152 | A 3802540059 | SEAL RING |
| SOFT | ||
| 152 | A 3802540259 | SEAL RING |
| SOFT | ||
| 154 | A 3802540159 | SEAL RING |
| HARD | ||
| 154 | A 3802540359 | SEAL RING |
| HARD | ||
| 156 | A 3812500043 | BRACKET |
| Repalced by: A 3522500243 | ||
| 156 | A 3522500243 | BRACKET |
| OUTSIDE | ||
| 158 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 158 | N 304017008021 | SCREW |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 160 | N 912004008102 | LOCK WASHER |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 162 | A 3522500515 | RELEASE BEARING |
| Repalced by: A 3402500215 | ||
| 162 | A 3402500215 | RELEASE BEARING |
| CLUTCH | ||
| 162 | A 0002503115 | RELEASE BEARING |
| CLUTCH | ||
| 162 | A 0002504015 | RELEASE BEARING |
| CLUTCH | ||
| 162 | A 0002504615 | RELEASE BEARING |
| Repalced by: A 0012509315 | ||
| 162 | A 0012509315 | RELEASE BEARING |
| CLUTCH | ||
| 162 | A 0002504215 | RELEASE BEARING |
| CLUTCH | ||
| 164 | A 0002540020 | RELEASE BEARING |
| 164 | A 0002540120 | RELEASE BEARING |
| 166 | A 3129870110 | STRIP |
| Repalced by: A 3409830010 | ||
| 166 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 352 250 05 15 | ||
| 166 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 340 250 02 15 | ||
| 168 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 170 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| A 6209970288 | GREASE NIPPLE | |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 172 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 174 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 176 | N 003411002001 | GREASE CUP |
| RELEASE BEARING LUBRICATION | ||
| 178 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
