Transporto priemonė: LP 913; VIN numerio dalis: 318058

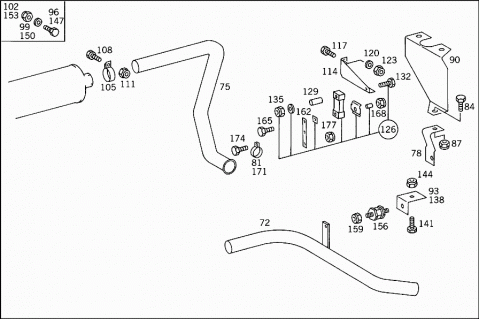

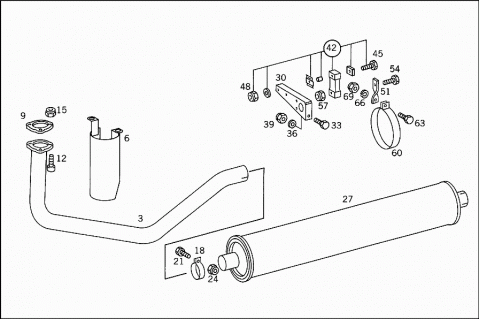

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3184900019 | EXHAUST PIPE |
| FRONT | ||
| A 3184901419 | EXHAUST PIPE | |
| Repalced by: A 3184901719 | ||
| 003 | A 3184901719 | EXHAUST PIPE |
| FRONT | ||
| 006 | A 3024900030 | PROTECTIVE PLATE |
| FRONT | ||
| 006 | A 3184900230 | PROTECTIVE PLATE |
| FRONT | ||
| 009 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 009 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 012 | N 000912010064 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 012 | N 000912010019 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 012 | N 000912010016 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 0019907851 | NUT | |
| Repalced by: N 913004010000 | ||
| 015 | A 0009906550 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 015 | A 0009906550 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 018 | A 3144910440 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 021 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 021 | N 304017008034 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 024 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 024 | A 1201420072 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| A 3604900101 | EXHAUST MUFFLER | |
| Repalced by: A 3834900001 | ||
| 027 | A 3834900001 | EXHAUST MUFFLER |
| A 3164920116 | SUPPORT | |
| Repalced by: A 3164920316 | ||
| 030 | A 3164920316 | SUPPORT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 030 | A 3184910016 | SUPPORT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 030 | A 3164920316 | SUPPORT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 033 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| 033 | N 000933010128 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X20 | ||
| 036 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 036 | N 000125010532 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 039 | N 913002010001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 039 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 039 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| A 1204920482 | DAMPING PAD | |
| Repalced by: A 3095860049 | ||
| A 1204920118 | BASE PLATE | |
| Repalced by: A 3095860049 | ||
| A 1209911140 | SPACER TUBE | |
| Repalced by: A 3095860049 | ||
| A 1204920083 | INSULATION | |
| Repalced by: A 3095860049 | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| 042 | A 3094900037 | SUSPENSION |
| EXHAUST MUFFLER TO SUPPORT | ||
| 045 | N 000931008266 | SCREW |
| DAMPING PAD TO SUPPORT | ||
| 048 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 048 | N 913004008001 | NUT |
| DAMPING PAD TO SUPPORT | ||
| A 3184910141 | BRACKET | |
| Repalced by: A 3144910341 | ||
| A 3184910241 | BRACKET | |
| Repalced by: A 3144910341 | ||
| A 6734910941 | BRACKET | |
| Repalced by: A 3144910341 | ||
| 051 | A 3144910341 | BRACKET |
| EXHAUST MUFFLER | ||
| 054 | N 000931008244 | SCREW |
| BRACKET TO DAMPING PAD | ||
| A 0019907751 | NUT | |
| Repalced by: N 913004008007 | ||
| 057 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 057 | A 1201420072 | NUT |
| BRACKET TO DAMPING PAD | ||
| 060 | A 3184910041 | BRACKET |
| EXHAUST MUFFLER | ||
| 063 | N 000933010128 | SCREW |
| MUFFLER BRACKET TO BRACKET AT SIDE MEMBER | ||
| 066 | N 912004010102 | LOCK WASHER |
| MUFFLER BRACKET TO BRACKET AT SIDE MEMBER | ||
| A 0019907851 | NUT | |
| Repalced by: N 913004010008 | ||
| 069 | A 0009906550 | NUT |
| MUFFLER BRACKET TO BRACKET AT SIDE MEMBER | ||
| 072 | A 3184900121 | EXHAUST PIPE |
| REAR | ||
| 072 | A 3184900521 | EXHAUST PIPE |
| REAR | ||
| 072 | A 3184900321 | EXHAUST PIPE |
| REAR | ||
| 072 | A 3184900621 | EXHAUST PIPE |
| REAR | ||
| 072 | A 3184901721 | EXHAUST PIPE |
| REAR | ||
| A 3184902121 | EXHAUST PIPE | |
| A 3184923804 | REAR EXHAUST PIPE | |
| Repalced by: A 3184924204 | ||
| 075 | A 3184924204 | REAR EXHAUST PIPE |
| REAR | ||
| A 3184923704 | REAR EXHAUST PIPE | |
| Repalced by: A 3184924404 | ||
| 075 | A 3184924404 | REAR EXHAUST PIPE |
| REAR | ||
| A 3184923904 | REAR EXHAUST PIPE | |
| Repalced by: A 3184924304 | ||
| 075 | A 3184924304 | REAR EXHAUST PIPE |
| REAR | ||
| A 3184900221 | EXHAUST PIPE | |
| Repalced by: A 3184922704 | ||
| 075 | A 3184922704 | REAR EXHAUST PIPE |
| REAR | ||
| A 3184900421 | EXHAUST PIPE | |
| Repalced by: A 3184923104 | ||
| 075 | A 3184923104 | REAR EXHAUST PIPE |
| REAR | ||
| 078 | A 3184924041 | BRACKET |
| REAR EXHAUST PIPE | ||
| 081 | N 071555060500 | CLAMP |
| Repalced by: N 000000001642 | ||
| 081 | N 000000001642 | CLAMP |
| REAR EXHAUST PIPE | ||
| 084 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 084 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE | ||
| TO 318 492 27 04 | ||
| 087 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 087 | N 913004008001 | NUT |
| REAR EXHAUST PIPE | ||
| 090 | A 3185440338 | BRACKET |
| REAR EXHAUST PIPE | ||
| A 3184920441 | BRACKET | |
| Repalced by: A 3184920641 | ||
| 093 | A 3184920641 | BRACKET |
| AT CROSS MEMBER | ||
| 096 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 096 | N 304017008021 | SCREW |
| BRACKET TO GUSSET PLATE | ||
| 099 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 099 | N 000125008443 | WASHER |
| BRACKET TO GUSSET PLATE | ||
| 102 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 102 | N 913004008001 | NUT |
| BRACKET TO GUSSET PLATE | ||
| N 071555063500 | CLAMP | |
| Repalced by: A 3144910340 | ||
| 105 | A 3144910340 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 108 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 108 | N 304017008034 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| A 0019907751 | NUT | |
| Repalced by: N 913004008007 | ||
| 111 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 111 | A 1201420072 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| A 3164920016 | SUPPORT | |
| Repalced by: A 3164920316 | ||
| 114 | A 3164920316 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 114 | A 3164920216 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 114 | A 3164920216 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 114 | A 3164920216 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| A 3164920116 | SUPPORT | |
| Repalced by: A 3164920316 | ||
| 114 | A 3164920316 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 114 | A 3164920316 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 114 | A 3164920316 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 117 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 120 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 120 | N 000125010532 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 123 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 123 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| A 1204920482 | DAMPING PAD | |
| Repalced by: A 3095860049 | ||
| A 1204920118 | BASE PLATE | |
| Repalced by: A 3095860049 | ||
| A 1209911140 | SPACER TUBE | |
| Repalced by: A 3095860049 | ||
| A 1204920083 | INSULATION | |
| Repalced by: A 3095860049 | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| 126 | A 3094900037 | SUSPENSION |
| REAR EXHAUST PIPE | ||
| 126 | A 3094900037 | SUSPENSION |
| REAR EXHAUST PIPE | ||
| 126 | A 3094900037 | SUSPENSION |
| REAR EXHAUST PIPE | ||
| 129 | A 3354310053 | SPACER TUBE |
| Repalced by: A 3094310249 | ||
| 129 | A 3094310249 | GUIDE BUSHING |
| REAR EXHAUST PIPE | ||
| 132 | N 000931008266 | SCREW |
| DAMPING PAD TO SUPPORT | ||
| 135 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 135 | N 913004008001 | NUT |
| DAMPING PAD TO SUPPORT | ||
| 138 | A 3184920641 | BRACKET |
| AT FRAME | ||
| 141 | N 000933008145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 144 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 144 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| A 3184920053 | SPACER TUBE | |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 147 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 147 | N 304014008002 | SCREW |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 147 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 147 | N 304014008001 | SCREW |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 150 | N 007349008000 | WASHER |
| Repalced by: N 007349008007 | ||
| 150 | N 007349008007 | WASHER |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 150 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 150 | N 000125008443 | WASHER |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 153 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 153 | N 913004008001 | NUT |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| A 0019872640 | RUBBER BUFFER | |
| Repalced by: A 0019875240 | ||
| 156 | A 0019875240 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| A 0019901651 | NUT | |
| Repalced by: N 913004008005 | ||
| 159 | N 910113008001 | NUT |
| EXHAUST PIPE SUSPENSION | ||
| 162 | A 3184923441 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 165 | N 000931008244 | SCREW |
| BRACKET TO DAMPING PAD | ||
| A 0019907751 | NUT | |
| Repalced by: N 913004008007 | ||
| 168 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 168 | A 1201420072 | NUT |
| BRACKET TO DAMPING PAD | ||
| 171 | N 071555060502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 60.5 MM | ||
| 174 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 174 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M8X30 | ||
| 174 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 174 | N 304017008028 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X50 | ||
| 177 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 177 | A 1201420072 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
