Transporto priemonė: LP 913; VIN numerio dalis: 318059
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

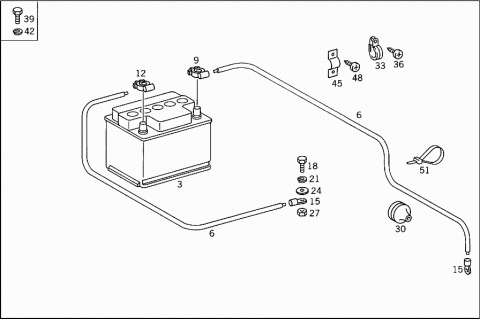

| A 0005417801 | BATTERY | |
| Repalced by: A 3875400901 | ||
| A 3875400901 | BATTERY | |
| Repalced by: A 0035410201 | ||
| A 0035410201 | BATTERY | |
| Repalced by: A 0015419701 | ||
| 003 | A 0015419701 | BATTERY |
| Repalced by: A 0025411701 | ||
| 003 | A 0025411701 | BATTERY |
| 12/143AH | ||
| 006 | N 922002095000 | ELECTRIC CABLE |
| BATTERY | ||
| 009 | N 072332015100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 012 | N 072332015300 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 015 | N 046234010006 | CABLE SHOE |
| WITH BORE | ||
| 10.5 MM | ||
| 015 | N 046234010007 | CABLE SHOE |
| WITH BORE | ||
| 10.5 MM | ||
| 018 | N 000933010128 | SCREW |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| M 10X20 | ||
| 018 | N 000933010105 | SCREW |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| M 10X25 | ||
| 021 | N 912004010102 | LOCK WASHER |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 024 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 024 | N 009021010209 | WASHER |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 027 | N 000934010014 | NUT |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| A 3219970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 030 | A 3359970081 | GROMMET |
| BATTERY CABLES THRU BATTERY CASE | ||
| 033 | N 916016022206 | CLAMP |
| ELECTRIC CABLE THRU DRIVER'S SEAT BOX | ||
| 036 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 036 | N 000000000460 | SCREW |
| CLAMP MOUNTING | ||
| A 3149950132 | CLAMP | |
| AT LEFT SIDE MEMBER | ||
| 039 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 039 | N 304017008021 | SCREW |
| CLAMP MOUNTING | ||
| 042 | N 912004008102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 045 | N 072573002004 | CLAMP |
| BATTERY POS. CABLE TO BATTERY CASE | ||
| 048 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 048 | N 000000000460 | SCREW |
| BATTERY POS. CABLE TO BATTERY CASE | ||
| 051 | A 0019978390 | LOOM TIE |
| BATTERY CABLE | ||
| 280 MM | ||
| A 3525400241 | GROUND STRAP | |
| Repalced by: A 3525400041 | ||
| A 3525400241 | GROUND STRAP | |
| A 3145400241 | GROUND STRAP | |
| Repalced by: A 3145400041 | ||
| A 3145400041 | GROUND STRAP | |
| Repalced by: A 3525400041 | ||

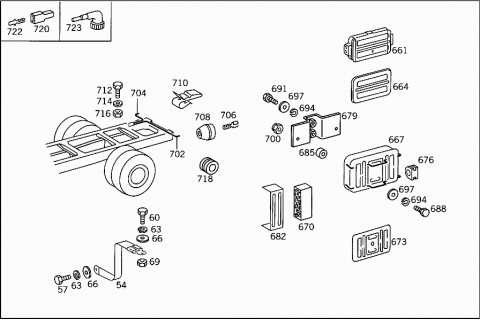

| 054 | A 3525400041 | GROUND STRAP |
| FROM BELL HOUSING TO CAB CROSS MEMBER | ||
| 054 | A 3521500032 | GROUND CABLE |
| FROM ALTERNATOR TO FRAME SIDE MEMBER | ||
| 057 | N 000933010128 | SCREW |
| GROUND TO CROSS MEMBER | ||
| 060 | N 000933010105 | SCREW |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 063 | N 912004010102 | LOCK WASHER |
| GROUND TO CROSS MEMBER | ||
| 063 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 066 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 066 | N 009021010209 | WASHER |
| GROUND TO CROSS MEMBER | ||
| 066 | N 009021010209 | WASHER |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 069 | N 000934010014 | NUT |
| GROUND STRAP TO CAB SIDE MEMBER | ||

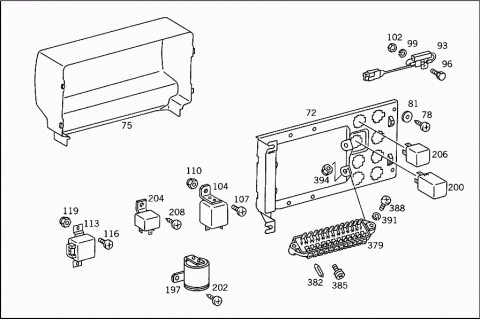

| 072 | A 3145420139 | PLATE |
| APPARATUS | ||
| 072 | A 3145402573 | BRACKET |
| APPARATUS | ||
| 075 | A 3145420091 | COVERING |
| PLATE | ||
| 078 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 078 | N 000000000460 | SCREW |
| GLOVE COMPARTMENT | ||
| 081 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 081 | N 009021005205 | WASHER |
| GLOVE COMPARTMENT | ||
| A 0011548406 | REGULATOR AND CUT-OUT | |
| Repalced by: A 0021543606 | ||
| A 0021543606 | REGULATOR AND CUT-OUT | |
| Repalced by: A 0021547406 | ||
| 084 | A 0021547406 | REGULATOR AND CUT-OUT |
| ALTERNATOR | ||
| 087 | N 912004006102 | LOCK WASHER |
| REGULATOR AND CUT-OUT TO CAB | ||
| 090 | N 000934006007 | NUT |
| REGULATOR AND CUT-OUT TO CAB | ||
| 093 | A 0015452518 | RESISTOR |
| ALTERNATOR | ||
| 096 | N 000933005059 | SCREW |
| RESISTOR TO APPARATUS PANEL | ||
| M5X12 | ||
| 099 | N 912004005103 | LOCK WASHER |
| RESISTOR TO APPARATUS PANEL | ||
| 102 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 102 | N 304032005005 | NUT |
| RESISTOR TO APPARATUS PANEL | ||
| 104 | A 0005423023 | BUZZER |
| BLINKER | ||
| 107 | N 007985005504 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 110 | N 913004005001 | NUT |
| BLINKER SENDER UNIT MOUNTING | ||
| 113 | A 0055450524 | SENDER UNIT |
| Repalced by: A 0055451324 | ||
| 113 | A 0055451324 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 113 | A 0055451524 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 116 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 116 | N 000000001145 | SCREW |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 119 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 119 | N 913004006001 | NUT |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||

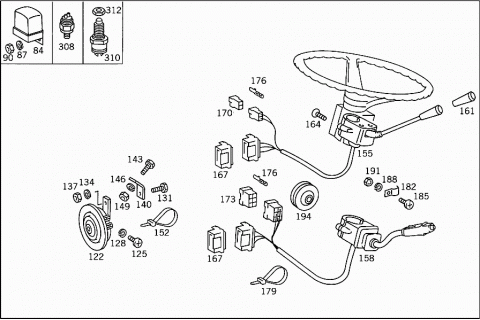

| A 0015428020 | HORN | |
| Repalced by: A 0025426220 | ||
| A 0025426220 | HORN | |
| Repalced by: A 0035423220 | ||
| 122 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 122 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 122 | A 0035422720 | HORN |
| A 0015428320 | HORN | |
| Repalced by: A 0025426420 | ||
| 122 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 122 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 122 | A 0035422720 | HORN |
| 125 | N 007985004123 | SCREW |
| CABLE TO DISC-TYPE HORN | ||
| 128 | N 912004004102 | LOCK WASHER |
| CABLE TO DISC-TYPE HORN | ||
| 131 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 131 | N 304017010002 | SCREW |
| HORN TO BRACKET | ||
| 134 | N 912004010102 | LOCK WASHER |
| HORN TO BRACKET | ||
| 137 | N 000934010014 | NUT |
| HORN TO BRACKET | ||
| 140 | A 3095421340 | BRACKET |
| HORN | ||
| 143 | N 000933010128 | SCREW |
| BRACKET TO FRAME | ||
| 146 | N 912004010102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 149 | N 000934010014 | NUT |
| BRACKET TO FRAME | ||
| 152 | A 0019978390 | LOOM TIE |
| ELECTRIC CABLE TO HORN BRACKET | ||
| A 0025453524 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035458124 | ||
| A 0035458124 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035458324 | ||
| 155 | A 0035458324 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 158 | A 0055451824 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 158 | A 0055452424 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 161 | A 0005452637 | BUTTON |
| 164 | N 000966005027 | SCREW |
| M 5X20 | ||
| 167 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 170 | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| TO 003 545 83 24 | ||
| 173 | A 0015456028 | PLUG |
| 6-POLE | ||
| 176 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 176 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 179 | A 0019978390 | LOOM TIE |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 182 | A 3129952020 | CLAMP |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 185 | N 007985005128 | SCREW |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 188 | N 912004005103 | LOCK WASHER |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 191 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 191 | N 304032005005 | NUT |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 194 | A 3149970281 | GROMMET |
| Repalced by: A 3359970081 | ||
| 194 | A 3359970081 | GROMMET |
| STEERING-COLUMN-MOUNTED-SWITCH CABLE THRU BODY | ||
| A 0015445032 | SENDER UNIT | |
| Repalced by: A 0025447732 | ||
| A 0025440732 | SENDER UNIT | |
| Repalced by: A 0025447732 | ||
| 197 | A 0025447732 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0015448032 | SENDER UNIT | |
| HAZARD WARNING LIGHT | ||
| A 0025440932 | SENDER UNIT | |
| Repalced by: A 0025447332 | ||
| 197 | A 0025447332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0015447932 | SENDER UNIT | |
| Repalced by: A 0025447332 | ||
| A 0025444832 | SENDER UNIT | |
| Repalced by: A 0025449832 | ||
| 200 | A 0025449832 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| FA.STRIEBEL | ||
| A 0025444132 | SENDER UNIT | |
| Repalced by: A 0025448632 | ||
| 200 | A 0025448632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| FA.HELLA | ||
| 202 | N 007981005213 | SHEET METAL SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 202 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 202 | N 000000000460 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 204 | A 0005458605 | RELAY |
| BRAKE FLUID | ||
| 204 | A 0005458905 | RELAY |
| BRAKE FLUID | ||
| 206 | A 0005458305 | RELAY |
| BRAKE FLUID CONTROL | ||
| 206 | A 0005458305 | RELAY |
| OIL SUPPLY | ||
| 206 | A 0005459705 | RELAY |
| OIL SUPPLY | ||
| 208 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 208 | N 000000000460 | SCREW |
| RELAY | ||

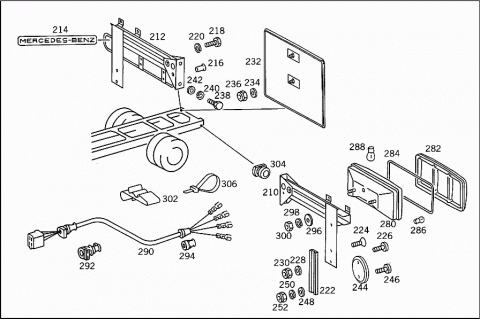

| A 3165400173 | BRACKET | |
| Repalced by: A 3165403873 | ||
| 210 | A 3165403873 | BRACKET |
| LEFT TAIL LAMP | ||
| A 3165400273 | BRACKET | |
| Repalced by: A 3165403973 | ||
| 210 | A 3165403973 | BRACKET |
| RIGHT TAIL LAMP | ||
| 212 | A 3165403473 | BRACKET |
| RIGHT TAIL LAMP | ||
| 212 | A 3165403573 | BRACKET |
| LEFT TAIL LAMP | ||
| 214 | A 3605840025 | NAME PLATE |
| 216 | N 910006004018 | RIVET |
| NAME PLATE TO LEFT AND RIGHT TAIL LAMPS | ||
| A 3165440938 | BRACKET | |
| NAME PLATE TO TAIL LAMP BRACKET | ||
| 218 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 218 | N 304017006018 | SCREW |
| NAME PLATE TO TAIL LAMP BRACKET | ||
| 220 | N 912004006102 | LOCK WASHER |
| NAME PLATE TO TAIL LAMP BRACKET | ||
| 222 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 224 | N 000965006049 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| M6X18 | ||
| 226 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 226 | N 000000001146 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| M6X16 | ||
| 228 | N 000125006421 | WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 228 | N 000125006421 | WASHER |
| LICENSE PLATE TO BRACKET | ||
| 230 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 230 | N 913004006001 | NUT |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 230 | N 913004006001 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 232 | A 3095200046 | LICENSE PLATE MOULDING |
| LICENSE PLATE | ||
| 234 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 234 | N 000125008443 | WASHER |
| LICENSE PLATE | ||
| 236 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 236 | N 913004008001 | NUT |
| LICENSE PLATE | ||
| 238 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 238 | N 304017010002 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 238 | N 000933010145 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 240 | N 912004010102 | LOCK WASHER |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 242 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 242 | N 007349013005 | WASHER |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| A 0005441605 | REFLECTOR | |
| Repalced by: A 0005443305 | ||
| 244 | A 0005443305 | REFLECTOR |
| 246 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 248 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 248 | N 000433005304 | WASHER |
| REFLECTOR TO BRACKET | ||
| 250 | N 912004005103 | LOCK WASHER |
| REFLECTOR TO BRACKET | ||
| 252 | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| A 0005447803 | TAIL LAMP | |
| Repalced by: A 0015444003 | ||

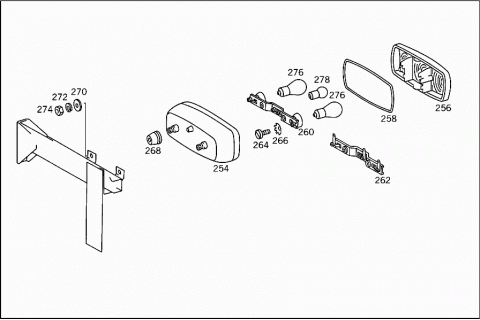

| 254 | A 0015444003 | TAIL LAMP |
| LEFT,HELLA | ||
| A 0005447003 | TAIL LAMP | |
| Repalced by: A 0015444503 | ||
| 254 | A 0015444503 | TAIL LAMP |
| LEFT,R & S | ||
| A 0015444303 | TAIL LAMP | |
| Repalced by: A 0015445903 | ||
| 254 | A 0015445903 | TAIL LAMP |
| LEFT,HELLA | ||
| A 0015444903 | TAIL LAMP | |
| Repalced by: A 0005447403 | ||
| A 0005447403 | TAIL LAMP | |
| Repalced by: A 0015446103 | ||
| 254 | A 0015446103 | TAIL LAMP |
| LEFT,R & S | ||
| 254 | A 0015444203 | TAIL LAMP |
| RIGHT;MAKE HELLA | ||
| A 0005447303 | TAIL LAMP | |
| Repalced by: A 0015444803 | ||
| 254 | A 0015444803 | TAIL LAMP |
| RIGHT;MAKE R & S | ||
| A 0005447703 | TAIL LAMP | |
| Repalced by: A 0015444103 | ||
| 254 | A 0015444103 | TAIL LAMP |
| RIGHT;MAKE HELLA | ||
| A 0005447103 | TAIL LAMP | |
| Repalced by: A 0015444603 | ||
| 254 | A 0015444603 | TAIL LAMP |
| RIGHT;MAKE R & S | ||
| A 0015444890 | LENS | |
| Repalced by: A 0015445590 | ||
| 256 | A 0015445590 | LENS |
| HELLA | ||
| A 0015444590 | LENS | |
| Repalced by: A 0015445990 | ||
| A 0015446290 | LENS | |
| Repalced by: A 0015445990 | ||
| 256 | A 0015445990 | LENS |
| R&S | ||
| 256 | A 0015447190 | LENS |
| R&S | ||
| 256 | A 0015447290 | LENS |
| Repalced by: A 0015445990 | ||
| 256 | A 0015445990 | LENS |
| R&S | ||
| A 0005447880 | GASKET | |
| Repalced by: A 0005448480 | ||
| A 0005448080 | GASKET | |
| Repalced by: A 0005448480 | ||
| 258 | A 0005448480 | GASKET |
| HELLA | ||
| 258 | A 0005447580 | GASKET |
| 750 MM,R&S | ||
| N 007985006238 | SCREW | |
| R&S | ||
| A 0005444393 | LAMP SOCKET | |
| HELLA | ||
| 260 | A 0005445293 | LAMP SOCKET |
| HELLA | ||
| 260 | A 0005444293 | LAMP SOCKET |
| R&S | ||
| 262 | A 0005445193 | LAMP SOCKET |
| R&S | ||
| 264 | N 000085004101 | SCREW |
| HELLA | ||
| 264 | N 000084004137 | SCREW |
| Repalced by: N 007985004149 | ||
| 264 | N 007985004149 | SCREW |
| Repalced by: N 000000001933 | ||
| 264 | N 000000001933 | SCREW |
| R&S | ||
| 266 | N 006797004132 | TOOTHED WASHER |
| R&S | ||
| 268 | A 0009978081 | GROMMET |
| HELLA | ||
| 268 | A 0019971581 | GROMMET |
| R&S | ||
| 270 | A 0019904040 | WASHER |
| HELLA | ||
| A 0005440376 | WASHER | |
| Repalced by: A 0005440476 | ||
| 270 | A 0005440476 | WASHER |
| R&S | ||
| 270 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 270 | N 009021008213 | WASHER |
| HELLA | ||
| 270 | A 0019901940 | WASHER |
| R&S | ||
| 272 | N 912004008102 | LOCK WASHER |
| TO MOUNT TAIL LAMPS | ||
| 274 | N 304032008006 | NUT |
| TO MOUNT TAIL LAMPS | ||
| 276 | N 072601012160 | BULB |
| STOP LIGHT | ||
| 18W | ||
| 276 | N 072601012190 | BULB |
| BLINKER AND STOP LIGHTS | ||
| 21W | ||
| 278 | N 072601012702 | BULB |
| TAIL LIGHT | ||
| 10W | ||
| A 0005405070 | TAIL LAMP | |
| Repalced by: A 0015446903 | ||
| A 0005406270 | TAIL LAMP | |
| Repalced by: A 0015446903 | ||
| 280 | A 0015446903 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 280 | A 0015448003 | TAIL LAMP |
| LEFT | ||
| R&S | ||
| A 0005405470 | TAIL LAMP | |
| Repalced by: A 0015447103 | ||
| 280 | A 0015447103 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 280 | A 0015448203 | TAIL LAMP |
| RIGHT | ||
| "R&S" | ||
| A 0005405170 | TAIL LAMP | |
| Repalced by: A 0015446803 | ||
| 280 | A 0015446803 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 280 | A 0015448103 | TAIL LAMP |
| RIGHT | ||
| "R&S" | ||
| A 0005405570 | TAIL LAMP | |
| Repalced by: A 0015447003 | ||
| A 0005406470 | TAIL LAMP | |
| Repalced by: A 0015447003 | ||
| 280 | A 0015447003 | TAIL LAMP |
| Repalced by: A 0025440203 | ||
| 280 | A 0025440203 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 280 | A 0015448303 | TAIL LAMP |
| LEFT | ||
| "R&S" | ||
| 282 | A 0015448390 | LENS |
| "HELLA" | ||
| 282 | A 0015448490 | LENS |
| "R&S" | ||
| 284 | A 0005448580 | GASKET |
| 284 | A 0005448880 | GASKET |
| 286 | N 072601012702 | BULB |
| TAIL LIGHT | ||
| 10W | ||
| 288 | N 072601012190 | BULB |
| BLINKER AND STOP LIGHTS | ||
| 21W | ||
| A 0005401838 | ELECTRIC CABLE | |
| Repalced by: A 6175400307 | ||
| A 6175400307 | CABLE HARNESS | |
| Repalced by: A 6215402207 | ||
| 290 | A 6215402207 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| 1300 MM | ||
| A 0005401638 | ELECTRIC CABLE | |
| Repalced by: A 0005401938 | ||
| A 0005401938 | ELECTRIC CABLE | |
| Repalced by: A 6175400107 | ||
| A 6175400107 | CABLE HARNESS | |
| Repalced by: A 6175400207 | ||
| A 6175401107 | CABLE HARNESS | |
| Repalced by: A 6175400207 | ||
| A 6175400207 | CABLE HARNESS | |
| Repalced by: A 6175401507 | ||
| 290 | A 6175401507 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 2100 MM | ||
| 292 | A 3875460437 | GROMMET |
| AT CABLE CONNECTOR | ||
| 294 | A 6019972081 | GROMMET |
| AT TAIL LAMP SHELL | ||
| 296 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 296 | N 009021008213 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 298 | N 912004008102 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| 300 | N 304032008006 | NUT |
| TAIL LAMP TO BRACKET | ||
| A 3045460275 | CLAMP | |
| Repalced by: A 0005460875 | ||
| 302 | A 0005460875 | CLAMP |
| CABLE TO REAR CROSS MEMBER | ||
| 304 | A 3169970081 | GROMMET |
| TAIL LAMP CABLES THRU SIDE MEMBER | ||
| 306 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 376 MM | ||
| 306 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| A 0005454709 | SWITCH | |
| Repalced by: A 0005455909 | ||
| A 0005455009 | SWITCH | |
| Repalced by: A 0005455909 | ||
| 308 | A 0005455909 | SWITCH |
| IN BRAKE MASTER CYLINDER | ||
| 308 | A 0005455909 | SWITCH |
| STOP LIGHT | ||
| 308 | A 0005455909 | SWITCH |
| DUMPER VALVE | ||
| A 0005455209 | SWITCH | |
| Repalced by: A 0005457909 | ||
| 310 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 310 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 310 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 310 | A 0015452709 | SWITCH |
| STOP LIGHT | ||
| 310 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 312 | A 0029901951 | NUT |
| SWITCH TO BRAKE PEDAL | ||
| 312 | A 0009909251 | NUT |
| SWITCH TO BRAKE PEDAL | ||

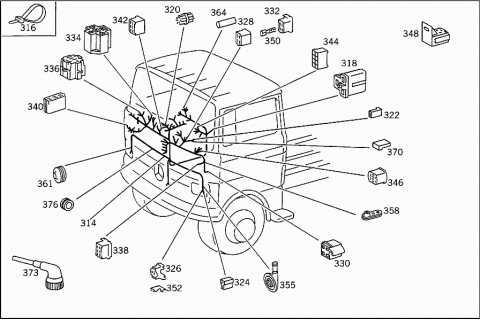

| 314 | A 3185400205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185400405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185400605 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185401105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185401705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185402105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185402705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185400305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185400505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185400705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185401205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185401805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185402205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 314 | A 3185402805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 316 | A 0029976890 | LOOM TIE |
| Repalced by: A 0019978390 | ||
| 316 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 203 MM | ||
| A 0019979590 | LOOM TIE | |
| Repalced by: A 0019978390 | ||
| 316 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 316 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| 318 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 320 | A 0045451428 | PLUG |
| 8-POLE | ||
| 322 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 324 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 326 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 328 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 330 | A 0075457328 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 332 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 334 | A 0045454028 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 336 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 338 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 340 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 342 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 344 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 346 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 348 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 350 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 350 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 350 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 350 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 350 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 350 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 352 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 352 | A 0075457426 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4 MM2 | ||
| 352 | A 0005457926 | PIN BUSHING |
| RELAY | ||
| 2.5 MM | ||
| 355 | A 3149970181 | GROMMET |
| A 3169970181 | GROMMET | |
| Repalced by: A 3169970581 | ||
| 358 | A 3169970581 | GROMMET |
| A 3219970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 361 | A 3359970081 | GROMMET |
| 42 MM | ||
| 361 | A 1869970481 | GROMMET |
| 26 MM | ||
| 364 | A 0009970381 | GROMMET |
| 3 MM | ||
| 364 | A 0009970581 | GROMMET |
| 5 MM | ||
| A 8339970581 | GROMMET | |
| Repalced by: A 8339970281 | ||
| A 8339970281 | GROMMET | |
| Repalced by: A 0009973381 | ||
| 370 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| A 0005400181 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| A 0005400481 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 373 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 373 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 373 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 373 | A 3185400081 | PLUG SOCKET |
| REPAIR VERSION; PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| 376 | A 0009973381 | GROMMET |
| 16 MM | ||
| 376 | A 3229971381 | GROMMET |
| Repalced by: A 4429970081 | ||
| 376 | A 4429970081 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 36 MM | ||
| 379 | A 3145450001 | FUSE BOX |
| 10-POLE; TERMINALS 1-2-3;5-6;7-8;9-10 SHUNTED | ||
| 379 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED | ||
| 379 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED | ||
| 382 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 382 | N 072581008101 | FUSE |
| 8 A | ||
| 385 | N 914028041010 | COMBINATION BOLT |
| CABLE TO FUSE BOX | ||
| 388 | N 007985005175 | SCREW |
| FUSE BOX TO BRACKET | ||
| 388 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 388 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 388 | N 000000001149 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 391 | N 912004005103 | LOCK WASHER |
| FUSE BOX TO BRACKET | ||
| 394 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 394 | N 304032005005 | NUT |
| FUSE BOX TO BRACKET | ||
| 394 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 394 | N 913004006001 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||

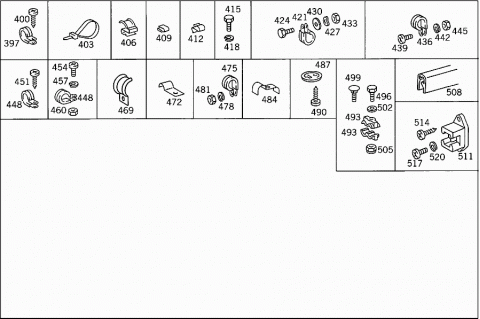

| 397 | N 916016022206 | CLAMP |
| MAIN CABLE HARNESS TO BRACKET | ||
| 397 | N 916016022206 | CLAMP |
| MAIN CABLE HARNESS TO CROSS MEMBER | ||
| 397 | N 916016025201 | CLAMP |
| MAIN CABLE HARNESS TO BRACKET | ||
| 400 | N 007981005223 | SHEET METAL SCREW |
| MAIN CABLE HARNESS TO BRACKET | ||
| 400 | N 007981004257 | SHEET METAL SCREW |
| MAIN CABLE HARNESS TO CROSS MEMBER | ||
| 403 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 403 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| 406 | A 0009888978 | CLIP |
| BRANCH-OFF CABLE TO HORN TO FRAME LEFT SIDE MEMBER | ||
| 409 | A 0029883578 | CLIP |
| MAIN CABLE HARNESS TO ENGINE COVERING | ||
| 412 | A 0009881778 | CLIP |
| BRAKE-FLUID-RESERVOIR CABLE | ||
| 415 | N 000933006102 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 418 | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 421 | N 916016012200 | CLAMP |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 424 | N 000933005059 | SCREW |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 427 | N 000137005102 | SPRING WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 430 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 430 | N 009021005205 | WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 433 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 433 | N 304032005005 | NUT |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 436 | N 916016018201 | CLAMP |
| MAIN CABLE HARNESS TO ENGINE COVERING | ||
| 439 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 439 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 439 | N 000000001149 | SCREW |
| CLAMP MOUNTING | ||
| 442 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 445 | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| 448 | N 916016015201 | CLAMP |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS STOP LIGHT SWITCH TO SIDE MEMBER | ||
| 448 | N 916016012200 | CLAMP |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 448 | N 916016012200 | CLAMP |
| BRANCH-OFF TO HEADLAMPS | ||
| 448 | N 916016012200 | CLAMP |
| CABLE TO SIDE MEMBER TO ALTERNATOR | ||
| 448 | N 916016022206 | CLAMP |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 448 | N 072571001012 | CLAMP |
| MAIN CABLE TO RIGHT SIDE MEMBER | ||
| 448 | N 916016018201 | CLAMP |
| MAIN CABLE HARNESS TO ENGINE COVERING | ||
| 448 | N 072571001030 | CLAMP |
| PANE WASHER SYSTEM | ||
| 448 | N 072571001030 | CLAMP |
| BRAKE-FLUID-RESERVOIR CABLE | ||
| 451 | N 007981004257 | SHEET METAL SCREW |
| MAIN CABLE HARNESS TO SIDE MEMBER | ||
| 451 | N 007981004257 | SHEET METAL SCREW |
| CLAMP MOUNTING | ||
| 451 | N 007981004257 | SHEET METAL SCREW |
| BRANCH-OFF TO HEADLAMPS | ||
| 451 | N 007981004257 | SHEET METAL SCREW |
| CLAMP MOUNTING | ||
| 454 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 454 | N 000000001146 | SCREW |
| CLAMP MOUNTING | ||
| 454 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 454 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 454 | N 000000001149 | SCREW |
| CLAMP MOUNTING | ||
| 457 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 457 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 460 | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| 469 | A 1369950135 | CLAMP |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 472 | A 3049951620 | CLAMP |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 475 | N 916016015202 | CLAMP |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 478 | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 481 | N 000934006007 | NUT |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 481 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 481 | N 913004006001 | NUT |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 484 | A 3145460175 | CLAMP |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| 487 | A 3816820086 | BRACKET |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| 487 | A 3816820086 | BRACKET |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 487 | A 3816820086 | BRACKET |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS STOP LIGHT SWITCH TO SIDE MEMBER | ||
| 487 | A 3816820086 | BRACKET |
| AT DRIVER'S SEAT | ||
| 490 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 490 | N 000000000460 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 493 | A 3835460044 | CLAMPING PIECE |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| 493 | A 3835460044 | CLAMPING PIECE |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 496 | N 007985006163 | SCREW |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| 499 | N 000603006044 | SCREW |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 502 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 502 | N 009021006208 | WASHER |
| LINE TO CAB | ||
| 505 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 505 | N 913004006001 | NUT |
| LINE TO CAB | ||
| A 3149850151 | METAL SECTION | |
| Repalced by: A 0019877625 | ||
| 508 | A 0019877625 | PLASTIC SECTION |
| MAIN CABLE HARNESS & SPEEDOMETER FLEX. SHAFT THRU WINDOW LEVEL GIRDER | ||
| 511 | A 0015463541 | CABLE CONNECTOR |
| FRONT | ||
| 514 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 514 | N 000000000453 | SHEET METAL SCREW |
| CABLE CONNECTOR TO FIRE WALL | ||
| 517 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 517 | N 007985006580 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 520 | N 912004006102 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||

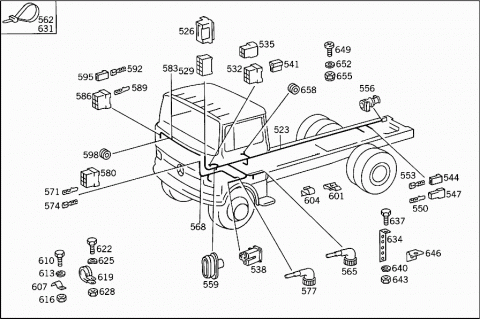

| 523 | A 3145402627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 523 | A 3145404227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145404727 | ELECTRIC CABLE | |
| Repalced by: A 3185401727 | ||
| 523 | A 3185401727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3165402327 | ELECTRIC CABLE | |
| Repalced by: A 3165402627 | ||
| A 3165402427 | ELECTRIC CABLE | |
| Repalced by: A 3165402627 | ||
| A 3165402527 | ELECTRIC CABLE | |
| Repalced by: A 3165402627 | ||
| 523 | A 3165402627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3165404727 | ELECTRIC CABLE | |
| Repalced by: A 3165405427 | ||
| 523 | A 3165405427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 523 | A 3145402727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145404327 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145404827 | ELECTRIC CABLE | |
| Repalced by: A 3185401627 | ||
| 523 | A 3185401627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145402827 | ELECTRIC CABLE | |
| Repalced by: A 3145402627 | ||
| 523 | A 3145402627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 523 | A 3145404427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145404927 | ELECTRIC CABLE | |
| Repalced by: A 3185401727 | ||
| 523 | A 3185401727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 523 | A 3185400127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 523 | A 3185400227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 523 | A 3185401627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3185403627 | ELECTRIC CABLE | |
| Repalced by: A 3185403927 | ||
| 523 | A 3185403927 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3145403927 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 523 | A 3145405227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 523 | A 3165402727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3165404827 | ELECTRIC CABLE | |
| Repalced by: A 3165405527 | ||
| 523 | A 3165405527 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 526 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 529 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 532 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 535 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 538 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 541 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 544 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 547 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 550 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 550 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 550 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 553 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 553 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 553 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 553 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 553 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 556 | A 0005461237 | GROMMET |
| 556 | A 0005461237 | GROMMET |
| 556 | A 3805461937 | GROMMET |
| 556 | A 3805461937 | GROMMET |
| 556 | A 3805462037 | GROMMET |
| A 3169970281 | GROMMET | |
| Repalced by: A 3169970681 | ||
| 559 | A 3169970681 | GROMMET |
| 562 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 565 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 565 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| A 3145401537 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO DUMPER CONTROL PRESSURE-SWITCH | ||
| 568 | A 3165400937 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO DUMPER CONTROL PRESSURE-SWITCH | ||
| 571 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 574 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 574 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 574 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 574 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 577 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 580 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 583 | A 3165401037 | ELECTRIC CABLE |
| Repalced by: A 3165401237 | ||
| 583 | A 3165401237 | ELECTRIC CABLE |
| FROM BLINKER LAMP PLUG CONNECTION TO SIDE BLINKER LAMP | ||
| 583 | A 3165401137 | ELECTRIC CABLE |
| FROM BLINKER LAMP PLUG CONNECTION TO SIDE BLINKER LAMP | ||
| 586 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 589 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 589 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 592 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 592 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 592 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 592 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 595 | A 0005451745 | BOOT |
| 598 | A 0009972881 | GROMMET |
| AT STOP LIGHT SWITCH | ||
| 601 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 601 | A 0005460875 | CLAMP |
| LINE TO CROSS MEMBER | ||
| 604 | A 0009881778 | CLIP |
| FUEL GAUGE SENDER UNIT CABLE TO FRAME CROSS MEMBER | ||
| 607 | N 071434010100 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 610 | N 007985005175 | SCREW |
| CLAMP MOUNTING | ||
| 613 | N 912004005103 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 616 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 616 | N 304032005005 | NUT |
| CLAMP MOUNTING | ||
| 619 | N 916016012202 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 622 | N 000933005059 | SCREW |
| CLAMP MOUNTING | ||
| 625 | N 000137005203 | SPRING WASHER |
| CLAMP MOUNTING | ||
| 625 | N 000137005203 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 625 | N 000137006204 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 628 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 628 | N 304032005005 | NUT |
| CLAMP MOUNTING | ||
| 628 | N 304032005005 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 628 | N 000934006007 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 631 | A 0019974190 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 100 MM | ||
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| 631 | A 0019974390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 140 MM | ||
| 631 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 631 | A 0019978490 | LOOM TIE |
| FRAME MOUNTED CABLE HARNESS | ||
| 376 MM | ||
| A 3604292240 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 634 | A 3604292940 | BRACKET |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 637 | N 000933010128 | SCREW |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 640 | N 912004010102 | LOCK WASHER |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 643 | N 000934010014 | NUT |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 646 | A 3604280243 | ANGLE |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 649 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 649 | N 000000001146 | SCREW |
| GROUND TO NO.4 FRAME CROSS MEMBER | ||
| 652 | N 000125006421 | WASHER |
| GROUND TO NO.4 FRAME CROSS MEMBER | ||
| 655 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 655 | N 913002006009 | NUT |
| GROUND TO NO.4 FRAME CROSS MEMBER | ||
| 658 | A 3129970481 | GROMMET |
| BRANCH-OFF TO FUEL GAUGE SENDER UNIT THRU SIDE MEMBER | ||
| 658 | A 3469975081 | GROMMET |
| THRU RIGHT SIDE MEMBER, FRONT | ||
| 661 | A 0005466141 | CABLE CONNECTOR |
| REAR | ||
| 661 | A 0005466141 | CABLE CONNECTOR |
| FRONT | ||
| 664 | A 0005460781 | COVERING |
| WITH GASKET | ||
| A 0005469541 | CABLE CONNECTOR | |
| Repalced by: A 0015463341 | ||
| A 0005467941 | CABLE CONNECTOR | |
| Repalced by: A 0015463341 | ||
| A 0015463341 | CABLE CONNECTOR | |
| Repalced by: A 0015463841 | ||
| A 0015463841 | CABLE CONNECTOR | |
| Repalced by: A 0015465441 | ||
| 667 | A 0015465441 | CABLE CONNECTOR |
| REAR | ||
| 667 | A 0015465441 | CABLE CONNECTOR |
| FRONT | ||
| A 0045458928 | PLUG | |
| Repalced by: A 0105456728 | ||
| 670 | A 0105456728 | PLUG |
| A 0005460481 | COVERING | |
| Repalced by: A 0005460581 | ||
| 673 | A 0005460581 | COVERING |
| 676 | A 0009872844 | EXPANSION PLUG |
| N 007985005175 | SCREW | |
| CABLE CONNECTOR TO BRACKET | ||
| N 912004004102 | LOCK WASHER | |
| CABLE CONNECTOR TO BRACKET | ||
| N 000934004006 | NUT | |
| CABLE CONNECTOR TO BRACKET | ||
| A 3145460043 | BRACKET | |
| CABLE CONNECTOR | ||
| A 3145460246 | BRACKET | |
| CABLE CONNECTOR | ||
| 679 | A 3145402473 | BRACKET |
| CABLE CONNECTOR | ||
| 682 | A 0005460283 | ANGLE |
| CABLE CONNECTOR | ||
| 685 | A 3609902440 | WASHER |
| Repalced by: A 3609902340 | ||
| 685 | A 3609902340 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 688 | N 007985004159 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 688 | N 007985005149 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 688 | N 007985005165 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 688 | N 007985005175 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 688 | N 007985004168 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 688 | N 007985004136 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 688 | N 007985004155 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 688 | N 007985004128 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 691 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 691 | N 304017008021 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 694 | N 912004004102 | LOCK WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 694 | N 912004008102 | LOCK WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 694 | N 912004004102 | LOCK WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 697 | N 009021004108 | WASHER |
| Repalced by: N 009021004207 | ||
| 697 | N 009021004207 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 697 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 697 | N 009021005205 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 700 | N 000934004006 | NUT |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 700 | N 913004005003 | NUT |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 702 | A 3145400007 | CABLE HARNESS |
| Repalced by: A 3525400507 | ||
| 702 | A 3525400507 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| A 3145400407 | CABLE HARNESS | |
| Repalced by: A 3145400607 | ||
| 702 | A 3145400607 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| A 3165400207 | CABLE HARNESS | |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 704 | A 3145400107 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| A 3145400507 | CABLE HARNESS | |
| Repalced by: A 3145400607 | ||
| 704 | A 3145400607 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 706 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 706 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM | ||
| 706 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 706 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 708 | A 0019971581 | GROMMET |
| A 3129951040 | CLAMP | |
| Repalced by: A 0005460875 | ||
| A 3045460275 | CLAMP | |
| Repalced by: A 0005460875 | ||
| 710 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO REAR CROSS MEMBER | ||
| 712 | N 000933010128 | SCREW |
| GROUND TO FRAME | ||
| 714 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 714 | N 000125010532 | WASHER |
| GROUND TO FRAME | ||
| 716 | N 913002010001 | NUT |
| GROUND TO FRAME | ||
| 718 | A 3239970081 | GROMMET |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| 14 MM | ||
| 718 | A 8339970081 | GROMMET |
| ELECTRIC CABLE THRU TAIL LAMP BRACKET | ||
| 20 MM | ||
| 718 | A 0009972281 | GROMMET |
| ELECTRIC CABLE THRU TAIL LAMP BRACKET | ||
| 15 MM | ||
| A 3185400138 | ELECTRIC CABLE | |
| FROM PLUG CONNECTION TO OIL PRESSURE GAUGE SENDER UNIT | ||
| 720 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 722 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 722 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 723 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| A 0075422506 | SPEEDOMETER | |
| Repalced by: A 0075429210 | ||
| A 0075422906 | SPEEDOMETER | |
| Repalced by: A 0075429210 | ||
| 724 | A 0075429210 | TACHOGRAPH |
| A 0045421310 | TACHOGRAPH | |
| Repalced by: A 0055428810 | ||
| 724 | A 0055428810 | TACHOGRAPH |
| A 0095424310 | TACHOGRAPH | |
| Repalced by: A 0095424410 | ||
| A 0095424410 | TACHOGRAPH | |
| Repalced by: A 0085425310 | ||
| 724 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 726 | A 0025429330 | ANGLE DRIVE |
| TO 009 542 43 10,009 542 44 10 | ||
| A 0005423394 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| TO 007 542 92 10;008 542 27 10,53 10 | ||
| A 0005421994 | DIAGRAM PAPER | |
| TO 005 542 88 10 | ||
| 728 | A 0005421347 | COUPLER |
| TACHOGRAPH | ||
| 730 | A 0005421840 | BRACKET |
| TACHOGRAPH | ||
| 732 | A 3145402673 | BRACKET |
| TACHOGRAPH | ||
| A 0005421172 | NUT | |
| Repalced by: N 000934005008 | ||
| 734 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 734 | N 304032005005 | NUT |
| TACHOGRAPH | ||
| 734 | N 000466005000 | NUT |
| TACHOGRAPH | ||
| 736 | N 072601012800 | BULB |
| TACHOGRAPH | ||
| 2 W | ||
| 736 | A 0015442594 | BULB |
| Repalced by: A 0005453419 | ||
| 736 | A 0005453419 | SOCKET LAMP |
| TACHOGRAPH | ||
| 12V/1,2 W | ||
| 738 | A 0025429807 | FLEXIBLE SHAFT |
| 3200 MM | ||
| 738 | A 0045426607 | FLEXIBLE SHAFT |
| 3200 MM | ||
| A 0025426207 | FLEXIBLE SHAFT | |
| Repalced by: A 0055422707 | ||
| A 0055422707 | FLEXIBLE SHAFT | |
| Repalced by: A 0045424307 | ||
| A 0045428107 | FLEXIBLE SHAFT | |
| Repalced by: A 0045424307 | ||
| 738 | A 0045424307 | FLEXIBLE SHAFT |
| 3650 MM | ||
| A 0055420307 | FLEXIBLE SHAFT | |
| Repalced by: A 0045423307 | ||
| A 0045423307 | FLEXIBLE SHAFT | |
| Repalced by: A 0045424207 | ||
| 738 | A 0045424207 | FLEXIBLE SHAFT |
| 3500 MM | ||
| 740 | A 3169970781 | GROMMET |
| FLEXIBLE SHAFT | ||
| A 3149970381 | GROMMET | |
| 740 | A 3359970081 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| 740 | A 3149970681 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| 742 | A 0005420846 | CONNECTOR |
| FLEXIBLE SHAFT | ||
| 744 | A 0005420947 | COUPLER |
| FLEXIBLE SHAFT | ||
| 746 | N 916016012200 | CLAMP |
| FLEXIBLE SHAFT | ||
| 748 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 748 | N 000000001146 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 750 | N 912004006102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 752 | N 000934006007 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 3044293040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| A 3604292040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 754 | A 3604292940 | BRACKET |
| FLEXIBLE SHAFT | ||
| A 3604293040 | BRACKET | |
| Repalced by: A 3604293140 | ||
| 754 | A 3604293140 | BRACKET |
| FLEXIBLE SHAFT | ||
| 756 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 756 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 758 | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 760 | N 304032008006 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 3529950040 | CLAMP | |
| Repalced by: A 3099950140 | ||
| 761 | A 3099950140 | CLAMP |
| BRACKET TO SIDE MEMBER | ||
| A 0029972290 | LOOM TIE | |
| Repalced by: A 0019978390 | ||
| 762 | A 0019978390 | LOOM TIE |
| FLEXIBLE SHAFT MOUNTING | ||
| 280 MM | ||
| 762 | A 0019978490 | LOOM TIE |
| FLEXIBLE SHAFT MOUNTING | ||
| 376 MM | ||
| 762 | A 0019974390 | LOOM TIE |
| FLEXIBLE SHAFT MOUNTING | ||
| 140 MM | ||
| 763 | N 916016015200 | CLAMP |
| FLEXIBLE SHAFT TO WINDSHIELD WIPER MOTOR | ||
| 764 | A 0015429530 | ANGLE DRIVE |
| A 0015422230 | ANGLE DRIVE | |
| Repalced by: A 0035423530 | ||
| 764 | A 0035423530 | ANGLE DRIVE |
| 766 | A 0025402047 | INSTRUMENT CLUSTER |
| A 0025405747 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407547 | ||
| A 0035407547 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407247 | ||
| 766 | A 0035407247 | INSTRUMENT CLUSTER |
| 768 | A 0035421005 | TEMPERATURE GAUGE |
| TO 002 540 20 47 | ||
| 768 | A 0035423805 | TEMPERATURE GAUGE |
| TO 002 540 57 47 | ||
| 768 | A 0035428905 | TEMPERATURE GAUGE |
| TO 003 540 75 47 | ||
| 768 | A 0035429605 | TEMPERATURE GAUGE |
| TO 003 540 72 47 | ||
| 770 | A 0005429108 | AIR PRESSURE GAUGE |
| TO 002 540 20 47 | ||
| 770 | A 0015420408 | AIR PRESSURE GAUGE |
| TO 002 540 57 47 | ||
| 770 | A 0015423508 | AIR PRESSURE GAUGE |
| TO 003 540 75 47 | ||
| 770 | A 0015422708 | AIR PRESSURE GAUGE |
| TO 003 540 72 47 | ||
| 772 | A 0015424102 | OIL PRESSURE GAUGE |
| TO 002 540 20 47 | ||
| 772 | A 0025420202 | OIL PRESSURE GAUGE |
| TO 002 540 57 47 | ||
| 772 | A 0025422802 | OIL PRESSURE GAUGE |
| TO 003 540 75 47 | ||
| 772 | A 0025423202 | OIL PRESSURE GAUGE |
| TO 003 540 72 47 | ||
| 774 | A 0005428503 | FUEL GAUGE DASH UNIT |
| TO 002 540 20 47 | ||
| 774 | A 0015425103 | FUEL GAUGE DASH UNIT |
| TO 002 540 57 47 | ||
| 774 | A 0025429103 | FUEL GAUGE DASH UNIT |
| TO 003 540 75 47 | ||
| 774 | A 0025429303 | FUEL GAUGE DASH UNIT |
| TO 003 540 72 47 | ||
| 776 | A 0005422178 | CONNECTION PLATE |
| TO 002 540 57 47 | ||
| 776 | A 0005423078 | CONNECTION PLATE |
| TO 003 540 75 47 | ||
| 776 | A 0005423678 | CONNECTION PLATE |
| TO 003 540 72 47 | ||
| 778 | A 0005420332 | TELL-TALE LAMP |
| BRAKE PRESSURE | ||
| 780 | N 072601012800 | BULB |
| 12 V/2 W | ||
| 782 | A 0005451219 | SOCKET |
| 784 | A 0005421740 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 784 | A 0005421740 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 786 | A 3145402773 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 788 | A 3145402873 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 790 | A 0005421072 | NUT |
| INSTRUMENT CLUSTER | ||
| 792 | A 0005421080 | GASKET |
| INSTRUMENT CLUSTER | ||
| 794 | A 0015422317 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 796 | N 007603014400 | SEAL RING |
| TEMPERATURE GAUGE | ||
| A 0015424917 | SENDER UNIT | |
| Repalced by: A 0045428917 | ||
| 798 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| M 14X1.5 | ||
| 800 | N 007603014104 | SEAL RING |
| OIL PRESSURE GAUGE SENDER UNIT | ||
| 802 | A 0015421316 | TACHOMETER |
| 804 | N 072601012800 | BULB |
| TACHOMETER | ||
| 12V/2W | ||
| 806 | A 0009970381 | GROMMET |
| TACHOMETER | ||
| A 0005453526 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| A 0005453926 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| A 0005454426 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| 808 | A 0015458526 | PLUG SOCKET |
| AT INSTRUMENT PANEL | ||
| 810 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 810 | A 0045454326 | PLUG SOCKET |
| AT INSTRUMENT PANEL | ||
| 812 | A 0009900946 | WASHER |
| AT INSTRUMENT PANEL | ||
| A 0035453924 | SWITCH,AUTOMATIC | |
| Repalced by: A 0025457124 | ||
| 814 | A 0025457124 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT | ||
| 814 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 816 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 818 | N 072601012110 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| 818 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| 820 | A 3015400165 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| A 0005456314 | SWITCH | |
| Repalced by: A 0015450214 | ||
| A 0015450214 | SWITCH | |
| Repalced by: A 0015454914 | ||
| 822 | A 0015454914 | SWITCH |
| STARTING IN CAB | ||
| A 0005421425 | POTENTIOMETER | |
| Repalced by: A 3015420025 | ||
| 824 | A 3015420025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| A 0005422525 | POTENTIOMETER | |
| Repalced by: A 0005422925 | ||
| A 0005422925 | POTENTIOMETER | |
| Repalced by: A 6155420125 | ||
| 824 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 826 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| A 0005451472 | NUT | |
| Repalced by: A 0029906251 | ||
| 826 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| 828 | N 006797012153 | TOOTHED WASHER |
| INSTRUMENT LIGHTING SWITCH | ||
| A 0005421189 | KNOB | |
| Repalced by: A 0005421889 | ||
| 830 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING SWITCH | ||
| 832 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 834 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 838 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 840 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 842 | A 0005830296 | RING |
| IGNITION AND LIGHT SWITCH | ||
| 844 | A 0005454314 | SWITCH |
| SPRING-LOADED BRAKE INDICATOR | ||
| 844 | A 0005455414 | SWITCH |
| SUPPLY CONTROL;BRAKE CIRCUIT III | ||
| 844 | A 0005455414 | SWITCH |
| SPRING-LOADED BRAKE INDICATOR | ||
| 846 | A 0005459311 | SWITCH |
| WINDSHIELD WIPER O F F O N | ||
| 848 | A 0005459211 | SWITCH |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 850 | A 0005451483 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| 852 | A 0005451583 | CAP |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| A 0015450615 | TELL-TALE LAMP | |
| Repalced by: A 0005451630 | ||
| 854 | A 0005451630 | SHELL |
| LESS LENS | ||
| 856 | A 0005452319 | SOCKET |
| 858 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 860 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| A 0005453790 | LENS | |
| Repalced by: A 0035453290 | ||
| 860 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 862 | A 0005451190 | LENS |
| HIGH BEAM | ||
| A 0005455290 | LENS | |
| Repalced by: A 0035453390 | ||
| A 0035453390 | LENS | |
| Repalced by: A 0065451990 | ||
| 862 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 864 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 864 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| A 0005455390 | LENS | |
| Repalced by: A 0035454190 | ||
| A 0035454190 | LENS | |
| Repalced by: A 0035455290 | ||
| 866 | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 868 | A 0005451790 | LENS |
| PARKING BRAKE | ||
| A 0005455190 | LENS | |
| Repalced by: A 0035453790 | ||
| 868 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 870 | A 0005450790 | LENS |
| DUMPER INDICATOR | ||
| 870 | A 0005454590 | LENS |
| DUMPER INDICATOR | ||
| 872 | A 0005452290 | LENS |
| BRAKE FLUID | ||
| A 0005455090 | LENS | |
| Repalced by: A 0055458890 | ||
| 872 | A 0055458890 | LENS |
| BRAKE FLUID | ||
| A 0005456290 | LENS | |
| Repalced by: A 0035455190 | ||
| 874 | A 0035455190 | LENS |
| OIL SUPPLY | ||
| 876 | N 072601012800 | BULB |
| 2 W | ||
| 878 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 880 | A 0009974335 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 880 | A 0009974435 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 882 | A 0009970425 | EXPANSION PLUG |
| PUSHBUTTON SWITCH | ||
| 882 | A 0009970525 | EXPANSION PLUG |
| PUSH BUTTON SWITCH | ||
| 884 | A 3816890808 | COVERING |
| TACHOMETER | ||
| A 0005500883 | PUMP | |
| Repalced by: A 0005501083 | ||
| A 0005501083 | PUMP | |
| Repalced by: A 0005502383 | ||
| 890 | A 0005502383 | PUMP |
| A 0009908867 | SEAL CONE | |
| Repalced by: A 0005550618 | ||
| 892 | A 0005550618 | SEAL CONE |
| REPAIR KIT | ||
| 894 | A 0019970578 | SCREW CONNECTION |
| 896 | A 0005550372 | NUT |
| 898 | A 0005550440 | HANDLE |
| 900 | A 3145550040 | BRACKET |
| 902 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 902 | N 000000000460 | SCREW |
| BRACKET MOUNTING | ||
| 904 | A 3165550040 | BRACKET |
| 904 | A 3165550140 | BRACKET |
| 906 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 906 | N 304017006018 | SCREW |
| BRACKET MOUNTING | ||
| 908 | N 912004006102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 910 | N 000934006007 | NUT |
| BRACKET MOUNTING | ||
| 912 | A 3359972282 | HOSE |
| ORDER BY THE METER | ||
| 4X1MM | ||
| 914 | N 072571002000 | CLAMP |
| HOSE | ||
| 916 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 916 | N 000000000460 | SCREW |
| HOSE | ||
| 918 | A 0009881778 | CLIP |
| HOSE | ||
| A 0005501104 | CAPSULE BORER | |
| Repalced by: A 0005501404 | ||
| 920 | A 0005501404 | PRIMER CAPSULE |
| STARTER PILOT | ||
| 922 | N 006798008101 | SERRATED WASHER |
| 924 | N 000934008021 | NUT |
| A 0009903767 | SEAL CONE | |
| Repalced by: A 0009909454 | ||
| A 0009903454 | NUT | |
| Repalced by: A 0009909454 | ||
| 926 | A 0009909454 | NUT |
| REPAIR KIT | ||
| 928 | A 0005550010 | FILLING CYLINDER |
| STARTER PILOT | ||
| 930 | A 3226890030 | CAP |
| TO PLUG THE FREE HOLE FOR STARTER PILOT PUMP | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
